Transfer punches recommendations please

[winchman]

Any top tips? Cheap ones all look to be imperial
Just for very occasional use mostly on metric stuff
Was looking at these.

Pardon our interruption...



[Smallfry]

Glad you mentioned these. I need some too !



[Stupoty]

Any top tips? Cheap ones all look to be imperial
Just for very occasional use mostly on metric stuff
Was looking at these.

Pardon our interruption...

I have a set that is one of the cheep generics , marked in metric units but i'm fairly sure they are in fact just the imperial ones with a different holder.

Stu



[optima21]

I got some a while ago, I cant remember where from, but they are upto 0.3 mm undersize, so may not be too accurate

Transfer Punch Sets - Arc Euro Trade

For punching hole centres using an existing part or template. Available in two sizes: Metric set 1-13mm x 0.5mm. Imperial set: 3/32"-17/32" x 1/64”

www.arceurotrade.co.uk



[Agroshield]

I got some a while ago, I cant remember where from, but they are upto 0.3 mm undersize, so may not be too accurate

What sort of accuracy are you expecting? 0.3mm undersize puts the divot no more than 0.15mm (0.005") from its true position. If your application requires better than five thou location accuracy, a transfer punch is not the correct tool to employ.



[Stupoty]

What sort of accuracy are you expecting? 0.3mm undersize puts the divot no more than 0.15mm (0.005") from its true position. If your application requires better than five thou location accuracy, a transfer punch is not the correct tool to employ.

Weirdly I just double checked my set and they came in the blue holder and were sold as metric but are in fact imperial marked on the holder.

Mine are also 0.3mm undersized of the marked (imperial) size

Stu



[Gragson]

I got the Arc Euro ones listed above, very good and nice solid holder.

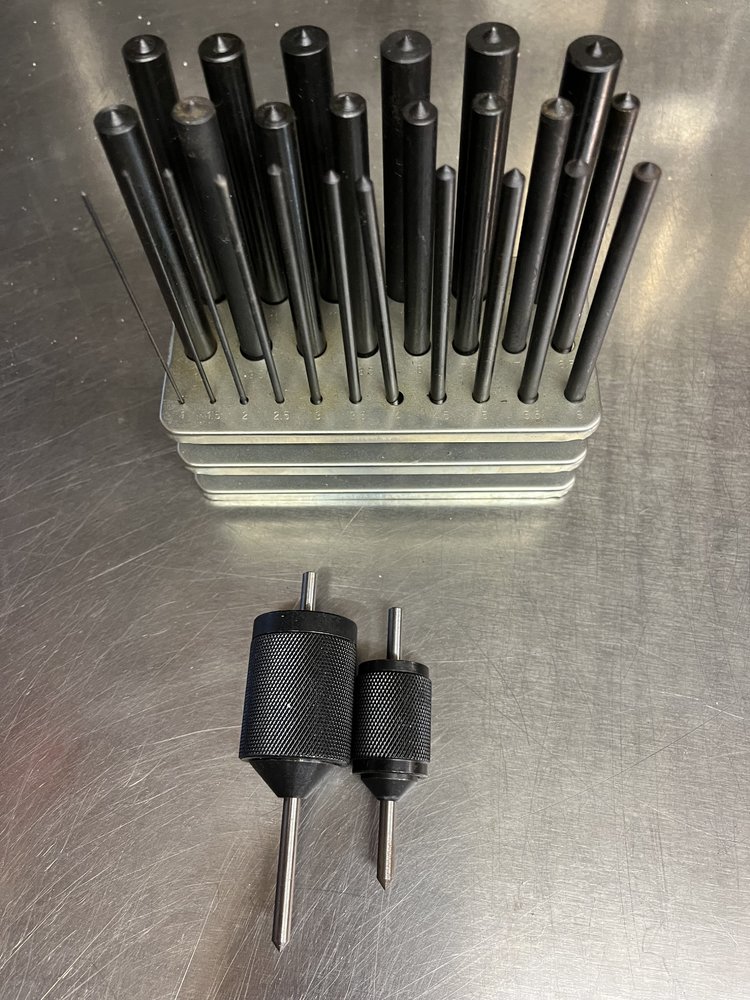

Also got the cup fit ones in the fore of pic, spring loaded cup fit, they have been useful for when I can't get a snug fit with the other set sizes.

Good tip from @8ob was just use them for a gentle witness mark to save them and then give the mark a good punch with appropriate punch.



[optima21]

What sort of accuracy are you expecting? 0.3mm undersize puts the divot no more than 0.15mm (0.005") from its true position. If your application requires better than five thou location accuracy, a transfer punch is not the correct tool to employ.

I expect them to be more accurate than that, if I drill a 10mm hole I expect it to be near enough 10mm



[Agroshield]

I expect them to be more accurate than that...

For that, you might have to buy a set of drill blanks and grind your own points onto them:

Interstate HSS Drill Blanks Set - Metric

41 Piece – 6-10mm in 0.1mm Increments

www.mscdirect.co.uk

It would be interesting to give some thought to the sizes you would actually use. How often do you need to transfer through a 10.0mm dia. hole? That hole size is no good as M10 clearance (too small), no good as M10 tapping (too big). About the only time you would need nominal size is if you are transferring for roll pins.

You could probably look at the pilot diameters on standard metric counterbores (for capscrews), which are designed to fit in standard metric clearance holes, and copy them.

[Does Ali sell these at a more reasonable cost?]



[8ob]

I got some a while ago, I cant remember where from, but they are upto 0.3 mm undersize, so may not be too accurate

Transfer Punch Sets - Arc Euro Trade

For punching hole centres using an existing part or template. Available in two sizes: Metric set 1-13mm x 0.5mm. Imperial set: 3/32"-17/32" x 1/64”

www.arceurotrade.co.uk

You could turn up a bush in the lathe to suit the od and make the id work for a smaller diameter punch.

Bob



[winchman]

Just bought these for the occasional roll pin

Pardon our interruption...



[not done it yet]

Just bought these for the occasional roll pin

Pardon our interruption...

Those are for removing roll pins, not for marking/transferring centres.



[winchman]

Those are for removing roll pins, not for marking/transferring centres.

I know I needed a set of them as well



[Greeves246]

The imperial ones are on offer until the 17th

Transfer Punch Sets - Arc Euro Trade

For punching hole centres using an existing part or template. Available in two sizes: Metric set 1-13mm x 0.5mm. Imperial set: 3/32"-17/32" x 1/64”

www.arceurotrade.co.uk



[mcostello]

Anything bigger than 1/2" gets a custom made bushing.
