Automotive crimping tool

madkayaker · Feb 15, 2013

Morning all. I know there is a few automotive wording people around well I have a tool question.

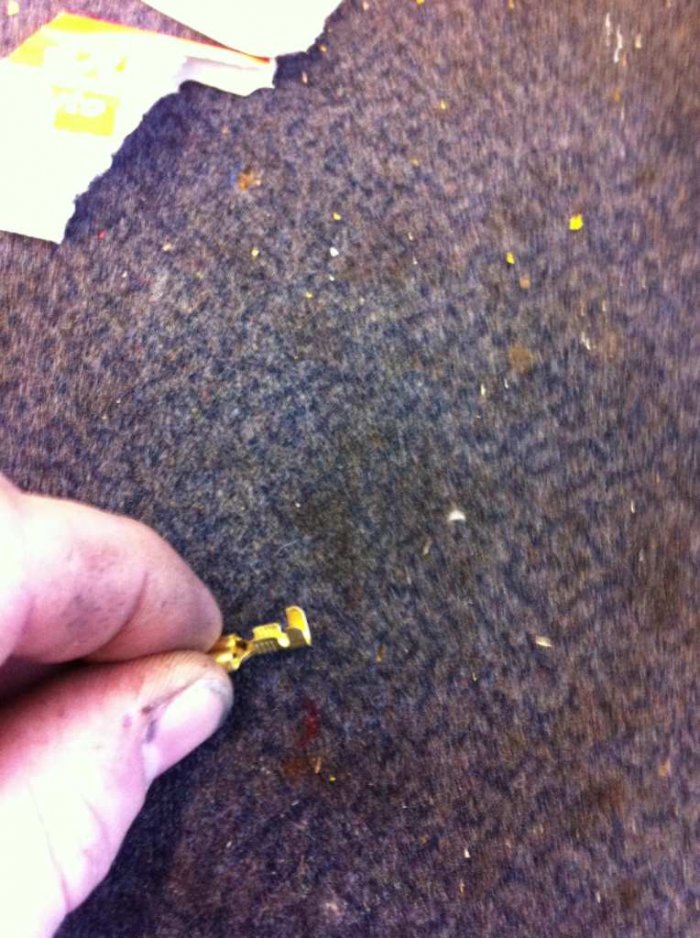

I'm after a crimping tool for terminals

ImageUploadedByTapatalk 21360918191.816178.jpg

My current method of pliers isn't consistent and struggle to do them properly with the cheep general use automotive ones.

Would like links to ratchet type (not paying vehicle wiring products money) but I do use a fair bit so happy to pay a bit

Thanks all

cecotto479 · Feb 15, 2013

I solder those, then crimp them over with pliers. Then heat shrink.

brightspark · Feb 15, 2013

why dont u just use the barrel insulated ones with standard ratchet crimps is there a limited space issue ??

danelectro · Feb 15, 2013

Go here and buy one of these tools.....they're made for the job, there are expensive versions, but I have this tool, and it works brilliantly

http://www.vehicle-wiring-products.eu/VWP-onlinestore/terminalsnonins/photo/mp71.jpg

Here's the link to buy the said tool, the reference is: MP71 £8.95 you can't go wrong!!

http://www.vehicle-wiring-products.eu/VWP-onlinestore/terminalsnonins/noninscrimps.php

madkayaker · Feb 15, 2013

brightspark said:
why dont u just use the barrel insulated ones with standard ratchet crimps is there a limited space issue ??

It's for multi plugs

madkayaker · Feb 15, 2013

danelectro said:
Go here and buy one of these tools.....they're made for the job, there are expensive versions, but I have this tool, and it works brilliantly

http://www.vehicle-wiring-products.eu/VWP-onlinestore/terminalsnonins/photo/mp71.jpg

Here's the link to buy the said tool, the reference is: MP71 £8.95 you can't go wrong!!

That's the kind of thing thanks

brightspark · Feb 15, 2013

madkayaker said:
It's for multi plugs

with you

danelectro · Feb 15, 2013

madkayaker said:
That's the kind of thing thanks

No problem, you can buy expensive versions, but these work just fine.

normspanners · Feb 15, 2013

http://www.ebay.co.uk/itm/Laser-Too...t=UK_Hand_Tools_Equipment&hash=item27c73fb0bb

You can have problems soldering this type of connector, I had one once where it cost us a rally, it had been over soldered (very easy to do) the solder had traveled up the wire (capilary action)and caused a shear point inside the insulation of the wire because it was on a multi plug everything looked and felt ok,but it just had to be the feed for the coil, it took ages to find because the break was not actually at the connector, but several mm up the wire

rtbcomp · Feb 15, 2013

Try these guys, they have a good range and prices are very keen

http://www.beal.org.uk/

CompoSimmonite · Feb 15, 2013

normspanners said:
http://www.ebay.co.uk/itm/Laser-Too...t=UK_Hand_Tools_Equipment&hash=item27c73fb0bb

You can have problems soldering this type of connector, I had one once where it cost us a rally, it had been over soldered (very easy to do) the solder had traveled up the wire (capilary action)and caused a shear point inside the insulation of the wire because it was on a multi plug everything looked and felt ok,but it just had to be the feed for the coil, it took ages to find because the break was not actually at the connector, but several mm up the wire

That's similar to what I've got - but I paid nearly £40 !
Once you have the proper tool you realise how much better the crimps are than any other method.
BTW I only crimp on vehicle wiring as too have had soldered joints fail due to vibrations.

Paul H

madkayaker · Feb 15, 2013

Thanks for the pointers will try the £9 ones next time I need to put an order in. I had Seen them but next to others that all seamed to be £40+ was concerned they would be rubbish

danelectro · Feb 15, 2013

madkayaker said:
Thanks for the pointers will try the £9 ones next time I need to put an order in. I had Seen them but next to others that all seamed to be £40+ was concerned they would be rubbish

I thought exactly the same, was very surprised how good they were for the money....to be honest, I don't think you need buy any other tool. They also work on bullet connectors, and different sizes of spade terminal.

Wallace · Feb 15, 2013

I have a couple of different pairs of the basic crimping tool for uninsulated type terminals, these crimp one part at a time as opposed to some of the ratchet type that can do both wire and insulation in one go. As crimp quality can vary, some tags curl perfectly every time while others start curling one side and flatten the other. If this happens I turn the crimp around and start the other tag curling then insert the wire and crimp. A bit of a ballache but the devil is in the detail and as Normspanners pointed out this can be the difference in reliability or winning and losing!

zzr1200 · Feb 15, 2013

madkayaker said:
Would like links to ratchet type (not paying vehicle wiring products money) but I do use a fair bit so happy to pay a bit

Thanks all

I may have a ratchet set (almost new) that I haven't used in a long time, if I can find them would you be interested???

madkayaker · Feb 15, 2013

I would. It's not something I'm in rush for but got some plans for the truck and would be much Easier if I had proper tool!

armalites · Feb 16, 2013

I have this one, great company to deal with.

http://www.autoelectricsupplies.co.uk/product/746/category/87

I would say if you are going to be crimping inserts for multiplugs get a good quality ratchet tool as it does the whole thing in one go, and they will look exactly the same as a factory job.

The crimps will be uniform and you won't have any issues fitting them in the plugs.

Also when using bigger mulitplugs you can't afford to make mistakes because cutting one wire shorter to redo may ruin the job.

Insulated crimps are great but they don't look as nice or professional as non insulated ones.

As also mentioned a decent ratchet tool rolls the ends in to grip the wire insulation.

welshpug · Feb 16, 2013

I have that very same Lazer one, does the job.

Robotstar5 · Feb 16, 2013

armalites said:
Insulated crimps are great but they don't look as nice or professional as non insulated ones.

I agree, but as a good selection of insulated crimps are a stock item at work I tend to use those :whistle:

madkayaker · Feb 16, 2013

Robotstar5 said:
I agree, but as a good selection of insulated crimps are a stock item at work I tend to use those

That's the case for me as well but sometimes multi plug is only way
