Triangular Box Section

[eSCHEn]

Looking for some equilateral triangular box section, about 50mm on edge. Does anyone know a supplier for a short (100mm) length? Bay of evil is not giving anything useful.

I could TIG something together but I'm not that great and it needs to look half decent

Suggestions gratefully received.



[Welderpaul]

Never seen it, just make it if its only 100mm long?



[Spark plug]

I've never seen it either.

You could get a suitable pice of angle and weld pice on the open side.



[eSCHEn]

Thanks both, was afraid of that. I've never heard of such a thing either (what use would it be?) Was hoping someone would say "Have you tried www.triangularboxsection.co.uk?"

Shall have to rely on my TIG "skillz"



[brightspark]

Thanks both, was afraid of that. I've never heard of such a thing either (what use would it be?) Was hoping someone would say "Have you tried www.triangularboxsection.co.uk?"

Shall have to rely on my TIG "skillz"

and an angle grinder



[eSCHEn]

and an angle grinder

And lots and lots and lots and

...

lots and lots of flap disks



[Paul.]

I used to make triangular section components for a packaging machine I used to build, made from 50 x 3 black flat 800mm long and fully welded with mig, to keep them straight you need to weld all 3 corners, so an angle and a flat doesn't really work too well, tip the job up a bit so that you are welding downhill, keeps the weld flat and lets you turn up the power so that you can move faster
Flap discs are not the best things for this kind of work, 36 grit fibre discs are much better.



[outofthefire]

Funny I was wondering if you could get triangular section the other day, I was thinking it would make good legs. You can buy it here's a link http://www.beverlysteel.com/product...chs-rhs-shs-seamless-tube-hollow-section.html but I bet it's not cheap.



[eSCHEn]

Cripes I bet that's eyewateringly expensive coming from Malaysia. This is the other half's idea and "could you do it by Wednesday?" Sigh it's a good job I love her.

Paul, did you abut the flat and use the MIG's thickness to fill in or did you put a sixty degree edge on it?



[brightspark]

might be easier to weld 3 flats if its going to go banana shaped



[Fazerruss]

I've never seen it either.

You could get a suitable pice of angle and weld pice on the open side.

He would need to use 3 pieces of flat stock or it wouldn't be an equal lateral triangle



[mike 109444]

might be easier to weld 3 flats if its going to go banana shaped

All I can think of now is banana flavored Toblerone........



[Paul.]

did you abut the flat and use the MIG's thickness to fill in or did you put a sixty degree edge on it?

No prep, just used the natural vee created at the corners, these had a slight radius on each corner when finished, end plates welded in with a shaft right through, (imagine a triangular conveyor roller) and were then rubber coated,



[eSCHEn]

No prep, just used the natural vee created at the corners, these had a slight radius on each corner when finished, end plates welded in with a shaft right through, (imagine a triangular conveyor roller) and were then rubber coated,

Ahh excellent. That sounded a lot easier in my head. I've only got pure Ar for the MIG as I'm set up for TIG but I think the higher bead might be helpful in this case - I need a sharp corner on each side and the item is ornamental not structural.



[Paul.]

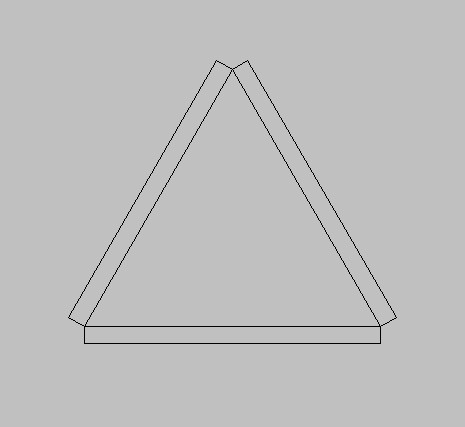

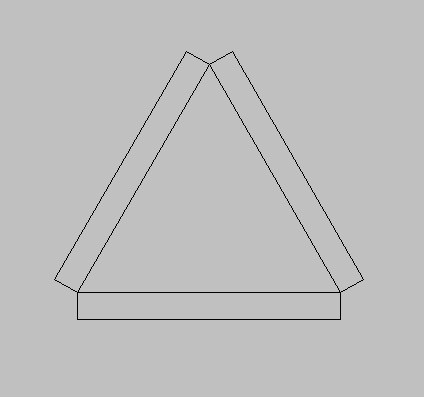

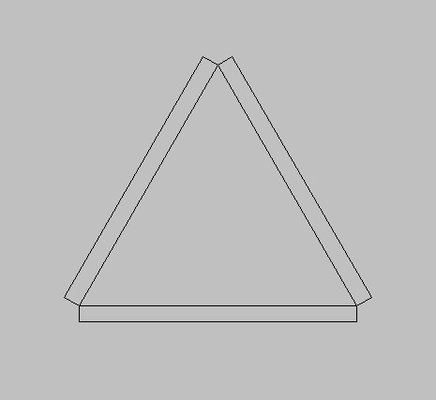

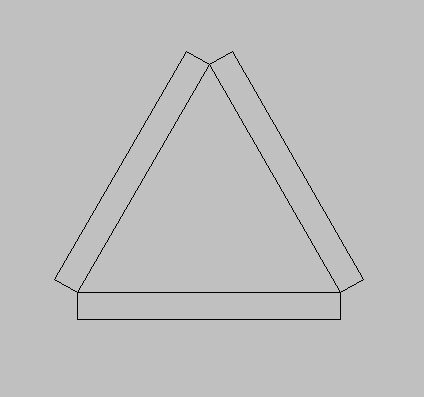

In 3mm it looks like this, nicely weldable, a slight prep would help to narrow the joint down a bit,



[eSCHEn]

In 3mm it looks like this, nicely weldable, a slight prep would help to narrow the joint down a bit,

View attachment 59278

That's exactly what I'd imagined Paul. I'll be using 5mm plate as that's what I've got available. This will be an interesting exercise for me to say the least

Still worth it though. OH is going to do the pads on the car in return, woo hoo!



[Paul.]

5mm is quite a bit wider, I would probably take the corners off, it will make the weld smaller and help with distortion, you want to blast down it as quick as possible to keep the heat down.
