Another what is it?

[Tinbasherdan]

Got this in a pile of tools, haven’t a clue what it is, any guesses?



[arther dailey]

depth gauge for toasted crumpets, missing the depth part,good make tho



[mtt.tr]

I'll have it from you, make a good base for a to squareness comparitor



[James1979]

Mitutoyo 7001-10 Dial Gauge Stand Hardened Serrated Steel Anvil 58mm - DML

Stand Features: Effective table dimensions: Ø 58 mm Column Ø: 30 mm Max. measurement height: 95 mm Measuring table: Serrated Fine adjustment: 1 mm Table flatness: 0.003 mm Stem hole ø: 9.53 mm, 8 mm with bush (standard accessory) Perpendicularity table-stem hole: 0.4/100 mm MPN: 7001-10 Brand...

digitalmicrometers.co.uk

Although I dont know why you need a serrated anvil? You can buy flat ones for it



[brightspark]

you clamp a dial gauge to it as a thickness gauge



[daleyd]

It’s the seldom seen mitutoyo griddle plate -for when you need your steak done very precisely



[Tinbasherdan]

Well that was quick! The serrated anvil threw me. Must say I’m still not 100% what to do with it



[stuvy]

Well that was quick! The serrated anvil threw me. Must say I’m still not 100% what to do with it

post it to @mtt.tr



[Tinbasherdan]

quick google and all became clear!



[Arc Tourist]

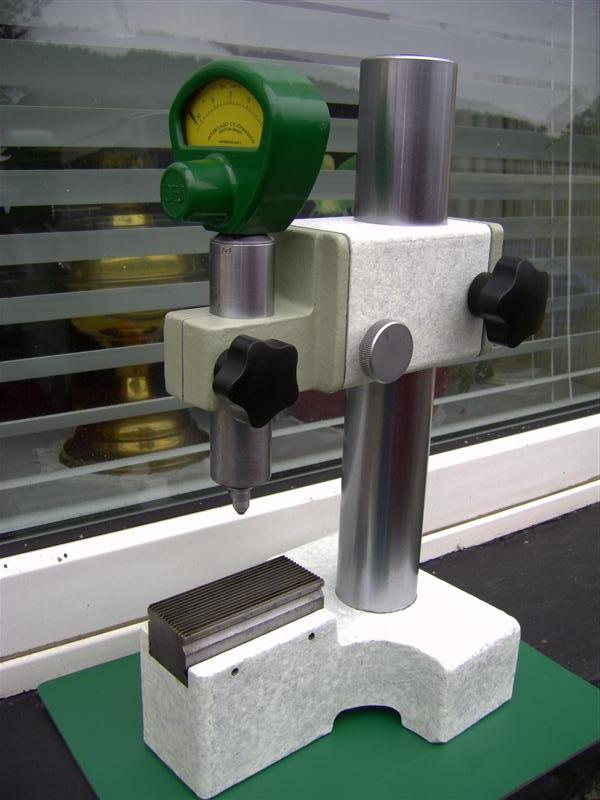

Its a comparator. Here is one variation which has a removable anvil that has both serrated and flat sides.



[rory1]

The serrations are so components with a good surface finish dont stick to it, (think of gauge blocks /slips when you ring them together.)



[Tinbasherdan]

Hell fire, they know how to charge for them



[Arc Tourist]

Well that was quick! The serrated anvil threw me. Must say I’m still not 100% what to do with it

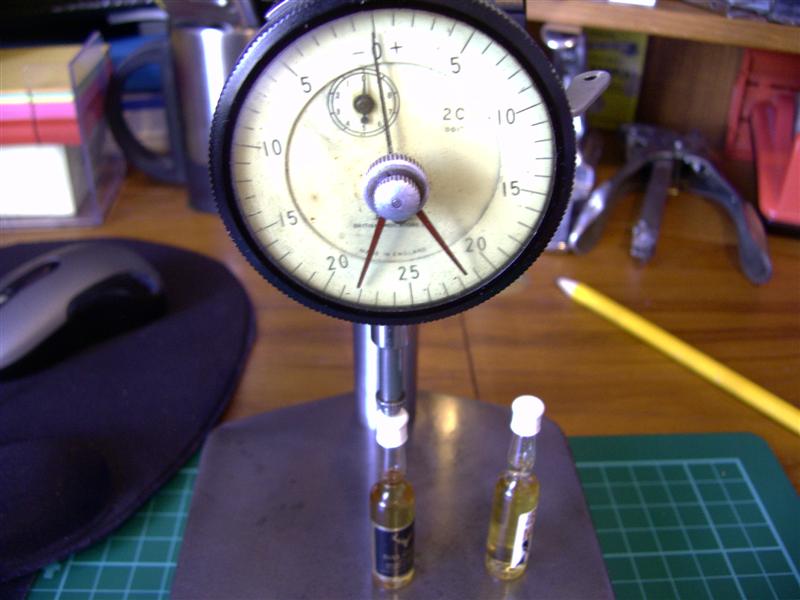

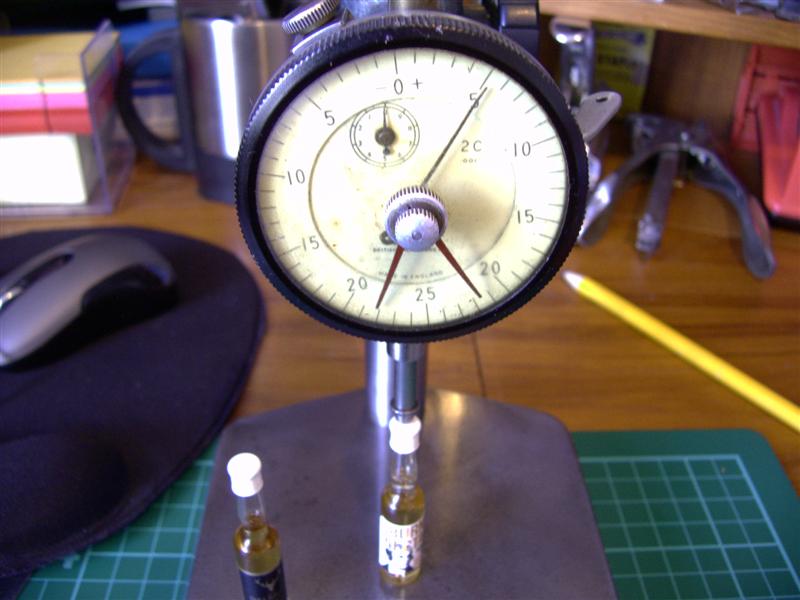

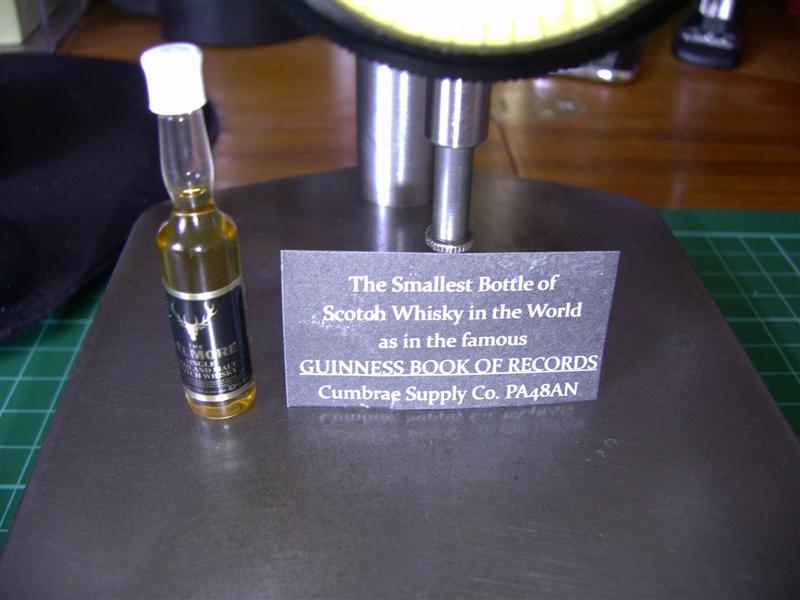

Mount a dial indicator to it, and you can check important things.



[Tinbasherdan]

The next question is, do I need a comparator



[brightspark]

The next question is, do I need a comparator

deffo if your measuring shims and ground parts everone should get one



[Arc Tourist]

The next question is, do I need a comparator

The answer is....... If you already have a dial indicator, you have a comparator. The stand should scrub up easily, just be careful not to clean the serrated anvil with any abrasive. Its a handy item to have to measure duplicate parts you may wish to make.



[TechnicAl]

We used to used similar to check if the wire was concentric to the coating of the electrode.......its important that the flux coating is consistent all way round, otherwise they burn lob sided.



[Tinbasherdan]

Not sure I overly need it but I suppose it doesn’t take much room up! Got a few other bits and pieces- will put some pics up as I sort them in the today you acquired thread



[Arc Tourist]

We used to used similar to check if the wire was concentric to the coating of the electrode.......its important that the flux coating is consistent all way round, otherwise they burn lob sided.

Hmmm, something I never thought about before.
