hi all, im pretty new to welding my own stuff and bought a used welder to help teach myself,
the thing is though i just bought a near new nu tool 101-2, bodyshop mig welder that the power lead had been cut off for another welder, (240v) other than that it was supposed to work, ive replaced the wire and the only thing happening is a click from the circuit board, but a closer look and iv found another wire that looks to have been cut but cant find where it goes,
im just wondering if anyone on here has got the same welder that could take a pic of the wires from the switch's so i can trace where it goes

cheers
oh if i get it working i think al be asking for more help ect later on
thanx again



[peterd51]

Hi,

welcome to the forum.

I'm not familiar with that particular welder but if you can post a picture or two then someone else may be able to offer advice.

Which side of the transformer is the loose wire 240v or from the lower voltage side?

Regards
Peter



[mudd]

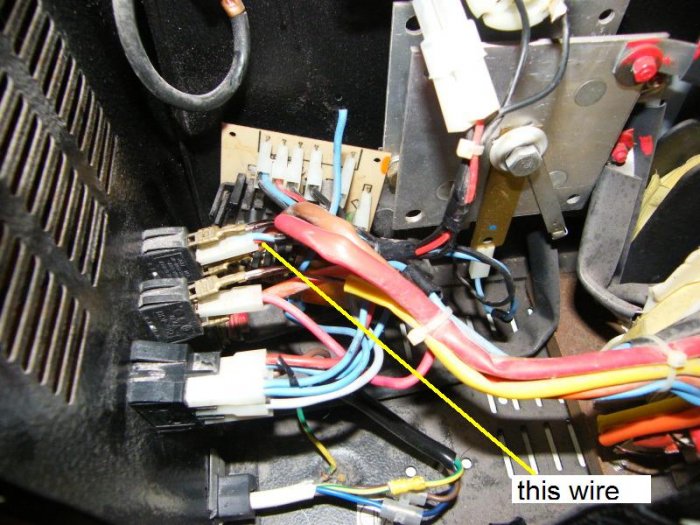

it the blue wire sticking up

comes from the white switch on the left



[the snooper]

where does the other end of the wire connect to ?



[mudd]

thats what im trying to find out



[pedrobedro]

Just join it to another blue one and see what happens



[excossack]

On the first picture you posted, the top most switch nearest the circuit board appears to have a bit of blue wire that appears not to carry on anywhere?



[the snooper]

where does the other end of the wire connect to ?

thats what im trying to find out

so im assuming from your responce above your loose wire only has one end

obviously i meant the end of it that is attached



[the snooper]

On the first picture you posted, the top most switch nearest the circuit board appears to have a bit of blue wire that appears not to carry on anywhere?

failed to spot that now you pointed it out
thats the problem its on the power setting switch



[mudd]

On the first picture you posted, the top most switch nearest the circuit board appears to have a bit of blue wire that appears not to carry on anywhere?

its a bit decieving from the pic, that is actually the wire thats sticking up, it looks like its been cut there as you pointed out but its actually black tape, the wire sticking up is the wire from that switch, but i cant trace where it goes,



[Iain Westland]

photo, unplug, photo, unplug

you have to methodically start stripping out the wires so you can see easier. if there are no other cut wires then its pulled from a socket maybe? when they are stripped out it will be easier to see

iain



[the snooper]

that wire is transformer related as its on the switch that controls the power settings so check the wires to the main transformer and look at the spade contacts on the pcb incase one of them should have 2 wires into it.
also trace the wires on the switching relay to check that one of them does actually go to the welding transformer



[mickeric]

Wher does the wire go?

I have a NW 130 but the wiring looks exactly the same.

On mine the blue wire goes to the fan -------- The fan is not installed or seen on your photo's



[mickeric]

it the blue wire sticking up

comes from the white switch on the left

I have a NW 130 but the wiring look to be exactly the same. On mine the blue wire goes to the fan. The fan is not installed on your photo, or seen



[octo0072000]

Note the stick on CE mark live torch ???



[Wedg1e]

I assume you plan to mount that circuit board properly at some stage? It'd be a bit of a bu993r (as Fred Dibnah might say) if it landed somewhere live and blew the thing to kingdom come.
