Bench grinder dust extraction

[Noods]

Anyone any advice on extracting metal dust from bench grinding .. I don't know which way to go.. An industrial fan with piping etc or a industrial vaccine cleaner plumbed to collect the black cloud directly behind the grinder.. Any of you guys a successful system in place...



[the snooper]

Anyone any advice on extracting metal dust from bench grinding .. I don't know which way to go.. An industrial fan with piping etc or a industrial vaccine cleaner plumbed to collect the black cloud directly behind the grinder.. Any of you guys a successful system in place...

surely you mean vacuum cleaner



[rtbcomp]

Vacuum cleaners tend to be very noisy, but they're easier to set up.

I'd go for something like this https://www.machinemart.co.uk/shop/product/details/cde35b-dust-collector



[Noods]

surely you mean vacuum cleaner

Ha... Speel check failure... X



[the snooper]

Ha... Speel check failure... X

I know the feeling well especially when using my phone



[Screwdriver]

I'm going to build myself a cyclone extractor. Got all the bits, just need the time.

S.



[vbottles]

How much grinding are you doing?
As solving the problem of dust is best solved by collecting as its made at source, but this is costly.
Have you looked at powered repirators/respirators?
Andrew
cyclone extractors add resistance to air flow. I use a tiny one based off bill pentze web page. Its ok though its designed for wood dust.



[Noods]

How much grinding are you doing?
As solving the problem of dust is best solved by collecting as its made at source, but this is costly.
Have you looked at powered repirators/respirators?
Andrew
cyclone extractors add resistance to air flow. I use a tiny one based off bill pentze web page. Its ok though its designed for wood dust.

It's more the mess with me... Angle grinding steel etc creates such a mess in a small workshop ... It's going to be difficult collecting from such a mobile device I guess..



[bc30se]

If you have a little time, do the search on the traffic cone dust extractor. They work very well



[rikrobson]

alot of modern vacuum cleaners have the air go over the motor, so you would need to seperate the filings out first and ensure that they dont hot the motor



[skotl]

If you have a little time, do the search on the traffic cone dust extractor. They work very well

Wow - that's pretty clever!



[Screwdriver]

I have a cunning plan:

plus

when time permits...

S.



[vbottles]

Try searching for bill pentz. An American who has plans and calculations for making cyclone spectators. I based mine on his smallest. His designs are for word dust but work OK for grinding.
Andrew



[Screwdriver]

Here's the plan.

I've put the fan and motor unit as low as possible because I want this to be portable to double up as a garden blower/vac!

S.



[Maker]

Looks good but have a read of Bill Pentz's site for the various important measurements and dimensions.



[brightspark]

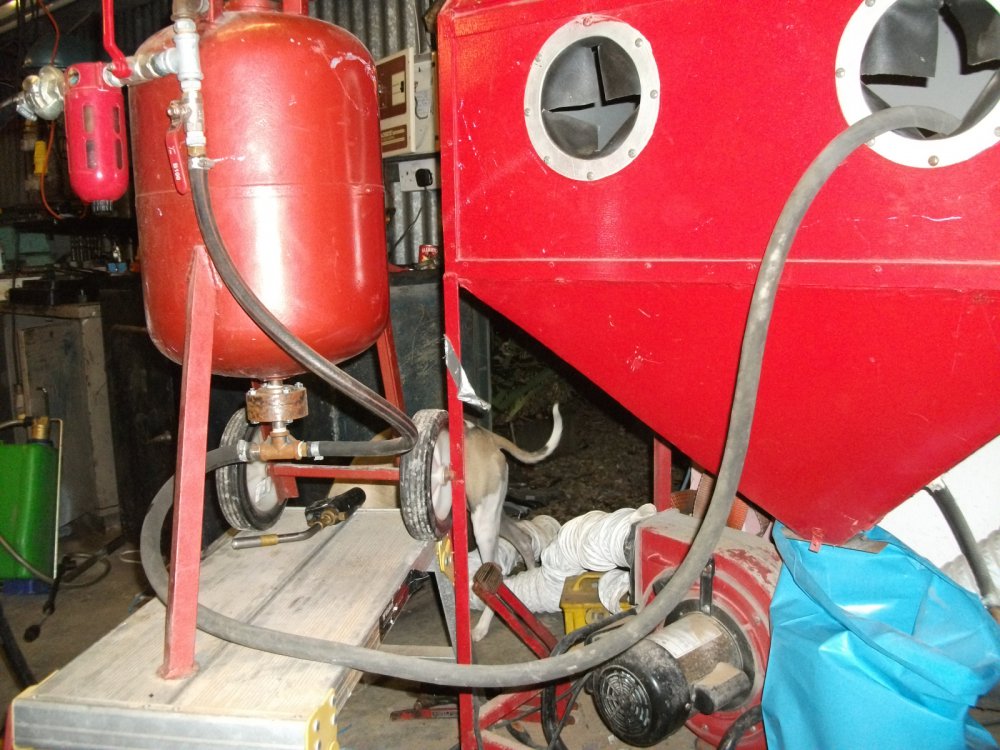

heres mine a woodchip extraca and then out of the door in a 4 inch pipe



[Screwdriver]

Looks good but have a read of Bill Pentz's site for the various important measurements and dimensions.

No thanks. He's made some glaring errors already and there are much better, more informed designs out there. For example, his extractor spins the air one way but the inlet to the cyclone spins the other. That's a very entry level flaw...
