Broken kitchen door hinge plate

[GrahamGKD]

Hi Folks,

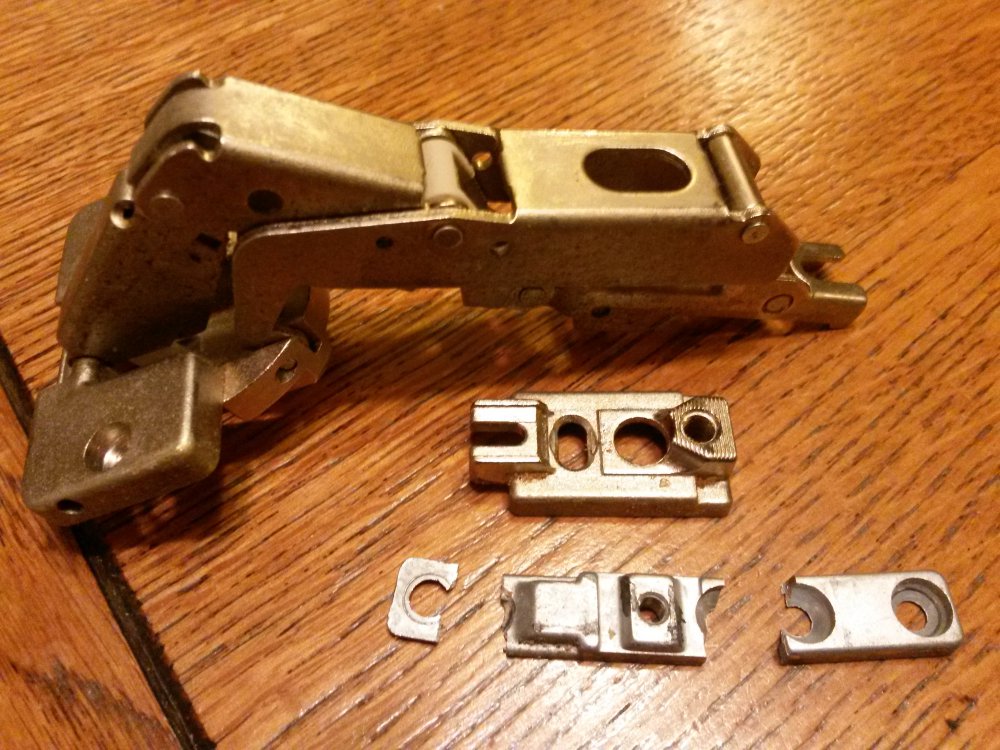

Does anyone have any idea where I can source a plate to replace the broken one pictured. I've looked through loads of pictures on Google but can't see anything like it. It will be a fiddly thing to make.



[the snooper]

used to have a load of these at work will look tomorrow but cant promise anything they could well have been binned by now.

if you have to make one cut out the raised sections then plug weld them through the back of the larger plate then drill and tap



[MoreWellie]

I know it goes against every normal instinct but in this case what about buying a replacement

There may not be anything totally identical but a couple more screwholes in the door or cupboard skin shouldn't matter



[colnerov]

For what they cost go and buy a new hinge.



[GrahamGKD]

I know it goes against every normal instinct but in this case what about buying a replacement

There may not be anything totally identical but a couple more screwholes in the door or cupboard skin shouldn't matter

For what they cost go and buy a new hinge.

Shame on you both - that's a perfectly good hinge (and better quality than a lot I have seen) - all I need is a new plate ;-)



[Mr Fro]

Hafele do them. For the sake of a few quid I'd just buy a new unit.



[GrahamGKD]

used to have a load of these at work will look tomorrow but cant promise anything they could well have been binned by now.

if you have to make one cut out the raised sections then plug weld then through the back of the larger plate then drill and tap

I lost you when you mentioned plug welding. I figure I can file most of it out of a bit of stainless flat. It is those two recesses on the sides (making a fat T shape on it's side towards the LH side as pictured) which will be tricky to hand craft. I could set up a little mill cutter in the lathe and use the vertical slide but buying a cutter will cost more than replacement hinges! Those little recesses allow vertical adjustment of the door.

Will be great if you do have some :-)



[Screwdriver]

Glue it to a backing plate and recess the extra into the frame.

Looks like pot metal which won't weld but with it being firmly bolted in place, a decent metal glue should hold it.



[the snooper]

The t shape part you could cut as a separate part then plug weld onto the main part



[GrahamGKD]

The t shape part you could cut as a separate part then plug weld onto the main part

Ah yes, good idea.



[Parm]

Ironmongery direct is the web site you need



[GrahamGKD]

Ironmongery direct is the web site you need

Thanks - good site but I can't see anything quite like my hinge.

Hafele do them. For the sake of a few quid I'd just buy a new unit.

Thanks - had a look through the Hafele range and can't find anything with the same kind of mounting as mine.



[Mick B]

Have a look at the "Hettich" range of hinges here .............. http://web2.hettich.com/hbh/Start.d...U&CatalogId=procat_au_530&distributorId=90081
Or try this one ............... http://www.hettich.com/uk_EN/products/hinges.html

Or go to your nearest joinery shop with the broken hinge and I'm sure they will have one for you. There are lots of different types and manufacturers, but mostly they all use the same size holes and centres.



[Windy Miller]

used to have a load of these at work will look tomorrow but cant promise anything they could well have been binned by now.

if you have to make one cut out the raised sections then plug weld them through the back of the larger plate then drill and tap

If the Snooper can't find one at work, let me know and I'll send you down a complete hinge. I have a few spares kicking about in the garage.



[ronan]

Some of those hinges can be very expensive. I went to buy one for my sister, it had broken like the one in the picture. It was used to hinge a door off the front of a bosch washing machine in a built in kitchen. 80 euros, but i got one cheaper.



[taxi ray]

When I worked at a scrap metal place, we got lots of them and they were mostly zinc.



[the snooper]

im sorry to say I didn't find any they must have fallen victim to the skip, which is annoying when someone could have used them they were all brand new in bags.



[GrahamGKD]

im sorry to say I didn't find any they must have fallen victim to the skip, which is annoying when someone could have used them they were all brand new in bags.

OK, thanks for checking. I think I will have a crack at making a replacement plate - it will be an interesting exercise and satisfying if it works.



[GrahamGKD]

If the Snooper can't find one at work, let me know and I'll send you down a complete hinge. I have a few spares kicking about in the garage.

Thanks for very much for the offer. Unless you happen to have have one of the same design as mine I think I will see if I can make a replacement for the broken part.



[starlet kp]

By the look of that i assume the two screws that fix it to the carcass are inline with the hinge instead of the conventional above and below method,this in turn appears to put a lot of stress on that 1st screw hole. My worry would be that the rest of them are about to do the same and it will become like the forth bridge. for the sake of a couple of pilot holes in the right place i would replace it with a standard hinge. toolstation stock a repair plate for the carcass i would use this as a template for the new holes it will position them corectly
