Capacitor wiring on fiac compressor

[Brasso88]

Anyone help me out with wiring the starter and run capacitor in on a fiac compressor that I’ve bought? Bought a fiac 150l single phase compressor but the person took the capacitors out to test in another compressor he had but didn’t know which way to wire them back in, can anyone help me out or even send a picture of there’s if they have the same compressor



[julianf]

I've go a fiac Michigan (1ph, 3hp)

I reckon someone smarter than me will be along in a moment with directions as to how it's wired, but, failing that, I can take the lid of mine, and point a camera at it, but it won't be for a couple of days.



[daleyd]

I’ll try and grab you a pic of mine today



[Chippie]

Start capacitor is the larger value of the two….
I can’t seem to attach a drawing



[Bond]

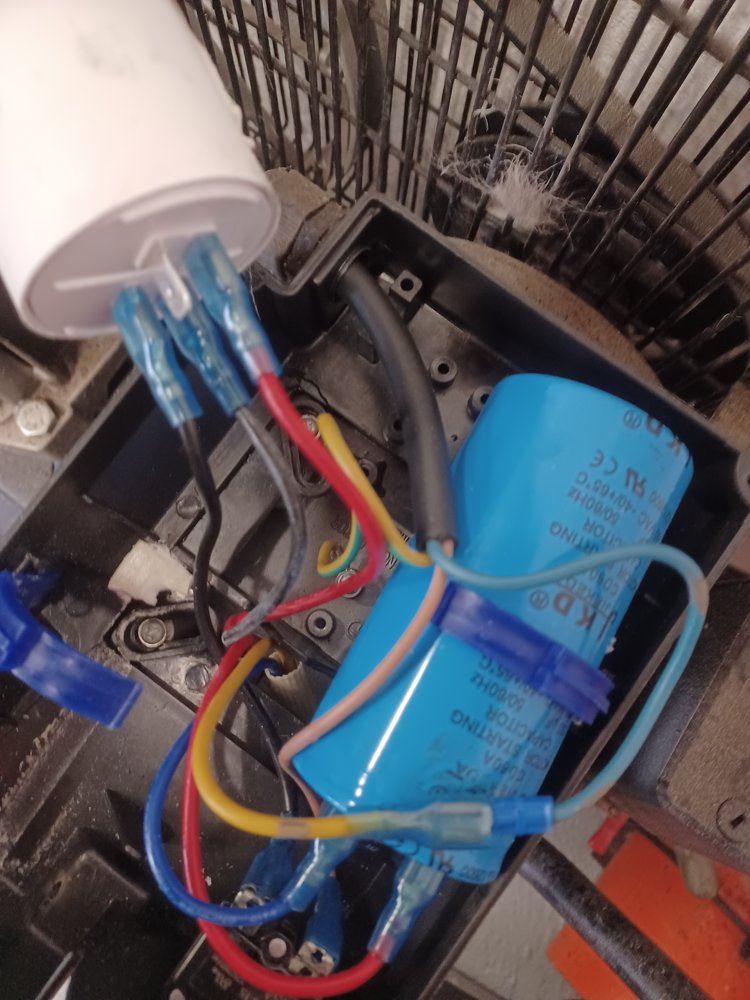

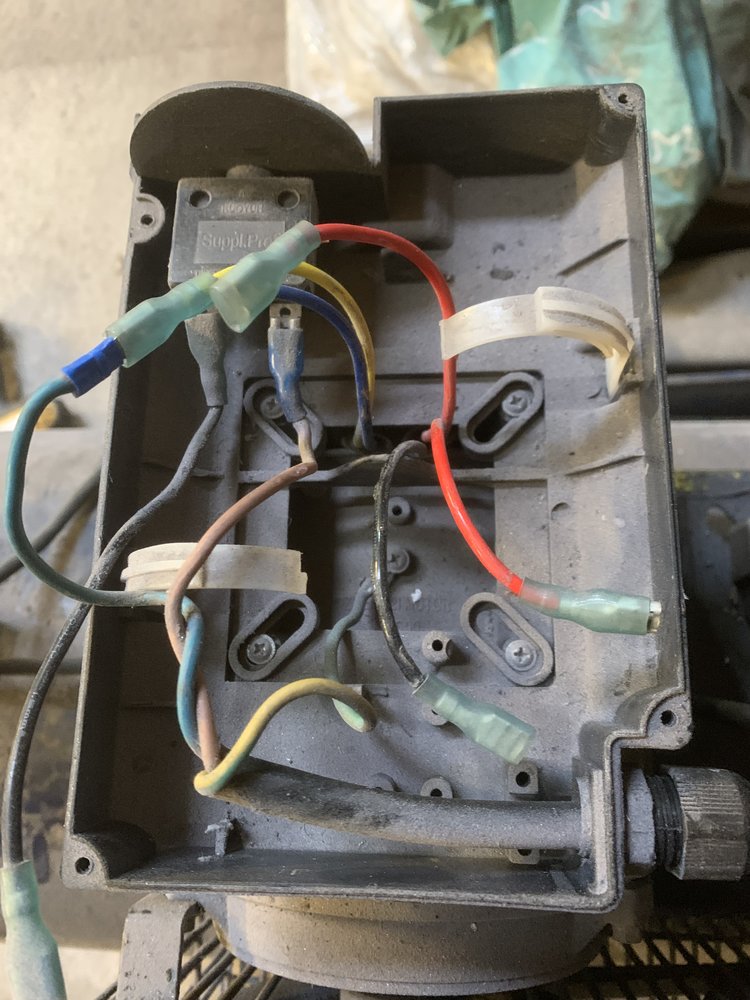

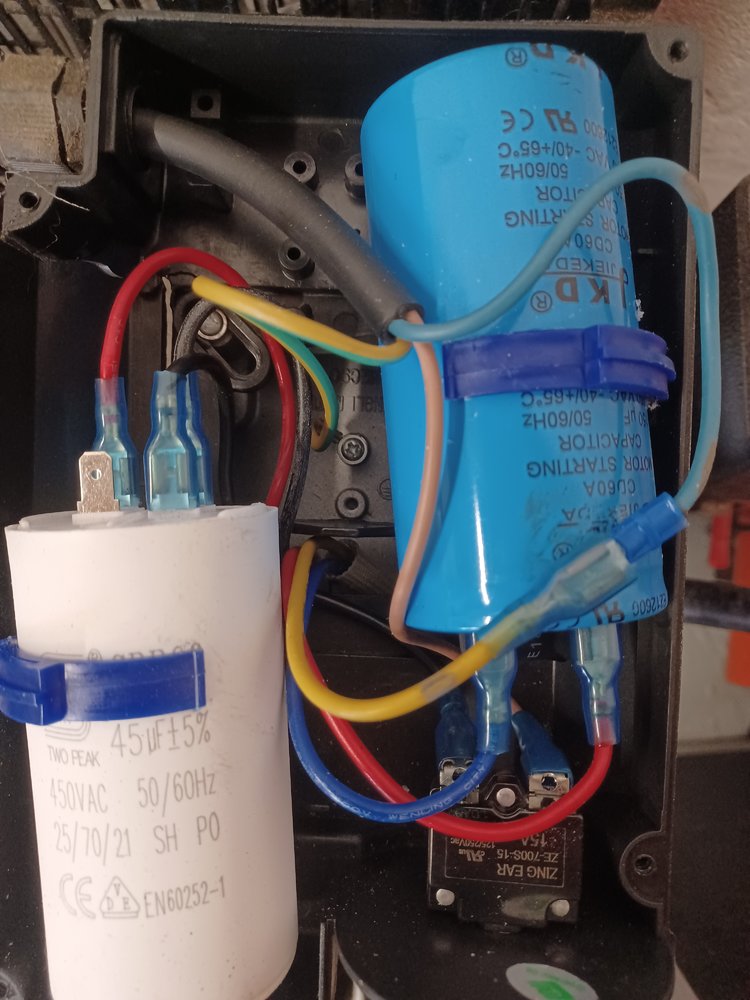

Here u go
