Clarke 3 phase compressor wiring

[James87]

Hi

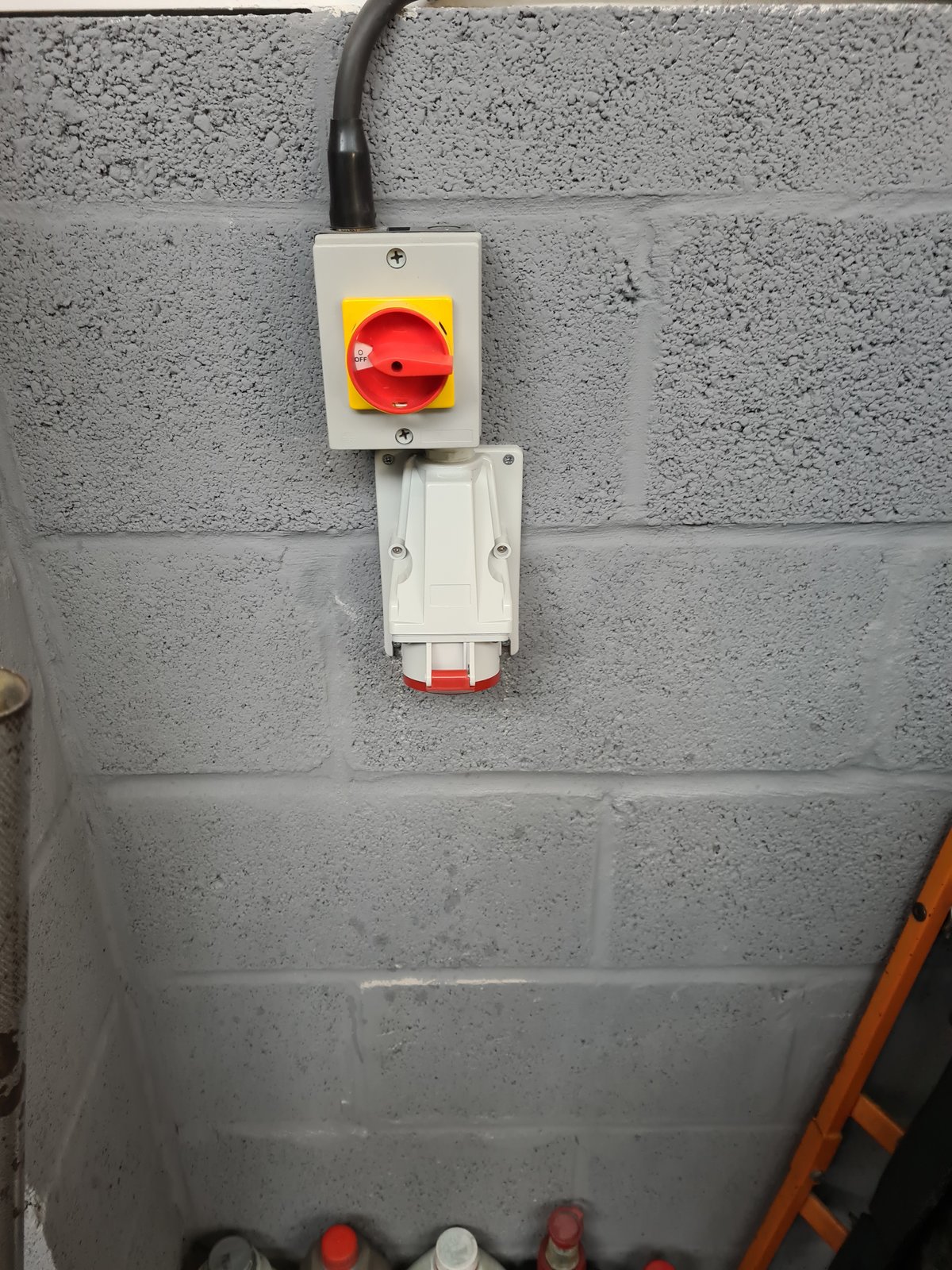

So I've had the below compressor for around 2.5 years. Purchased from Facebook knowing nothing about compressors. Was running on a 13amp plug.

Seems one of the massive capacitors has died and now useless unless I have a 3 phase supply. However, have just moved workshops and have 3 phase

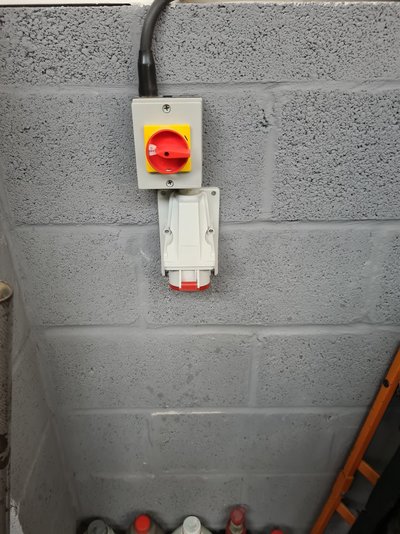

Looking for wiring diagram for it so I can hook it up to the 3 phase socket.

The clarke manual is generic and useless.


Its stamped 2012 if that makes any difference



[carbon]

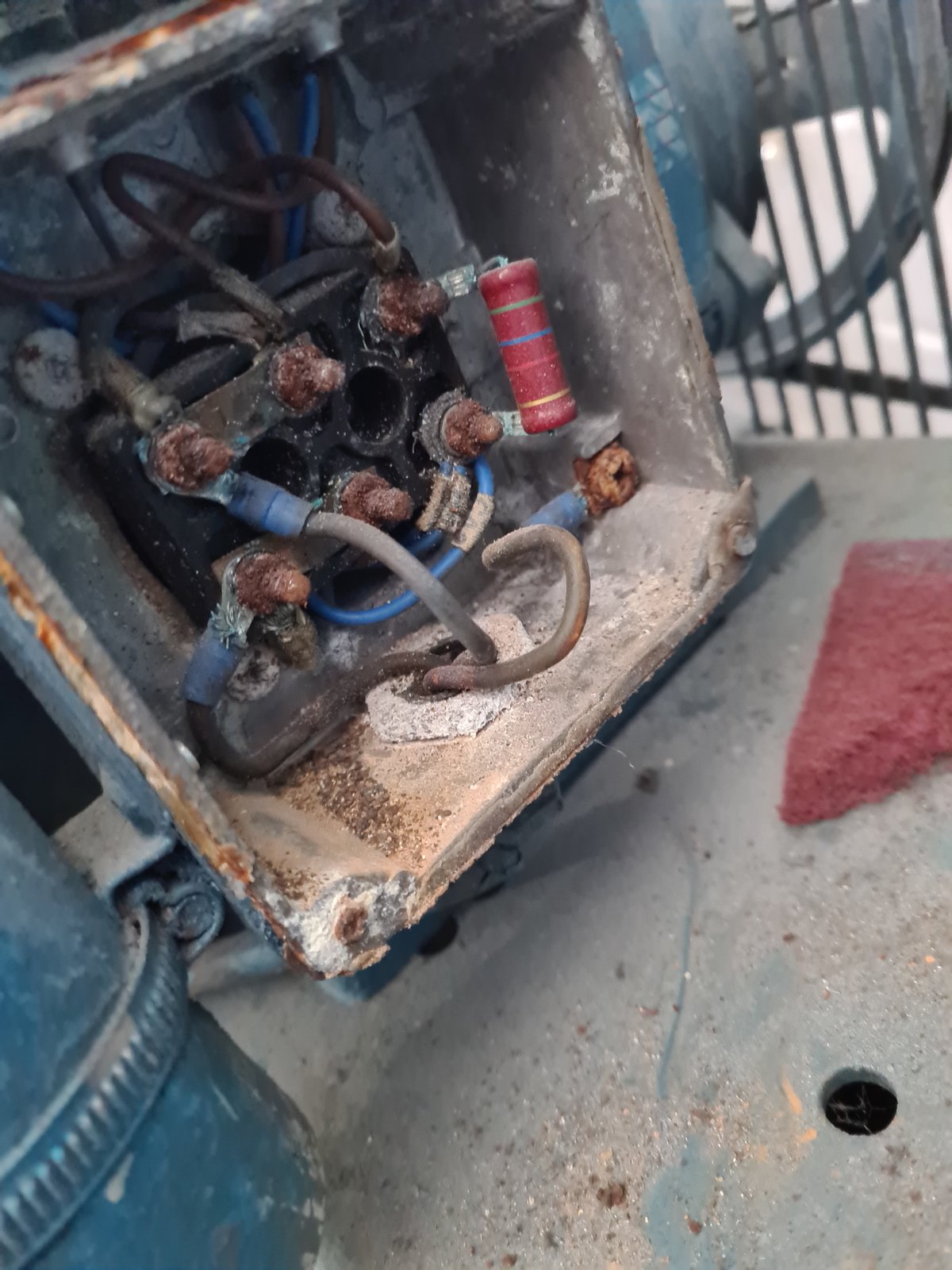

It looks like a single phase motor to me but the info from the data plate on the motor would be better



[Bornfree]

Is there a connection diagram inside the terminal box cover?



[James87]

It looks like a single phase motor to me but the info from the data plate on the motor would be better

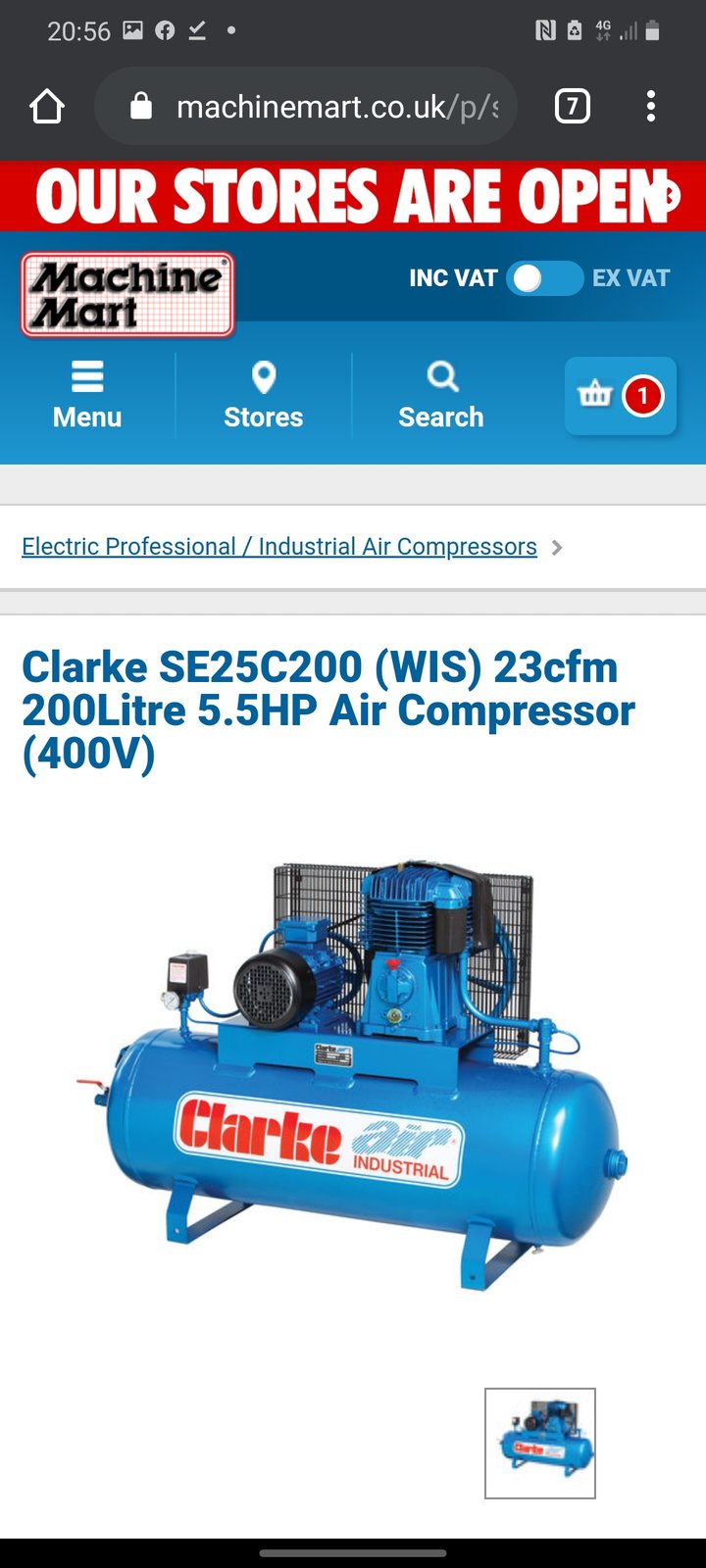

Seems my last picture didn't post. Its one of these



[James87]

Is there a connection diagram inside the terminal box cover?

I wish its rusty and was held on with silicone



[Seadog]

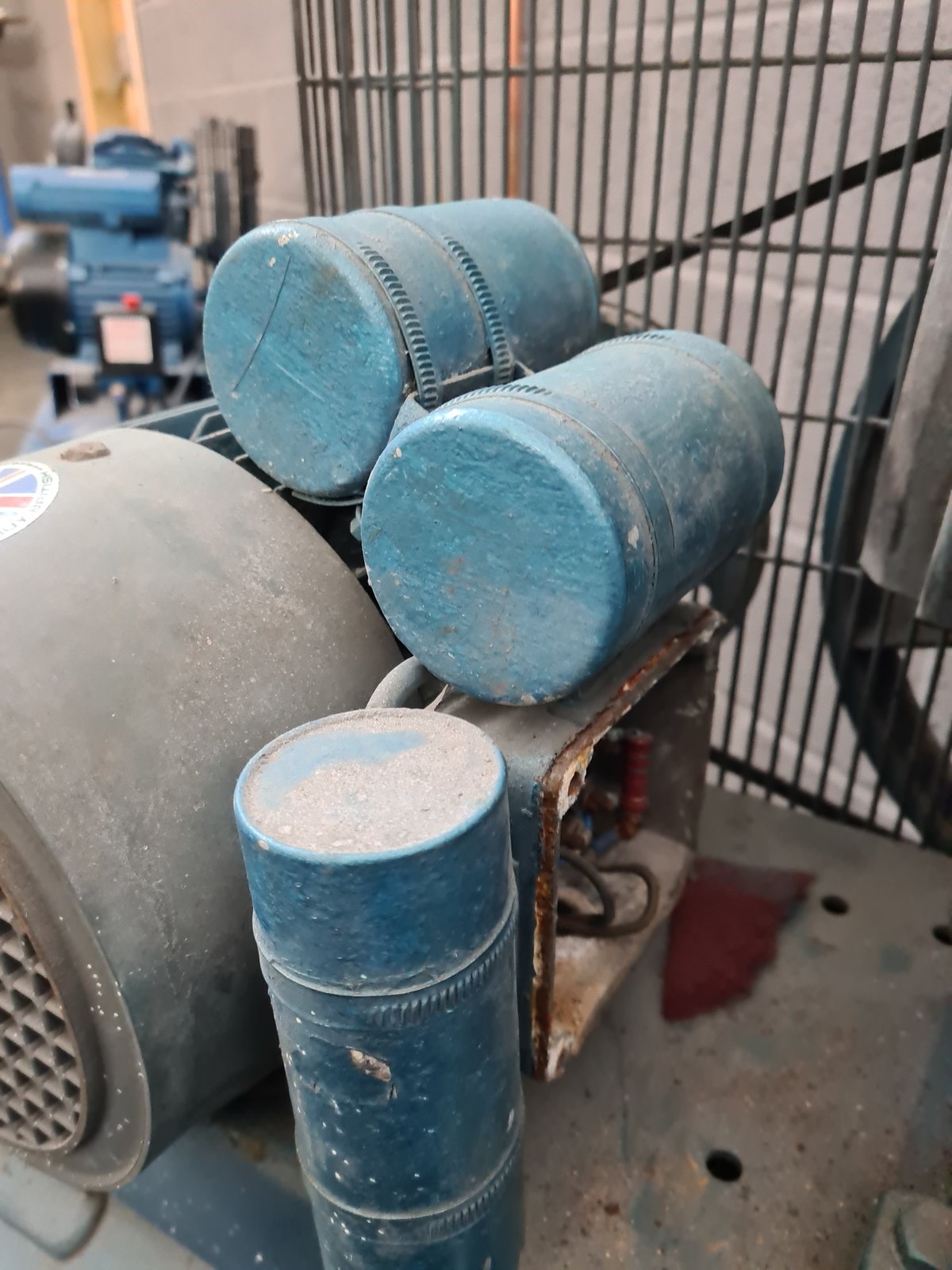

It looks like a 3-phase terminal block. The capacitors suggest that it may have been frigged to run (badly) on single phase. We do need to see the motor rating plate.



[James87]

It looks like a 3-phase terminal block. The capacitors suggest that it may have been frigged to run (badly) on single phase. We do need to see the motor rating plate.

Will grab a picture in the morning



[Bornfree]

If it is the one pictured I would remove all the capacitors put the links across the top or bottom three terminals and connect the 3ph supply to the other three.



[brightspark]

if it is 3 phase the motor it will be marked 230 and 415v 3 phase dual voltage not single phase .get rid of the capacitors and set the links for high voltage 415 volt



[carbon]

It looks like a 3-phase terminal block.

Whats the difference between the terminal block in a single phase motor compared to a three phase one? Nearly all the single phase motors I see have exactly the same six stud terminal block

The capacitors suggest that it may have been frigged to run (badly) on single phase

Ive seen this wiring on a few single phase motors from the factory, think it could be a brook crompton one, but not 100% sure of the make.



[Seadog]

Whats the difference between the terminal block in a single phase motor compared to a three phase one? Nearly all the single phase motors I see have exactly the same six stud terminal block

Perhaps they fit them on new motors, but generally there are only four wires to worry about with a single phase.

We still haven't seen the rating plate



[carbon]

Perhaps they fit on new motors, but generally there are only four wires to worry about with a single phase.

Thanks for that, not sure I would call some of the motors I've dealt with in the last 35 years to be modern, but nearly all the ones I see are permanent cap motors and use one of the studs to connect the capacitor to



[James87]

Perhaps they fit them on new motors, but generally there are only four wires to worry about with a single phase.

We still haven't seen the rating plate

Its definitely 3 phase, can't get to the plate easily and is covered in crap, my leccy friend is wiring it up this week



[WorkshopChris]

Its definitely 3 phase, can't get to the plate easily and is covered in crap, my leccy friend is wiring it up this week

Good luck with those bolts might be worth getting a new motor terminal block now, ready for when they shear off.
