Clarkes dg6000dves generator

[condor]

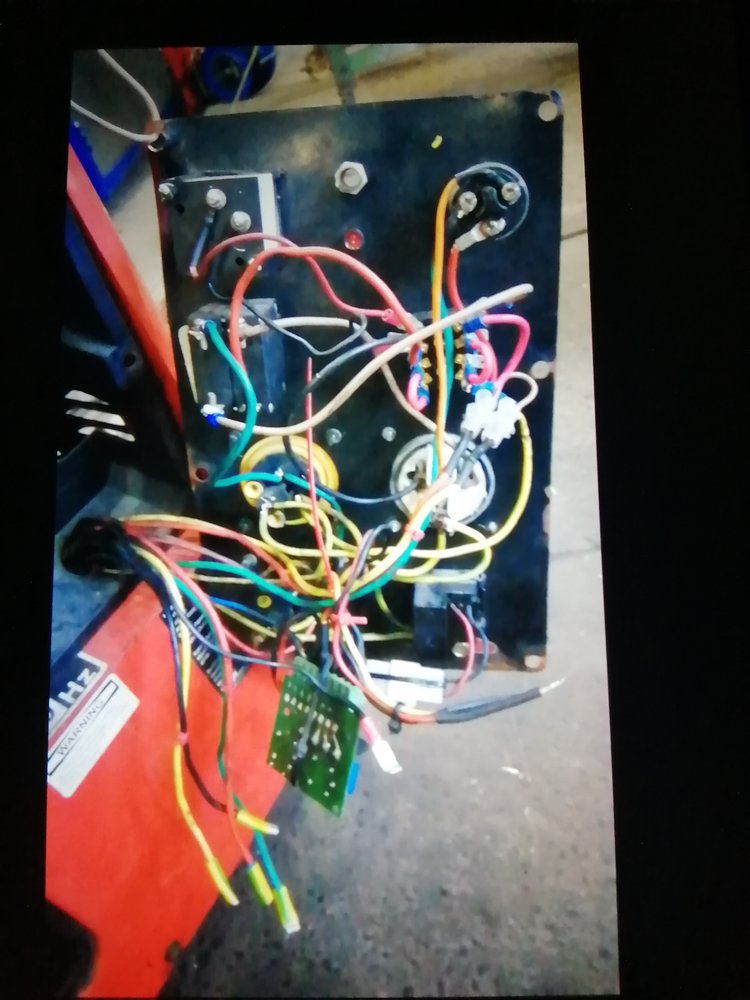

Hi,i got a secondhand gen but some of wires/cables are disconnected on back of electrical panel i was hoping someone could tell me where to get wiring diagram or even pics/photos of back of panel so i can connect them correctly its a clarkes dg 6000dves generator tia



[RWD3M]

Try Clarke.



[bourbon]

Are you sure of the model number as I can't find it on the clarke international website
EDIT; I didn't look hard enough!

https://www.clarkeservice.co.uk/manuals/generators/DG6000DVES_rev_2.pdf



[condor]

I have downloaded manual but theres no electrical diagrams i have searched but cant find anywhere



[sardine]

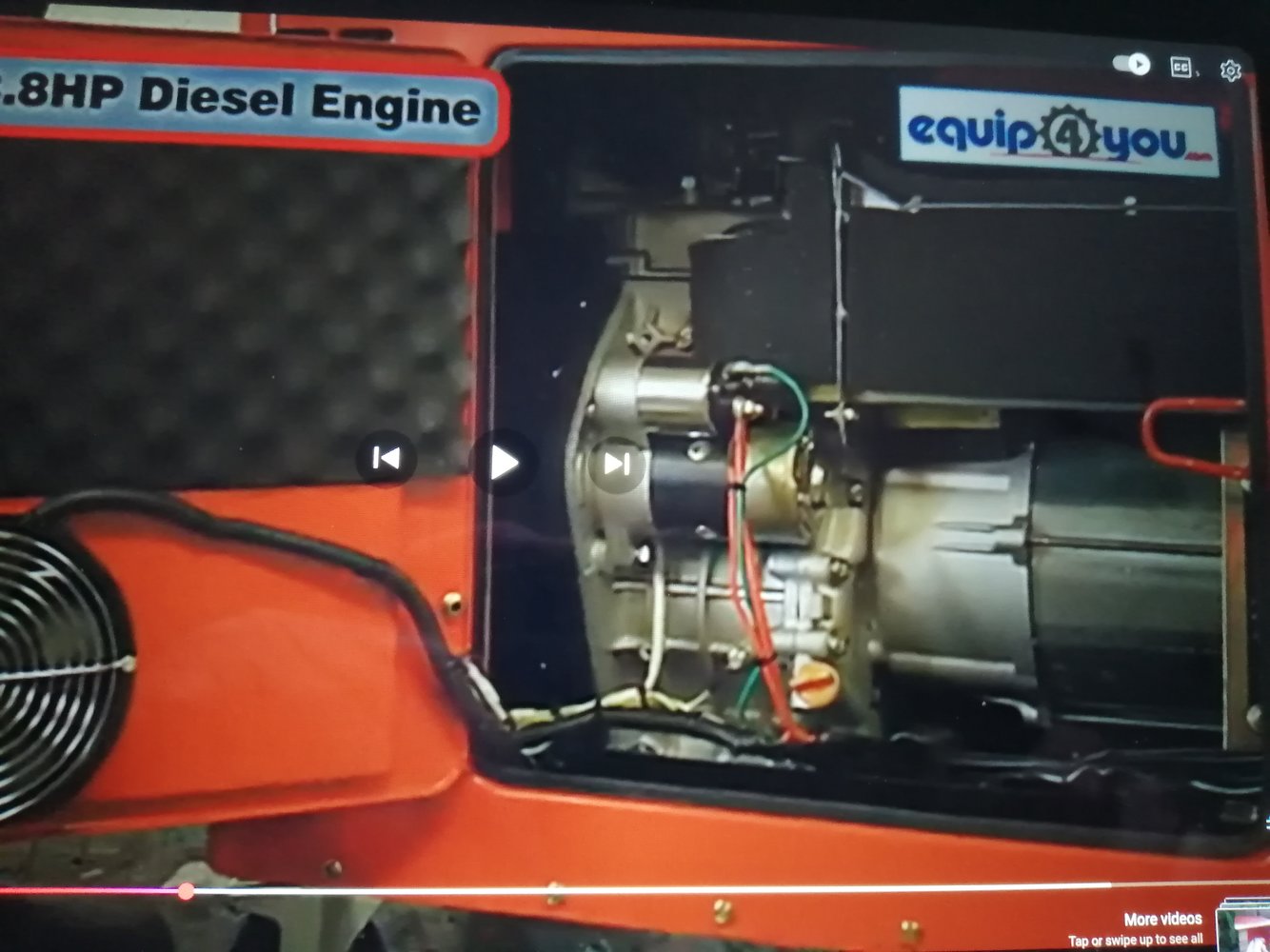

It's the same basic panel as all the other versions of this 5kw Diesel generator, with the knock off Yanmar L100 engine, can you put up a pic of the panel wiring ?

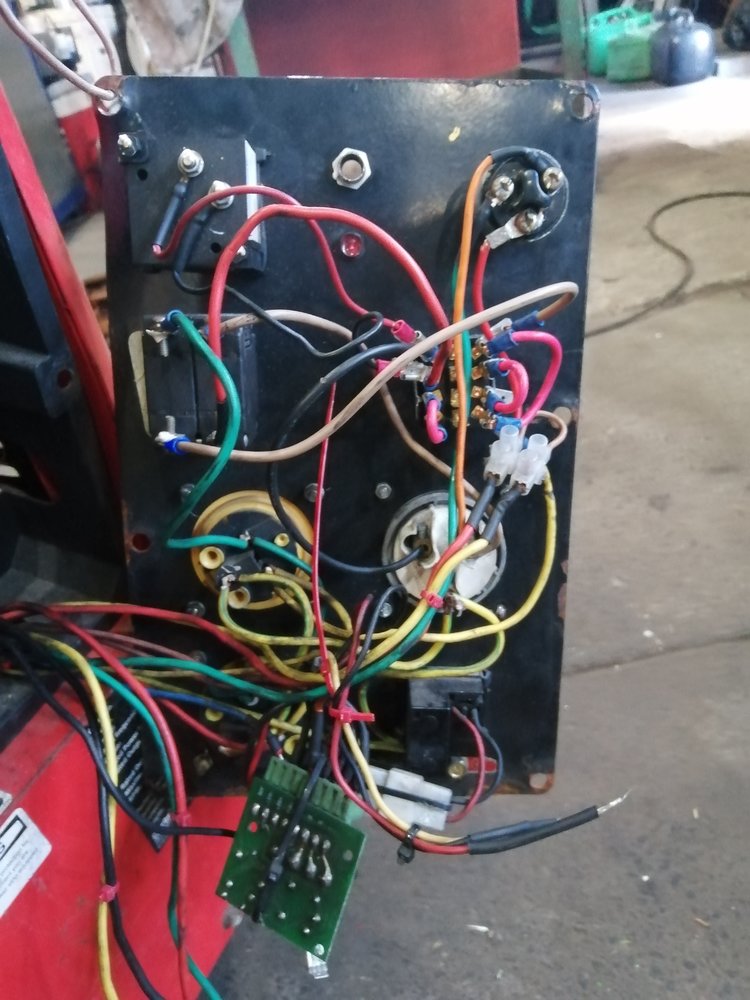

I have one here that I had to trace all the panel wiring last year.



[bourbon]

can't phone tech at weekends. I'm at a funeral on Monday. Give me a reminder Monday night, and I'll see what I can do.



[condor]

It's the same basic panel as all the other versions of this 5kw Diesel generator, with the knock off Yanmar L100 engine, can you put up a pic of the panel wiring ?

I have one here that I had to trace all the panel wiring last year.

It's the same basic panel as all the other versions of this 5kw Diesel generator, with the knock off Yanmar L100 engine, can you put up a pic of the panel wiring ?

I have one here that I had to trace all the panel wiring last year.

can't phone tech at weekends. I'm at a funeral on Monday. Give me a reminder Monday night, and I'll see what I can do.

Thanks



[sardine]

It will be something like this
Have you got the AVR present ? ( black box with 4 or more wires )



[condor]

Thanks for your time and effort on this



[bourbon]

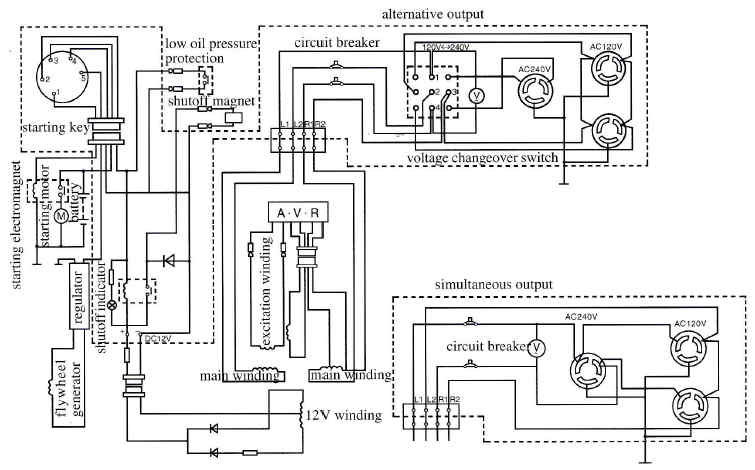

OK then. I remembered to phone our tech department this morning. Dick went through the files on the listed Genny and I got a diagram. It's in a PDF but the Luddite in me can't post it here. says something about file type invalid



[condor]

OK then. I remembered to phone our tech department this morning. Dick went through the files on the listed Genny and I got a diagram. It's in a PDF but the Luddite in me can't post it here. says something about file type invalid

My email is icon50@mail.com if you can send me it i would appreciate it thanks



[bourbon]

@RWD3M, You know why I'm a Luddite. you have seen us!
