Dividers question

[8ob]

Does anybody know where I can purchase a large pair of dividers that take engineers chalk? Mine have gone awol and they dont seem to exist on tweb, dont want the ebay versions that take blackboard chalk, I want the ones that take the flat engineers chalk sticks.

Thanks in advance

Bob



[James1979]

No but when you find some, let me know!

They’re like the proverbial



[brightspark]

make some



[The_Yellow_Ardvark]

Sorry to say, I have a set.
I am hanging on to them.



[Tangledfeet]

Sounds like you want an old blackboard compass (rather than divider) if you want chalk in one leg..?

Googling for 'blackboard compass' throws up a few options.

Edit: just noticed the flats chalk caveat...



[500e]

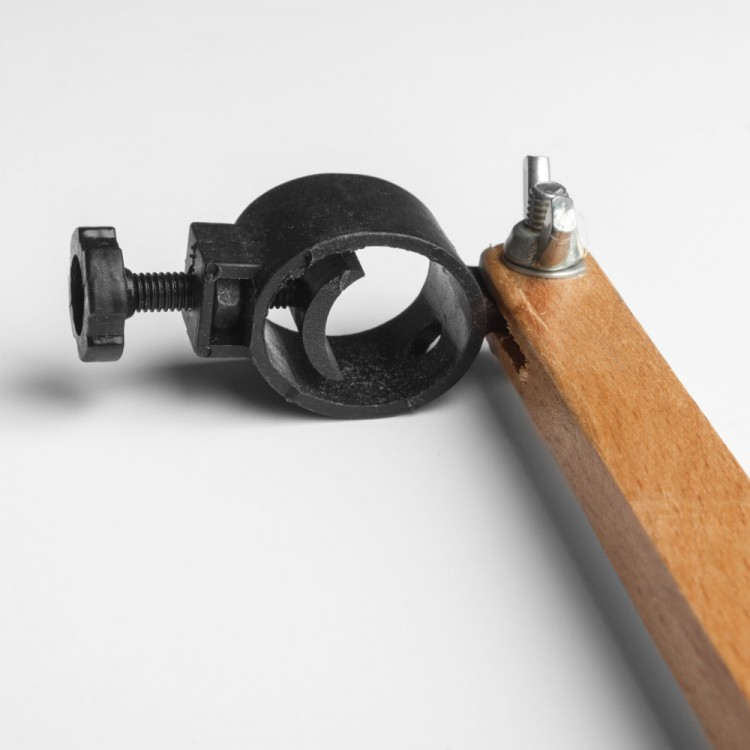

What about this Bob
And make a holder or mod one from the net

Handover : Wooden Compass : 18 in

This large wooden compass is designed for use with marker pens such as Posca markers or Sharpies. Attach it with the rubber suction device to a surface such as a wall or window and it will rotate freely around that point, allowing you to draw perfect circles. Features an adjustable holster which...

www.handover.co.uk

Maybe look for tremmel or beam coumpass



[8ob]

make some

I will keep looking, in the death I will make/adapt something.

What about this Bob
And make a holder or mod one from the net

If I have to I will seek out some rectangular tube with an external dimension of 16mmx12mmx2mm wall (if it exists), that would make the perfect size holding sheath for the chalk and would take a thumb screw, it would also leave enough room for a slither of steel to stop the thumb screw cutting the soapstick in half. That could then be attached to the end of some standard steel dividers. Anyone know if such a size extrusion exists?

Bob



[Pete.]

I will keep looking, in the death I will make/adapt something.


If I have to I will seek out some rectangular tube with an external dimension of 16mmx12mmx2mm wall (if it exists), that would make the perfect size holding sheath for the chalk and would take a thumb screw, it would also leave enough room for a slither of steel to stop the thumb screw cutting the soapstick in half. That could then be attached to the end of some standard steel dividers. Anyone know if such a size extrusion exists?

Bob

You could fold it from 2mm sheet and tig weld the 4th side on.



[h-dom]

Could you not just adapt one of these to a compass/ divider?

Epoxy it on?

SWP 1359 Flat French Chalk Holder 1359 | at Zoro

SWP - 1359 Flat French Chalk Holder available at Zoro.co.uk - UK's Leading Supplier of DIY Tools and Supplies'

www.zoro.co.uk



[8ob]

You could fold it from 2mm sheet and tig weld the 4th side on.

In the death Pete thats what I will do, should be able to find a bit of rectangular box that size either in ali or steel.

Could you not just adapt one of these to a compass/ divider?

Epoxy it on?

SWP 1359 Flat French Chalk Holder 1359 | at Zoro

SWP - 1359 Flat French Chalk Holder available at Zoro.co.uk - UK's Leading Supplier of DIY Tools and Supplies'

www.zoro.co.uk

I have those, great for the intended use but the chalk flops about in them like a cock in a sock. A better brand version with a locking screw would do the job but its only that cheap tosh that seems to be available.

Bob



[octo0072000]

this any good Bob

10 French Chalk Sticks & Holder

Key features Easy to clean after marking Doesn't dry out after use Suitable for metals, woods, stones and fabric

www.weldingsuppliesdirect.co.uk



[scottmk1]

How about these @8ob they do up to 40” radius. Same company do smaller ones too



[More Amps]

Available from Zoro https://www.zoro.co.uk/shop?query=radius+contour+marker&flag=1



[Agroshield]

The Zoro ones are worth looking at, as suggested above. This one shows a little more clearly the soapstone-holding set-up:

https://www.zoro.co.uk/shop/welding-brazing-and-soldering/pipe-marker/j1884-radius-marker-mini/p/ZT1208396S

It would work with only 3 and two-halves sides of the rectangle. The bit you cannot see does not need to be joined together across the back of the stick of chalk, just have two wings that nearly touch. The screw presses on the leg of the divider so there is no chance of breakage.

If I were to make one, I'd make something with the same dimensions as the soapstone stick out out steel, heat up my sheet and fold it around the dummy chalk stick.



[8ob]

Thank you @Agroshield @More Amps and @scottmk1 I already have the jumbo curvo marker, didnt realise they did a dinky mini version. That looks perfect

Bob



[James1979]

Thank you @Agroshield @More Amps and @scottmk1 I already have the jumbo curvo marker, didnt realise they did a dinky mini version. That looks perfect

Bob

Just ordered one too. Thanks all.

‘Radius Marker’



[Johnnybravo]

Just ordered one too. Thanks all.

‘Radius Marker’

Makes sense. If someone patented it as an ”Arc Marker” the market would soon be inundated with “Orc Markers” , knowing the Chinese propensity to copy things



[8ob]

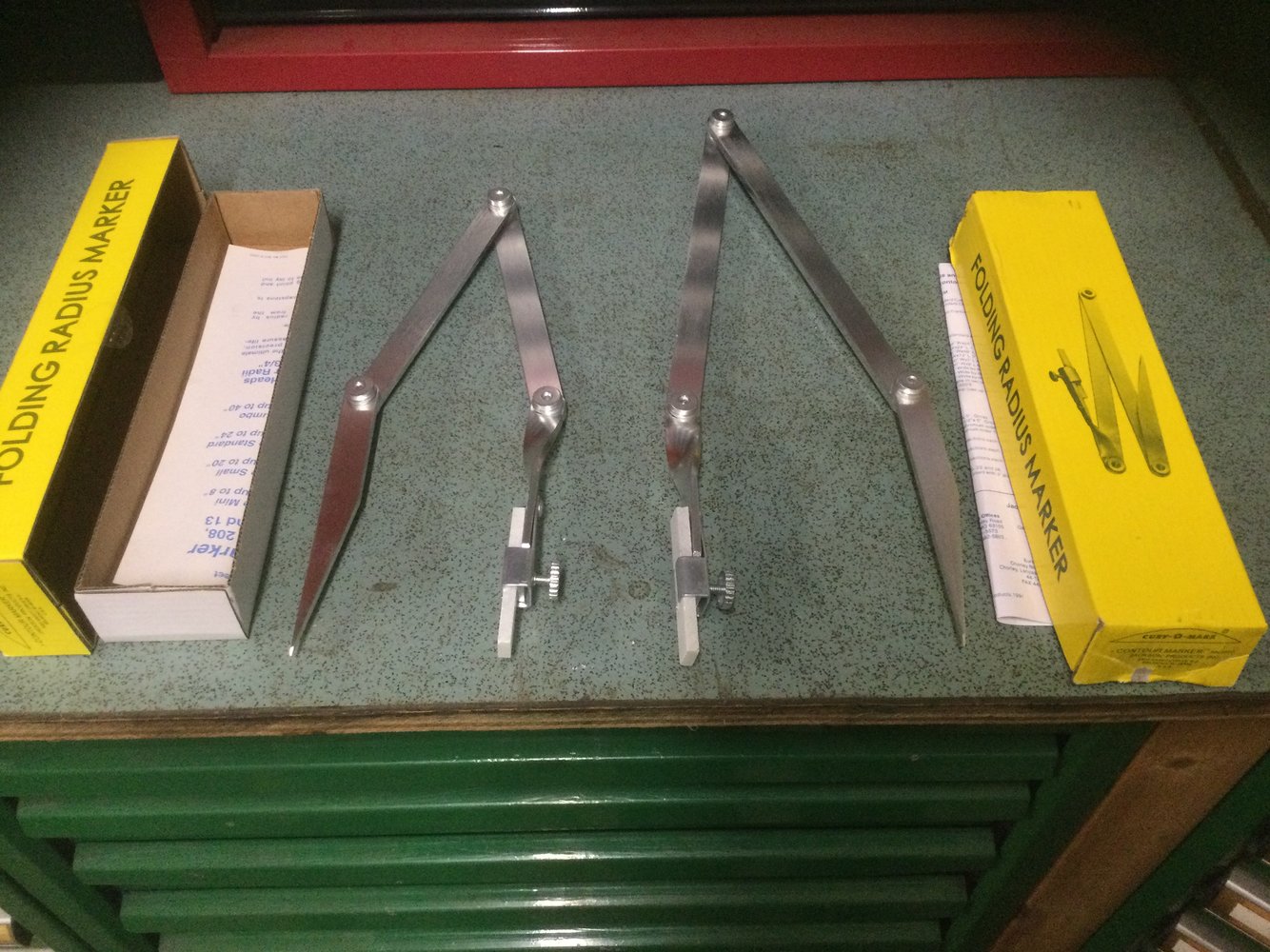

Delivered this morning from Zoro, thanks again chaps @Johnnybravo they are made in China



[Johnnybravo]

Delivered this morning from Zoro, thanks again chaps @Johnnybravo they are made in China

View attachment 360207

Do both parents have to screw them before use?

As a schoolboy I worked Saturdays in a toy shop. Just as the Chinese stuff started to get into the market. There was a baby’s toy for the bath with three ducks that swam in the bath. Actually very well made. Anyway, the Chinglish instructions were hysterical. One bit being about assembly… Yep, you guessed it both parents had to screw all the ducks before having a bath . Shop owner never figured out why they never sold…. Might have had something to do with the price tag we put on it , as it was a constant source of laughs
