Earth lead connections

[Spark plug]

Probably a stupid question but my mig has to earth lead connections one has a symbol something like an ohm symbol and the other is like a duble ohm symbol.

Would I be right in thinking it's something to do with different voltage / current ranges?



[shenion]

It would probably be different impedance setting, low and high (the symbols represent coils of the inductor.) Use the high one for normal welding.



[madkayaker]

My miller has two earth connection points with a thick material symbol and a thin. There is however no reference to what point material becomes thick



[Robotstar5]

The ones we had at work recommended high inductance below 8mm material thickness and low above.



[Spark plug]

Just tried swapping back and forth between the two sockets without changing any other settings it seems to make no difference to the volts and amps shown on the screen. I don't think it made any difference to the welds either.



[Robotstar5]

Yes, those are high/low inductances, use the high (R/H) one for thinner material.



[Spark plug]

Yes, those are high/low inductances, use the high (R/H) one for thinner material.

Cheers



[2tpmafia]

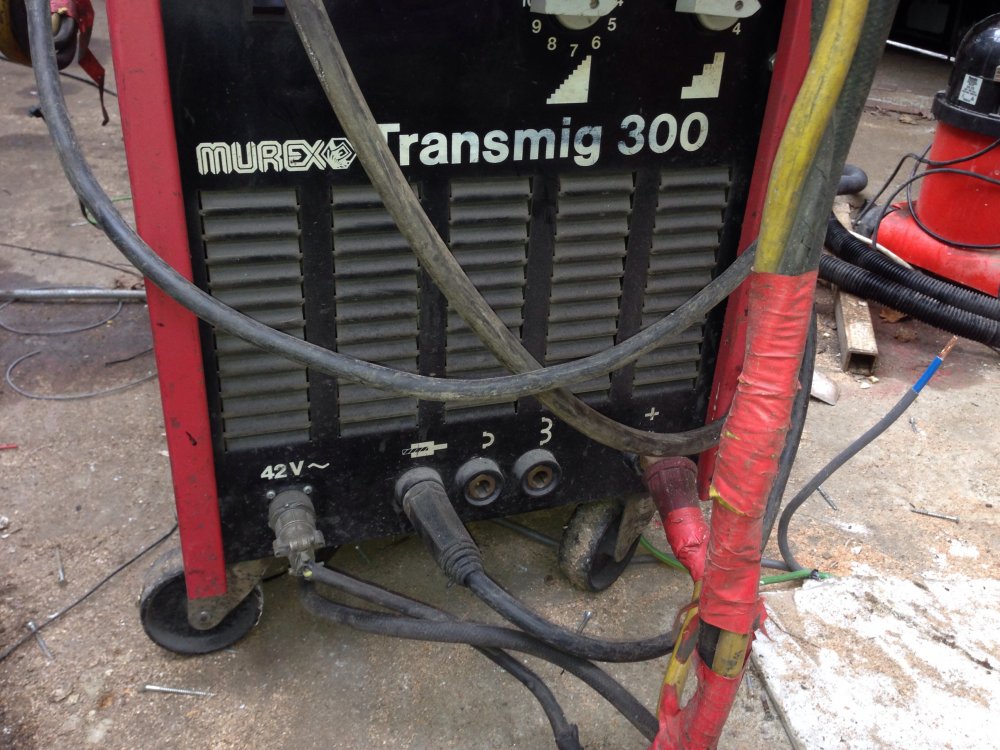

Jumping on to this my welder a murex transmig 300 has 3 places for a earth the same 2 as above and a symbol that looks like a earth clamp. I carnt see any reference in the manual. Any ideas what it represents?



[Spark plug]

Jumping on to this my welder a murex transmig 300 has 3 places for a earth the same 2 as above and a symbol that looks like a earth clamp. I carnt see any reference in the manual. Any ideas what it represents?

Mines a transmig 353 and only has the 2 shown.



[Robotstar5]

Jumping on to this my welder a murex transmig 300 has 3 places for a earth the same 2 as above and a symbol that looks like a earth clamp. I carnt see any reference in the manual. Any ideas what it represents?

Can you post a picture? we had the Transmig 350 (same manual for 300) and they only had 2 inductance sockets.



[2tpmafia]

Will get you a picture tomorrow if I haven't drowned or been blown away



[2tpmafia]

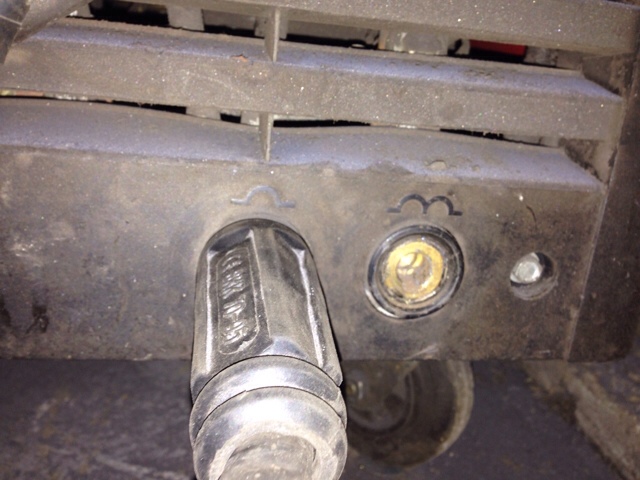

Here's the picture of the connections



[Robotstar5]

Looks like an older model than the ones I worked on, the low (centre) and high (R/H) inductance sockets are there but I don't recognise the symbol over the L/H socket



[2tpmafia]

It's about 20 years old. It is a earth I know that much as it welds when the earth is plugged into it.



[Spark plug]

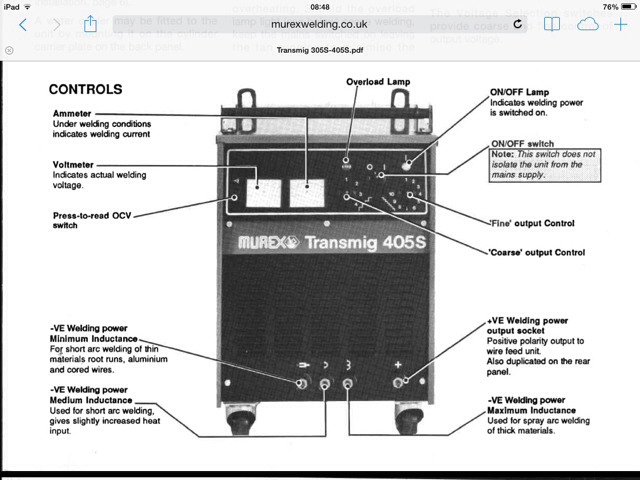

Found an explication for the 3 inductance outputs.



[Shox Dr]

SP, the the in the scanned image is unreadable, at least to me it is.



[zx9]

SP, the the in the scanned image is unreadable, at least to me it is.

Click on it, it will get bigger and readable.

Edit : on a PC perhaps not on a phone.



[Windy Miller]

Click on it, it will get bigger and readable.

Edit : on a PC perhaps not on a phone.

Works fine on an iPhone...



[Shox Dr]

Got'ya



[ukracer]

Click on it, it will get bigger and readable.

Edit : on a PC perhaps not on a phone.

It does get bigger and readable but i still dont actually comprehend what it means lol
