Had a Bugger moment !

[steve_s]

Hi guys

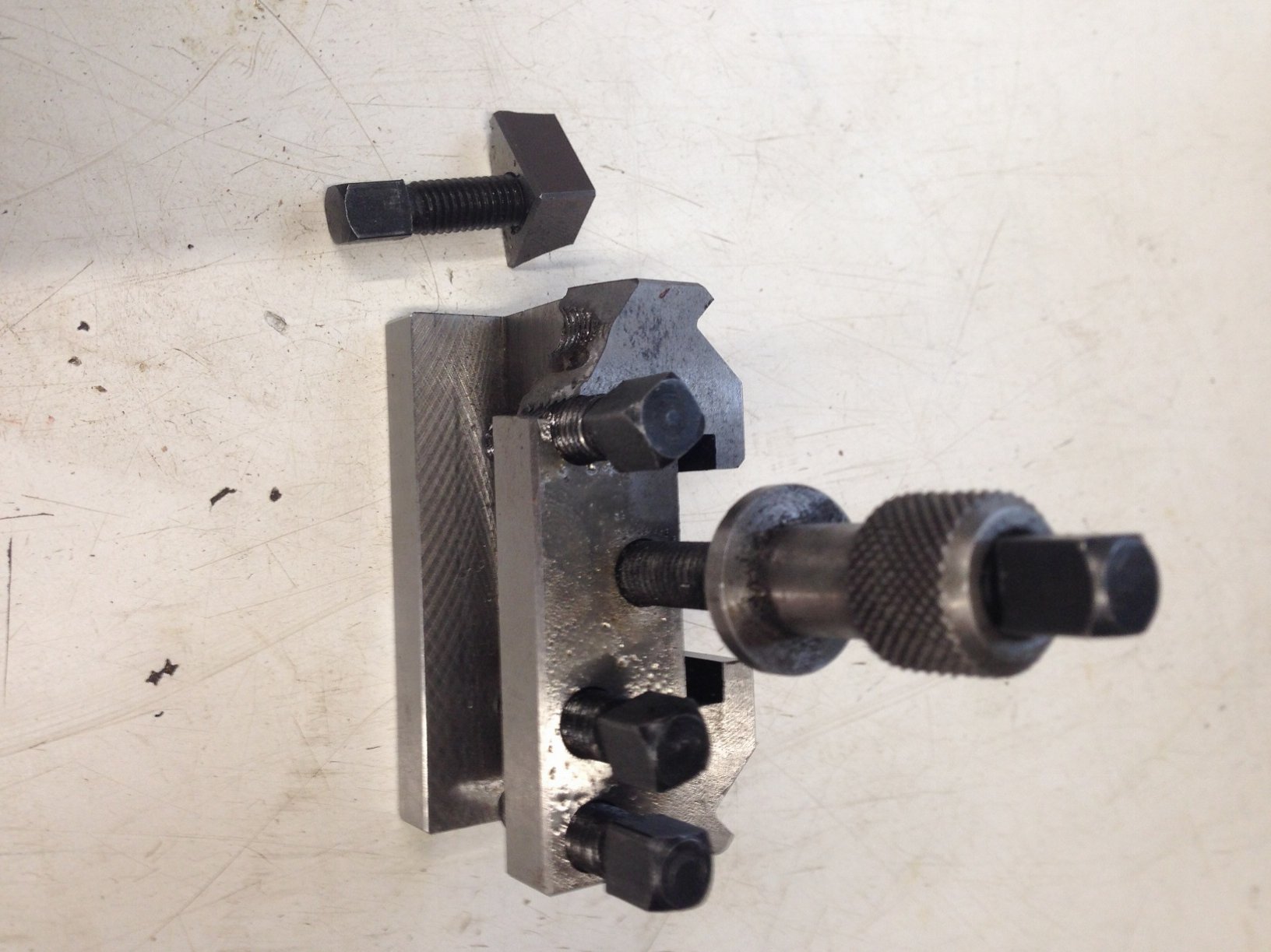

Loading a tool it to my qctp and did this I thought it was steel but no


So though I would have a go at making some this might be a simple task for some folks but has made me think lol

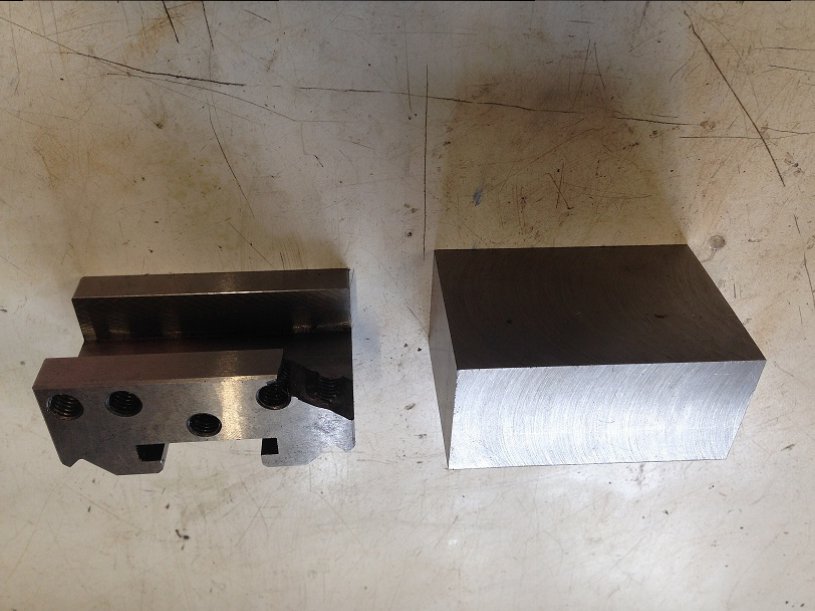

Bought a lump of steel bar from local steel stockiest cut a chunk off poped it in the mill and got to this

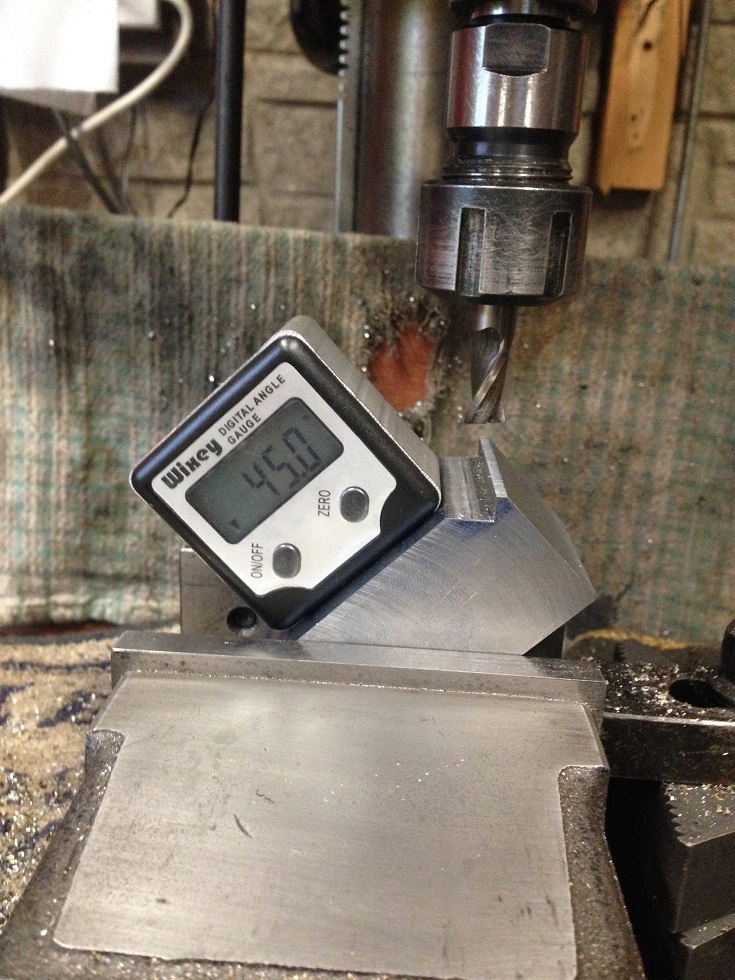

Had a measure of the angles so back in the mill for the first cuts

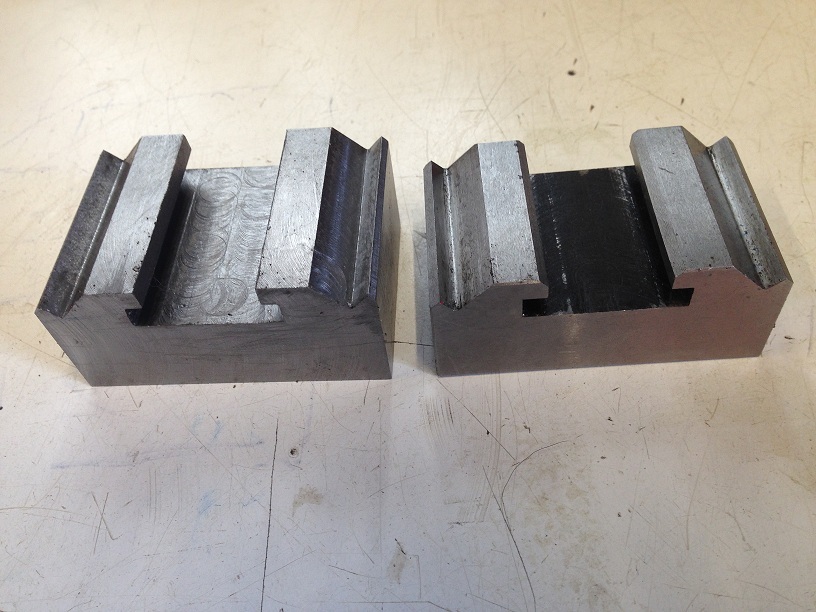

So as far as i have got is to here

not to bad just got to mill slot for tools and drill and tap holes and machine to final size



[MattH]

Nice job, Dickson tool holders are nice to make as they don't require the use of a dovetail cutter.



[Pete.]

Good work, that must be a bear to set up on a vertical. Ideally you'd mill the vees on a horizontal so you can get the distance perfect using gauge blocks or a dial.

Here's a tip: If you set the angle up like you have in the pic but make sure the other end is over-hanging the vice, you can use trigonometry to figure out how to cut both vees on one setup and the pitch will be perfect.



[addjunkie]

Those electronic angle things are a god send, I have one. Nice work.



[ukracer]

And there was me thinking you were going to be making them on a lathe.

I can't find any videos on you tube on making disks on tool holders on a lathe..



[rikrobson]

These tool holders look quite simple but apparently the original. Sizes were a few thousand different from fractional sizes. I have some originals that are slack but new ones are tight and some I ordered did not fit my boxford post..
Also they are made hardened as I thought I'd get away with filing out the centre slot but it was too hard.
If it's not hardened than it may wear quickly.



[Maker]

I have a new one just like your broken one that doesn't even fit my toolpost, and it's too hard to file.

How did you set the spacing for the two Vee's correctly?



[TechnicAl]

Those electronic angle things are a god send, I have one. Nice work.

never ever seen one before

will they work anywhere?



[Shox Dr]

never ever seen one before

will they work anywhere?

Yup. I've a rotary encoder version as well



[Wendelspanswick]

never ever seen one before

will they work anywhere?

I don't think they will work in deep space as they rely on gravity!



[rikrobson]

I don't think they will work in deep space as they rely on gravity!

Will they read backwards in Australia then?



[Maker]

never ever seen one before

will they work anywhere?

They might not work next to a power station or an MRI machine.



[steve_s]

I have a new one just like your broken one that doesn't even fit my toolpost, and it's too hard to file.

How did you set the spacing for the two Vee's correctly?

I measured the original and marked it out on the block I machined.
I also made a right angle to put on mill vice to set the angle each time I removed it and then got it milled near my marks and kept compering to the original,it was trial and error.
I know thats not very machinist of me but not having any formal training on a mill or lathe other than watching YouTube videos.
So I do what works for me



[steve_s]

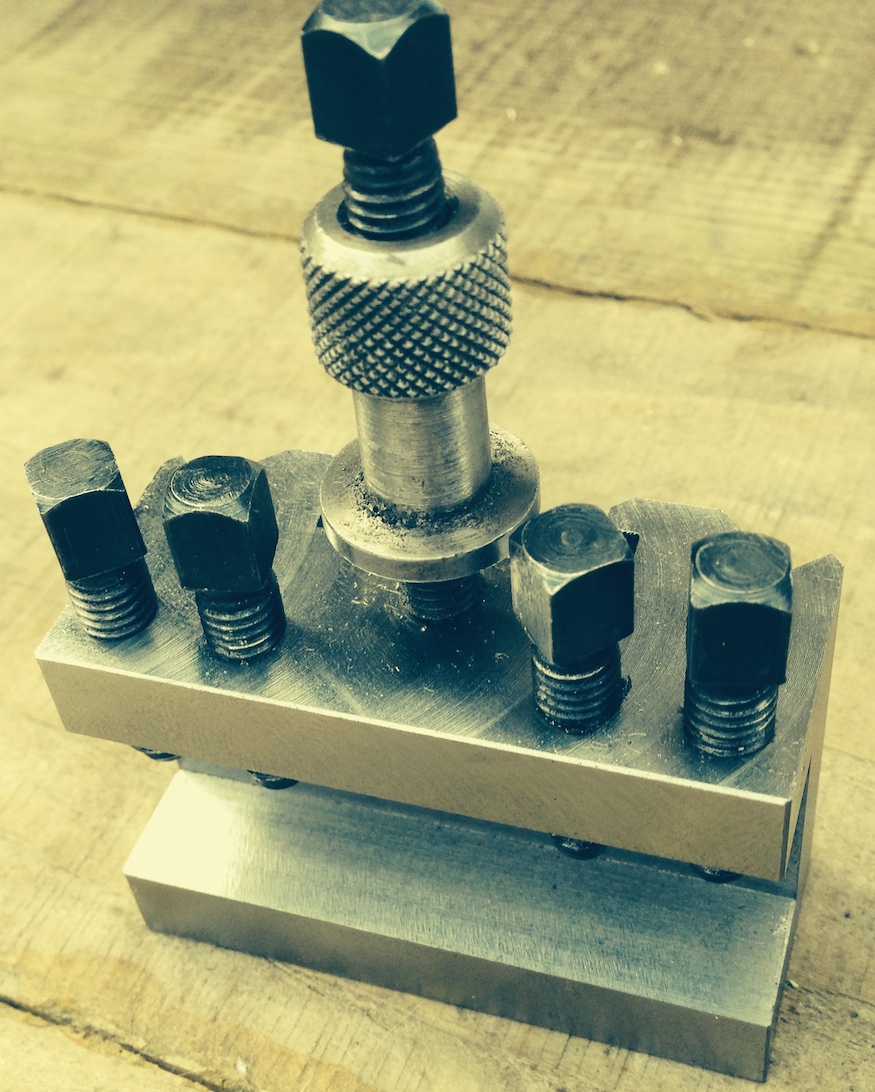

Hi Guys
So I have finished that one Im going to make 2 or 3 more but cant seem to find any of the square head bolts there m8 anybody know where I coude get some please.

Thanks
Steve



[sardine]

http://www.gilbertlaurence.co.uk/

A friendly company that will do small orders.



[Brad93]

http://www.rdgtools.co.uk/acatalog/T2-SQUARE-HEAD-BOLTS-X-5-FOR-QUICK-CHANGE-TOOL-HOLDER-54990.html



[steve_s]

Make the bolts - it's less of a 'challenge' than the toolholder...

My lathe only does imperial and I cant find any conversion gears It an early Viceroy Im on the look for a metric one

http://www.rdgtools.co.uk/acatalog/T2-SQUARE-HEAD-BOLTS-X-5-FOR-QUICK-CHANGE-TOOL-HOLDER-54990.html

Thanks for that I will contact them.



[Pete.]

Both of my lathes use socket head screws for the tool holders. Using square heads might be traditional but the heads (and the wrench) use up more space.



[RichardM]

M8 grub screws? key size 4mm which may be a little small for your use
