Home-made Flanger/joggler

[smoggyrich]

Thought I'd have a go at a home-made flanger...













Sometimes it's handy having a milling machine at your disposal.



[smoggyrich]

I haven't had a go of it yet. will have a test and let you know the results. I have a feeling I will need deepen the groove a tad.



[smoggyrich]

Had a test run with some 1.2mm steel and it worked a treat.....



[ben8vgte]

Excellent, I like that a lot!

I need a mill



[Flapdisk]

for those of us without, could the same thing be achieved by welding a strip of steel to two blocks to get the step, just along the side and front so as to keep a nice square edge on the inside?
And maybe weld a hinge on the back



[smoggyrich]

Check this one out on Youtube... ***WARNING*** turn Volume down!!!

http://www.youtube.com/watch?v=WqPu5Qglr44



[cardiffrob]

I liked the video.





Langy has come a long way since he welded that up, don'tcha think?



[brightspark]

yea the tool works ok but the weldings sh##ite i wouldnt dare show it



[gordon stephenson]

Welded by Stevie Wonder.



[Paul.]

Nicely made, I have made them for use in presses, all that hammering looks like hard work.

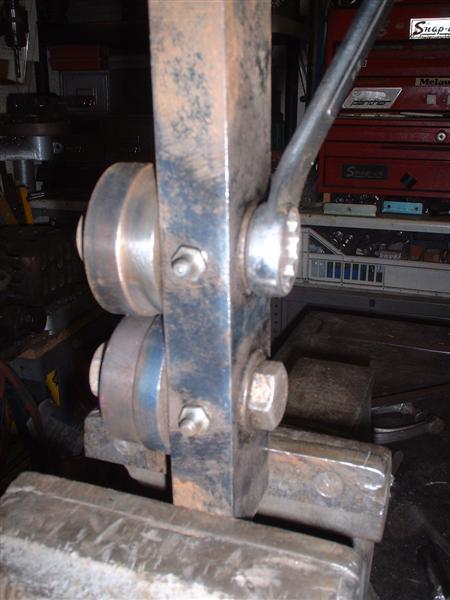

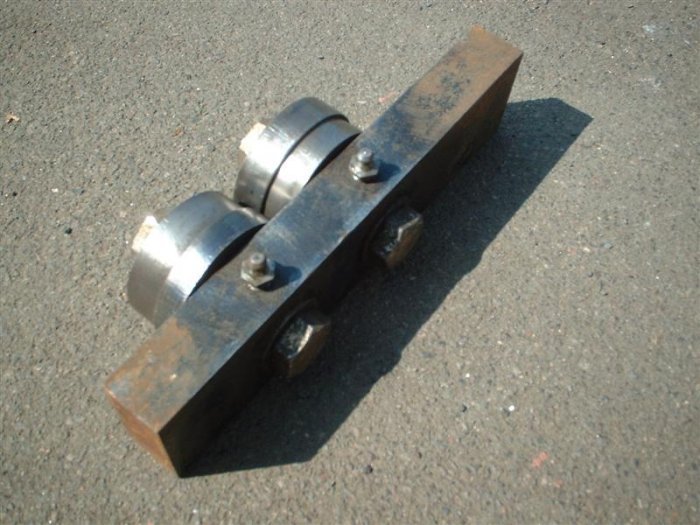

I knocked this roller style one up about 30 years ago just to do one job and its still working well, easier to follow curves with too.


Usually turn it with a ratchet and 15/16" socket, not the spanner shown here

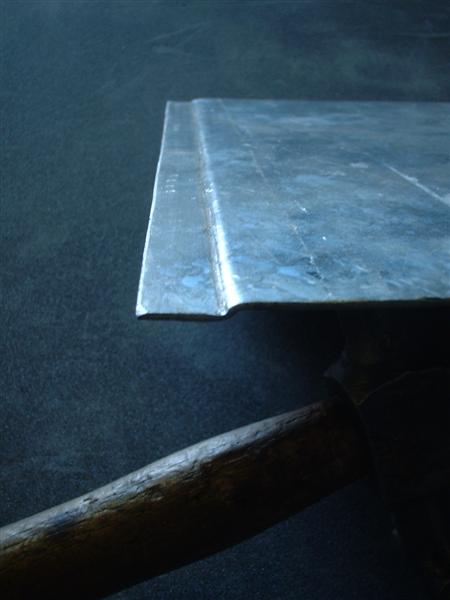

1.5mm galv sheet, much thicker than the tool was made for.



[Flapdisk]

nice one mate



[smoggyrich]

View attachment 38045
View attachment 38046
.

I like the look of that mate. Might have to have a go a one of those.

what steel did you use for the Wheels? EN19 perhaps?



[Ed.]

Thanks Paul, Hope you don't mind but I might just borrow your design, seems simple and effective.

Cheers

Ed.
