How to remove screw thread on a Swindens Vice

[Rannsachair]

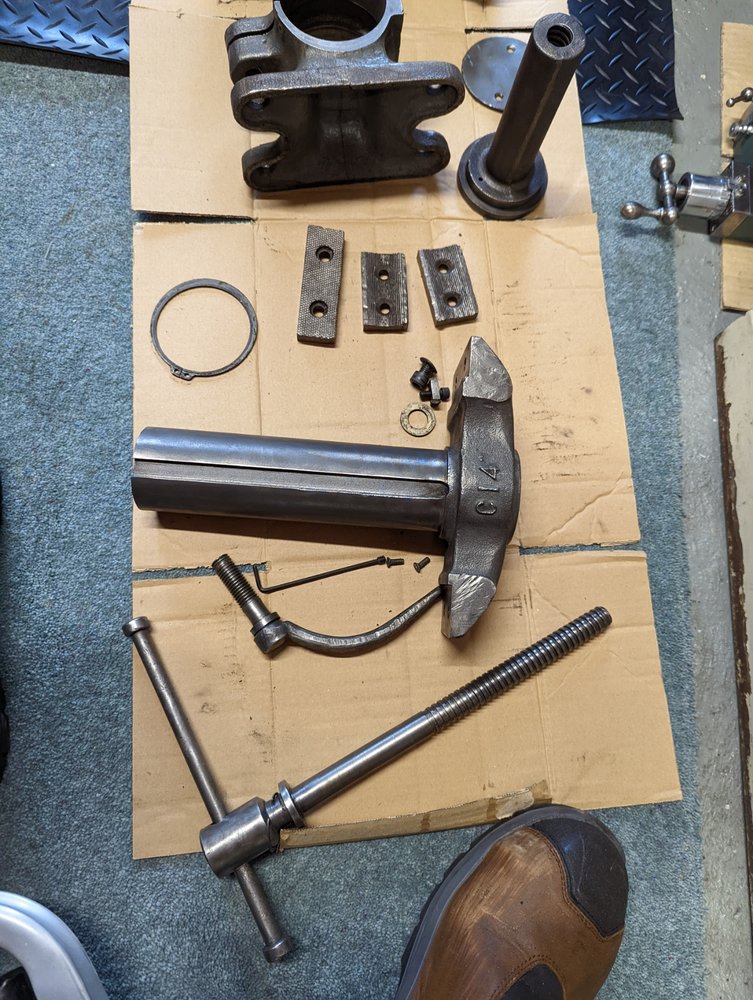

Well strip down was relatively staright forward with no serious damage:

Now am scratching my head as to how the lever/screw is retained - no sign of a circlip:

When I look on the older ones, there is a retainer screwed to the outer face. Anyone taken one appart and know how it is removed?

Thanks



[frank horton]

tooooo many spanners.......haaha



[Rannsachair]

tooooo many spanners.......haaha

Metric, AF and Whitworth, at least 2 of each...



[Seadog]

@Screwdriver



[Rannsachair]

@Screwdriver

Thanks Graham, looked at old posts and was a different design.

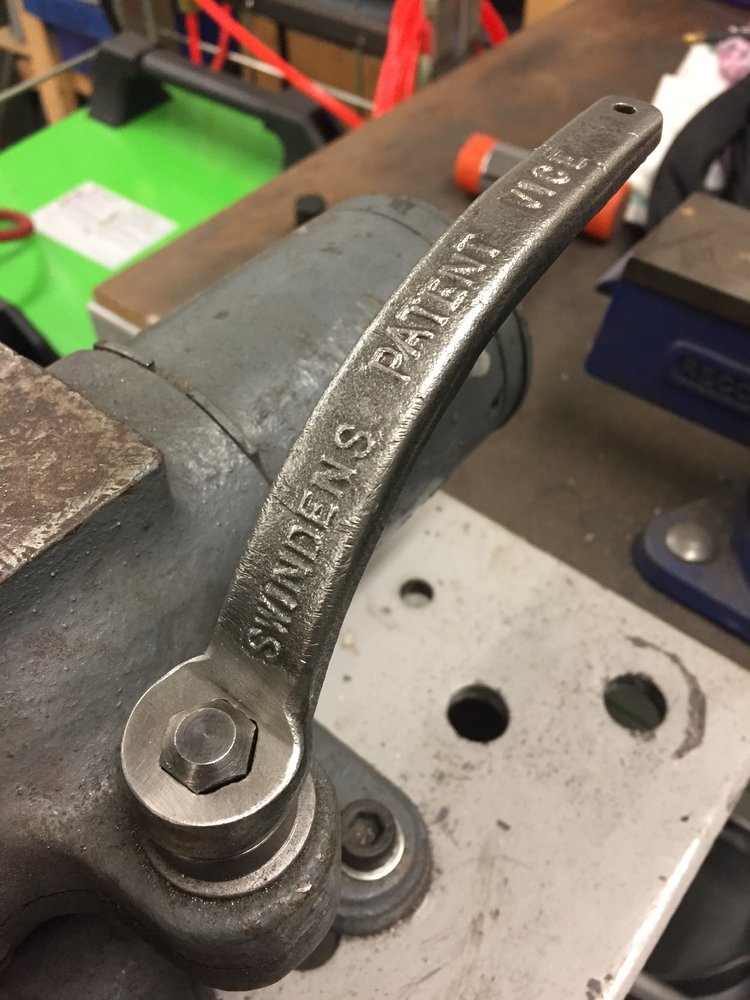

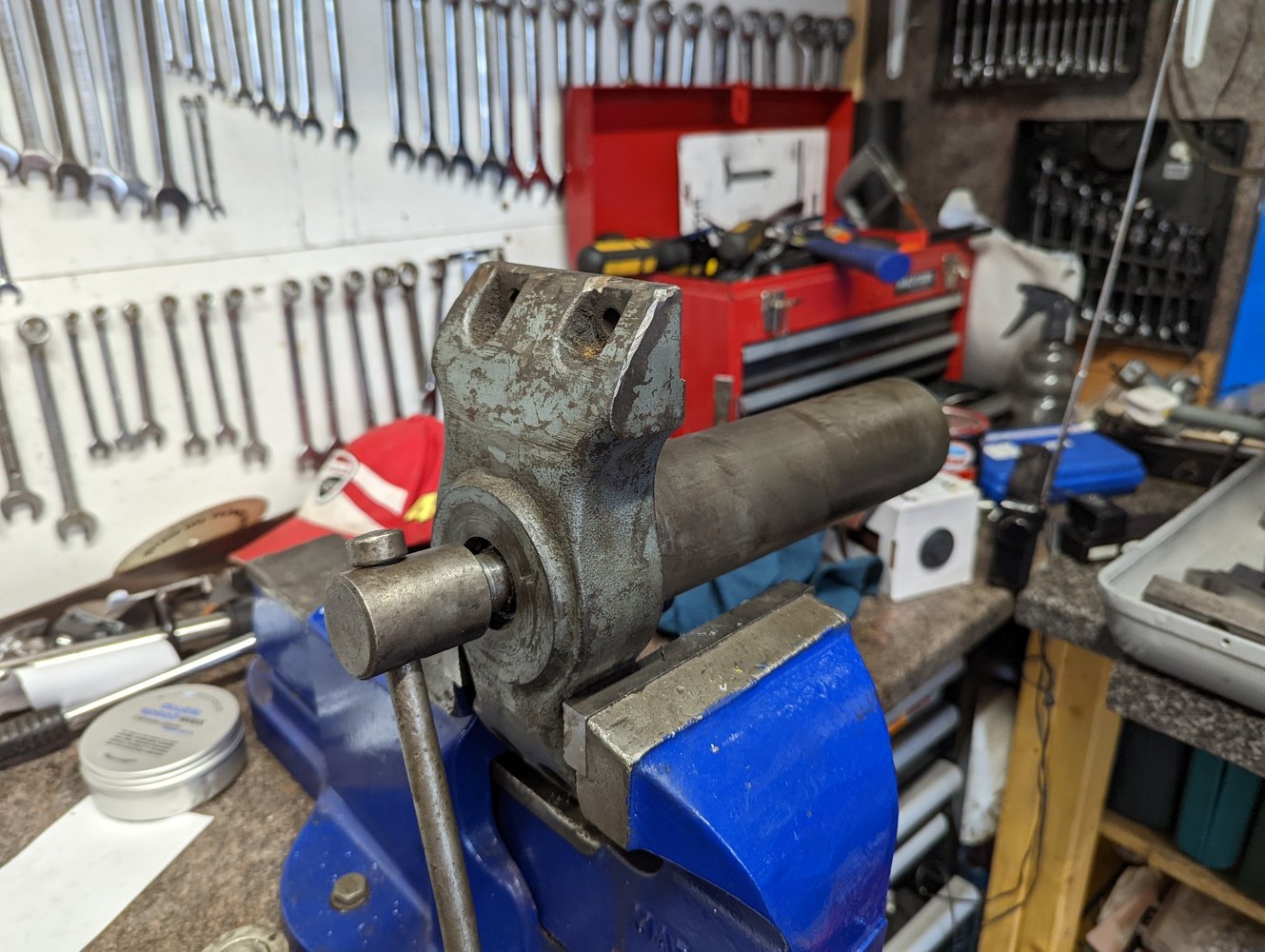

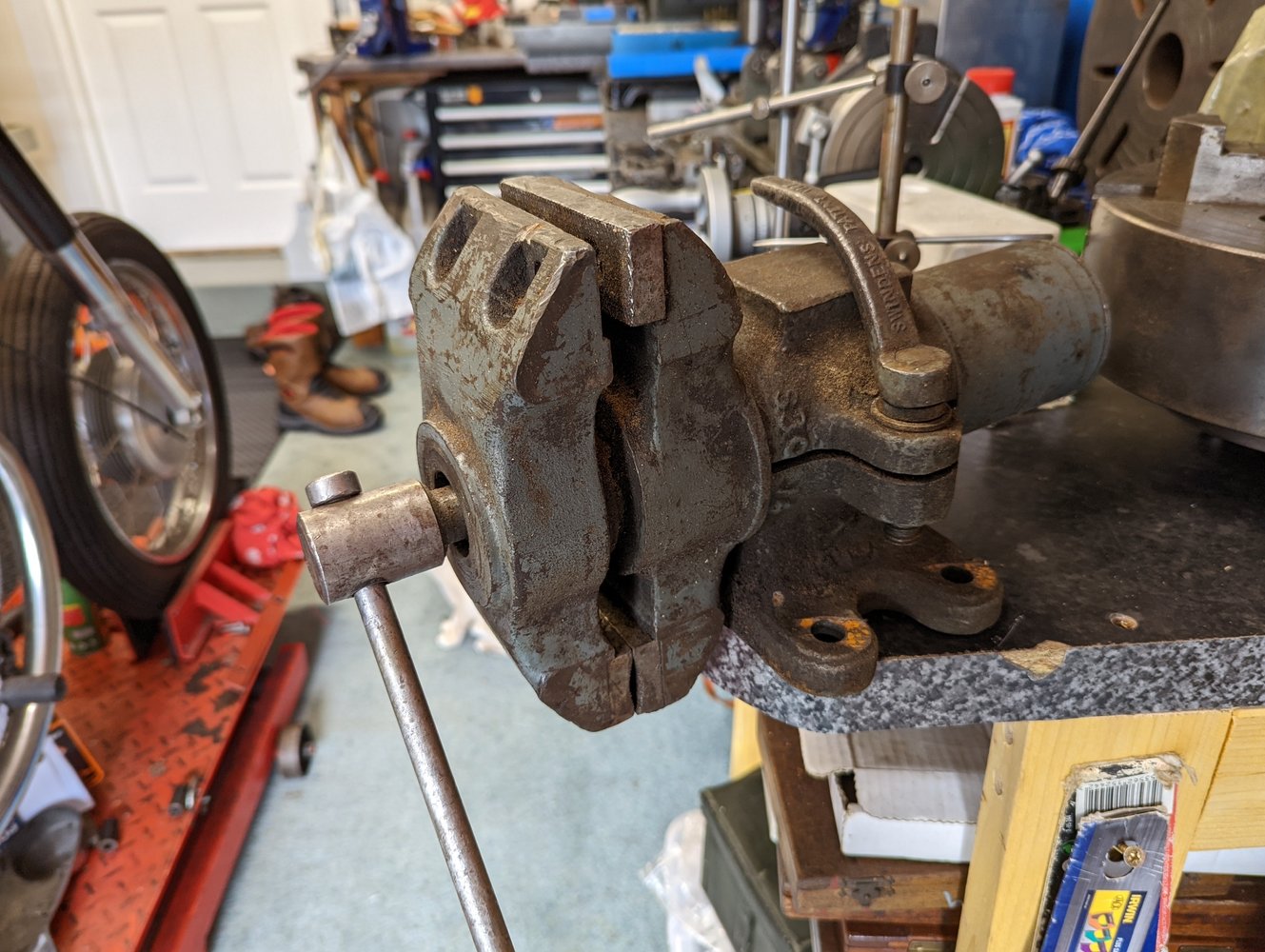

Prior to strip:



[Screwdriver]

Thanks Graham, looked at old posts and was a different design.

Prior to strip:
View attachment 357722

You didn't find this thread: #36

Looks like there is a circlip.



[Rannsachair]

You didn't find this thread: #36

Looks like there is a circlip.

Cheers @Screwdriver will go out with my reading glasses!



[Rannsachair]

Sorted thanks @Screwdriver :

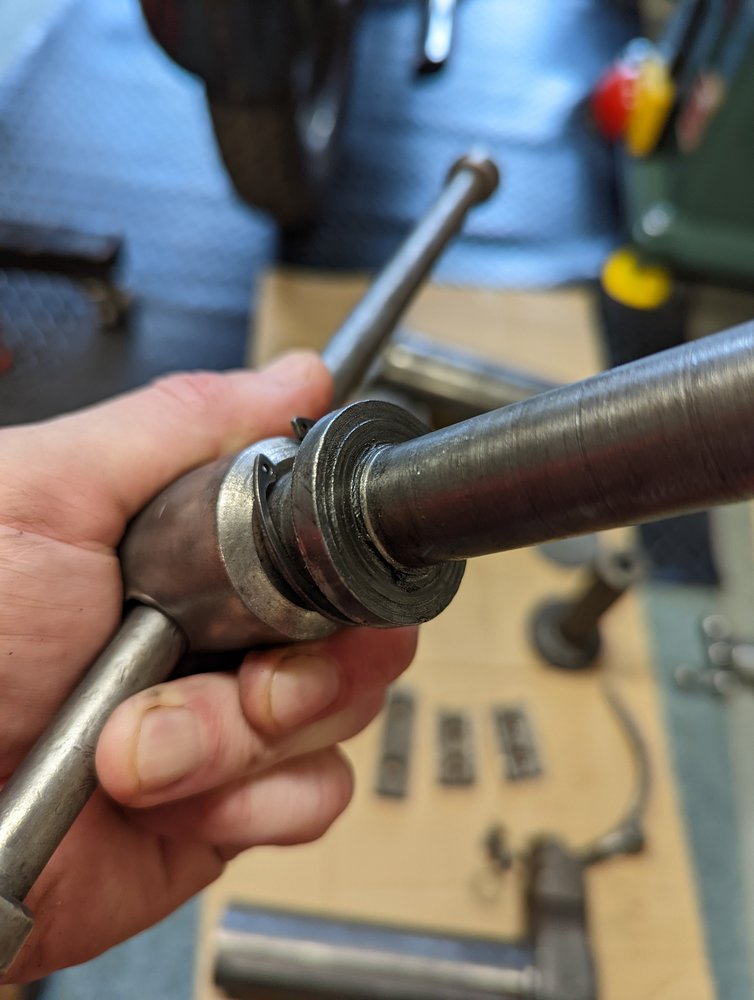

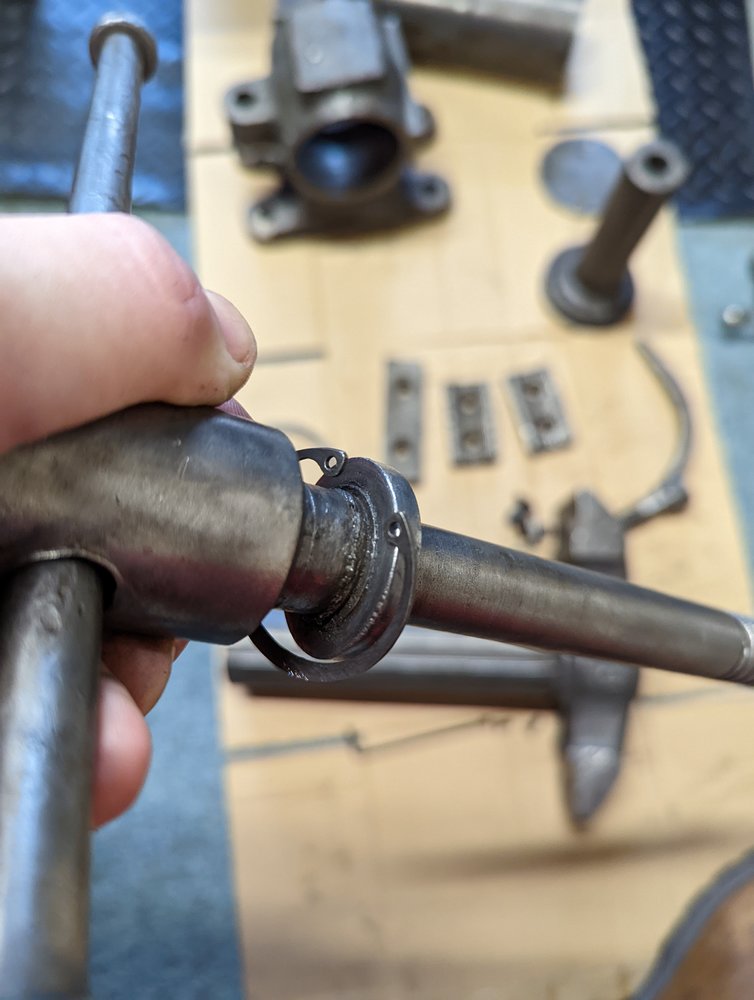

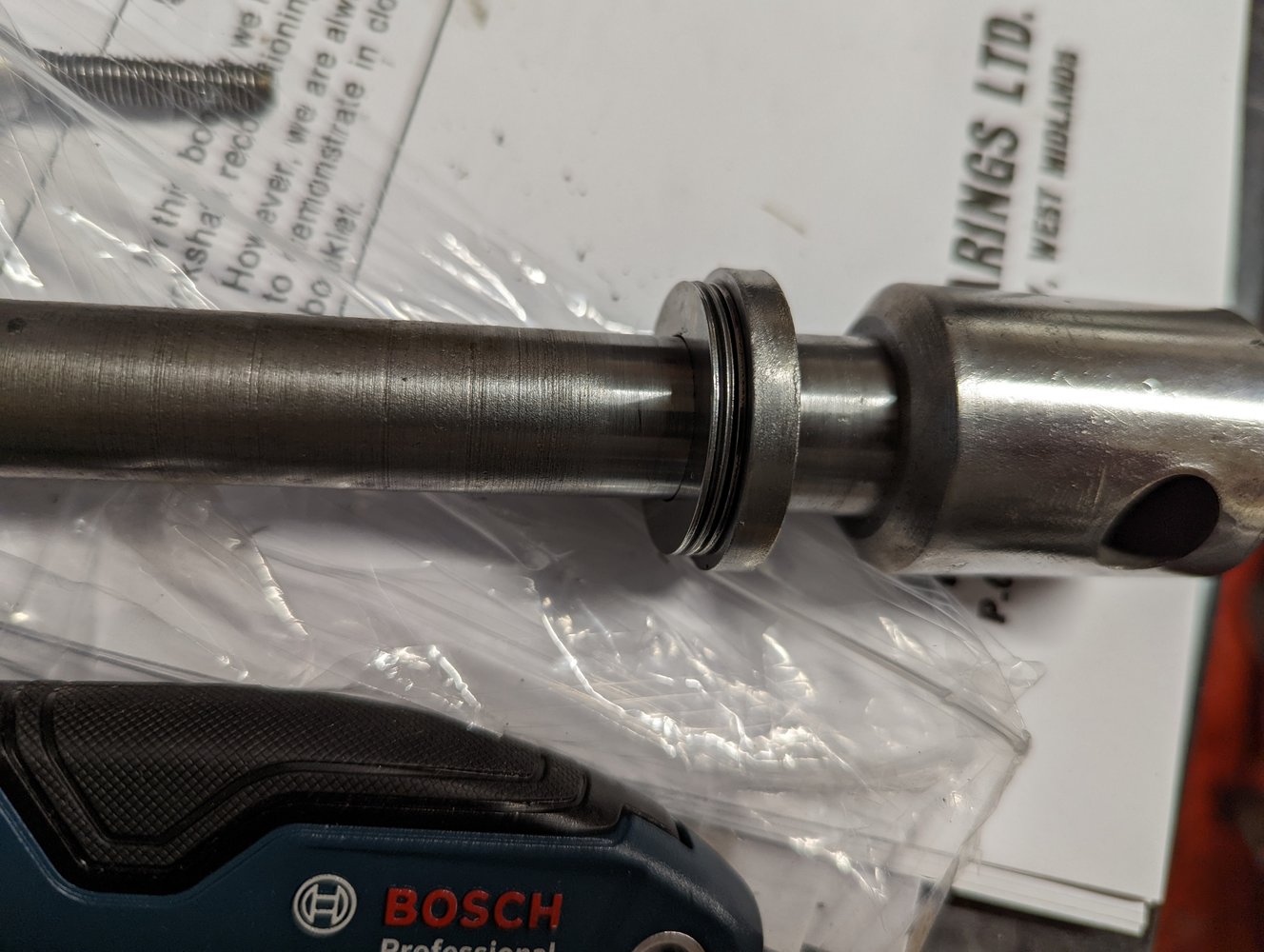

The circlip is just visible inside the screw bore, needed to use my shortest 90 degree circlip pliers and a torch to get at it.
Thread looks good:



[Rannsachair]

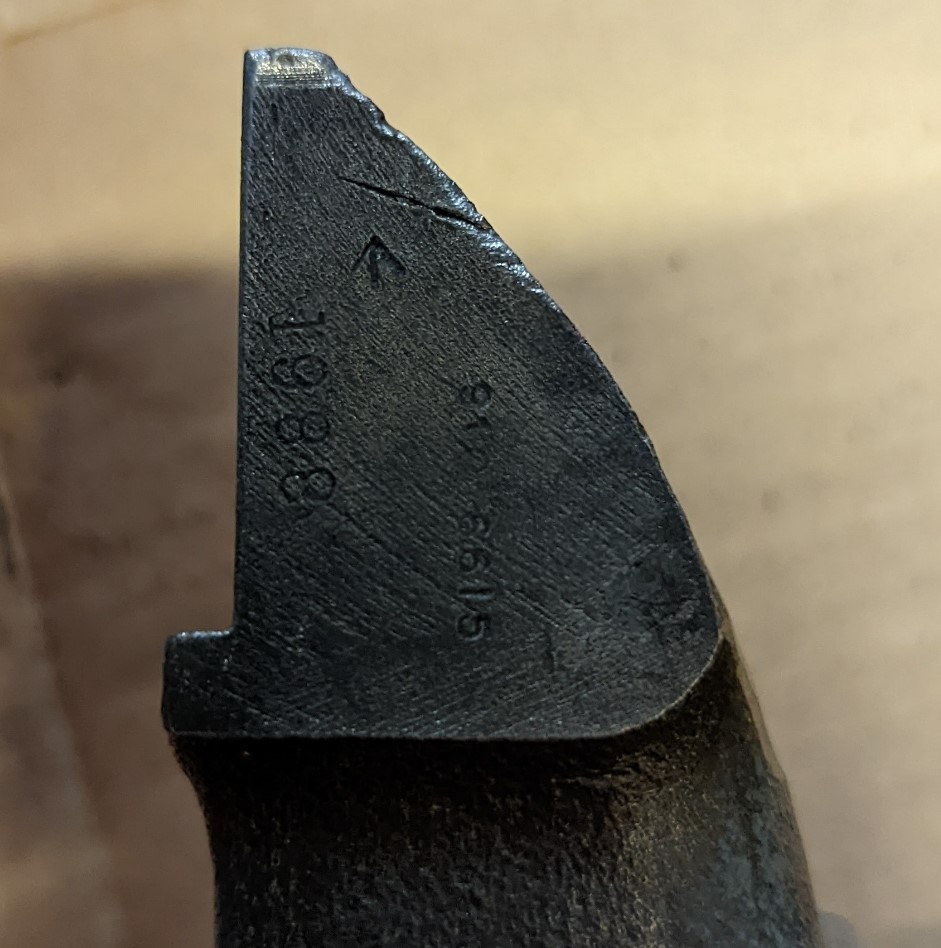

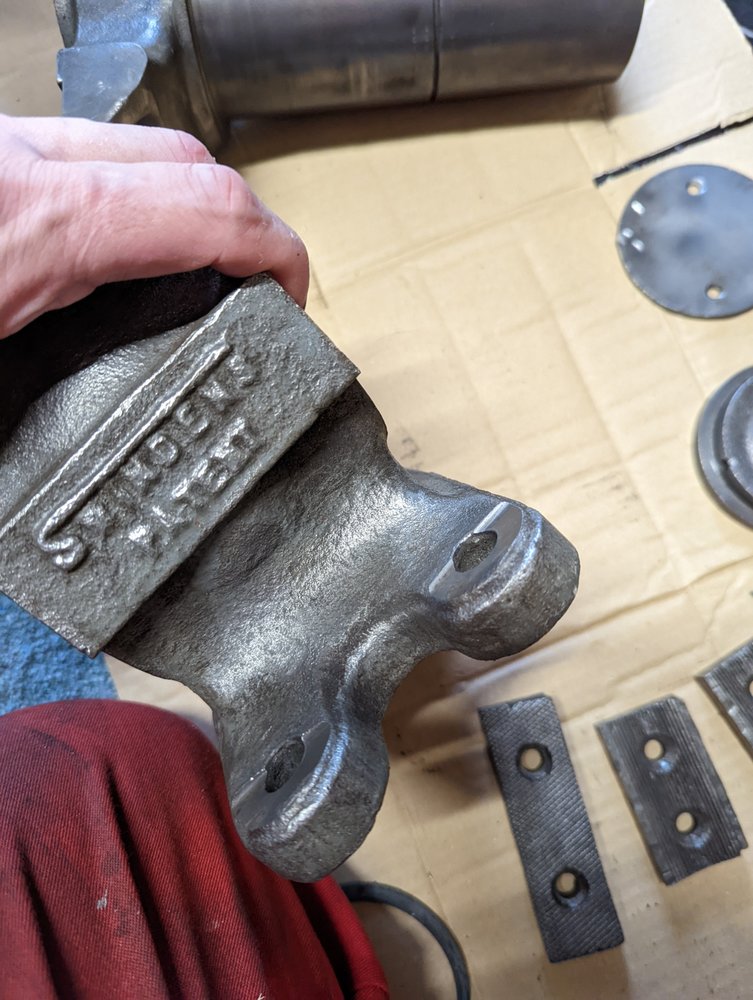

Found the year and original customer when I started cleaning it up:

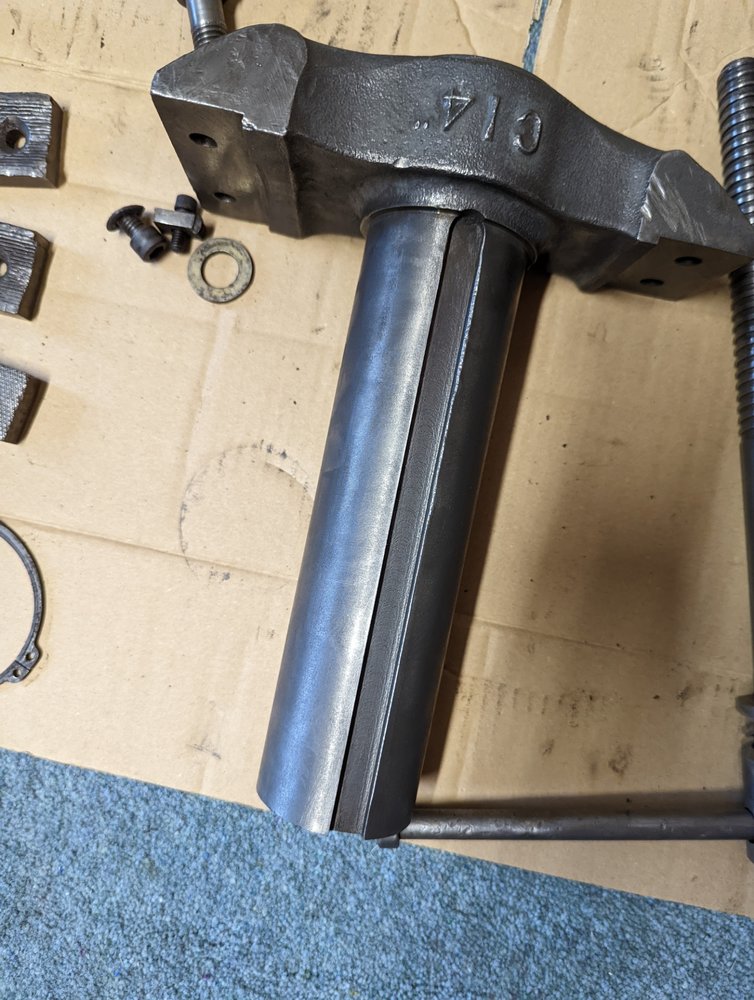

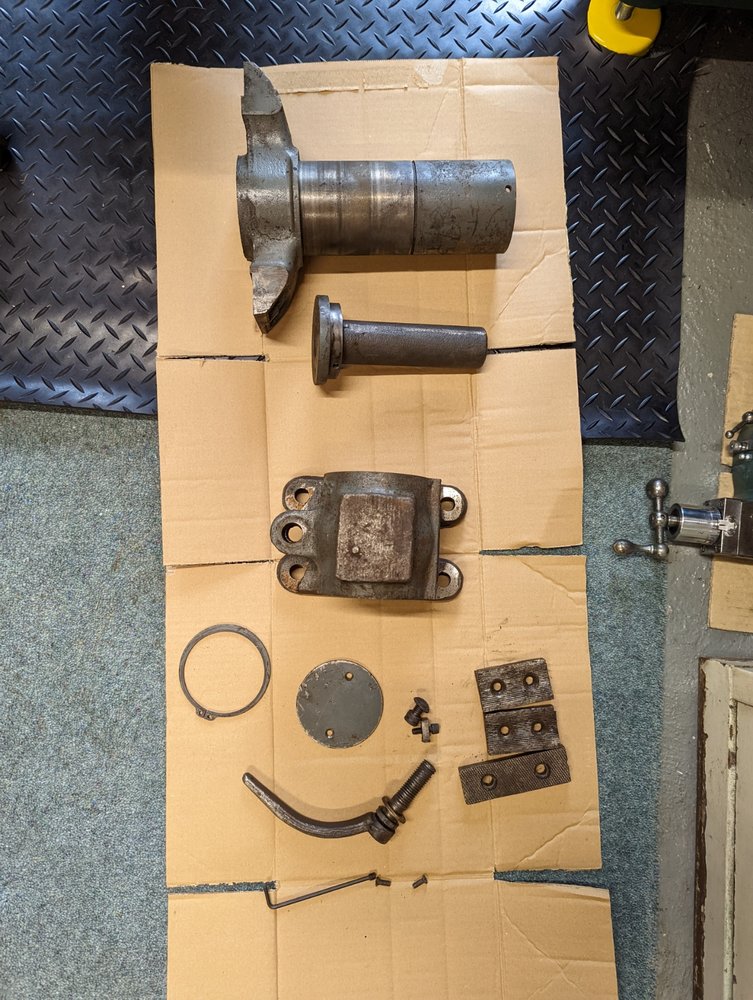

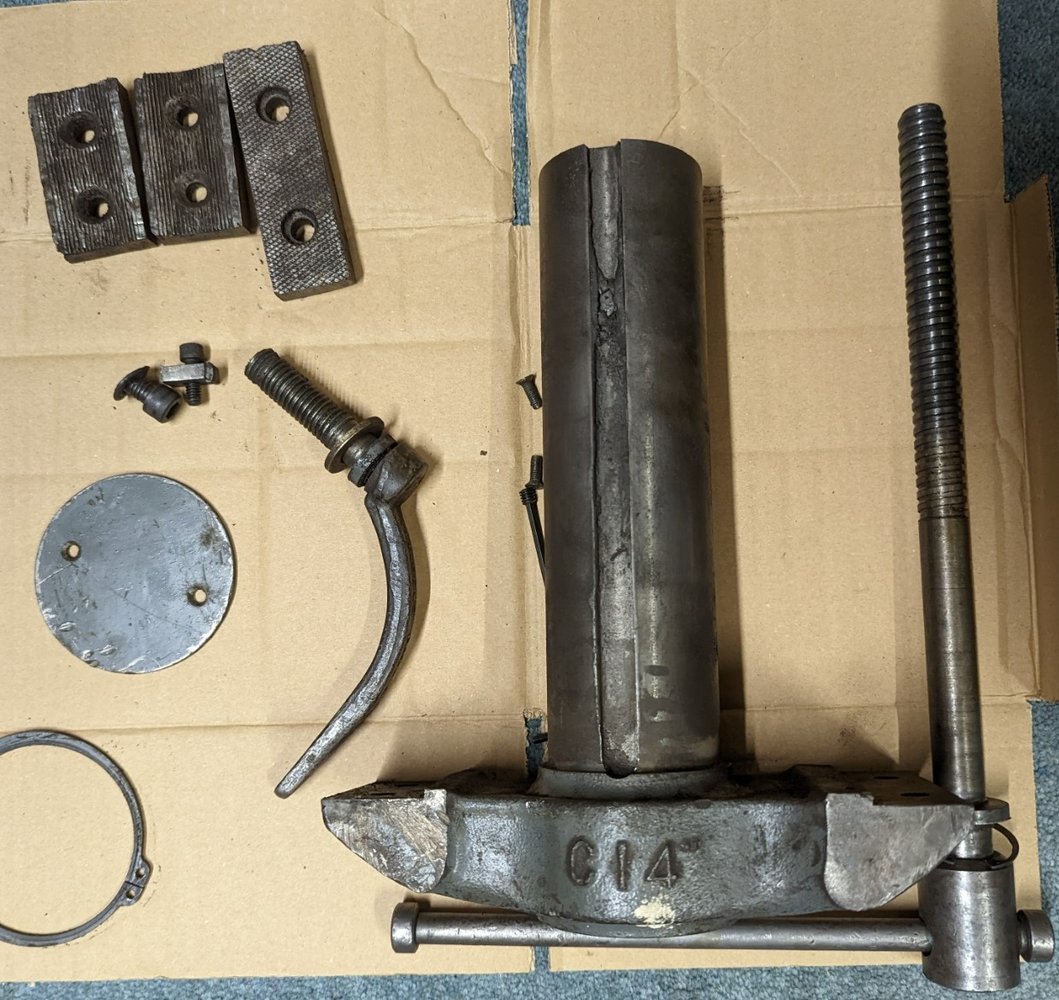

Started cleaning up the parts:

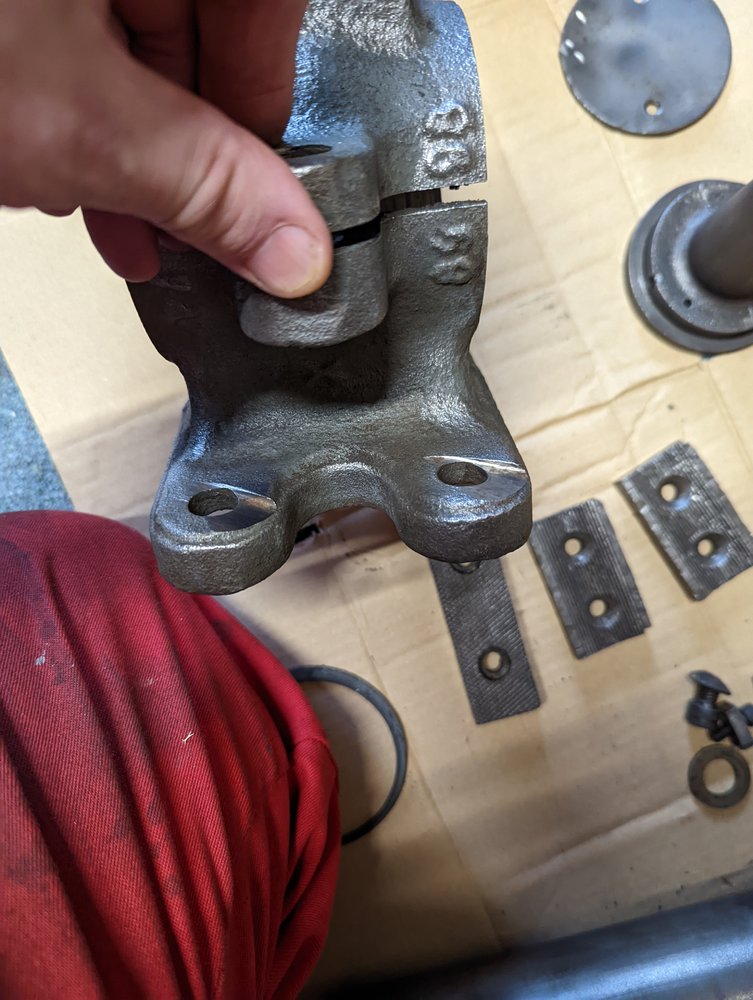

Some butcher has removed it with an angle grinder:

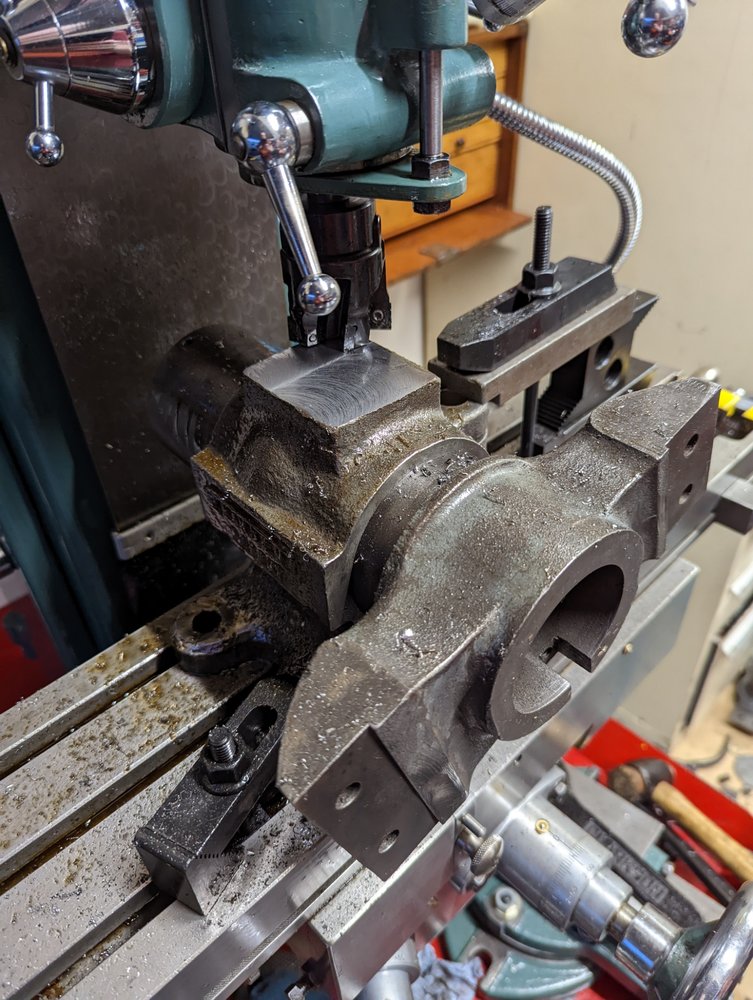

Think I will just mill the faces flat.

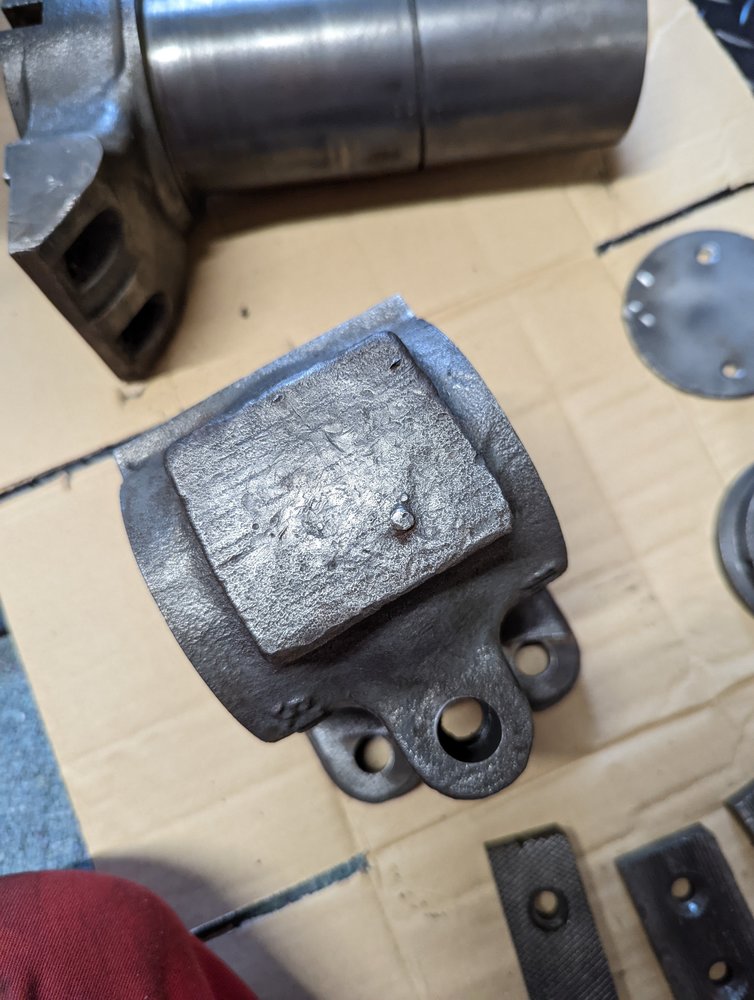

Not sure if that is a blob of weld on the anvil, suppose I will mill it flat too.

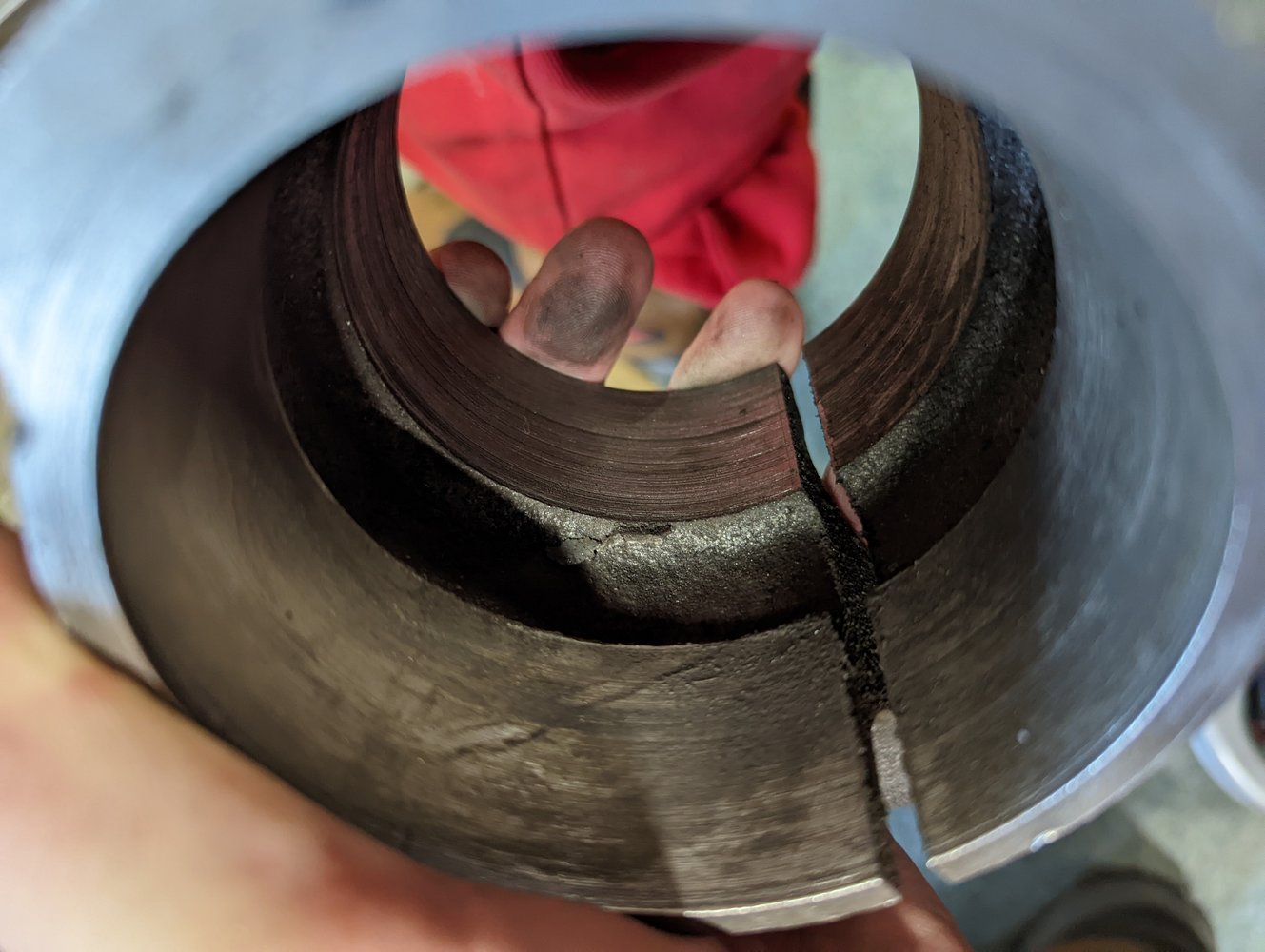

Will clean up bore, there was still some machining swarf hanging on around the edges of the machined bore.

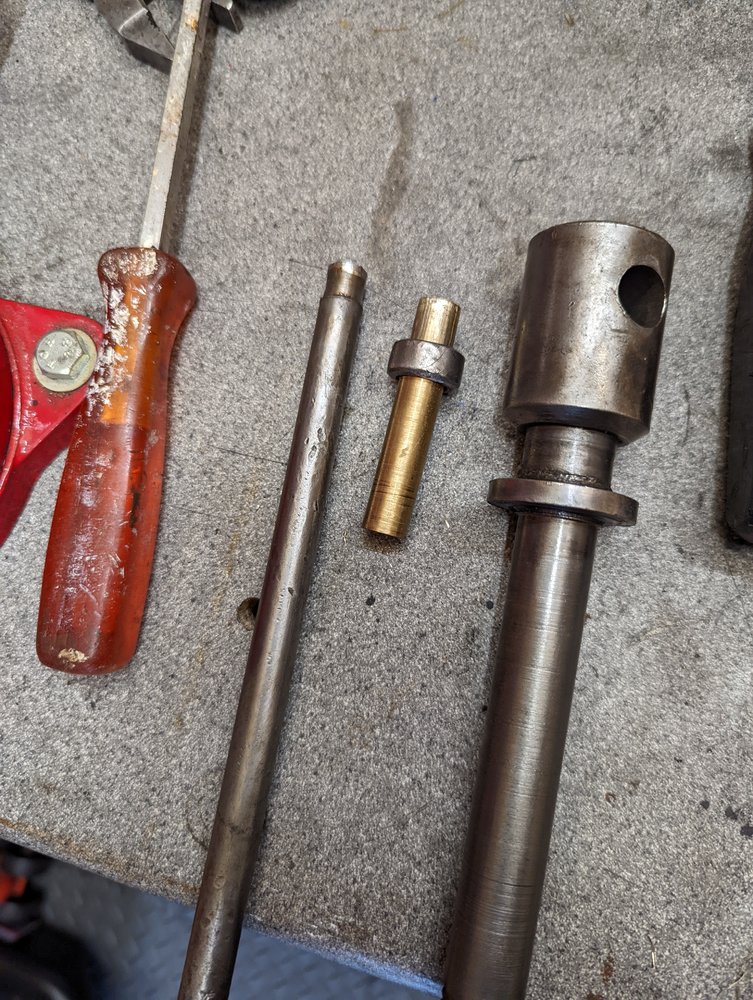

The handle seems to act as a thrust bearing:

and mating face:

Will look into fitting a thrust bearing.

The clearance from this has also caused some pick up at the circlip:

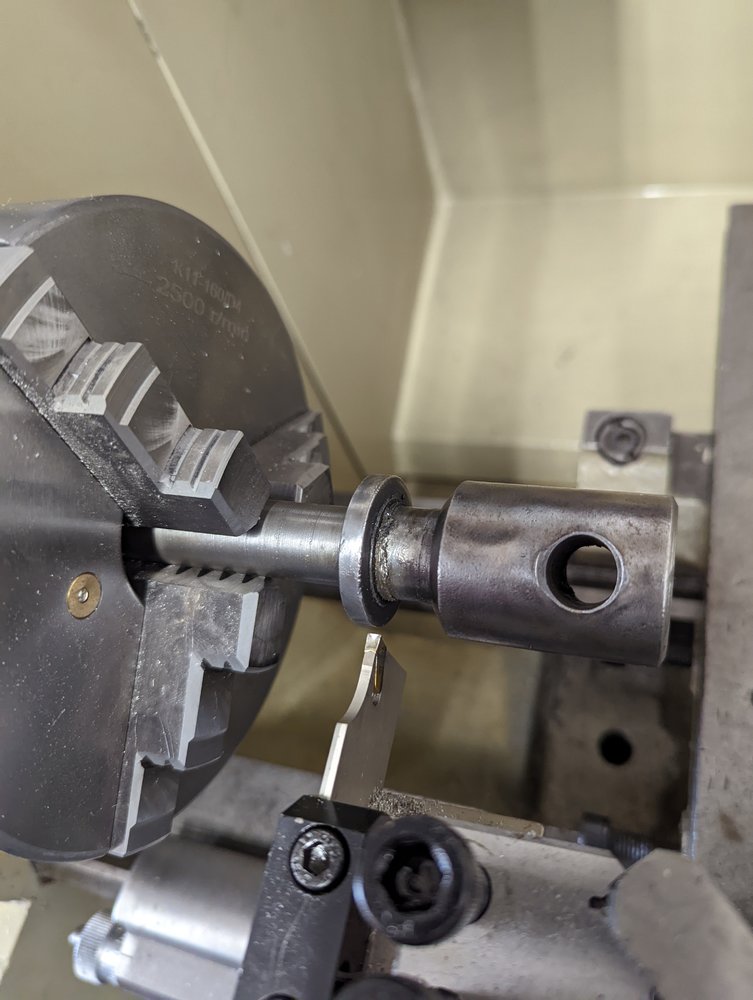

So another area to clean up on the lathe.

Overall its pretty good, though not that old at 1988 issue.



[Seadog]

I'd definitely fit a bearing of some sort, Tom. Even a plain bronze washer would be better than nothing.



[Rannsachair]

I'd definitely fit a bearing of some sort, Tom. Even a plain bronze washer would be better than nothing.

yes, not the best design, everything else looks good.



[Screwdriver]

That's what I did with this one: #28

Much earlier design which needed some extensive machining!



[Rannsachair]

That's what I did with this one: #28

Much earlier design which needed some extensive machining!

Just been looking through your post, great work, never thought of welding it!



[Agroshield]

Some butcher has removed it with an angle grinder:

That might look better if you spot faced each hole to the outer diameter of the projecting circular boss. It would look like an engineered solution to fixing it down well.



[Rannsachair]

That might look better if you spot faced each hole to the outer diameter of the projecting circular boss. It would look like an engineered solution to fixing it down well.

Will see how large a diameter I would need to go out, they are a mess.



[Ped]

The clamp handle is welded on so squadies don’t lose them.
You can grind the weld off and adapt the spigot so the handle is removable.

Makes the vice more useable. Here’s how I did it. The handle already has the hex hole.



[Rannsachair]

Took the handle off today with the hydraulic press:

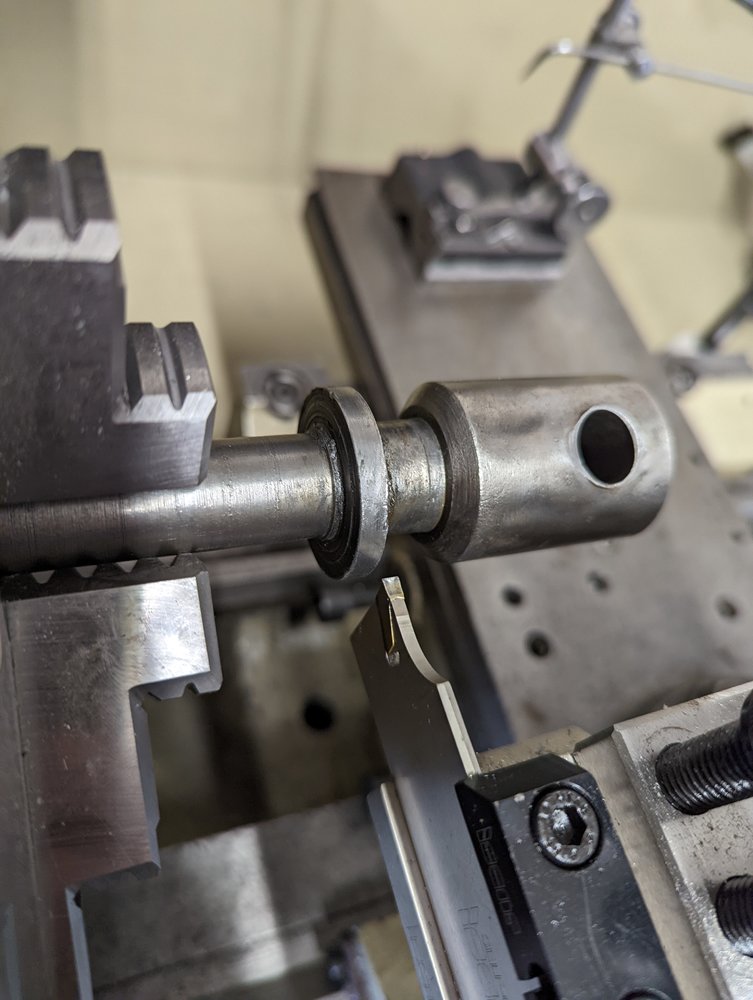

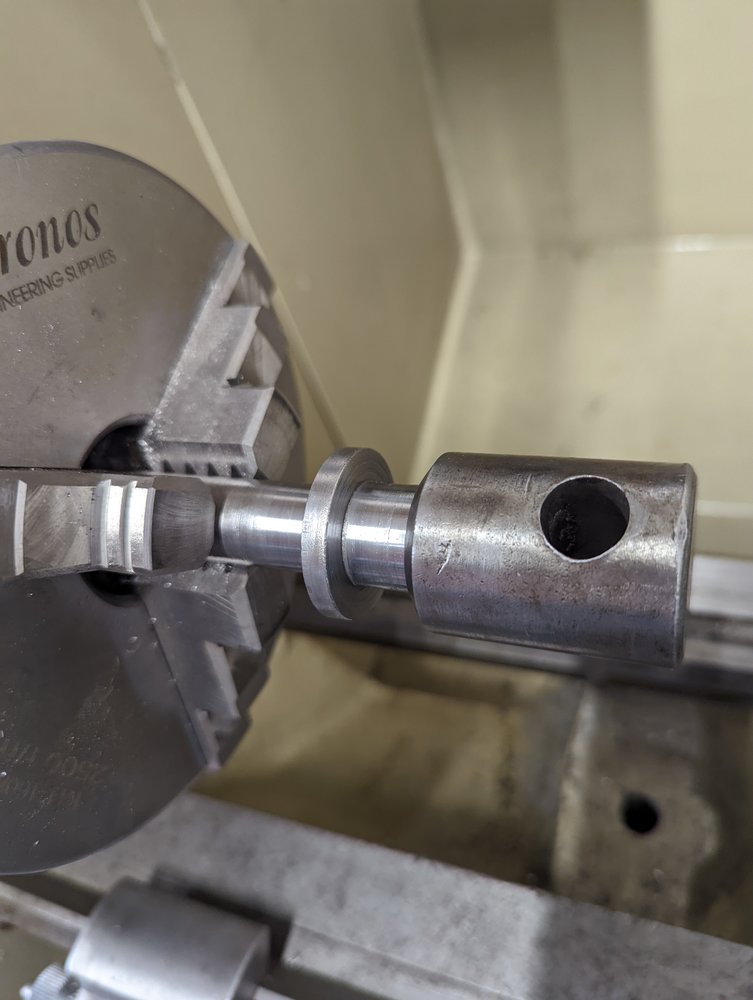

The galled faces on the screw shaft needed cleaned up.

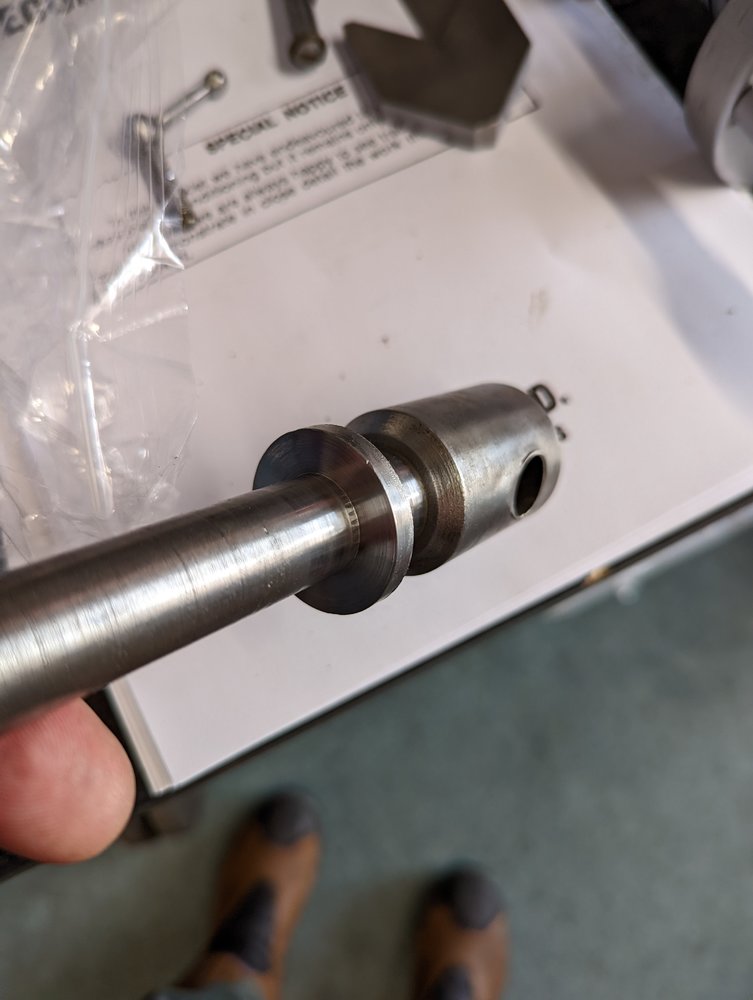

Cleaned up

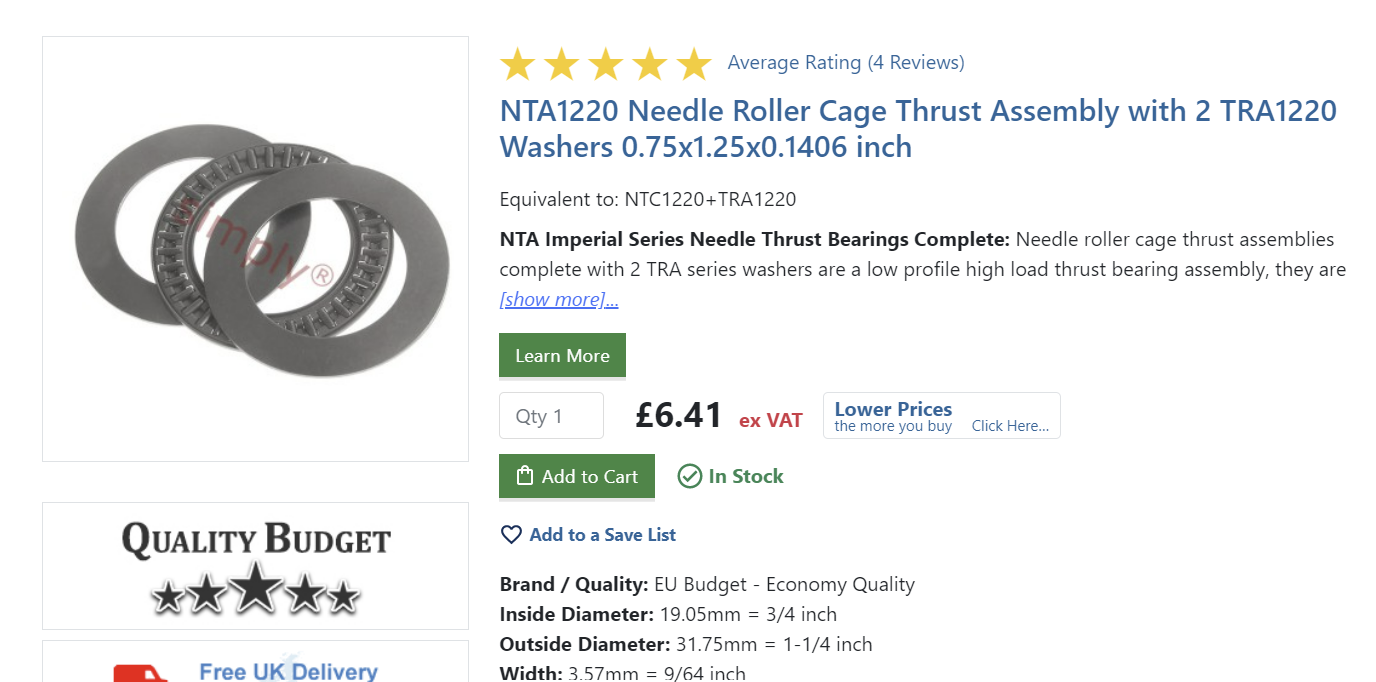

Ordered a thrust bearing to prevent this happening again, will remachine pocket in jaws a fraction to size for bearing.



[Rannsachair]

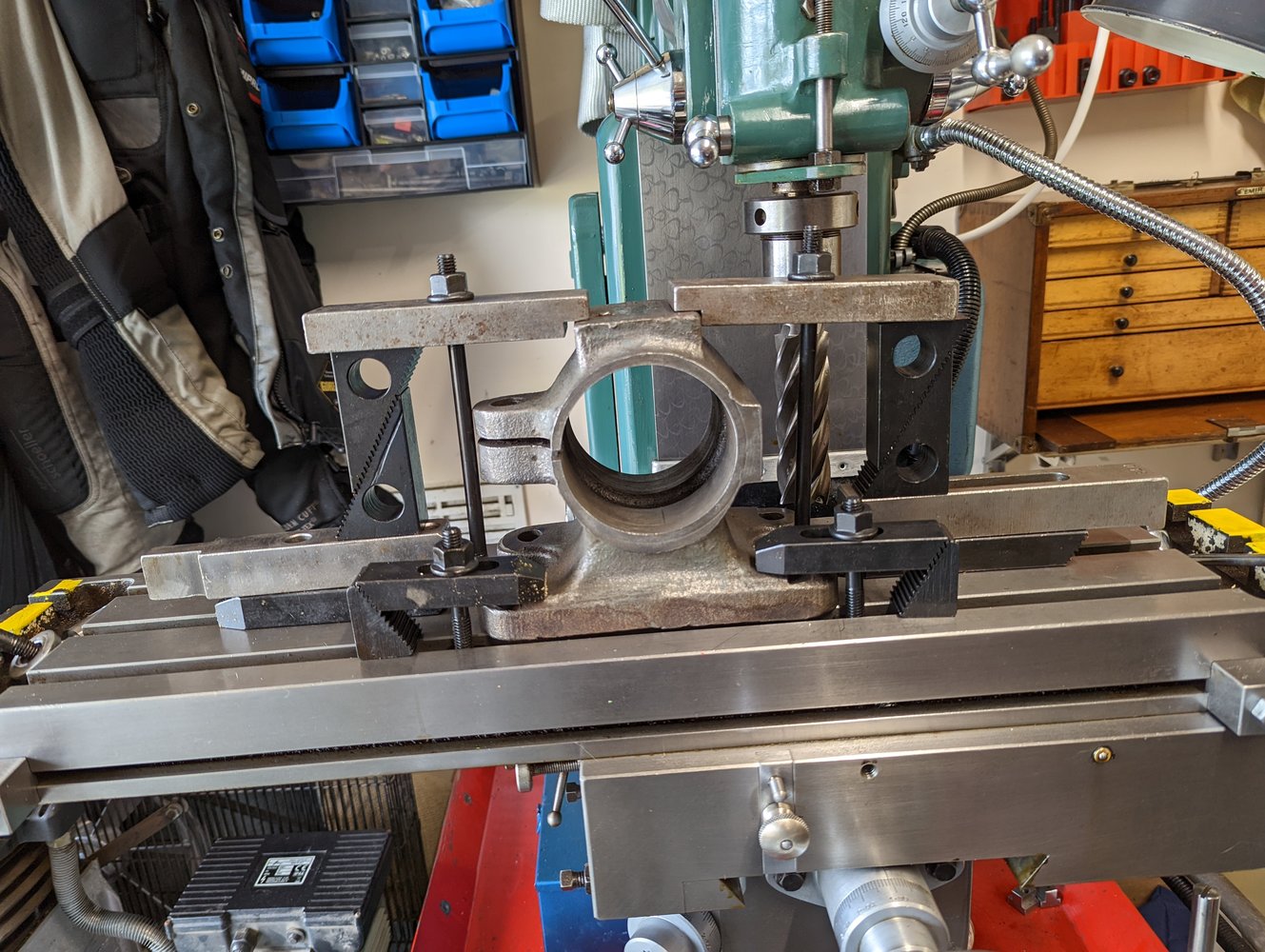

Now having fun clamping casting to machine feet flat where butchered



[Rannsachair]

For @Dcal , the thrust bearing was a good fit for me, need to machine about 0.5mm from the housing to get a good fit.



[Rannsachair]

Finally got back to the Swindens,
skimmed the weld spatter off the anvil:

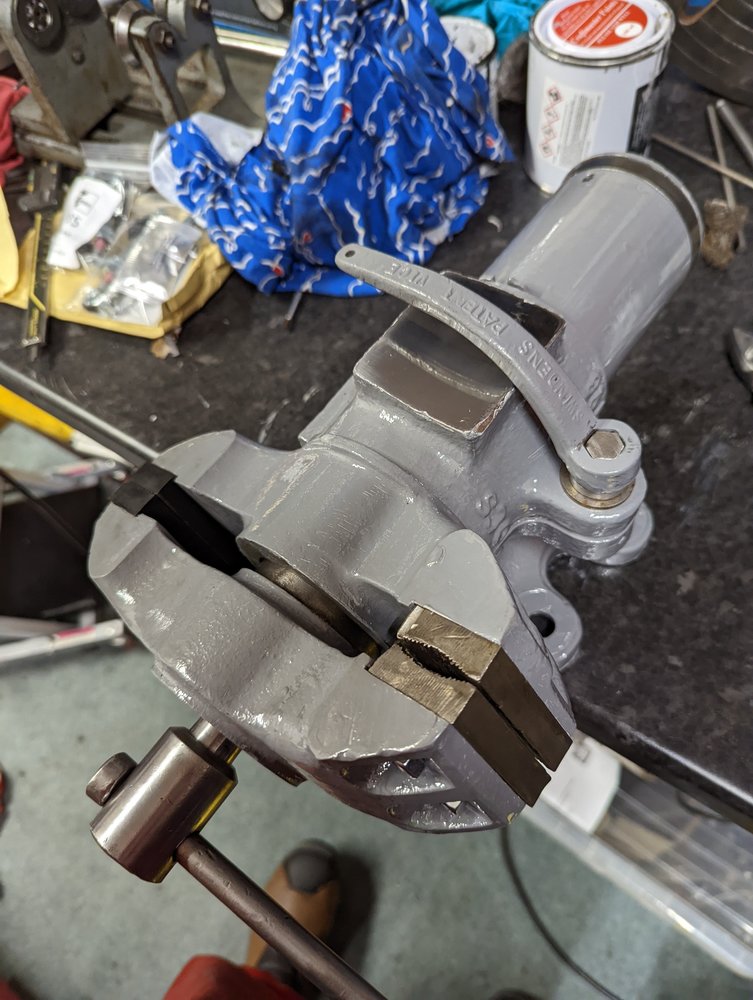

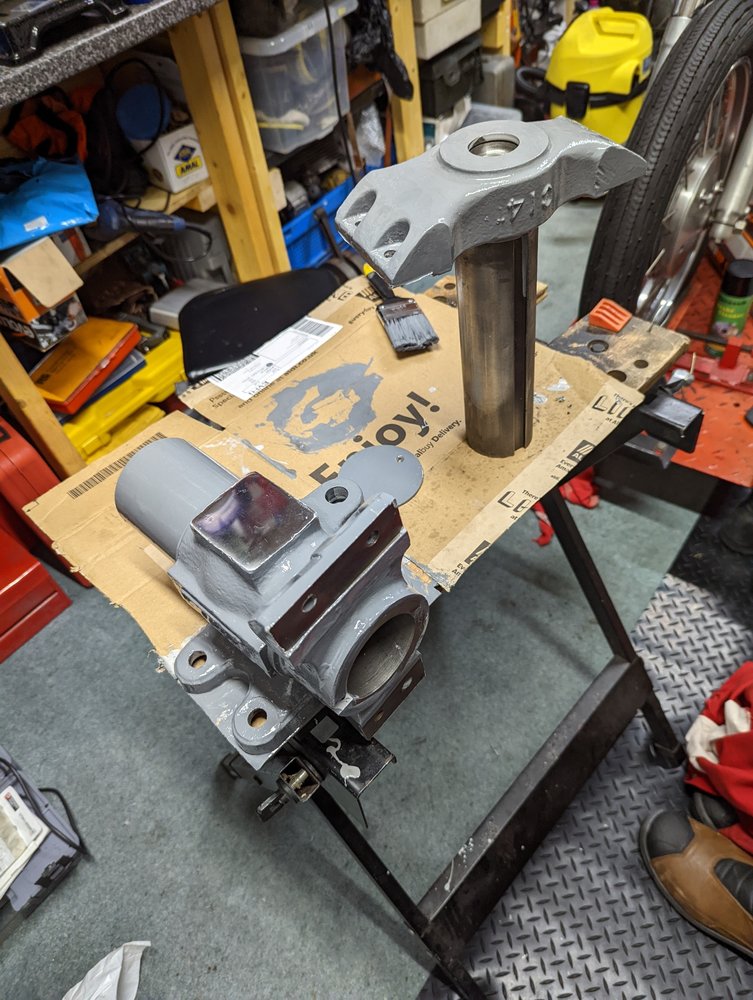

painted it:

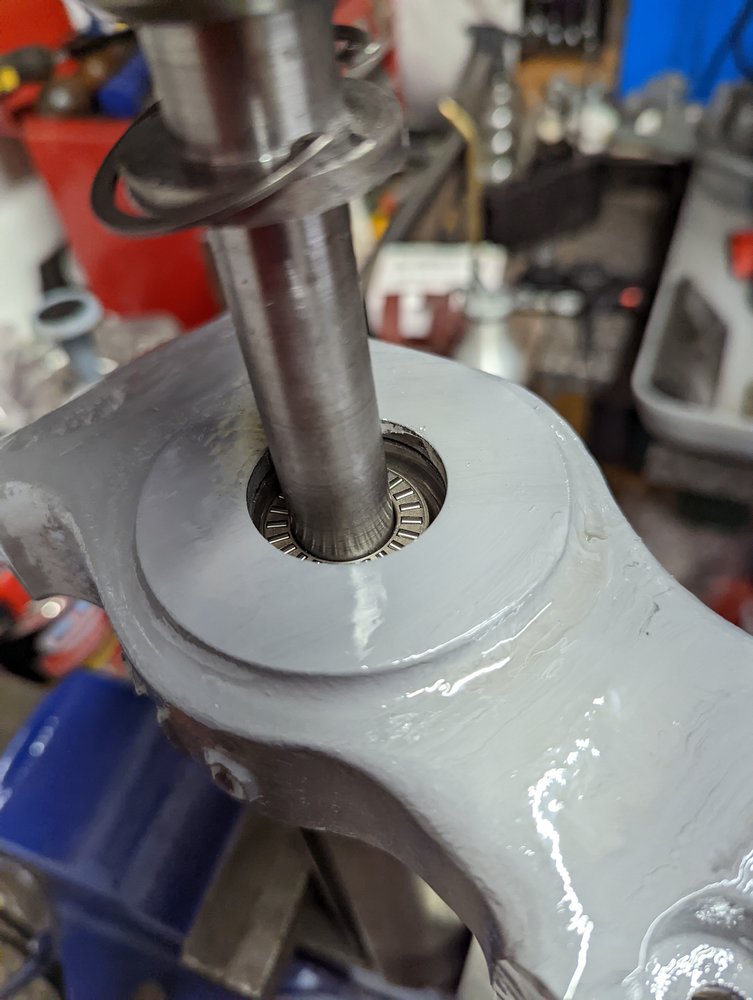

Thrust bearing oiled and fitted:

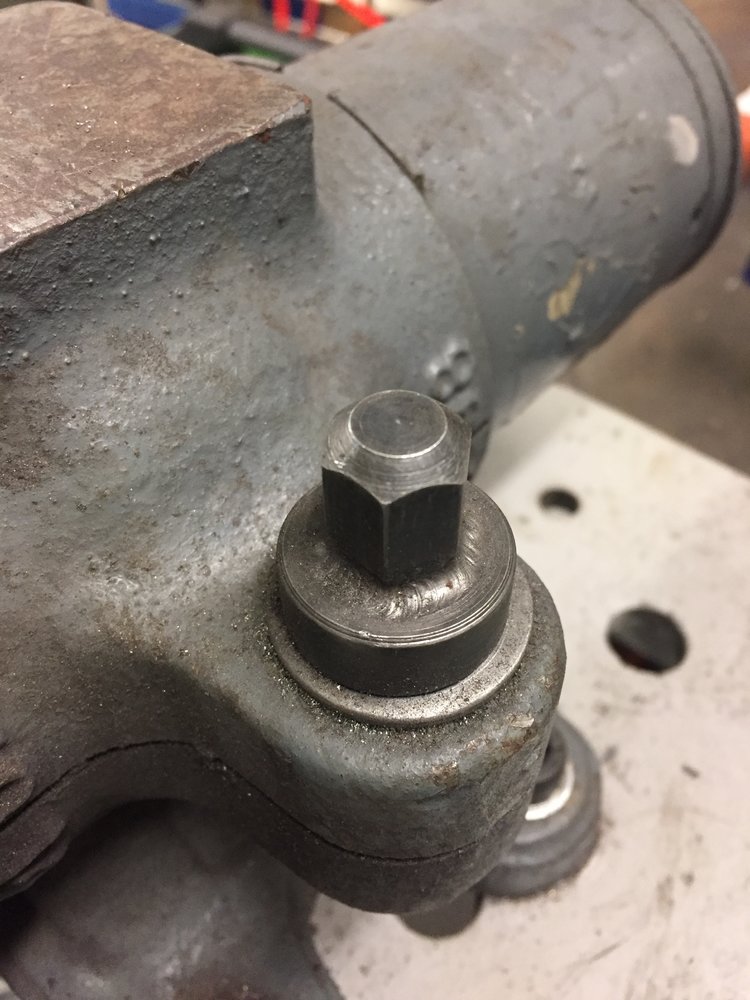

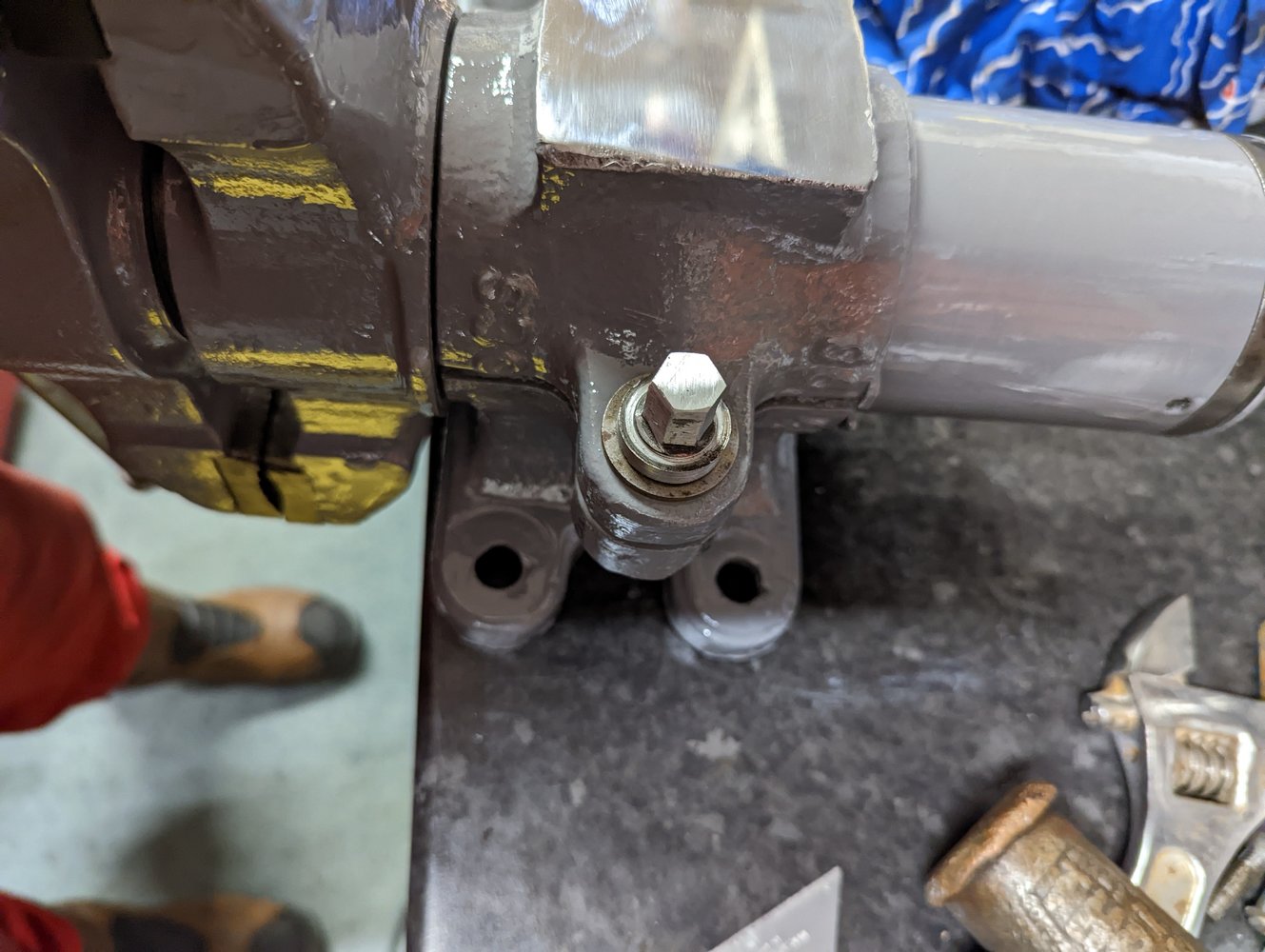

All assembled, I removed the weld on the handle:

All seems to work smoothly:

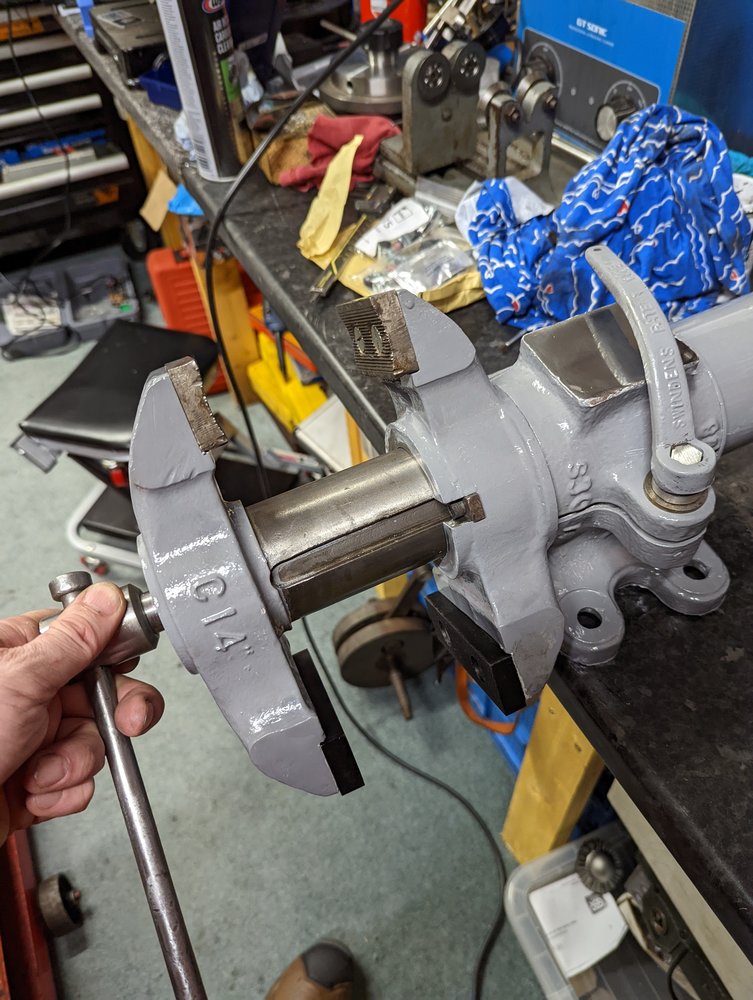

Just need to bolt to the bench now:
