So the new to me Bomford B577 hedge flail thingy was bought cheap with issues, cheap enough to spend a chunk on it to get it right but considering how many of these things are out there information seems scant!
The rams that extend the arms are controlled by this KA10 valve block, it should have three cables attached, 2 of which the adaptors are missing which isnt a problem but I think its probably had water in it where the 2 are missing but im really struggling to find any information/spares for these, anyone got any good ideas?
The pump is running and the flail head spins ok controlled by its operating lever which is on a different valve so im assuming the high pressure side is working?

Should I just bite the bullet, pull the valve block off and strip it?



[Rannsachair]

So the new to me Bomford B577 hedge flail thingy was bought cheap with issues, cheap enough to spend a chunk on it to get it right but considering how many of these things are out there information seems scant!
The rams that extend the arms are controlled by this KA10 valve block, it should have three cables attached, 2 of which the adaptors are missing which isnt a problem but I think its probably had water in it where the 2 are missing but im really struggling to find any information/spares for these, anyone got any good ideas?
The pump is running and the flail head spins ok controlled by its operating lever which is on a different valve so im assuming the high pressure side is working?

Should I just bite the bullet, pull the valve block off and strip it?

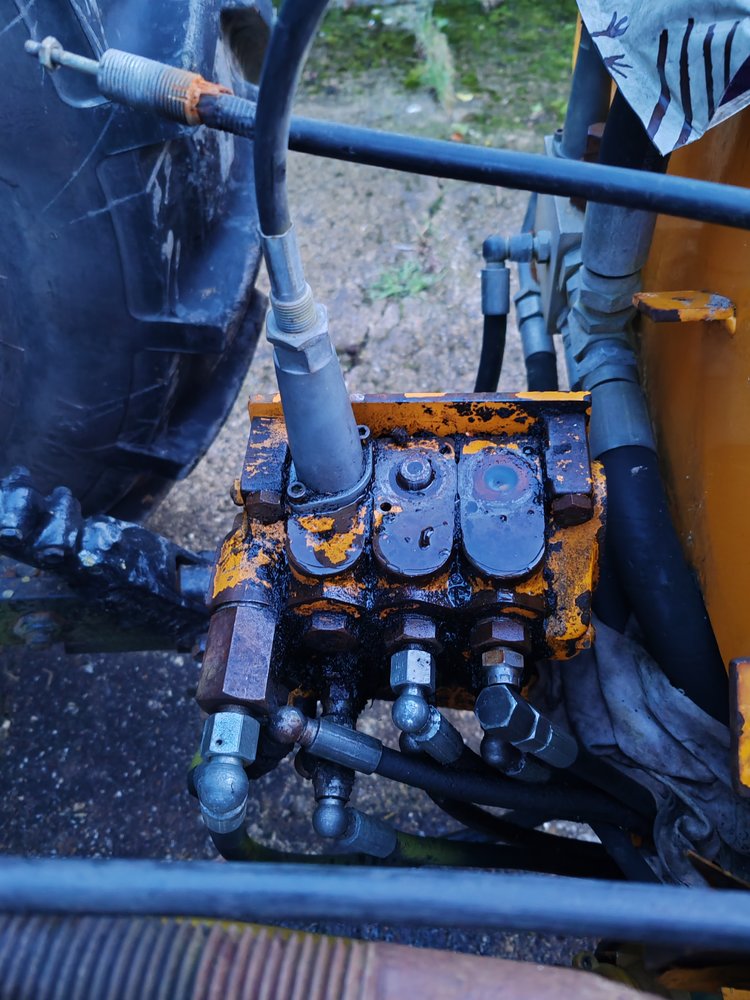

View attachment 482115

If it was me I would strip the valve block, looks like a simple bank of spool valves.



[Blobber]

If it was me I would strip the valve block, looks like a simple bank of spool valves.

Excellent, Ill get the spare bed made up!

Where should I be looking for seals, can you recommend anyone or is it a case of stripping, measuring and googling?



[8ob]

I would junk the whole thing and fit a new spool valve complete with the cables and sticks. By the time you locate bits and fettle what you have you would probably spend more.

Bob

Link



[Rannsachair]

Excellent, Ill get the spare bed made up!

Where should I be looking for seals, can you recommend anyone or is it a case of stripping, measuring and googling?

You may get help from Bomford, they used to be helpful, though years since I supplied hydraulics to them.

See https://www.bomford-turner.com/contact-us/parts/

Though for the price on Bob's link it looks worth buying new.



[Blobber]

You may get help from Bomford, they used to be helpful, though years since I supplied hydraulics to them.

See https://www.bomford-turner.com/contact-us/parts/

Though for the price on Bob's link it looks worth buying new.

I did try bomfords but couldn't get anyone to answer the phones!



[Blobber]

I would junk the whole thing and fit a new spool valve complete with the cables and sticks. By the time you locate bits and fettle what you have you would probably spend more.

Bob

Link

Presumably I need open centre as they are operating double acting rams?? Is that correct?



[Rannsachair]

Presumably I need open centre as they are operating double acting rams?? Is that correct?

Open Centre valves are used for simple hydraulic systems running a fixed displacement pump, pretty sure that will be the case with your Bomag spool valve.



[Ian X]

Excellent, Ill get the spare bed made up!

Where should I be looking for seals, can you recommend anyone or is it a case of stripping, measuring and googling?

Don't quote me if I am wrong but according to "phone a friend" the seal kit for the block is 05.449.01. He repairs agri tools and though rare in France compared to Kuhn there are a few about. I would email Bomford to confirm and get a price or a reseller name before commiting to an audit of whats inside.



[sako243]

That's the first time I've seen Bob post a link rather than say he's got a spare one in the yard somewhere



[Blobber]

That's the first time I've seen Bob post a link rather than say he's got a spare one in the yard somewhere

Bob's stock isn't what we all assumed!



[Johnnybravo]

Bob's stock isn't what we all assumed!

He’s probably misplaced the key to the hydraulics shed….



[sako243]

He’s probably misplaced the key to the hydraulics shed….

He's probably forgotten where it is more likely.



[Robotstar5]

He's probably forgotten where it is more likely.

The shed or the key?



[cocker]

I would think that larringtons hydraulics will have all you need .
On the north fourth foot bank , near Boston .
Old boys that know their onions !



[sako243]

The shed or the key?

Both



[8ob]

Ye of little faith. I do have a few of these spool valves with control cables, may be ok to bodge up what you have but they have been kicking about since god was a boy.

The only thing I will add is some of the side arm spools have a float position. This is for when the flail is down on the roller running along undulating ground.

Bob



[Johnnybravo]

Ye of little faith. I do have a few of these spool valves with control cables, may be ok to bodge up what you have but they have been kicking about since god was a boy.



Bob

Did he used to sit on your knee?



[Blobber]

Open Centre valves are used for simple hydraulic systems running a fixed displacement pump, pretty sure that will be the case with your Bomag spool valve.

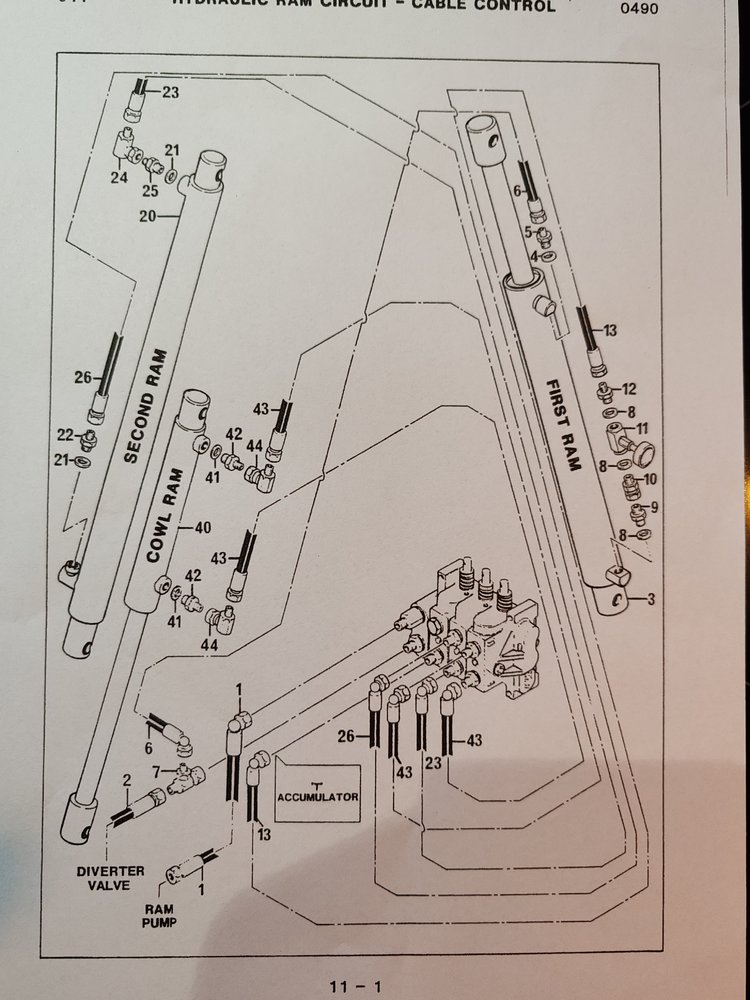

Could you cast your eye over the layout please, I just need to confirm the 3 spool valves all need to be double acting?

Ye of little faith. I do have a few of these spool valves with control cables, may be ok to bodge up what you have but they have been kicking about since god was a boy.

The only thing I will add is some of the side arm spools have a float position. This is for when the flail is down on the roller running along undulating ground.

Bob

Im happy to buy new its just making sure i get the correct thing!, could you also have a look at the layout please

The only thing thats confusing me is the set up for the first ram
