M17 equivalent bolt

[paulmitchell1984]

Hi guys and gals,

So what iv got is a push bike wheel with a bearing that is 17mm, what I'm after is some bolts that will fit said bearing, snug but not too snug that it can't be pulled out when I need to repair/ change the wheel.

My mind can't cope with imperial at best od times let alone unf unc bsf bsm etc (i know ehat they stand for that's about it)

i would prefer fine thread but im open to options.



[paulmitchell1984]

Of and they need to be 140mm long



[tom2207]

why not just go m14 and make a sleeve ,,, depends on what your trying to do really



[cheb]

There's likely to be motorcycle axles of that diameter, too long but they could be shortened.



[hotponyshoes]

Might be easier to find some bearings with a smaller center?



[GRW]

Change the bearing for one with a better/more available inner measurement?



[Agroshield]

What you are asking is difficult for a number of reasons.

1. M17 is very, very non-standard. Maybe you would find one on a very obscure French car of which only three exist in the world.

2. Nearest imperial equivalent is 11/16", which is a smidge under 17 1/2mm so too big. This is also non-standard but at least two standard threads in this diameter are available (UNEF and obsolete BSF & BSW). However, to push it through the hole, you'd have to remove some of the threads so no good.

3. Presumably the bolt has to thread into something, so you need a nut with a female thread to suit the bolt.

4. Any bolt in any size is not very round and not very precise on diameter. It will be a sloppy fit in the bearing. See dimension 'A' here: https://www.thomassmithfasteners.com/technical/

5. As above, your best bet is a smaller bolt and a sleeve to make it up to 17mm. M14 is a non-preferred size, so M12 would be cheaper. You could JB Weld the sleeve to the bolt so the diameter tolerance on the bolt does not cause any slop (the sleeve + bolt as an assembly would remove from the bearing inner as you wish).

6. For a one piece assembly, pick a shoulder bolt like these: https://www.ebay.co.uk/itm/164779824494 but you would have to buy one with a 20mm plain diameter and get it turned down to 17mm. The M16 thread on it would not be touched.



[GRW]

Quite a lot of mountain bikes use a 15mm Through-Axle on front forks, and 12mm rear - so bicycle wheel bearings to fit are commonly available if that helps.

G.



[grim_d]

Sounds easy enough to turn what you need?

A big shoulder bolt with a reduced diameter thread on the end (for easy nut procurement)



[paulmitchell1984]

Sounds easy enough to turn what you need?

A big shoulder bolt with a reduced diameter thread on the end (for easy nut procurement)

If you have a lathe it probably is.. I don't



[paulmitchell1984]

Change the bearing for one with a better/more available inner measurement?

Might be an option, il grab the numbers from current bearing and check sizes etc.



[paulmitchell1984]

Looks to be 17x28x7mm,
So needs to be 28diameter 7mm width, found a few online for not much money (and it's not my money anyway for somebody else)



[grim_d]

If you have a lathe it probably is.. I don't

I do....as do many other members...



[paulmitchell1984]

I do....as do many other members...

Show off



[Maker]

Show off

I think he was offering to turn something up...



[GRW]

I feel its pretty exotic with my small tinker shed having a Pillar Drill, a Welder and a Compressor in it



[cheb]

Trousers? Books?



[Kram]

Whats the purpose? will the bolt be a push bike axle? In which case you may want a better grade of steel and drilled through to save some weight as M17 that long will be heavy!

Easy to turn up a few fine pitch m17 threads.



[paulmitchell1984]

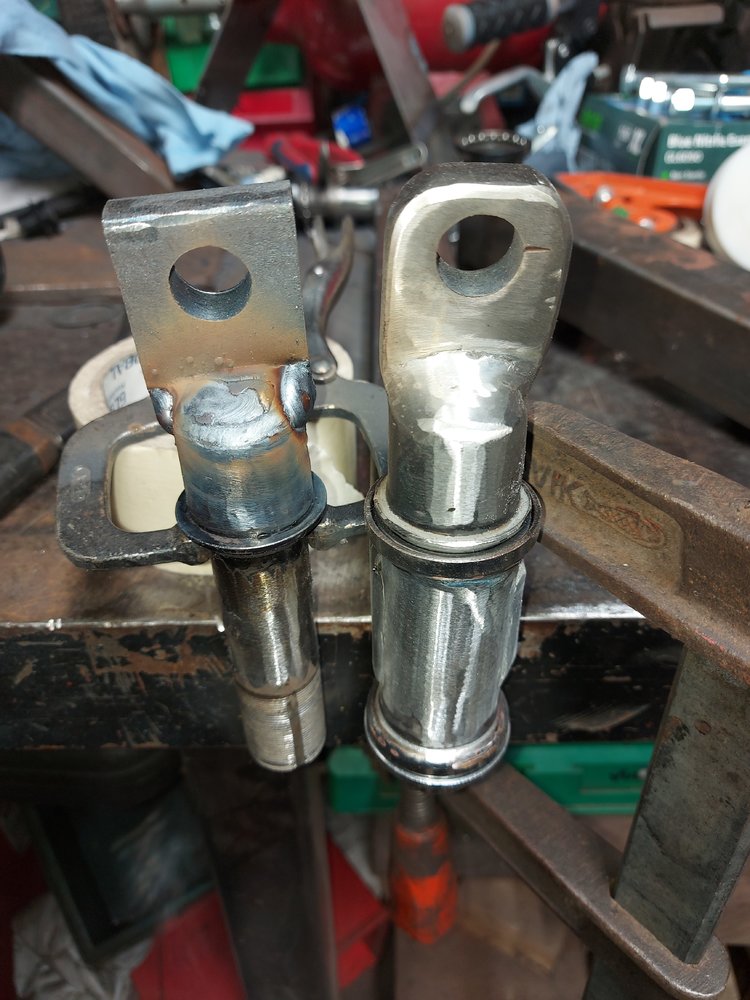

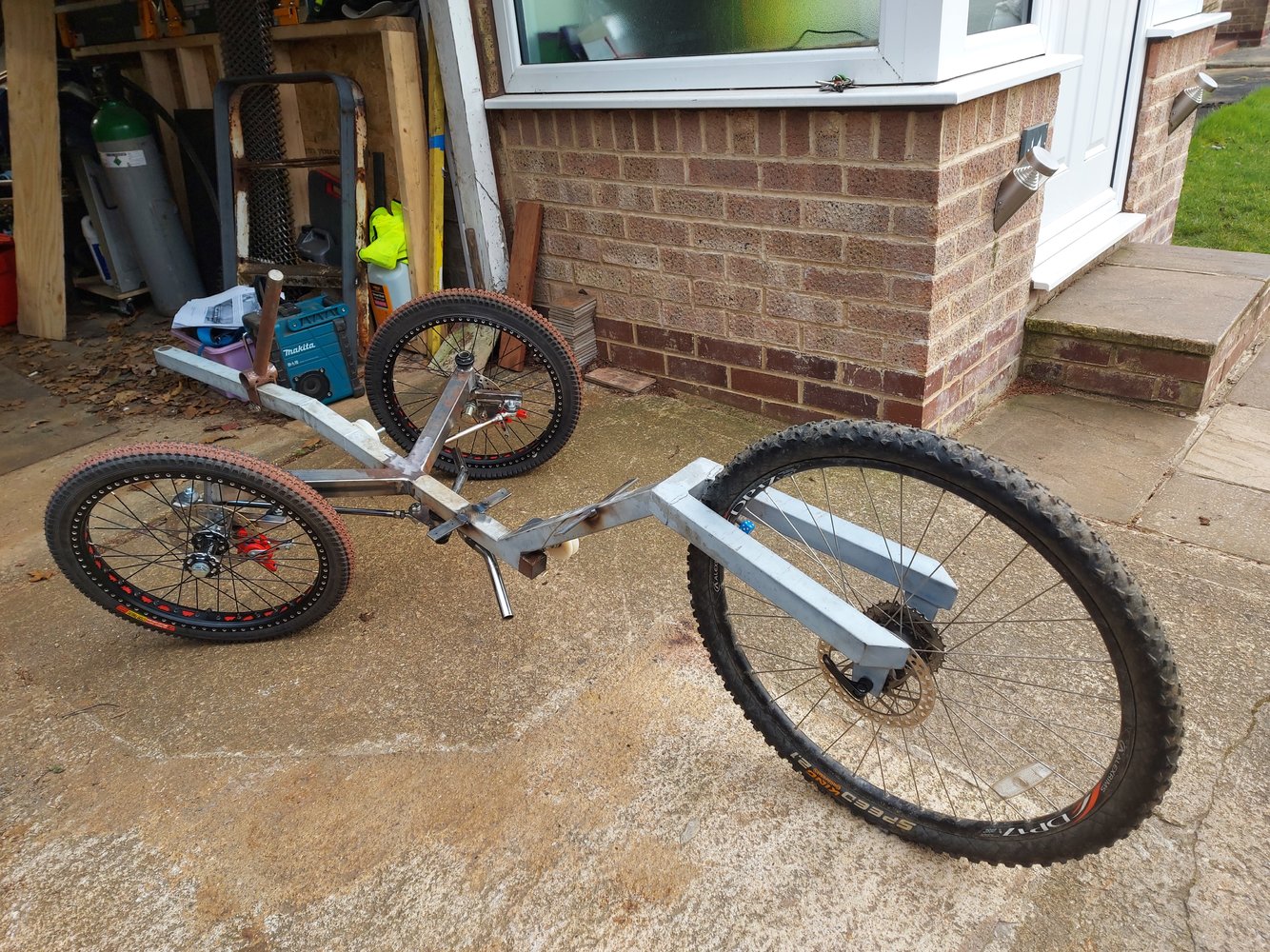

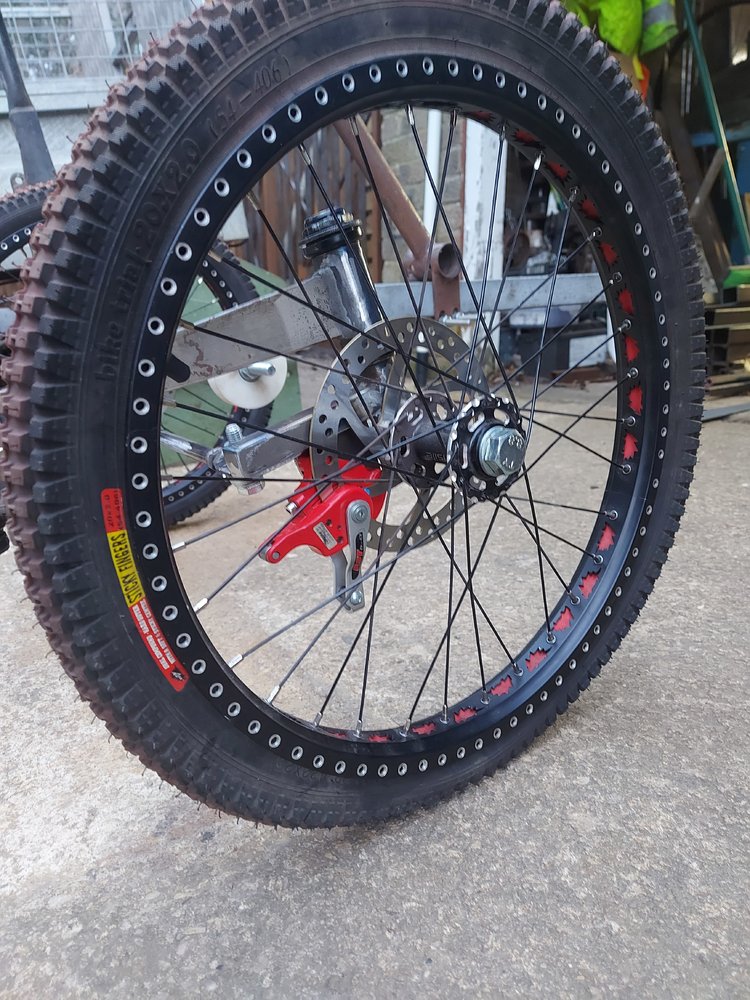

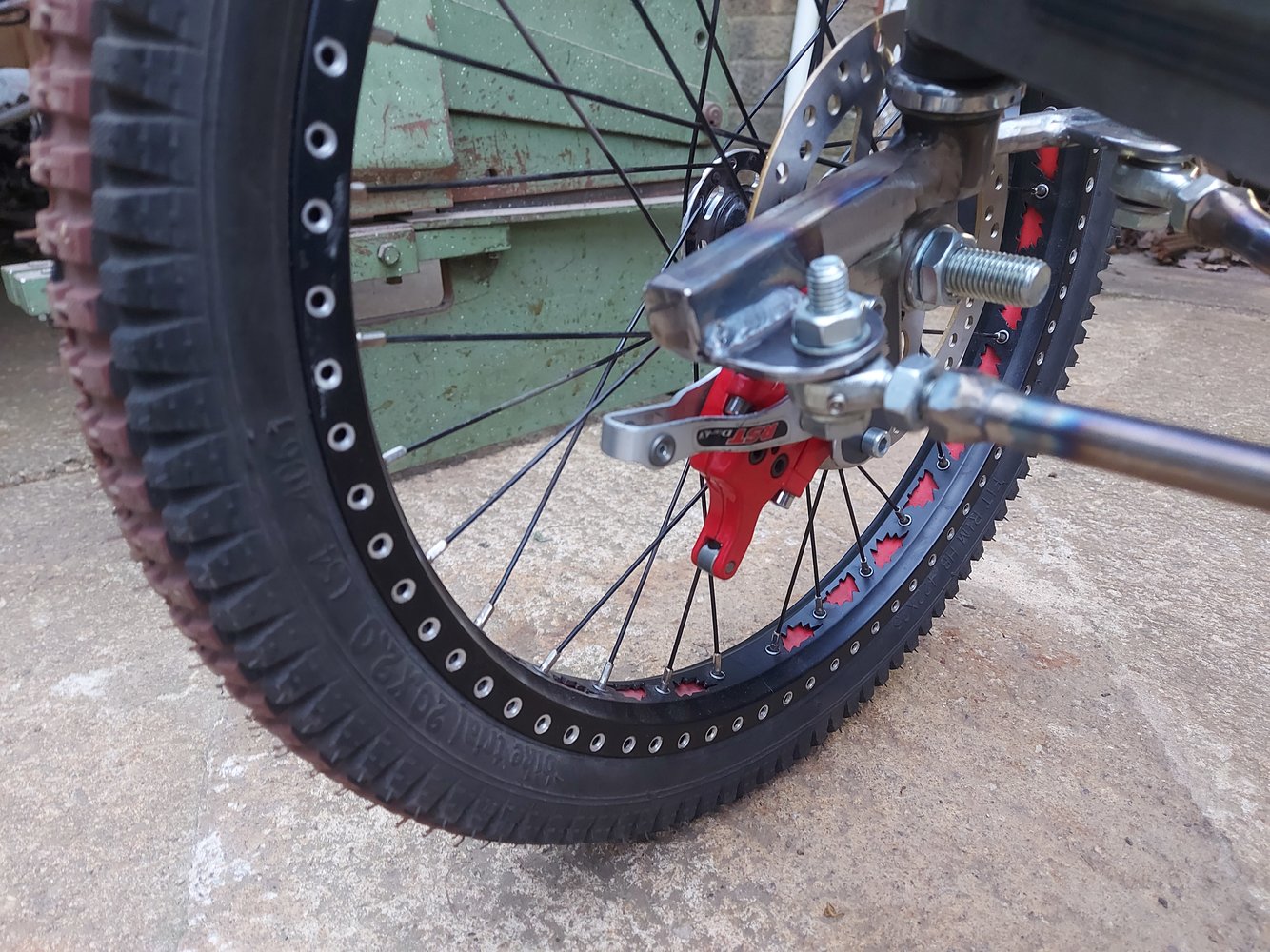

It's for a recumbent bike that iv been asked to make, the wheels he provided.
I think standard 8.8 should deal with the loads at hand,
Iv ordered some new bearings for the wheels that should accept an m12 bolt
