making hydraulic press brake :)

[toby916]

saw this and decided it looks good

but i want to make it into a finger press... simple idea

and bigger..... so i can bend maybe 1000mm of 1.5 mm 5 bar ally

cut the pressing die, and create a top rack that i can bolt tight to hold the fingers?

im my head its all simple

going to see if i can get a proper model on solidworks but am still learning

ideas and active criticism welcome



[Maker]

I'd like to build something similar too, I look forward to seeing how you get on.



[Paul.]

I once made one to bend 1250mm using a similar design, except it used standard eurotooling from the pressbrake, power was provided by a couple of 10 tonne lorryjacks, it was mainly used on 3mm 5bar ally, certainly not a production tool or particularly accurate, but served a purpose on site when refurbishing cold store interiors, no pictures I'm afraid, it was back in the days when cameras were something you only used once a year on holiday.
you will need a fair tonnage per metre to coin a sharp bend, air bending using a wider vee will make it easier,

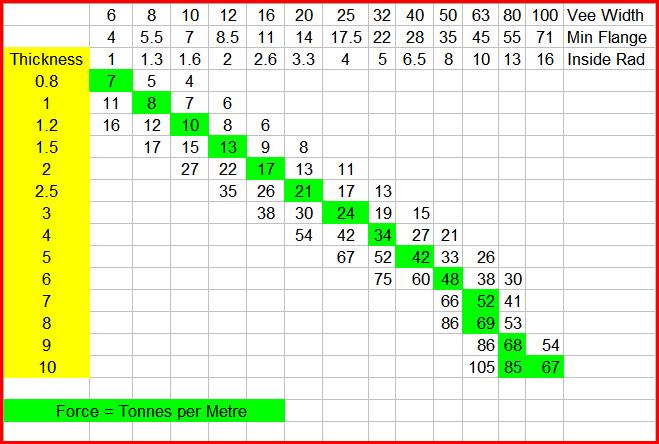

This chart is for mild steel, you will need about 60% of the values for ally, but it may help you with design decisions



[Fazerruss]

Here's one I made......


http://www.mig-welding.co.uk/forum/threads/press-project.36600/



[toby916]

I once made one to bend 1250mm using a similar design, except it used standard eurotooling from the pressbrake, power was provided by a couple of 10 tonne lorryjacks, it was mainly used on 3mm 5bar ally, certainly not a production tool or particularly accurate, but served a purpose on site when refurbishing cold store interiors, no pictures I'm afraid, it was back in the days when cameras were something you only used once a year on holiday.
you will need a fair tonnage per meter to coin a sharp bend, air bending using a wider vee will make it easier,
This chart is for mild steel, you will need about 60% of the values for ally, but it may help you with design decisions
View attachment 70927

Thanks for that very useful chart think i might print that off for future reference!

how do you sync the jacks? one long bar between the jacks?

Here's one I made......


http://www.mig-welding.co.uk/forum/threads/press-project.36600/

will have a look at that now



[toby916]

very nice press brake! is the tooling tap and bolt?

need to find somewhere to get some good springs near somerset

tooling i was going to make myself and then heat with oxy propane/cool/heat/cool/heat/old oil i think thats the correct process

i guess the other solution is a couple of hydraulic rams with matched pipework. got a few 12v hydraulic kits lying about



[Paul.]

how do you sync the jacks? one long bar between the jacks?

nothing that technical, just 2 blokes working together on the wide folds, for narrower parts one jack in the middle was ok, as I said it was just a knocked up site tool to save travelling back to the shop for a quick fold,
Bottom beam where the vee sat was a lump of Universal beam, top beam to jack against was a piece of RHS on edge probably 150 x 100 ish, top moving beam was a lump of bright flat with the eurotooling clamped to it, a couple of guide columns from bright round with a bit of sliding tube and a couple of big tension springs as per your example, all knocked up in a couple of hours, forklift job to move it, and when the job was finished it went in the scrap.



[toby916]

awsome, i guess the next question is going to be the frame materials i was thinking Ibeam would be the best to use for the framework?

looks like at least a 30 ton jobby

night make a smaller 500mm one first to get everything right with tooling etc



[gaz1]

ive seen this one for 3mm sheet

This is a bending tool made at home with scrap steel, made for bending 3mm checker plate aluminium.



[gaz1]

I once made one to bend 1250mm using a similar design, except it used standard eurotooling from the pressbrake, power was provided by a couple of 10 tonne lorryjacks, it was mainly used on 3mm 5bar ally, certainly not a production tool or particularly accurate, but served a purpose on site when refurbishing cold store interiors, no pictures I'm afraid, it was back in the days when cameras were something you only used once a year on holiday.
you will need a fair tonnage per metre to coin a sharp bend, air bending using a wider vee will make it easier,
This chart is for mild steel, you will need about 60% of the values for ally, but it may help you with design decisions
View attachment 70927

that thing always catches me out and i still dont understand it enough but to me that means being forced downward into a v shape however would you need the same amount of pressure if you was bending it at the side of the pivort area



[Maker]

that thing always catches me out and i still dont understand it enough but to me that means being forced downward into a v shape however would you need the same amount of pressure if you was bending it at the side of the pivort area

Do you mean you don't understand how a wider Vee requires less force?



[gaz1]

yes and no i understand to have a shallow bend you need the force pushing down into a v to get it

what i cant understand is why you would need the same force to push the plate from underneath to create the bend

however i do understand that those pins holding the door pinion would be taking alot of strain upon them
