Pillar drill head stuck

[fizzy]

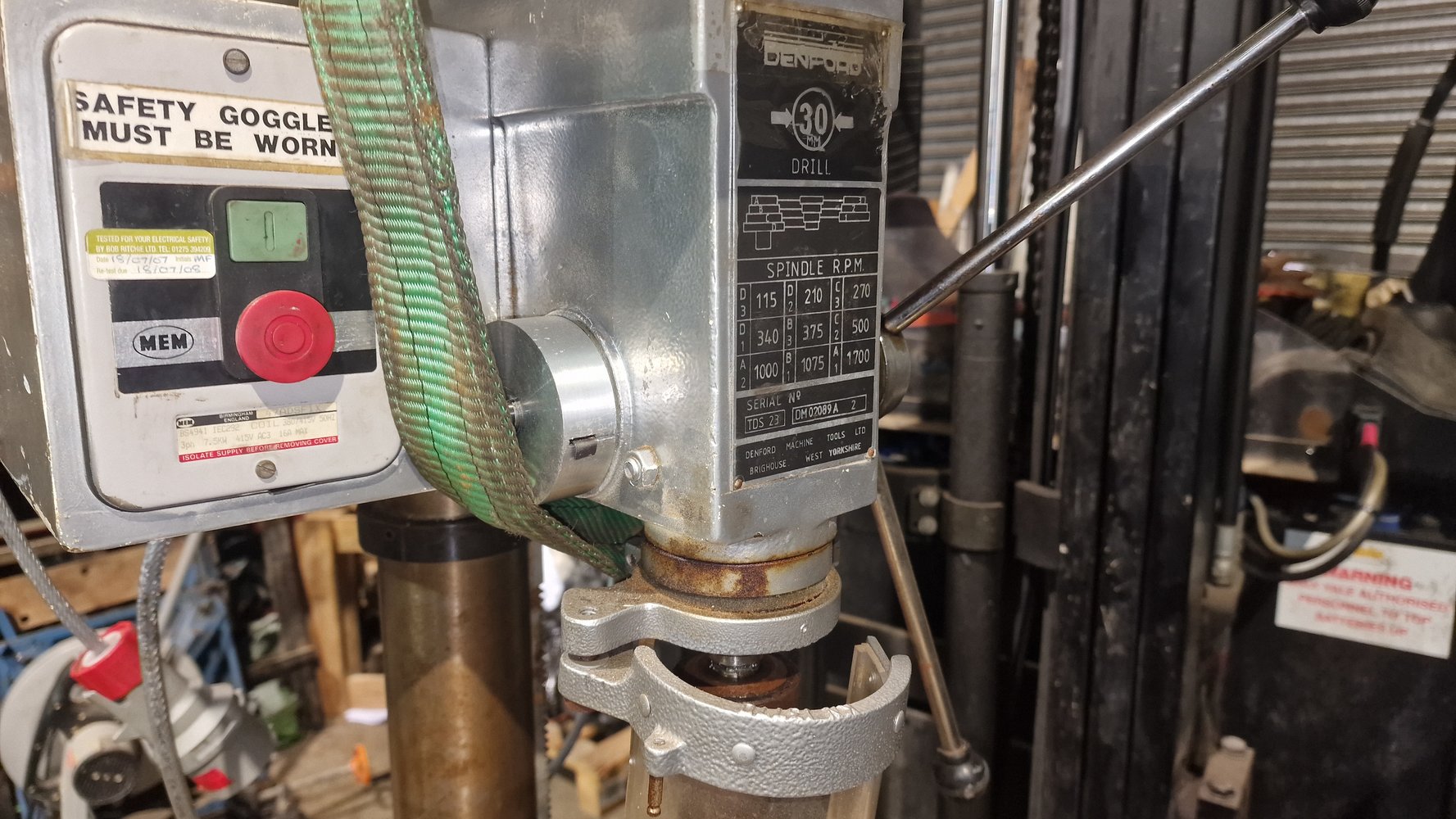

Nice Denford drill I want to get up and running. Works beautifully BUT
SImplest jobs turn into a nightmare!
I assume the head just lifts off the same as the cheap Chinese imports? Drill looks the same but imperial fasteners.

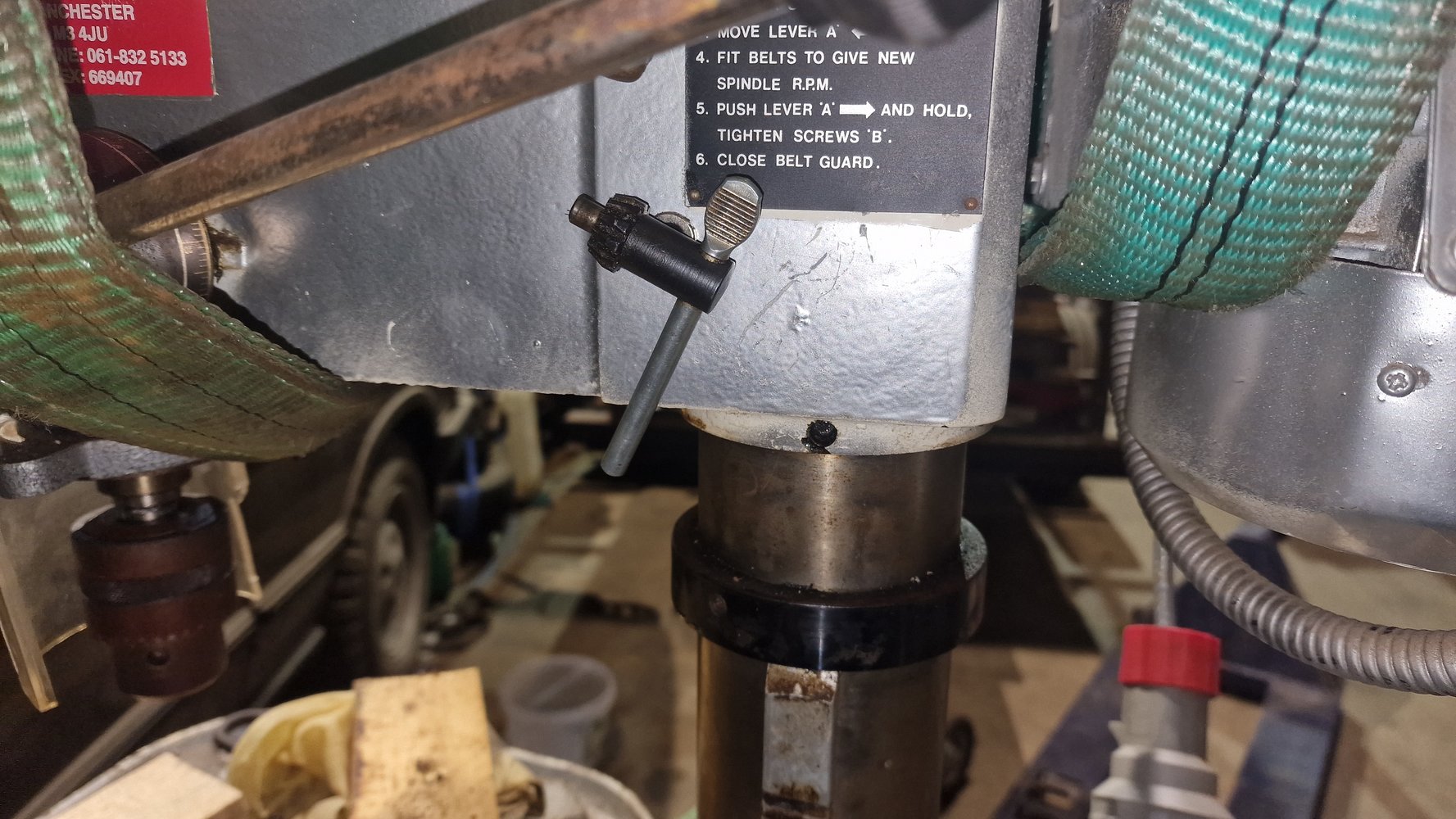

Removed grub screw.

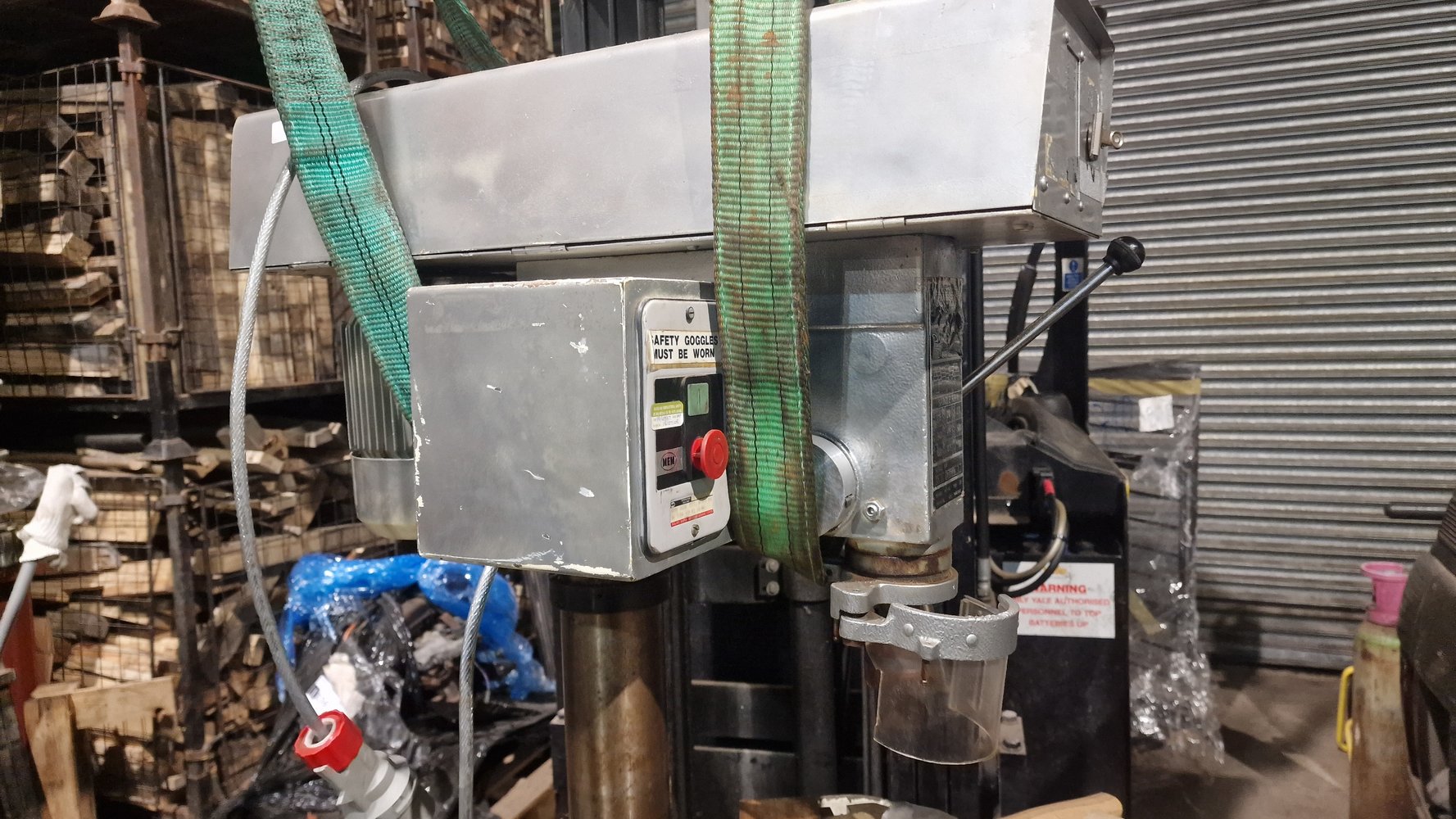

Tried lifting with forklift. Bolted to a pallet with a flypress and extra weight down below.
Just lifts pallet off the ground.

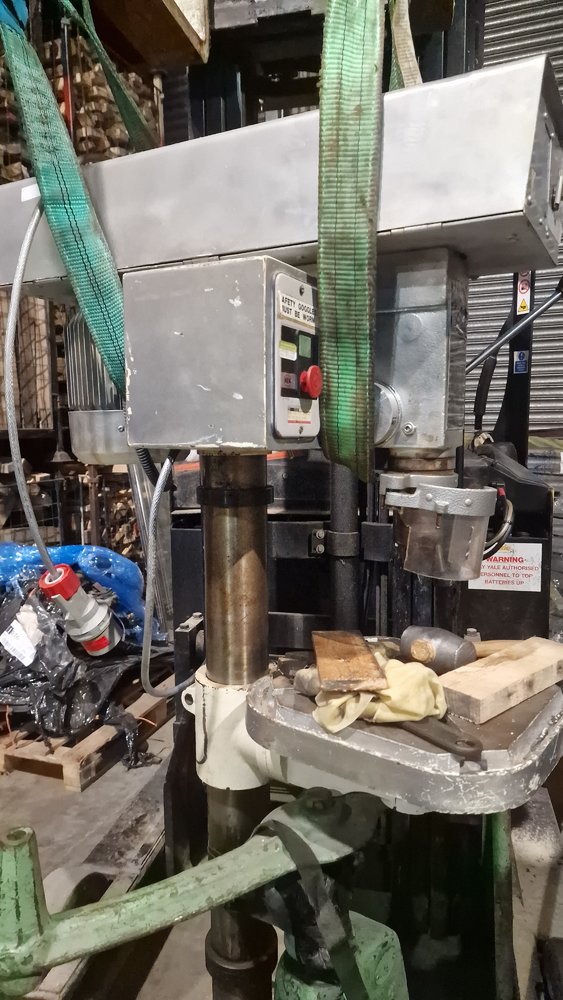

Noticed head not at 90 degrees. Won't swivel. Tried hitting it with a lump hammer and a block of wood. Still won't swivel never mind lift off.
Any ideas?
Driving me mad - mad I say MAD!



[500e]

Breath breath, calm, not another under the first one is there, one you can see just a locker
Had that on a drill cant remember the make



[6ply]

Look for another grub screw, just in case you have missed the obvious.
Next, rather than trying to lift, try to wiggle instead. You'll find it much easier to break the seized joint.
Good luck.



[fizzy]

Look for another grub screw, just in case you have missed the obvious.
Next, rather than trying to lift, try to wiggle instead. You'll find it much easier to break the seized joint.
Good luck.

I was hitting the head near the chuck trying to twist it.



[fizzy]

Breath breath, calm, not another under the first one is there, one you can see just a locker
Had that on a drill cant remember the make

Can't see any more screws. No room.
Lifted the belt cover. Can't see anything there unless under the belt cover.



[6ply]

I was hitting the head near the chuck trying to twist it.

Yes, you did. Just reread your post.



[500e]

Cant believe there is only one screw stopping the head rotating
Nothing under the lecky box ?
Even the old Alpine I have has 2 vertically, about 50mm apart and that was a cheap Graham engineering unit



[JOEPRO]

When I bought my 3 phase SIP pillar drill recently the head on it was stuck. Would not lift off.

We locked the table and positioned a small bottle jack on the table close to the pole and a block of wood under the drill body.

That was the only thing that shifted it. I wiggled the head side to side a little and the other guy jacked it up at the same time and we walked it up off the pole.



[fizzy]

When I bought my 3 phase SIP pillar drill recently the head on it was stuck. Would not lift off.

We locked the table and positioned a small bottle jack on the table close to the pole and a block of wood under the drill body.

That was the only thing that shifted it. I wiggled the head side to side a little and the other guy jacked it up at the same time and we walked it up off the pole.

I have thought of doing that.
Only reason I want the head off is there is something wrong with the pinion. Doesn't like winding up or down properly. Got to remove the head to lift the table off.



[fizzy]

Cant believe there is only one screw stopping the head rotating
Nothing under the lecky box ?
Even the old Alpine I have has 2 vertically, about 50mm apart and that was a cheap Graham engineering unit

Can't see one but will check.
Drill is almost identical to the Chinese units. I wonder who copied whom



[brightspark]

I have thought of doing that.
Only reason I want the head off is there is something wrong with the pinion. Doesn't like winding up or down properly. Got to remove the head to lift the table off.

wont the column remove from the base



[rich_c]

This might be the drawing for your drill. If I read the dwg right, you've removed the 4BA, but there is another through tapped hole (3/8 BSW) on diametrically opposite and up a bit! That's presumably hiding under the lx box as 500e wondered?



[brewdexta]

Another thing to check is double grub screws. Sometimes there are two on top of each other, I had it recently with a pulley. So you think you've removed it but it was just the lock grub screw.



[E T]

Don't know if it's for the right model, but lot more pdf's here.

Viceroy Bench and Pedestal / Pillar Drill TDS 22 & TDS 23 - Denford Software & Machines



[fizzy]

Cheers everyone. Will investigate later. Driving home now.



[6ply]

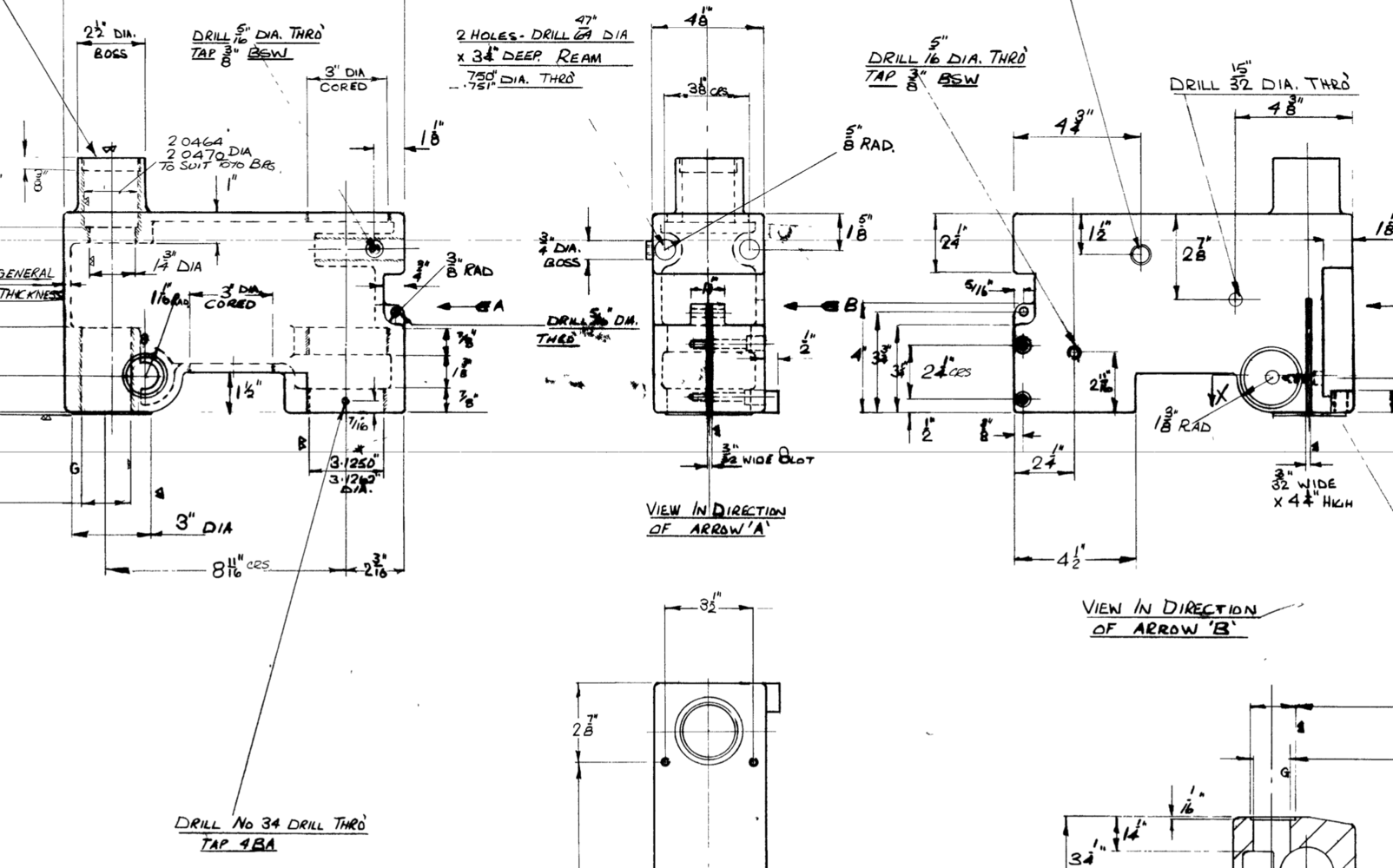

This might be the drawing for your drill. If I read the dwg right, you've removed the 4BA, but there is another through tapped hole (3/8 BSW) on diametrically opposite and up a bit! That's presumably hiding under the lx box as 500e wondered?View attachment 423094

The 3/8" BSW hole is to lock the motor bracket, isn't it? The motor is probably mounted on a plate with two bars that slide in and out of the drill head.



[Agroshield]

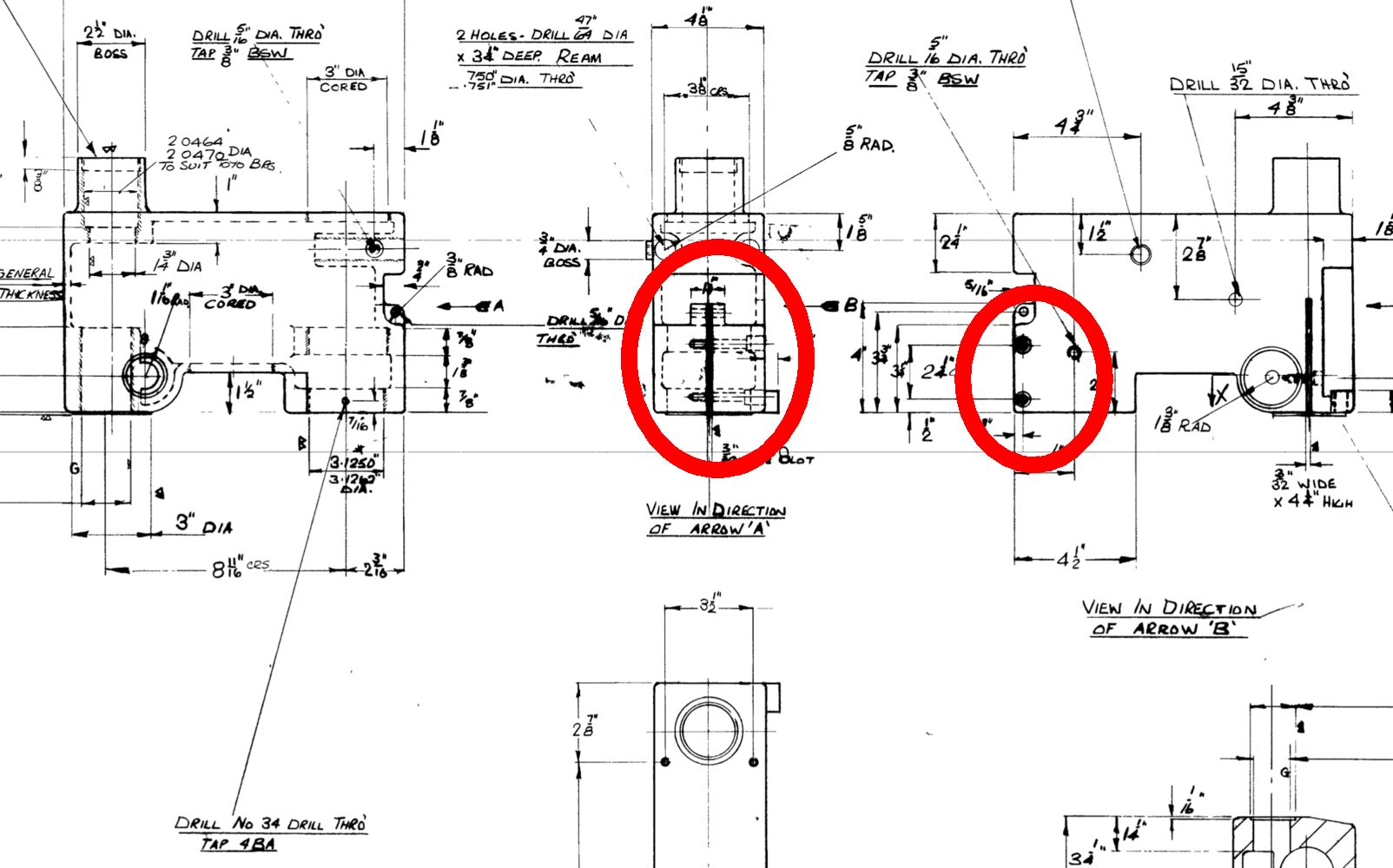

I assume you have removed the fasteners circled in red. They clamp the head to the column.
