Pipe union flanged joint

[Rowan Sylvester-Bradley]

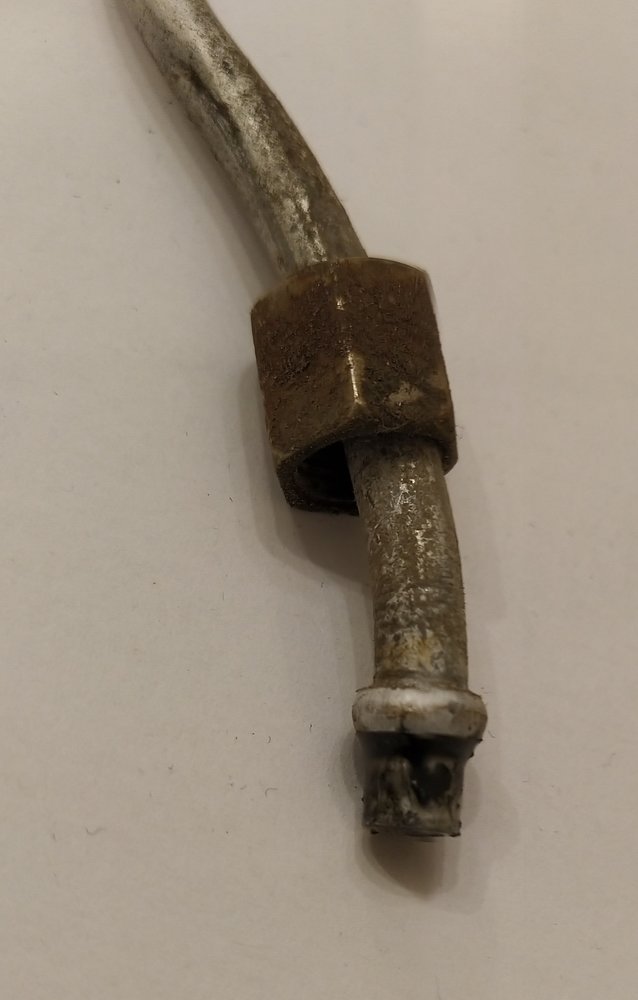

My compressor has a 1/4 inch diameter aluminium tube from the pressure switch to the air tank. The unions at the ends of this pipe use a flange formed into the pipe, and a nut (see picture). How is this flange made? There must be a special tool for doing this, I suppose. I need to replace this pipe now, so I need to make these flanges in a new piece of aluminium (or I suppose copper) pipe. How do I do this?

Thanks - Rowan



[123hotchef]

Is it not a olive



[knighty]

Is it not a olive

that's what I was thinking



[Rowan Sylvester-Bradley]

I'm pretty sure it's not an olive, but is formed into the metal of the pipe.



[frank horton]

get what unions u need and use Nylon pipe.....not diff....
The ally has a timed life which u've reached....



[not done it yet]

If you really want a similar ‘flange’, you could use a piece of brake pipe with the common double flare?



[8ob]

You need a Fairmount flaring tool for that type of swage. Lucas/cav fuel pipe unions used the same type of swage form.

Bob

Edit https://www.amazon.co.uk/Fairmount-Hydraulic-Flaring-Expander-Metric/dp/B07PXT4RVN



[Agroshield]

get what unions you need and use Nylon pipe...

Is there any issue with heat in the area the pipe is used, that would make nylon unsuitable or have a short life?
