Please help lost item

[Dell]

Hi all

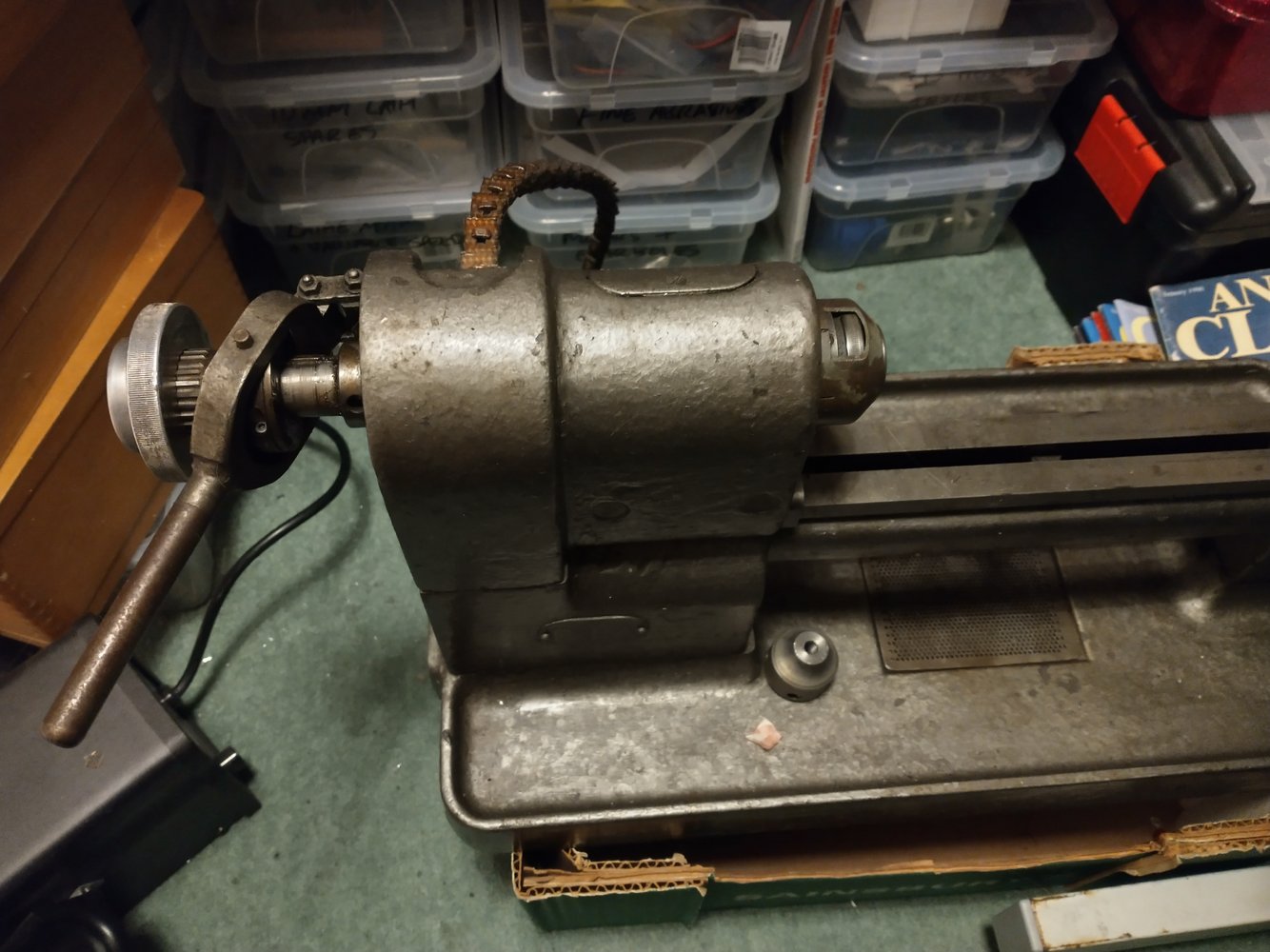

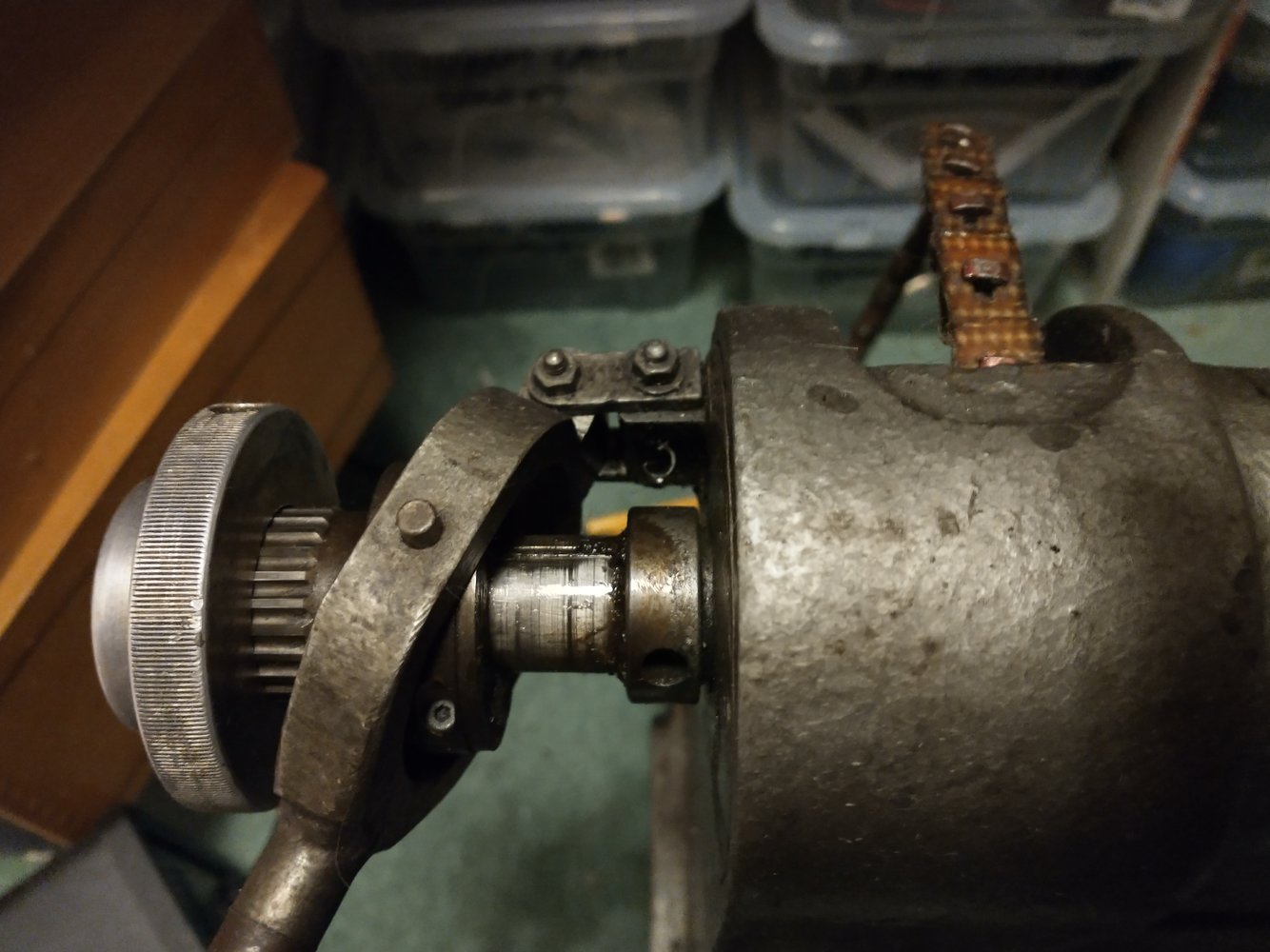

some how I have managed to miss lay ( or lost ) a bracket from the quick close on my Pultra 17/70, has anyone got a 17/50 or 17/70 with quick close that could give me the dimensions of the part that the quick close handle fixes on then fixes onto back of headstock with two pins, I have the pins , I could probably work out overall size but the gap in between the two pin holes would be a problem, the item is a square U shape with two holes on either side.

Many thanks in advance Dell



[JMS1972]

Hi all

some how I have managed to miss lay ( or lost ) a bracket from the quick close on my Pultra 17/70, has anyone got a 17/50 or 17/70 with quick close that could give me the dimensions of the part that the quick close handle fixes on then fixes onto back of headstock with two pins, I have the pins , I could probably work out overall size but the gap in between the two pin holes would be a problem, the item is a square U shape with two holes on either side.

Many thanks in advance Dell

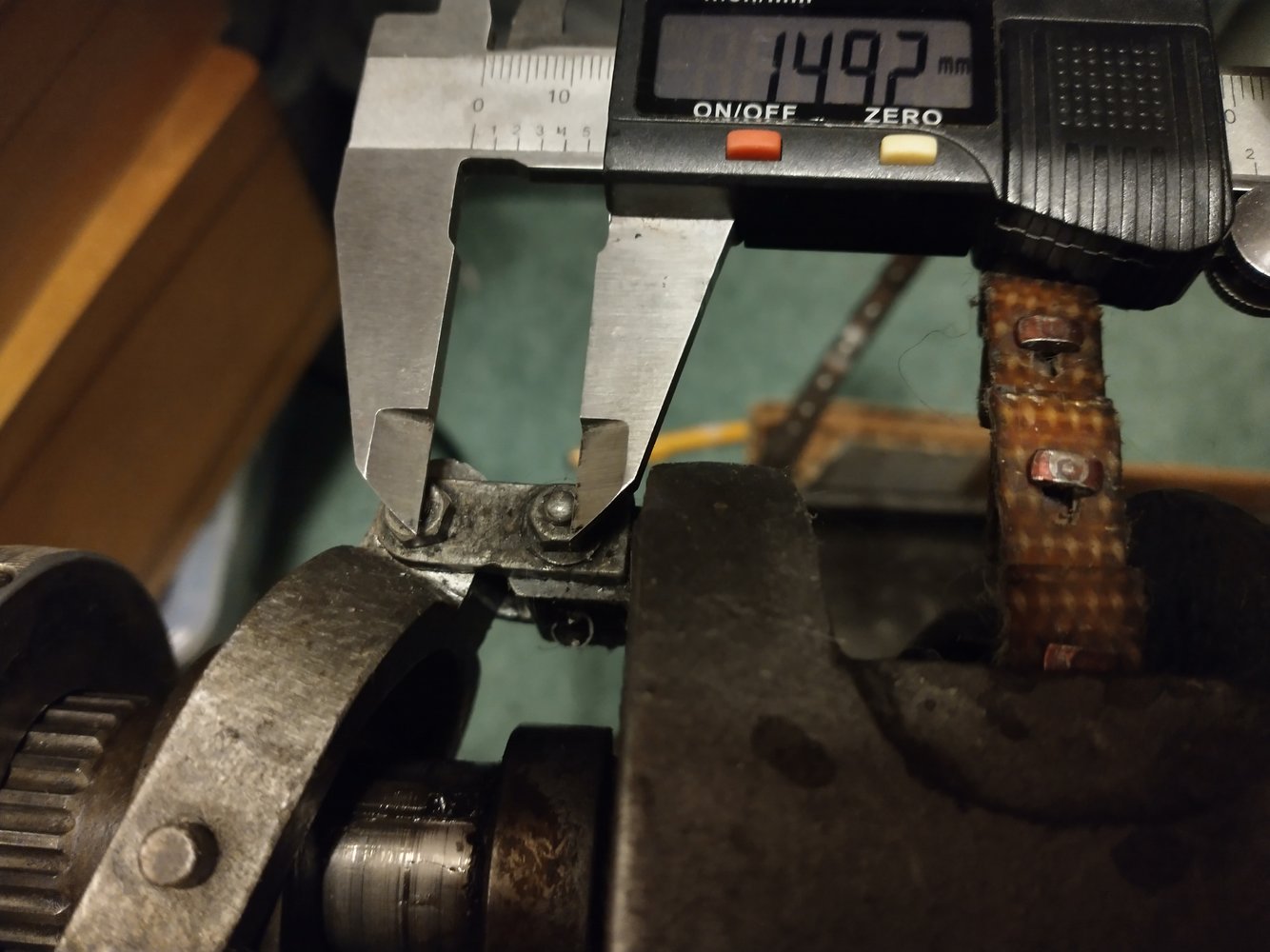

I've no idea which model my Pultra is but the two pins are on 15mm centres if that helps.



[ukracer]

Forgive me what is a quick close.



[Arc Tourist]

Forgive me what is a quick close.

Lever action collet closer.



[ukracer]

Lever action collet closer.

Ah Ah. Can you buy these separately or is it possible to make one?



[Arc Tourist]

Ah Ah. Can you buy these separately or is it possible to make one?

They are specifically made for a particular model lathe, an expensive accessory to buy, and would be rather complicated to make. There is a very close fitting shaft which goes through the headstock spindle to draw in the collet, which is adjusted by a small wheel so that just the right amount of tension can be set for the lever to use as a cam lock. The lever snaps just past the point of being perpendicular to the shaft to lock the part in the collet. The lever is attached to the head stock, and the shaft section rides in a bearing so that it spins freely.

This type of collet closer is a time saving device usually found on production machines where repetitive parts need to be machined quickly. Not really necessary for doing one of, or just a few similar parts.



[ukracer]

They are specifically made for a particular model lathe, an expensive accessory to buy, and would be rather complicated to make. There is a very close fitting shaft which goes through the headstock spindle to draw in the collet, which is adjusted by a small wheel so that just the right amount of tension can be set for the lever to used as a cam lock. The lever snaps just past the point of being perpendicular to the shaft to lock the part in the collet. The lever it attached to the head stock, and the shaft section rides in a bearing so that it spins freely.

This type of collet closer is a time saving device usually found on production machines where repetitive parts need to be machined quickly. Not really necessary for doing one of, or just a few similar parts.

Cheers bud. Shame but I guess there must be another way. I need repetitive clamping but not actually on a lathe. So I don't need the accuracy. Just a quick clamp of 20 bar.

I thought I had solved it with this

But I can't find them in ER32.
I am pretty sure 5C does not go up to 20mm but I might be wrong.

Thanks for the explanation though.



[Seadog]

5C go to 28mm.



[ukracer]

5C go to 28mm.

Ah Ah so a 65 quid 5C fixture would do what I need. Cheers.



[Arc Tourist]

Cheers bud. Shame but I guess there must be another way. I need repetitive clamping but not actually on a lathe. So I don't need the accuracy. Just a quick clamp of 20 bar.

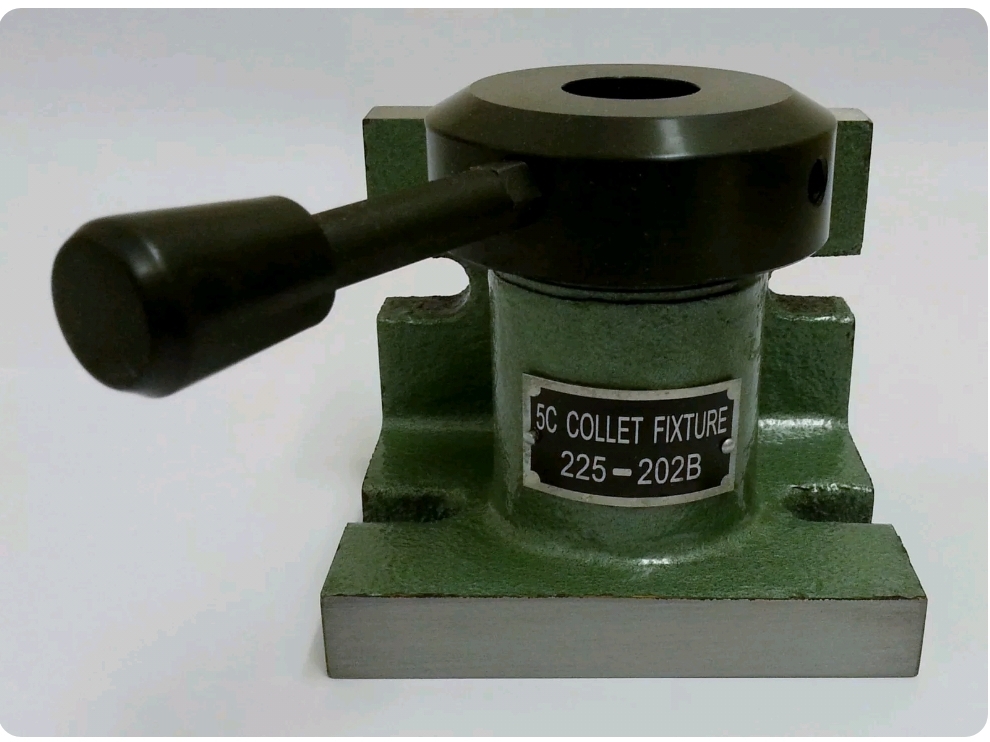

I thought I had solved it with thisView attachment 324167

But I can't find them in ER32.
I am pretty sure 5C does not go up to 20mm but I might be wrong.

Thanks for the explanation though.

For a lathe, spindle mount collet chucks are also available.



[ukracer]

For a lathe, spindle mount collet chucks are also available.

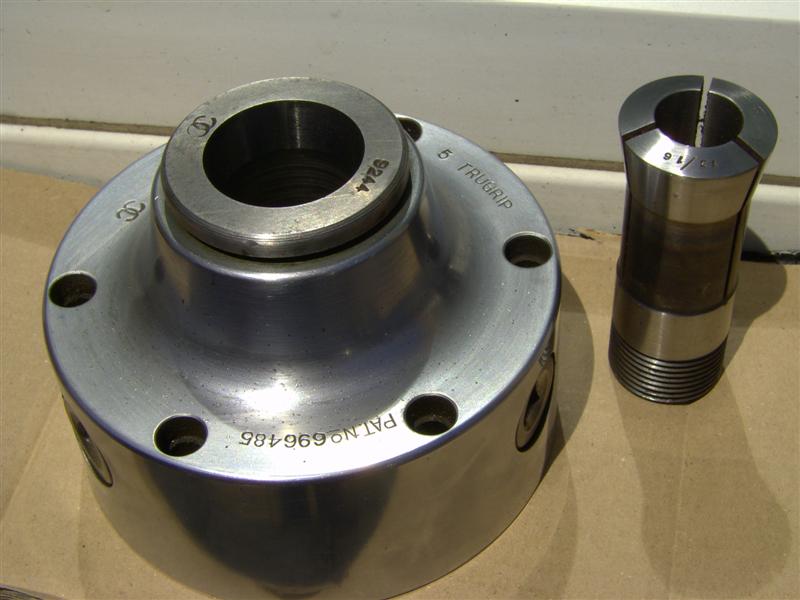

View attachment 324171

Yeah it's not for a lathe. Just a way of quickly holding 200mm all thread 75mm long while I debur the end with a cutter in a drill

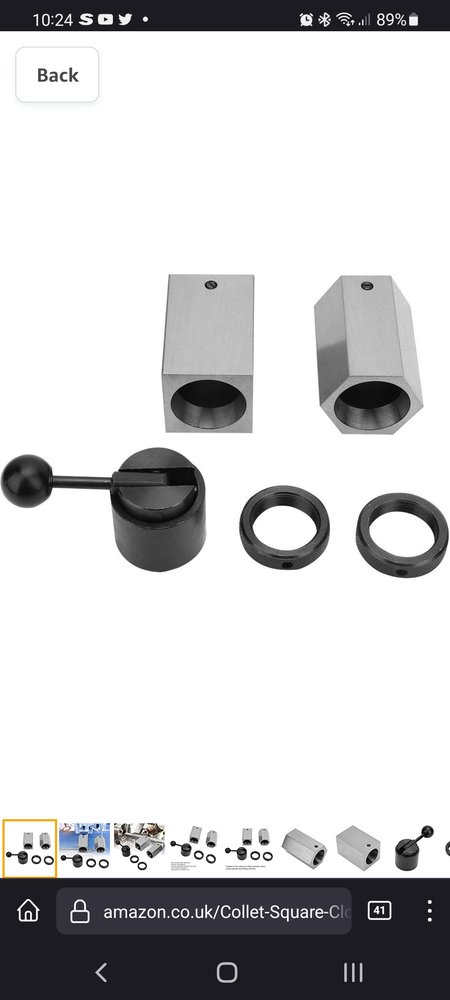

I think this



might be quick. But I need to see how much movement a cheaper collet block need to clamp it first.



[Dell]

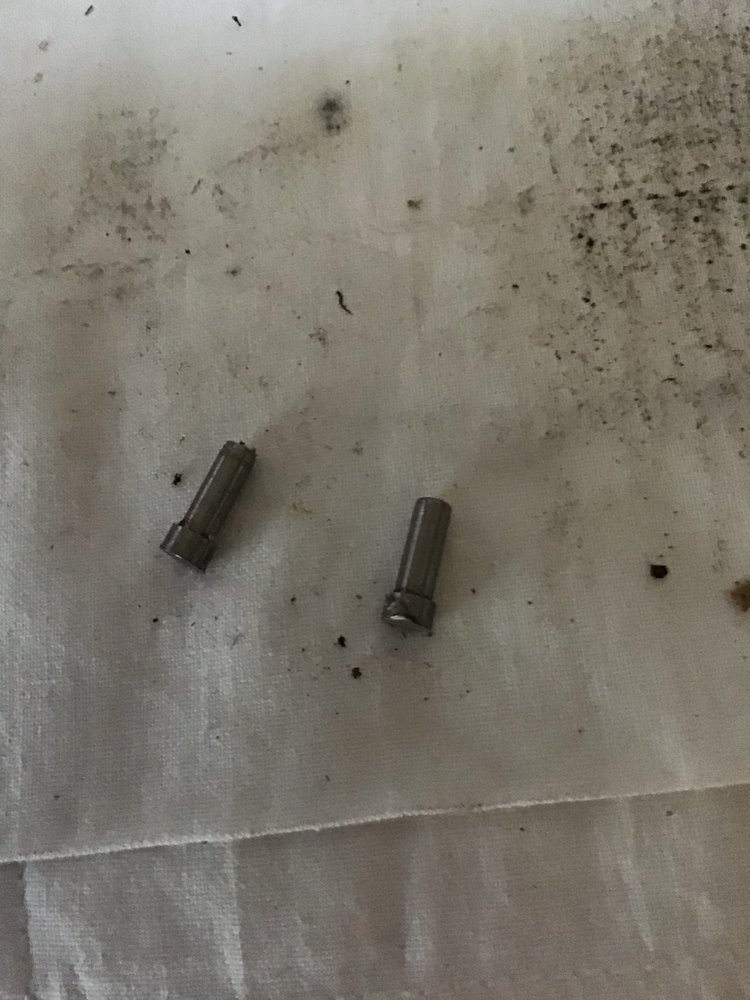

Thanks for all the replies and pictures just what I needed, as my Pultra 17/70 came in bits I have 2 pins that I can’t for the life of me fathom where they go ( see picture ), size is 13mm long and 3mm diameter, if anyone can help it would much appreciated Merry Xmas Dell



[Dell]

Found the part that I thought I had lost, it was still hanging on the painting trestle at work ( I blame it on my age ) forgetful old man that I am.
its a bit different to yours JMS 1972 your one looks like two plates with nuts and bolts my one is the bracket in picture with two long pins.
The next job I want to get done over Xmas is to fit the Multifix QCTP that just arrived from Germany PeWe tools if anyone interested.
Dell



[JMS1972]

Found the part that I thought I had lost, it was still hanging on the painting trestle at work ( I blame it on my age ) forgetful old man that I am.
its a bit different to yours JMS 1972 your one looks like two plates with nuts and bolts my one is the bracket in picture with two long pins.
The next job I want to get done over Xmas is to fit the Multifix QCTP that just arrived from Germany PeWe tools if anyone interested.
Dell

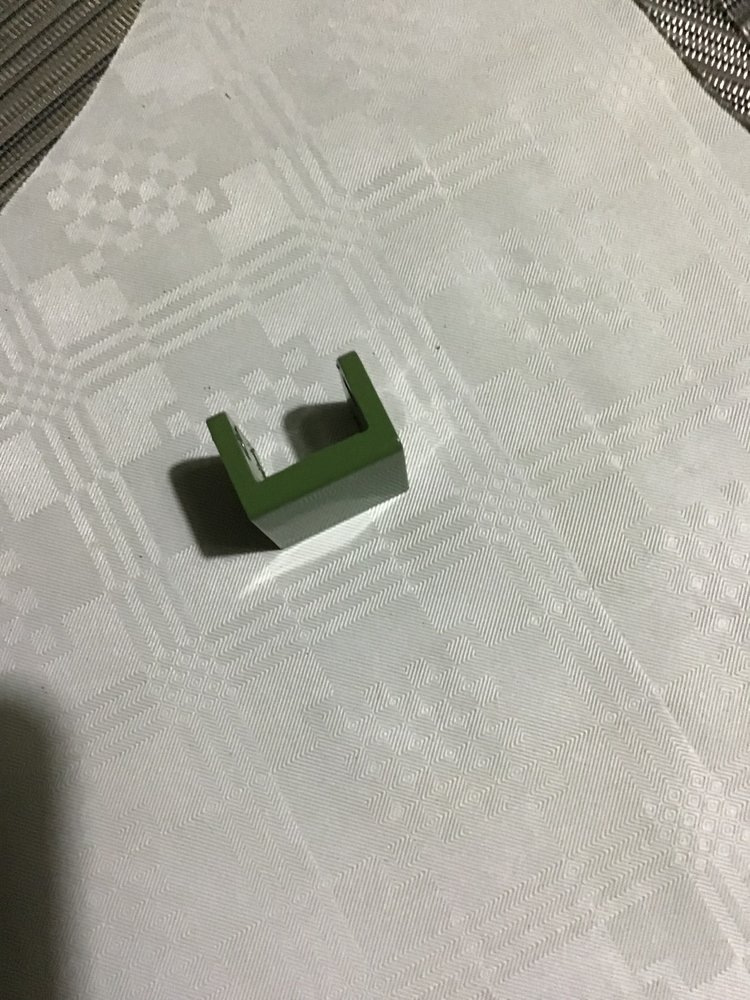

View attachment 324624

Not sure if mine is original it's obviously been in a production environment and I'd expect that to be a high wear item.

Post some pics if your QCTP once you have it fitted. I'd be interested to see how you did it.



[Onoff]

Just a way of quickly holding 200mm all thread 75mm long while

What's wrong with all thread in left hand, flap disc on grinder in right? Been doing it that way for 30 years.



[Dell]

Not sure if mine is original it's obviously been in a production environment and I'd expect that to be a high wear item.

Post some pics if your QCTP once you have it fitted. I'd be interested to see how you did it.

Will do, lathe nearly ready to be used in anger.



[ukracer]

What's wrong with all thread in left hand, flap disc on grinder in right? Been doing it that way for 30 years.

Well I found out yesterday I don't have the strength of grip I used to have.
I used to be able to lift not only a 9 gallon keg full of beer but also an 11 gallon one.

I went karting yesterday and by god it was 10 times harder indoors than outside due to lack of power steering.

But grip is weak now..



[ukracer]

What's wrong with all thread in left hand, flap disc on grinder in right? Been doing it that way for 30 years.

Not sure I can visualise that to be honest..lol
