I have a mk1 riley elf to restore and my days of crawling around on my knees are now done with so I am thinking of building a rotisserie.

I know the mini/riley shell is pretty light at less than 200kg but I would like to build it to hold say 500kg incase I decide to do something else later. ( a 105 series alfa but I cant spare a kidney)

What size box section would be appropriate? I have just looked at my engine crane at that seems to be 60mm square by 2.5mm wall, I dont want it to heavy as I will still have to break it down to store.

Any pictures of ones you have made or thoughts would be appreciated.



[500e]

https://www.mig-welding.co.uk/forum/threads/car-rotisserie-jig-setup.100683/#post-1559747
We used 60 x 60 by 2.5mm for both the Escorts, Ople's & anything else we hung on them like BMC, Alfa's etc.
We used to fit front suspension & axles as well so there was a fair bit of weight on them



[Dogruffracing]

https://www.mig-welding.co.uk/forum/threads/car-rotisserie-jig-setup.100683/#post-1559747
We used 60 x 60 by 2.5mm for both the Escorts, Ople's & anything else we hung on them like BMC, Alfa's etc.
We used to fit front suspension & axles as well so there was a fair bit of weight on them

That looks just the job thanks. Did you make the looking disk or buy it?



[bricol]

I thought about building my own . . . added up cost of materials, consumables, my time, the fact I wanted to work on the car, not the jig - and bought a deluxe one from Mk2 Mania - http://leonbirchall.co.uk/jigs-spits/index.html

Specified the orientation of the tabs for attaching to the car - and he duly delivered. Worked perfectly.



[500e]

That one was ought by friend will ask where when I see him



[mike 109444]

Another option

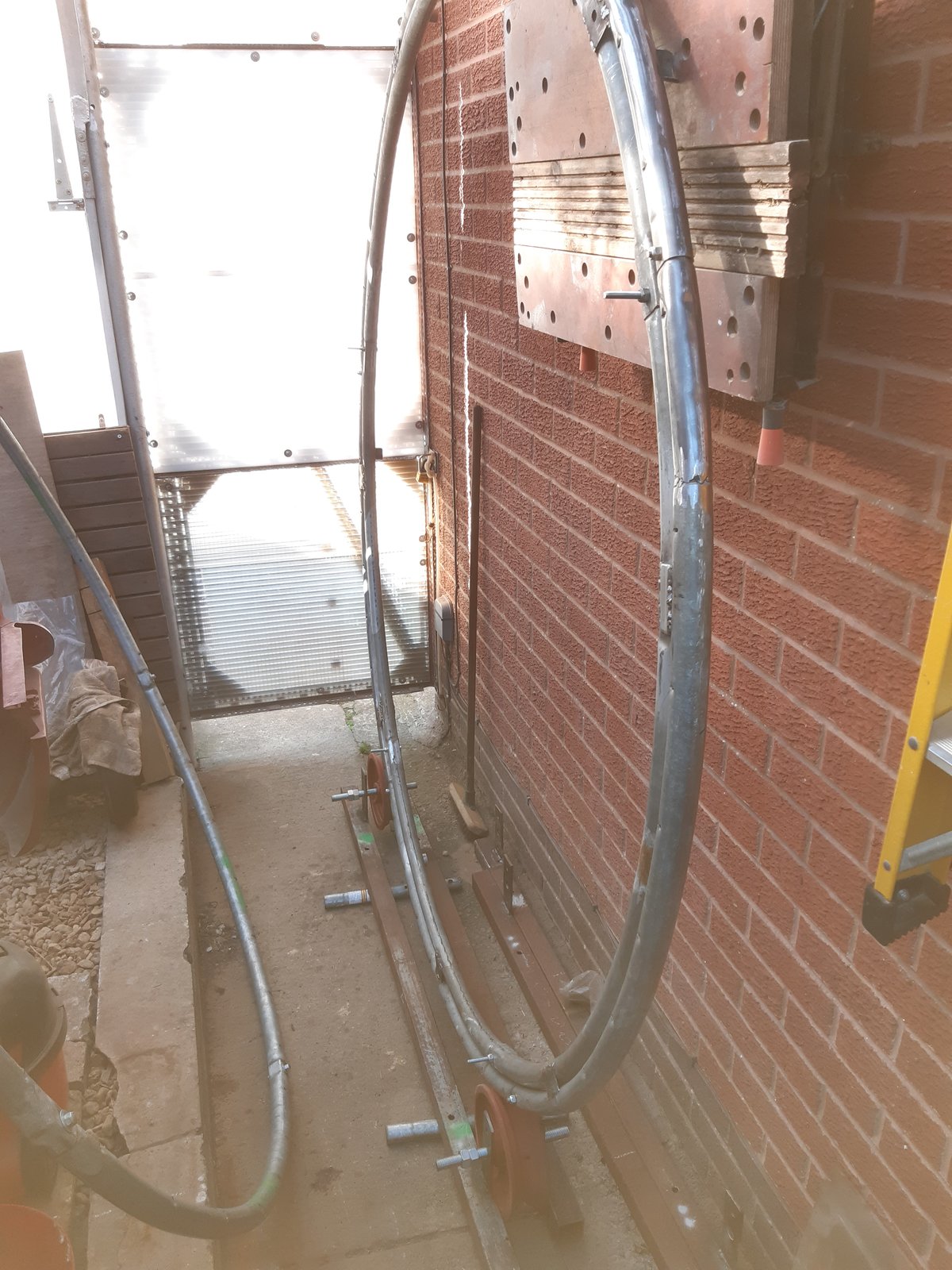

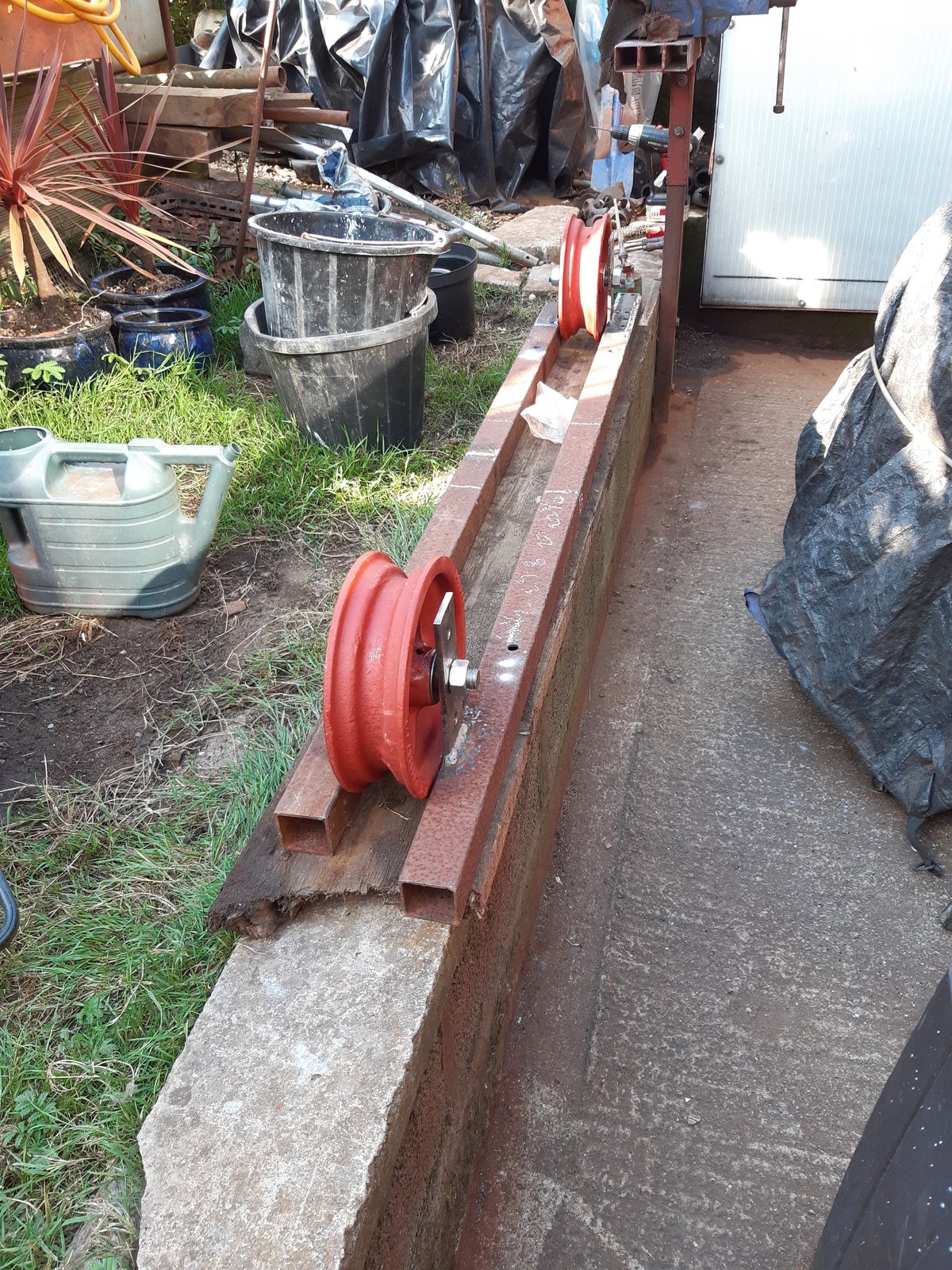

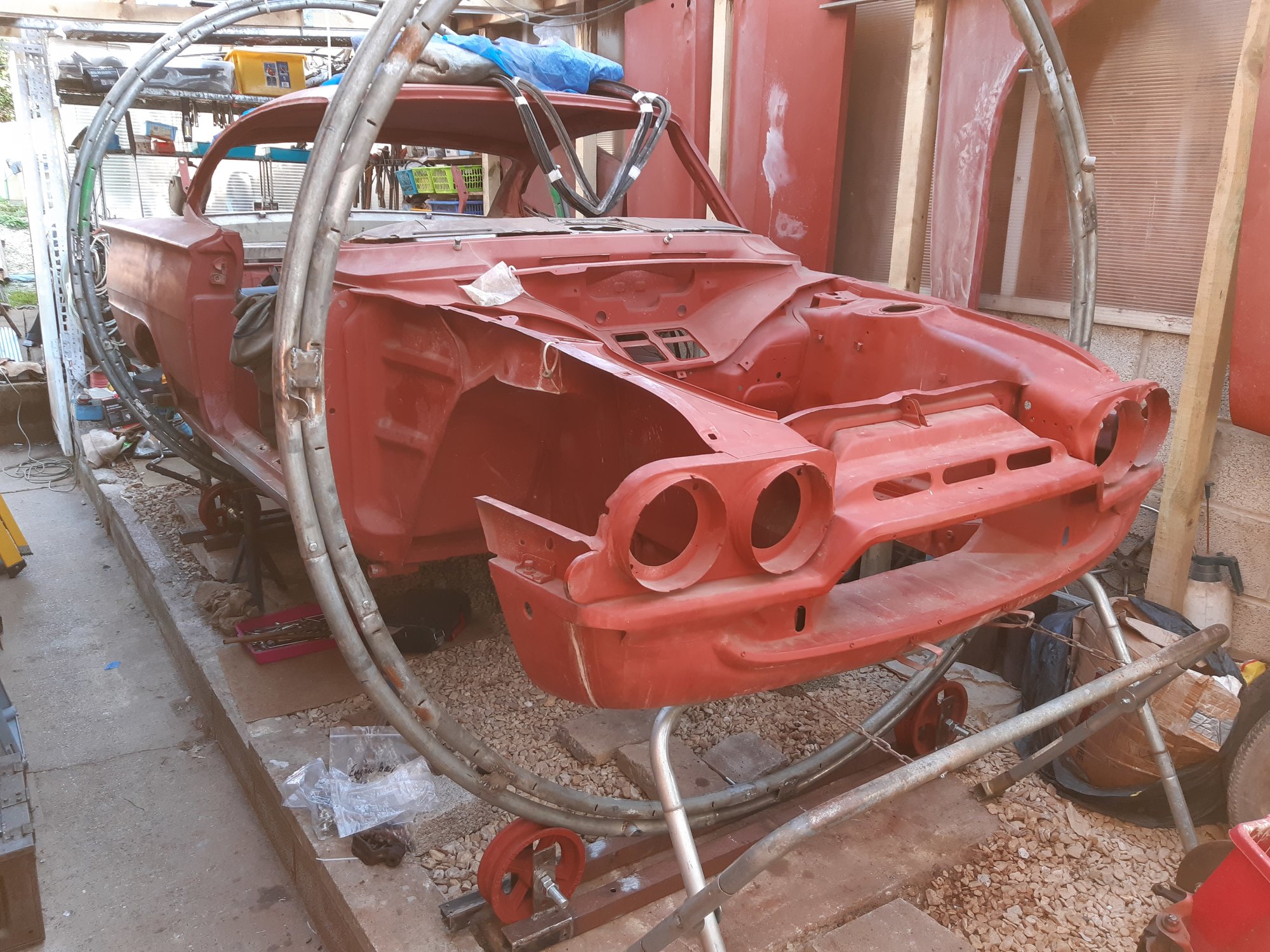

I should have got the ca higher in the hoops as the center of gravity is wrong but I ran out of jacking height.

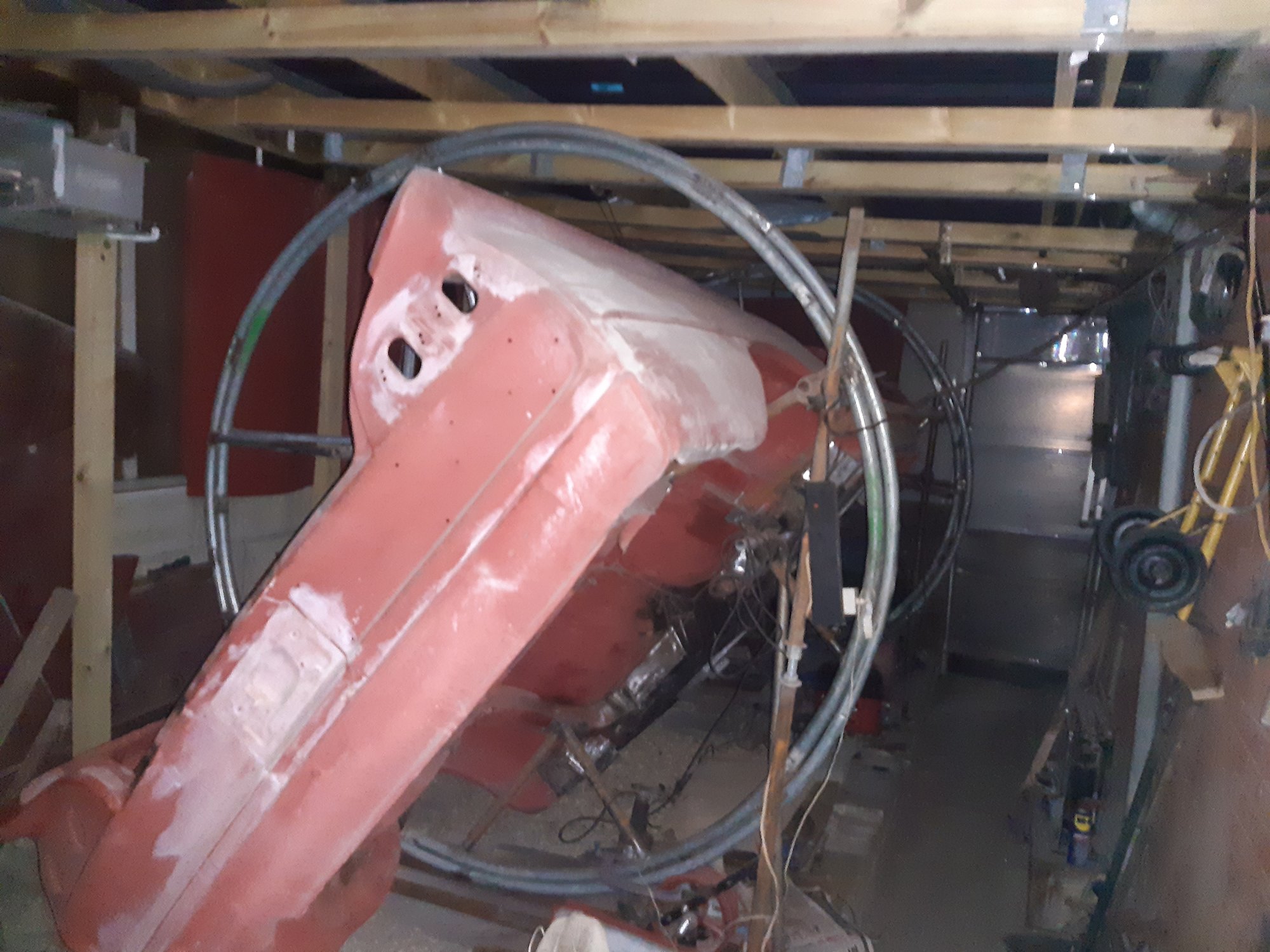

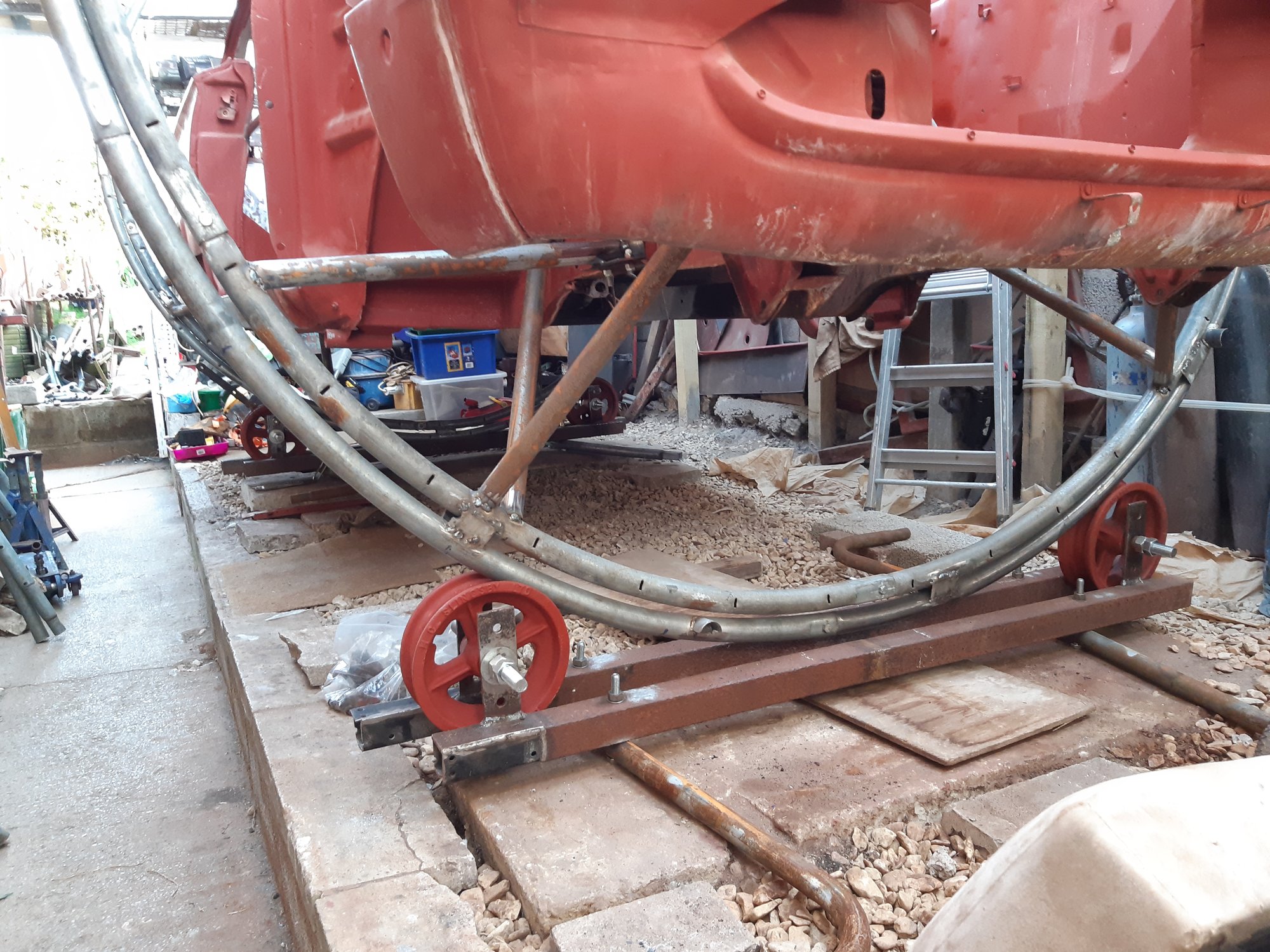

They were trampoline hoops. Recon I could have got away with single hoop at each end but when I asked for estimate of weight it was guessed at as being a lot more.



[willie.macleod]

Get yourself a copy of the August 2016 Practical Classics magazine (also available digitally via Readly if you want instant access). They have full parts list, good photos and instructions for a really good design of rotisserie which among some other nice features it also breaks down for storage. Well worth a few quid for the article.



[anjum]

Got mine from rolloverjigs.com
They tailor made the mounts to suit a jag xj6.
My jag is on there now. Only thing I was concerned about was the thread on the lifting bar so I changed it for an acme thread and suitable nuts.
Did feed the info back to them but haven't checked to see if they've changed their design.



[wacky7791]

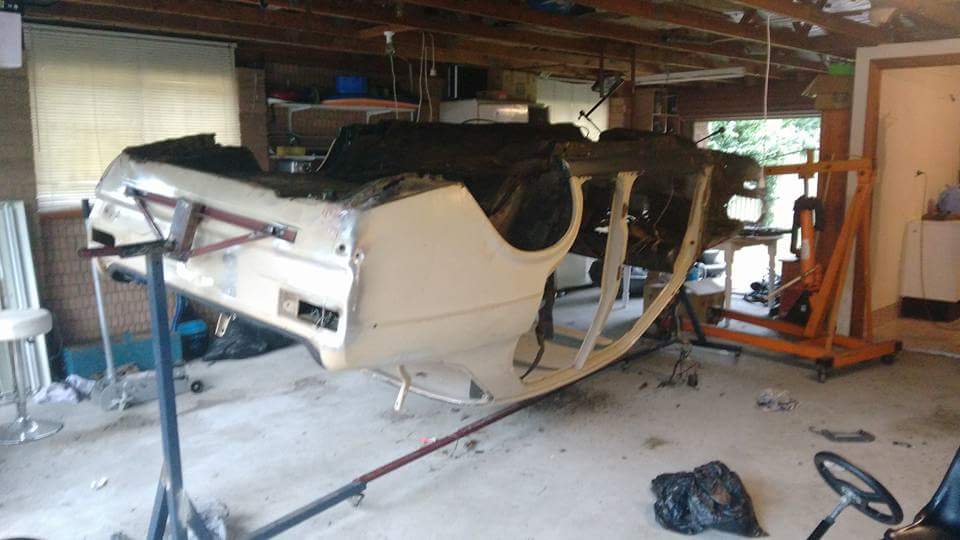

made out of an old bed frame and a whiteboard stand I think, bare shell mk1 escort is pretty light though



[8ob]

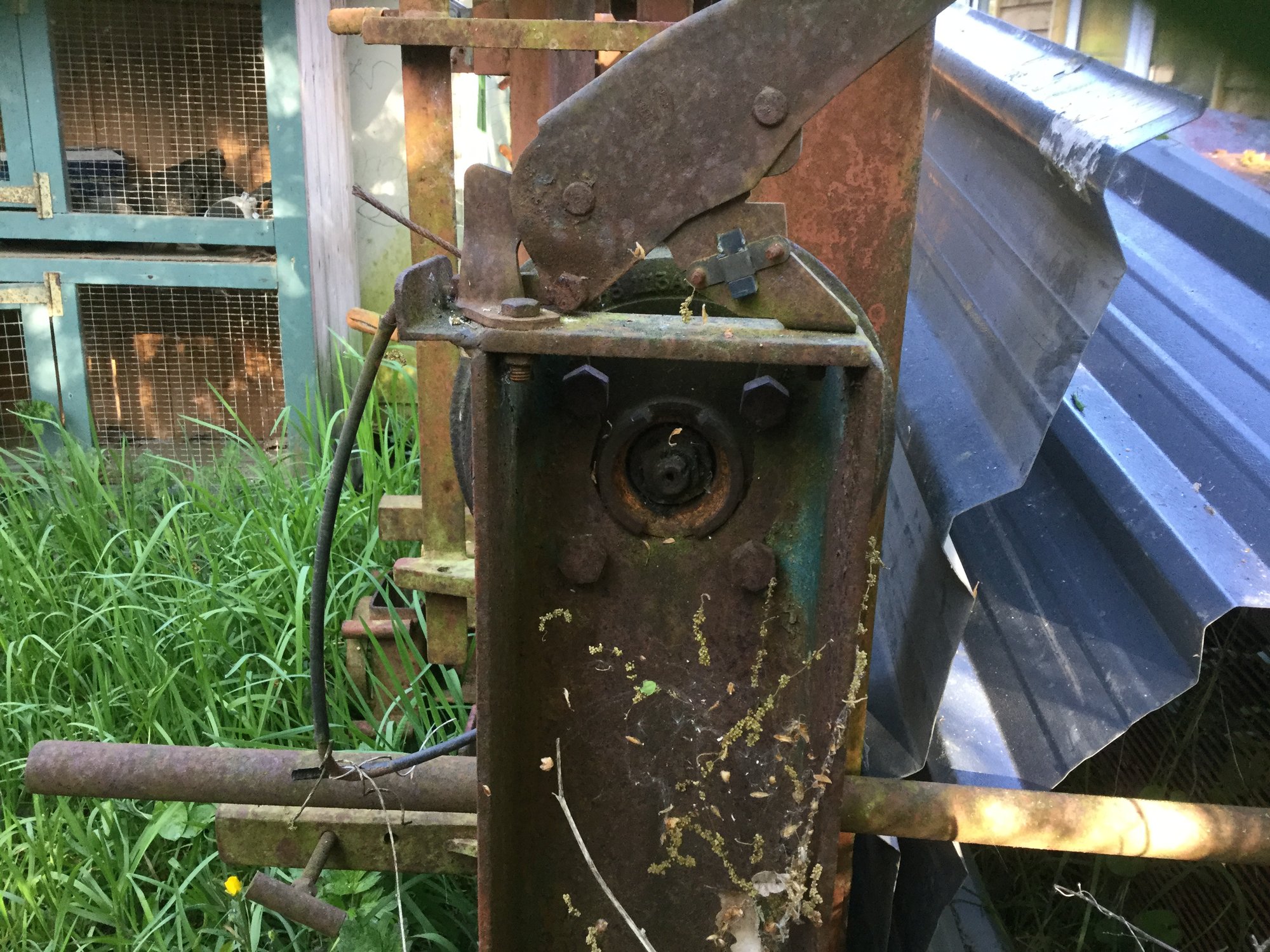

Looking a bit sorry for itself because it’s lived out/unused for the last fifteen years but here is a snap of the handbrake/brake drum and bearing idea.



[Dogruffracing]

Get yourself a copy of the August 2016 Practical Classics magazine (also available digitally via Readly if you want instant access). They have full parts list, good photos and instructions for a really good design of rotisserie which among some other nice features it also breaks down for storage. Well worth a few quid for the article.

I got one from ebay delivered today, articles really good thanks. Shame there was a dried bogie on the rear cover.



[Dcal]

You hope it's a dried bogie!
God know what magazines it was kept with?



[Jacktegla]

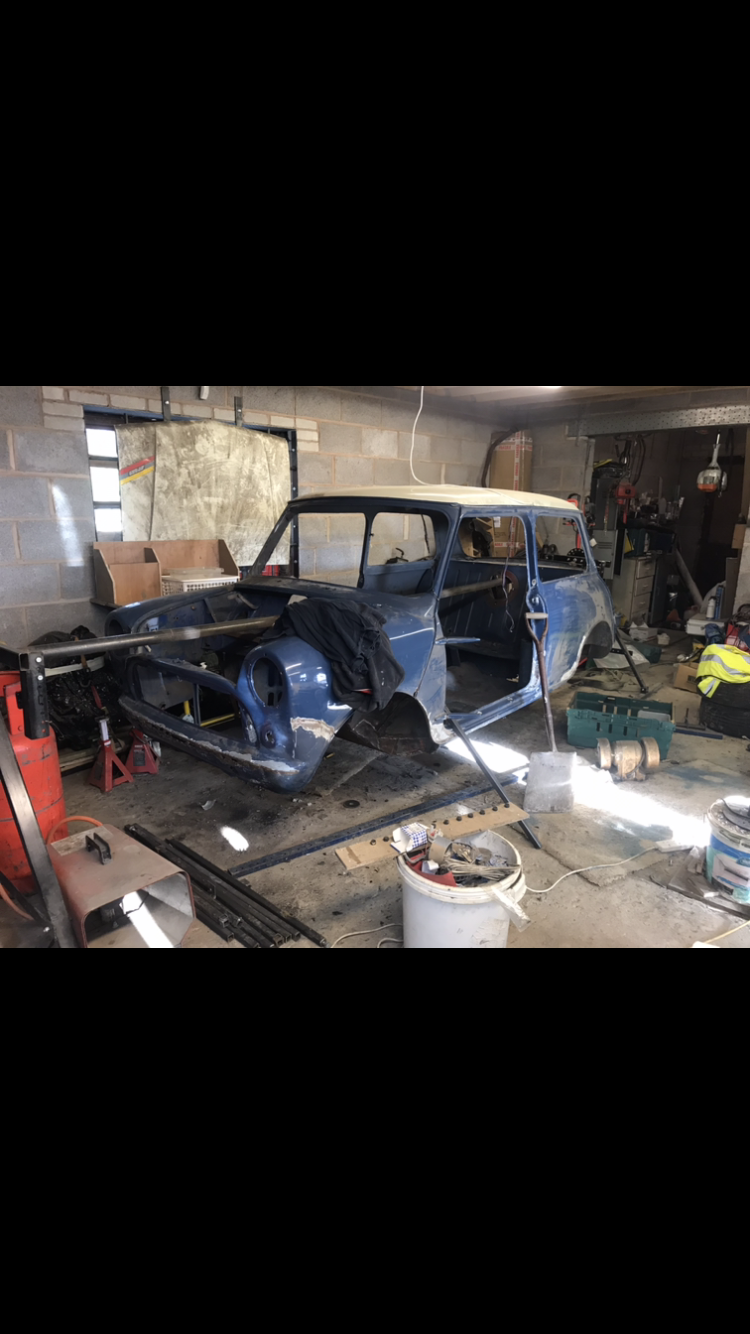

Looks impressive that we’ve got our mini on just a simple roll over jig compared to yours



[Tractor Tony]

2 S/Hand engine stands off of the bay would make a good basis ?



[Morris]

I made mine out of what was lying about apart from two leadscrews and nuts from RS Components. These provide height adjustment. It's on casters.
The front end



[german8rcoupe]

Made this twenty years ago with steel I had laying around. Used some car hubs(Triumph I think) for the pivots. Occasionally have to nip up the bearings, but it has had whole unibody cars and complete chassis hanging on it with no issues. I just make adaptor brackets to fit the hub pcd for any new job.



[Tractor Tony]

Very nice I wish I had more space (Don't we all)
