Skoda TDI engine oil leak

[Guineafowl]

As above, mate’s Superb 2015. He uses it daily so I can’t be tearing into it too far searching. Wondered if it’s a common place to leak that I can go straight in and sort it.

View from underside, right hand rear of engine. DS=RH driveshaft, CP=crank pulley.

Turbo oil feed pipe/return? I just can’t see as it’s all packed in so tightly.



[AVI_8]

Possibly removing the engine tray, getting it up on a ramp to clean the area would be the best way to find the leak, much easier finding where it’s coming from when it’s been cleaned.



[anto44]

The gasket for the oil feed/return leaking is a very common problem with these engines.



[Guineafowl]

Possibly removing the engine tray, getting it up on a ramp to clean the area would be the best way to find the leak, much easier finding where it’s coming from when it’s been cleaned.

Good advice, thanks.

The gasket for the oil feed/return leaking is a very common problem with these engines.

This sort of thing?:

Oil Return pipe for Turbocharger Audi Seat Skoda VW038145736C with 1 yr warranty | eBay

Find many great new & used options and get the best deals for Oil Return pipe for Turbocharger Audi Seat Skoda VW038145736C with 1 yr warranty at the best online prices at eBay! Free delivery for many products.

www.ebay.co.uk



[anto44]

Should be this gasket on that engine

Turbocharger Oil Return Line Gasket - VW Audi Seat - 1.6 TDI - 03L145757H

OE quality replacement part for the original oil cooler seal 03L145757H. These seals are found in many VAG 1.6 VW Audi Group models.

justgermanparts.co.uk

You'll need this bolt aswell

Banjo Bolt 15x6x44 Škoda WHT003496

Banjo Bolt 15x6x44 Škoda, Hollow screw for the engine block, turbocharger brace and the oil pipe leading to the turbocharger. Suitable for vehicles with 1.2TDI 55kW, 1.6TDI 55kW/66kW/77kW, 2.0TDI 81kW/103kW/125kW engines., Škoda Fabia 2, Škoda Octavia 2, Škoda Superb 2, Škoda Yeti, Škoda...

www.skoda-parts.com

And 2 copper washers.



[Guineafowl]

Should be this gasket on that engine

Turbocharger Oil Return Line Gasket - VW Audi Seat - 1.6 TDI - 03L145757H

OE quality replacement part for the original oil cooler seal 03L145757H. These seals are found in many VAG 1.6 VW Audi Group models.

justgermanparts.co.uk

You'll need this bolt aswell

Banjo Bolt 15x6x44 Škoda WHT003496

Banjo Bolt 15x6x44 Škoda, Hollow screw for the engine block, turbocharger brace and the oil pipe leading to the turbocharger. Suitable for vehicles with 1.2TDI 55kW, 1.6TDI 55kW/66kW/77kW, 2.0TDI 81kW/103kW/125kW engines., Škoda Fabia 2, Škoda Octavia 2, Škoda Superb 2, Škoda Yeti, Škoda...

www.skoda-parts.com

And 2 copper washers.

Ta



[anto44]

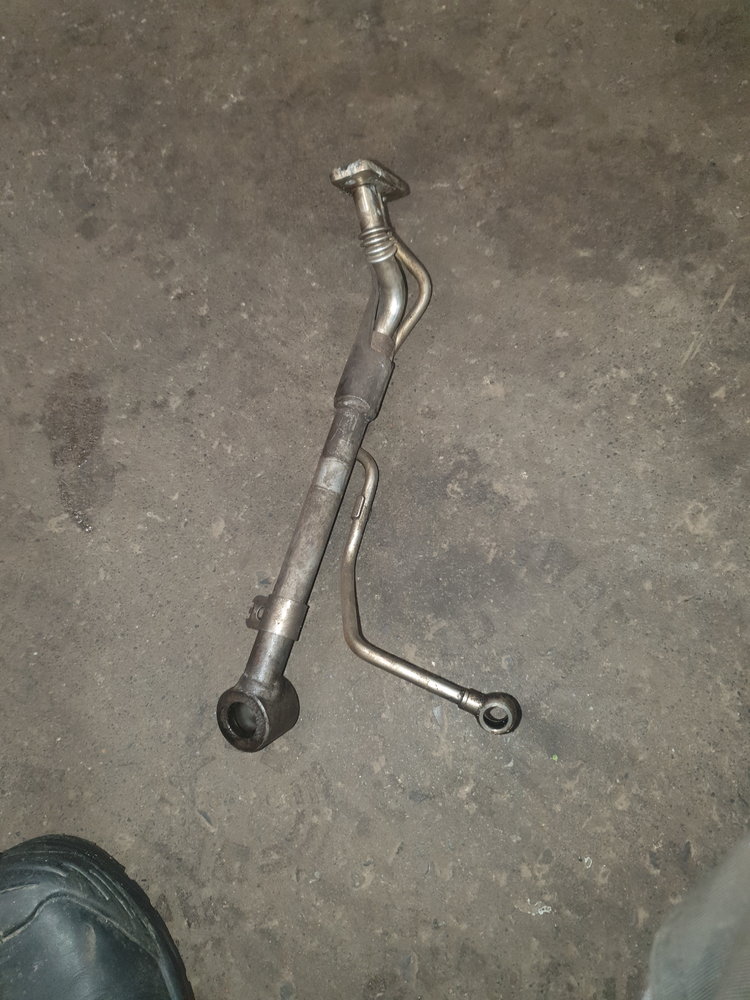

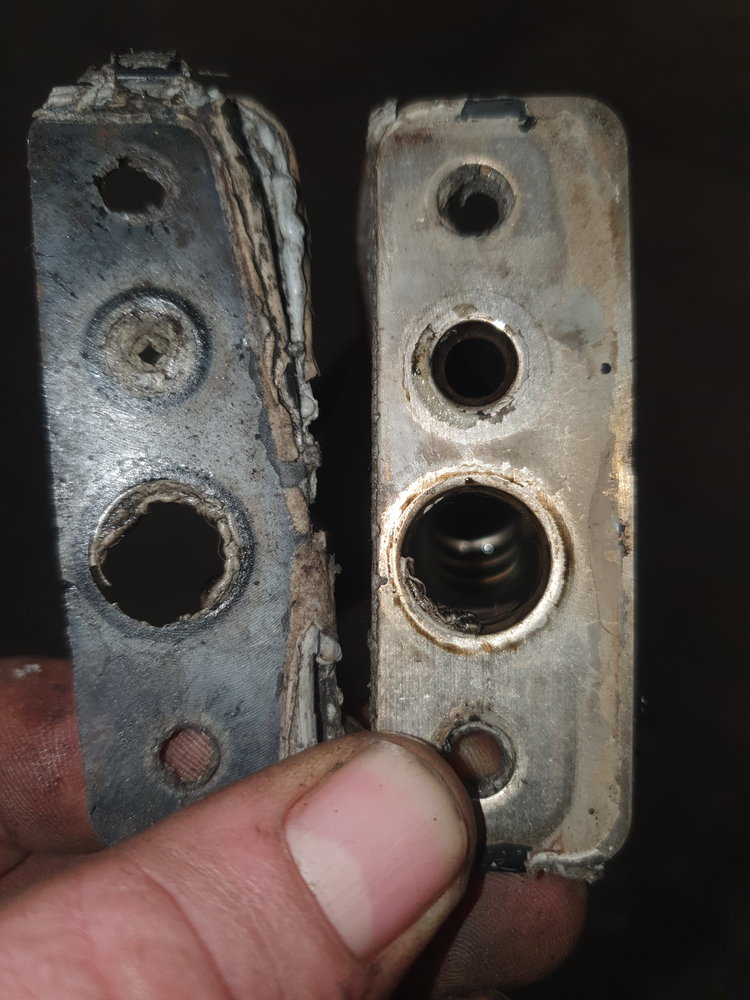

Here's a pipe set I removed from a car with a failed turbo. Someone had covered the gasket in sealer and almost completely blocked the oil feed to the turbo

I've just removed this combined turbo oil feed and return pipe work off a car with a failed turbo. I wonder why the turbo failed.
View attachment 321370

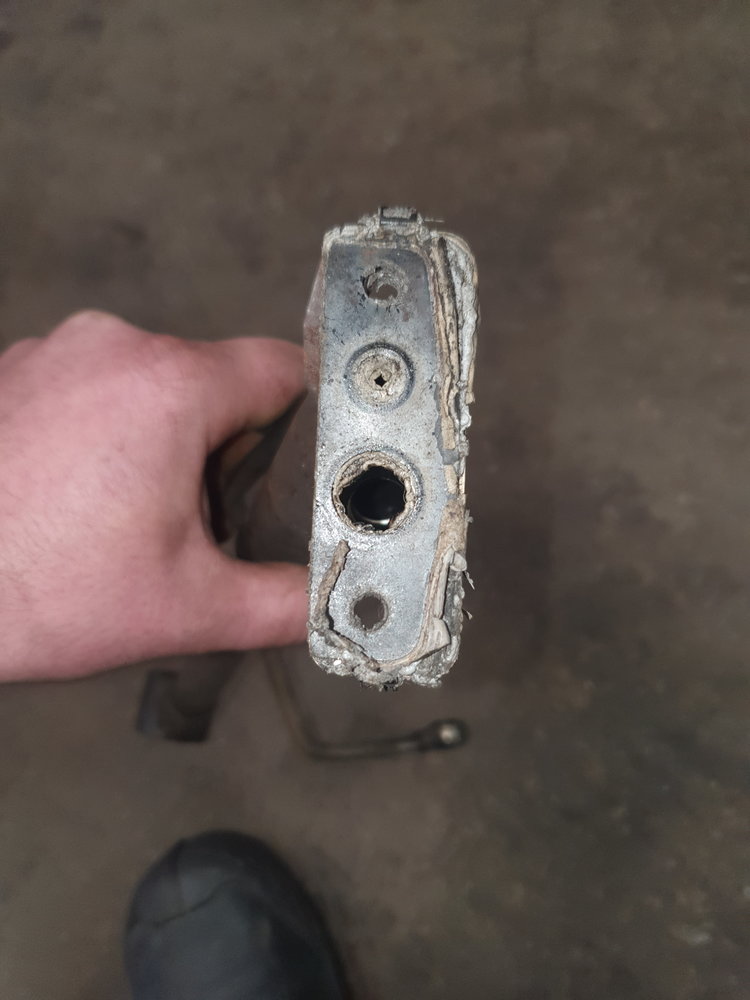

View attachment 321373
View attachment 321374

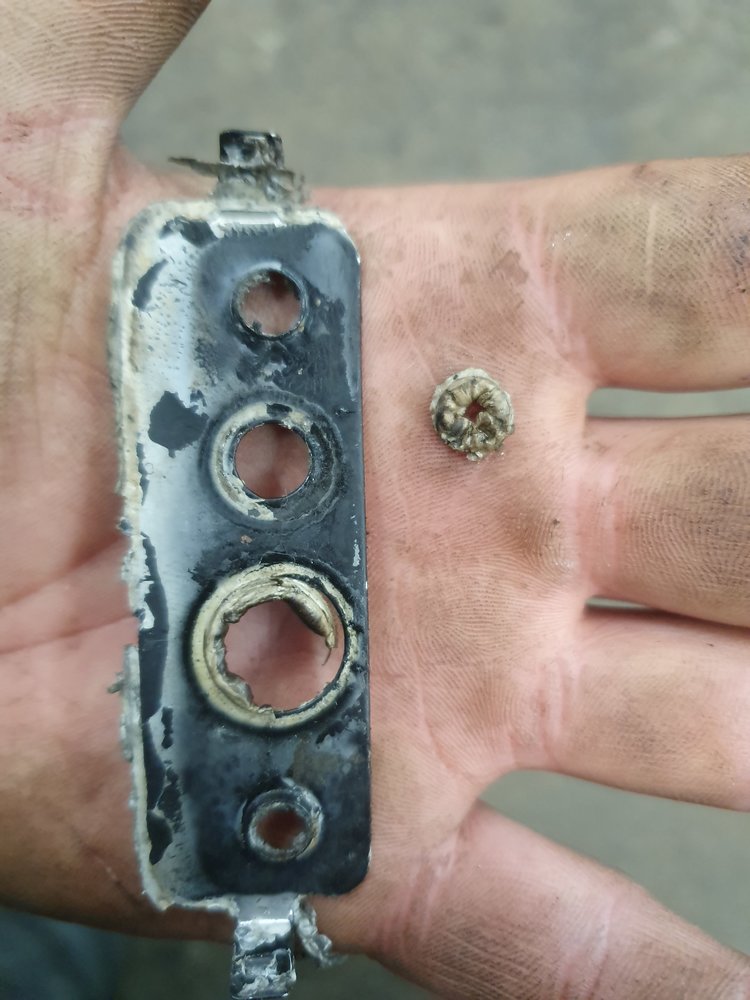

View attachment 321375



[Guineafowl]

Here's a pipe set I removed from a car with a failed turbo. Someone had covered the gasket in sealer and almost completely blocked the oil feed to the turbo

Again, thanks. Would I be accessing this pipe from the top or bottom? Don’t know the engine at all well.
