Starting belt sander

[1969 Vernon]

Starting up the belt sander

Heres the link to all pictures. "Plus a video link at the bottom."
http://s795.photobucket.com/albums/yy232/1969Vernon/Belt Sander/

Here is a short video of the sander running. Will add a longer one soon!
http://www.youtube.com/watch?v=ve9mPdwhwUY



[brightspark]

http://www.youtube.com/watch?v=ve9mPdwhwUY

hy vernon why is the belt running off ??isnt it set up right or isnt there enough taper on the edges of the rollers to keep it central ??



[1969 Vernon]

The Belt

hy vernon why is the belt running off ??isnt it set up right or isnt there enough taper on the edges of the rollers to keep it central ??

Yes you saw the problem I'm fighting I think there to much crown in the bottom drum Going to take some out. Anyone have any idea will be glad to here Thanks Vernon



[chunkolini]

Do you need a micro adjuster like on commercial belt sanders?
One that I guess moves one end of the none drive drum slightly in or out of line.
I would imagine that to be a pain to engineer.

Chunko'.



[1969 Vernon]

Do you need a micro adjuster like on commercial belt sanders?
One that I guess moves one end of the none drive drum slightly in or out of line.
I would imagine that to be a pain to engineer.

Chunko'.

Hey Chunko,
My non power drum or top drum can be moved in any direction as needed fowards,backwards,in,out up,down,tilt one end and even side to side . The belt around the bottom drum or drive drum is only touching in the center telling me there to much crown. Thanks for the info Vernon



[brightspark]

this might help. im running a 6inch belt on mine with 6 and1/4inch rollers both rollers are parallell apart from the edges which are slightly tapered 1 inch in from either side no. problem with run off



[pedrobedro]

It's handy being able to run the belt at the edge of the platen if you want to grind into a corner or make a shaped piece of metal. You can build the drum up with tape to help centre the belt.



[1969 Vernon]

Trackin the belt

this might help. im running a 6inch belt on mine with 6 and1/4inch rollers both rollers are parallell apart from the edges which are slightly tapered 1 inch in from either side no. problem with run off

I think we are on the same page Let me make sure ONLY 1" of crown on each end of the drum is that correct. If so that what I'm thinking to.
thanks for the information Vernon



[brightspark]

I think we are on the same page Let me make sure ONLY 1" of crown on each end of the drum is that correct. If so that what I'm thinking to.
thanks for the information Vernon

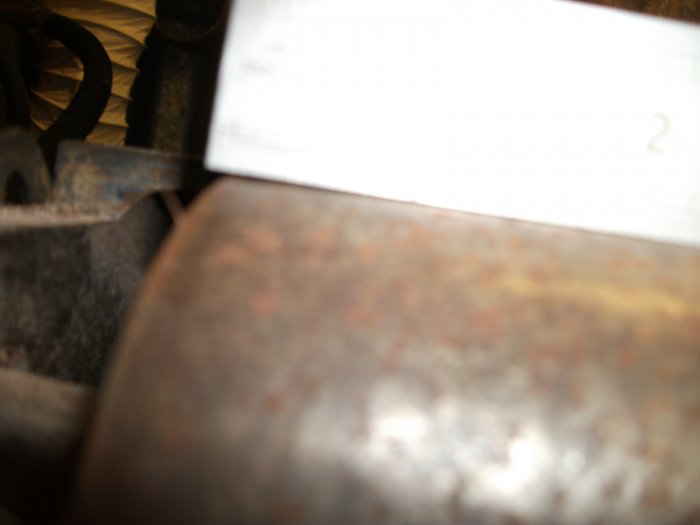

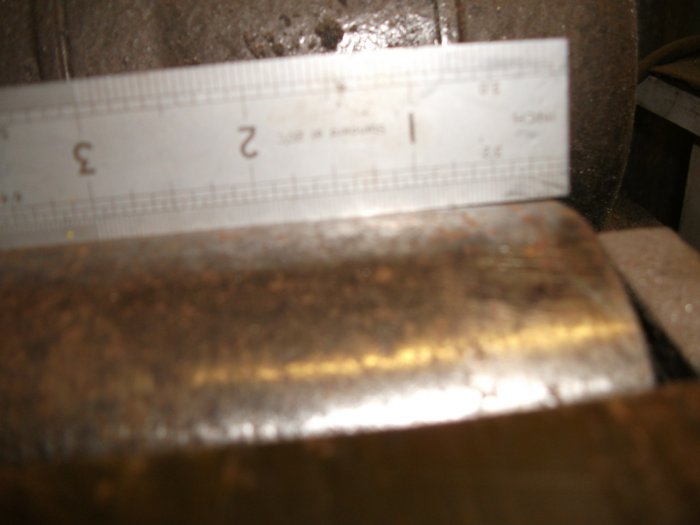

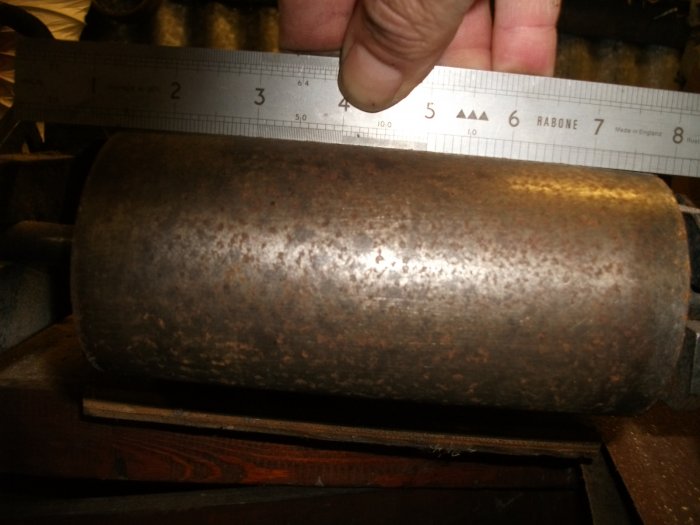

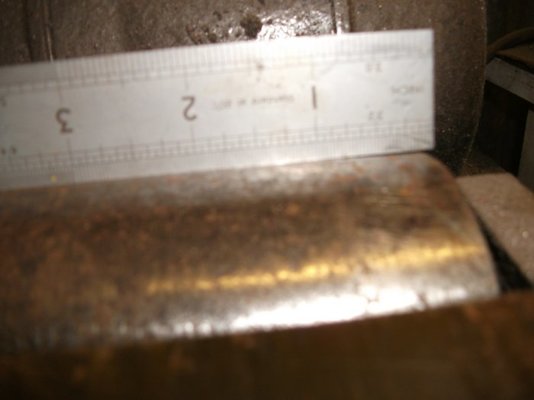

just been out and had a nosey it was 30 years since i made it we forget heres the pictures of the tapers on the end of the rollers there verry slight



[1969 Vernon]

Belt sander

just been out and had a nosey it was 30 years since i made it we forget heres the pictures of the tapers on the end of the rollers there verry slight

Thank you that some great info and thanks for taking your time to shoot me some pictures very helpful Thanks Vernon



[1969 Vernon]

Bottom Drun

just been out and had a nosey it was 30 years since i made it we forget heres the pictures of the tapers on the end of the rollers there verry slight

Thank you for the help I cut the bottom drum flat all but 1 1/8 both sides left the crown there work great now very happy with it
Vernon



[pedrobedro]

You should be able to track it with your top pulley if there is enough adjustment on it. On my small bench belt grinder the crown is on the top pulley as well as the tracking adjustment and the bottom pulley is flat. I'm eyeing up my old pillar drill under the bench now I've seen yours though. A 2" belt would be plenty wide for anything I do though so should get away with a smaller motor.



[1969 Vernon]

Homemade Belt Sander

You should be able to track it with your top pulley if there is enough adjustment on it. On my small bench belt grinder the crown is on the top pulley as well as the tracking adjustment and the bottom pulley is flat. I'm eyeing up my old pillar drill under the bench now I've seen yours though. A 2" belt would be plenty wide for anything I do though so should get away with a smaller motor.

I cut the bottom pully flat in the center and left a little crown on each end. Work perfect now. I always had plenty of adjustment on top the biggest problem was when sanding the belt would move all over now with flat in the center on the bottom drum stays still works perfect.
Thank you Vernon



[Dr pepper]

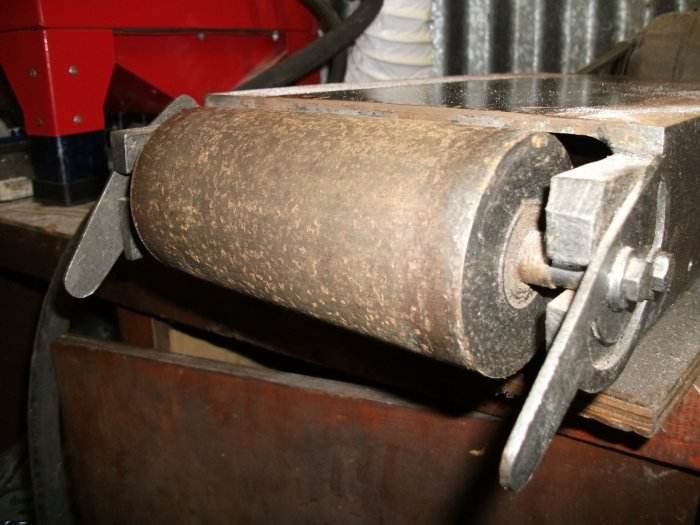

I have one similar to brightsparks, only the idler roller just sits in, and is only held in by the belt, there are 2 levers that look like his with a half round on the end, and pivoted by an off centre bolt hole.
Very simple and easy to make, and its worked for years.



[1969 Vernon]

Belt Sander

I have one similar to brightsparks, only the idler roller just sits in, and is only held in by the belt, there are 2 levers that look like his with a half round on the end, and pivoted by an off centre bolt hole.
Very simple and easy to make, and its worked for years.

I was checking it out myself very simple way to move the drum. Where mine is much more to it. Both looks to work very well. Makes you think I made have went to far over the top Thanks Vernon



[Dr pepper]

At least it'll be more satisfying to look at when its done.
I'd have never tried the design I have unless I'd seen it working, it looks like it'd fall apart, but it doesnt.



[1969 Vernon]

Belt Sander

At least it'll be more satisfying to look at when its done.
I'd have never tried the design I have unless I'd seen it working, it looks like it'd fall apart, but it doesnt.

Worked on mine today got the belt to hold still. Very happy now the whole thing is working just great. Thanks guys for your info Some very helpful tips!!!
Thanks Vernon



[1969 Vernon]

Tracking belt

After cutting the bottom drum flat in the middle the belt run great Thanks to all the info guys Here's a short video of it. Thanks Vernon

http://www.youtube.com/watch?v=tm5dm25OlGM



[Dr pepper]

Runs well, have you tried shoving the belt sideways with something like you would during use, it looks as though it'd be fine.
Your shops just as untidy as mine.



[1969 Vernon]

Homemade Belt Sander

Runs well, have you tried shoving the belt sideways with something like you would during use, it looks as though it'd be fine.

Yes push a pcs of angle hard both ways. Stayed put.
Vernon
