Stihl HS45 workshop manual. 34mm bore.

[wristpin]

Hi, anyone got access to the workshop manual or knows for sure what the max piston ring end gap should be . Even better a link to a free download that includes the engine. I’m measuring 15thou .



[Chippie]

Usual rule of thumb, around 4thou per inch of bore….so that would be 0.1 mm per 25mm….I’d say around 6 thou should be about right…



[carbonarc]

Any use?



[James1979]

I have the parts book, manual and tech book.

Unfortunately it’s isn’t mentioned. The tech book just gives ‘engine removal and installation’

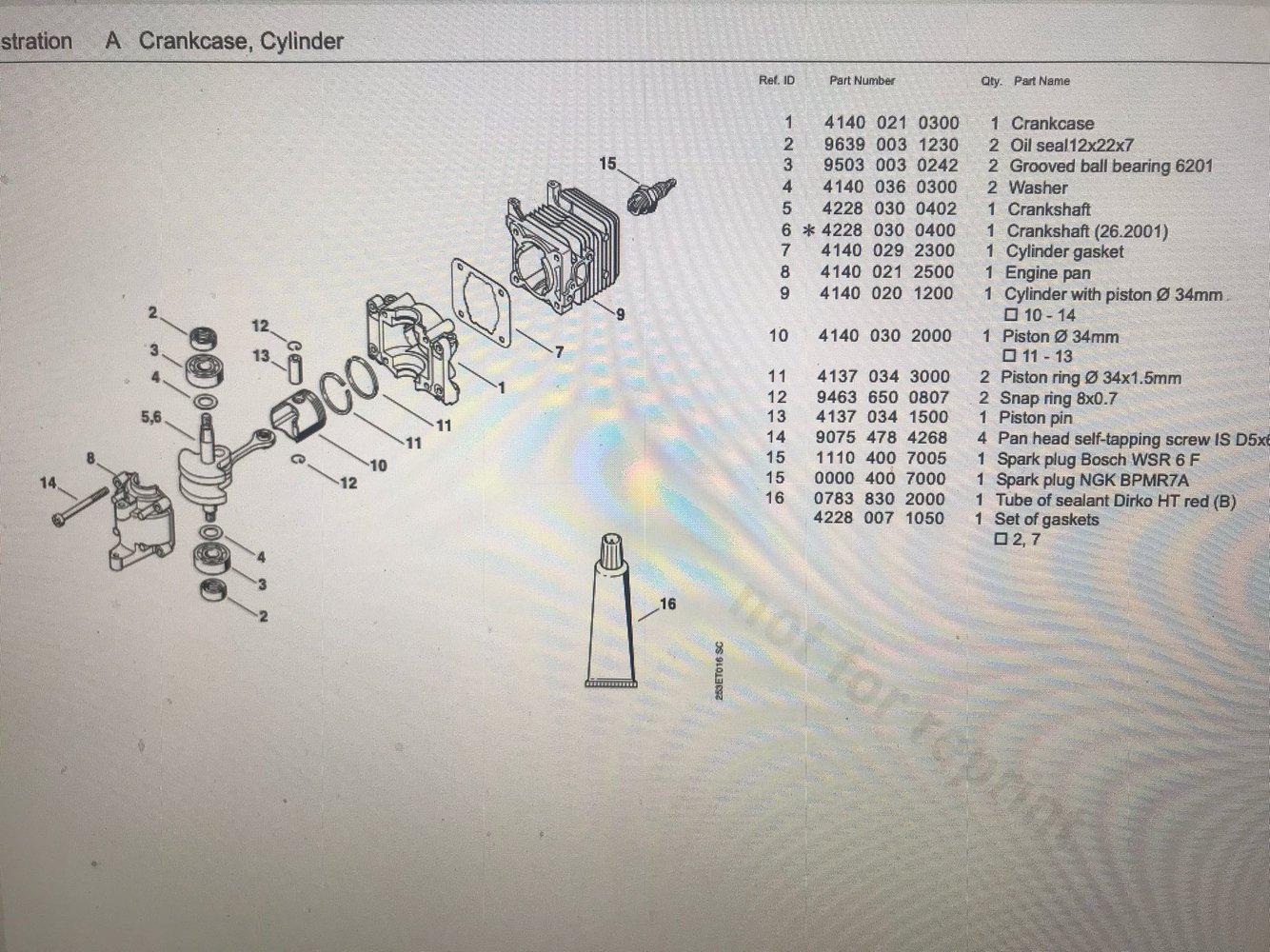

This is from part book. I can send what I have if you pm email

Depending on how that works for you, may be worth a call to dealer workshop?



[zzr1200]

L&S Engineers Ltd

Are listing new piston rings (item 10 for £3.50 +PP +vat) as In Stock, so why bother just order new.

Not sure how item 15 can be a Tube of Red Ht Sealer, but it is supplied by Stihl, so they must know best....

Stihl HS45 Hedge Trimmer Crankcase 2-Mix Assembly

Spare Parts for Stihl HS45 Hedge Trimmer Crankcase 2-Mix. Genuine and Non-Genuine Parts.

www.lsengineers.co.uk



[wristpin]

Thanks for replies. Got shop manuals from the States, but they don’t have info on acceptable ring / bore wear. Suggested to owner a new barrel and piston together with new crankshaft seals. Considering the machine‘s age and general condition , I think that he’s more likely to buy new.
