Thin plate Bender

[excossack]

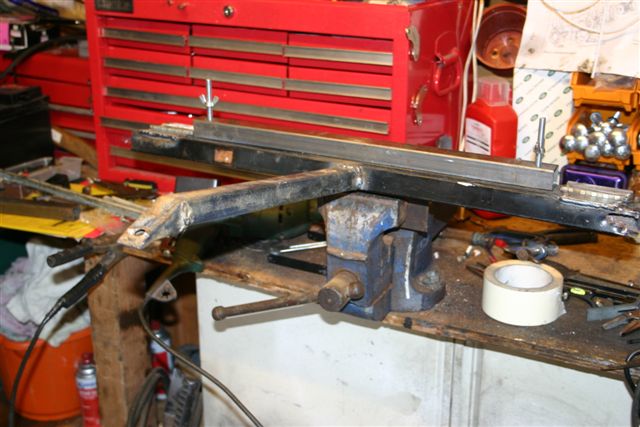

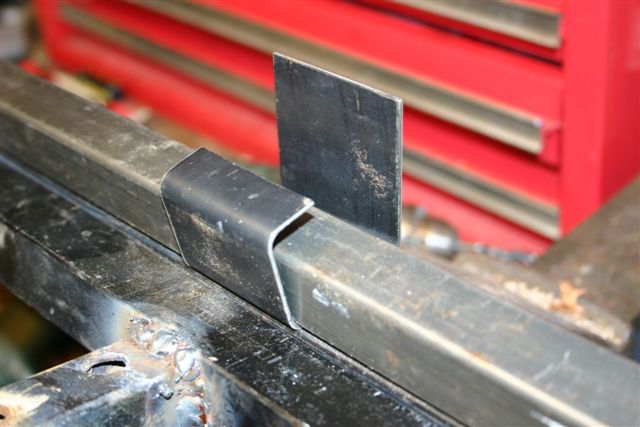

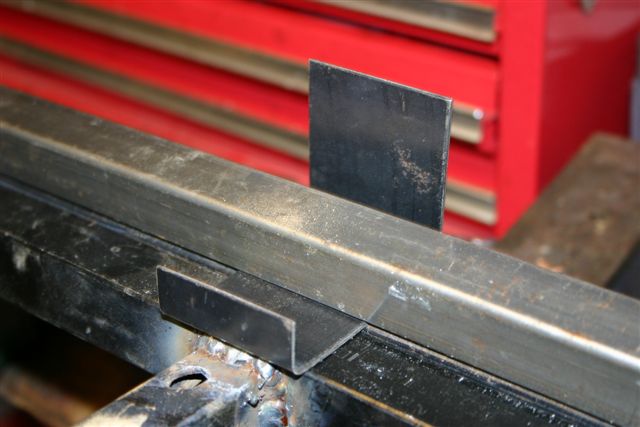

This is my attempt at making a tool to bend thin metal plate.
Its based around some box section i got from an old desk, a piece of angle plate i had made up for a chassis repair on a Lada but never used it, and some hinges from a cable management arm from a server rack.
All welding done with my Clarke 100EN and Co2.
So...Here it is



[gerrymoore]

Looks good...I've tried to make one of these but can't get my head around the 'hinge' bit!!

Also I need to make a ring roller...have you made one??



[excossack]

for the hinge bit i got two hinges one either end and clamped them in place to get the correct location and then move the box section until i got it correct. I need some bigger hinges and stronger metal really.
Ive not made a ring roller...Whats that then ?



[peterd51]

Hi,

I made one a while ago, detailed on here somewhere.

For the hinges I used an old trailer jockey wheel shaft and cut a couple of slices around 1" wide out of it.

Basically that shaft is approx 1" diameter solid round inside a tube and it's a smooth sliding fit. I guess you could make something up quite easily.

Regards
Peter



[graffian]

along the lines of:

The hinges are 4 lengths of thickwall tube that had a diameter very nearly equal to a bolt size and the pins are a pair of hard bolt that fit the tube.
