What is it and how do I use it?

[Beanwood]

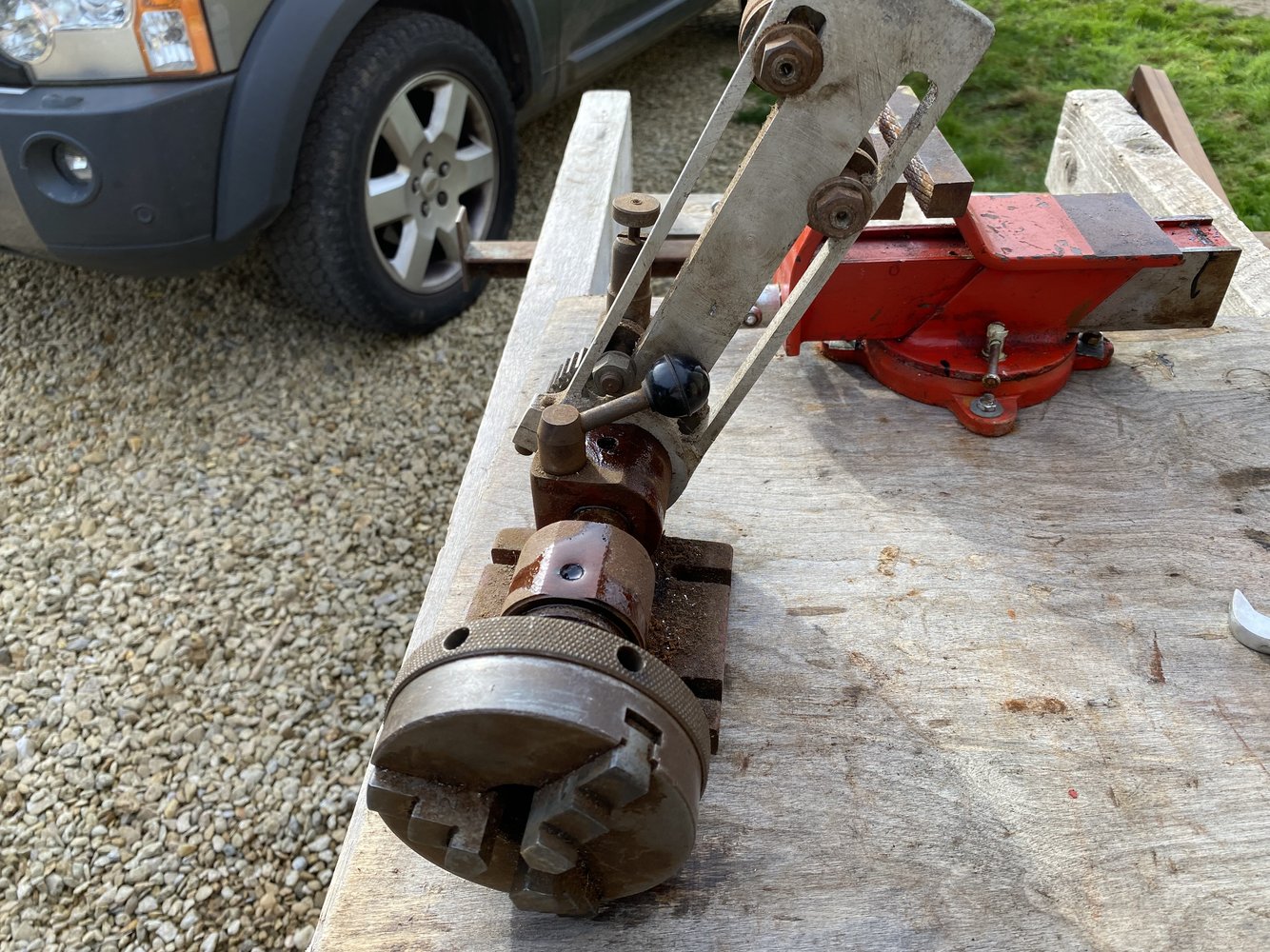

It’s obviously for some kind of rotary operation- currently with a 48 tooth gear.
It’s a bit stiff to turn- and I can’t yet loosen the chuck, but I have a need of something like this for work holding today.

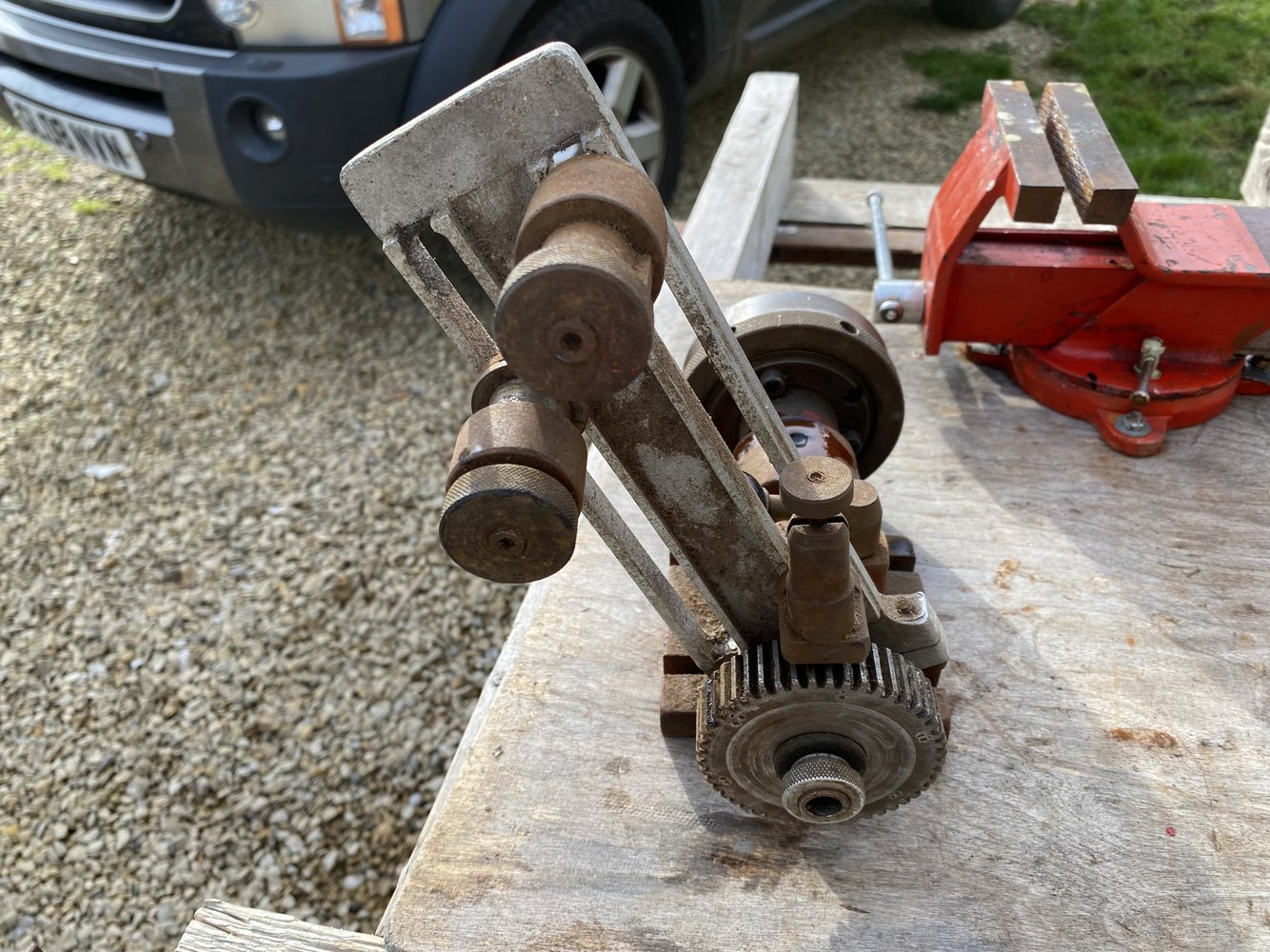

I can’t imagine what the assembly on the other end to the chuck does. The two shafts at the top are keyed, so presumably some sort of gearing?

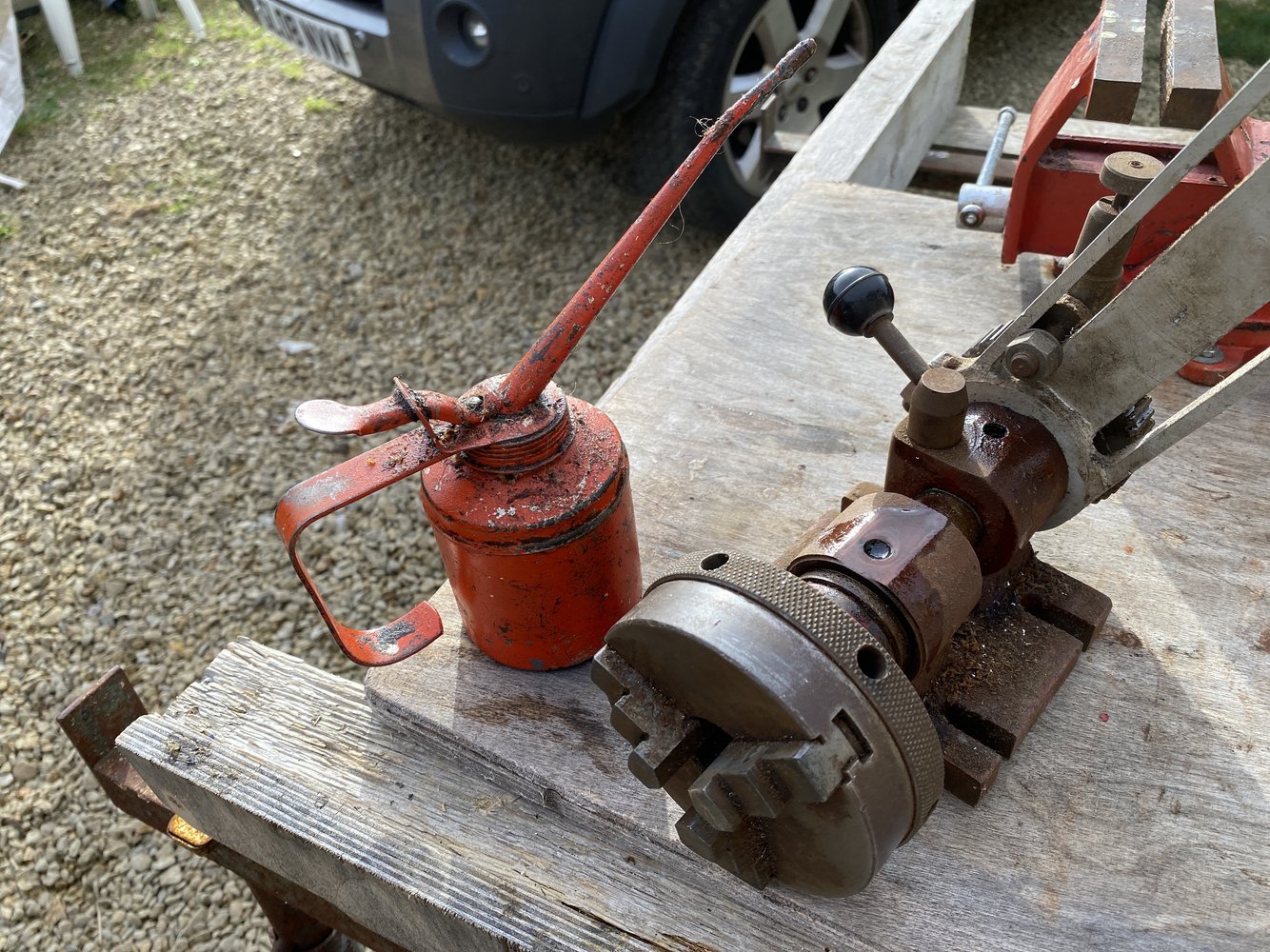

Oil can for scale



[Agroshield]

Groundhog Day.

Dividing head parts missing...Make some ?

Recently i have found need for a diving head an di have one, although it has parts missing. I believe its a Universal diving head. I have been looking to try to ID what type it is so i can replace the parts. I THINK, it needs a worm crank with a head. and parts to connect it ot he gearing. I...

www.mig-welding.co.uk



[iNf]

The assembly on the other end is to add more gears to, so you can 'compound' the gearing much like using the change gears on a lathe to cut different threads. Only in this case using them to obtain more divisions than obtainable with a single gear.
This may explain better.



[Brad93]

A "banjo" is the part holding the gears.

If you look up a universal dividing head that will give you a better idea of what it could be used for.

As it stands it's setup for differential dividing but you need a set of gears.

You can produce helical work such as splines, grooves and gears on a universal
