12mm Round Bar Bending Jig

[Brad93]

I think I might have made a model of one sometime ago (in Sketchup sorry)...

Had I done that in Fusion (I may yet) I'd be happy to share but Sketchup models for CNC? I'll reserve those for my enemies.

I saw your sketch up model.

mom going off some plans I’ve found online but there seems to be some confusion over hole spacing



[gaz1]

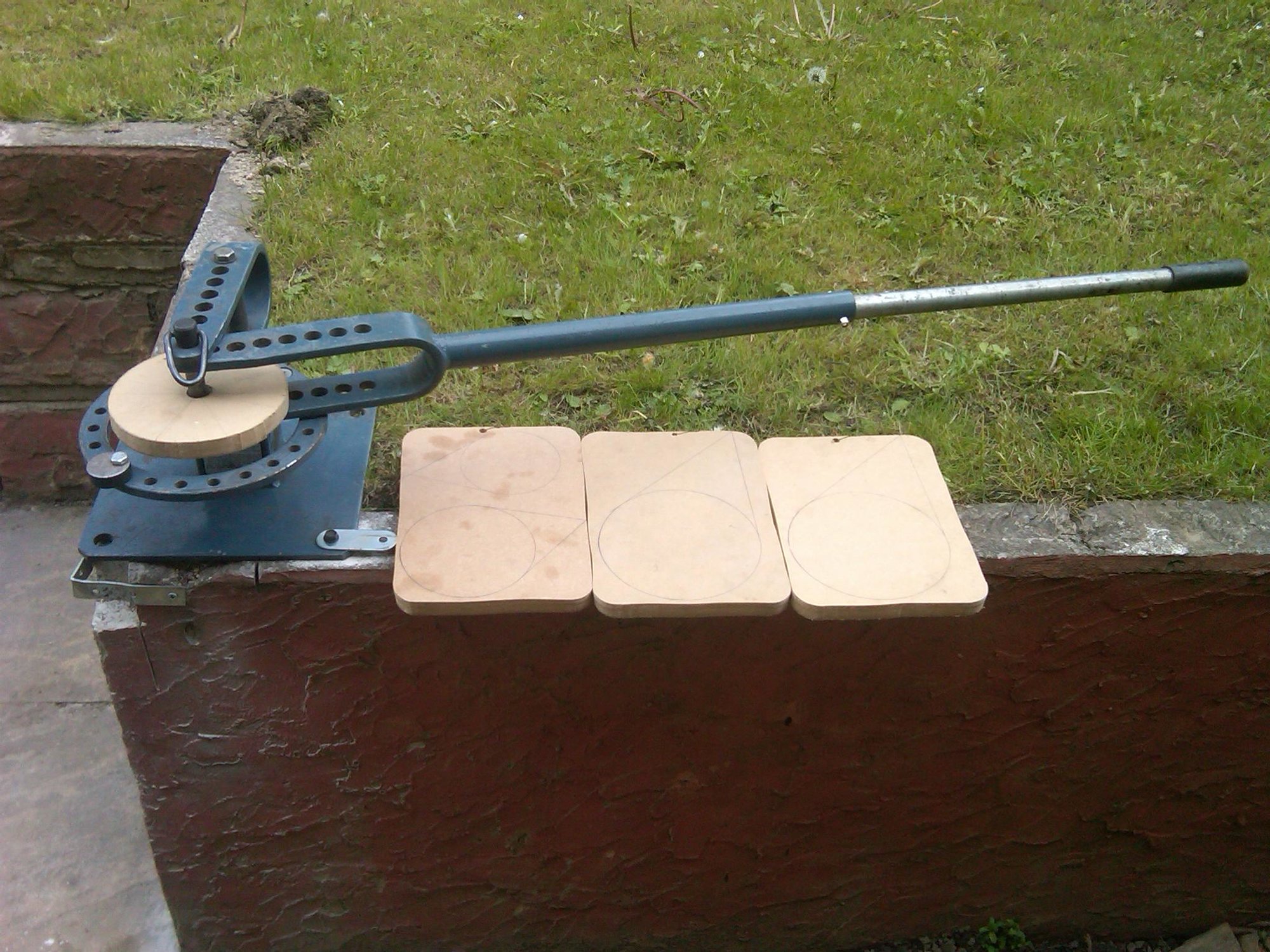

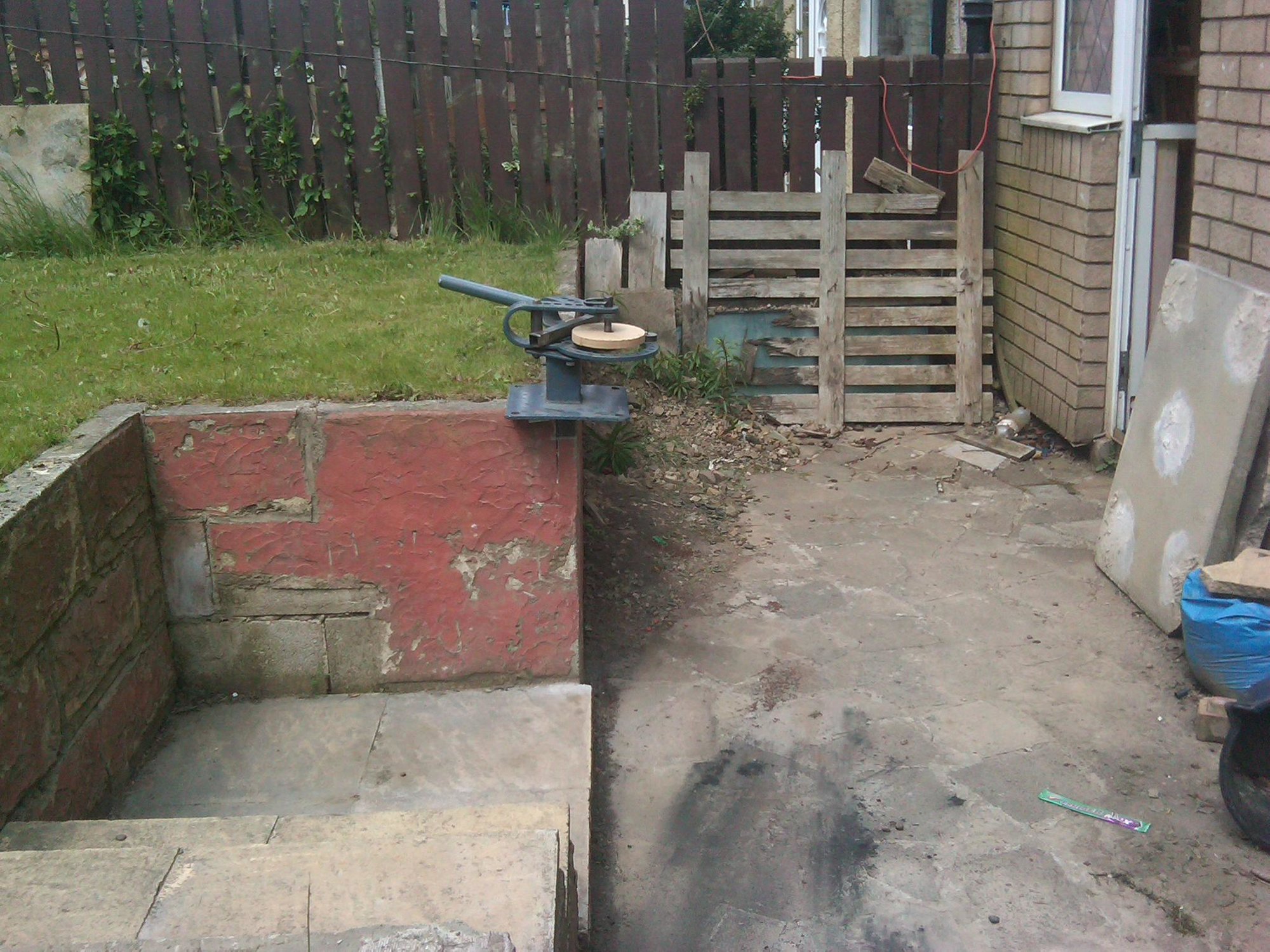

ive found my pics of mine

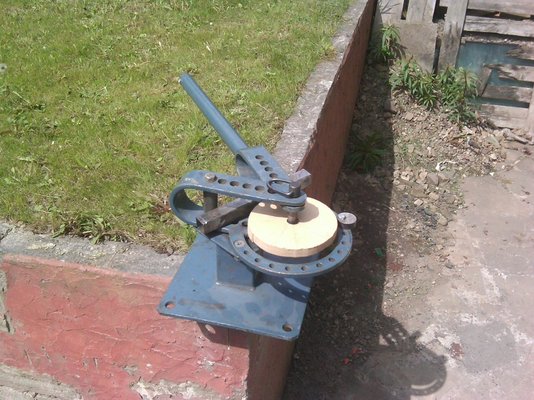

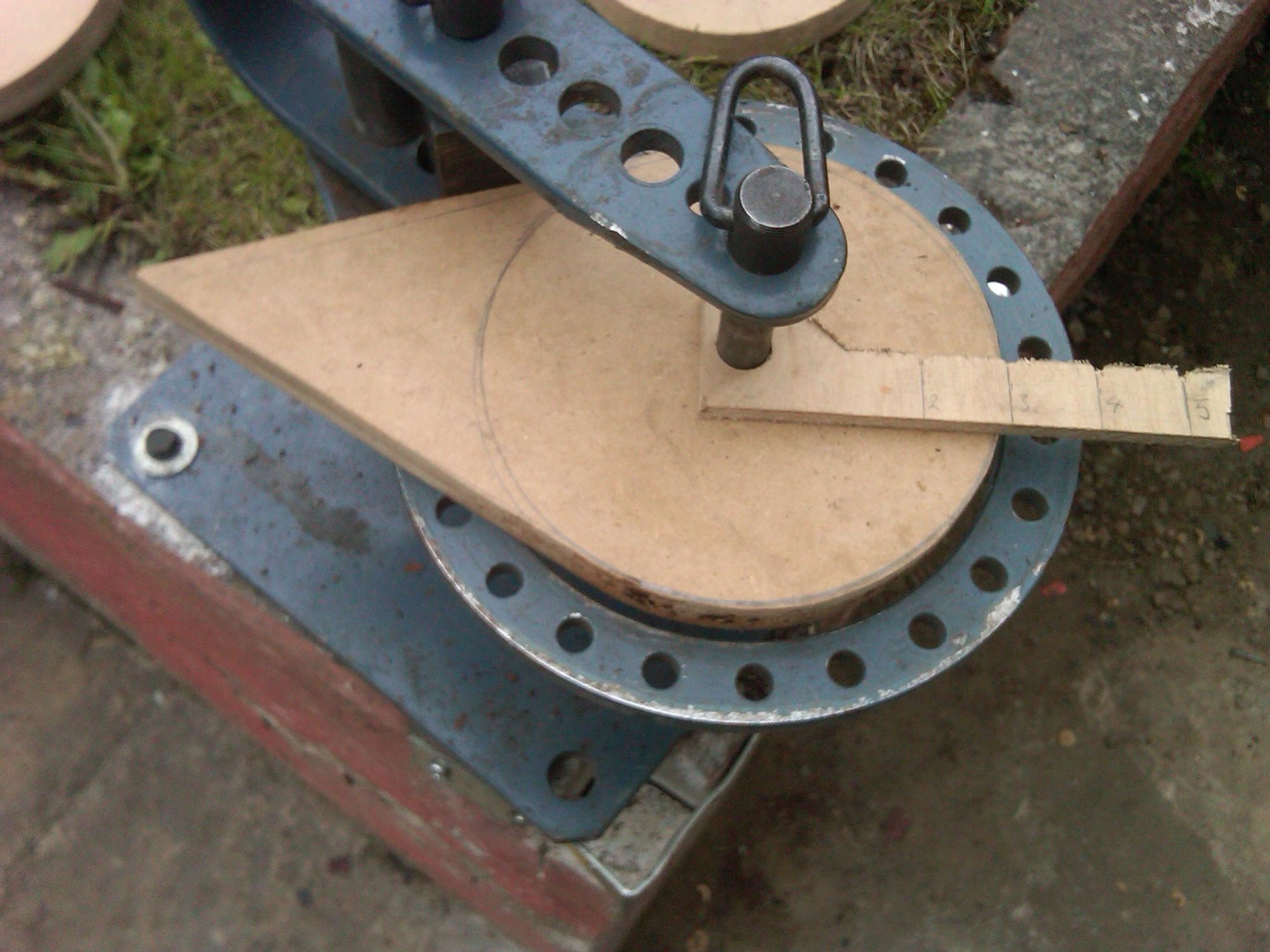

middle pic shows the stop and also adjuster on my bender really handy thing to have as well

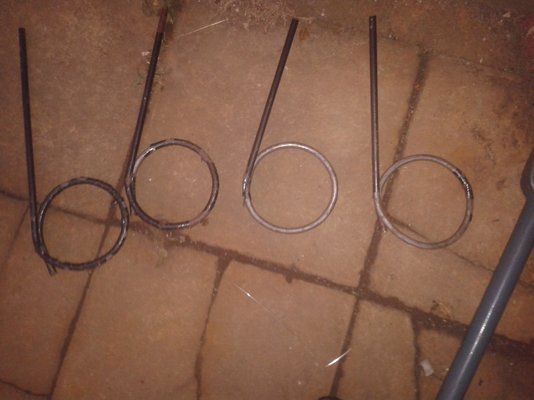

i did these for a forum member 10mm round bar



[gaz1]

if you want a good look on what these can do and extra info

this one also comes with round tube adaptors

the clarke bender info for theres



[Brad93]

Where do you buy one of them from?
Yours looks really beefy.



[gaz1]

mines only a clarke one brad

i bought it years ago when i first started doing some metal work and learning to weld

its not even 1/2" steel on any part of it as its only 10mm thick



https://www.machinemart.co.uk/p/clarke-ccb1b-compact-bench-mounted-parts-bende/

or floor standing one i prefer the fit in the vice type

https://www.machinemart.co.uk/p/clarke-ccb2b-compact-floor-mounted-parts-bende/

you can get it cheaper though

https://www.manomano.co.uk/p/compac...-pre-drilled-holes-16461259?model_id=16461247

unknown if they will have it in stock



[gaz1]

i cant pm so will post this

https://www.ebay.co.uk/itm/Clarke-S...560897?hash=item1aa2ce0701:g:XKMAAOSwG0NfT9bW

then you have to get your pins and make your dies up as well



[gaz1]

another

https://www.ebay.co.uk/itm/Clarke-S...v=DefaultOrganic&_trksid=p2047675.c100623.m-1



[mike os]

the clarke one is actually ok, ive done 16mm round into 100mm hoops to match a gate.



[Aff]

I didnt know these were so cheap. Very tempted to try one out at that price.



[gaz1]

have a need for one before you do even mine being a vice fitted one is big and ackward to store

at 10x14 roughly its ackward to store it on a shelf as well as the rollers are on a bar and the handles are stored elsewhere



[8ob]

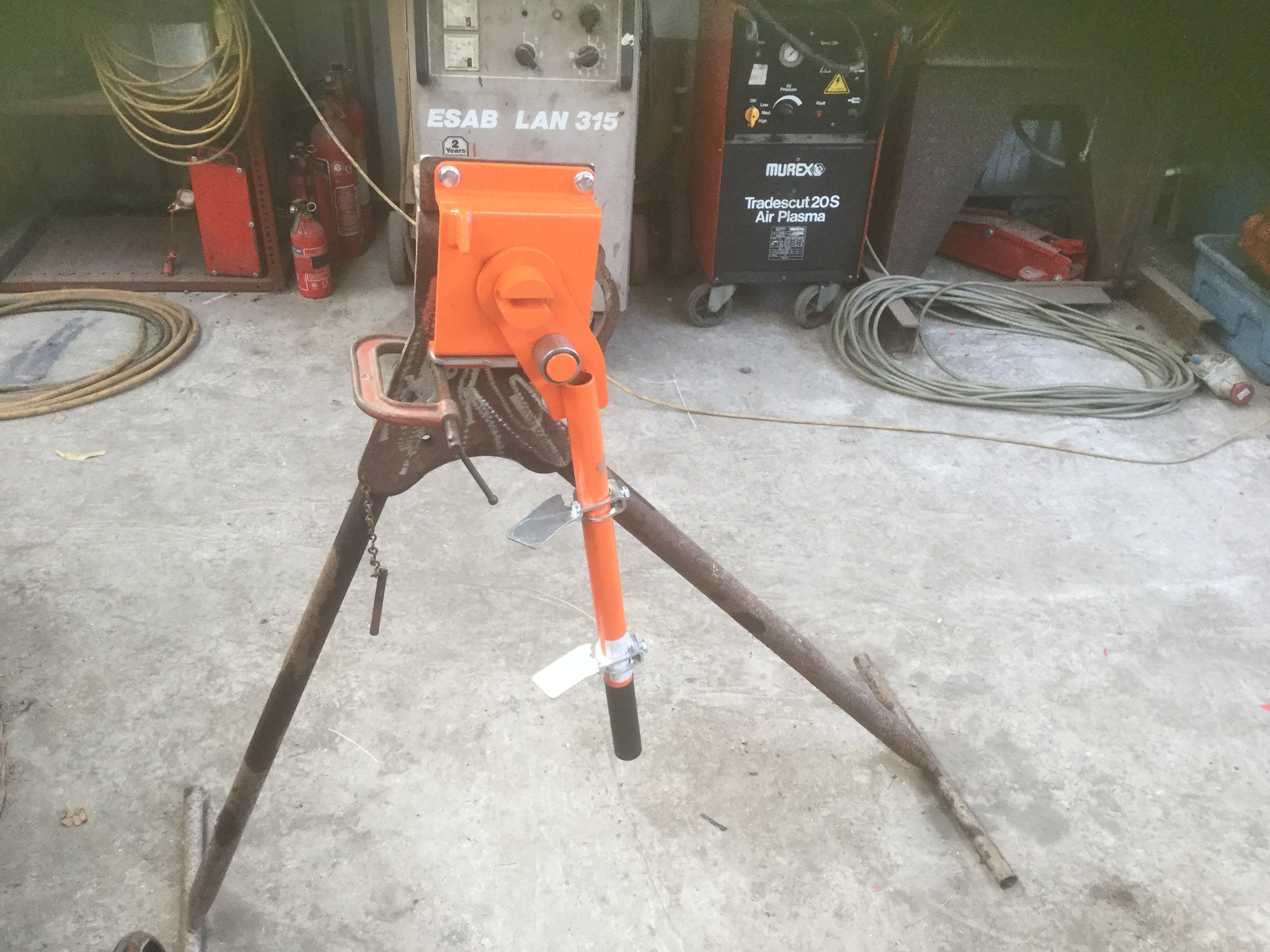

Not sure if this is the sort of thing you are after @Brad93, bends 12mm reo no problem. Has three stops for angle, first stop and bend stop. Good for forming squares, just mounted one on an old bender chassis for on site work.

Bob



[gaz1]

im kinda curious what brad is getting or actually making one now



[Brad93]

Basically I needed to bend 12mm bar to about 135° Forming a V shape with a radius of 50mm or so.

I did have a bid on the one on eBay which was complete but with only one die. But someone pipped me in the closing minute with a bid £1 higher!

The other one is still available so may have a bid.

Basically the hossfeld would be ideal but it’s getting the time to make it!



[gaz1]

Brad you can borrow mine if you want to do, if needs must

can send it down easy enough just slightly heavy



[Brad93]

Brad you can borrow mine if you want to do, if needs must

can send it down easy enough just slightly heavy

We got the two anchors done that we needed to.
This is more for future use so no urgent requirement



[Shedendman]

I'm a bit gobsmacked to be honest,i'd have thought with your knowledge,reading your posts etc you'd have made a jig pish easy in no time



[Brad93]

I'm a bit gobsmacked to be honest,i'd have thought with your knowledge,reading your posts etc you'd have made a jig pish easy in no time

To be honest I’m a bit too ocd when it comes to making jigs and end up overthinking everything. Sometimes it’s cheaper and easier to buy something that you know is going to work.

I will order in some 60 or 75mm flat bar to make a trial bender.

We have a big FJ Edwards bar bender, which will do 50mm x 10mm flat cold and up to 100 x 12 hot. Might even do 15mm thick hot. I believe they called it a miracle bender or something.



[Shedendman]

^^^^^ fair enough



[500e]

Found this
https://www.manomano.co.uk/p/manually-operated-universal-steel-pipe-bending-machine-1200330#/
Could
Specifications:

• Material: Cast iron

• Number of die plate: 4

• Maximum bending angle: 120 degrees

• Easy and precise operation

• Suitable for:

• Cold bending:

• Flat steel: 100 x 5 mm (W x T)

• Square steel: 16 x 16 mm (L x W)
• Round steel: Ø 18 mm

• Angle steel: 60 x 8 mm (W x T)
• Hot bending:

• Flat steel: 100 x 15 mm (W x T)
• Square steel: 22 x 22 mm (L x W)
• Round steel: Ø 22 mm

• Angle steel: 100 x 12 mm (W x T)
