It's the lower one for the warning light, I wouldn't worry till you start it and if need be replace the rectifier pack in it



[ajlelectronics]

I think that you have the wrong alternator. That T socket is for connection to an external regulator pack. You should have a Lucas A127 or equivalent.



[ajlelectronics]

This is confusing...

Connector Alternator Plug Repair Harness Denso Nippondenso Kubota 2-way Alternator Repair Connector Honda Datsun Mitsubishi Subaru Toyota alternator "T" plug 6" For sale a voltage regulator connector pig tail for a Nippon Denso internally regulated alternator. This type connector was also used on Hitachi and Mitsubishi alternators as well.This is the "T" type plug. These alternators were used for many years on cars ,trucks, and heavy equipment. These "T" connectors were used on other applications such as a/c and heater blower motors. Has a lock tab.(If your connector does not utilize the lock mechanism simply cut it off)Butt connectors included. Fits many rebuilt alternator numbers :


You should just fit an A127 and be done with it in my view!



[Morrisman]

This is confusing...

Connector Alternator Plug Repair Harness Denso Nippondenso Kubota 2-way Alternator Repair Connector Honda Datsun Mitsubishi Subaru Toyota alternator "T" plug 6" For sale a voltage regulator connector pig tail for a Nippon Denso internally regulated alternator. This type connector was also used on Hitachi and Mitsubishi alternators as well.This is the "T" type plug. These alternators were used for many years on cars ,trucks, and heavy equipment. These "T" connectors were used on other applications such as a/c and heater blower motors. Has a lock tab.(If your connector does not utilize the lock mechanism simply cut it off)Butt connectors included. Fits many rebuilt alternator numbers :


You should just fit an A127 and be done with it in my view!

But I’ve built all the bracketry to fit this one, as it came with the car. Unless an A127 will slip right in there, I’m a couple of days work down the drain. Plus a few trips to the auto supply finding a belt the right length.



[Morrisman]

http://westfield-world.com/daihatsu_alternator.html
It's the lower one for the warning light, I wouldn't worry till you start it and if need be replace the rectifier pack in it

Top one has ‘IG’ above it, unless that refers to the whole socket itself? Something has changed/fried as the light did come on to start with, but not any more. I might wait until I fire the motor up, see what happens.

I have a one-wire alternator off my chevy 350 sat doing nothing, but it’s about twice the size of this thing.



[ajlelectronics]

I would have used Ford bracketry for the alternator! I may have a bracket lurking possibly.

What is the make and model of the alternator? I will see what I can find out about it for you.



[Morrisman]

I would have used Ford bracketry for the alternator! I may have a bracket lurking possibly.

What is the make and model of the alternator? I will see what I can find out about it for you.

No bracketry came with it, and I had no idea what alternator it was. Can’t be hard to make an alternator work, surely.....

I have been told it is a 55 amp Kubota, probably off some small economy vehicle. I see no marking or numbers on it anywhere,



[Morrisman]

http://westfield-world.com/daihatsu_alternator.html
It's the lower one for the warning light, I wouldn't worry till you start it and if need be replace the rectifier pack in it

If this is the one, then both those feed wires could come from the same source: the ignition switch, where the charge bulb is currently connected.



[Melvyn Best]

Can’t get the link to work but have a look at Westfield world, wiring a Nippon Denso alternator. Show the vertical connection as the warning light and the other terminal as ignition live, should have read all the replies, see you’ve found a diagram



[ajlelectronics]

Can’t get the link to work but have a look at Westfield world, wiring a Nippon Denso alternator. Show the vertical connection as the warning light and the other terminal as ignition live, should have read all the replies, see you’ve found a diagram

That does seem likely, but the piece of text I quoted earlier makes it seem to be a regulator connection. Running it up and seeing what comes off the terminals is going to be the answer I think. For testing, you could spin it up with an electric drill.



[Cobbler]

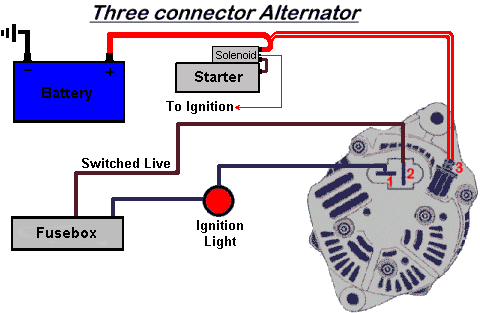

We wired one up the same as Morrismans Nipon Denso diagram on my sons Land Rover, the trouble was when you turned the ignition off, the engine kept running due to the charge backfeeding on the switched live wire to the ignition circuit. We left that wire off & it seems to work ok, it keeps charging.



[jsf55]

If this is the one, then both those feed wires could come from the same source: the ignition switch, where the charge bulb is currently connected.

View attachment 211578

Should be fine mate



[Morrisman]

That does seem likely, but the piece of text I quoted earlier makes it seem to be a regulator connection. Running it up and seeing what comes off the terminals is going to be the answer I think. For testing, you could spin it up with an electric drill.

Good idea, motor hasn’t been fired up yet, so the electric drill is an easier way.,



[Morrisman]

Good idea, motor hasn’t been fired up yet, so the electric drill is an easier way.,

It worked, I cracked out the old Black and Decker, spun the alt up, volts are 14+

Surprised how much load it puts on the drill with the exciter wire connected.

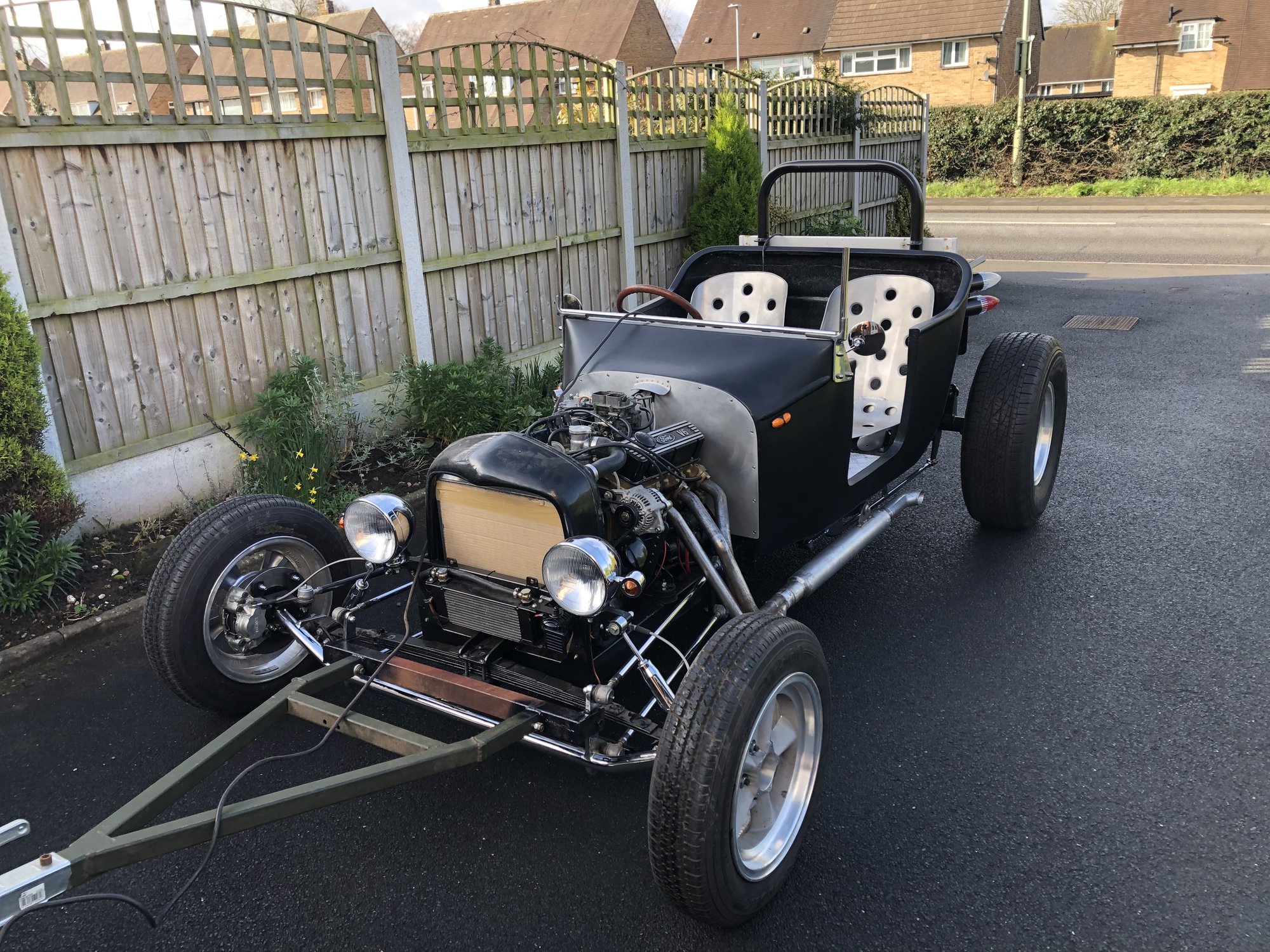

Going on hold for a while, been towed to dads house for storage as I’m moving house on Monday. And the new garage is minuscule.



[colnerov]

Hi, Two questions. Does it tow straight on the frame, because not all vehicles do? Are you going far because they're very dubious legally?

Colin



[slim_boy_fat]

Hi, Two questions. Does it tow straight on the frame, because not all vehicles do? Are you going far because they're very dubious legally?

Colin

Going on hold for a while, been towed to dads house



[Morrisman]

Hi, Two questions. Does it tow straight on the frame, because not all vehicles do? Are you going far because they're very dubious legally?

Colin

Yes, it tracked straight and true, wheels followed us nicely, only about 1/2 km anyway.



[colnerov]

@slim_boy_fat
I must pay attention when I'm reading.



[slim_boy_fat]

@slim_boy_fat
I must pay attention when I'm reading.

Don't be too hard on yourself, he may still have to get it to his new house...which may be maaaany miles distant.



[Morrisman]

Don't be too hard on yourself, he may still have to get it to his new house...which may be maaaany miles distant.

Thats about four miles away, through the town centre..... Should be okay...... maybe do it on a Sunday.
