Castolin Castotig 2002 ACDC torch harness pinout

[BikeWelder]

There's a factory reset on page 10 of the manual under 'parameters' but it's for the tig factory presets, not sure if this qualifies, a full reset to factory settings for all functions would indeed be handy. Let me know if you discover one. I'll post pics of my torch mods later on.

regards

A



[Macfun]

I don't remember if there is a general reset ... but basically (as my knowledge is !) the factory presets shouldn't set post-gas at 20 sec ... Imho.
And "hidden" sub-menu is linked to Tig only, I presume, nothing to do with MMA.

Try and tell us (after saving existing settings on a sheet of paper) !!!



[BikeWelder]

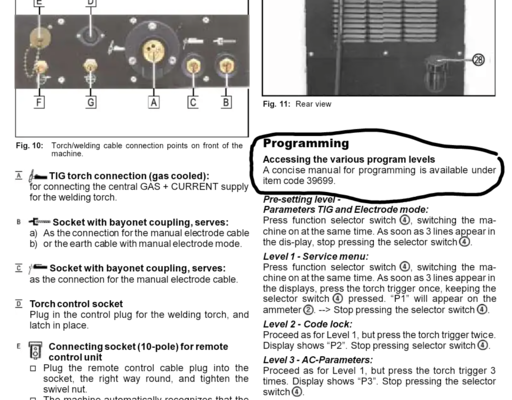

If anybody has access to the Castolin Eutectic concise manual for programming "Item Code 39699" that's mentioned on page 10 of the standard manual I'd be really (I mean really, really) interested in obtaining a copy!!

best regards

A



[BikeWelder]

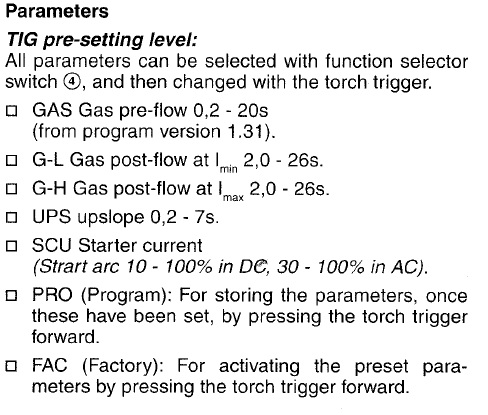

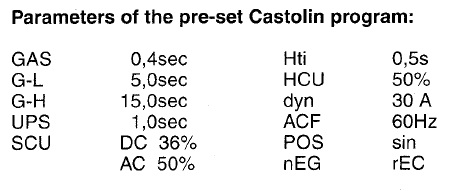

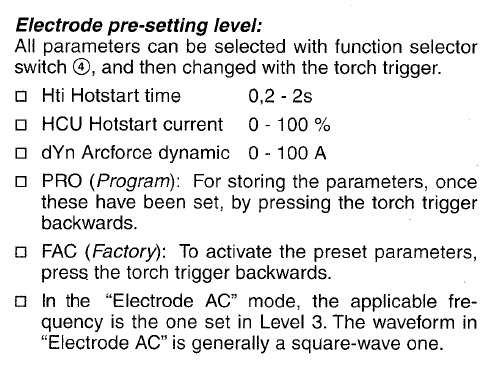

These are off page 10 and 11 of the standard manual and it appears that you can reset Tig levels and MMA levels to the factory settings as listed under Parameters of the pre-set Castolin Program.

Alex



[HughF]

Glad you have it figured out guys... Sorry for not spotting this earlier, working hard from home.



[Macfun]

My mistake about MMA reset availability, too, by reading carefully the manual ...
I hate containment, I can't go further with my welder.
Gardening is not as funny as mechanic ...



[HughF]

My mistake about MMA reset availability, too, by reading carefully the manual ...
I hate containment, I can't go further with my welder.
Gardening is not as funny as mechanic ...

I've been gardening, mostly with a minidigger



[Macfun]

I've been gardening, mostly with a minidigger

THE perfect combination !!!!
But how does the result look like ?
Needs fine "tuning", I believe ...



[HughF]

THE perfect combination !!!!
But how does the result look like ?
Needs fine "tuning", I believe ...

Very smooth and level, new grading bucket doing the trick.



[Macfun]

Give me a grading bucket and a minidigger and you'll get a battlefield result ...
Like everything, experience is the keyword !



[BikeWelder]

Hey Guys,

Don't speak too soon, I've connected my setup switch common from X10 pin 3, L switch up from X10 pin 2 and L switch down from X10 pin 1. Sure that's right I think. So I need to identify the two wires for the tig torch trigger?, is it X10 3 (common and X10 pin 5 switch up??

regards

A



[Sebastian Mirnig]

Hello!
I have the exact same machine and i wonder if anybody of you have the pedal or the pulse remote and would help me with the pinout of these devices to copy them.
Thanks in advance!



[Macfun]

Hello!
I have the exact same machine and i wonder if anybody of you have the pedal or the pulse remote and would help me with the pinout of these devices to copy them.
Thanks in advance!

Check post 50 :
https://www.mig-welding.co.uk/forum/threads/castolin-castotig-2002-mw2000.83288/page-3



[Macfun]

If anybody has access to the Castolin Eutectic concise manual for programming "Item Code 39699" that's mentioned on page 10 of the standard manual I'd be really (I mean really, really) interested in obtaining a copy!!

Hi ..

Reading the PDF english manual yesterday evening, I remembered your request ...
I also have a french version, PDF too, somewhat different, with an additional section where I found detailed informations about sub-menu levels (0 to 3).
Title : Set-Up functions and errors codes.
Level 0 : Preliminary settings (basic settings for TIG and MMA)
Level 1 : Service Menu (test, ...)
Level 2 : Code locking
Level 3 : AC functions

Is it what you're looking for ?



[Joyel]

Hi ..

Reading the PDF english manual yesterday evening, I remembered your request ...
I also have a french version, PDF too, somewhat different, with an additional section where I found detailed informations about sub-menu levels (0 to 3).
Title : Set-Up functions and errors codes.
Level 0 : Preliminary settings (basic settings for TIG and MMA)
Level 1 : Service Menu (test, ...)
Level 2 : Code locking
Level 3 : AC functions

Is it what you're looking for

Hi, I know this post is quite old, but if you could share your PDF manual for the castotig 3002, I will be grateful. And if you got it in French, it would be fantastic...
Thanks,
Joël.



[Macfun]

Hi, I know this post is quite old, but if you could share your PDF manual for the castotig 3002, I will be grateful. And if you got it in French, it would be fantastic...
Thanks,
Joël.

Hi Joel. Gonna check this when back home in a few days.
Un peu de patience ...



[Joyel]

Hi Joel. Gonna check this when back home in a few days.
Un peu de patience ...

Thanks Macfun, I wait for your reply. Glad to see there is still
some people who take the time to help their neighbours .
Have a good weekend.



[Member 32799]

Ever heard of Google

CastoTIG3002 BAET Defis PDF | PDF

Scribd ist die weltweit größte soziale Plattform zum Lesen und Veröffentlichen.

de.scribd.com



[Joyel]

@.: I already have this manual for a long time, I know Google, and your kind of response about "Google" and my knowledge is not very productive. If I ask someone to help, I should have a good reason to do it. Just read the post from the beginning before opening your mouth...
That's I need is this:

"A concise manual for programming is available under item code 39699."

So Mr . thanks for your very interesting comments, but, in French "Mêle toi de ton c.., trou de balle !"
Cordialement.



[Member 32799]

Ois kla du zipfe
