foot pedal PCB Fronius TR2200

[Richard.]

Yes i Works just like the Wired pedal , adjust the current at the machine and Full pedal gives Max set current

Pulser: Never Used one and have None for testing so Not sure about it , maybe Hugh can send me a schematic or say two sentences about how it exactly Works , how the pedal connector Is wired up..

Send me a quote in the pm.
If the price is to my liking (don’t worry I am not a tight **** I expect to pay for quality) then I will send you my remote control and you would be more than welcome to test it till your heart is content. Fair?
It’s got to work through the remote though so I’m happy for you to borrow it for testing.
I would prefer the price first mind as like I said before I don’t want you putting lots of work into something that potentially might not fit my budget. I don’t like wasting people’s time.



[Richard.]

Oh, that was fast Hugh , thanks.

Pin f is just connect through , Should Work Fine , but you Never know until you Test it.

I could send you my only Prototype if you Promise to send it back

I’d rather send you what you may need to test your end if that’s ok.



[HughF]

Hope Markus is not disappointed when he see's my workmanship on the remote, it's always interesting having your work judged by others



[Richard.]

Hope . is not disappointed when he see's my workmanship on the remote, it's always interesting having your work judged by others

I’ve opened that remote to attach a bracket to the back. The work and wiring inside is beautifully neat. After I tidied it up
Just kidding Hugh it’s spot on



[bwservices]

about 700 euros including pedal, I would guess.judging by the one on ebay
without pedal probably half?



[Richard.]

about 700 euros including pedal, I would guess.judging by the one on ebay
without pedal probably half?

Weve sorted the price out.
Cheers.



[D5meister]

Hi markus can you help me to make a circuit board like yours for my mw2200



[Member 32799]

Hi markus can you help me to make a circuit board like yours for my mw2200

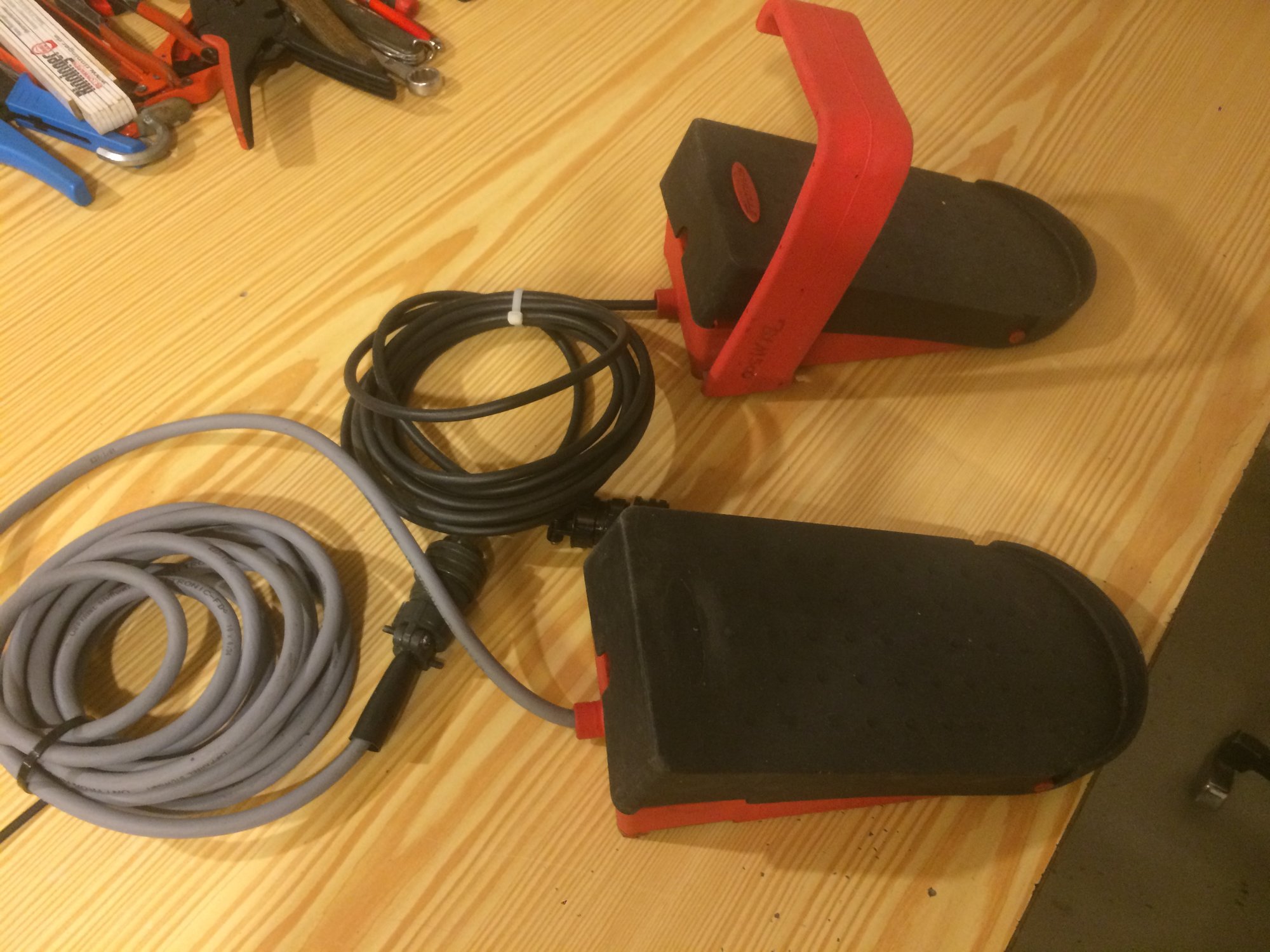

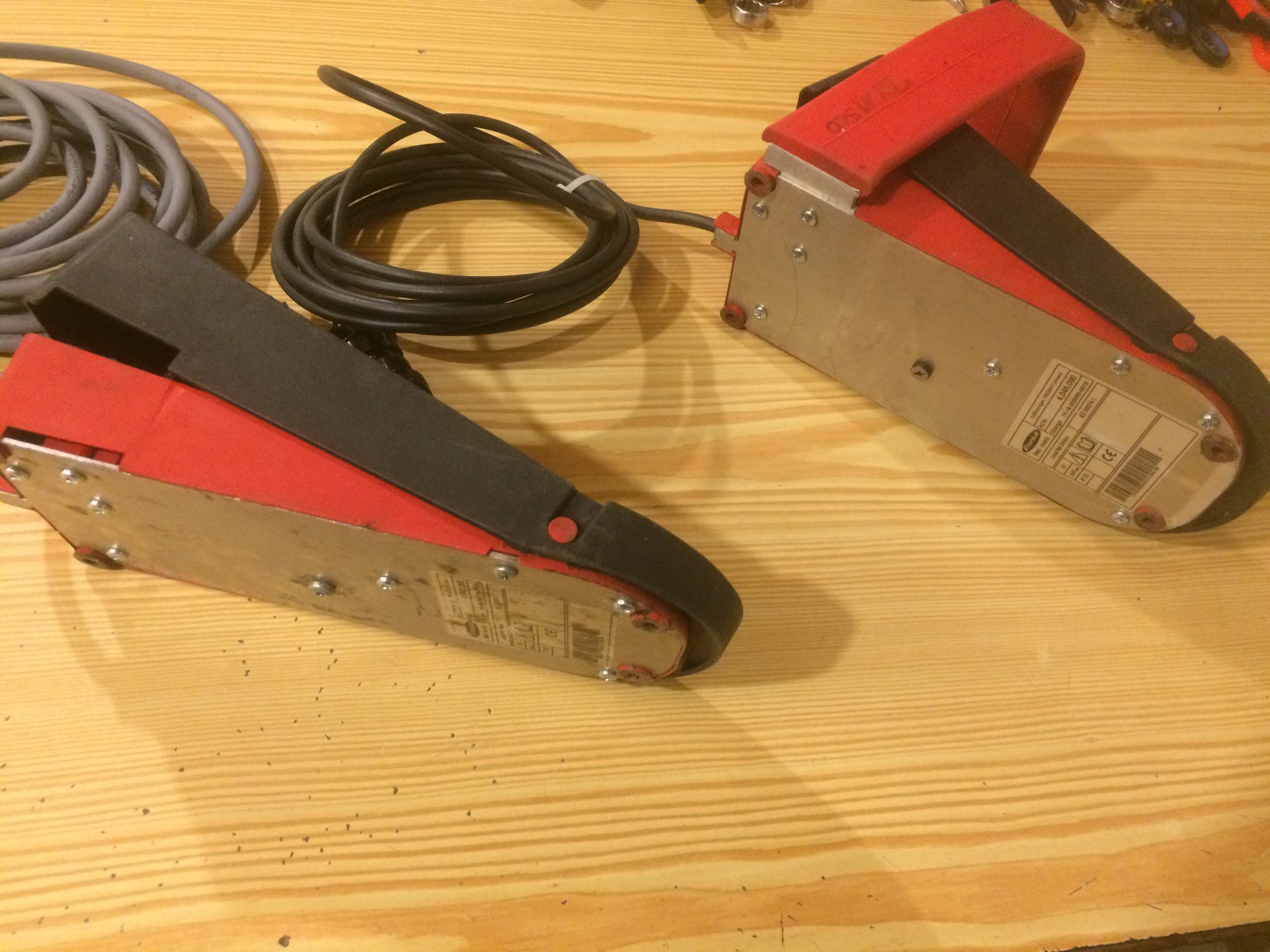

I have a board or I have two tr2200f footpedals from Fronius Plastic Version



[Member 32799]

I have a board or I have two tr2200f footpedals from Fronius Plastic Version

One is missing the handle , both used, but I tested them ok.

The pcb is not the problem , but the software on the microcontroller



[Richard.]

Hi markus can you help me to make a circuit board like yours for my mw2200

You should ask Markus to build you a wireless pedal system.
Trust me when I say his System is the best by a mile. If you’d like to see one in the flesh and working then you’d be very welcome to come and have a go with mine. It’s absolutely spot on. I’ve used literally hundreds of pedals and some are nice some not. Markus’s pedal is his own design and he’s built it with real thought and precision.
Going wireless is definitely the way forward. I’ve caused damage to way too many pedal cables trailing across my garage floor.



[Member 32799]

You should ask Markus to build you a wireless pedal system.
Trust me when I say his System is the best by a mile. If you’d like to see one in the flesh and working then you’d be very welcome to come and have a go with mine. It’s absolutely spot on. I’ve used literally hundreds of pedals and some are nice some not. Markus’s pedal is his own design and he’s built it with real thought and precision.
Going wireless is definitely the way forward. I’ve caused damage to way too many pedal cables trailing across my garage floor.

Thanks Richard , but that is all what’s left on pedals one new cabled ( Lorch 14 pin) and mine in parts



[D5meister]

HI Markus, I may take a pedal (Fronius) - the cheapest of the two perhaps. PM a price please.

As for the home made, Circuit board, the SW / micro may not be too much of a problem, I have coded in C one time at work and I play with Arduinos and TI Launchpad sometimes. If you could give an outline of what is needed - I would enjoy the challenge of making one - who knows, I am aware its RS485, Im guessing it scales the Machine setting x1 to 100% something like that? Steve



[Turbo-555]

i would buy a pedal...if only ./markus would answer to my PM...



[Member 32799]

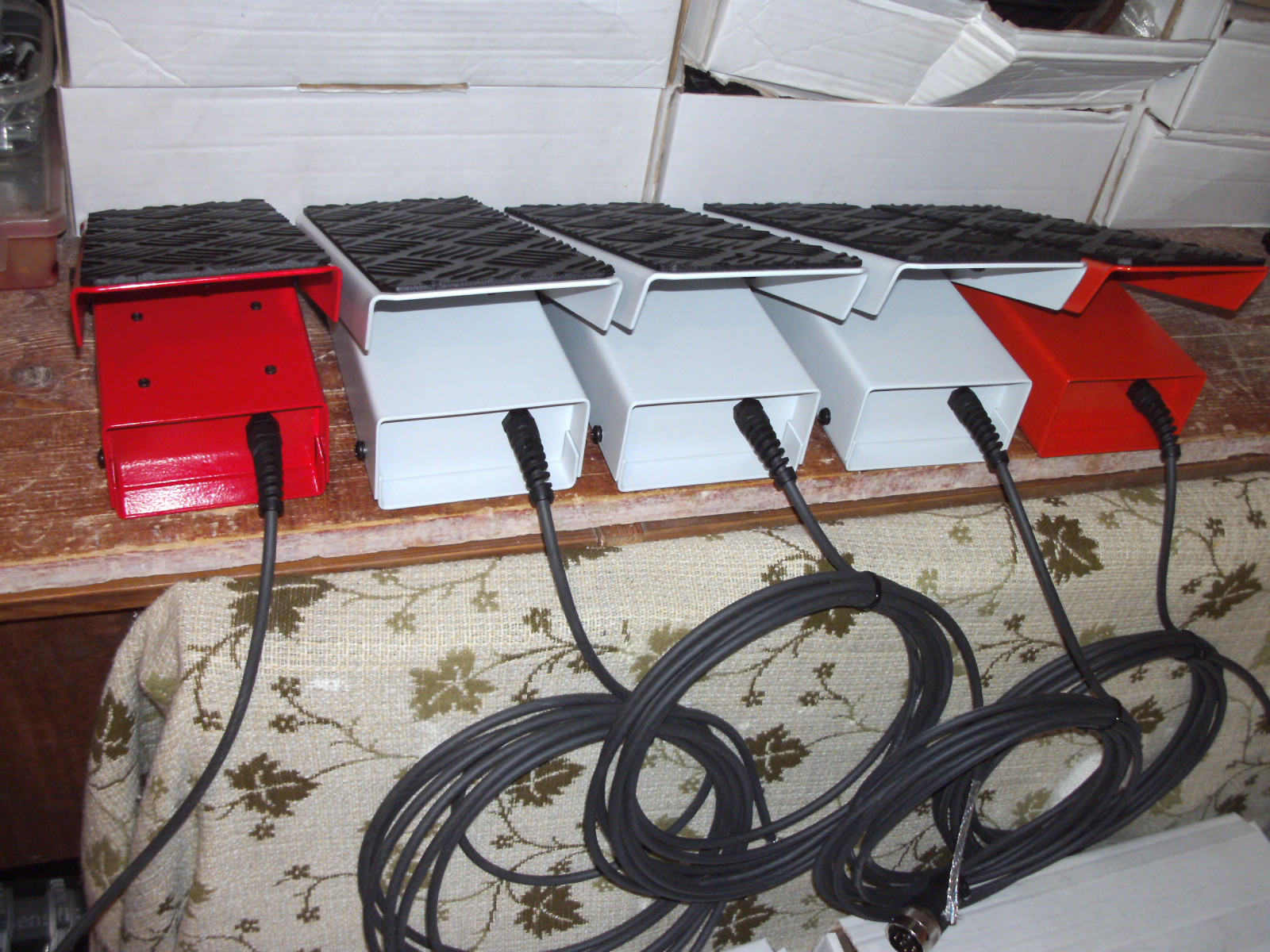

made some pedals for fronius EWM and Lorch



[Richard.]

made some pedals for fronius EWM and Lorch

They are an absolutely wonderful pedal. Couldn’t be without mine now.
Looks like you’ve changed the design slightly @. as there doesn’t seem to be a heal plate on those ones.
Any particular reason why mate.



[HughF]

make some more wireless ones!!! I've got potential customers queueing up



[Member 32799]

They are an absolutely wonderful pedal. Couldn’t be without mine now.
Looks like you’ve changed the design slightly @. as there doesn’t seem to be a heal plate on those ones.
Any particular reason why mate.

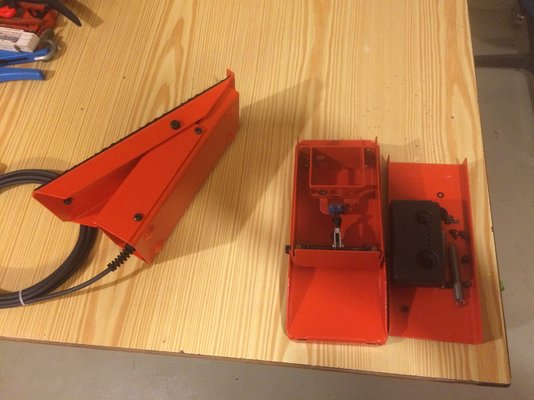

Yes because i like my footcenter more Central to the axle and so i had it was always half on the heal stop , also it was difficult to make with tolerantes and powdercoating.

Inside also changed due to insane pot supplier issues..... but the mechanics Is in principle the same



Hugh: Great ! I have Zero response. I Build None in advance only on Order because it seems a dead Business so i don’t Stock Parts for it .



[HughF]

Drop me a PM with a contact email and I can pass your details onto my first enquiry... He's not a forum member so can't contact you directly on here



[Richard.]

They look good.
I’m not really fussed about heel plates I can take it or leave it.
I prefer the hinge point in the older design for me personally.

make some more wireless ones!!! I've got potential customers queueing up

They are extremely good Hugh. You never really think about how much you put up with and tolerate that cable until you take it away.



[HughF]

They look good.
I’m not really fussed about heel plates I can take it or leave it.
I prefer the hinge point in the older design for me personally.


They are extremely good Hugh. You never really think about how much you put up with and tolerate that cable until you take it away.

With the amount of marketing fronius are doing in the US at present, lots of people are asking for a wireless pedal for the older mw machines like they have on the new 230i... Plenty of business out there to be had.
