In relation to your youtube questions....

I painted my inlet this graphite grey colour which I thought would look pretty nice...

(of course then I decided to go ITB and it has gathered dust ever since).

As for your second question...I would use a second arduino to generate the signal for the first. Real question is what voltage is it? If it's 5v then fine, if its 12v then you'll need way to generate that.

There is an example here of someone using an arduino to generate a PWM 12v signal (for a fuel gauge) http://www.greatoldone.co.uk/low-fuel-2 (basically only the right hand side).



[Jaffman]

In relation to your youtube questions....

I painted my inlet this graphite grey colour which I thought would look pretty nice...

(of course then I decided to go ITB and it has gathered dust ever since).

As for your second question...I would use a second arduino to generate the signal for the first. Real question is what voltage is it? If it's 5v then fine, if its 12v then you'll need way to generate that.

There is an example here of someone using an arduino to generate a PWM 12v signal (for a fuel gauge) http://www.greatoldone.co.uk/low-fuel-2 (basically only the right hand side).

I'm thinking a nice silver might be the way to go. its grey but shinier lol

I've been sent a link for a signal generator so I can replicate it using that and feed it into the arduino, the trouble I have is, what exactly am I replicating?

it seems like its a 12v square wave that gets pulled down with every pulse of a single (4 cylinder) ignitor then it gets doubled for the second bank of 4 cylinders to get the RPM of the 8 cylinders.
so if I'm getting a 100Hz frequency, that should mean 100 revolutions per second, 100x60 to get revolutions per minute gives me 6000 RPM if ive got my maths correct lol.



[Fastdruid]

I'm thinking a nice silver might be the way to go. its grey but shinier lol

I've been sent a link for a signal generator so I can replicate it using that and feed it into the arduino, the trouble I have is, what exactly am I replicating?

it seems like its a 12v square wave that gets pulled down with every pulse of a single (4 cylinder) ignitor then it gets doubled for the second bank of 4 cylinders to get the RPM of the 8 cylinders.
so if I'm getting a 100Hz frequency, that should mean 100 revolutions per second, 100x60 to get revolutions per minute gives me 6000 RPM if ive got my maths correct lol.

I presume you have the manual?

Essentially each bank is it's own 4-cylinder system so on the presumption it's not wasted spark there will be presumably be *2* pulses per revolution (because a 4-stroke has 1 ignition "event" per cylinder every *other* revolution). On that assumption it's going to need a 200Hz signal for 6k rpm [ (6000 / 60) * 2 ] . If it's wasted spark then double that to 400Hz [ (6000 / 60) * 4 ].

Looks like the tacho output is the feed to the coil, the ignitor is pulsed with a ~3.5ms pulse (at tickover anyway), that earths the coil and fires the sparkplug. So yes 12v driven low for ~3.5ms or so at 200Hz should be 6k. Essentially it'll be the *opposite* to the IGT waveform below....although that suggests on the basis of ~25ms between pulses at tickover that maybe it is 4 events per rev, 25ms is 40Hz, (40*60)/2 = 1200rpm, 40*60)/4 = 600rpm.

I would be tempted to be honest to stick an oscilloscope on the tacho output and see what it's actually giving. One of the little digital scopes is only £25-£30 and invaluable if you're messing with signals like this.



[PEZZER]

I'm thinking a nice silver might be the way to go. its grey but shinier lol

I've been sent a link for a signal generator so I can replicate it using that and feed it into the arduino, the trouble I have is, what exactly am I replicating?

it seems like its a 12v square wave that gets pulled down with every pulse of a single (4 cylinder) ignitor then it gets doubled for the second bank of 4 cylinders to get the RPM of the 8 cylinders.
so if I'm getting a 100Hz frequency, that should mean 100 revolutions per second, 100x60 to get revolutions per minute gives me 6000 RPM if ive got my maths correct lol.

If it's firing on all 4 cylinders, i'd expect 1 pulse per 2 rotations per cylinder. So if you're reading 100hz = 100 /4 * 2 *60= 3000rpm.

I'd just wire it to input via an optoisolator with a current limiting resistor speced for ~14v. That should still have enough current to work for 5v or similar if that's what it turns out to be.

Just use a simple 555 timer to simulate it. Assume a short pulse (so maybe 95% duty)

If you count pulses via an interrupt rather than sampling it should be fast enough and doesn't really matter what the wave looks like, it'll just trigger on the up or down slope



[arther dailey]

In relation to your youtube questions....

I painted my inlet this graphite grey colour which I thought would look pretty nice...

(of course then I decided to go ITB and it has gathered dust ever since).

As for your second question...I would use a second arduino to generate the signal for the first. Real question is what voltage is it? If it's 5v then fine, if its 12v then you'll need way to generate that.

There is an example here of someone using an arduino to generate a PWM 12v signal (for a fuel gauge) http://www.greatoldone.co.uk/low-fuel-2 (basically only the right hand side).

yup, prefer the graphite or steel grey to brighter , personal preferance as ever eh.



[Jaffman]

I presume you have the manual?

Essentially each bank is it's own 4-cylinder system so on the presumption it's not wasted spark there will be presumably be *2* pulses per revolution (because a 4-stroke has 1 ignition "event" per cylinder every *other* revolution). On that assumption it's going to need a 200Hz signal for 6k rpm [ (6000 / 60) * 2 ] . If it's wasted spark then double that to 400Hz [ (6000 / 60) * 4 ].

Looks like the tacho output is the feed to the coil, the ignitor is pulsed with a ~3.5ms pulse (at tickover anyway), that earths the coil and fires the sparkplug. So yes 12v driven low for ~3.5ms or so at 200Hz should be 6k. Essentially it'll be the *opposite* to the IGT waveform below....although that suggests on the basis of ~25ms between pulses at tickover that maybe it is 4 events per rev, 25ms is 40Hz, (40*60)/2 = 1200rpm, 40*60)/4 = 600rpm.

I would be tempted to be honest to stick an oscilloscope on the tacho output and see what it's actually giving. One of the little digital scopes is only £25-£30 and invaluable if you're messing with signals like this.

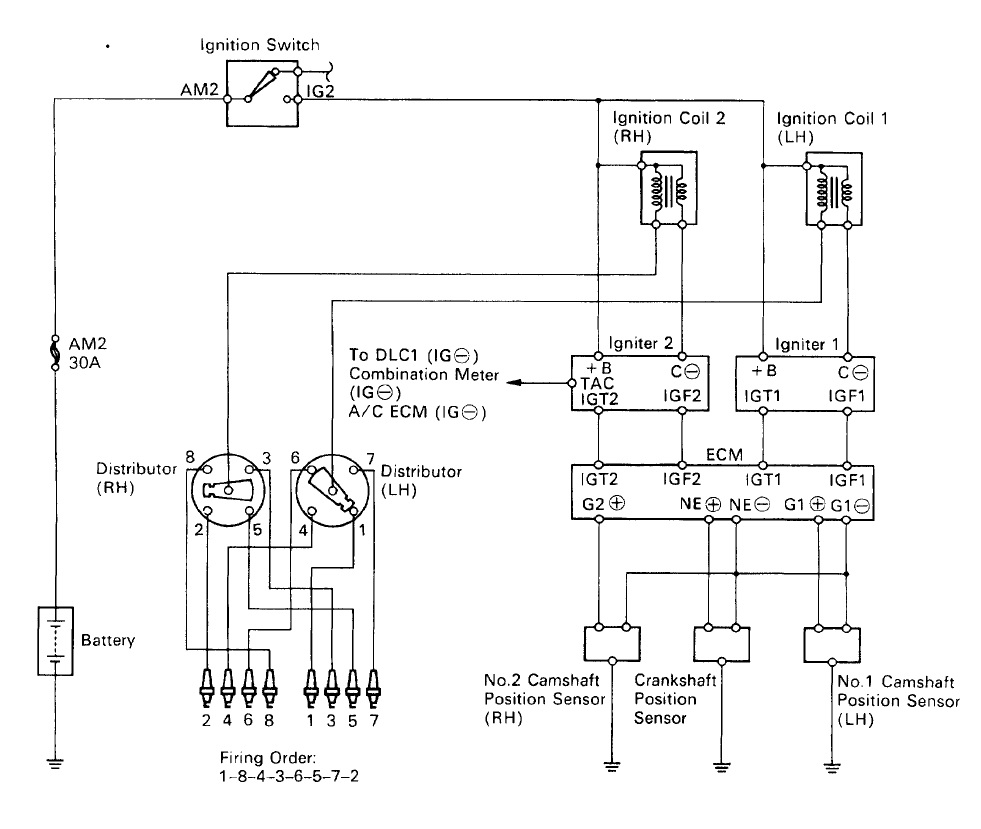

View attachment 276668

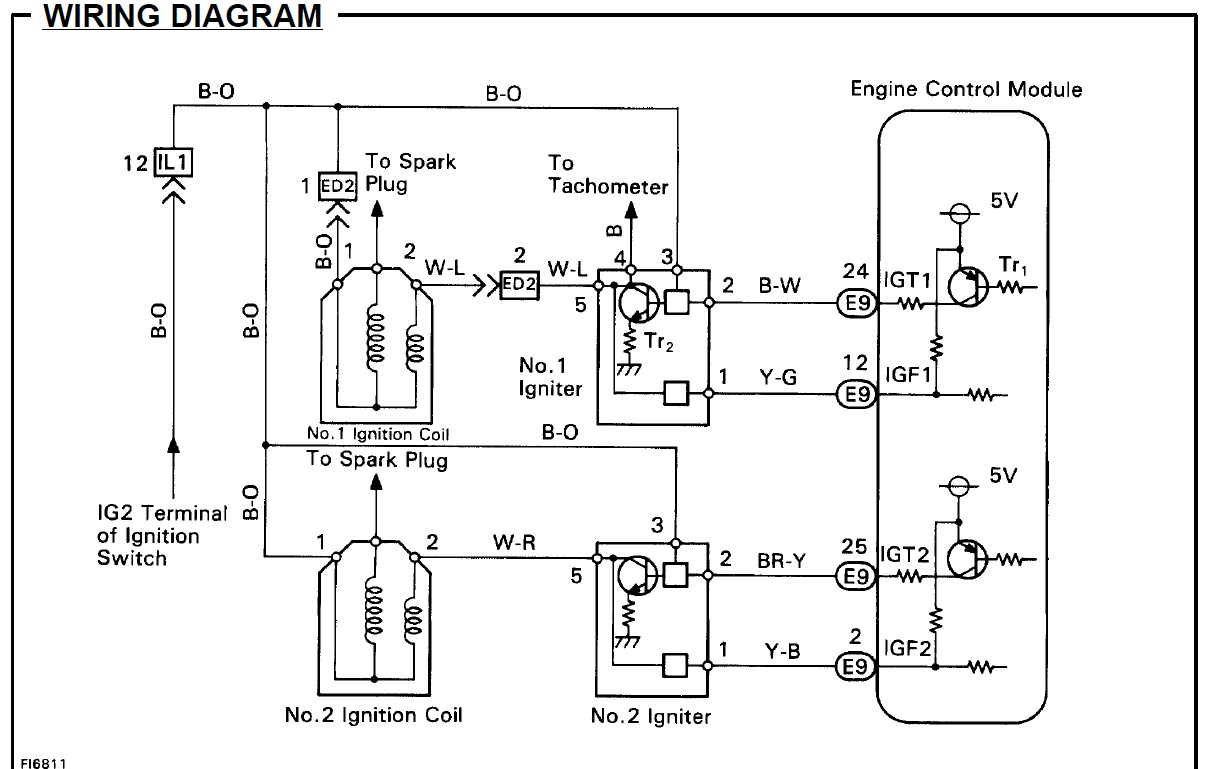

View attachment 276670

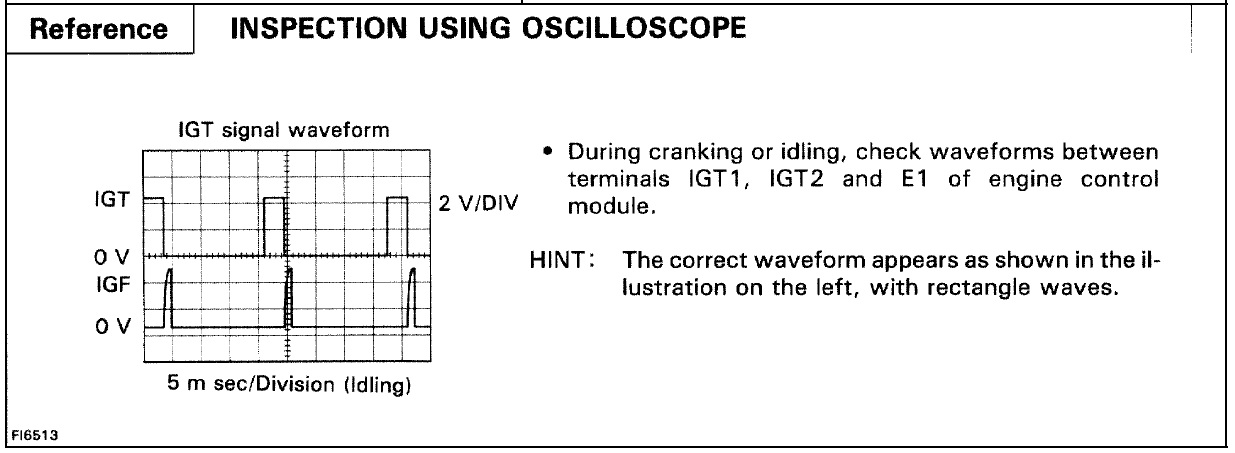

View attachment 276669

No I dont have the manual, but what youve posted is useful.
do you have a link to one of those cheaper scopes? ill buy one up and see what the score is.

I don't think its wasted spark but I do know that the signal is doubled to get a signal for both banks, so if the output is 100Hz for 100 revolutions each second then its actually 200 revolutions per second to cover the other bank that doesn't get a signal.

If it's firing on all 4 cylinders, i'd expect 1 pulse per 2 rotations per cylinder. So if you're reading 100hz = 100 /4 * 2 *60= 3000rpm.

I'd just wire it to input via an optoisolator with a current limiting resistor speced for ~14v. That should still have enough current to work for 5v or similar if that's what it turns out to be.

Just use a simple 555 timer to simulate it. Assume a short pulse (so maybe 95% duty)

If you count pulses via an interrupt rather than sampling it should be fast enough and doesn't really matter what the wave looks like, it'll just trigger on the up or down slope

Its been a while since I done my electronics degree so I'm gonna have to read up a little more because whilst I understand what your saying, doing it will be another challenge
Like I don't think I've ever come across an optoisolator

I've bought a wave generator to simulate it in the house on the test bench, when it comes to installing it in the car it'll be a different story though


so if I have a 12v pulsed low signal coming out of that wire at a frequency determined by the RPM of the engine, how do I feed that into an Arduino that can only (afaik) handle 5v?
should I run a transistor to pull up a 5v feed whenever the signal is pulled down (earthed)? I cant imagine a relay being fast enough?
then the Arduino reads every pulse, doubles it and that gives it an RPM
