Fusion doesn’t work like that - a component is already a ‘block’ of sorts. (And you can also group things in the manner of a block)
- Thread starter Screwdriver
- Start date
The features can be added one at a time to the sketch in seconds prior to extruding, for something so simple why over complicate it? Unless this is also a learning exercise.

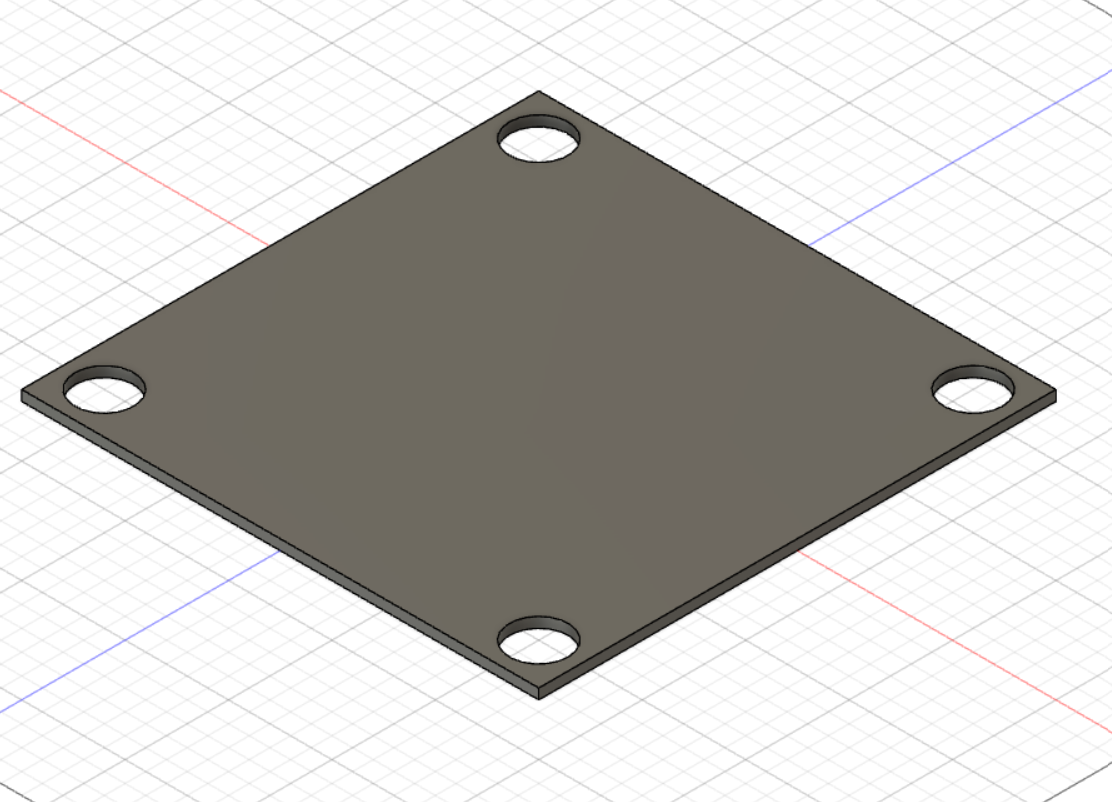

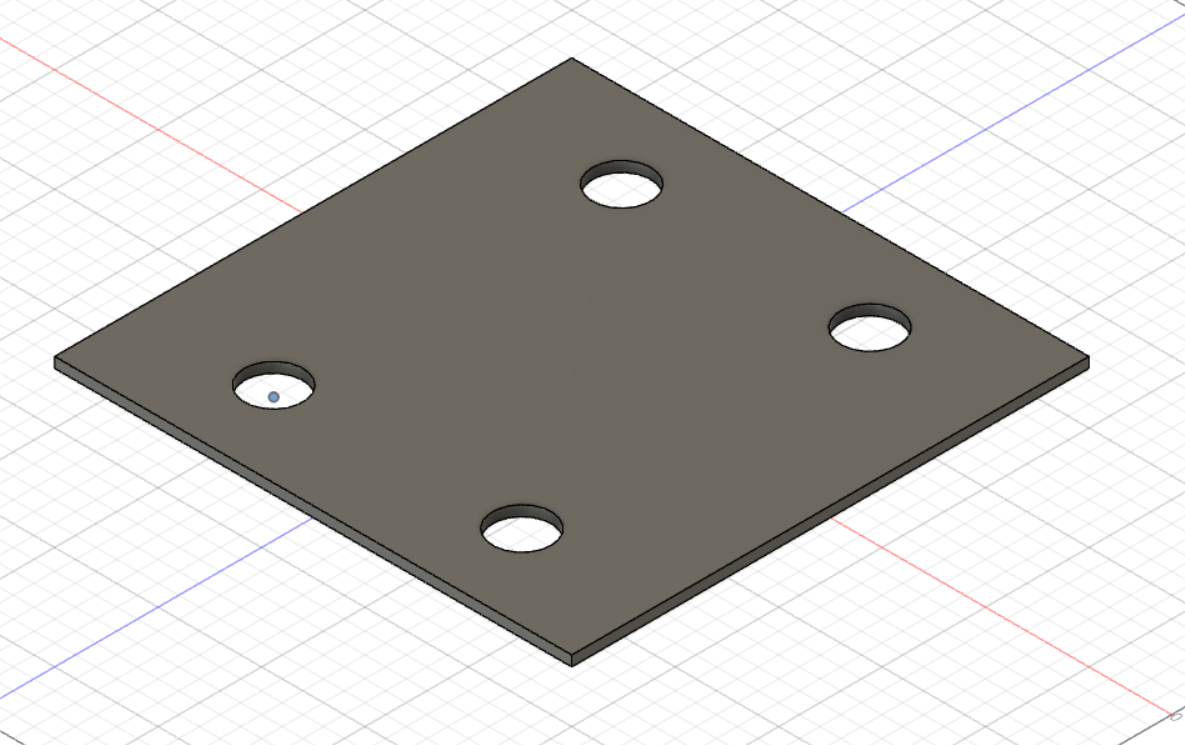

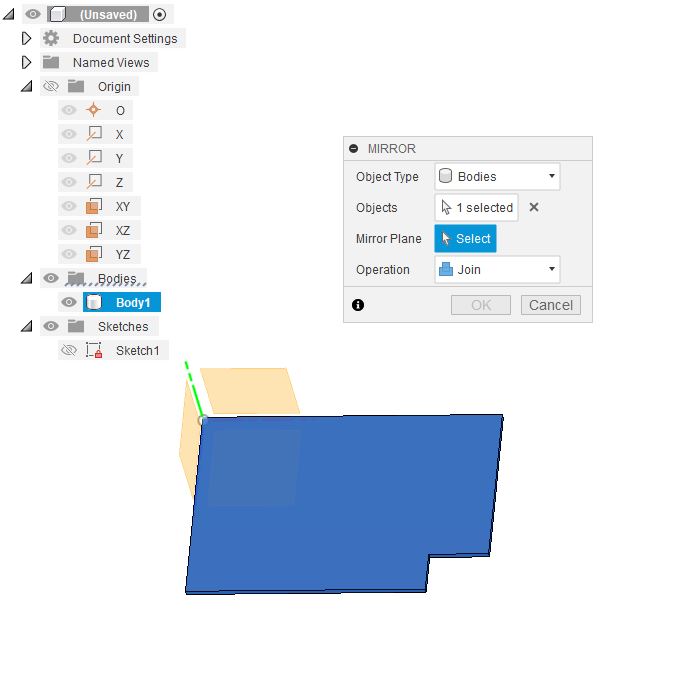

The only other simple and efficient way I can think of would be to extrude one quarter and mirror the resulting body twice, start with the diagonally opposite corner to your sketch at the origin to allow you to use the XY YZ planes to mirror, if the sketch has been made on the XZ (top) plane.
As far as im aware there is no way to easily mirror the cut outs on the corners of the body you have here.
The only other simple and efficient way I can think of would be to extrude one quarter and mirror the resulting body twice, start with the diagonally opposite corner to your sketch at the origin to allow you to use the XY YZ planes to mirror, if the sketch has been made on the XZ (top) plane.
As far as im aware there is no way to easily mirror the cut outs on the corners of the body you have here.
If you sketched and extruded the entire object and just need the corners cutting out the only way I know is to create a body, mirroring it then using the mirrored bodies as tools in the combine funtion to cut them out but that is really long winded.
Misterg
Member
- Messages
- 1,162
- Location
- North Wales
You can mirror features - per my post above
daedalusminos
Member
- Messages
- 2,246
- Location
- Norwich
I think @tigdlo jumped in without reading the thread and looks like he picked up on the ACAD solution and general thread drift
It's what's "good" about working in a company with many CAD users - come to modify someone else's work and first of all have to work out what exciting new, over-complicated, method they have used this time to create something simple - 'cos when you made one slight change, the whole thing went up it's own bum.I think @tigdlo jumped in without reading the thread and looks like he picked up on the ACAD solution and general thread drift
mike os
just a little insane.....
- Messages
- 9,809
- Location
- North Wales
Synchronous modelling ... unless I have the sketches, and often even then,
skotl
Member
- Messages
- 9,939
- Location
- Edinburgh, UK
Same with software development - you jump in to fix someone else’s code and can’t fathom the complexity. At first you think “there must be a reason it’s engineered like this” before concluding “nope - it’s just a mess of over complexity”
Our word for decluttering and rewriting the spaghetti is “refactoring”.
I should have read the thread properly...
Wedg1e
They call me Mr. Bodge-angles
- Messages
- 7,735
- Location
- Teesside, England
Is there a 'replace' function then?
I might have to get a copy of this just to see what it's about - but when I started I also had the then-current version of TurboCAD (which ISTR I preferred) but so much AutoCAD stuff got thrown at me I gravitated towards that... so I don't know there'd be any point.
Misterg
Member
- Messages
- 1,162
- Location
- North Wales
I think that there is a replace component command, but I haven’t had cause to use it (away from computer for a few days, so can’t check). I *think* that it only works on external components (i.e. ones that exist as separate files).
daedalusminos
Member
- Messages
- 2,246
- Location
- Norwich
You can either have components 'local' to the design or as an external reference, an external reference component will update 'globally'.
skotl
Member
- Messages
- 9,939
- Location
- Edinburgh, UK
I feel like I've got over a major learning "hump" with Fusion 360 now. It's starting to make sense to me. Even though I only know about 0.5% of it I was able to knock up a new drawing yesterday in an hour compared to over a week (on-and-off) for the previous one.
I think it's going to be worth it and I'm glad I persevered.
I think it's going to be worth it and I'm glad I persevered.
What do you feel was the biggest part that started to make sense???
skotl
Member
- Messages
- 9,939
- Location
- Edinburgh, UK
Oooohhhh..... good question
I think the hurdles, in order, were:
1. Understanding what a sketch was and realising that you can't "build" or assemble a sketch
2. Understanding axes, surfaces and planes (I know that's pretty fundamental for all 3D CAD, but knowing when I needed to sketch on a plane vs surface took a while)
3. Bodies, components and assemblies
4. Navigating the timeline of a body (and not being scared to "delete all forward of the timeline marker" rather than fix an earlier mistake)
5. Joints (I still don't totally understand the fixing points, which often results in one component being 90 degrees out. I just click away until it attaches in the correct orientation!)
I think I understand why you list the first 3 and agree (I think)..lol
Not sure I follow 4 and 5 yet... maybe one day.
skotl
Member
- Messages
- 9,939
- Location
- Edinburgh, UK

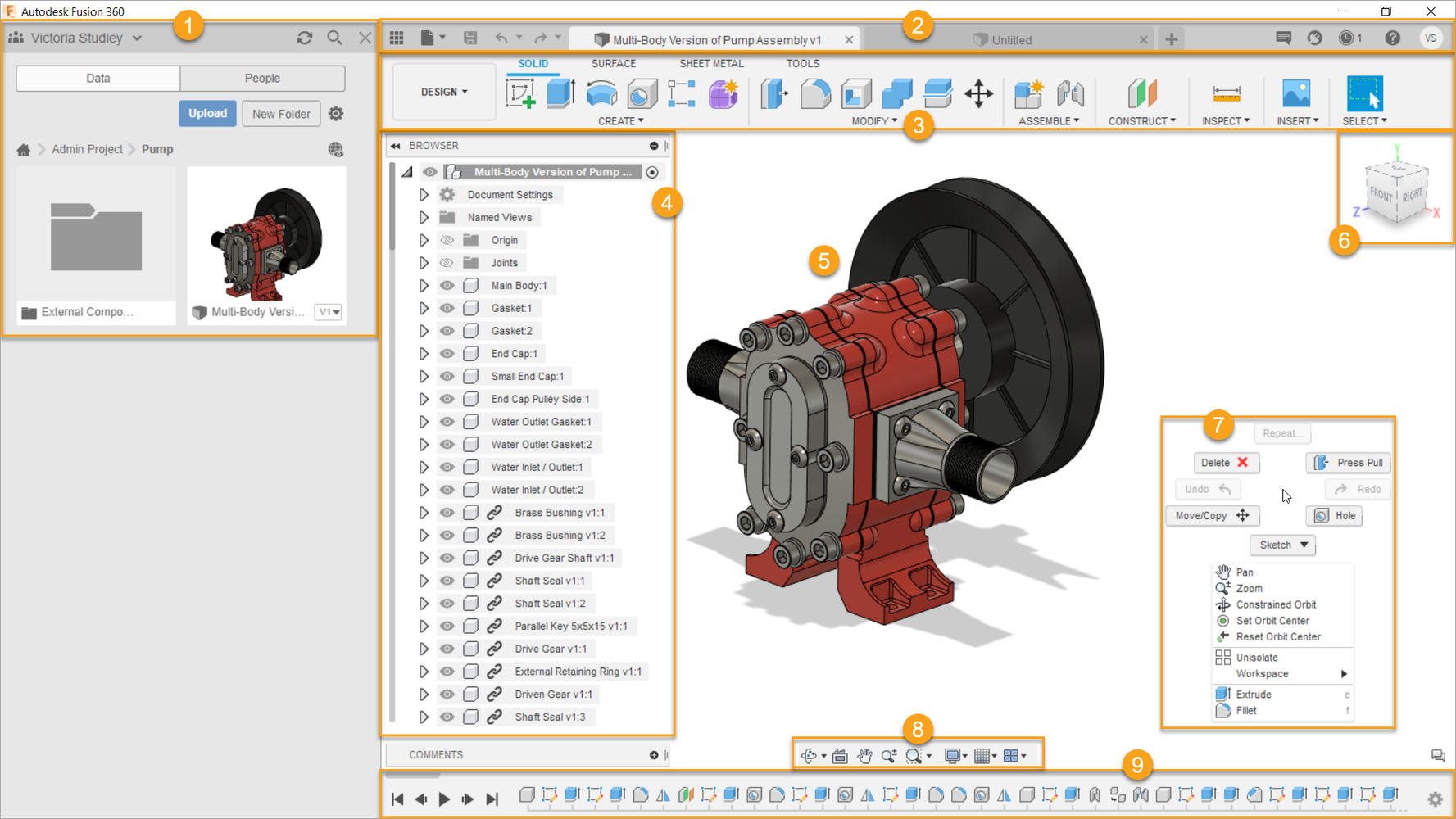

Ref my item #4, it's the bit at the bottom marked "9" - being able to go back in time to edit something, then fast forward the changes, is really powerful
(not my drawing!)
I still find Joints involve voodoo, but I somehow eventually manage to get the right one, and with the component in the correct orientation.
Only use it when I really have to on a proper CAD model. On imported, dumb, models, then yes, only thing that works.
