Help! Non-standard taper, in the lathe spindle.

[Sergei Slovenija]

He has measured the taper in a slightly non-standard way, i.e. the 99mm is along the slope length (see his post #14).

Were it measured conventionally, there are many online calculators:

Taper Calculator

Estimate the taper length and angle using the taper calculator.

www.omnicalculator.com

Taper Angle Calculation | Taper Degree Calculator

Taper Degree is the central angle of the taper measured in degrees. It can be calculated from the taper % or it can be calculated with the number of the different type of tapers.

www.easycalculation.com

I will make more accurate measurements, on a cold head. in a week I need to unload 4.5 40 foot containers with equipment. Hellish time pressure.



[Wedg1e]

A quick CAD sketch shows that to have a taper angle of 1.5628 degrees - not any standard that I can see. It's close to a MT5 at 1.5073 deg, but still miles out.

Jarno tapers are all the same angle at 1.4321 deg, so nowhere near.

All assuming the given measurements are accurate, of course.



[Sergei Slovenija]

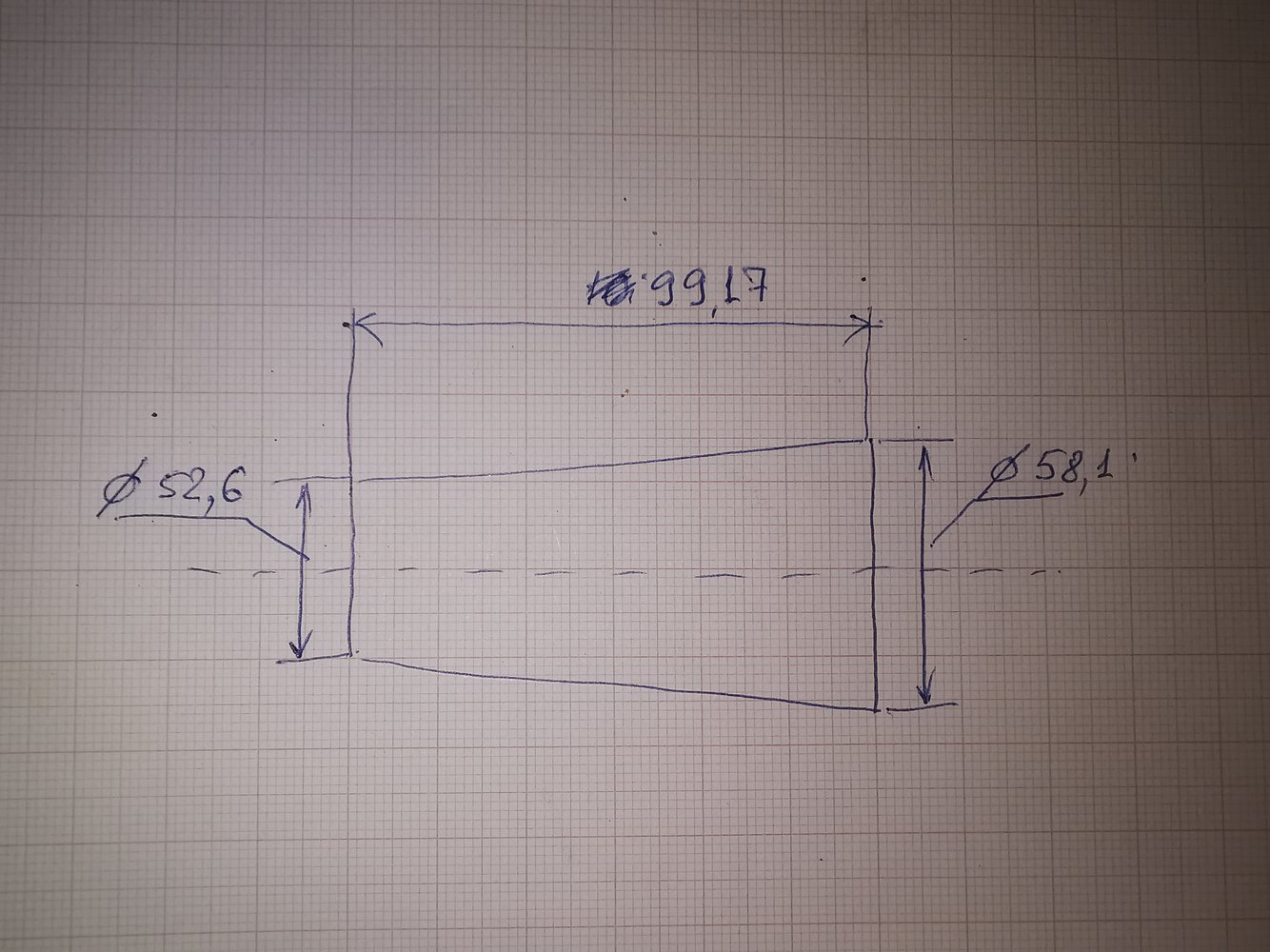

specified dimensions, as far as possible, to measure with a caliper



[fizzy]

specified dimensions, as far as possible, to measure with a caliper

View attachment 383576

I will be in the warehouse tomorrow so will try to remember to measure mine



[Wedg1e]

Now comes out at 1.5884 degrees... which is almost exactly the same angle as the one on the Freebies post (that's a 3MT bore I think) - however Sergei's is larger outside diameter.



[Sergei Slovenija]

Still comes out at 1.5884 degrees...

confused ... this cone is close to some kind of standard or not.

Rare cone https://www.tools-n-gizmos.com/specs/Tapers.html

PS: I have diagnosed myself with fear of inches



[Wedg1e]

confused ... this cone is close to some kind of standard or not.

Rare cone https://www.tools-n-gizmos.com/specs/Tapers.html

PS: I have diagnosed myself with fear of inches

It will be someone's standard, that's for sure



[Sergei Slovenija]

You'll need a bloody big set of gauge balls for that size taper! Most sets only go to an inch.

The only 2 balls close to the diameters available, alas, are not ideal spheres.
