Help - safe working load garage I-beam

[Terrapin_racing]

I have a 4" x 2" extruded I-Beam that spans my 10ft wide garage. It is just over 1/4" metal thickness. Supported on brickwork each end.
I would line to know the safe working load I can lift with a chain lock hoist. Assume lifting in centre?

Can anyone help?



[Pigeon_Droppings2]

Going to need a lot more info...if you are just asking what the beam itself can carry that can be looked up easy enough (will give you a good idea).

But you need to also consider what it's sitting on...how it's sitting (on plate/on brick?)...is it on brick piers...or single skin wall...whats the wall condition?

I guess the question is what are you planning to lift with it...just an engine...or a whole car?

pictures?



[Terrapin_racing]

It's sitting on the brick buttresses either side of the garage. Plates have been welded at each end to prevent any twist. I have lifted 150kg without any deflection. Keen to know limitation though.



[zzr1200]

Years ago I built a garage and installed a lifting beam, 7" x 4" H section, over the 11ft/12ft span it was ok for about 1ton.

So a 4 x 2 inch section is probably equal to, not a lot.

I'd be incline to build a separate internal lifting frame.

Pictures would help no end...



[Terrapin_racing]

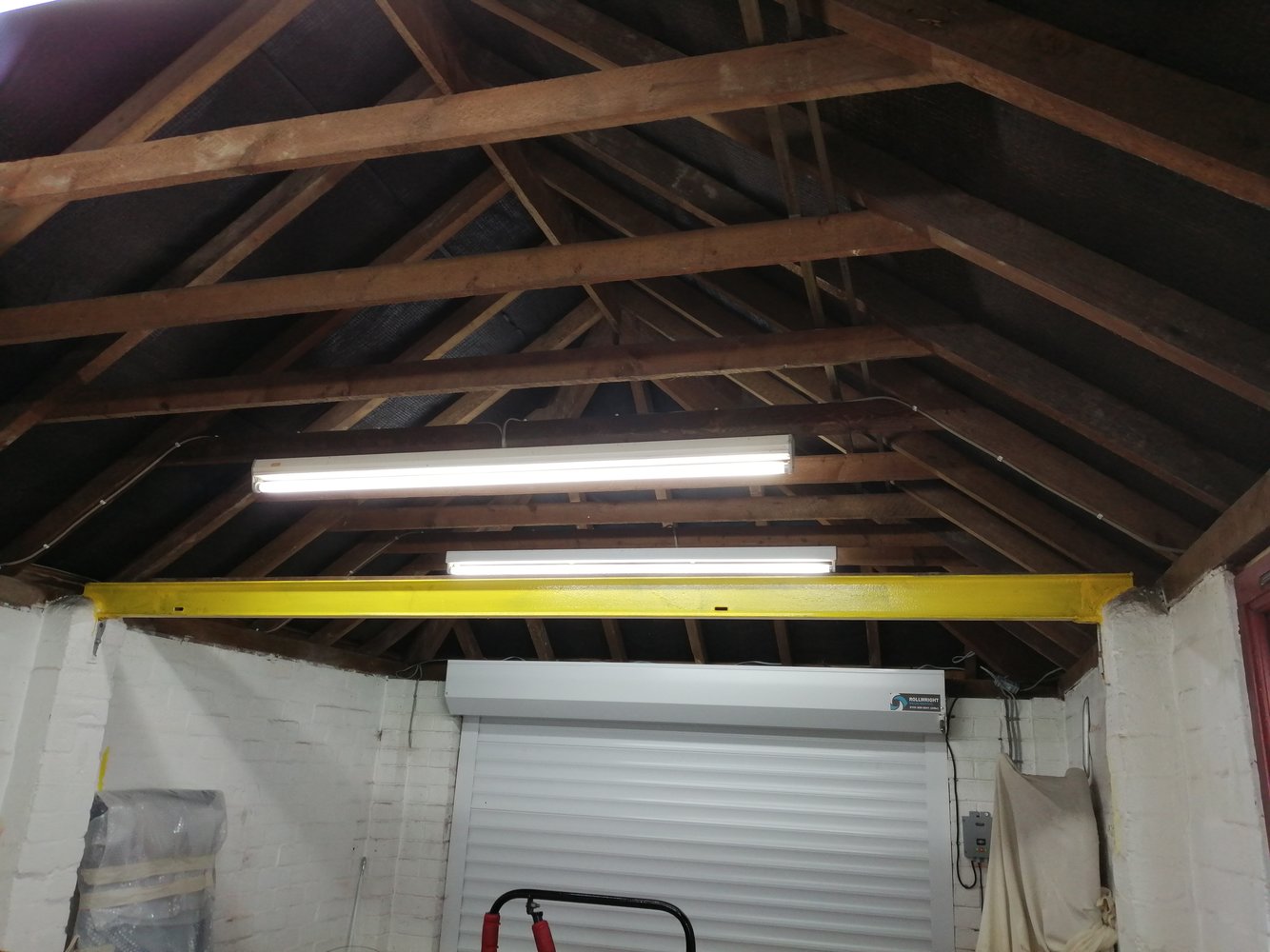

Picture of beam



[Pigeon_Droppings2]

Well I'm having no luck looking it up...4 inch is really thin though.

Steel usually deflects before it fails....you could measure the deflection the next time you use it I guess to check how it's moving.

Or just stick a builders prop under it if you are doing something really heavy.



[8ob]

Looks a bit bigger than 4x2 to me

Bob



[Terrapin_racing]

It's a really substantial rsj suspect extruded as metal thickens towards central Web.
Hopefully someone has access to a calc. I suspect it will carry more than people think. Always good to know though. Lifting a jag v6 it didn't move a mm.



[nickk]

There’s a deflection load table on the web,iirc ,it’s approx 7mm/m.



[Barking Mat]

What weight do you need to lift?

I would have thought 800 kgs in the middle. Maybe not 1 ton.

I'd be lifting the minimum and keeping an eye on deflection and all that.



[Terrapin_racing]

Well, being a bit pedantic, I'm a bit of a perfectionist and wanted to put a Swl sticker on it. BOB YOUR RIGHT, I HAD TO MEASURE TWICE, VISUALY I THOUGHT IT WAS BIGGER



[Barking Mat]

Shouting?

Just jesting.



[Terrapin_racing]

In work in the past I've seen A frames where the crossbeam wasn't as substantial and I recall those being 500kg

Im thinking to lable it 250kg if there are no structural professors on the forum.

PS, I recall I lifted a whole terrapin racecar onto a trolley with it years ago



[Terrapin_racing]

Terrapin



[Paul.]

Download an evaluation copy of Superbeam, its really easy to use and fully working apart from the printing function,

SuperBeam steel and timber beam design software: free demo version

SuperBeam free demo: steel and timber beam design software to BS449/BS5268

www.superbeam.co.uk



[Terrapin_racing]

Thanks



[Ruffian]

Last terripin I saw was when working with speedy Eddie on his hill climber.

Loved the idea of a single seater like that.



[mtt.tr]

With point load in the middle of 250kg on it you will see 1mm sag thats a fixed point and resting 5mm


But wall construction and much more needs to be considered



[Barking Mat]

With point load in the middle of 250kg on it you will see 1mm sag

I could live with that.



[8ob]

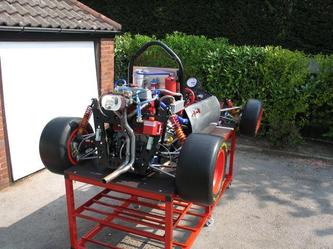

Terrapin

View attachment 285574

Sod the beam, tell us about the car

Bob
