How would you machine this wedge shape?

[awemawson]

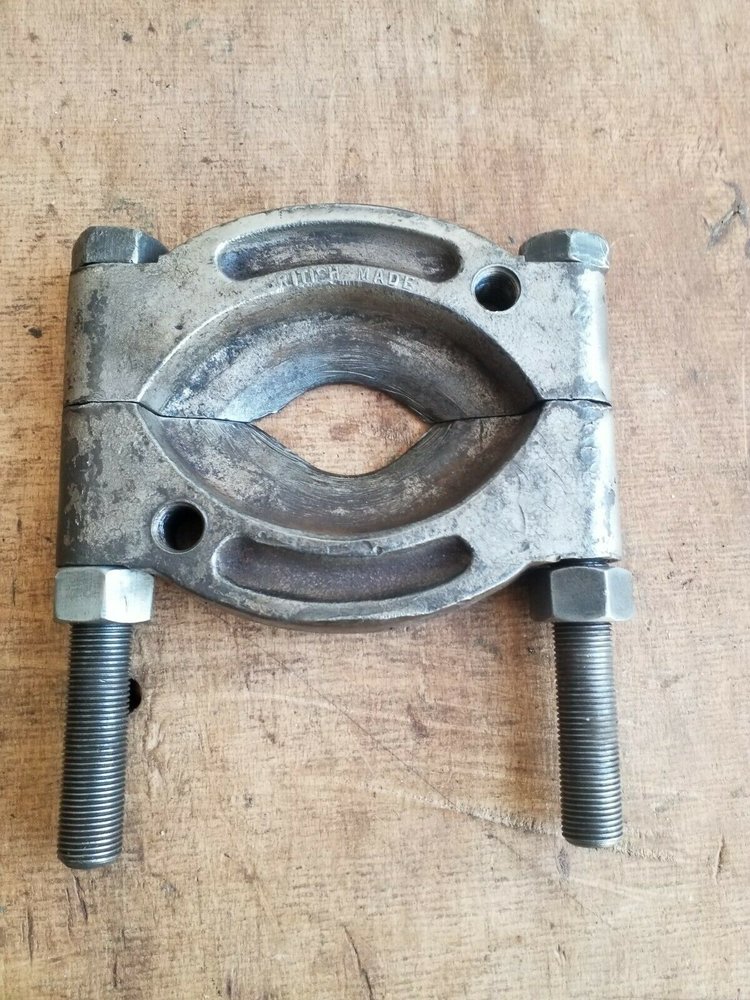

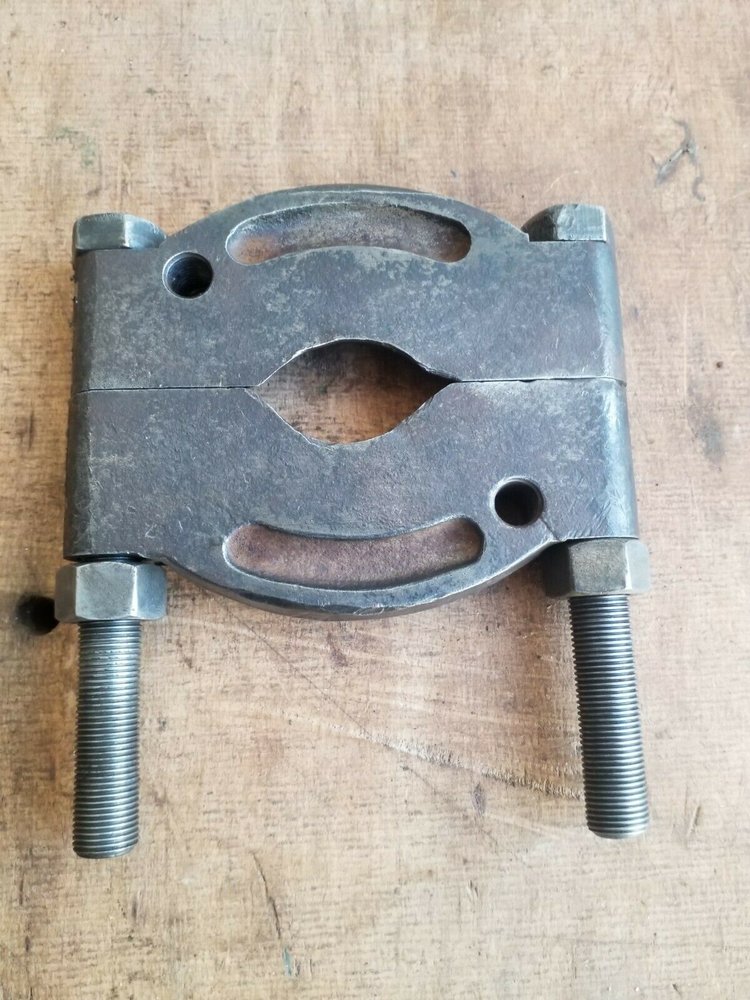

For those that don't recognise it, it's a 'bearing separator' to bring a bearing that is up against a shoulder forward to create a gap so that a bearing puller can get it's claws behind to get a grip. They are widely available in smaller sizes, in fact I have one or two, but I want a huge one to pass over a bearing whose outer is about 165 mm diameter and not finding one was hoping to make one.

The basic shape is no issue but that tapered non circular wedge that does the actual forcing is my problem - how would you machine it. I'm thinking probably EN8 hardened and tempered.



[waddycall]

It’s a constant radius isn’t it? Can you not turn both halves at the same time in a full circle and then cut out the middle bit?



[Brad93]

SKF. Make sure you're sitting down



[Dural]

Offset turning job on a faceplate perhaps..



[awemawson]

SKF. Make sure you're sitting down

Which is why I'd make not buy Brad ! Sykes Pickavant do them as well at a stupid price for what they are



[123hotchef]

Die grinder!



[Pete.]

Cock the head over on your bridgeport, fix it down on the egde of a 10" rotary table on top of some ally packers and use a 2" face mill to cut the bottom taper using the table to turn it.



[premmington]

Buy one.. Sykes make a big one (I got one).

Mine is old thou - I know this because it takes a 1" AF socket on the nuts and bolts!

If you are close to Norfolk you can borrow mine.



[Johnnybravo]

Two line 2d wireframe in cad and mill it. Easy



[brightspark]

get some thick plate the size a bit bigger than you u require and put it in a 4 jaw chuck bore it out to the dish required then slice a few inch wedge out of it in the middle and that will leave the oval u require when bolted together



[mike os]

Send it to my machinist



[Brad93]

Rotary table and a ball mill



[arther dailey]

make it one piece large diameter, then cut a slice out the middle would be the easy way to do it .



[awemawson]

Buy one.. Sykes make a big one (I got one).

Mine is old thou - I know this because it takes a 1" AF socket on the nuts and bolts!

If you are close to Norfolk you can borrow mine.

@premmington
that'll be the older 9300 one then with one stud hole in each half near the clamping bolts? the 93000 one they offer now has three holes in each half but looks functionally identical to me.

Too far to borrow but thanks for the offer - I have an aversion to borrowing tools as with the best will in the world things sometimes go wrong. But let me know if you want to sell it - it would save me a few hours work!



[mtt.tr]

Put a rotary table at an angle.



In reality and a few weeks time CNC



[premmington]

@premmington
that'll be the older 9300 one then with one stud hole in each half near the clamping bolts? the 93000 one they offer now has three holes in each half but looks functionally identical to me.

Too far to borrow but thanks for the offer - I have an aversion to borrowing tools as with the best will in the world things sometimes go wrong. But let me know if you want to sell it - it would save me a few hours work!

I inherited from my Dads workshop loads of this SP pulling gear.

Also over the 36 years I've been trading I have collected the full SP set - all of it - on top of what he gave me.

I often use - this big bearing spliter for getting car wheel bearings off stub axles - just nip the bearing splitter in it and them push the stub thru on a hydraulic press.



[grim_d]



[mtt.tr]

I inherited from my Dads workshop loads of this SP pulling gear.

Also over the 36 years I've been trading I have collected the full SP set - all of it - on top of what he gave me.

I often use - this big bearing spliter for getting car wheel bearings off stub axles - just nip the bearing splitter in it and them push the stub thru on a hydraulic press.

I often see and admire this type of collection



[JMS1972]

Can you weld two parts to some plate at correct distance and bolt plate to lathe face plate or rotary table.

Machine circular part and then grind off welds?

Do I get bonus points for mentioning welding?



[awemawson]

Almost but not quite - that one needs the roller cage to be removed first and is really a clamp, whereas the splitter goes behind the outer and the face that it is up against and forces the wedge in creating a gap for a three leg puller's 'toes' to get in.

Not seen that video but I do follow Curtis !
