The very first thing that popped in my mind

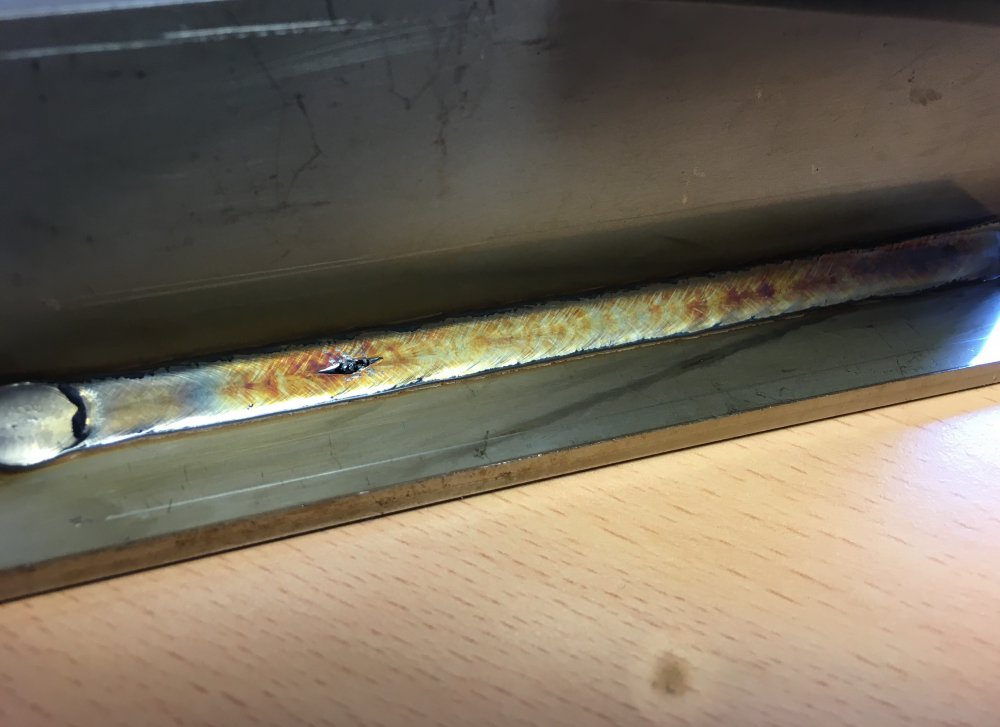

Are the three different beads down to a setting or the operator Matt?
Jim Davey
R H Davey Welding Supplies Ltd
- Messages
- 5,734
- Location
- Southampton
- Messages
- 14,510
- Location
- UK

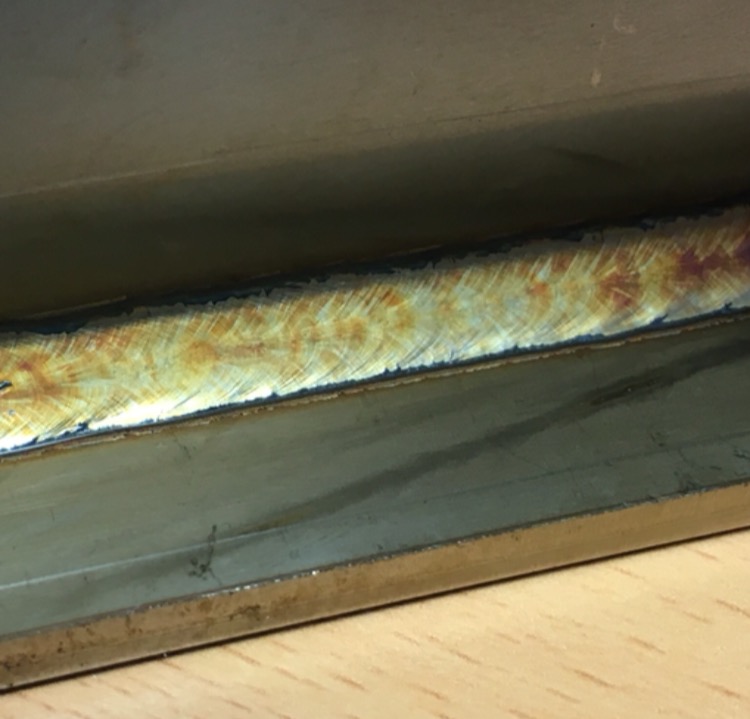

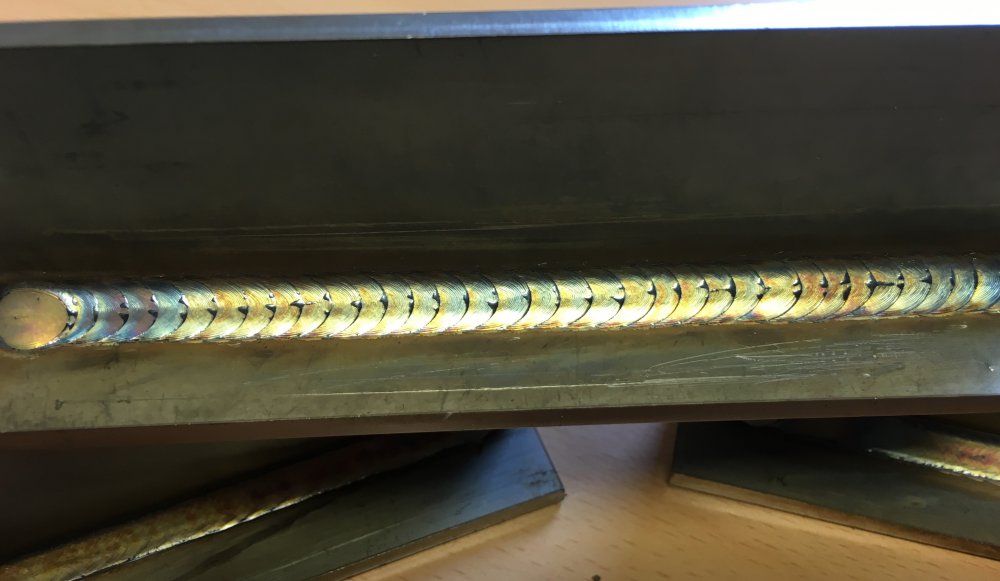

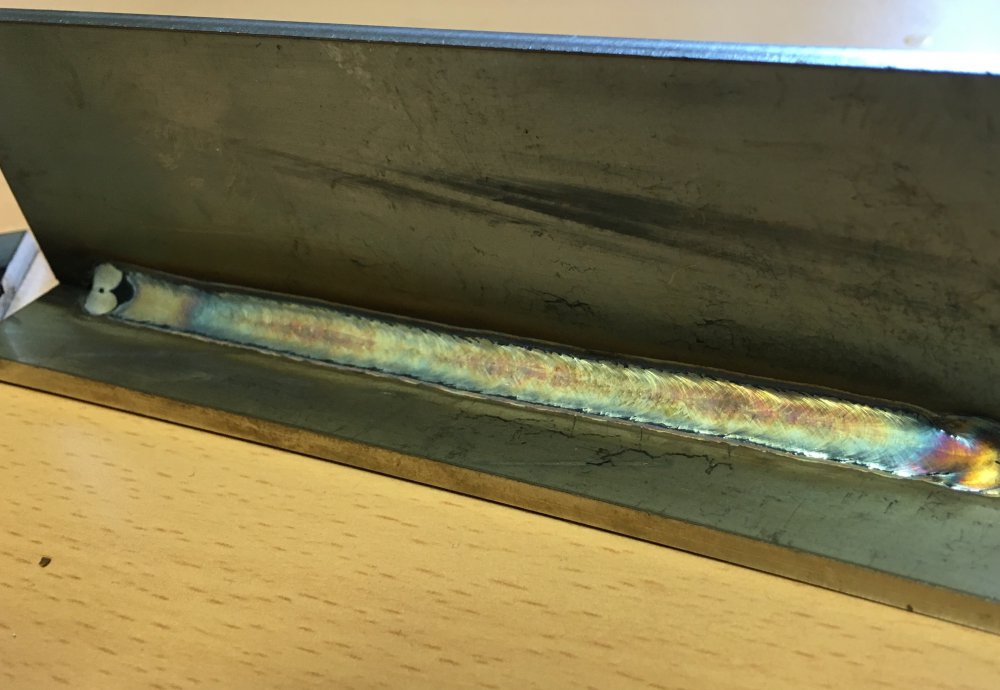

Tidy welds. Samples on 6/8mm?
How would it perform on thinner section? Say 3mm to 12mm?
How would it perform on thinner section? Say 3mm to 12mm?
gordon stephenson
Member
- Messages
- 7,462
- Location
- Skelton in Cleveland U.K.
Superb, Machine and bead control Matt.
matt1978
www.lorch.eu
- Messages
- 3,966
- Location
- UK, Cannock
It's a new patented process,
With Pulse welding you generally either have I-I (constant current constant current) or U-I (constant voltage constant current)
They both have benefits and drawbacks to both ways.
Pulse welding was always striving for one droplet per pulse cycle and this is easier to achieve with the I-I method but the U-I method was always more welder friendly in regard it was easier to handle for the operator as it was more like conventional spray arc.
Lorch always used I-I up until we launched SpeedPulse which was I-I-I (are you still with me
)
This kept all of the known benefits of conventional Pulse but enabled much faster welding speeds and deeper penetration. We launched that in 2008.
Now with SpeedPulse XT, it utilises a never done before regulation system called I-U-I (constant current constant voltage constant current)
In easy terms think of cars, either front wheel or rear wheel drive, both has its merits and drawbacks. It is the same with I-I and U-I but the SpeedPulse XT marries both of the benefits from each system without none of the negatives. Kind of like Quattro on a car.
We could get great results before with SpeedPulse but to get optimum results in Stainless everything had to be spot on. If the torch angle was a couple of degrees out or stick out length was a couple of mm too long or too short you wouldn't get perfection.
With the XT process it is much more forgiving as it has the easy to weld charerteristics from the U-I method but with the precision and arc stability of the I-I regulation.
The kicker is that it maintains all of the benefits of SpeedPulse which was the I-I-I so we still can weld up to 48% faster with more penetration etc.
Win win all round
With Pulse welding you generally either have I-I (constant current constant current) or U-I (constant voltage constant current)
They both have benefits and drawbacks to both ways.
Pulse welding was always striving for one droplet per pulse cycle and this is easier to achieve with the I-I method but the U-I method was always more welder friendly in regard it was easier to handle for the operator as it was more like conventional spray arc.
Lorch always used I-I up until we launched SpeedPulse which was I-I-I (are you still with me
)This kept all of the known benefits of conventional Pulse but enabled much faster welding speeds and deeper penetration. We launched that in 2008.
Now with SpeedPulse XT, it utilises a never done before regulation system called I-U-I (constant current constant voltage constant current)
In easy terms think of cars, either front wheel or rear wheel drive, both has its merits and drawbacks. It is the same with I-I and U-I but the SpeedPulse XT marries both of the benefits from each system without none of the negatives. Kind of like Quattro on a car.
We could get great results before with SpeedPulse but to get optimum results in Stainless everything had to be spot on. If the torch angle was a couple of degrees out or stick out length was a couple of mm too long or too short you wouldn't get perfection.
With the XT process it is much more forgiving as it has the easy to weld charerteristics from the U-I method but with the precision and arc stability of the I-I regulation.
The kicker is that it maintains all of the benefits of SpeedPulse which was the I-I-I so we still can weld up to 48% faster with more penetration etc.
Win win all round
matt1978
www.lorch.eu
- Messages
- 3,966
- Location
- UK, Cannock
For the 2016 S series (which are our Pulse machines) SpeedPulse-XT is a optional extra on the S-XT machine that can be added at anytime in the future or it is included as standard on the S-SpeedPulse-XT variant
So basically you can buy a base model with is just standard pulse and upgrade to the SpeedPulse-XT as and when you need it or you buy the SpeedPulse version which has it already enabled from the factory
Mobile is just the term to describe the 320 amp machine in the smaller "mobile" housing. SpeedPulse-XT can be added the 320, 400 or 500 amp variants whether regardless of the housing or if gas or water cooled.
The 2016 version has new PCB's inside and face lifted front panel so the SpeedPulse-XT is not only a software change its hardware as well so it's not compatible with machines made prior to 2016
So basically you can buy a base model with is just standard pulse and upgrade to the SpeedPulse-XT as and when you need it or you buy the SpeedPulse version which has it already enabled from the factory
Mobile is just the term to describe the 320 amp machine in the smaller "mobile" housing. SpeedPulse-XT can be added the 320, 400 or 500 amp variants whether regardless of the housing or if gas or water cooled.
The 2016 version has new PCB's inside and face lifted front panel so the SpeedPulse-XT is not only a software change its hardware as well so it's not compatible with machines made prior to 2016
matt1978
www.lorch.eu
- Messages
- 3,966
- Location
- UK, Cannock
Thanks for that Matt. As a software guy it's fascinating to learn about the internals
I'll put you some pictures up tomorrow showing the pulse process reagulation methods I-I etc
eSCHEn
Bit Wrangler
- Messages
- 6,136
- Location
- SW Scotland
That would be ace Matt, thank you
As you have the patent, are you allowed to say whether you're switching in hard or soft ware?
matt1978
www.lorch.eu
- Messages
- 3,966
- Location
- UK, Cannock
To be honest I don't know.
It's not just the I-U-I which is new, the regulation is also new
Basically a machine will have a checkpoint on each pulse cycle (to assess where it is against where it should be) and ordinarily the correction adjustment will take place 2 or 3 pulse cycles further on. The down side to this is the longer it takes to make the correction the more severe the correction has to be as its like magnifying a problem.
With The new XT process the checkpoint and adjustment correction are made within the same pulse cycle.
It's not just the I-U-I which is new, the regulation is also new
Basically a machine will have a checkpoint on each pulse cycle (to assess where it is against where it should be) and ordinarily the correction adjustment will take place 2 or 3 pulse cycles further on. The down side to this is the longer it takes to make the correction the more severe the correction has to be as its like magnifying a problem.
With The new XT process the checkpoint and adjustment correction are made within the same pulse cycle.
matt1978
www.lorch.eu
- Messages
- 3,966
- Location
- UK, Cannock
Haha, I don't mind.
But I may not be able to answer them as I'm not super technical myself
One thing that did fascinate me though, was with the regulation of modern processes (to be fair, not just Lorch) the machine is calculating and predicting what adjustments will need to be made in future pulse cycles.
Such as with SpeedRoot (Lorch modified dip transfer for rooting) the machine monitors and predicts when the short circuits will occur in the future so it can lower the current just at the right time.
Mind blowing really
But I may not be able to answer them as I'm not super technical myself
One thing that did fascinate me though, was with the regulation of modern processes (to be fair, not just Lorch) the machine is calculating and predicting what adjustments will need to be made in future pulse cycles.
Such as with SpeedRoot (Lorch modified dip transfer for rooting) the machine monitors and predicts when the short circuits will occur in the future so it can lower the current just at the right time.
Mind blowing really
gordon stephenson
Member
- Messages
- 7,462
- Location
- Skelton in Cleveland U.K.
All in All, welding machines don't just squirt electric any more,
Brad93
Member
- Messages
- 18,335
- Location
- Essex, United Kingdom
What is the thinnest stainless you could weld with the SpeedPulse XT process Matt? Just out of interest, because if it could replace TIG on on the outside corners of some 1.2mm stainless boxes (aluminium backing block behind the weld) my old firm would put an order in now!
