MUREX AUTOLYNX 3

LECKYBELL · May 10, 2016

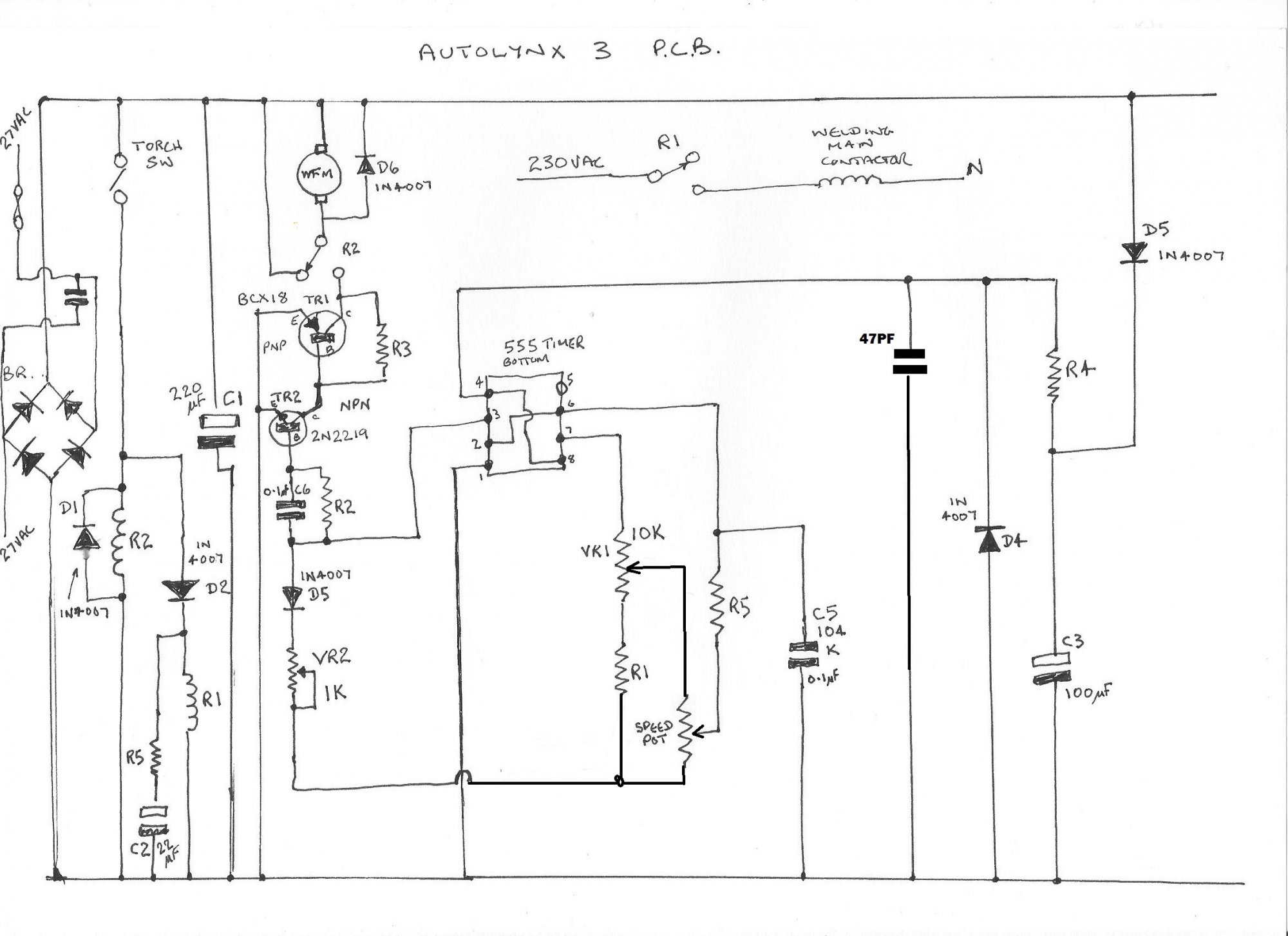

Sorted, Put capacitor and transistor into PCB, set pots, and the jobs a good n. Thanks for all your help especially you Kevin. Posted PCB drawing, a bit rough but might help someone. Billy Bell

arther dailey · May 10, 2016

Nice work, and you have been lucky, I have been trying to sort my autolynx out but no one has a wiring diagram.Glad you got it sorted.Arther

Austin · May 10, 2016

Glad i could help but i dont understand electronics if i get any probs with mine i will give you a shout,hope your diaram will help others
Kevin

LECKYBELL · May 10, 2016

arther dailey said:
Nice work, and you have been lucky, I have been trying to sort my autolynx out but no one has a wiring diagram.Glad you got it sorted.Arther

I have collected numerous murex drawings over the years Arthur, I have numerous Autolynx, but unfortunatly not yours, it seems to be at the high end of the range, with stitch, spot weld features ect, best of luck
