Possible inline fuses Citroen dispatch

[zzr1200]

Page 48 maybe helpful.....Mega Fuses....

Catalogue - Cableties Direct

Click Here to instantly view our latest product catalogue, jam packed with over 5000 interesting and hard to source products at unbeatable prices. All available to you Next Day! Alternatively download a copy for offline viewing later.

cableties-direct.co.uk



[Turbo]

@Robbie260

Go to this page & print out the info on there. Its not entirely correct but its the closest I've found to my van.
https://fuse-box.info/peugeot/peugeot-expert-vu-2007-2015-fuses

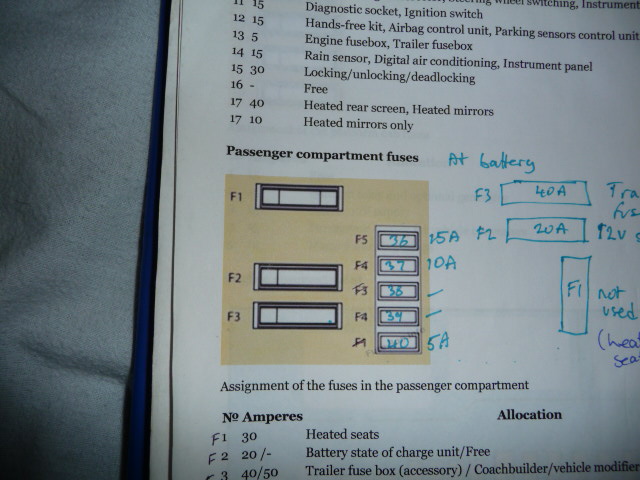

Use these photos to edit the printout. These edits are what I've made so that the layouts make more sense & apply to my van.

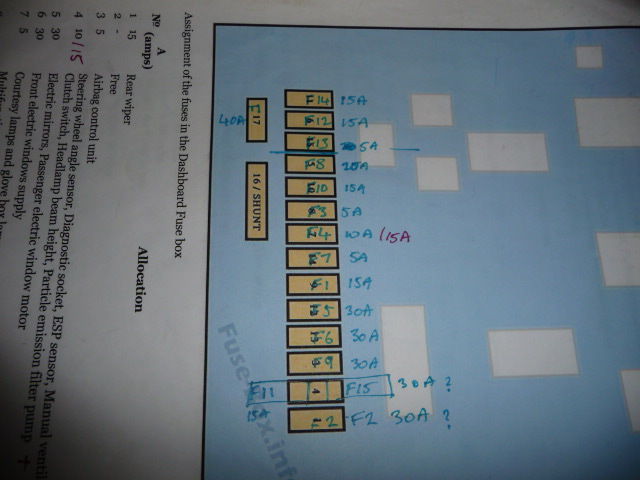

This is the fusebox in the dash near your right knee. Note the change of fuse numbers!

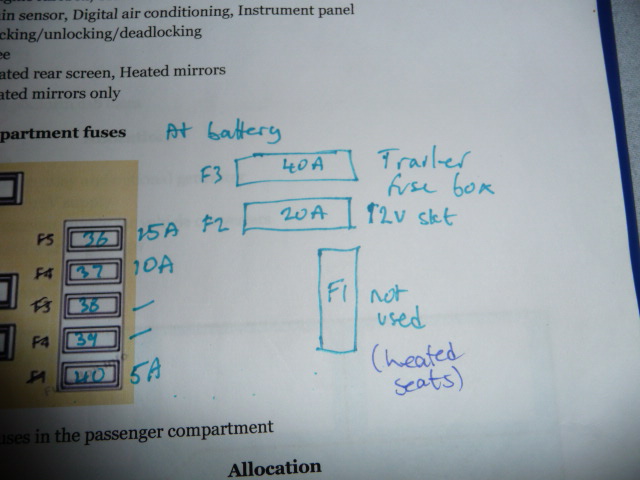

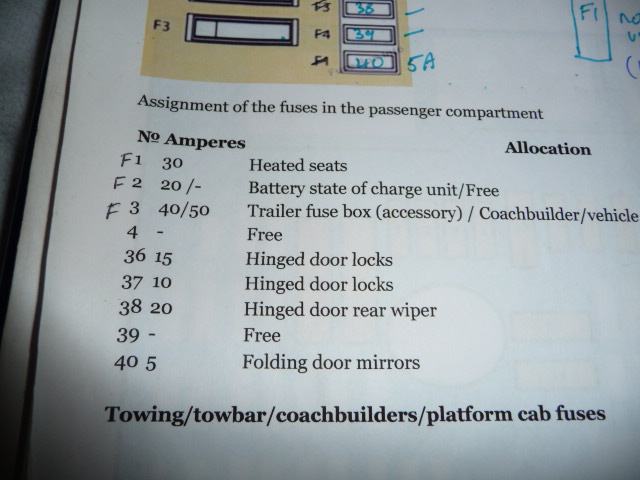

The next 3 pics apply to the fuses in the battery compartment.



[Turbo]

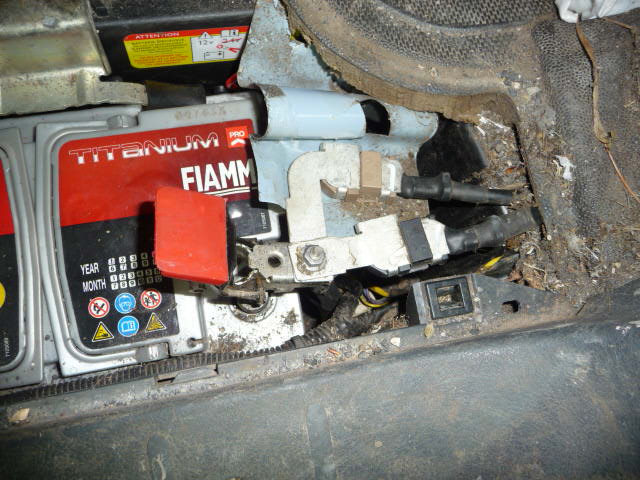

Some pics of my battery compartment.

There are what looks like 2 fuse holders on the battery connector (the brown & black plastic rectangles). I tried to open them up but they are well sealed up & I was afraid of breaking them. No writing to indicate what they are. My suggestion would be get the whole part from a breakers. Anything for an 2007 to 2015 van should be the same.

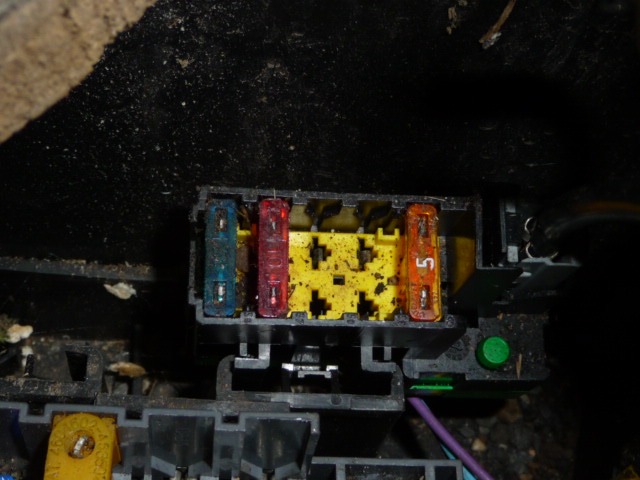

Fuses 36 to 40, standard midi fuses.

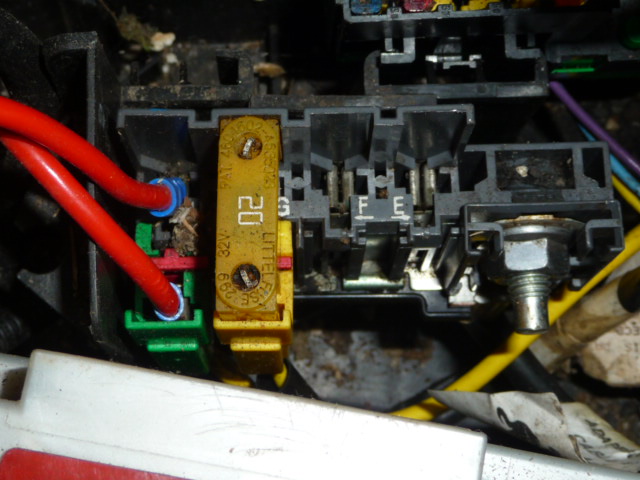

These should be maxi fuses
Fuse 1 where red wires are. For trailer socket
Fuse 2 Yellow 20a For 12v accessory socket at back door
Fuse 3 should be where 'F' & 'E' are printed. For heated seats.
