Rotary powered welding table build.

[zzr1200]

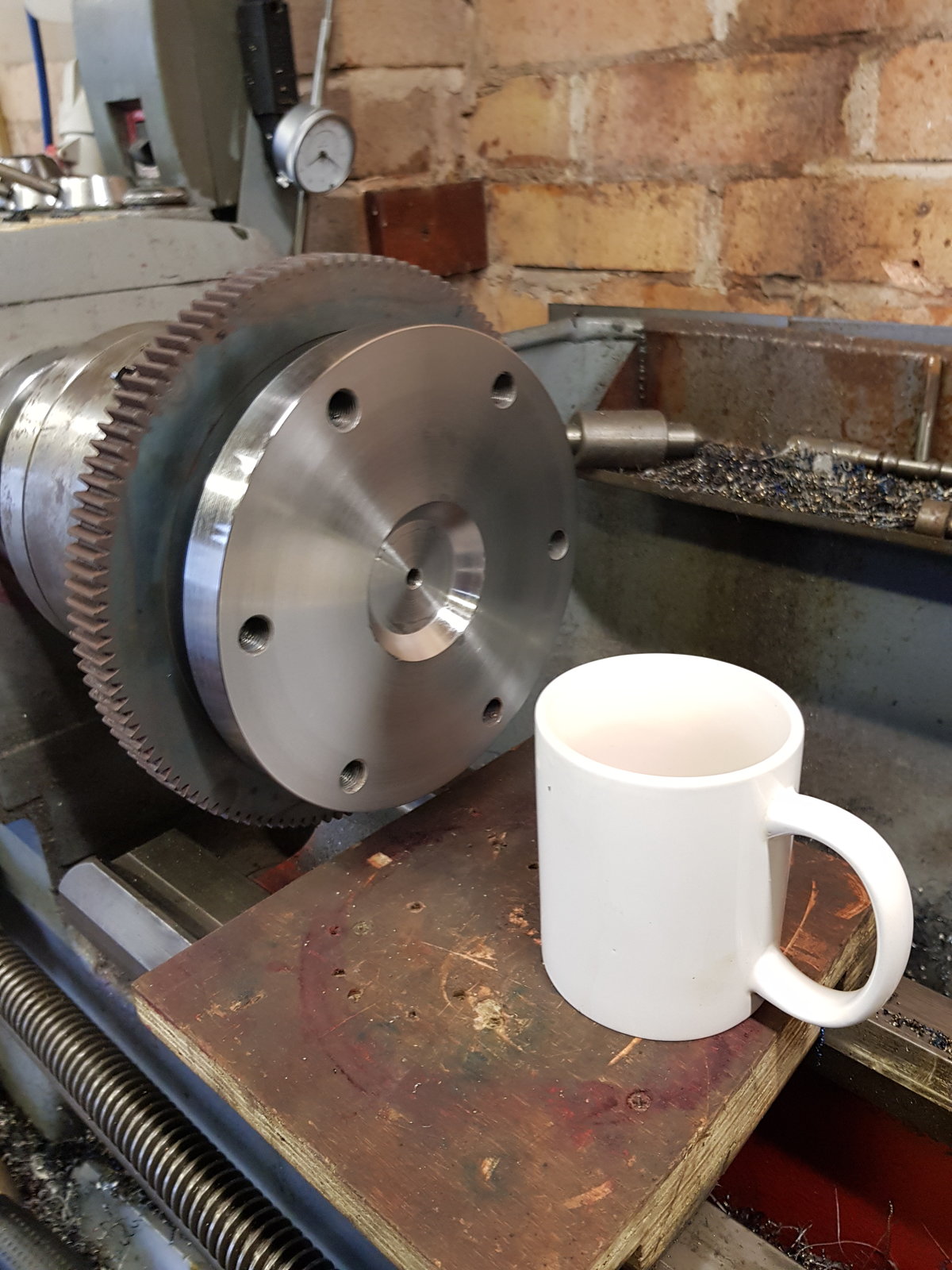

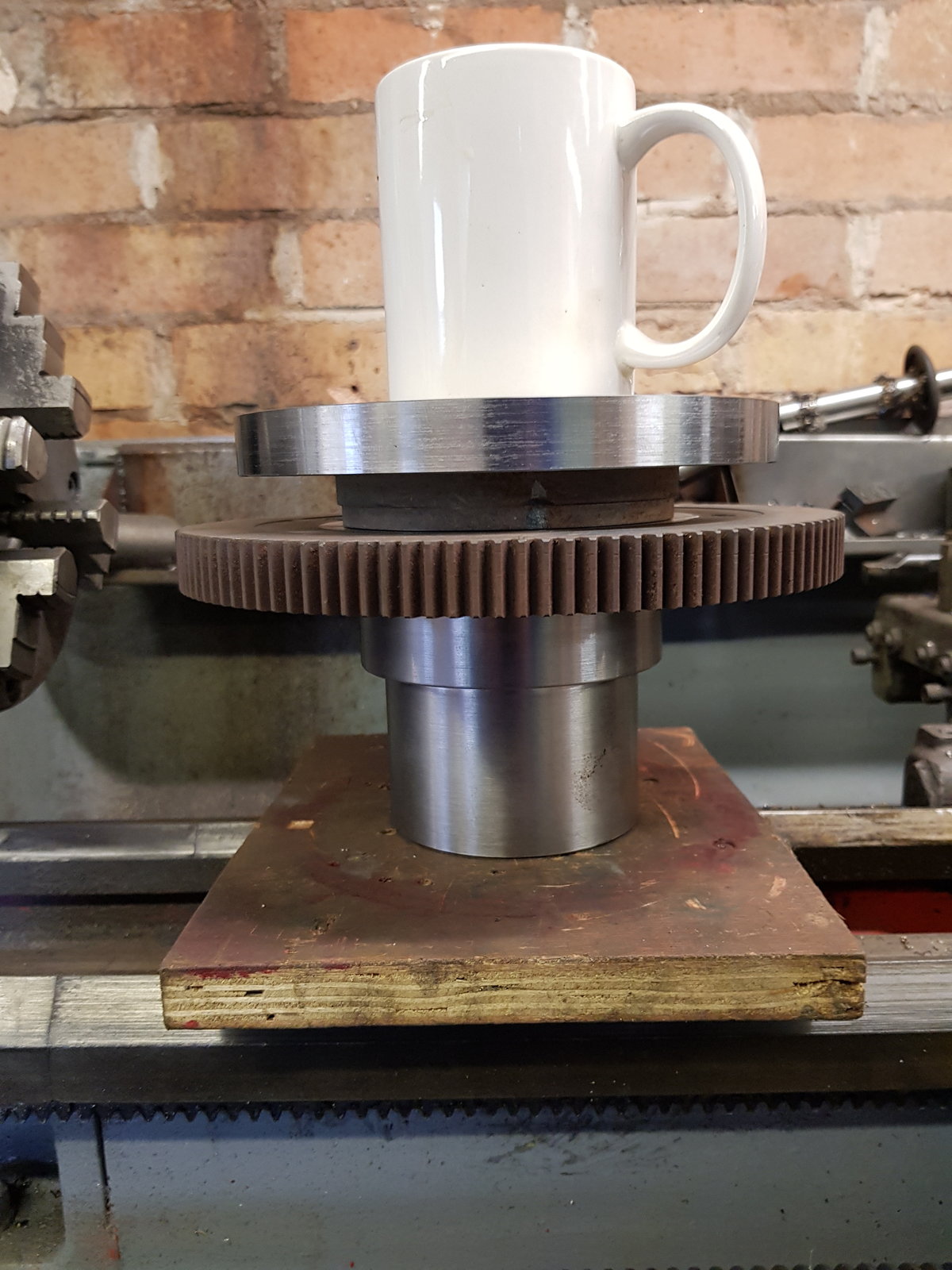

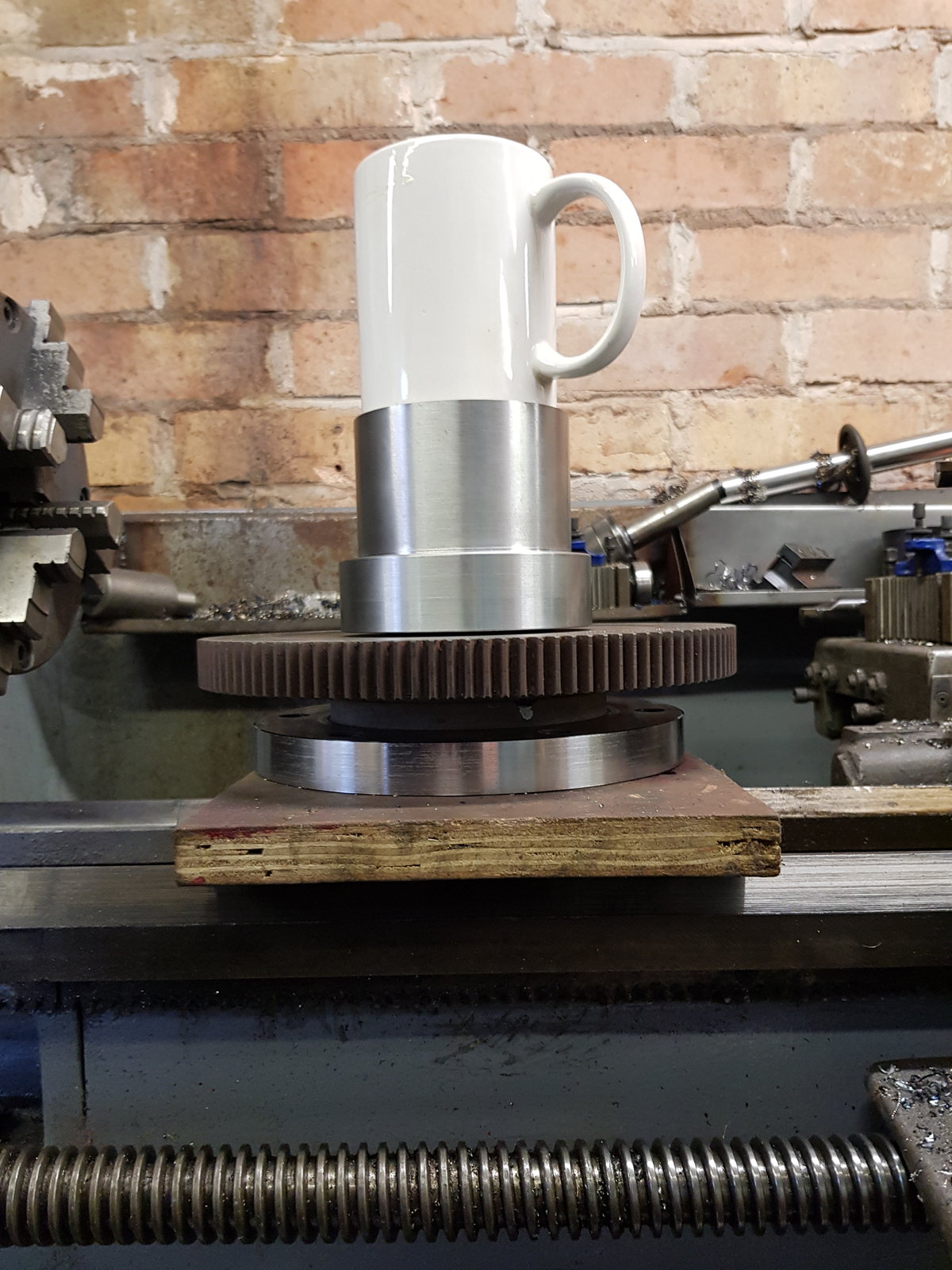

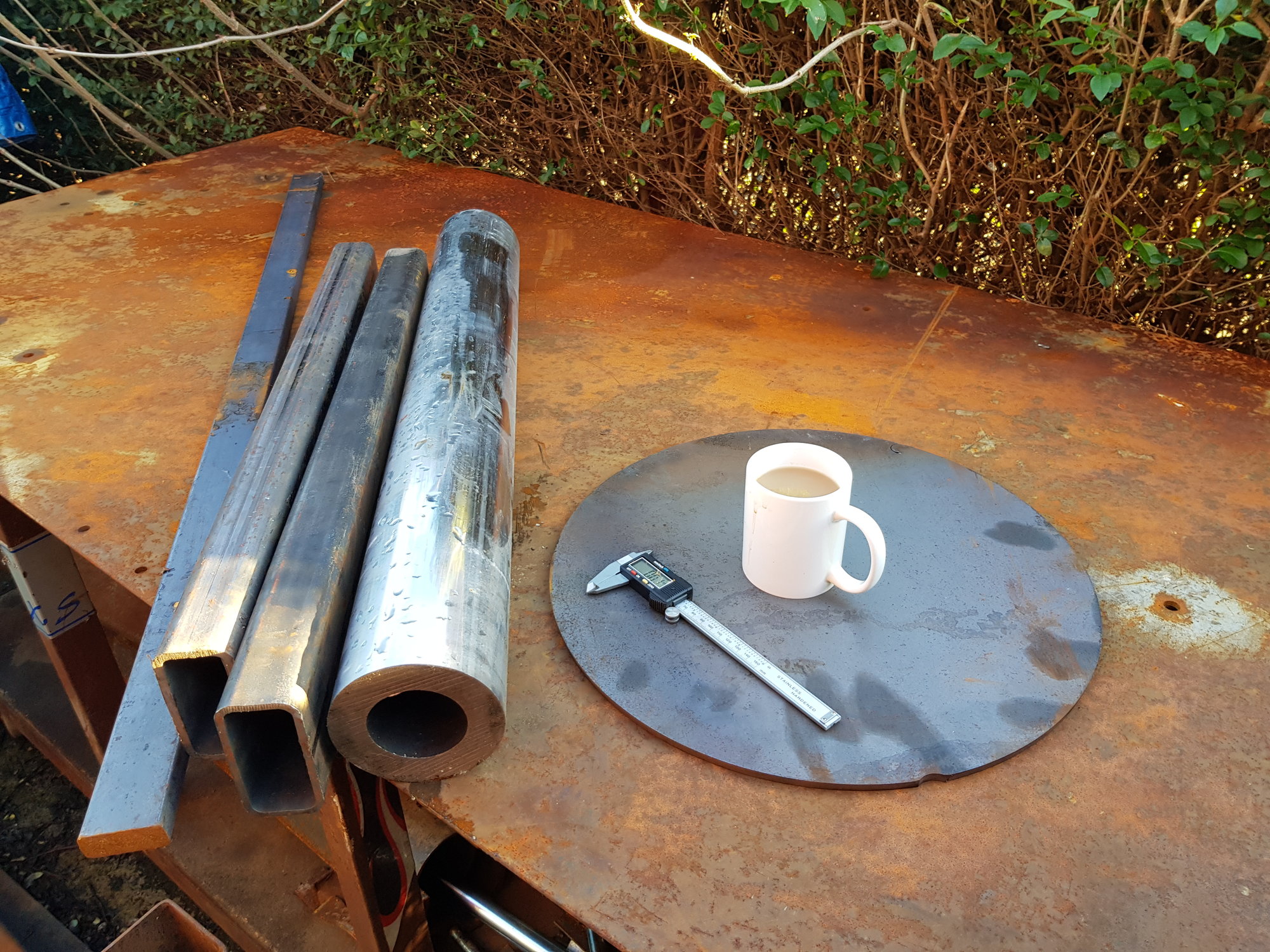

Part one....standard workshop mug for size on table top, plus table bearing support tube and table pivot tube materials.

This will be an on going build as/when time allows.






...



[eSCHEn]

Good to see you back on your feet

Nice bearing work



[zzr1200]

One part I am still looking for is a worm n wheel/quadrant to control/tilt the table, pivot point to wheel surface about 6 inches would be ideal.

Even a well made worm n wheel winch drum could be modified, if the drum is broken.

If anyone has anything like this sitting on a shelf, beer tokens could be exchanged...



[zzr1200]

Good to see you back on your feet

Nice bearing work

Still off work, having another MRI Scan tomorrow to check on progress.

I have been advised to "Potter" by the surgeon so why not, potter in the workshop...

Thank you...Sir



[Shox Dr]

One part I am still looking for is a worm n wheel/quadrant to control/tilt the table, pivot point to wheel surface about 6 inches would be ideal.

If anyone has anything like this sitting on a shelf, beer tokens could be exchanged...

Diff crown wheel and pinion?



[zzr1200]

Diff crown wheel and pinion?

No...Sorry Shox

24 volt motor with built in worm n wheel gearbox driving a straight cut pinion gear (20Tooth-ish) on an extended output shaft, driving a 120 gear fitted to the table pivot shaft...photo's after the weekend hopefully.



[zzr1200]

Part 2.

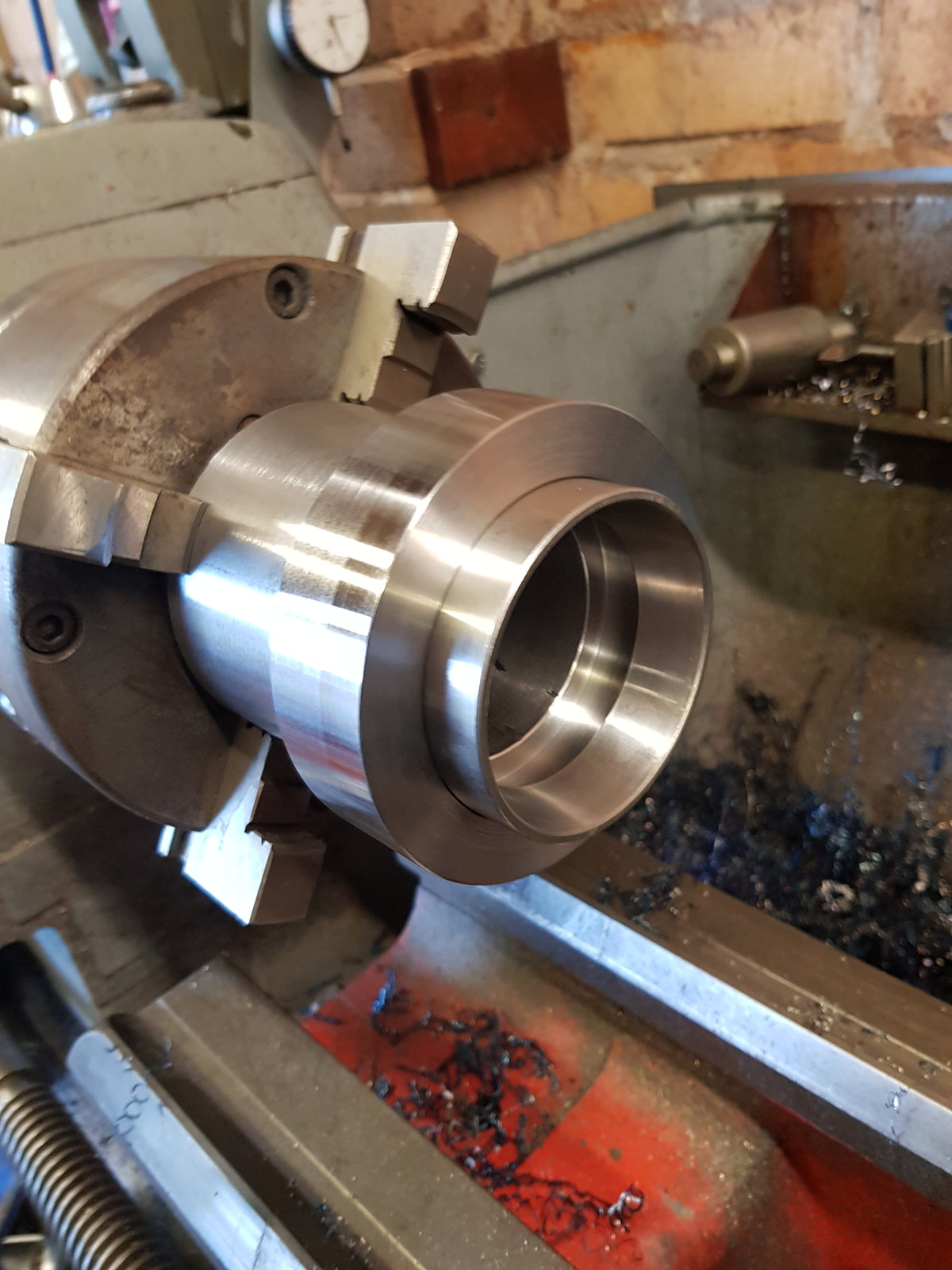

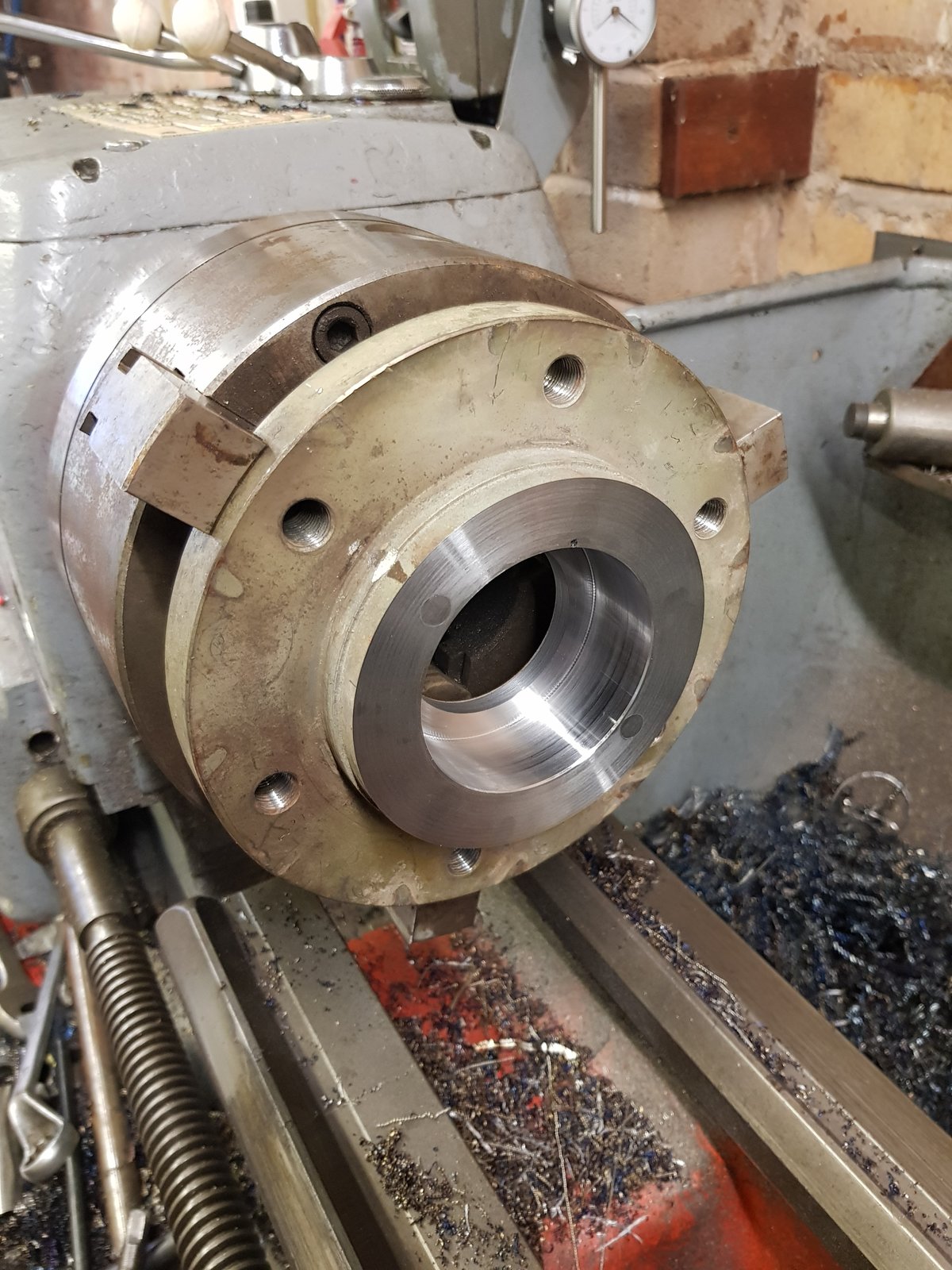

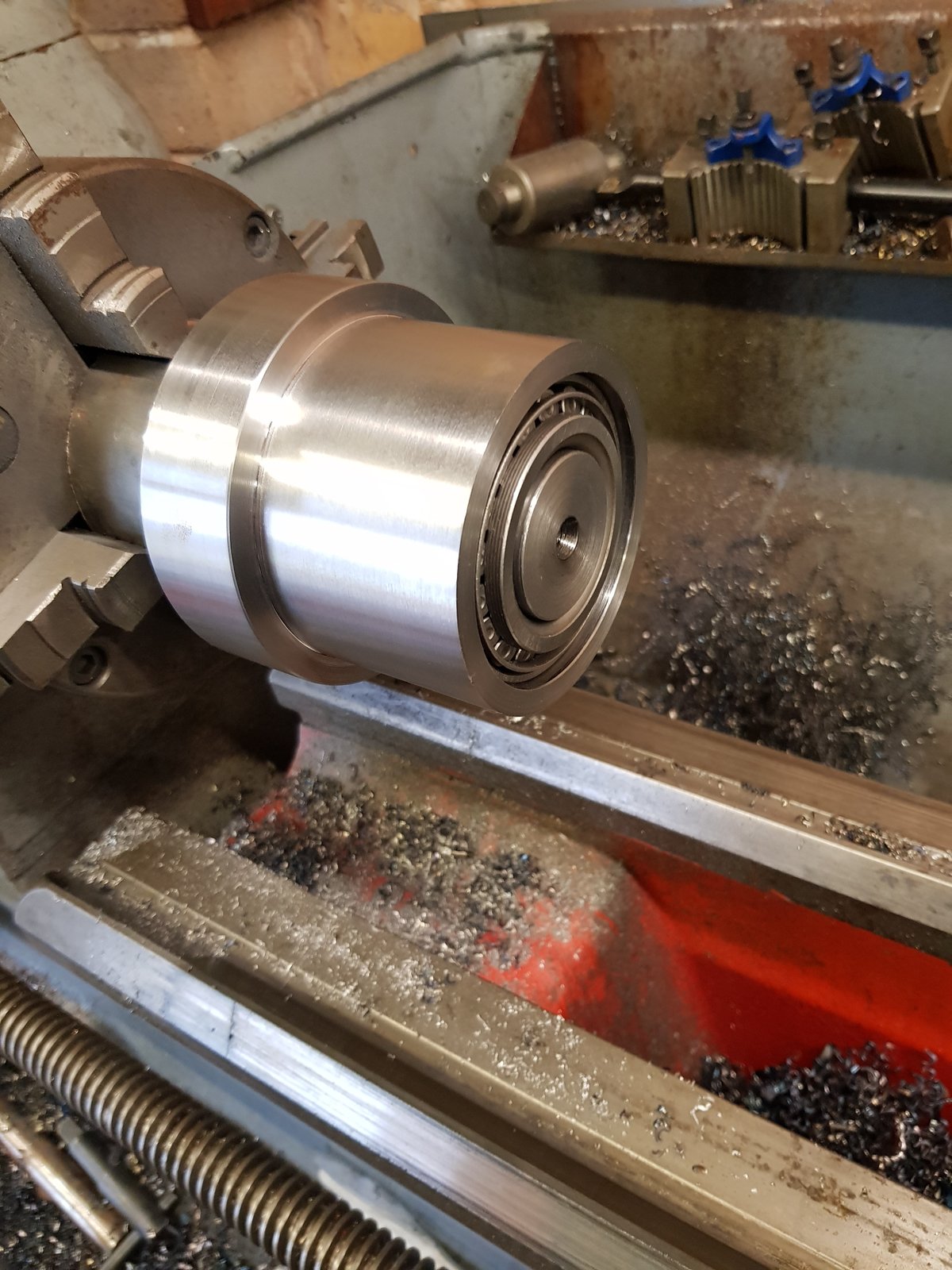

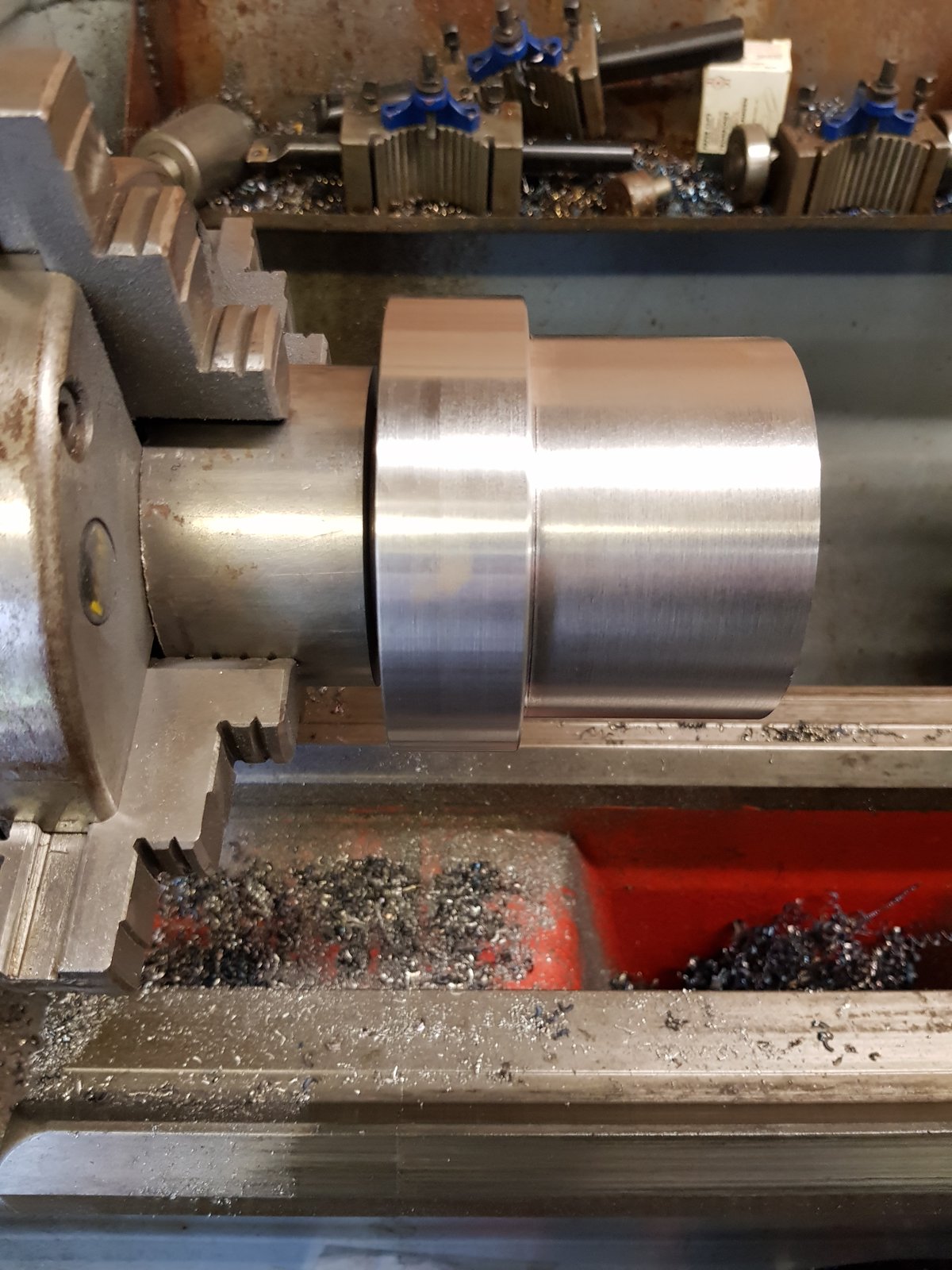

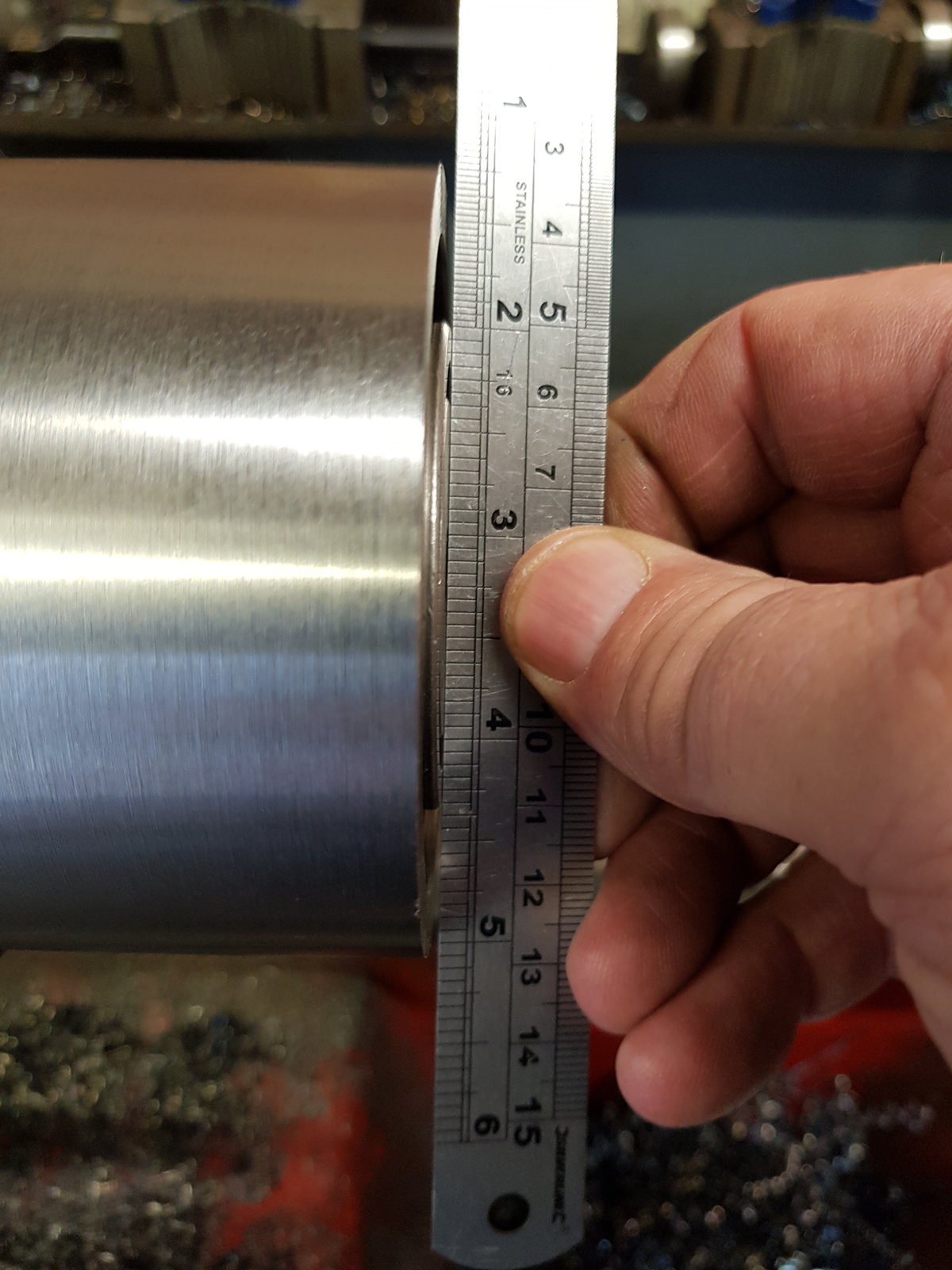

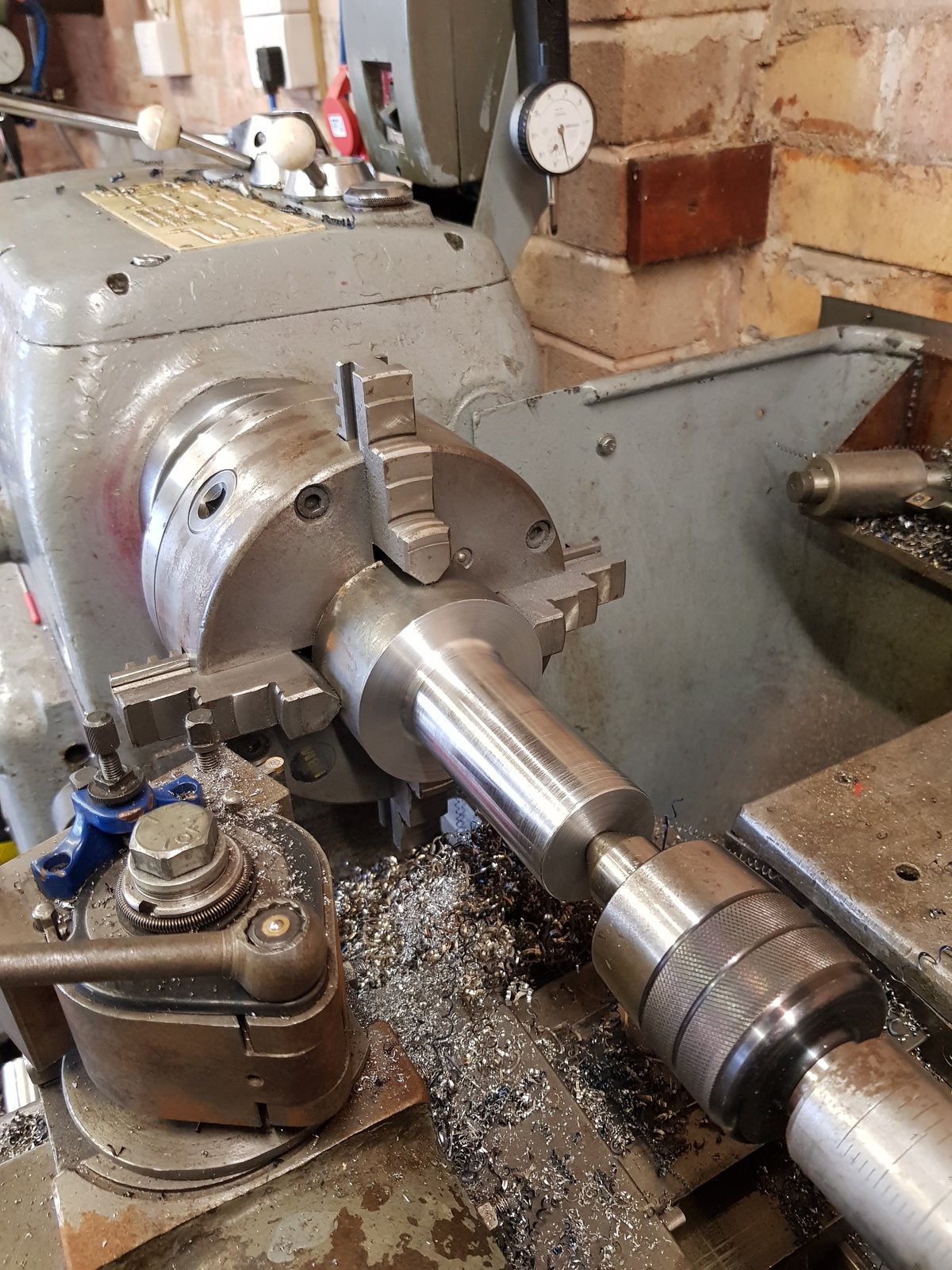

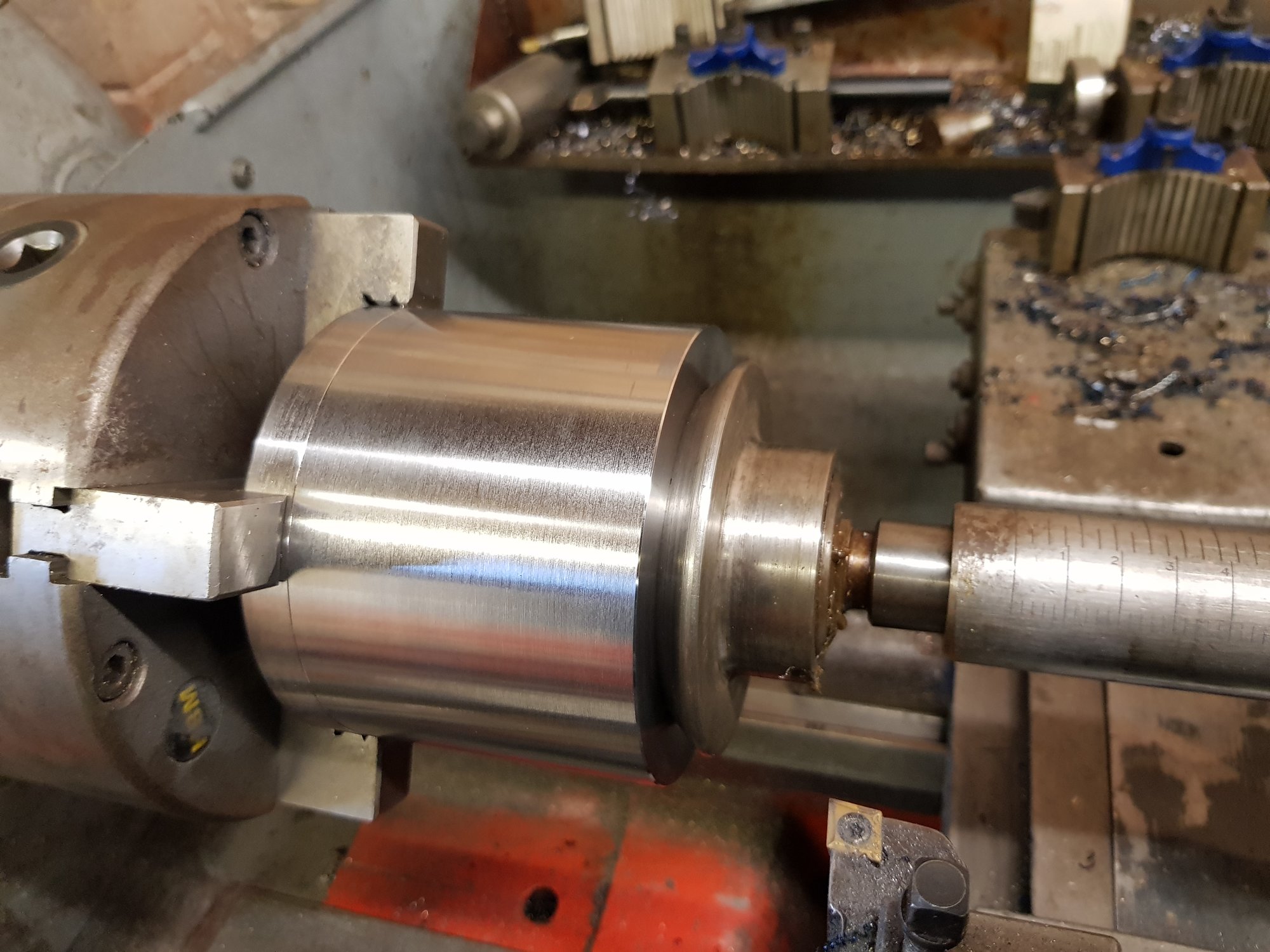

I start machining the table pivot shaft, photos explain progress hopefully.

The next step is to fit the drive gear and table mounting plate to the shaft.

More to follow soon.

Any questions please ask...



[zzr1200]

Part 3.

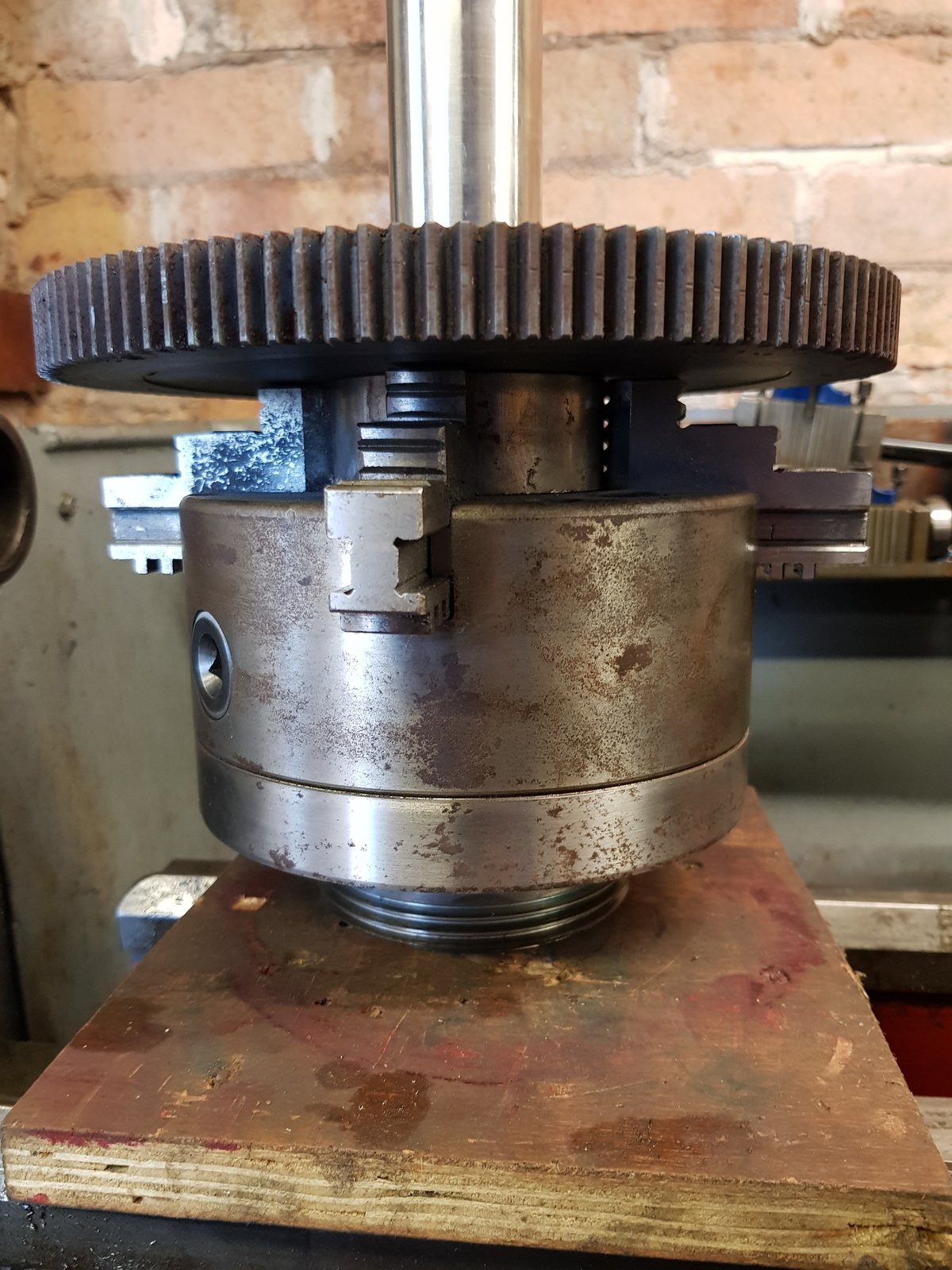

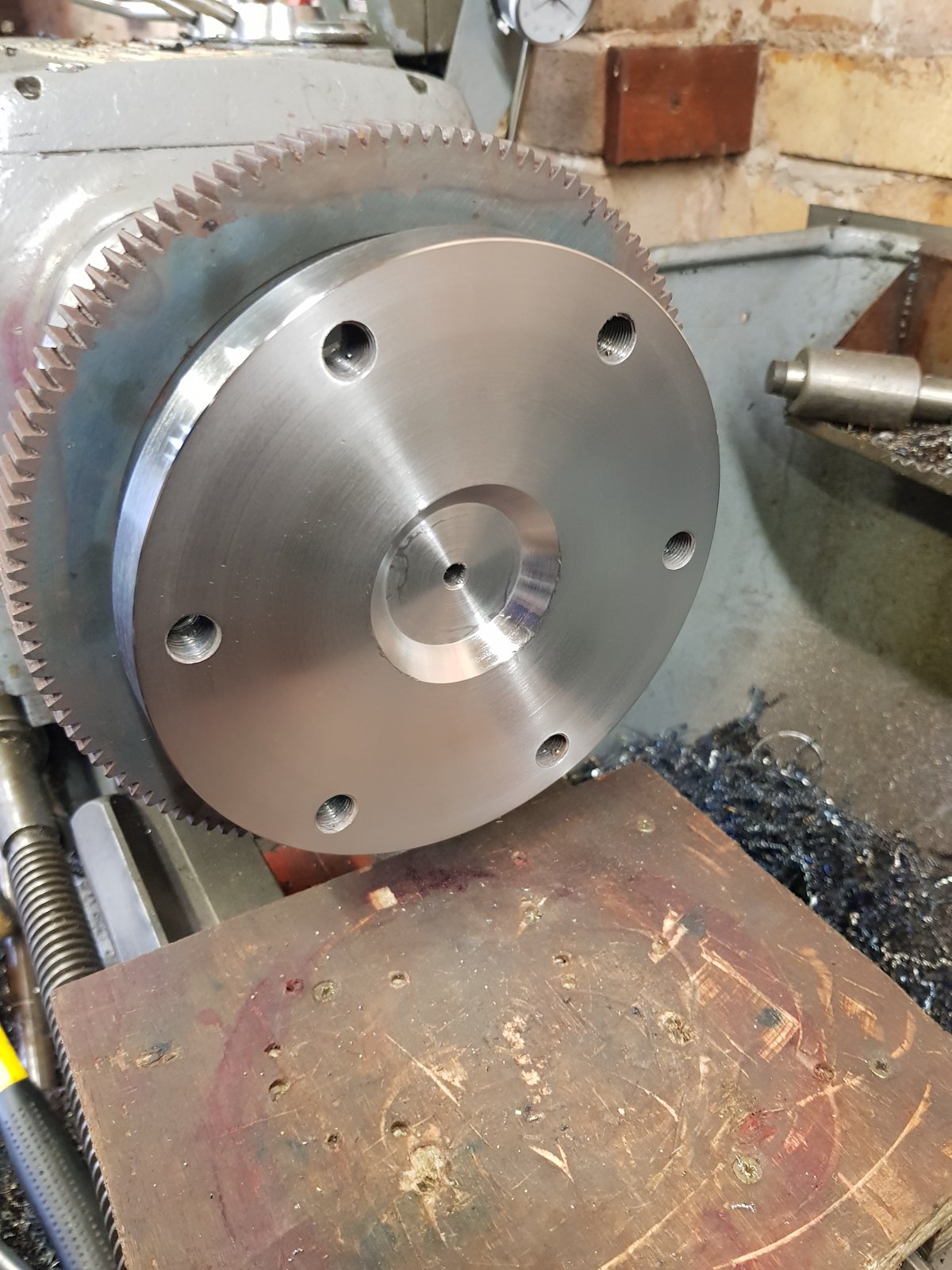

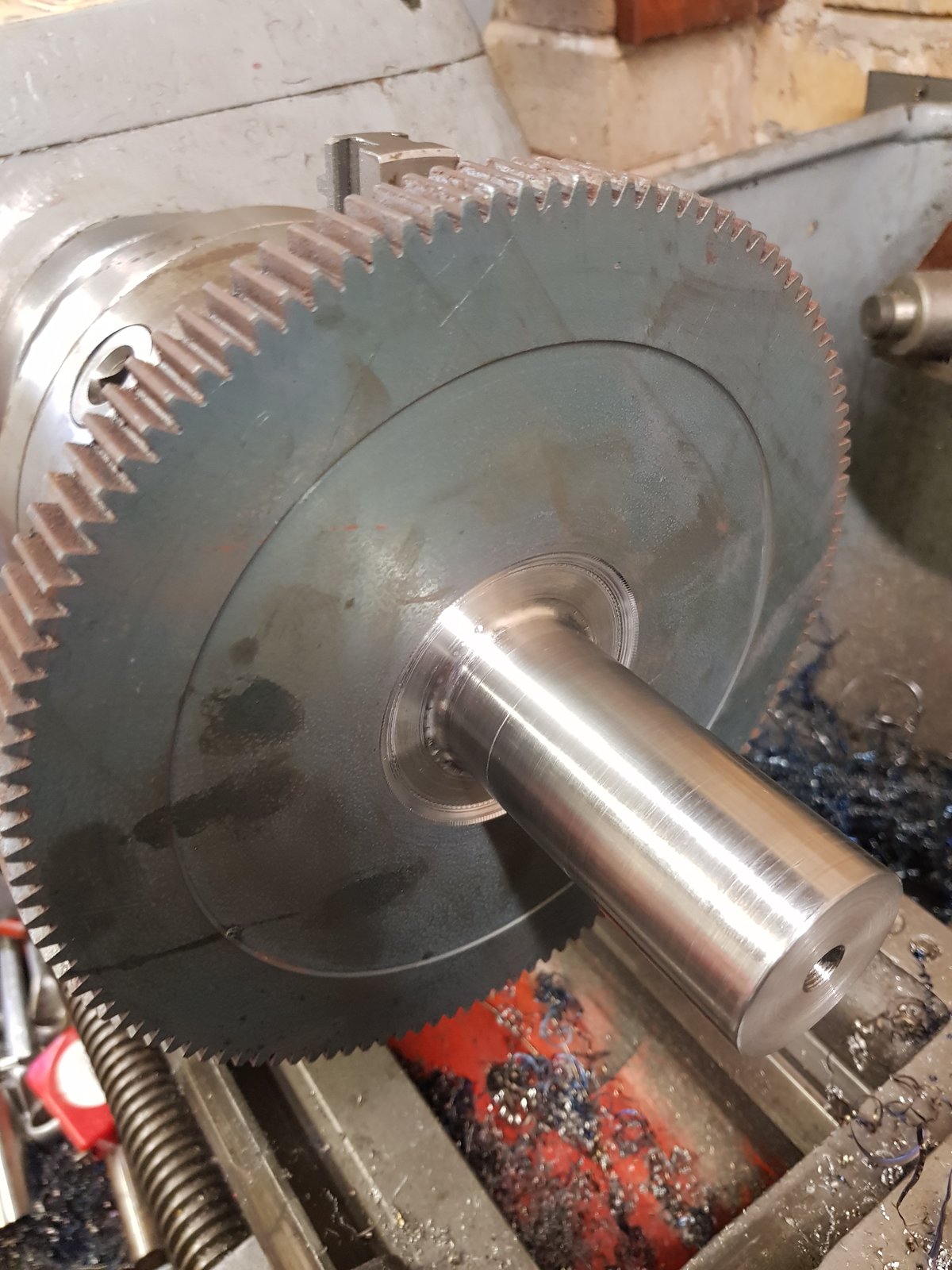

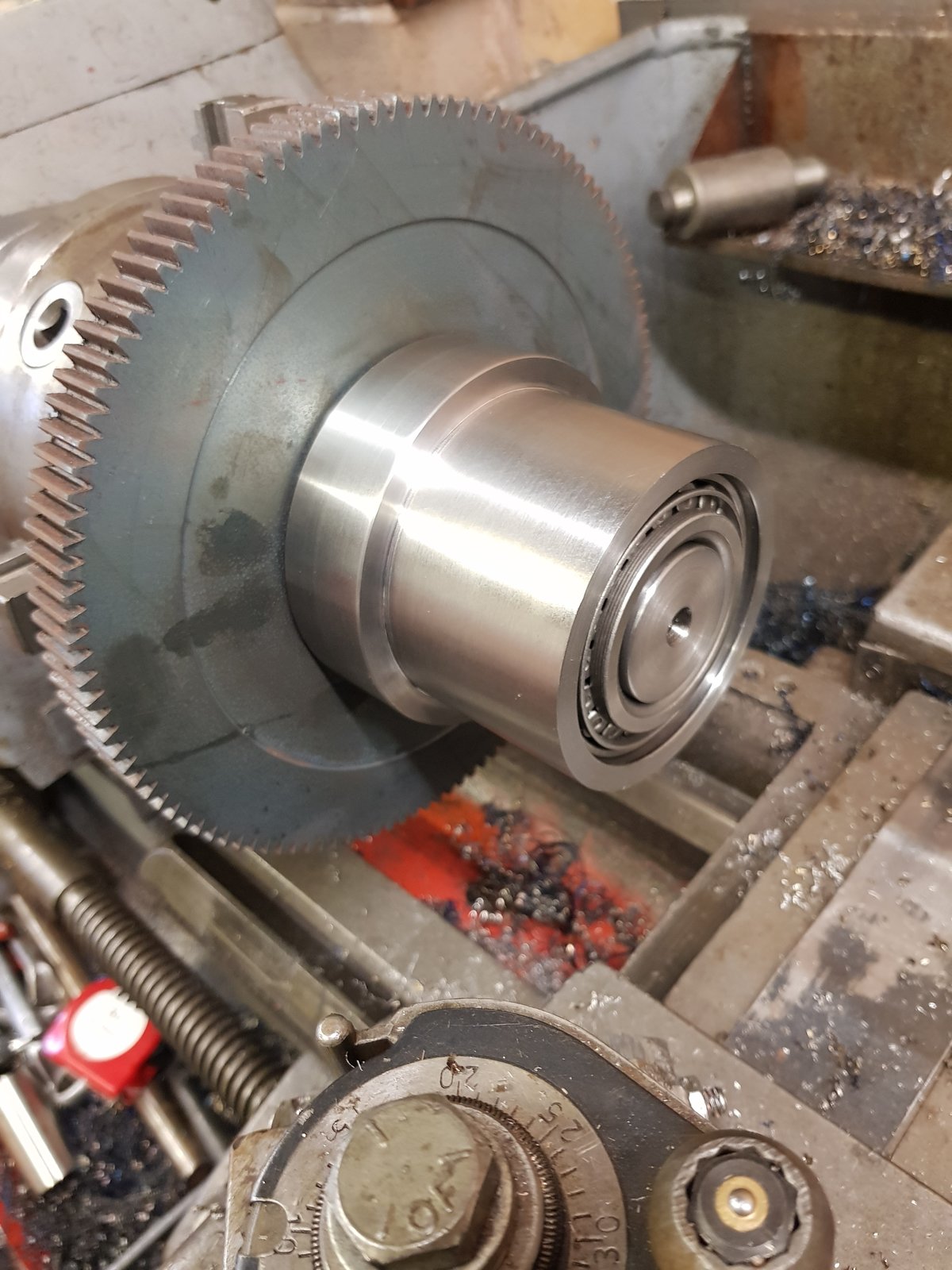

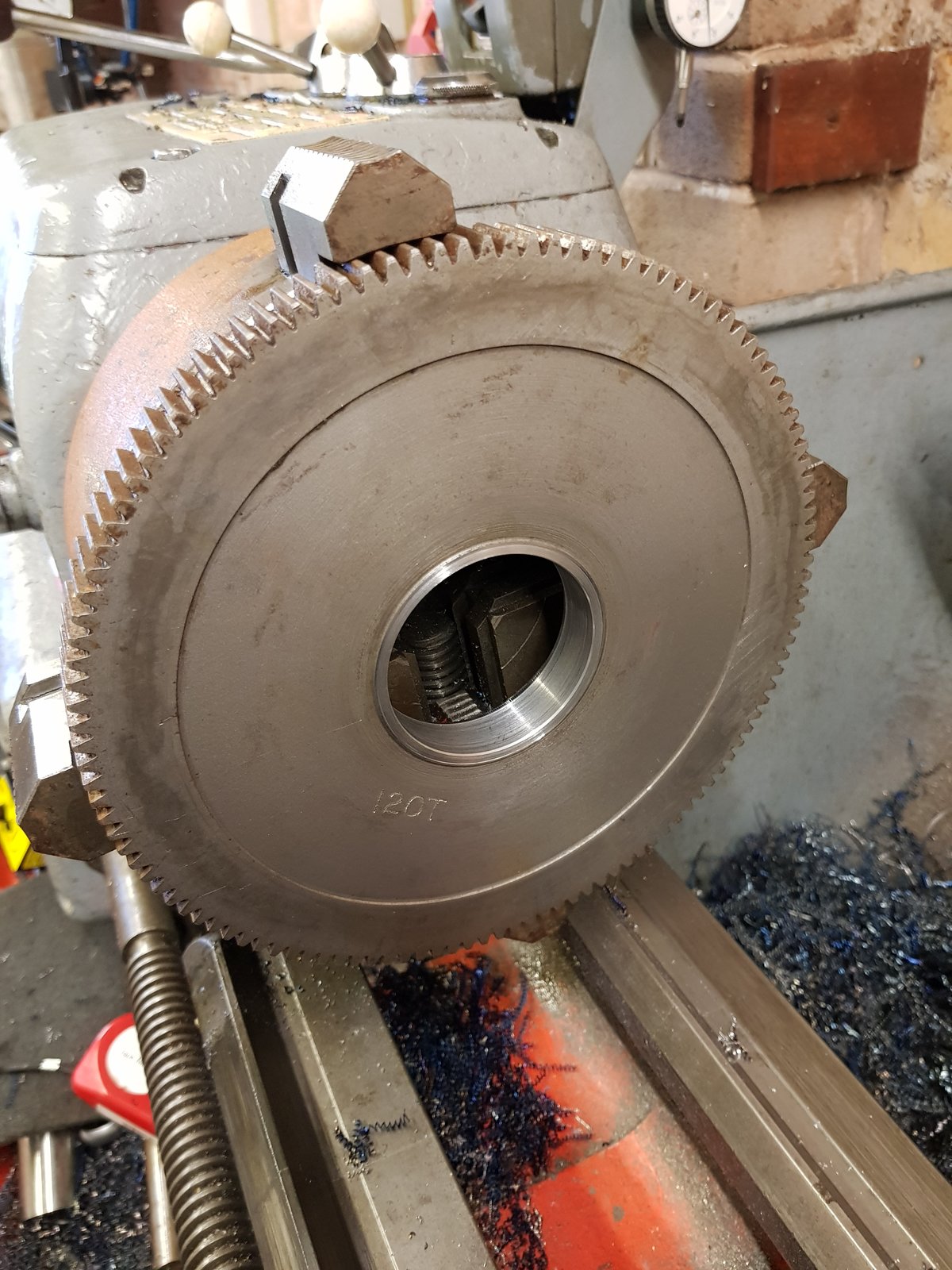

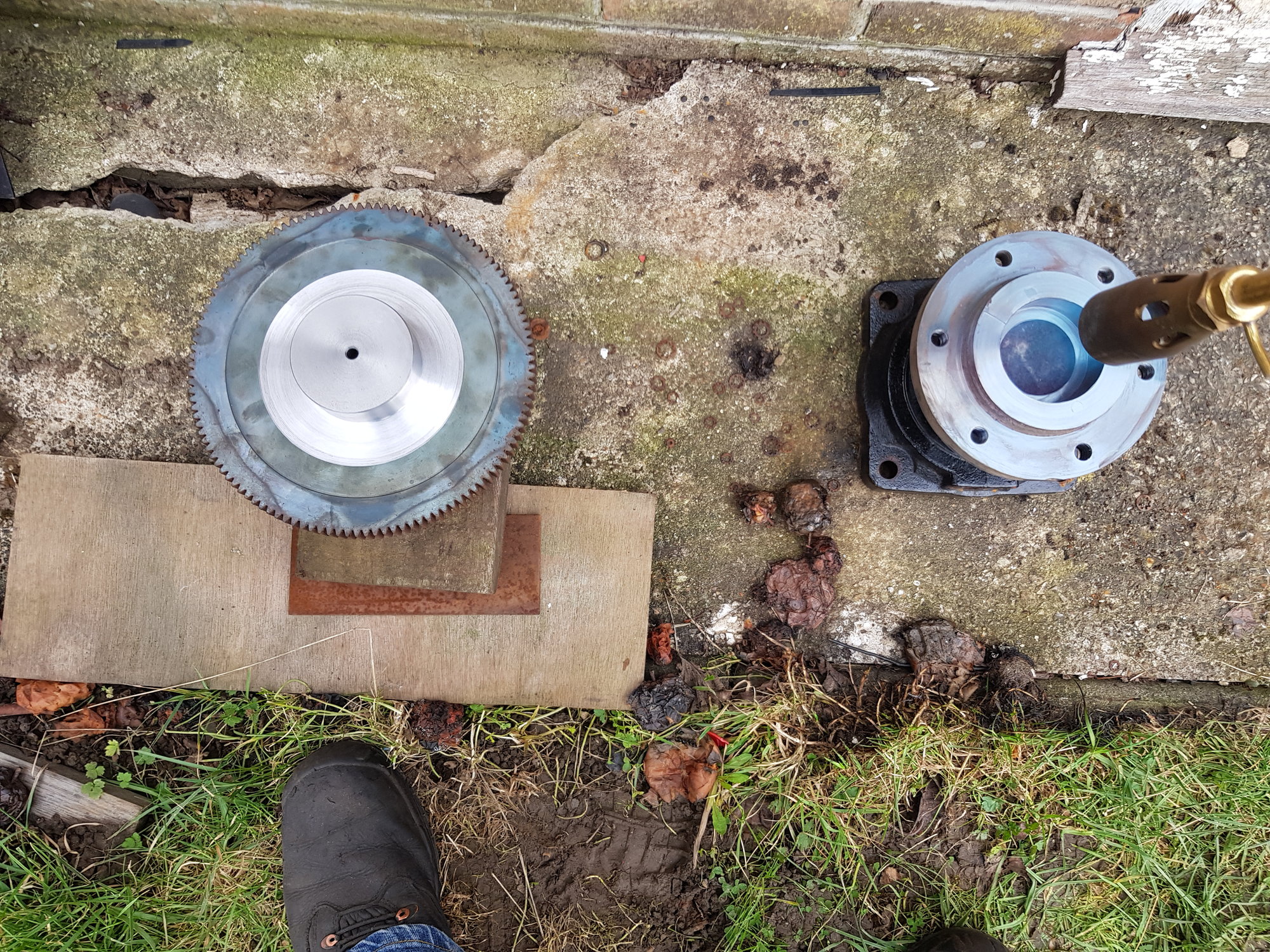

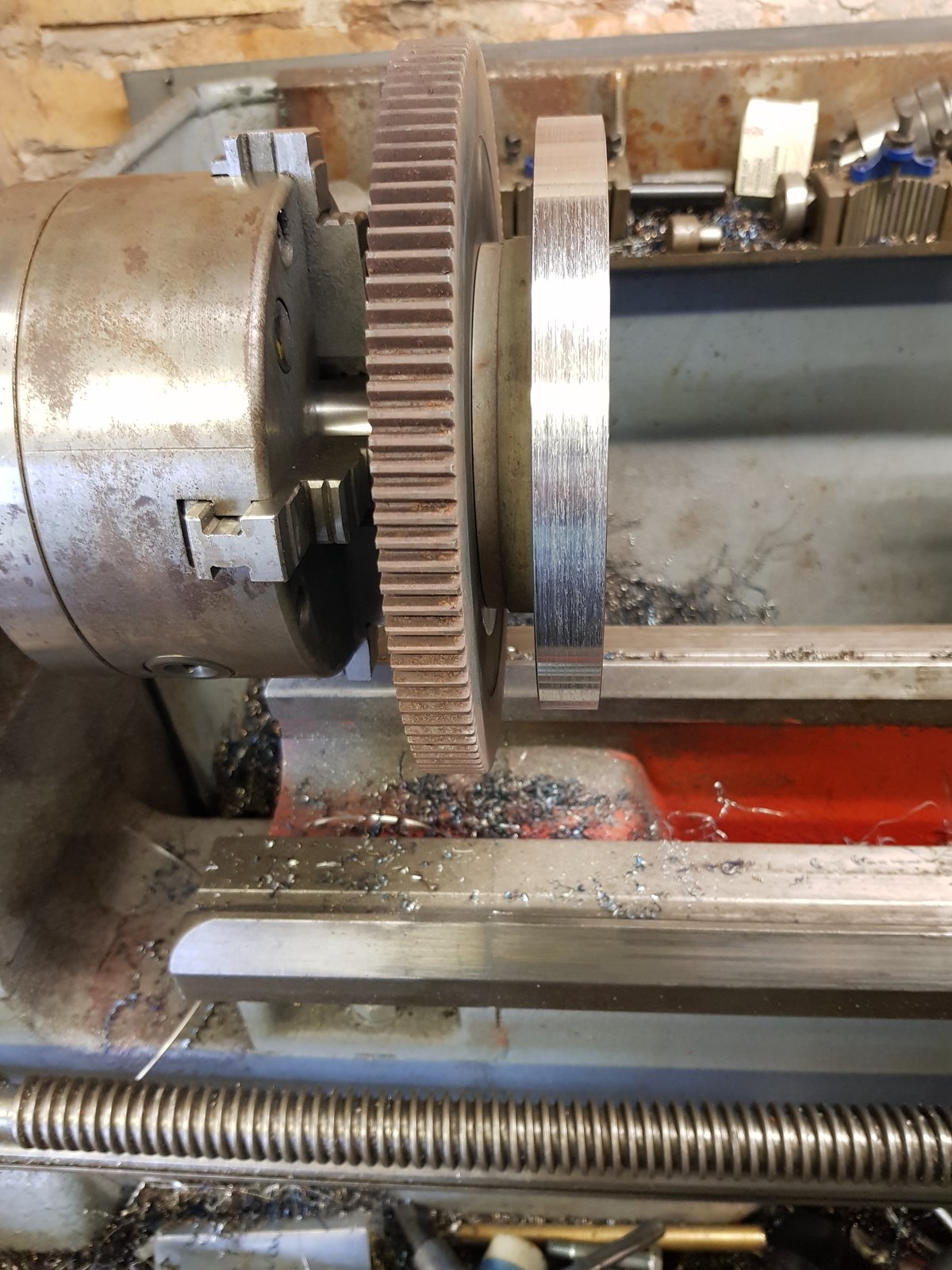

Modifying and fitting the main drive gear to the table pivot shaft..



[zzr1200]

Part 4.

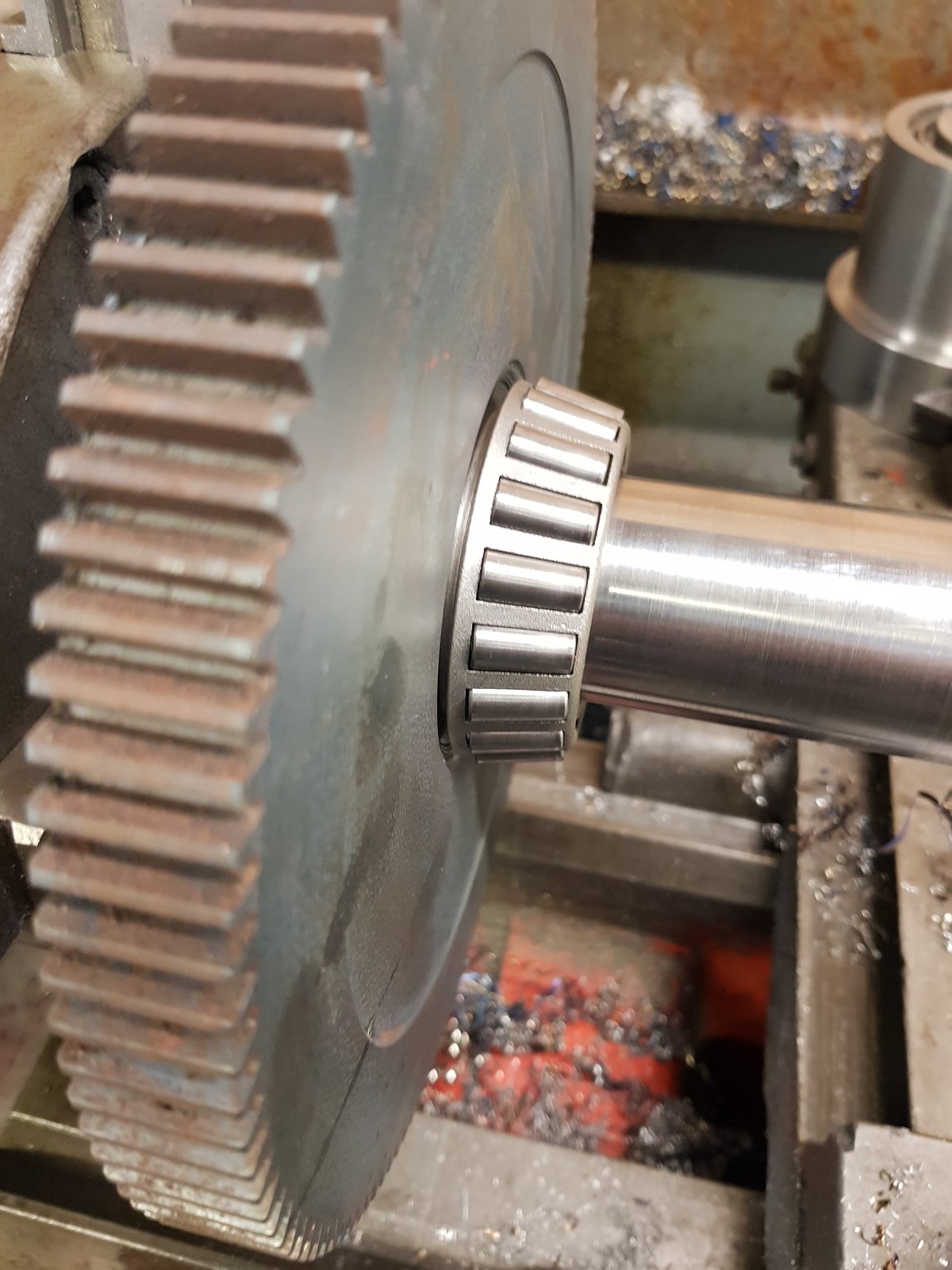

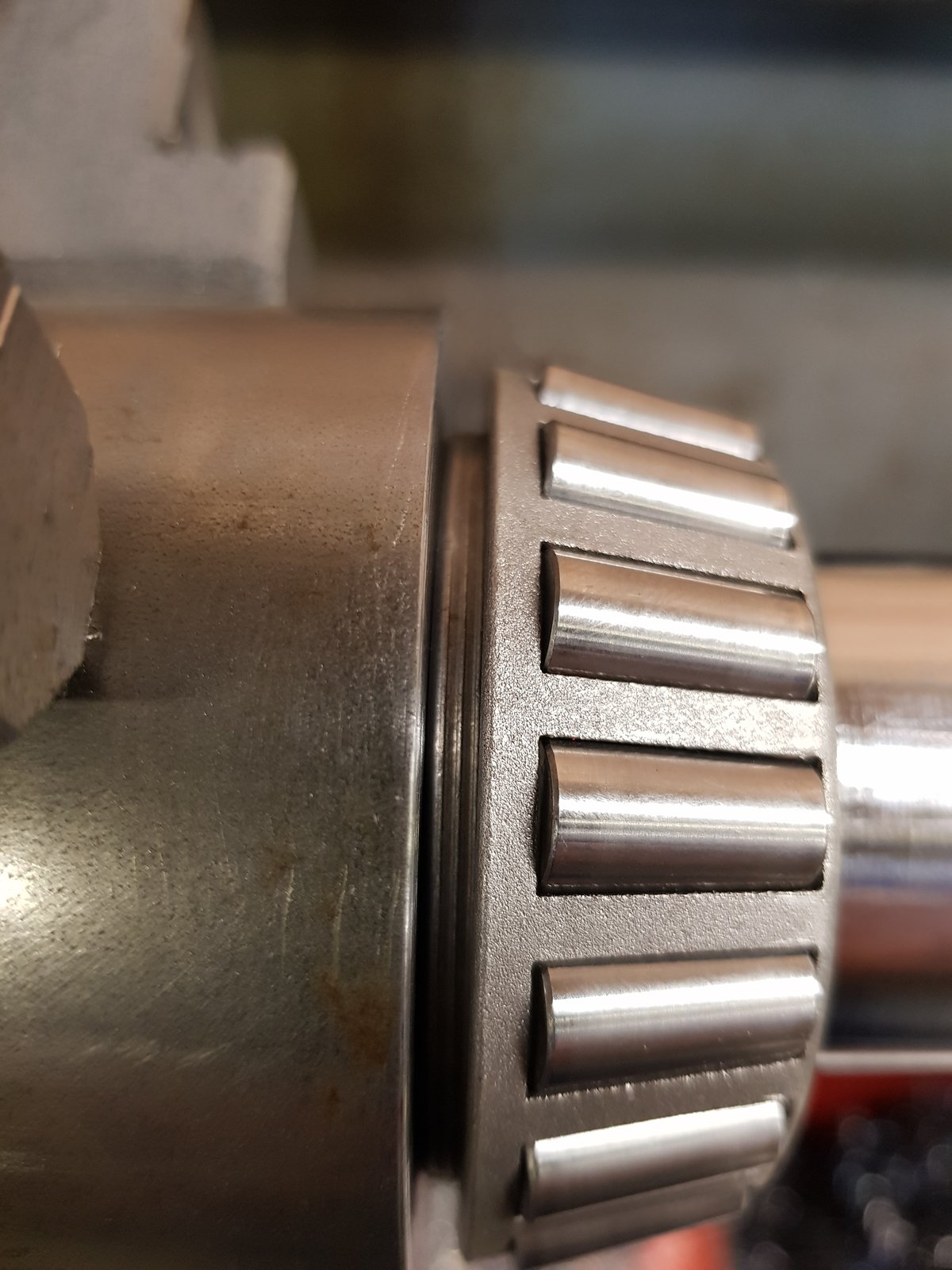

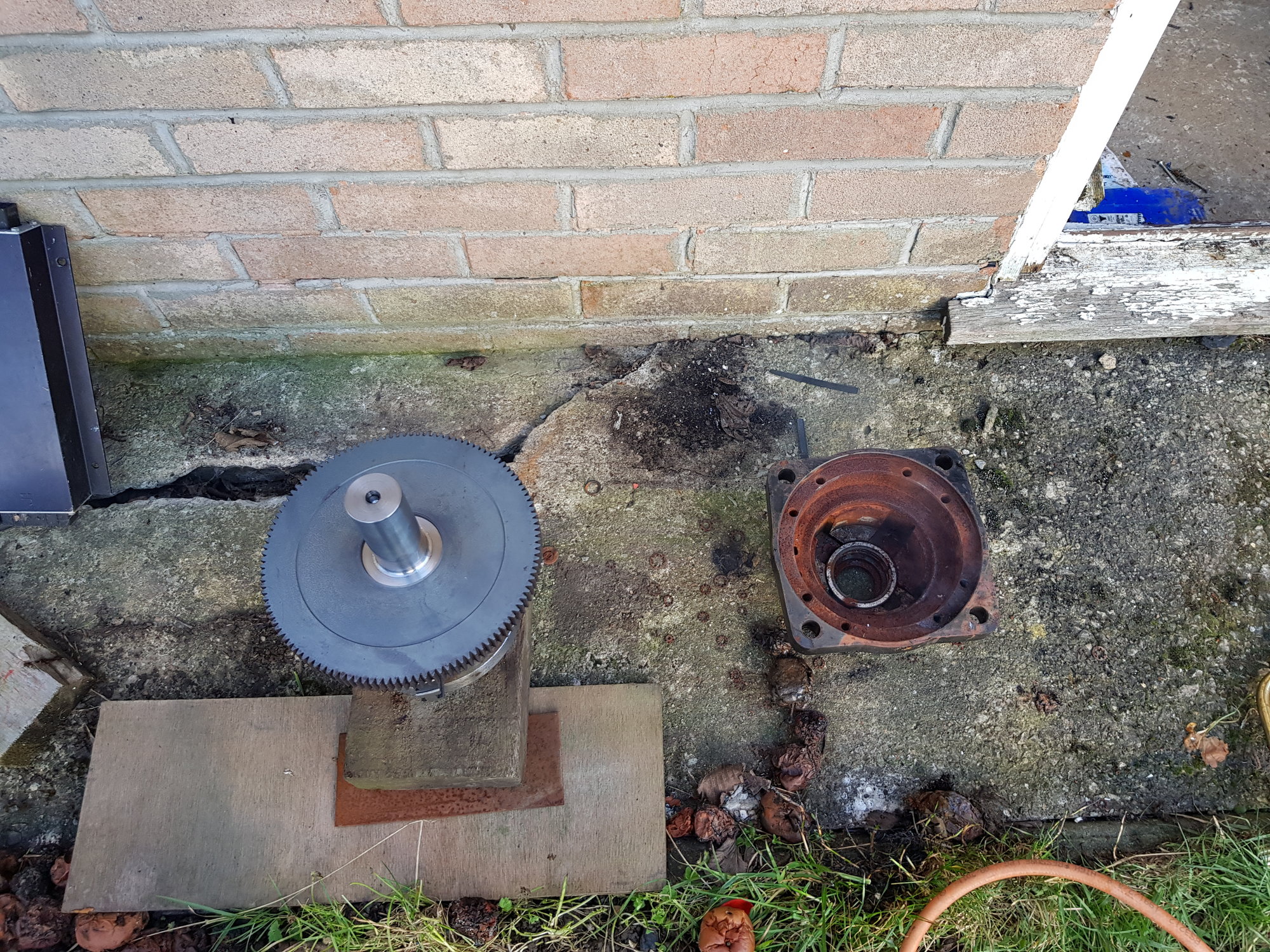

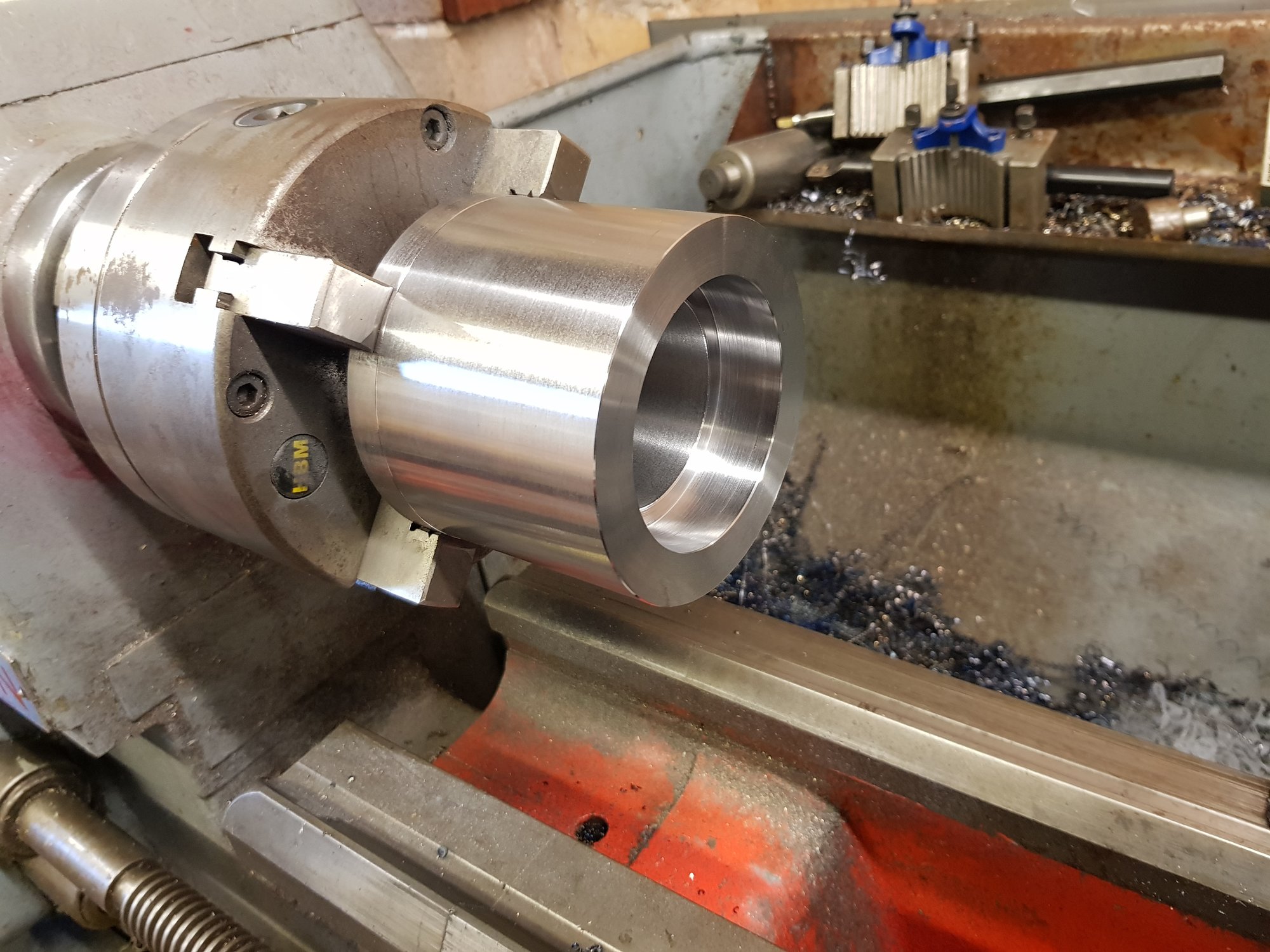

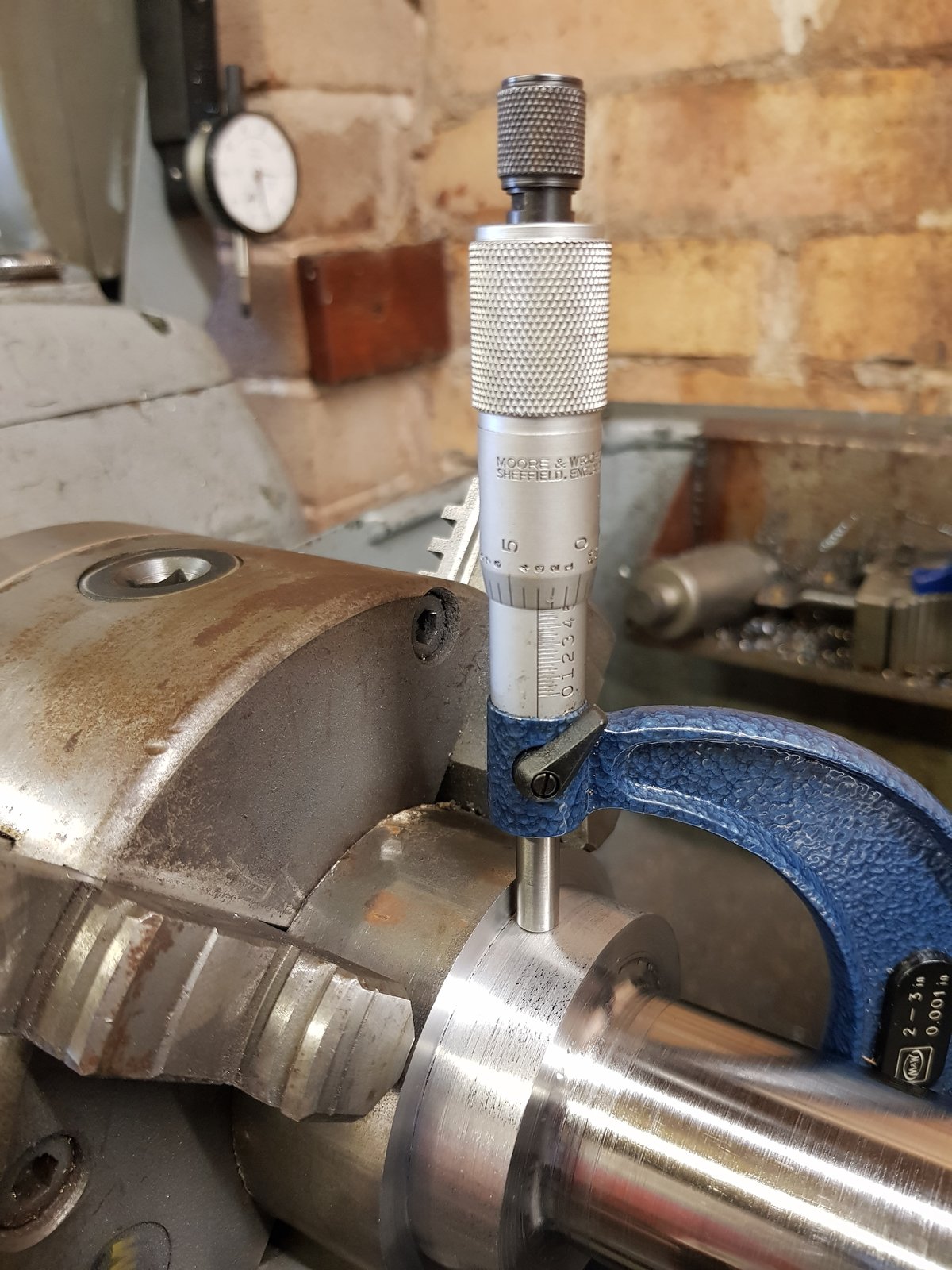

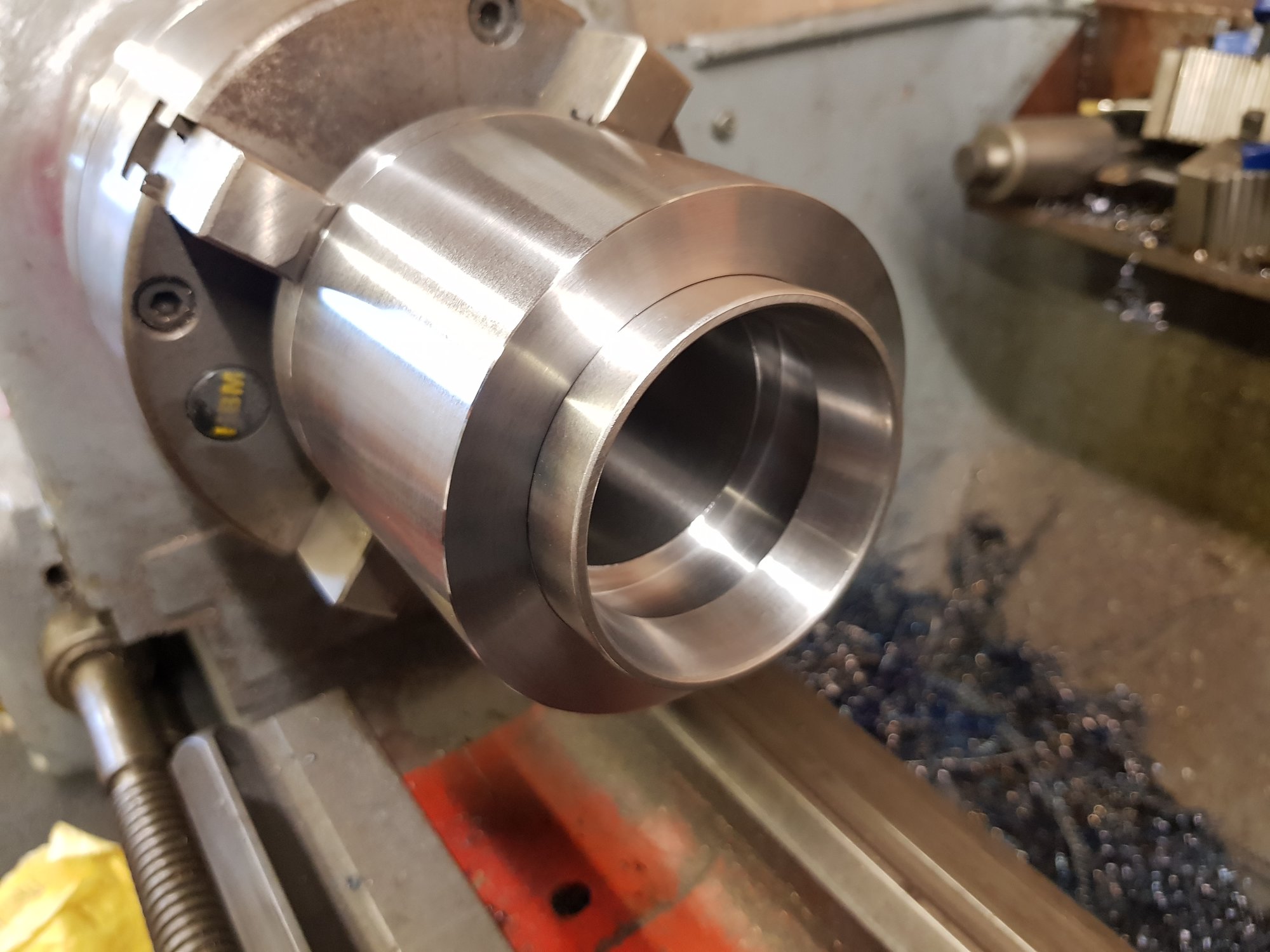

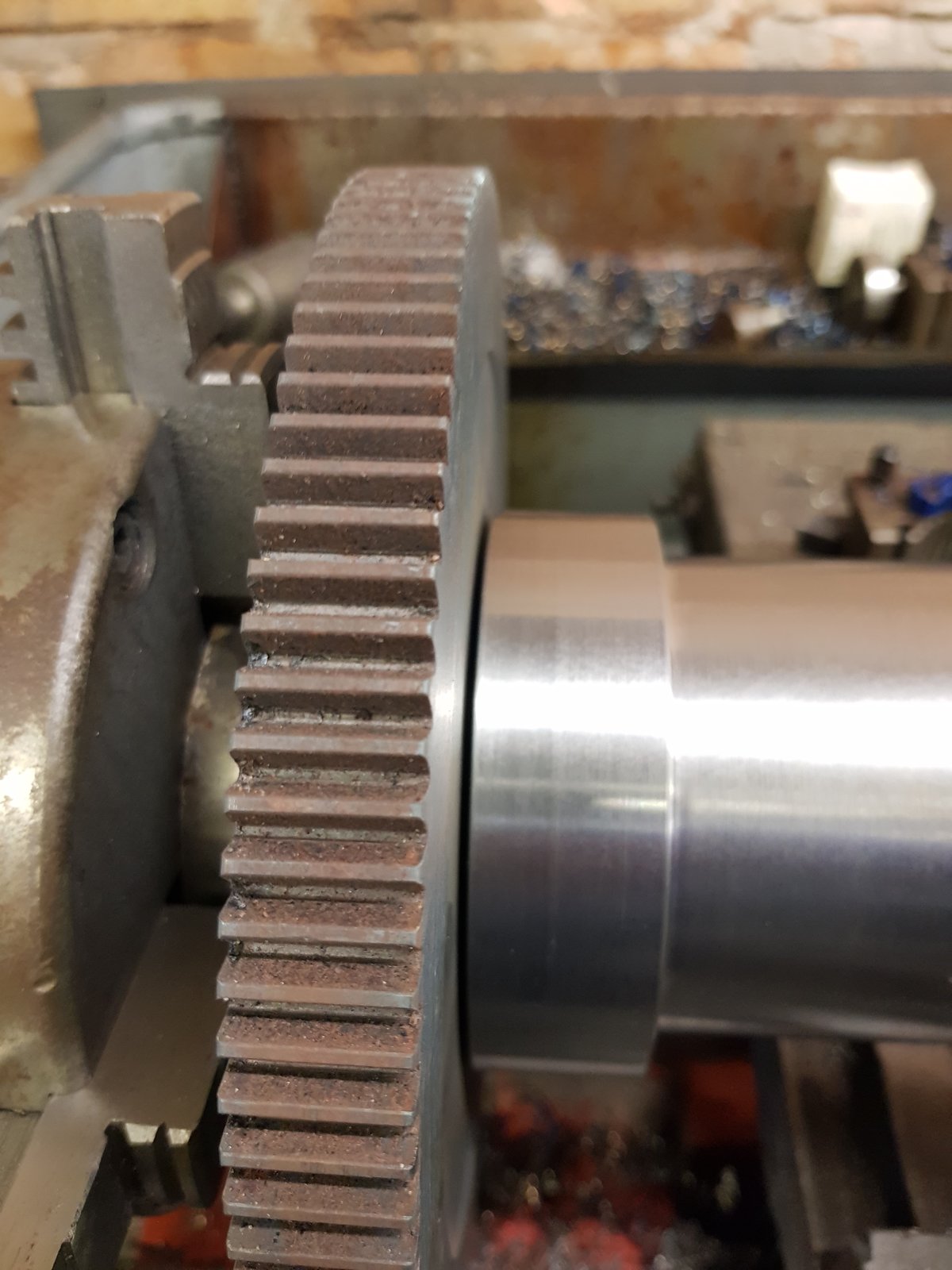

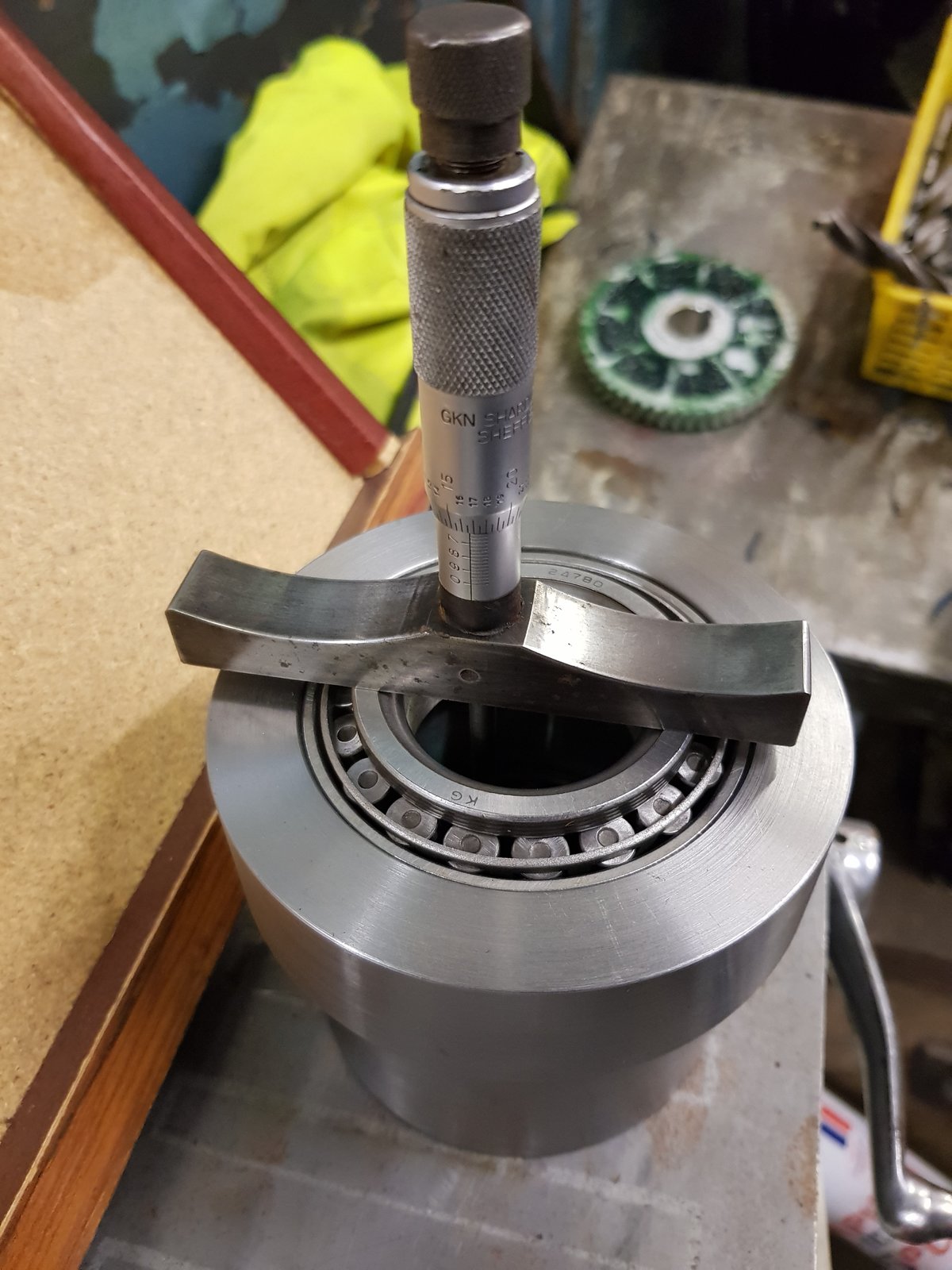

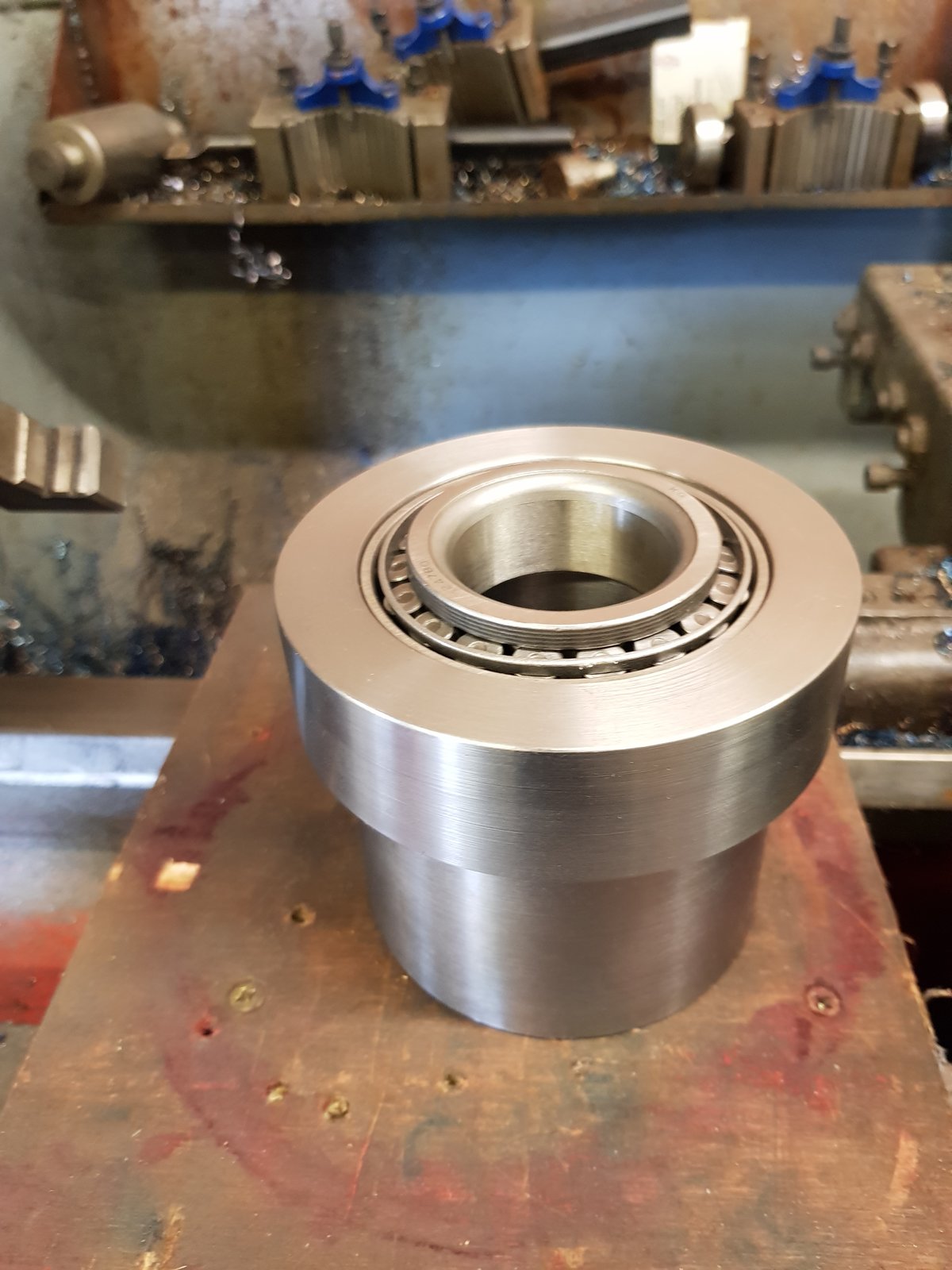

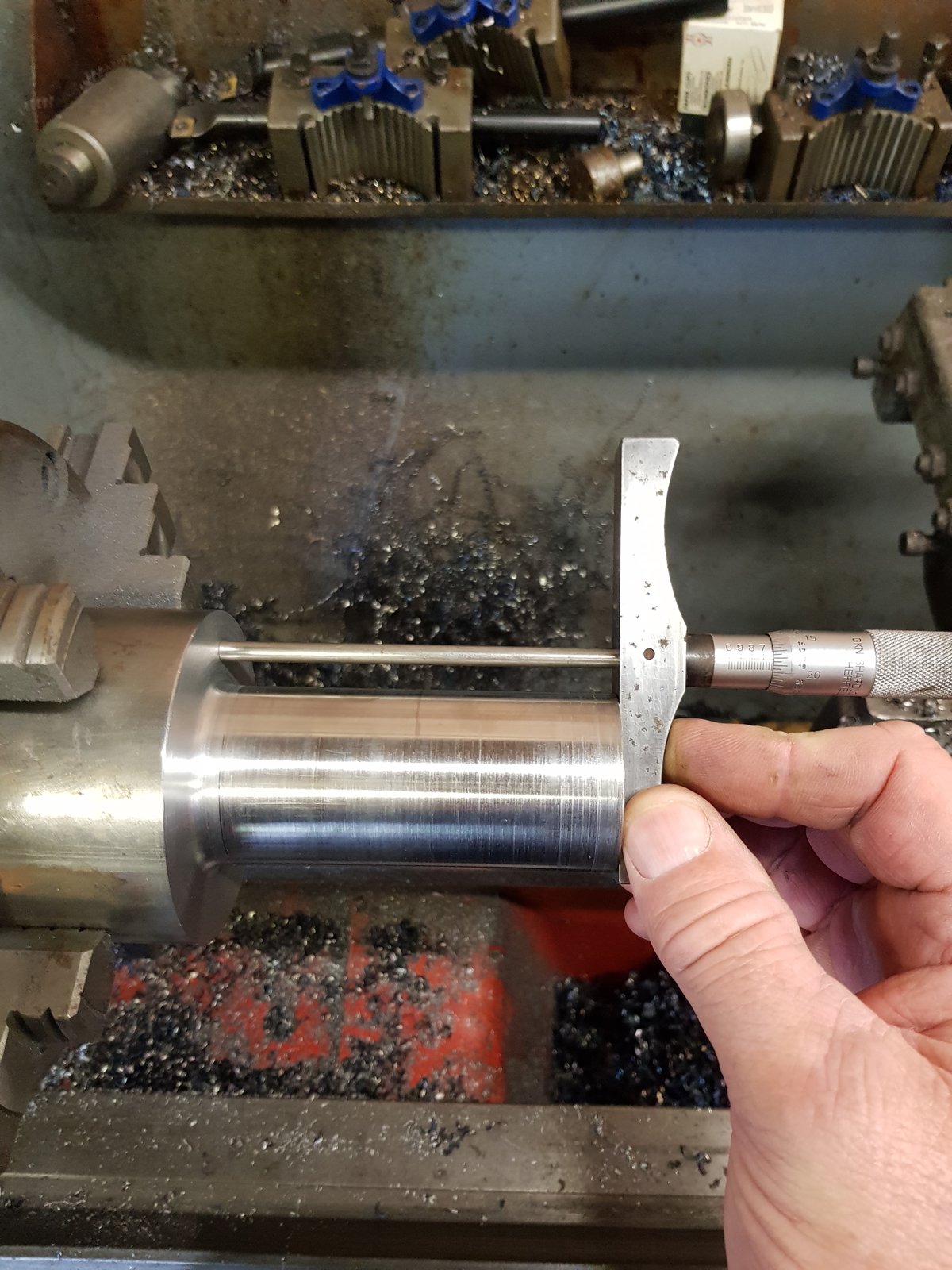

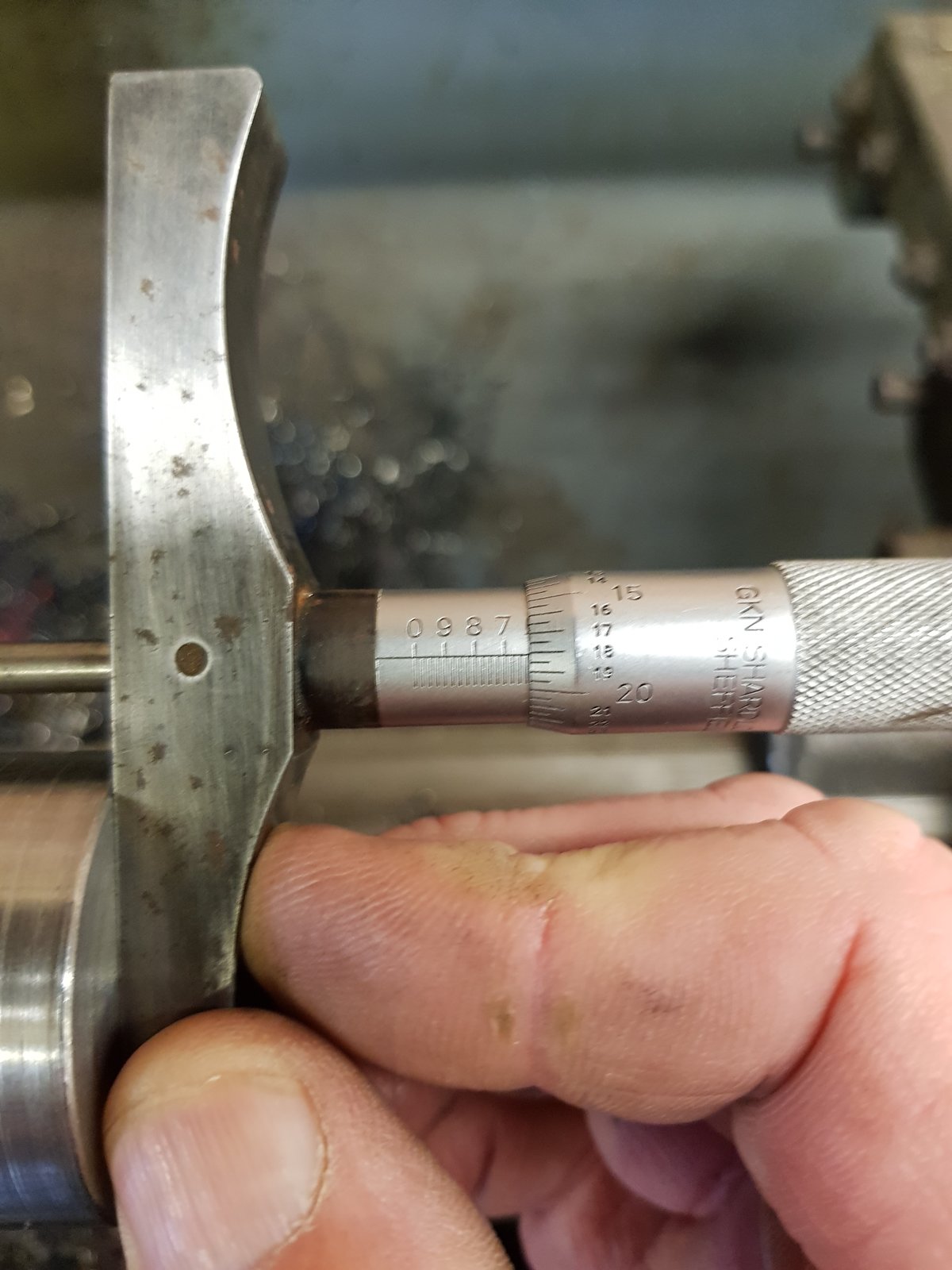

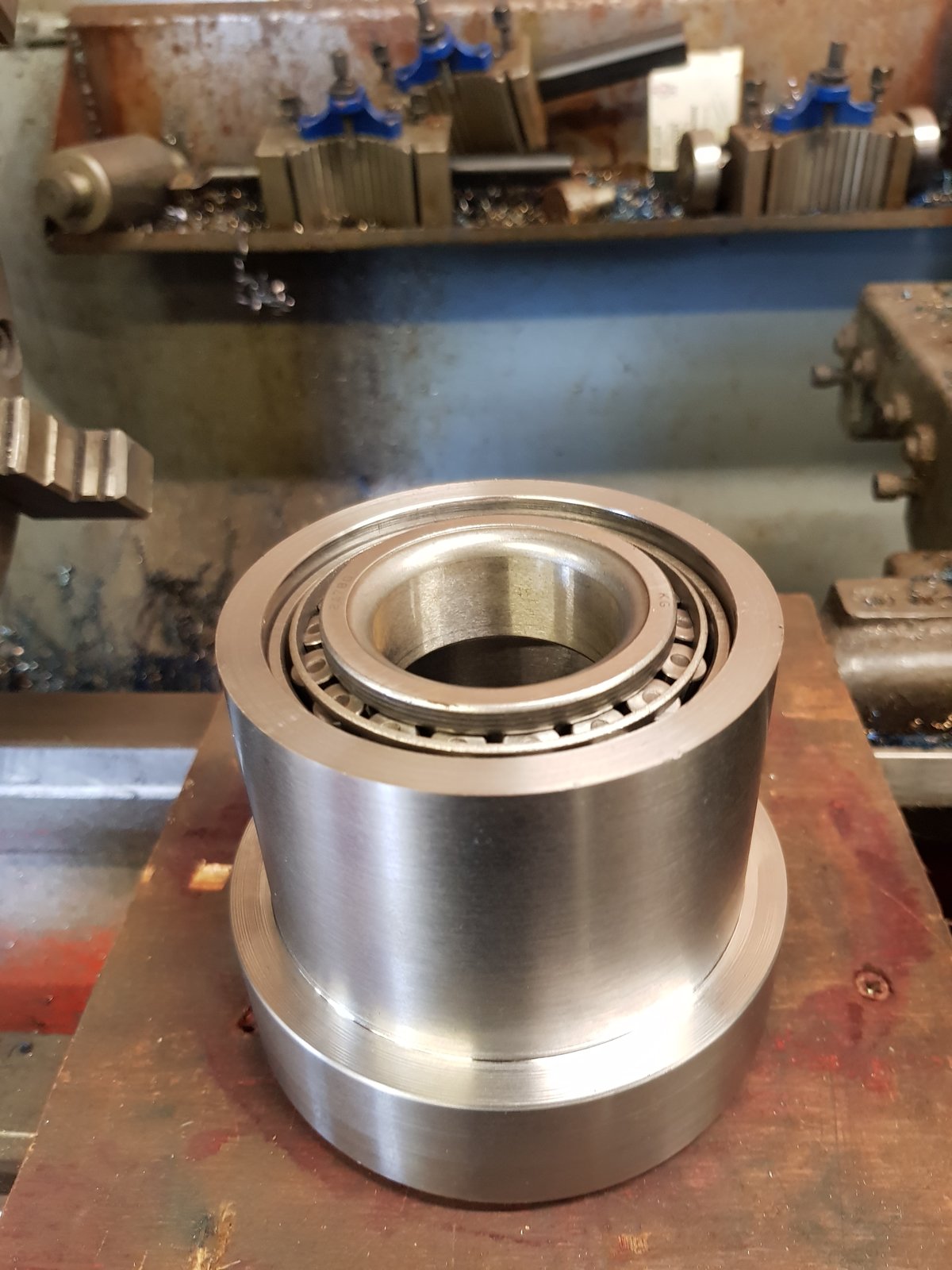

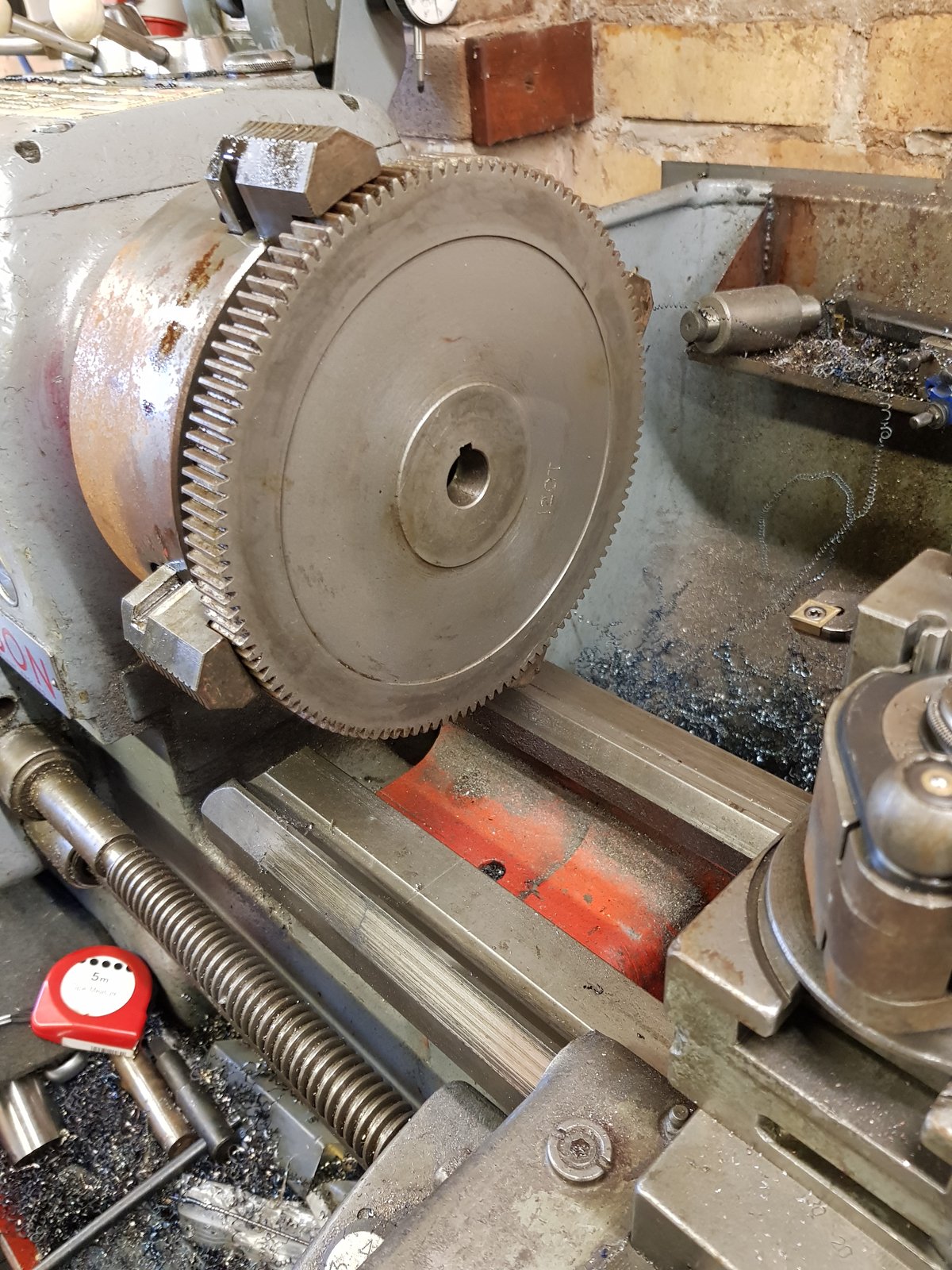

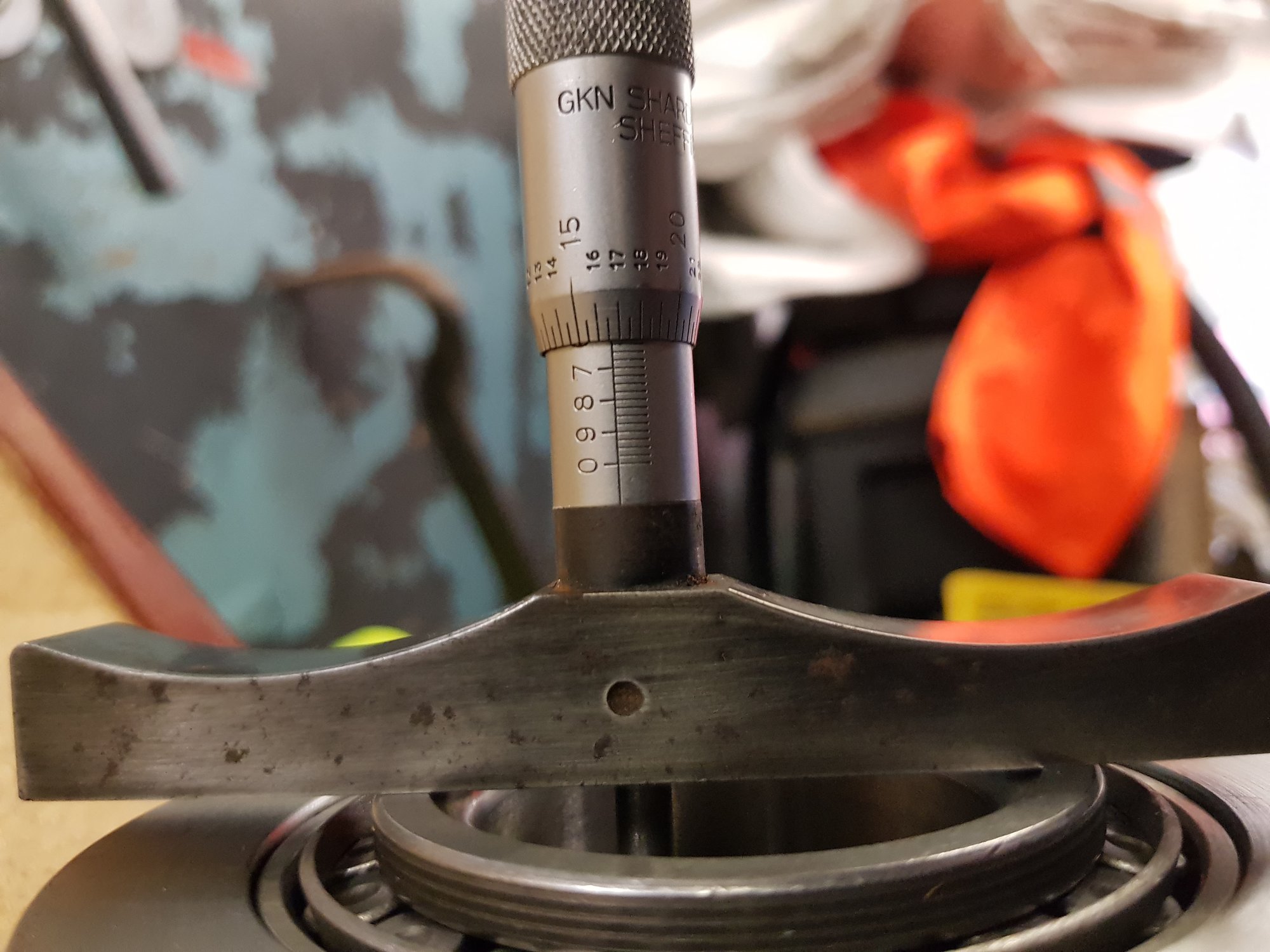

This morning I machined the clearance between the top bearing/drive gear and then checked the bearing housing gap to drive gear.



[Kent]

Just take real care heating stuff with concrete as a base - it really can let go with a bang
Very nice machining



[zzr1200]

Just take real care heating stuff with concrete as a base - it really can let go with a bang
Very nice machining

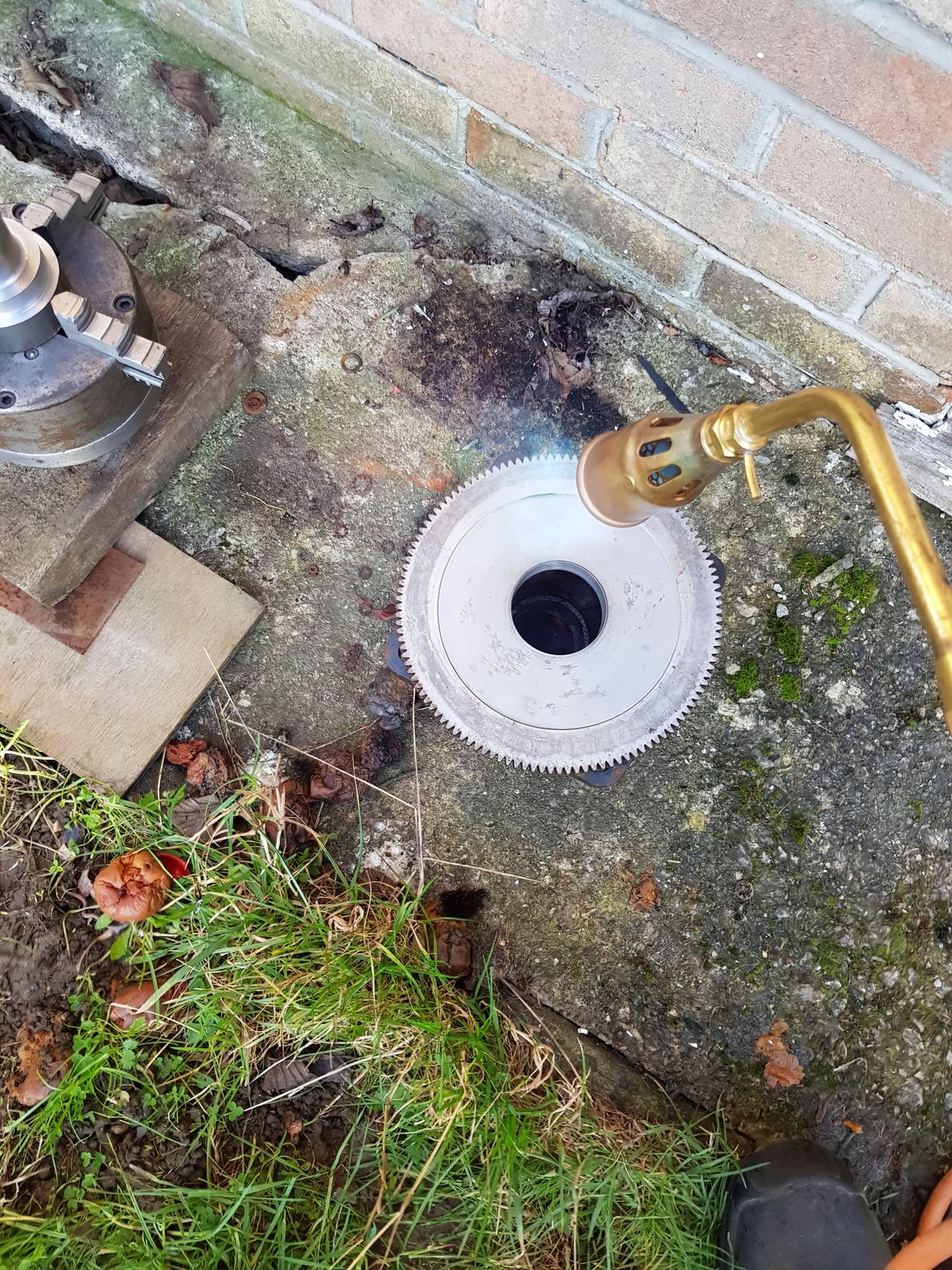

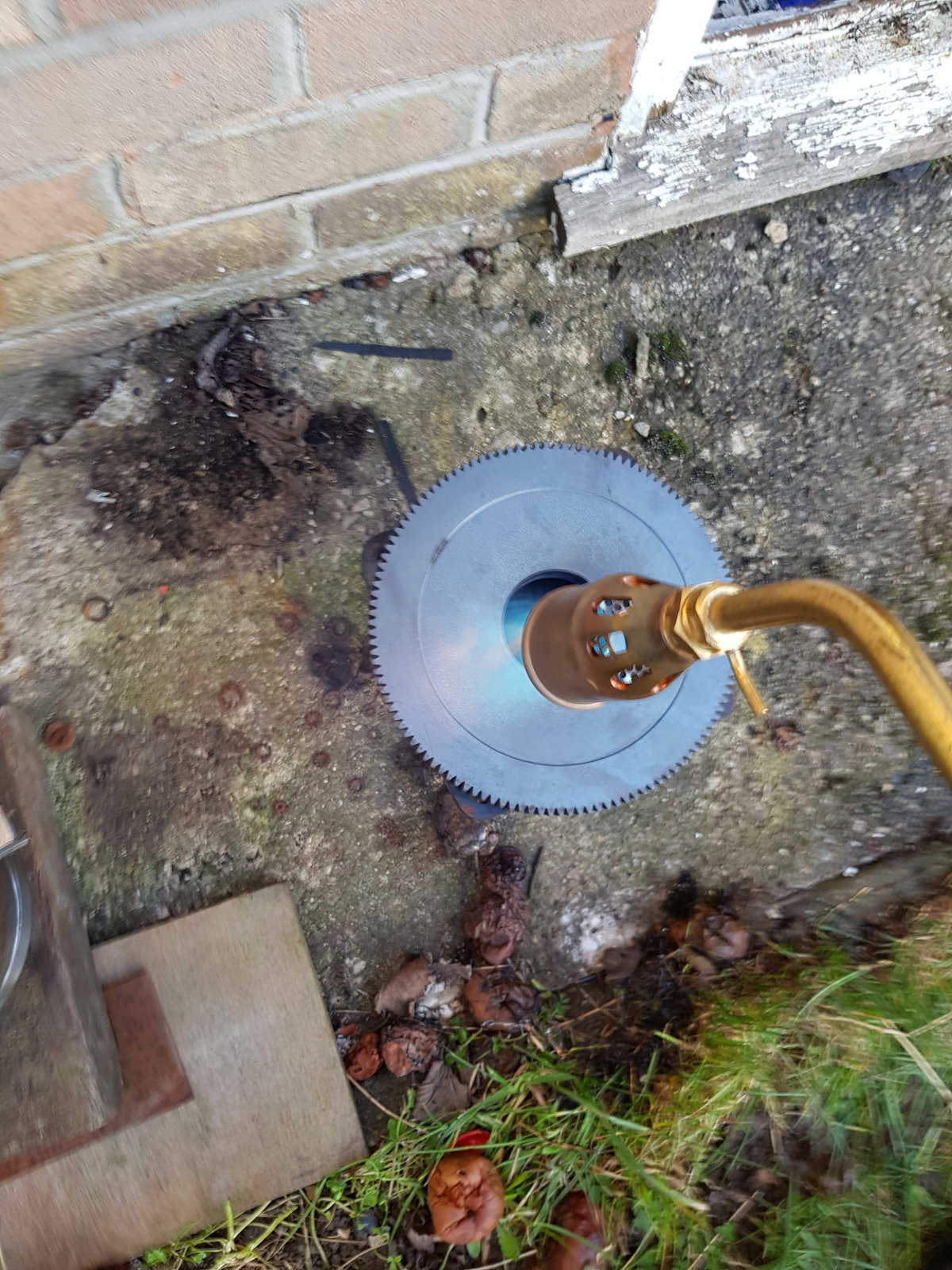

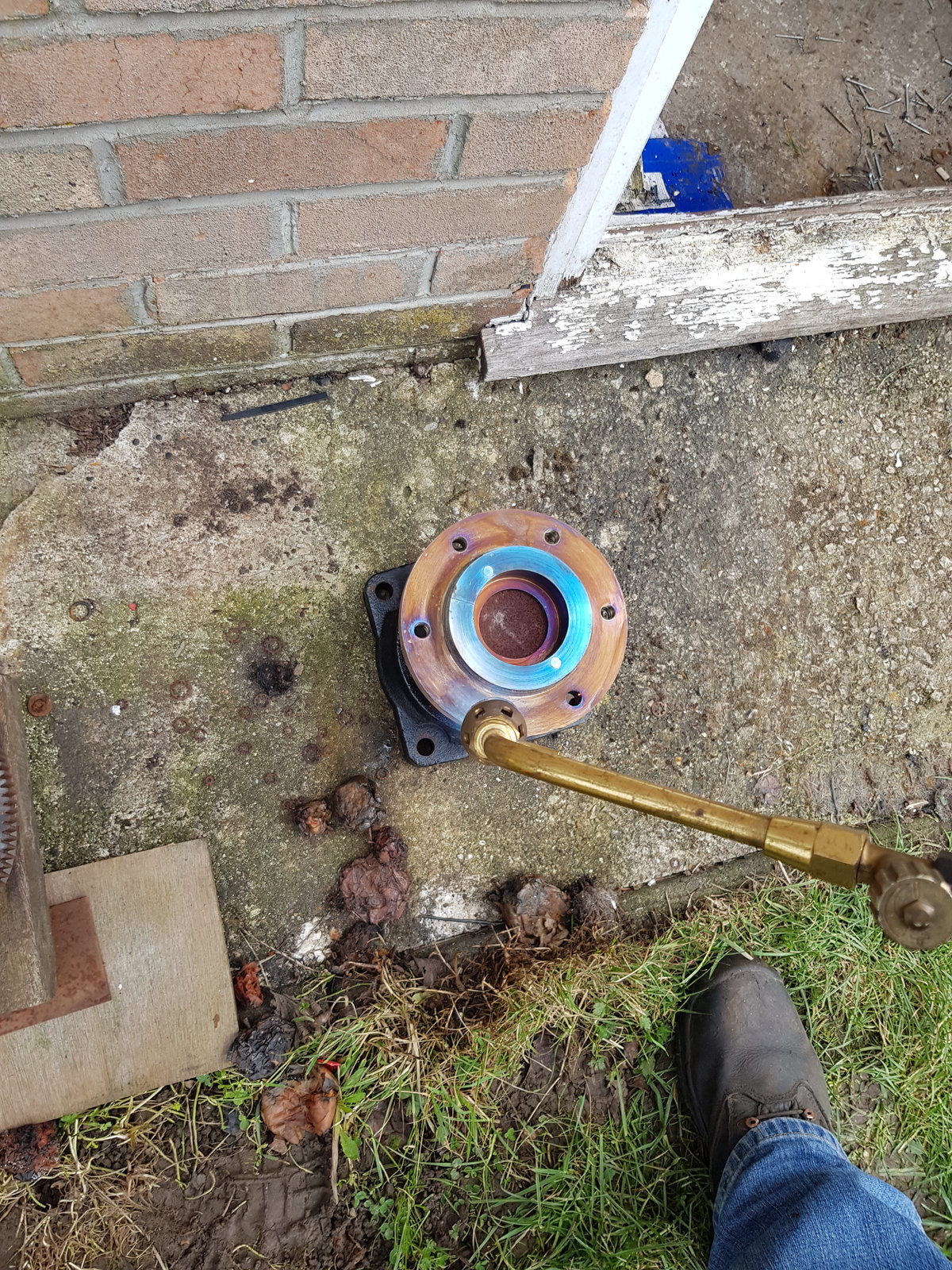

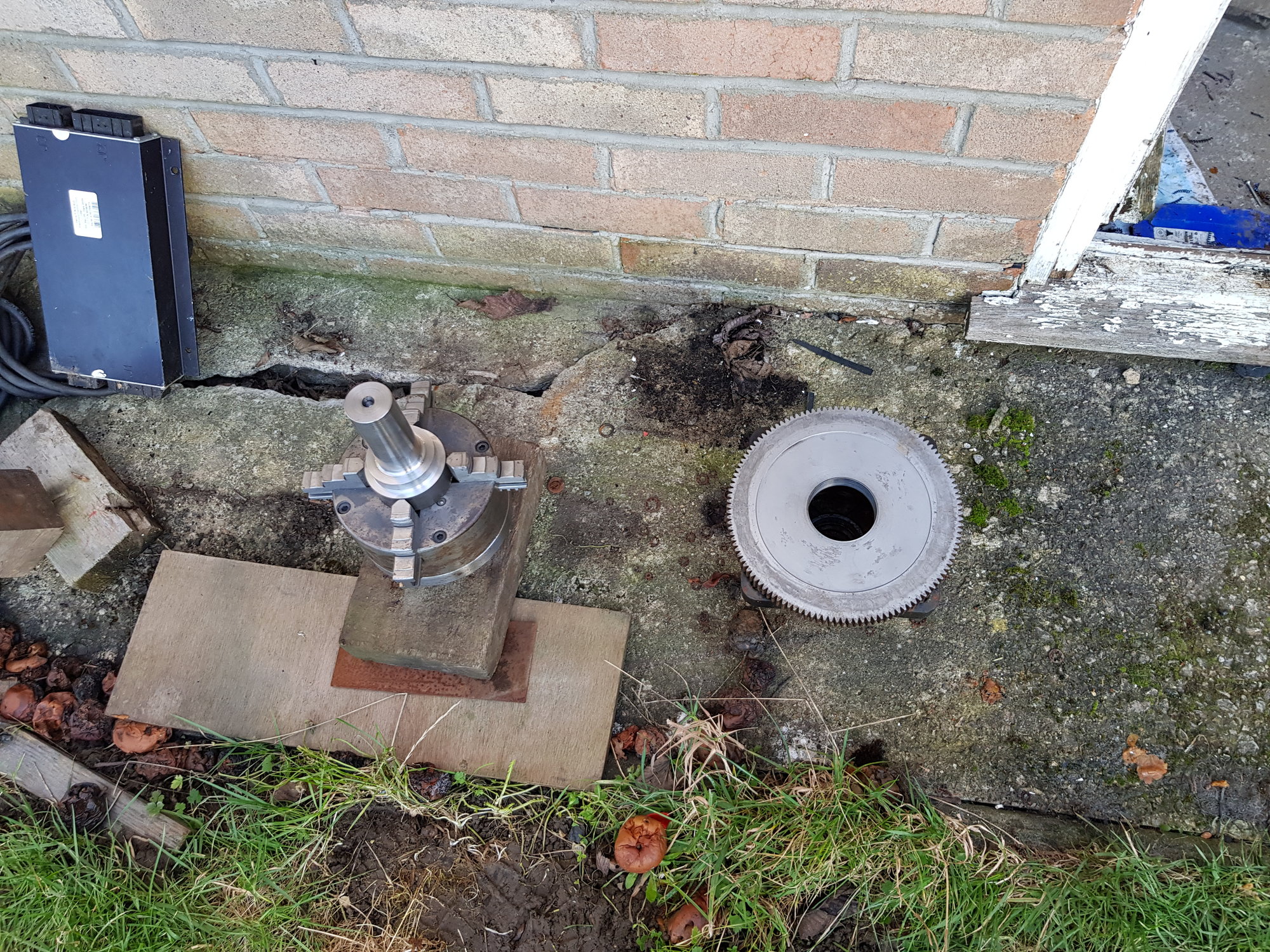

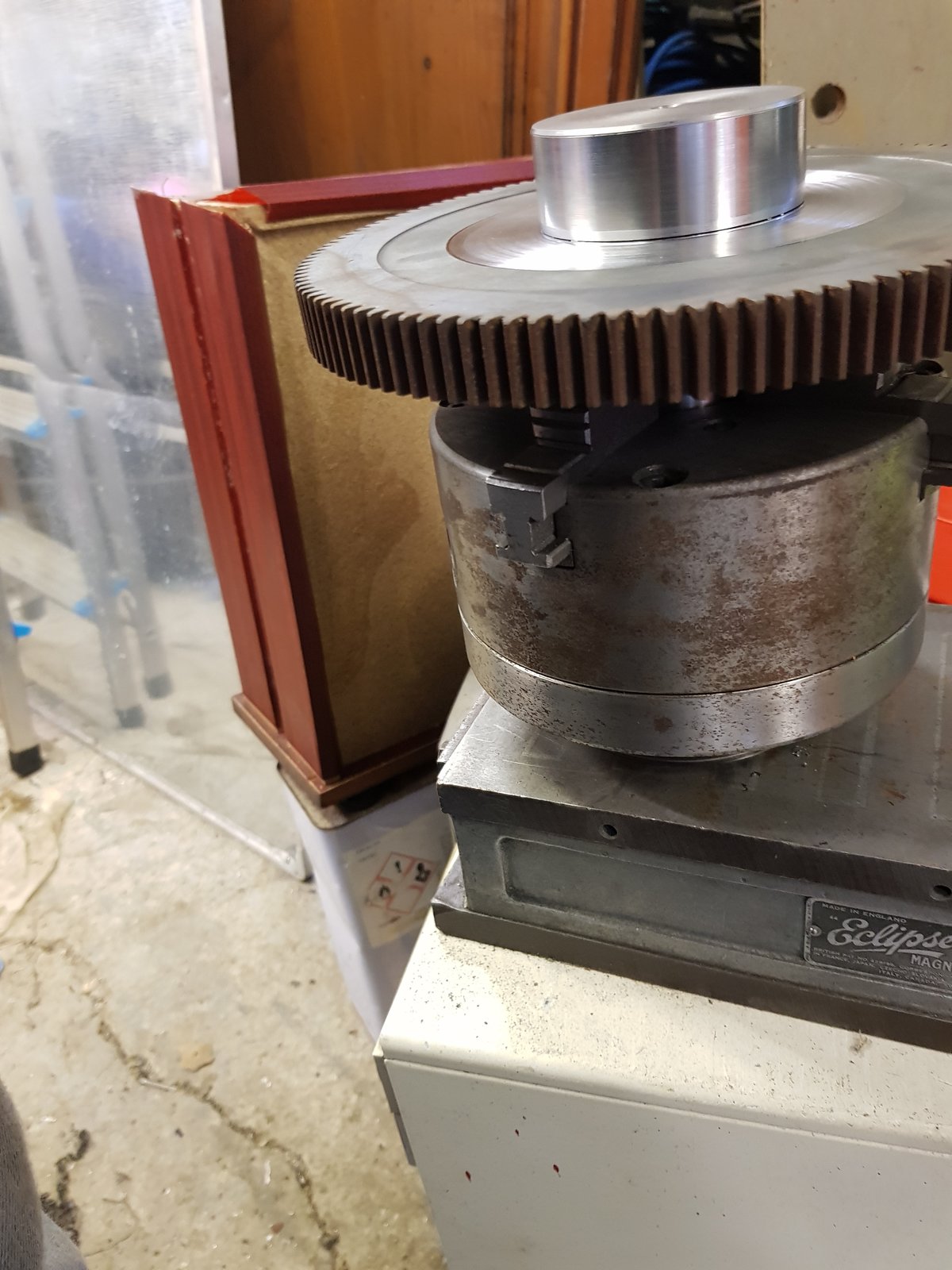

The gear was at least 6 inches off the concrete on the black/rusty housing, plus the concrete is well past its sell by date and water logged...its more likely to turn to dust, than fart.



[Shox Dr]

Just take real care heating stuff with concrete as a base - it really can let go with a bang
Very nice machining

...and a BIG bang at times. I believe it’s the trapped water that turns to steam.



[zzr1200]

...and a BIG bang at times. I believe it’s the trapped water that turns to steam.

Try a pepper pot burner on oxy/ac with concrete now that's interesting...



[Shox Dr]

Try a pepper pot burner on oxy/ac with concrete now that's interesting...

Once had a fire burning wood pulled from a building renovation, it had been on the go for a week or so, rekindling it every day. One day I’d just managed to get it lit, when there was a massive boom, it lifted the slab [under the fire] and fire 2’ in the air. Quite amusing as it landed back down with barely a puff of smoke



[zzr1200]

Once had a fire burning wood pulled from a building renovation, it had been on the go for a week or so, rekindling it every day. One day I’d just managed to get it lit, when there was a massive boom, it lifted the slab [under the fire] and fire 2’ in the air. Quite amusing as it landed back down with barely a puff of smoke

I can imagine, I have heated many a ring gear in days gone by, I've fitted a few in some awful places and working conditions as a service engineer.



[Kent]

I have experienced old concrete letting go and its not worth catching a a chuck with your nogginn



[RichardM]

Good to see you back on your feet

Nice bearing work

Seconded.

Also blown a nice dish shape out of a concrete slab with a disposable BBQ - sausages survived but only for a bit



[zzr1200]

Seconded.

Also blown a nice dish shape out of a concrete slab with a disposable BBQ - sausages survived but only for a bit

Well the trick to not blowing concrete is not to have the heat source or item your heating in direct contact with the concrete, always have spacer.

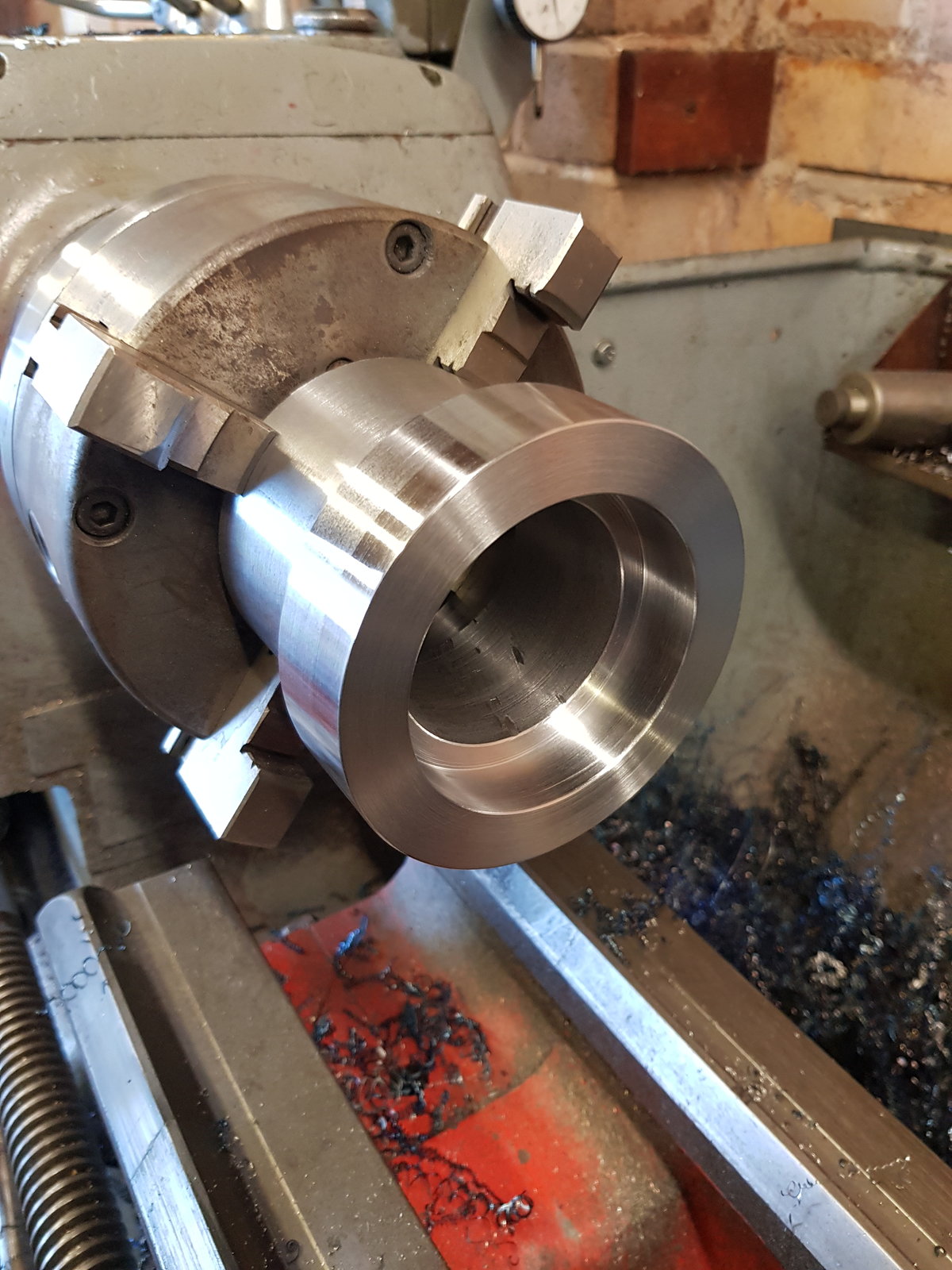

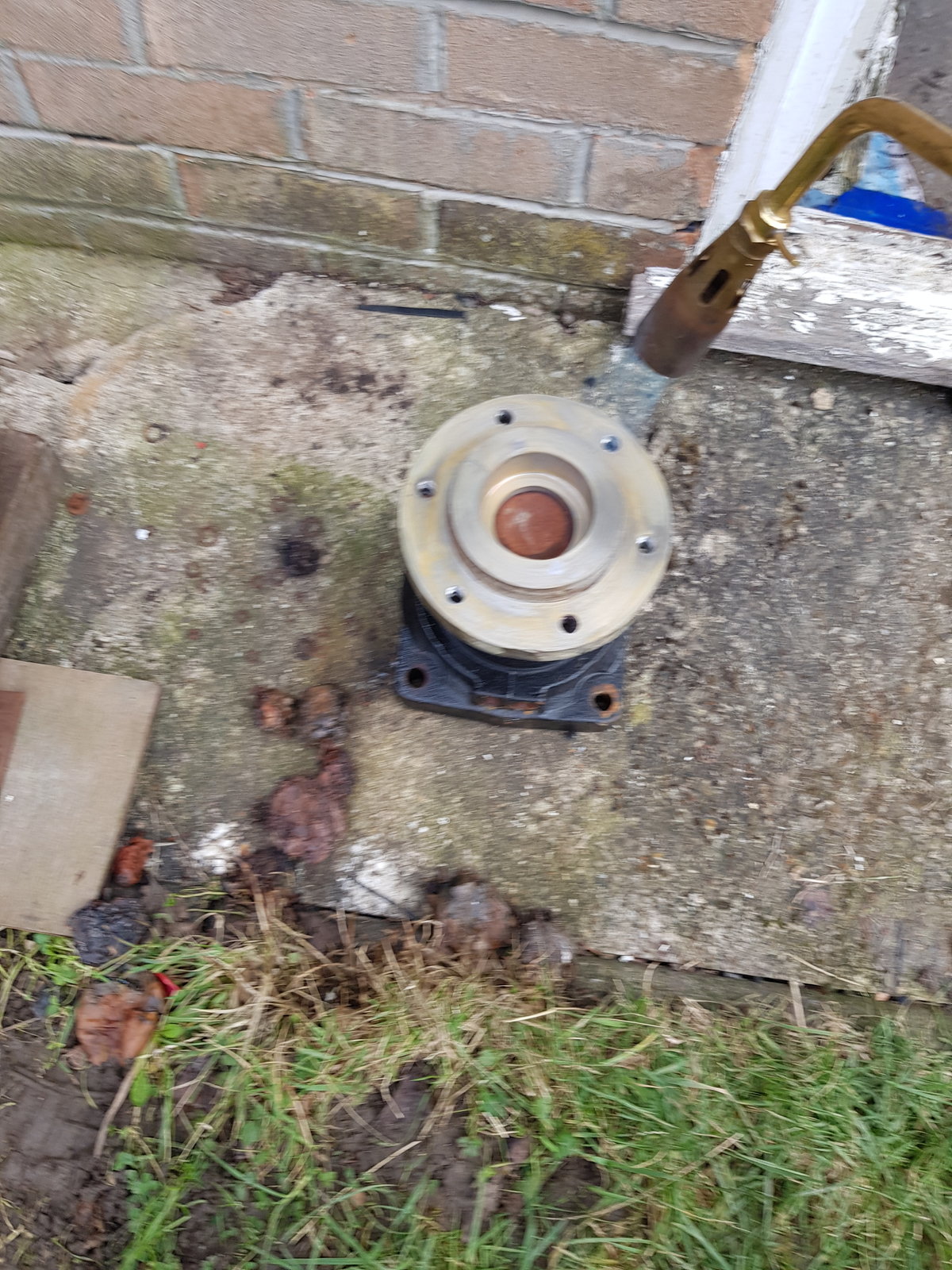

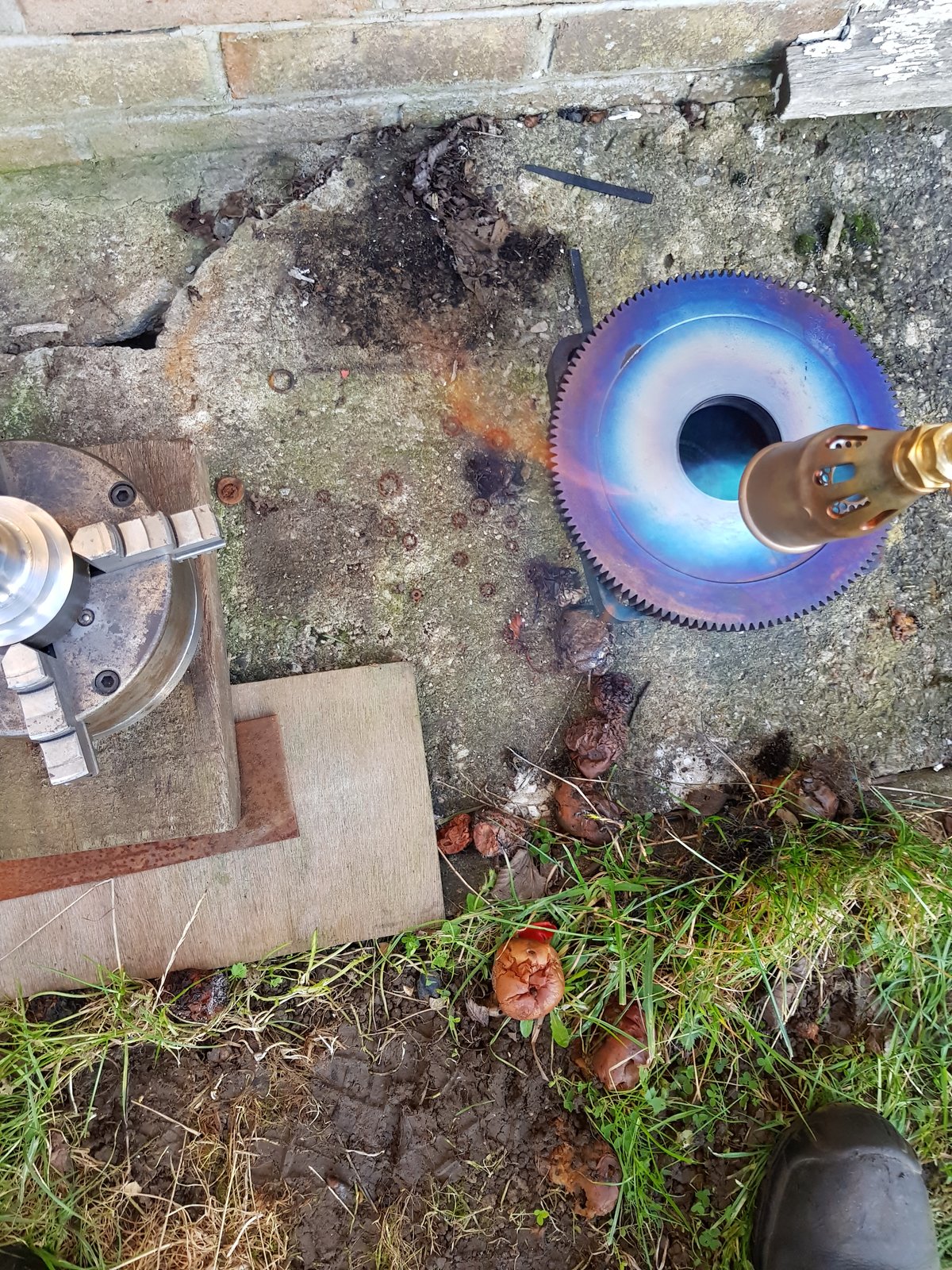

Today hopefully I will be finish machining the centre hole, then heating n shrinking the table mounting plate to the pivot shaft.

More to follow.



[zzr1200]

Part 5...

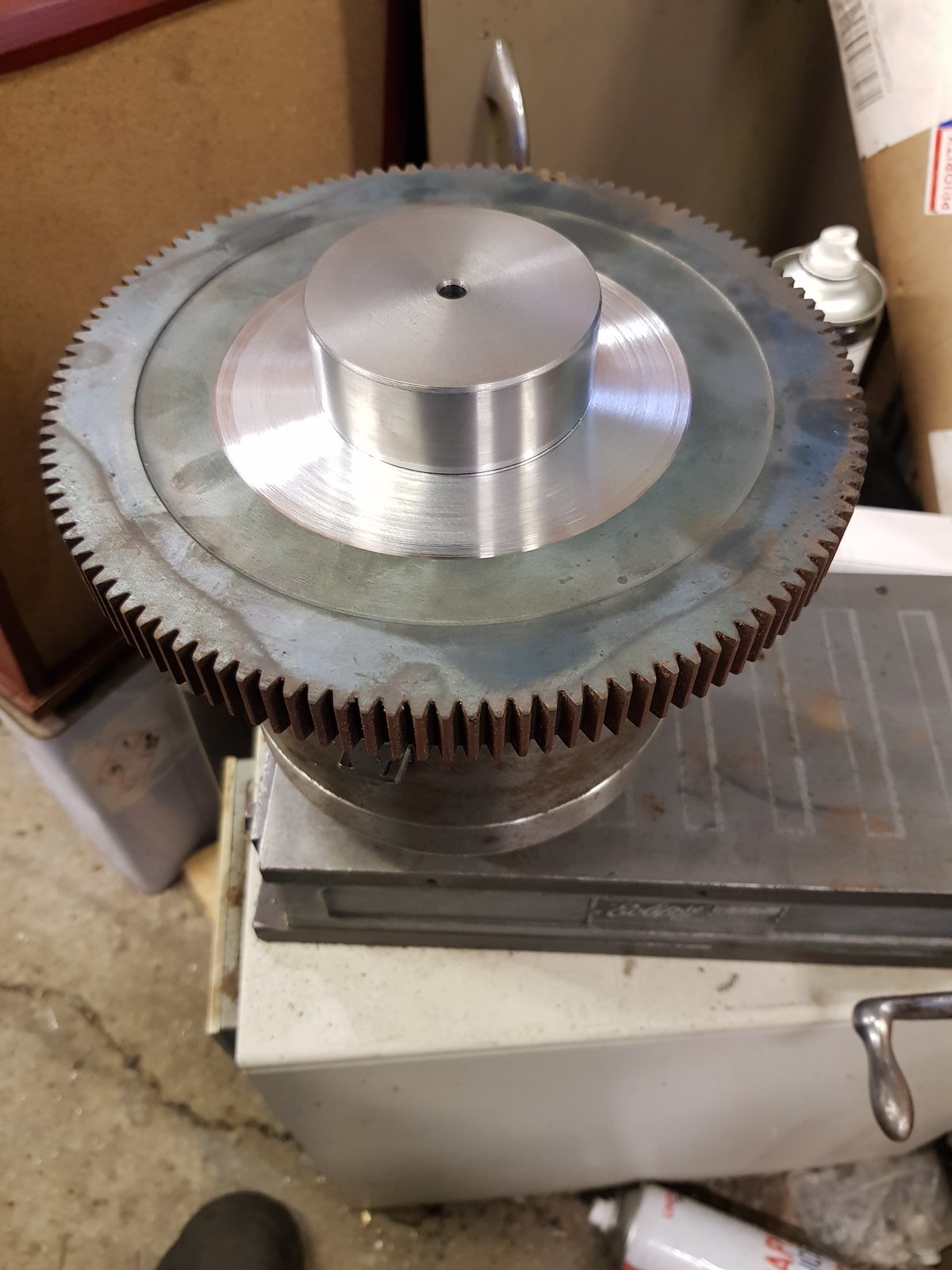

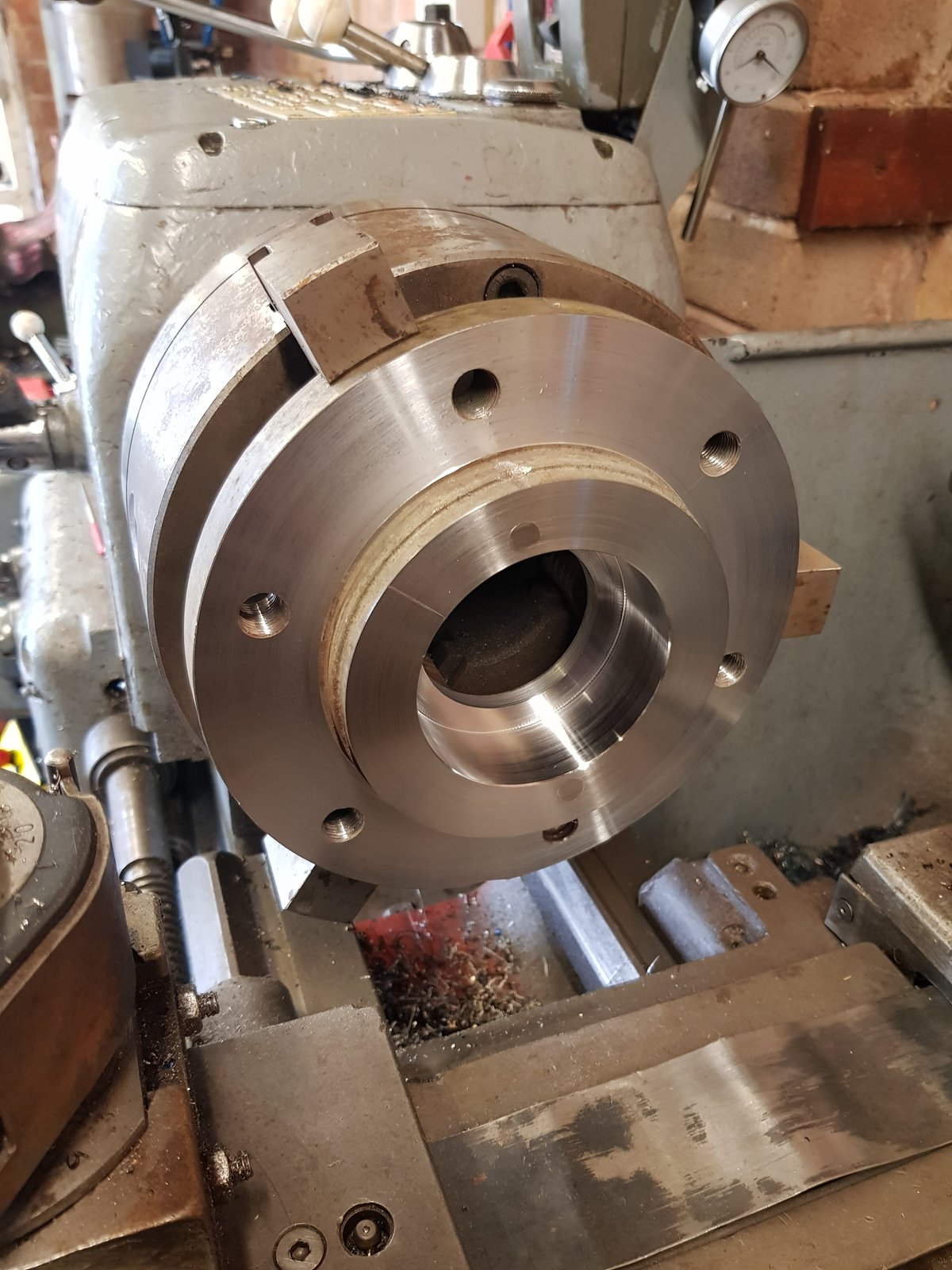

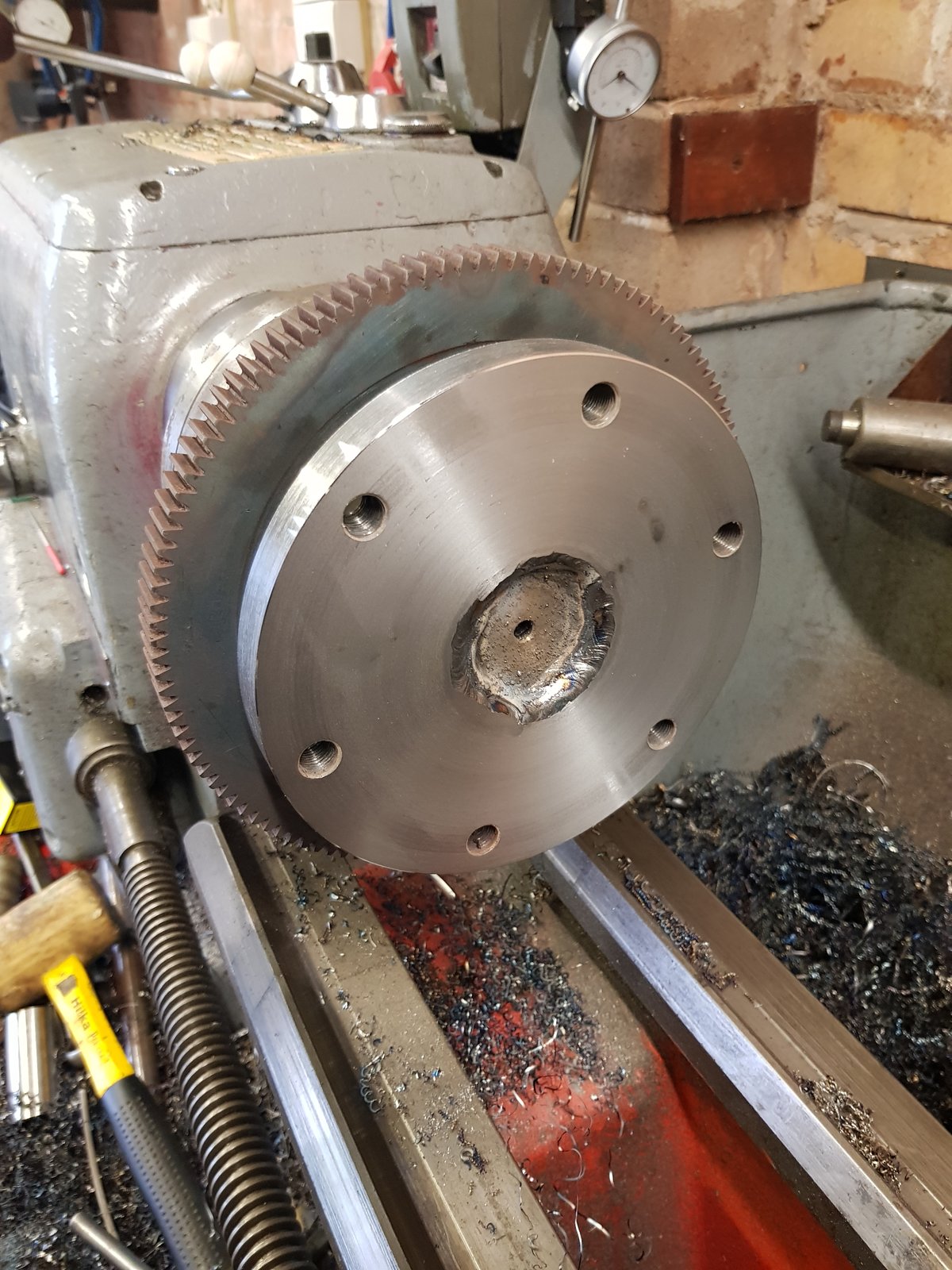

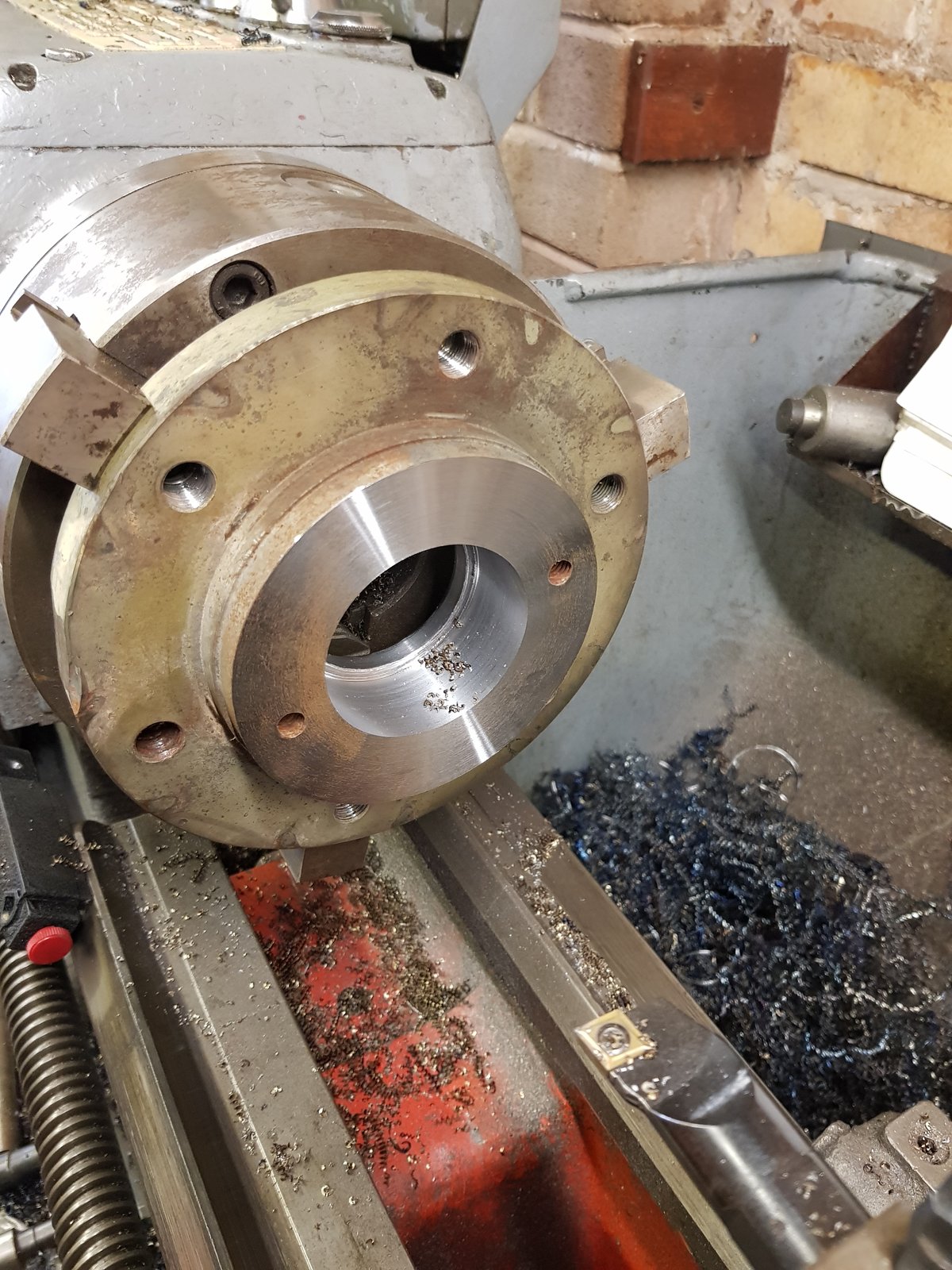

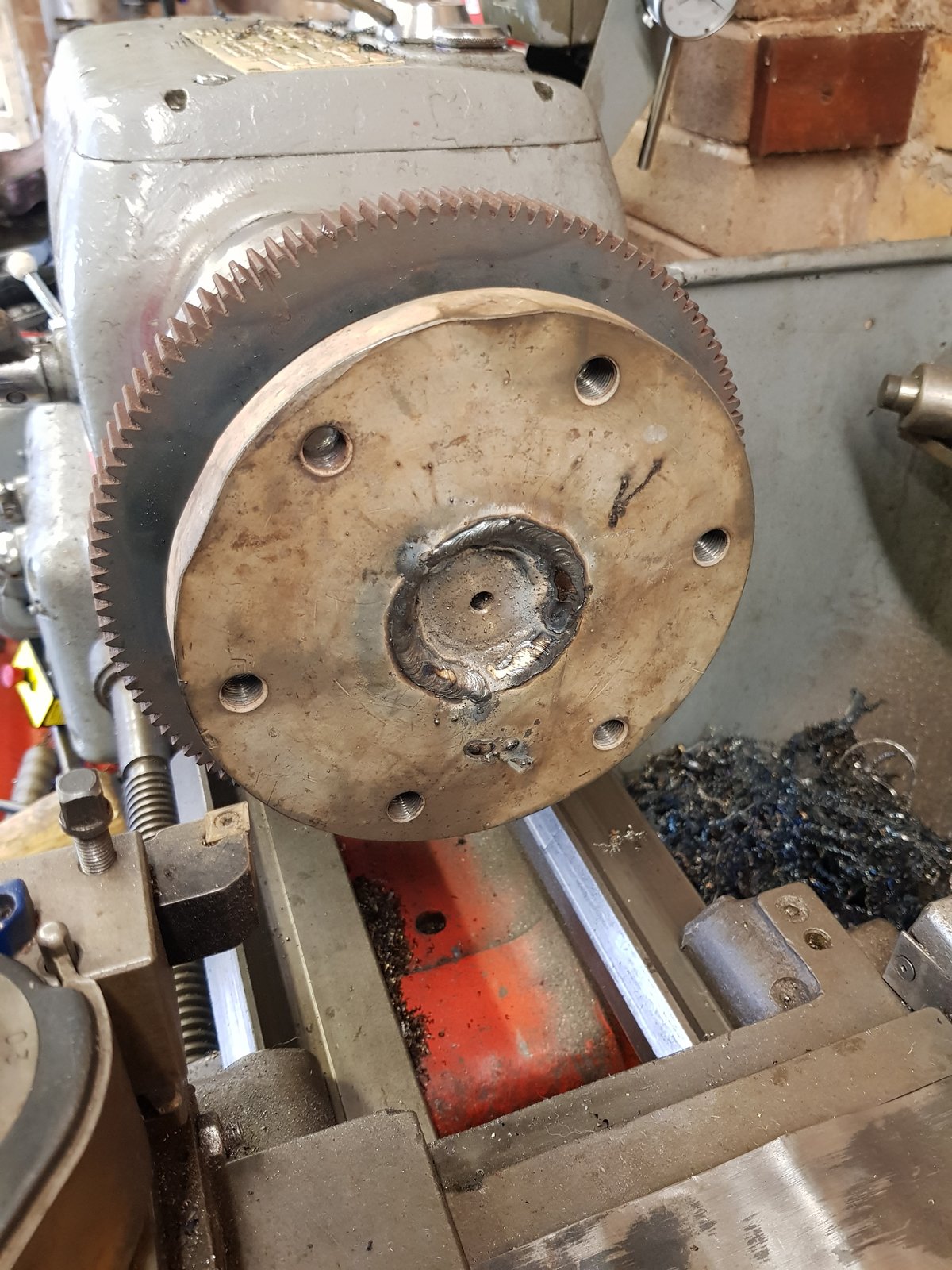

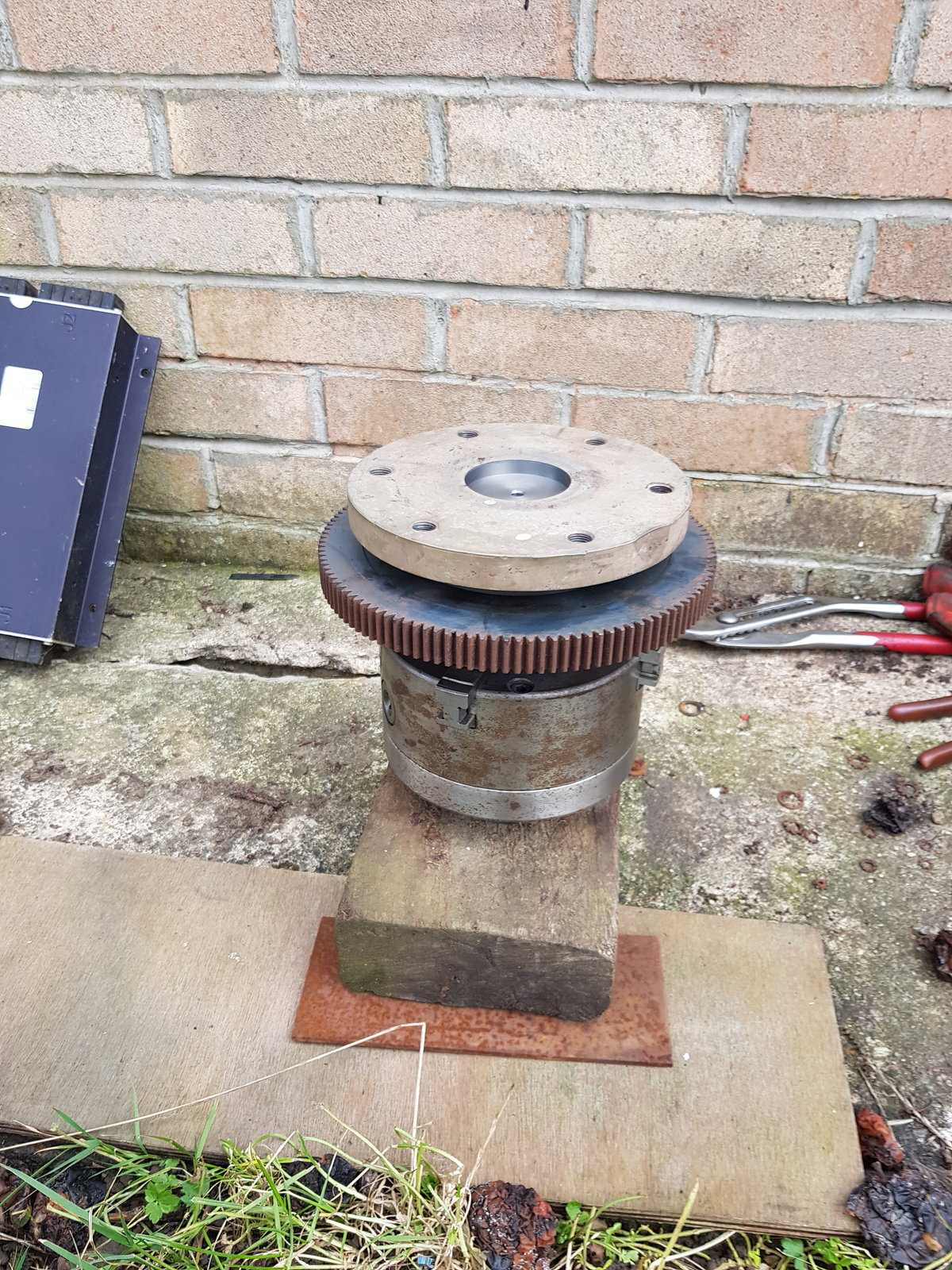

Finished off fitting the table mounting flange to the main shaft, shrink fit, welded (belt n braces) and then machined to be pretty.

I now have to machine the end plate to cover the bearing and secure the main shaft into the bearing housing.

Then I'll moving on the table support beam/box section.

Again photos to cover progress.
