Rotary Welding Positioner; The Build

[Shox Dr]

Is the brass to be fixed to the shaft or turn on it



[brightspark]

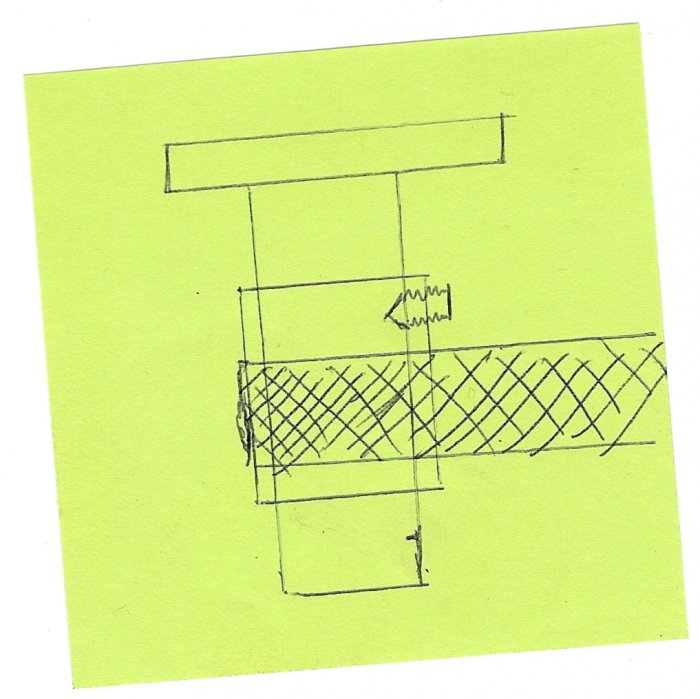

brass sleeve pickup secured to shaft with grubscrew scuse the td



[Rick]

Looks very nice, PM me a price, or just a price for the motor and gearbox if you've not got time to make another



[Weldingartisan]

Sorry shox, hadn't read this post before I PM'd you. Does the pillow block/gearbox have a thrust bearing incorporated? W/A



[Shox Dr]

I haven't had time to do any costing yet, to all those that have PM'd me or asked in this thread about the availability of these I will let you know.

Cheers



[Weldingartisan]

But you said you had nothing else to do..............! W/A



[Shox Dr]

But you said you had nothing else to do..............! W/A

I wish.



[pidgeon chit welder]

I worked at bosal exhaust, we had machines a little like that.
Your ground strap idea looks superb, simple and cost effective, I have an issue here at work with static build on on rollers that feed paper into machinery, I've tried various expensive methods, that might be worth a try.

re the static could you use carbon impregnated rubber "hairy spider legs " or copper hair strand stuff strip like is used on the inside of computer printers

Most times it is in direct contact across the full length of the roller



[Robotstar5]

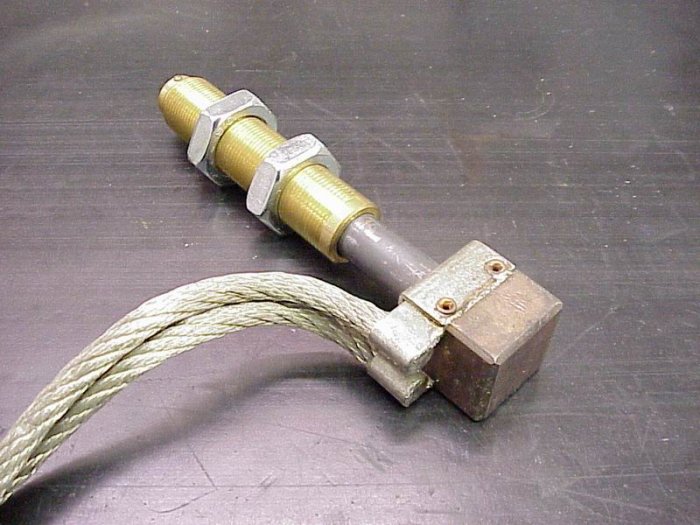

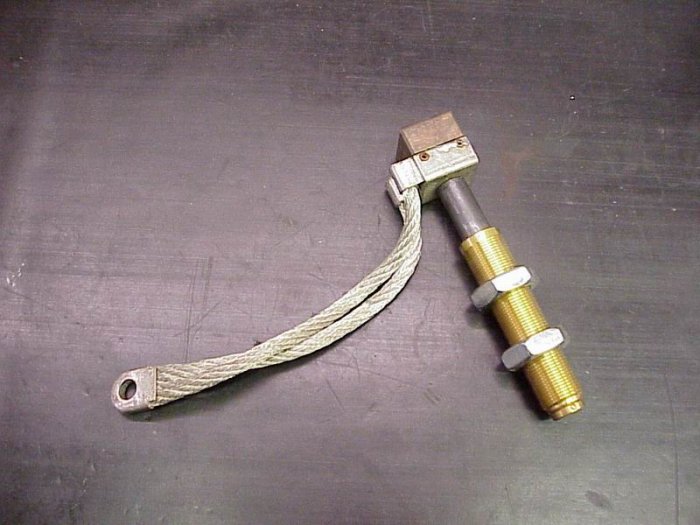

These are the weld return blocks we use at work, there is a spring inside the brass body to keep the block in contact with manipulator.



[craig westerman]

Welding positioner

I see alot of time has gone into the design of this positioner and it looks great well done.

Craig Westerman
Westermans International



[Shox Dr]

Cheers Craig, I was only on your site the other day. A baby compared to some you have on there



[pidgeon chit welder]

" I had a dream ! "
For a rotary welding table .. why not use an old cut down driven axle for the 90 degree drive transmission .
They can usually be driven either from the prop shaft input or at the end of one of the half shafts if the other end is welded fast .
Make up three sets of double belt pulleys two for drive and one set for an automatic spring type device belt tensioner .
Then drive it via a matched pair of fan belts to keep the weld electricity off the drive motor bearings . Set the drive motor on a frame that is electrically insulated by old engine mounts

Under the table top attach a brass earth ring and use some of the big starter motor brushes under spring tension as the welder ground /earth point contact that is run out to a heavy duty earth clamping point.


If the table is large or has heavy loads also put four or six hard nylon castor's on adjustable legs equidistant under it towards the outer edge



[GPollock]

Grounding Brushes on Rotary Applications

Does anybody know where I can purchase a spring loaded carbon brush assembly for mig welding application on turntables. We do a lot of coordinated motion with Mig welding and I need some brushes capable of 400 amps each. Appreciate any help. Have search the internet and have not found anything that we can pruchase.



[Balders]

Does anybody know where I can purchase a spring loaded carbon brush assembly for mig welding application on turntables. We do a lot of coordinated motion with Mig welding and I need some brushes capable of 400 amps each. Appreciate any help. Have search the internet and have not found anything that we can pruchase.

Try here:
http://www.tibram.ch/scripts/prod1e.asp



[fastboy55]

Hi Again
Just to be sure, the price you quoted was for the motor & reduction gearbox + inverter as per pictures on this thread.

Regards Steve



[Shox Dr]

Hi Again
Just to be sure, the price you quoted was for the motor & reduction gearbox + inverter as per pictures on this thread.

Regards Steve

Hi Steve yes it does as Per PM.



[ukracer]

Hi Steve yes it does as Per PM.

Did you ever make up all the positioners as its seemed to go quiet for a while.

Regards Andy T



[Shox Dr]

I only made one. I've sold a few of the motors and inverters for other to build their own.

(I can't believe this thread has had 22k hits)



[Wallace]

(I can't believe this thread has had 22k hits)

22k potential customers?



[Shox Dr]

22k potential customers?

Unfortunately people seem to think you can make them for peanuts
