Victoria/Elliott rotary milling table

[Andrew Booth]

I have various 'orphan' plates that may or may not fit that ..do you have dimensions (particulary of the centre bore and the fixing holes)

Morning I will take plat of an find the dimensions of bore an fixing holes thanks



[Andrew Booth]

As said above, you need to determine the worm ratio of the table - how many full turns of the handle give one full turn of the table. Without this info. any plates you do find will have limited usefulness even if they are physically the correct shape.

More important than the plates at this stage is the missing indexing fingers. Without them, it is very difficult to use the device. If you cannot or do not want to go about procuring them, you might be better to remove the plate altogether and put on a graduated handwheel.

Will work this out an post on here how many turns .. thanks



[Andrew Booth]

It does match the plate that is on my dividing head.

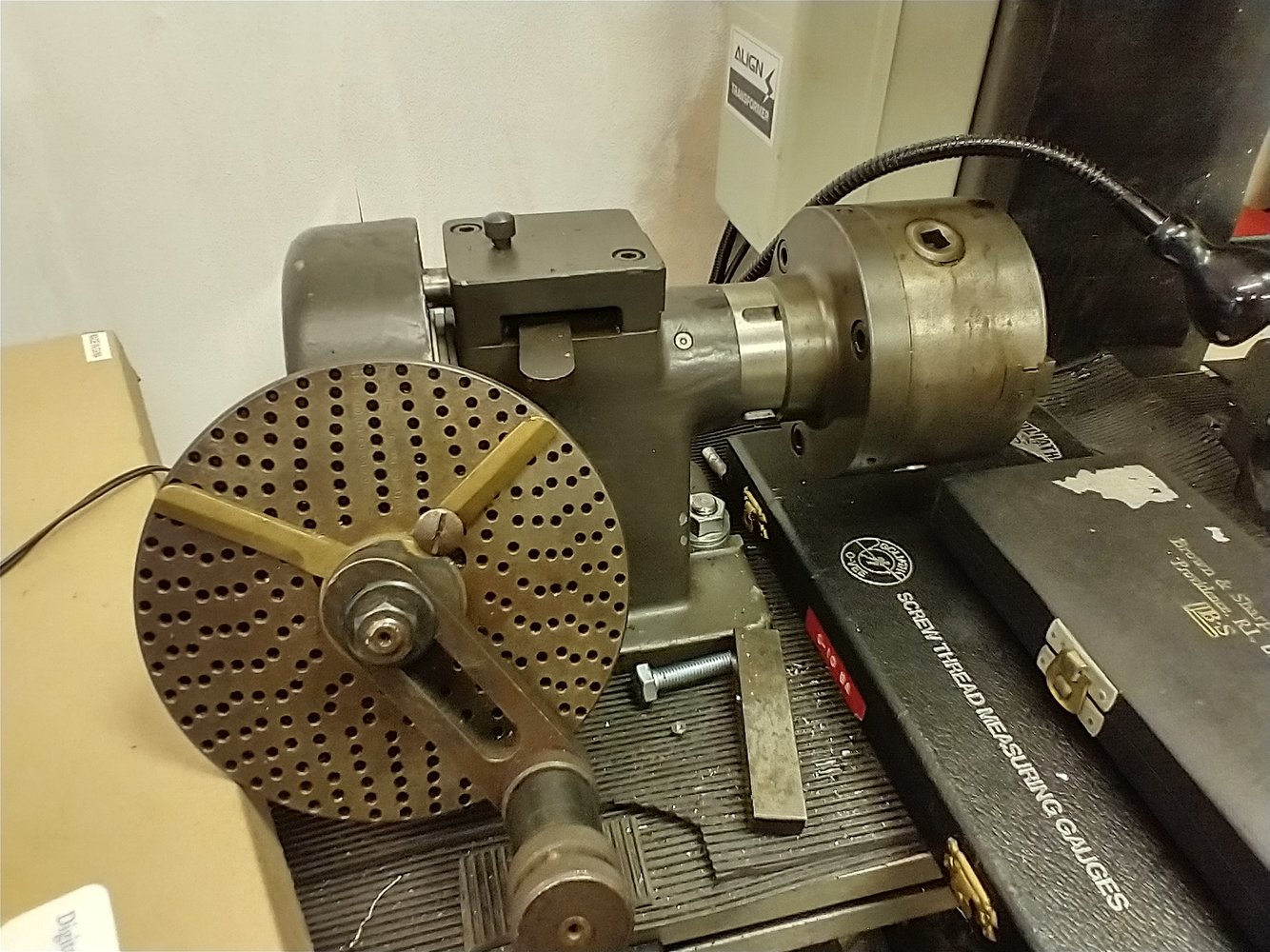

View attachment 310851

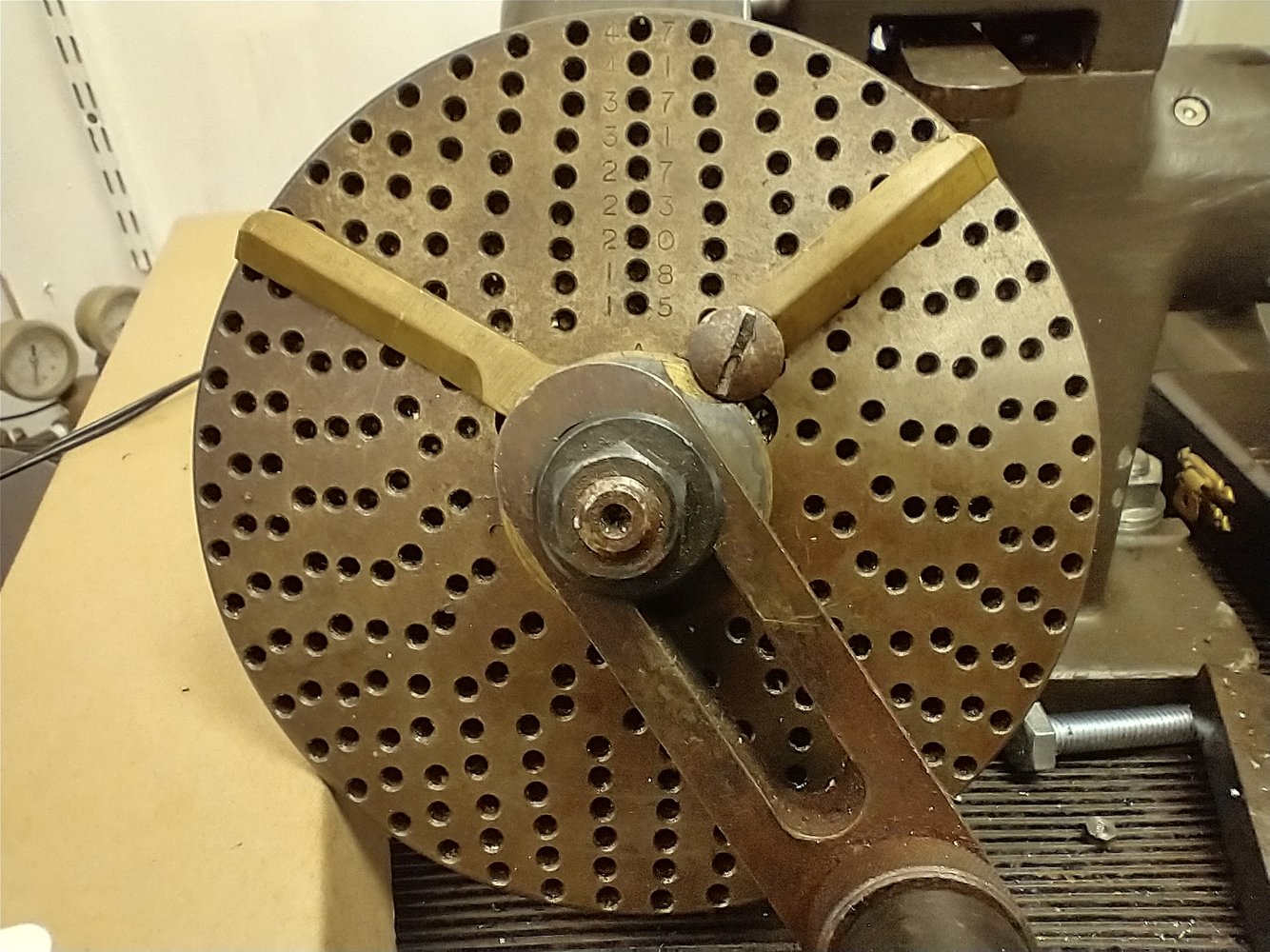

View attachment 310852
I'll have a hunt for the spare plates later

Yes that looks the same will find out dimensions on mine



[Andrew Booth]

Thanks for your help every one
