Alba 1A shaper strip and rebuild

[God mode restorations]

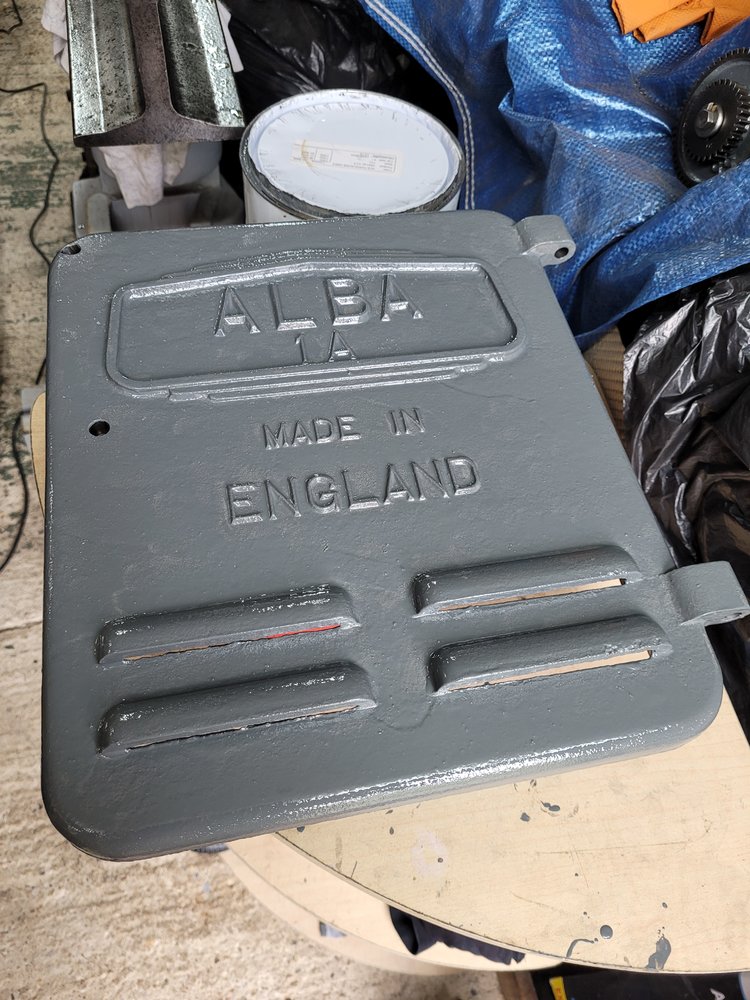

Door painting today..and fitted another part..nothing to interesting



[God mode restorations]

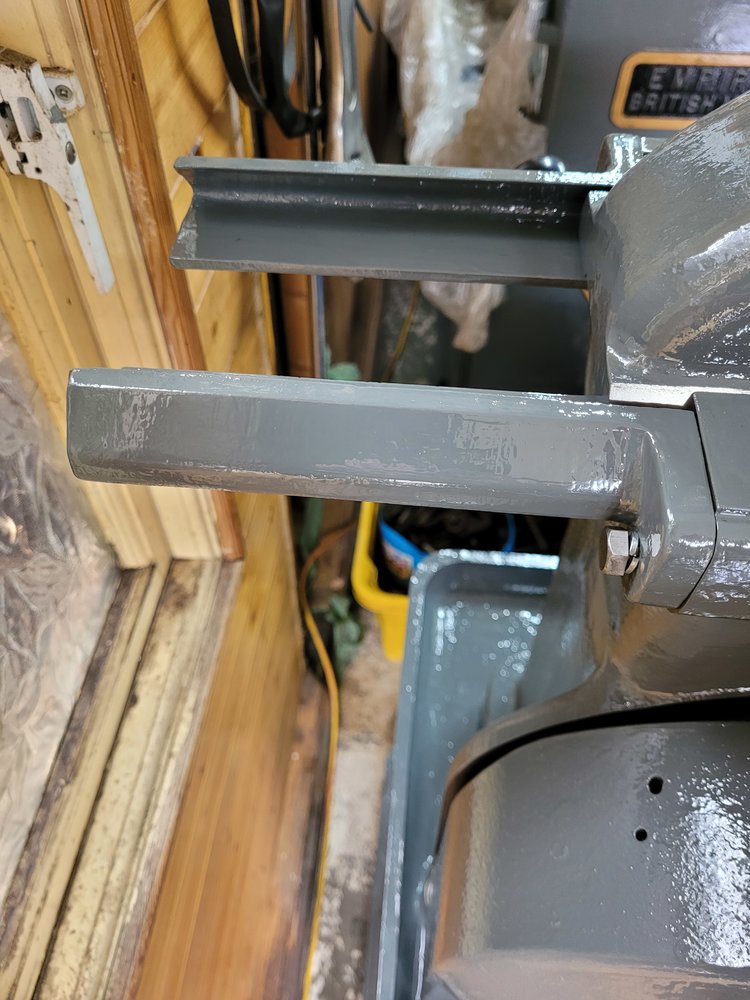

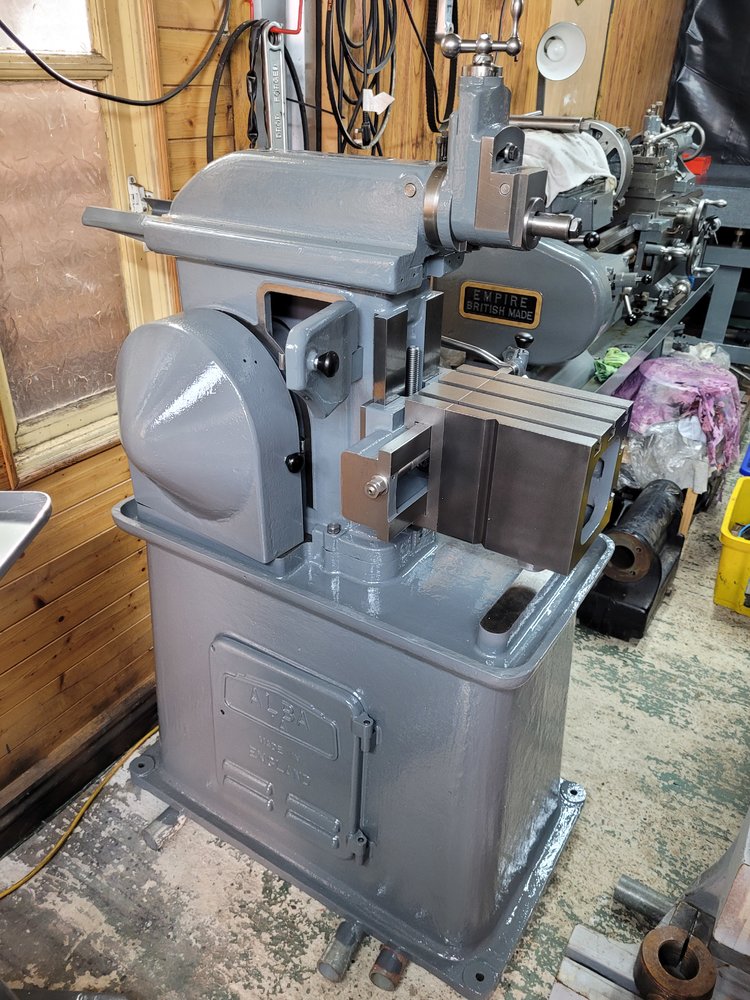

All doors complete on the shaper build



[God mode restorations]

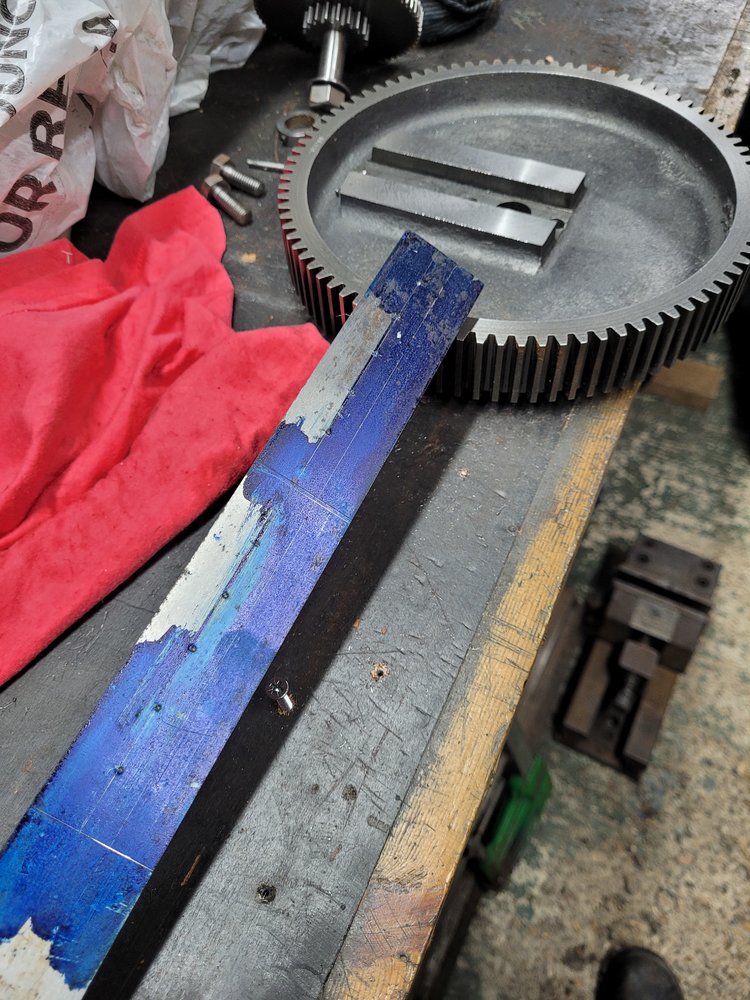

While waiting for paint to dry for the mellor lathe I thought I'd get on with the shaper build. Bull gear has been machined down for the new plates to be drilled and bolted..



[God mode restorations]

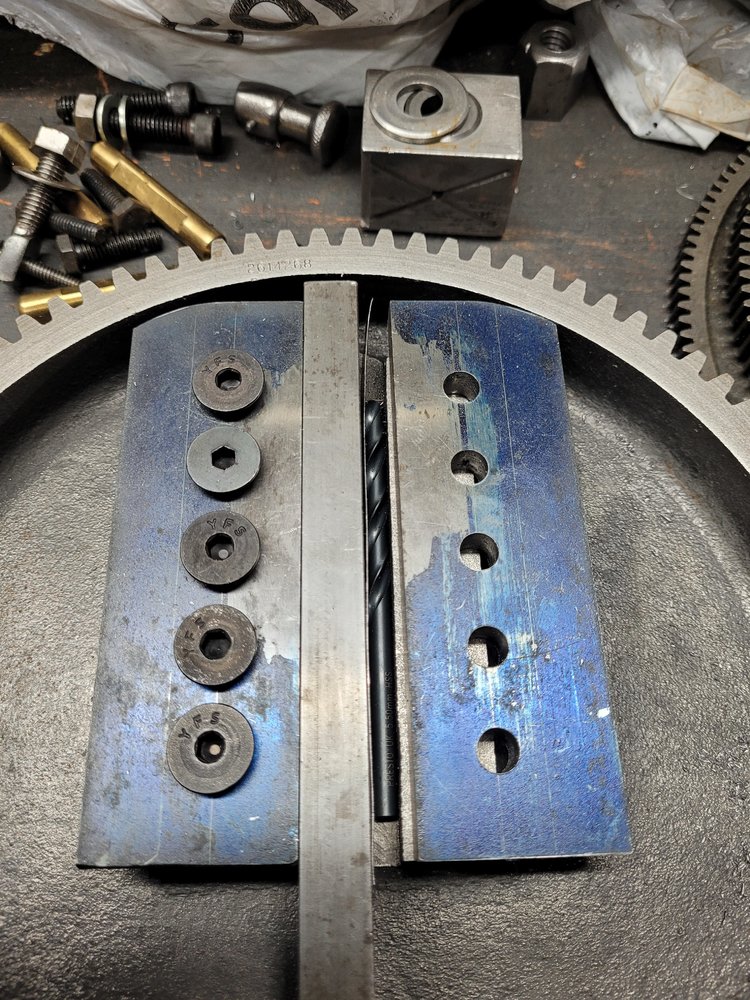

Today. Made a start drilling the holes for the bull gear plates..just got to position them and mark everything before I countersink them.



[6ply]

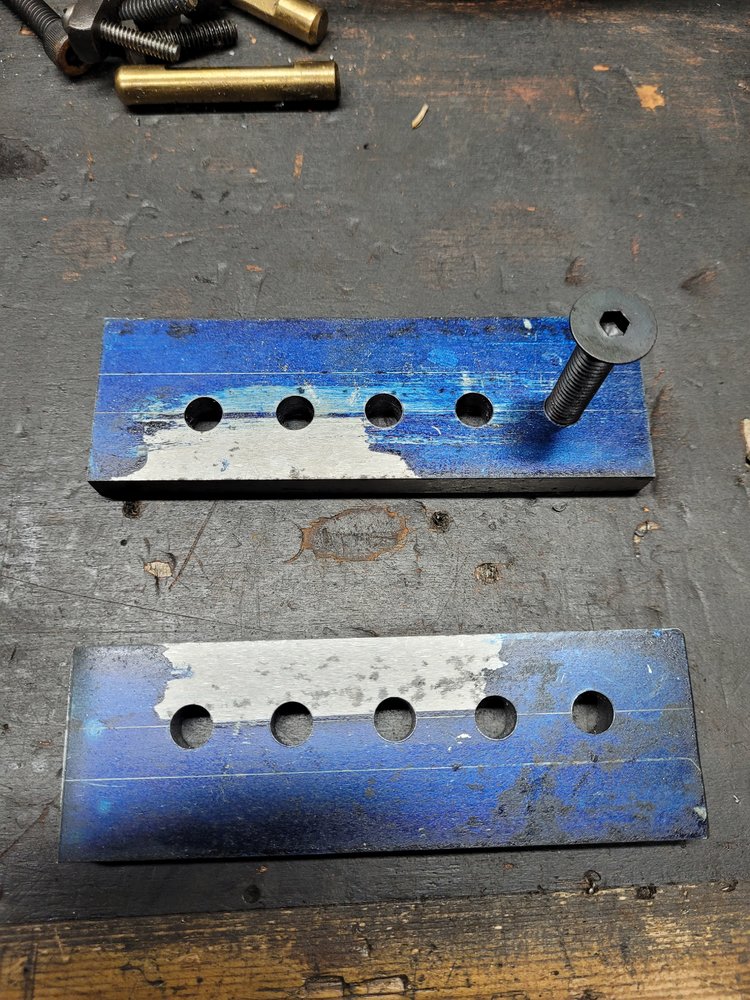

Today. Made a start drilling the holes for the bull gear plates..just got to position them and mark everything before I countersink them.

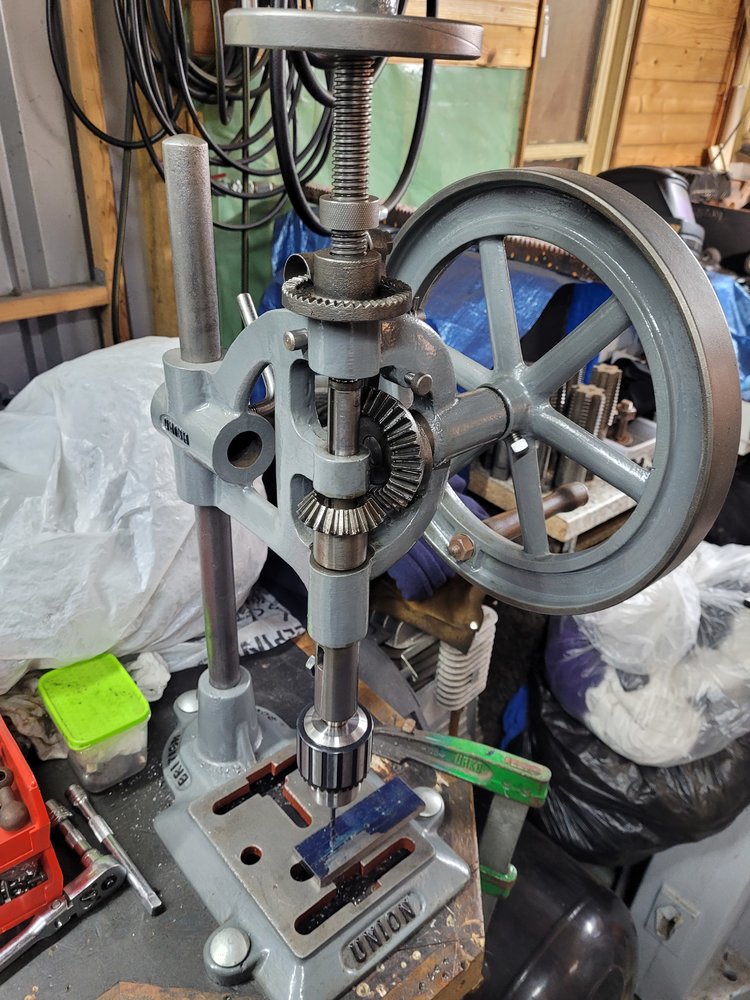

View attachment 434332 View attachment 434333 View attachment 434334

Nice drill. Does it down feed automatically?



[God mode restorations]

Nice drill. Does it down feed automatically?

Yes. It works off a ratchet gear . Brilliant things. I recently purchased a real big version.



[6ply]

Yes. It works off a ratchet gear . Brilliant things. I recently purchased a real big version.

That doesn't surprise me!



[God mode restorations]

That doesn't surprise me!

They are great bits of kit. But like most old vintage stuff there is a technique to using them.



[God mode restorations]

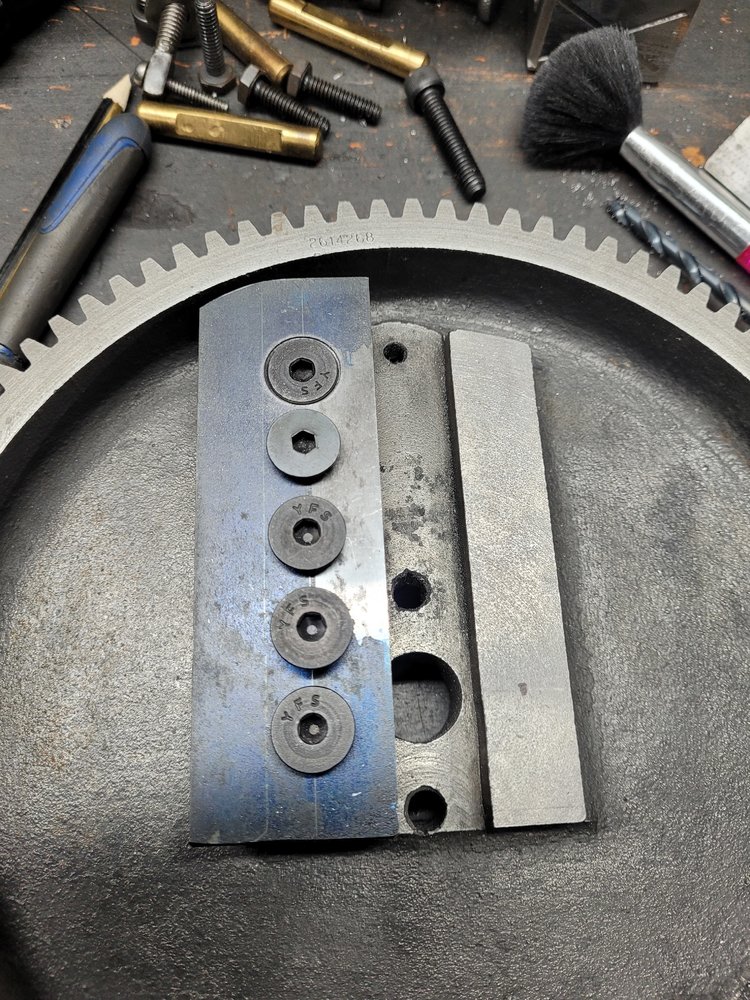

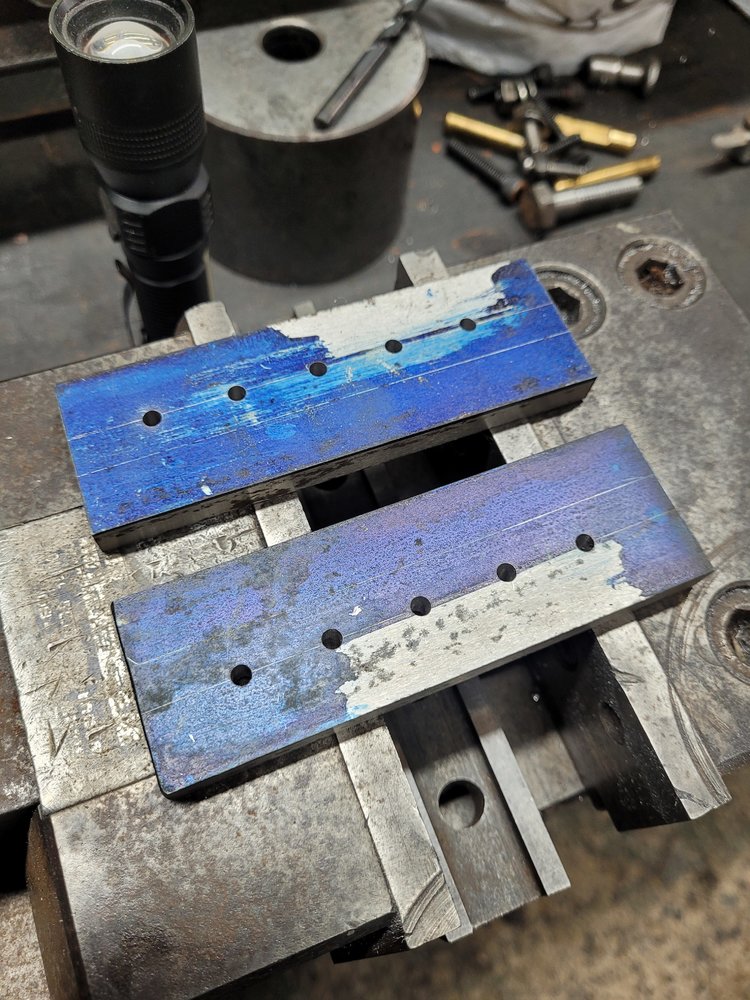

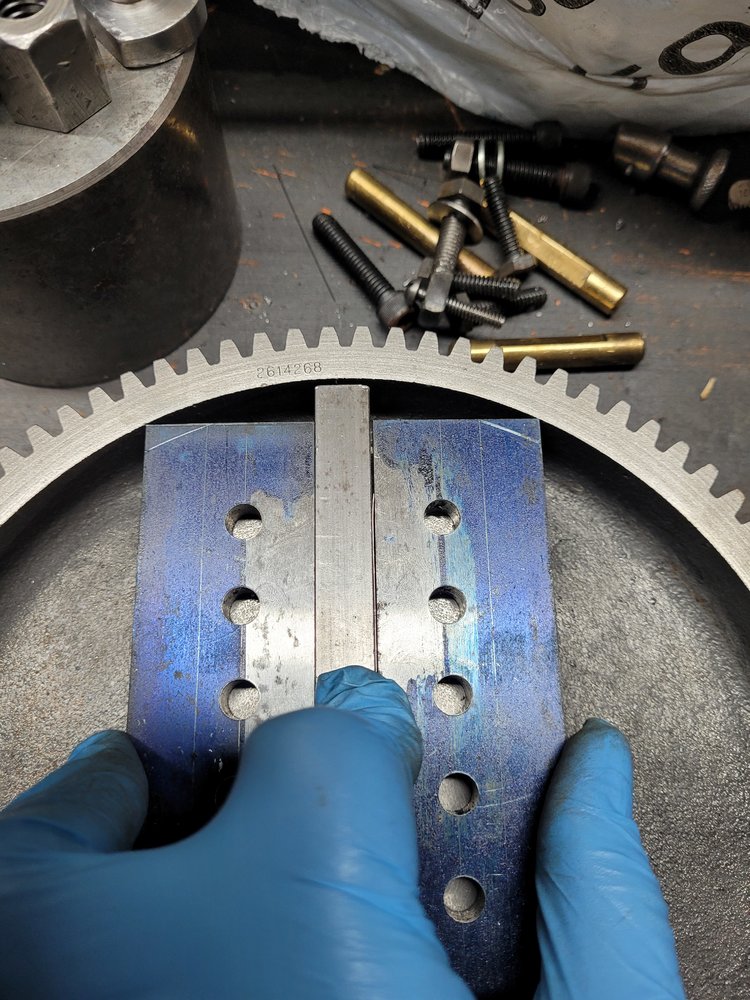

Today. Line up the plates on the bull gear and start drilling.



[God mode restorations]

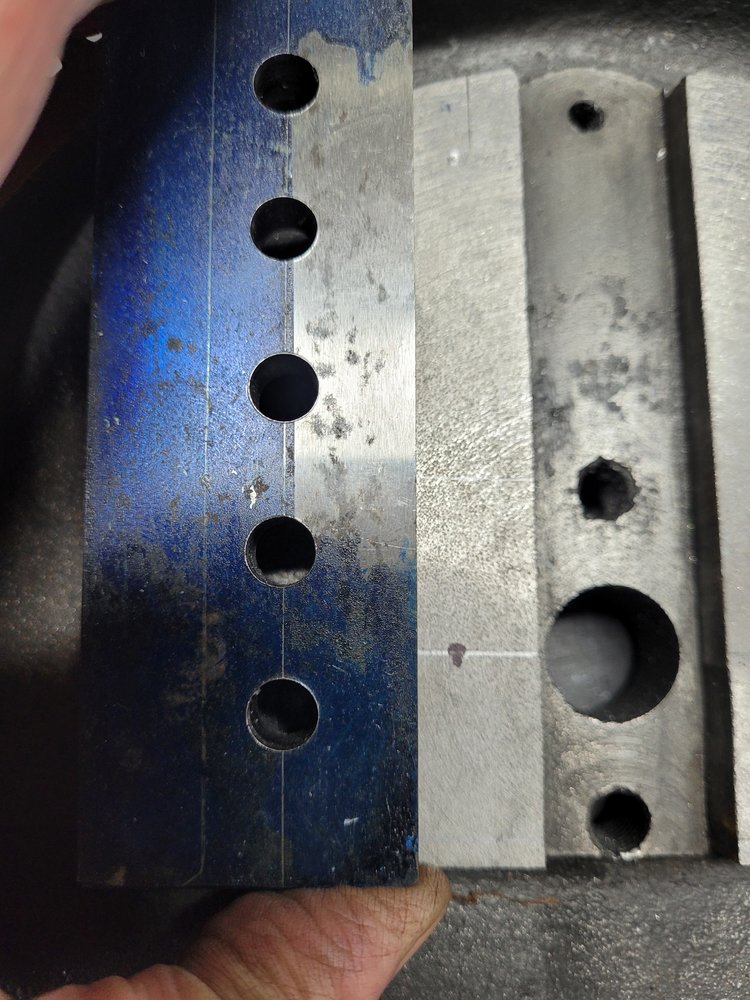

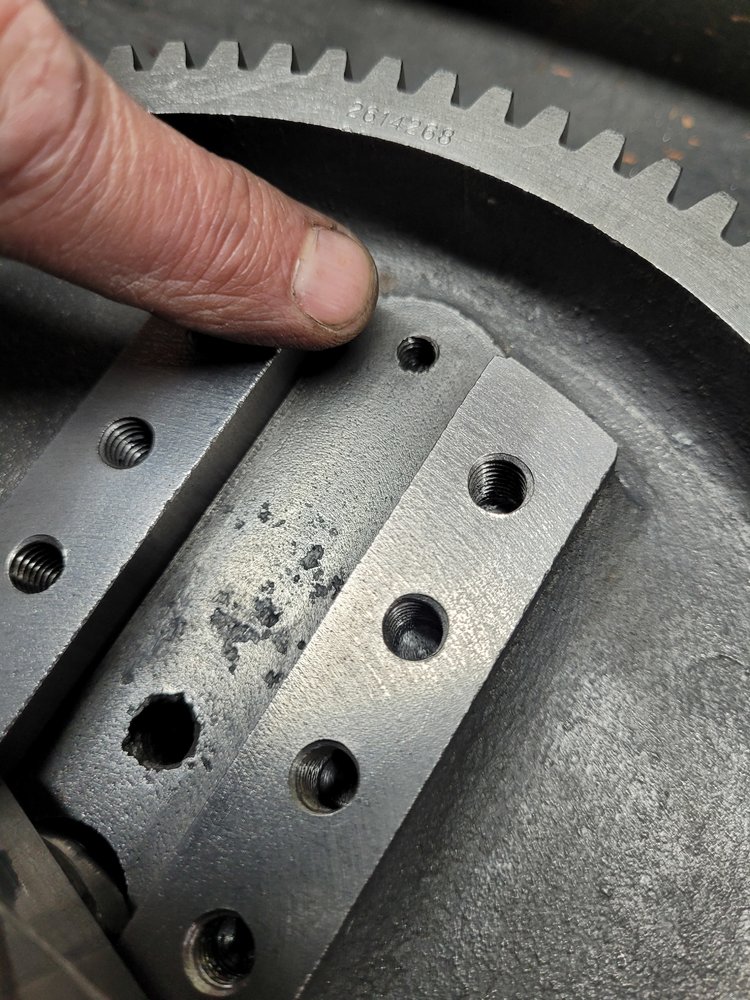

I also had to take in consideration that the bull gear bolts to the shaft via 4 bolts. Thankfully things measured out good. In the picture you will see the black dots that represents the underside drill holes. And I should miss them..



[God mode restorations]

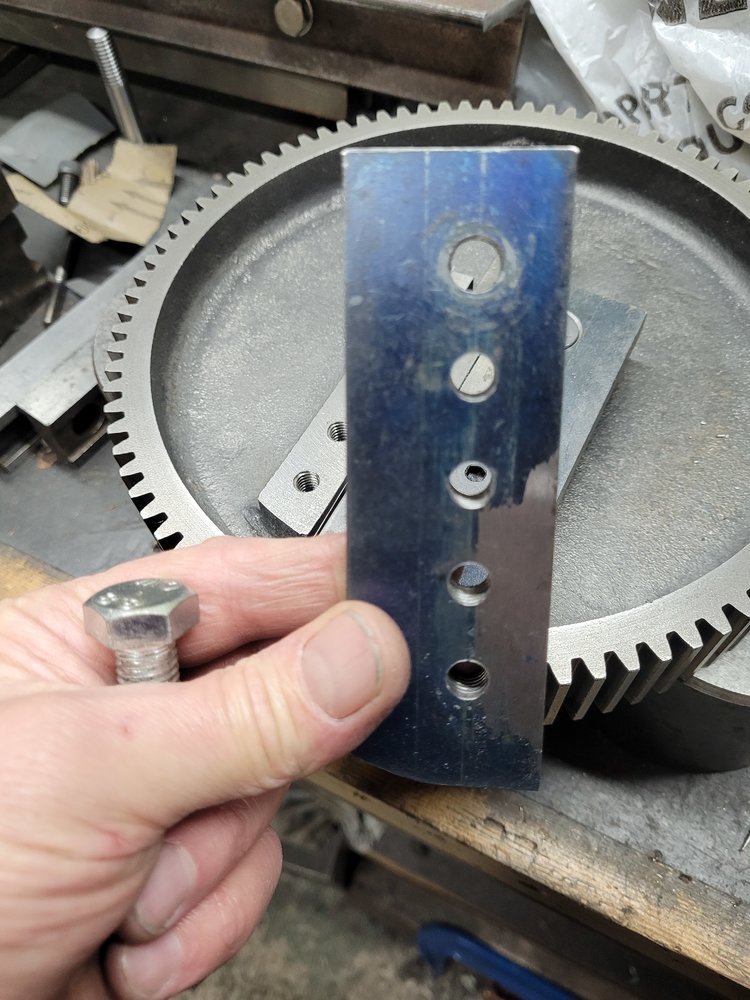

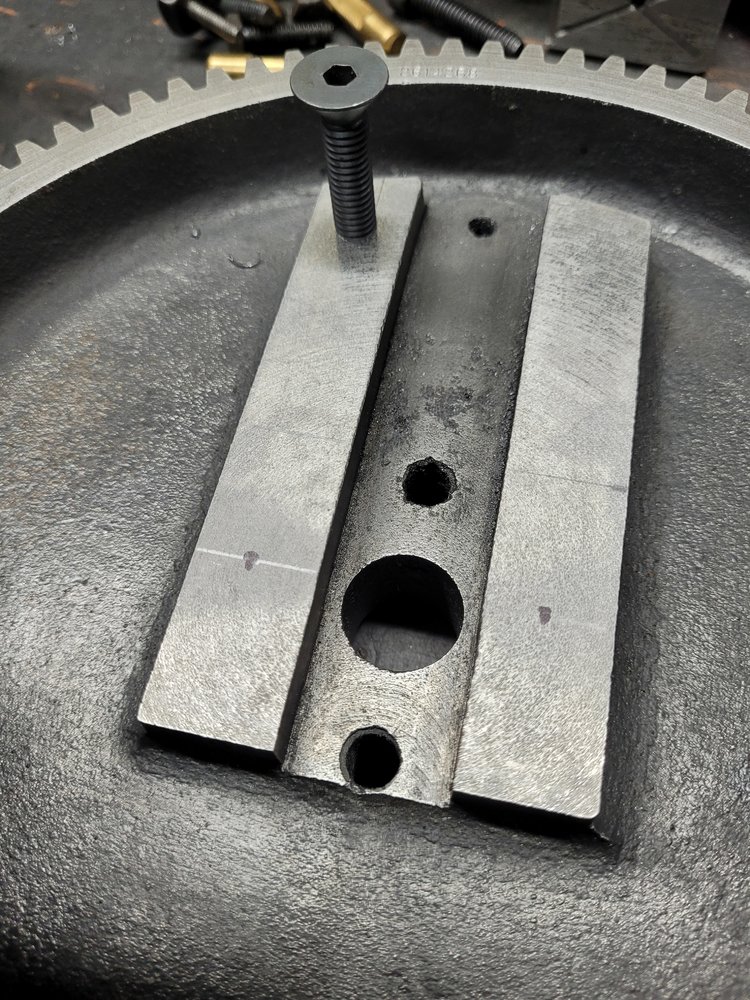

That's one hole done.. 5/16 whitworth thread. Another 9 to do.



[God mode restorations]

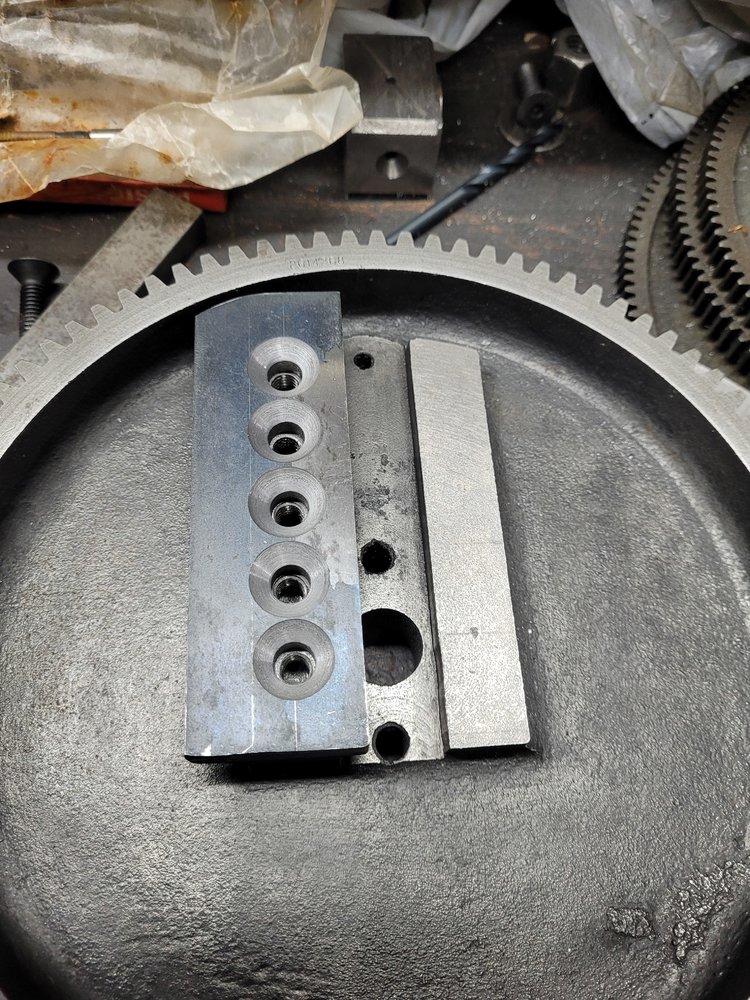

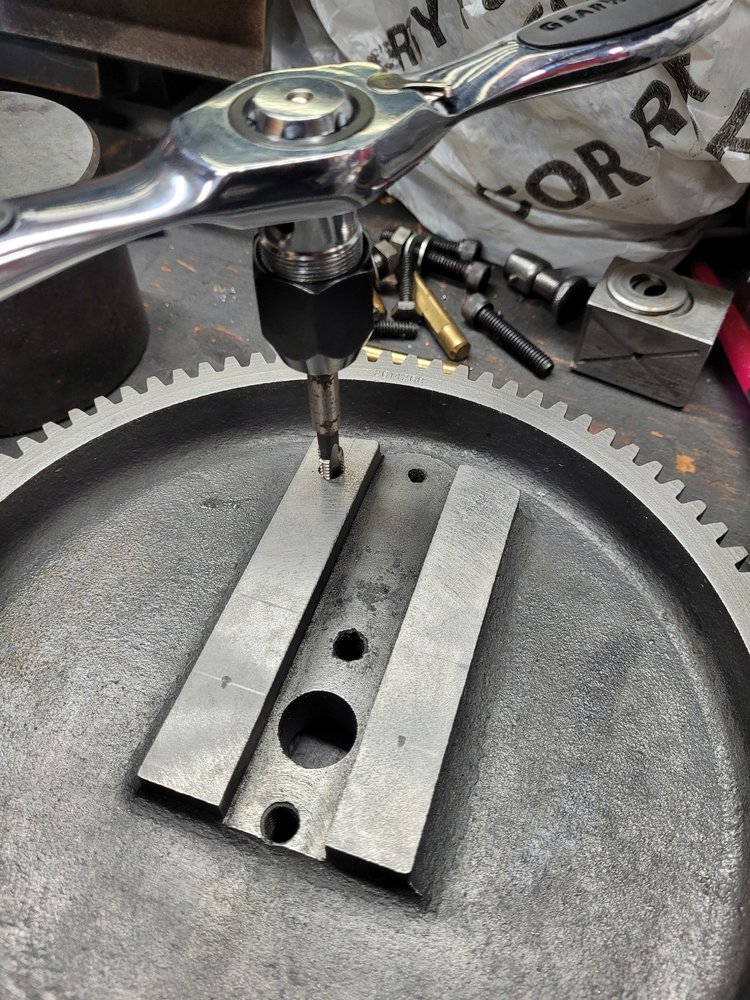

Today. Finish off drilling and threading one side..and made a start on countersink.



[God mode restorations]

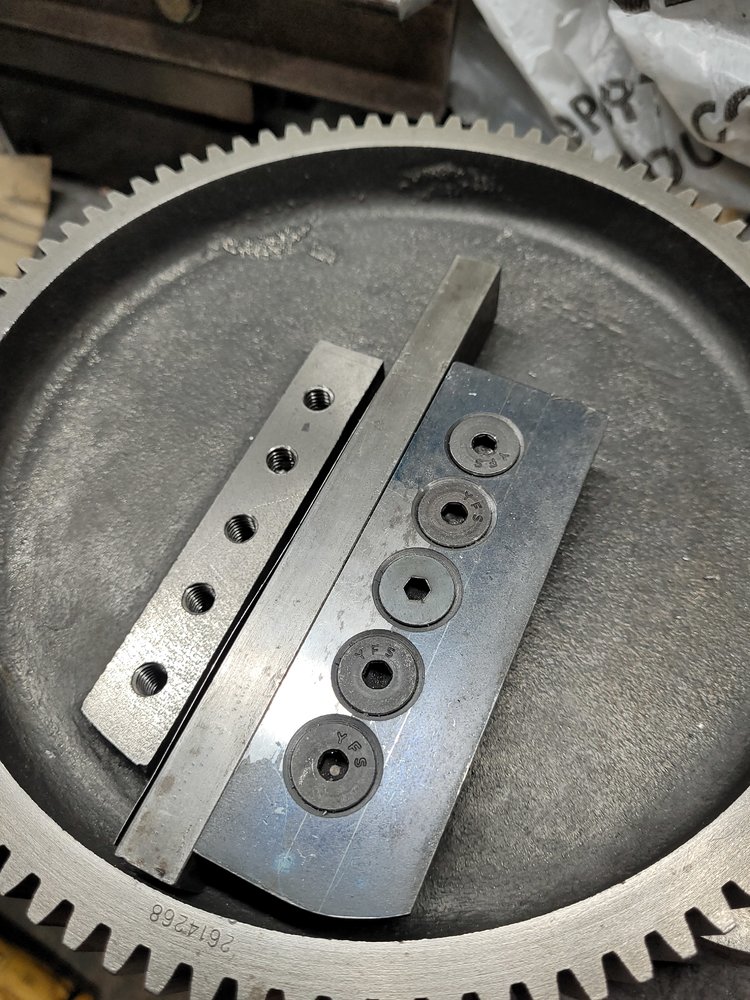

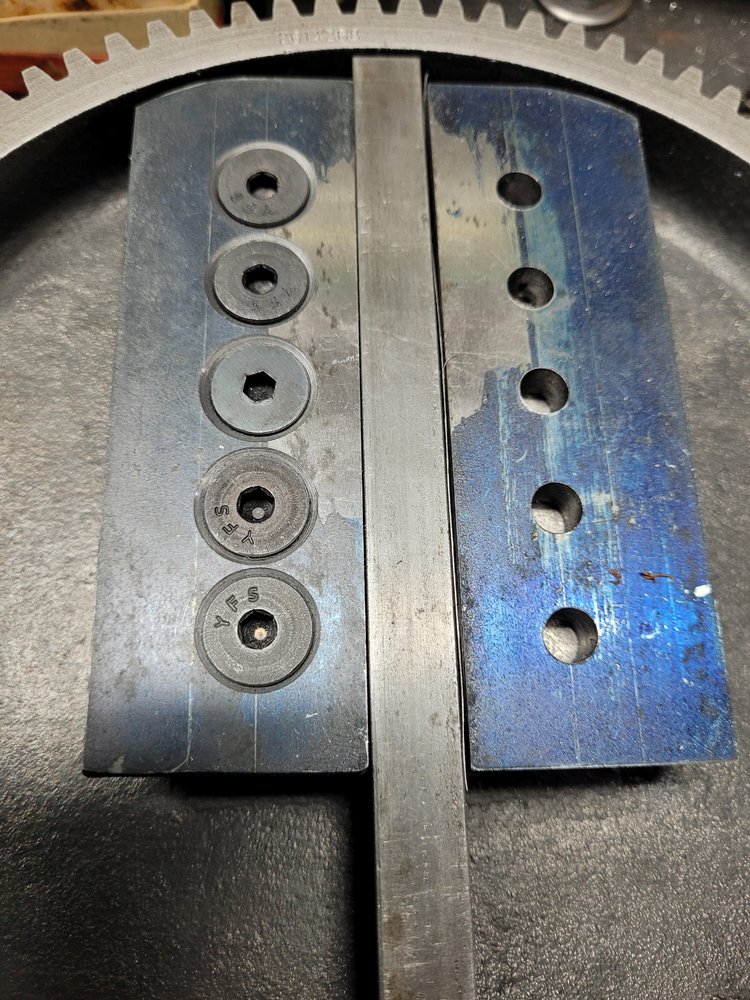

One side sorted. It's a tough ol bit of steel and my countersinks are not liking it.



[Pete.]

O-1 tool steel that is. AKA Gauge plate.



[God mode restorations]

O-1 tool steel that is. AKA Gauge plate.

I will be glad when it's done pete.



[Pete.]

I will be glad when it's done pete.

Tell you what - it won't break a second time



[God mode restorations]

Tell you what - it won't break a second time

That's for sure. They should of extended it from factory .



[God mode restorations]

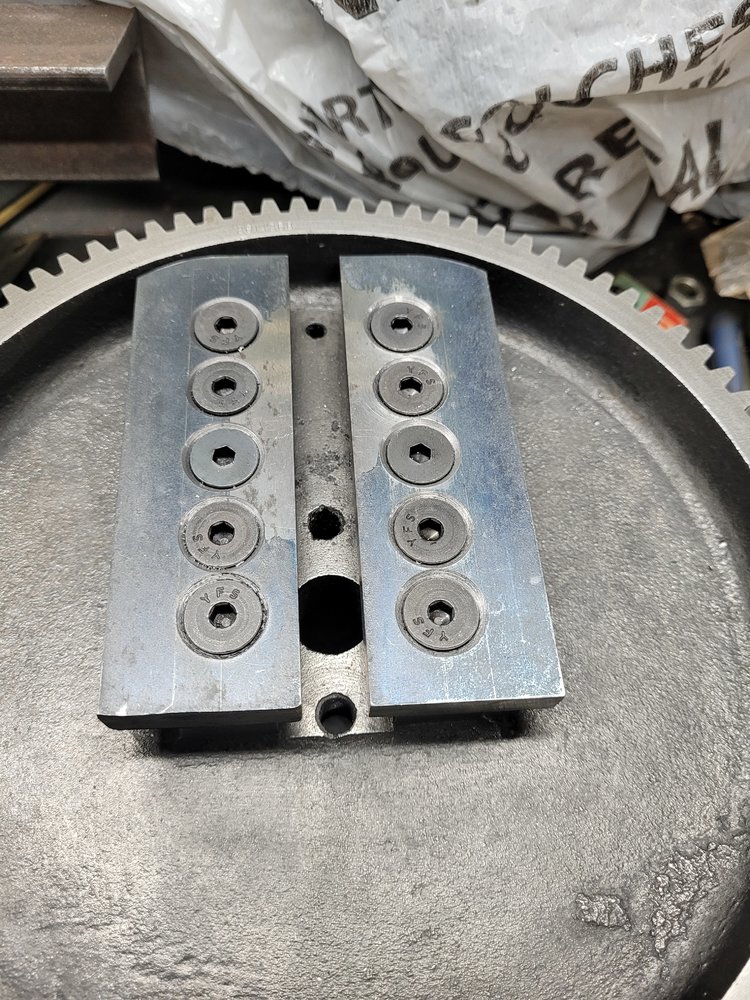

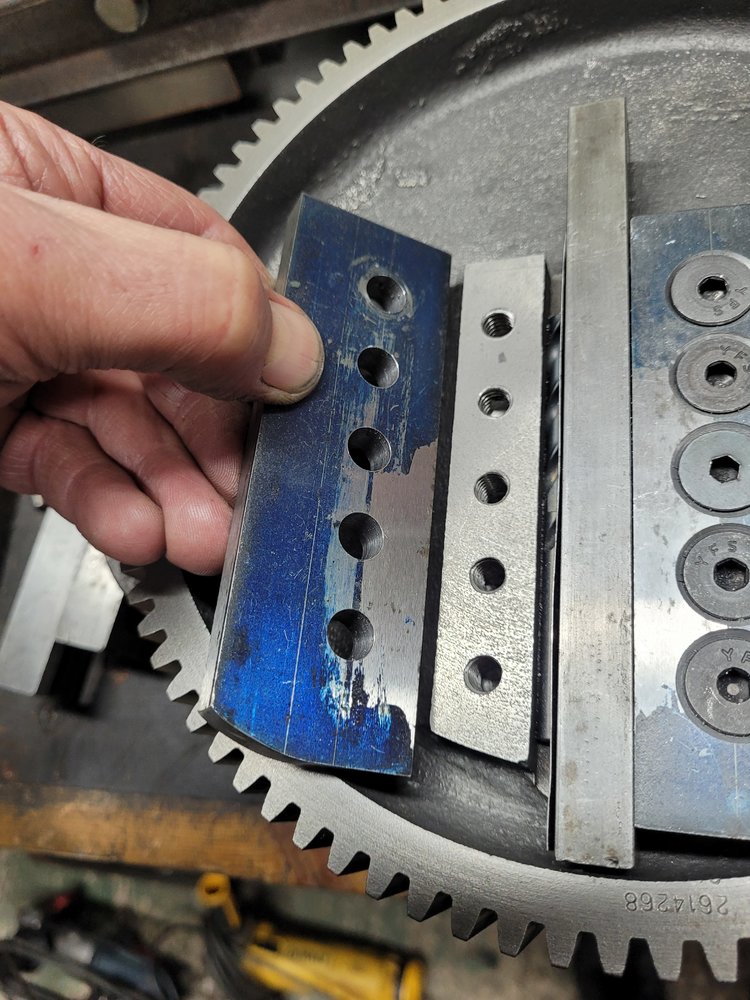

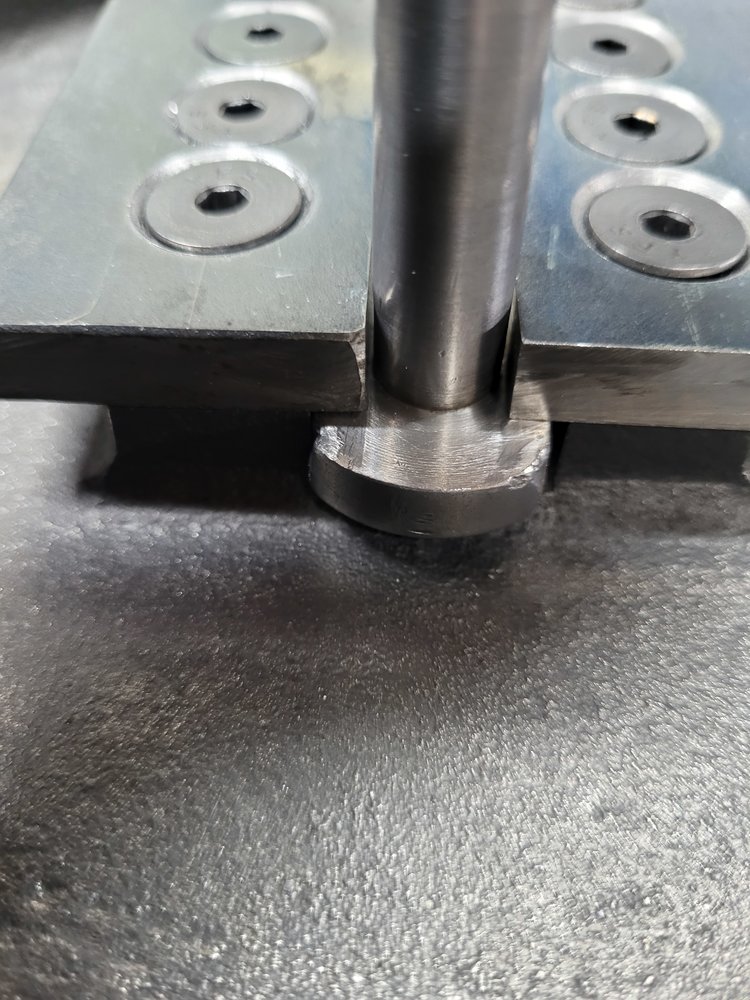

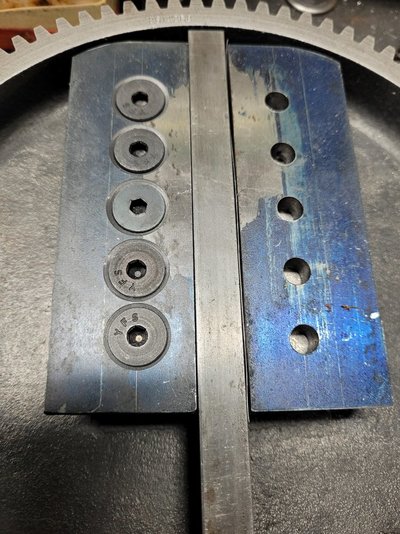

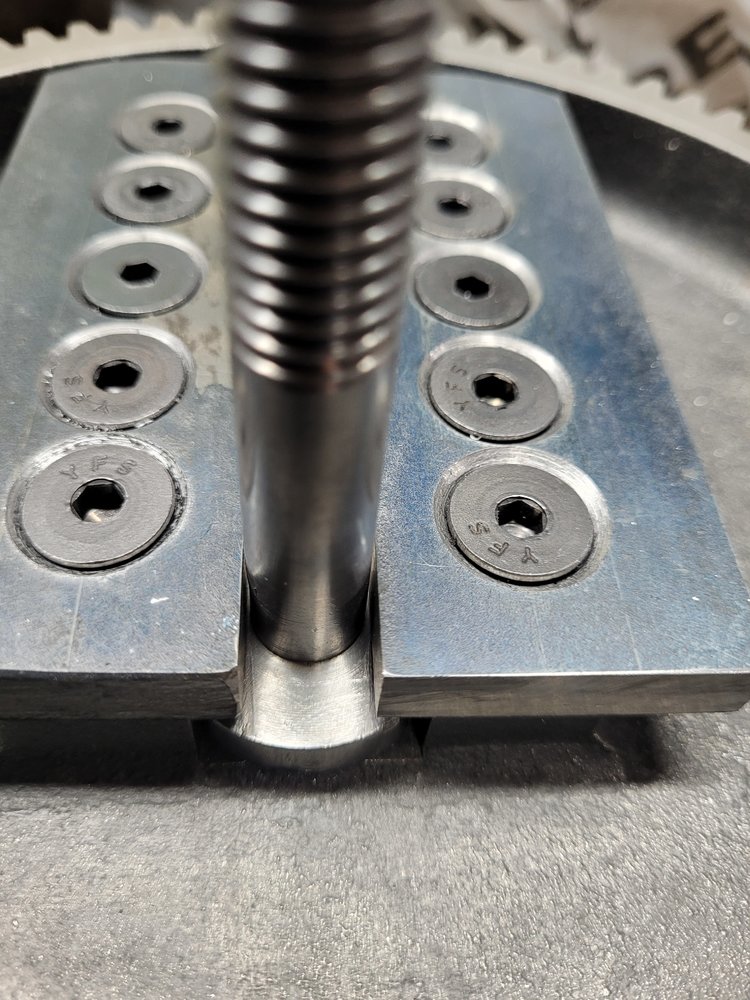

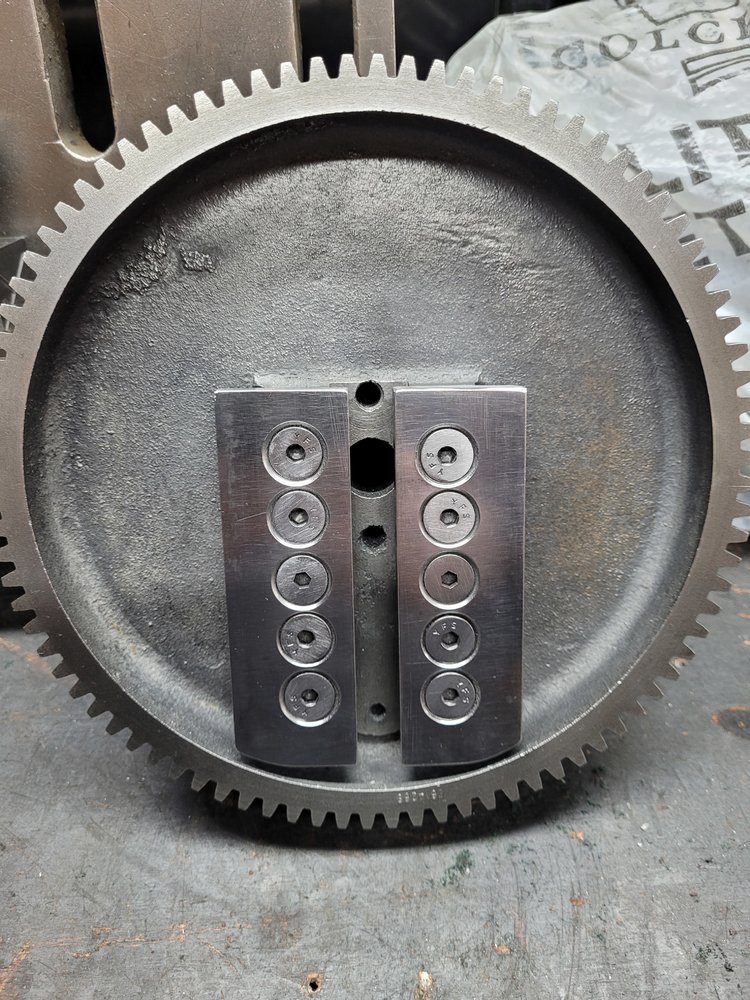

Today. Finished off the other side . I made the holes in the two plates slightly bigger this gives the plates a bit of wiggle room. Was very slightly off with the countersink but that metal is seriously tough stuff. Everything lines up good. Will trim the edges off a bit and just make em a bit tidier. The bolt fits good with just enough room. Eventually I will make a new bolt. The 10 Allen bolts will be loctite in on completion.



[God mode restorations]

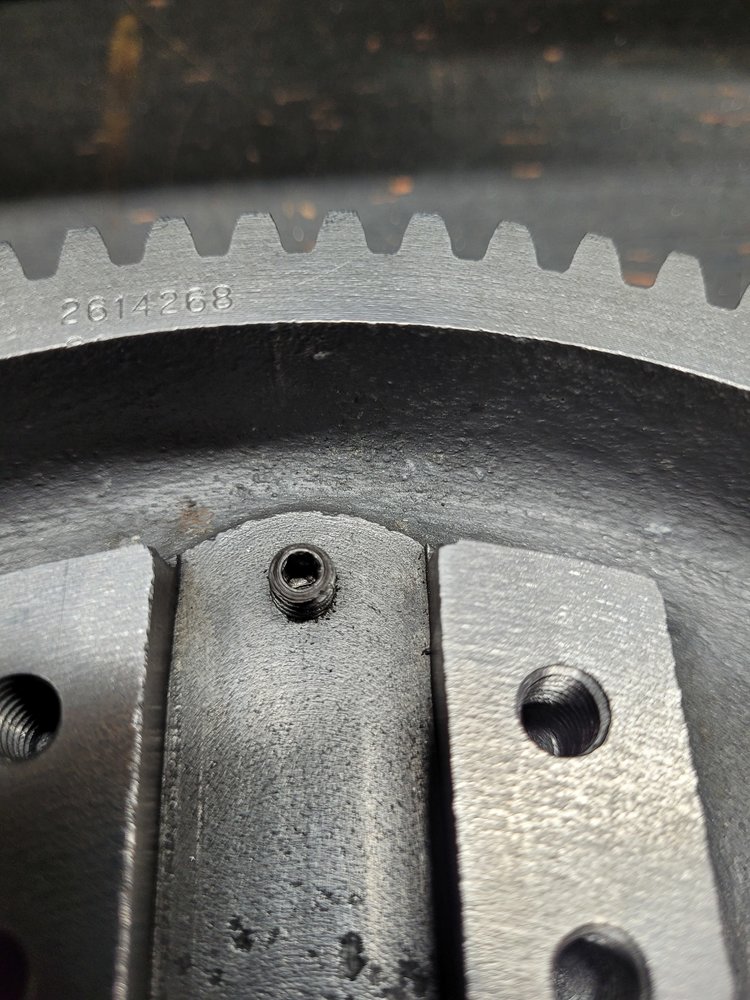

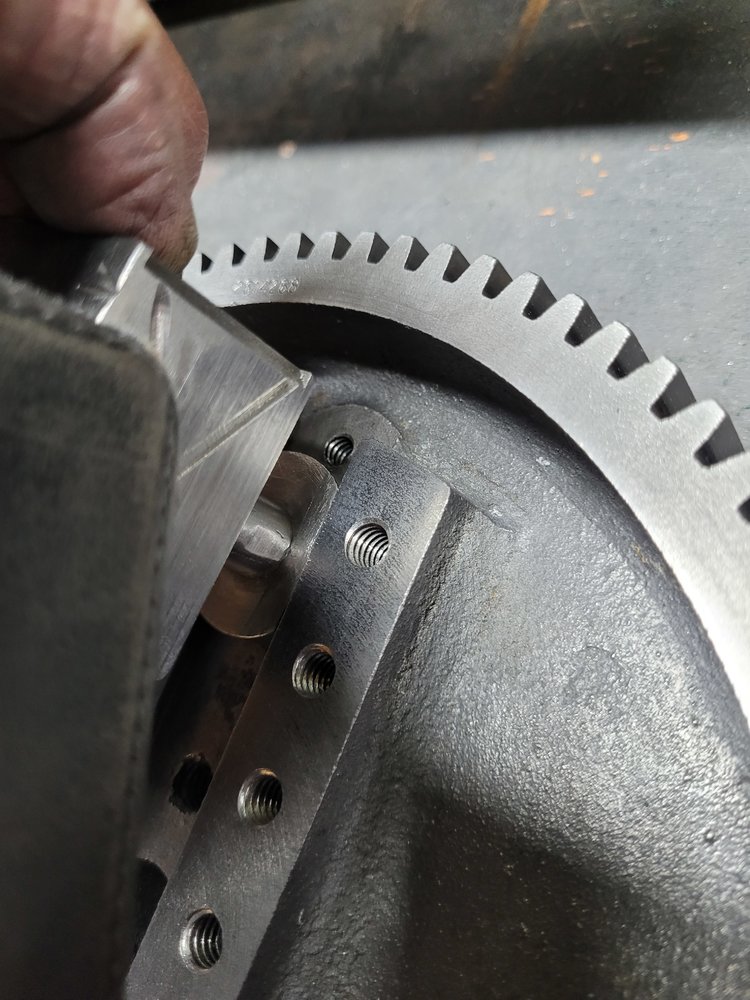

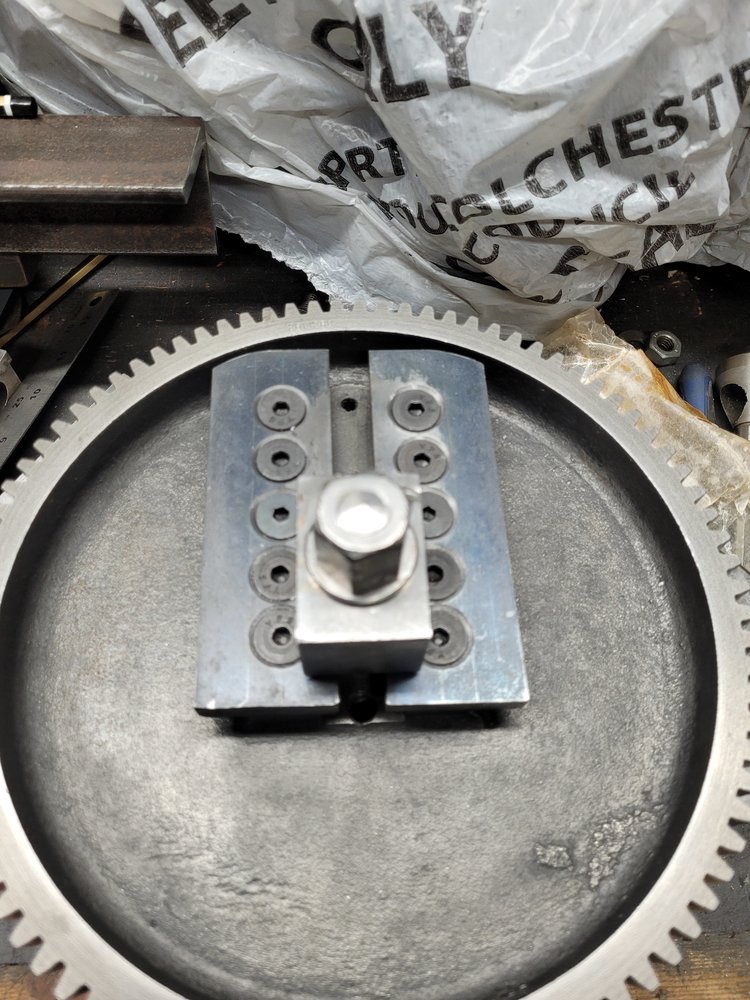

That's the gear repair done. Now upstairs in the paint room. One thing I did notice there was a threaded hole at the end of the slide. This originally would of had a screw to stop the fork and bolt being over extended hence the damage to the gear.



[God mode restorations]

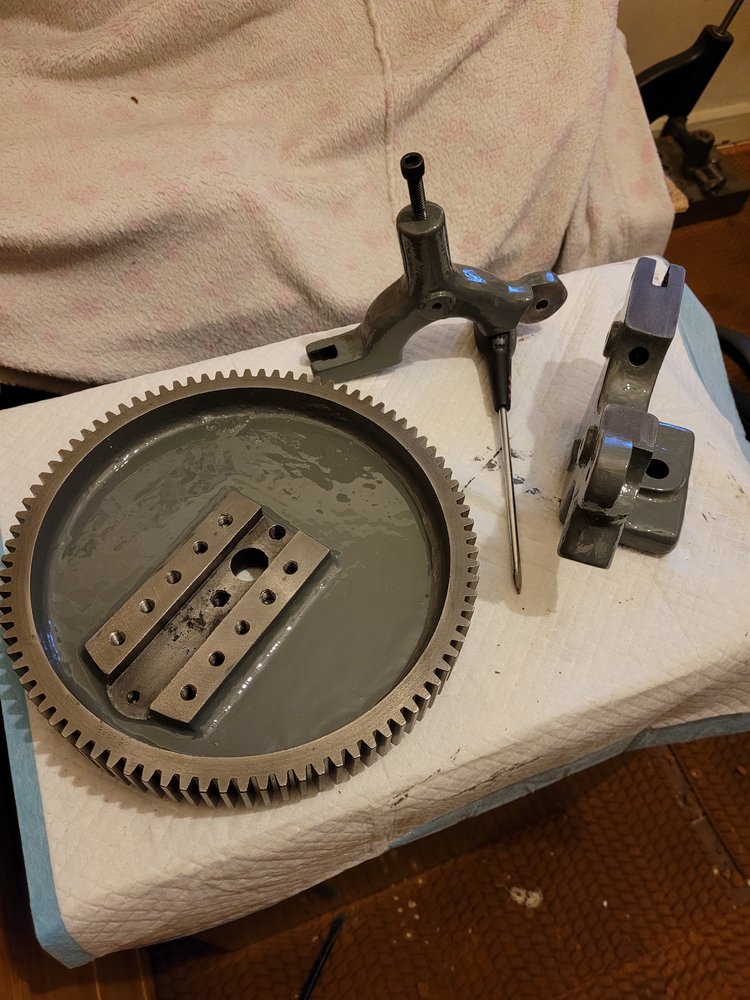

Bull gear primed and painted. Got the mellor fixed steady done too.
