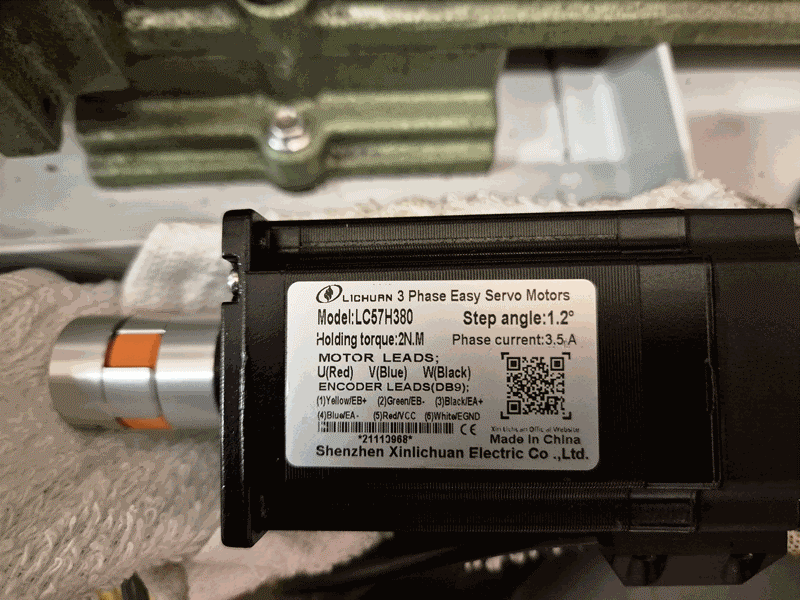

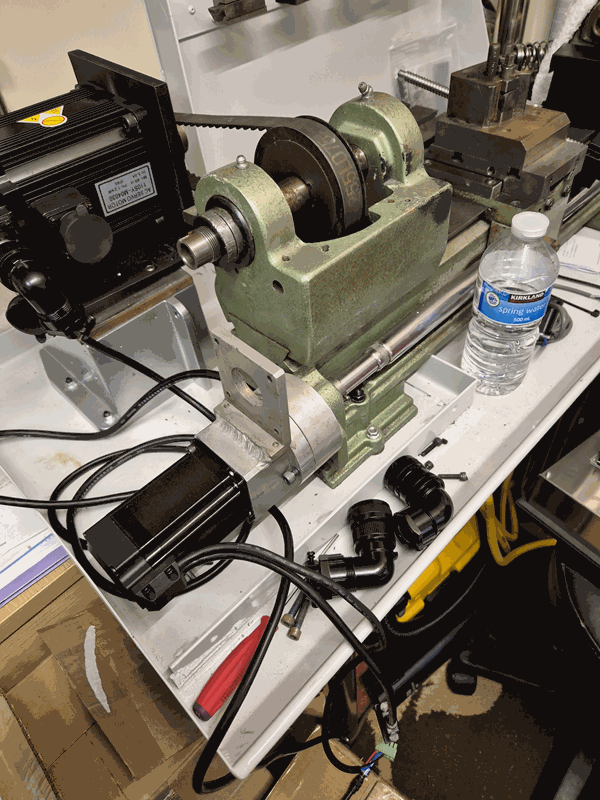

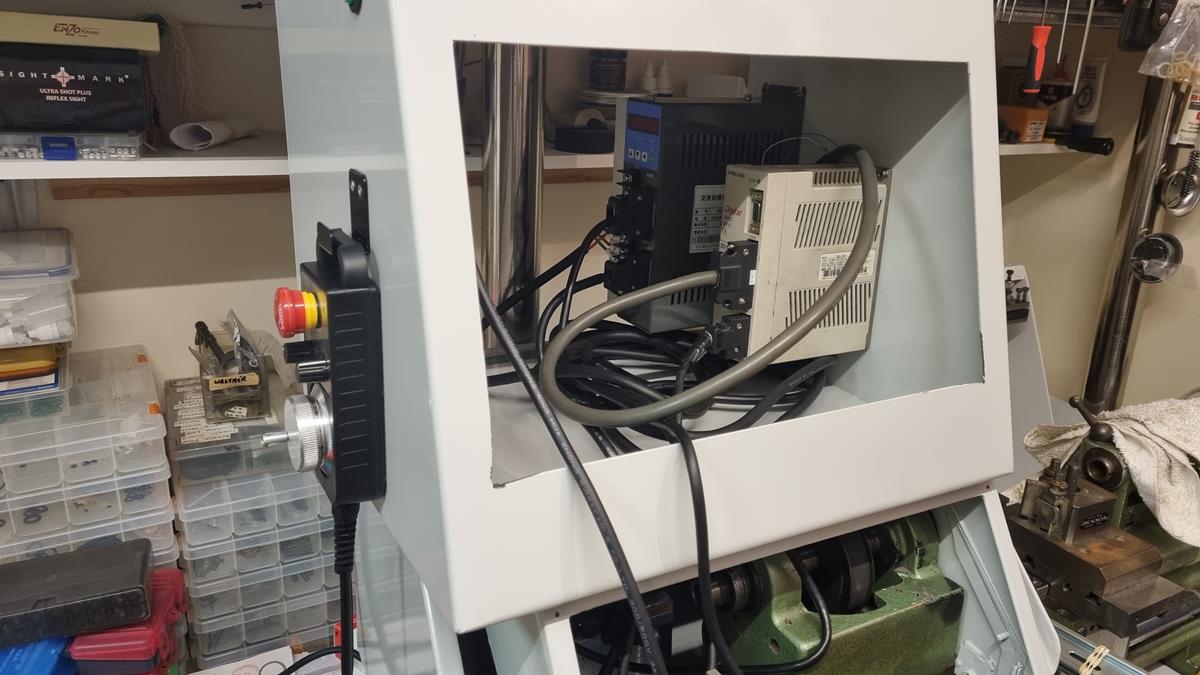

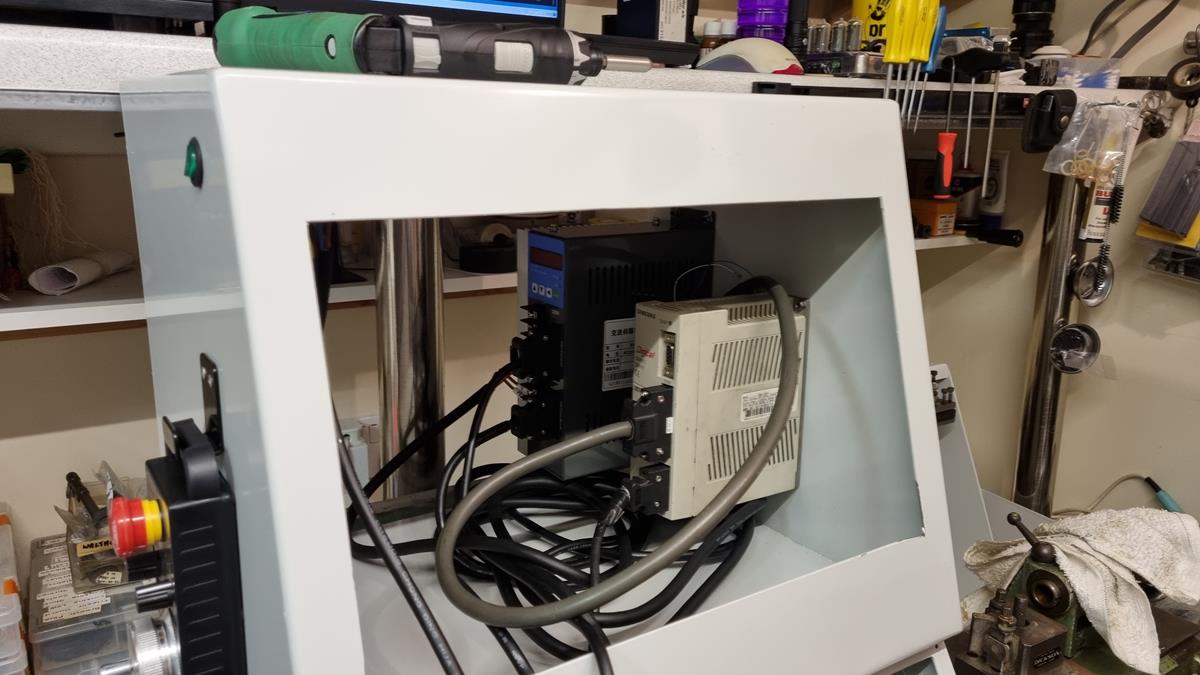

Well, here we are three years later and full steam ahead, this machine will work this month, properly, or it will be in the 'for sale' section! I have a very cunning plan, but not until I finish off all the mechanical bits. So yesterday I mounted the three phase closed loop stepper to the Z axis, it was not straightforward. I became quite disillusioned with this when the Chinaman didn't send me the servo and drive I had ordered so I just abandoned it. This has been a temporary setback as I am now full steam ahead once more, it is going on it's holidays in a fortnight (more on that later) so I want all the mechanical bits fitted and working properly.

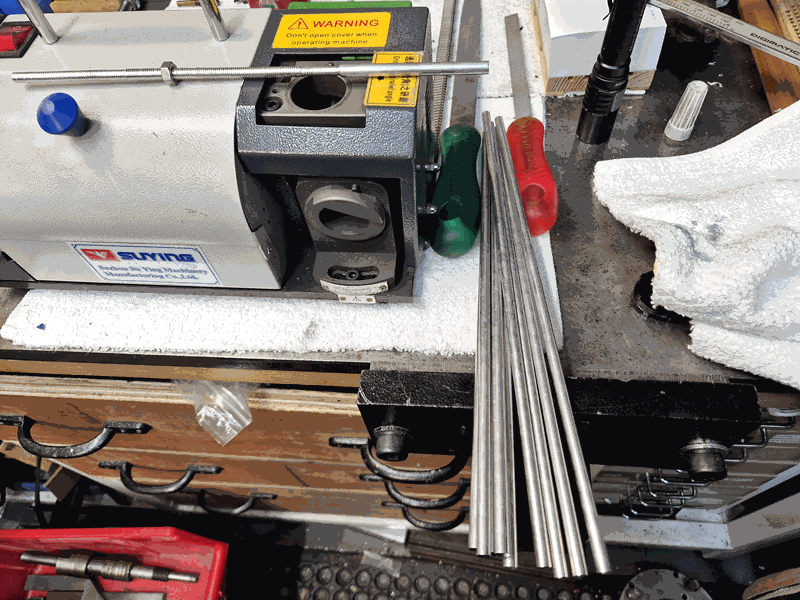

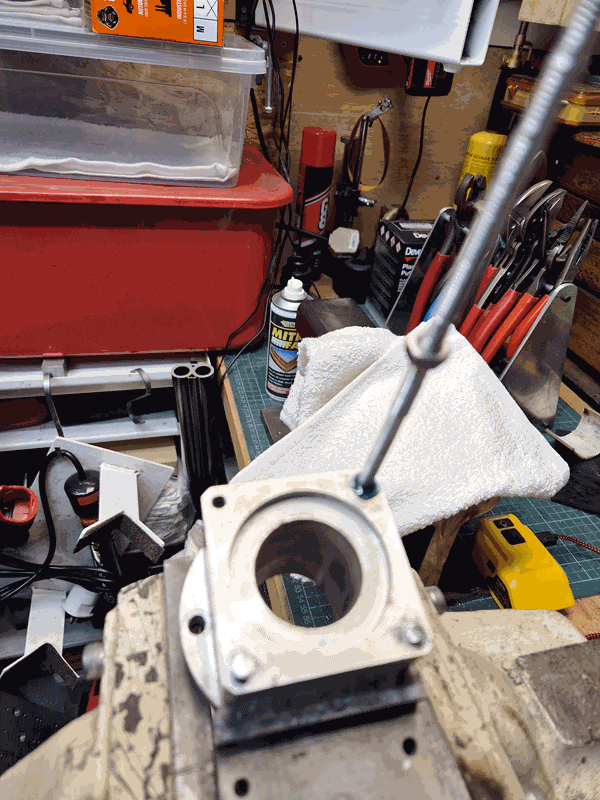

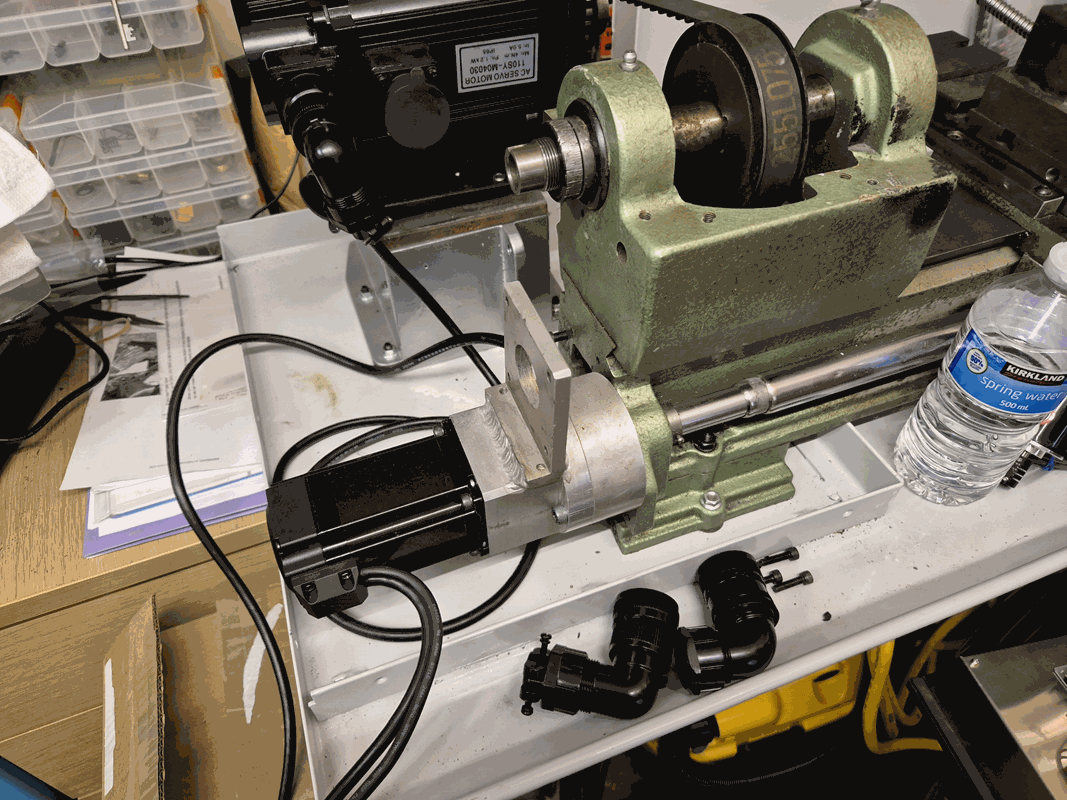

First snag was a Nema 23 wasn't the same as the previous drive, not wanting to make a ridiculous adapter plate (the holes were only four or five mm out) I decided to fill the holes with ally bolts then re-drill and tap them. Snag was an ally bolt came in at £4.57 each. I discovered that Amazon sold 12" lengths of 6mm ally rod for a tenner delivered so I ordered some. In the lathe and a die down it produced threaded ally rod and a bit of Loktite secured it in the original holes:

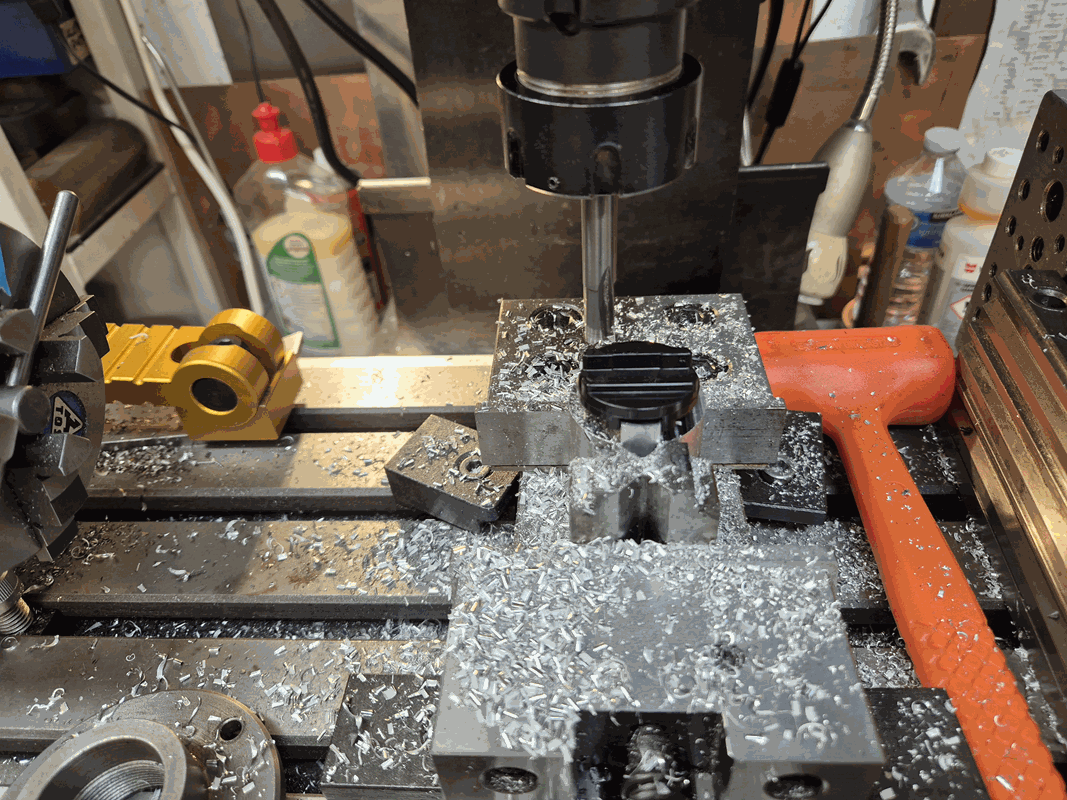

There was something else and it was the other part of the Oldham coupling, not wanting to or needing to order a whole unit I just chucked up a bit of ally in the Harrison and set to.
First snag was a Nema 23 wasn't the same as the previous drive, not wanting to make a ridiculous adapter plate (the holes were only four or five mm out) I decided to fill the holes with ally bolts then re-drill and tap them. Snag was an ally bolt came in at £4.57 each. I discovered that Amazon sold 12" lengths of 6mm ally rod for a tenner delivered so I ordered some. In the lathe and a die down it produced threaded ally rod and a bit of Loktite secured it in the original holes:
There was something else and it was the other part of the Oldham coupling, not wanting to or needing to order a whole unit I just chucked up a bit of ally in the Harrison and set to.
northwest
Searching for the Holy Grail.........
- Messages
- 6,002
- Location
- Manchester UK

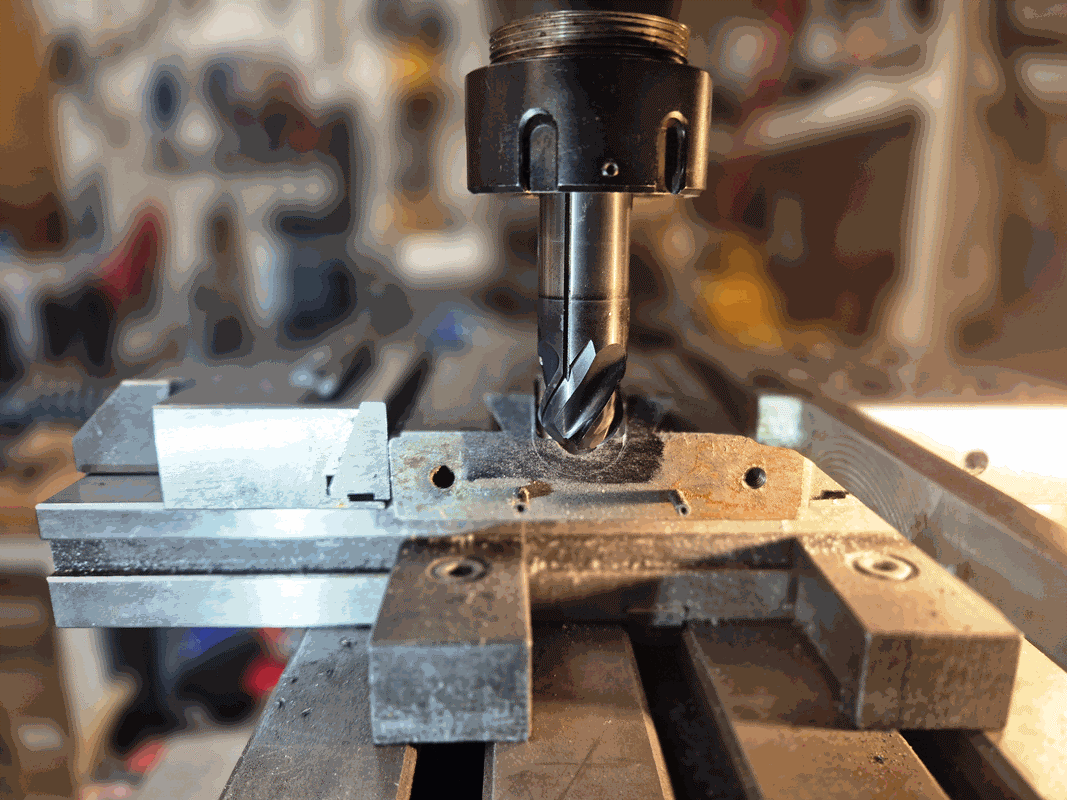

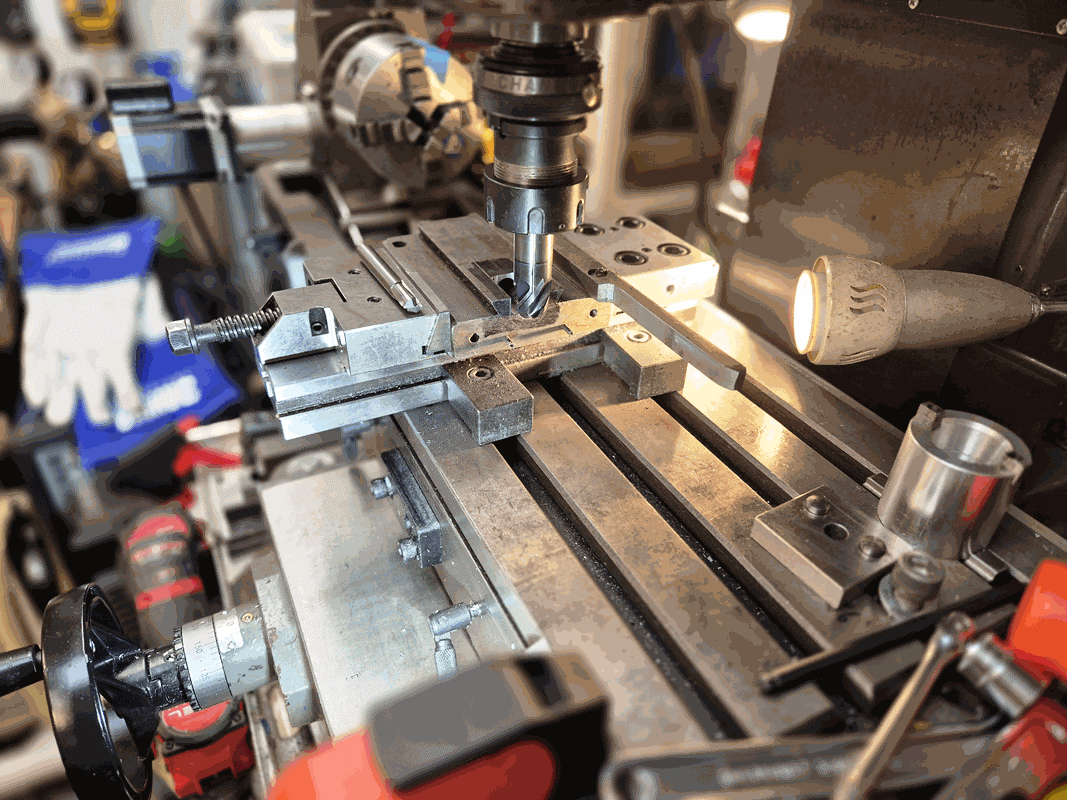

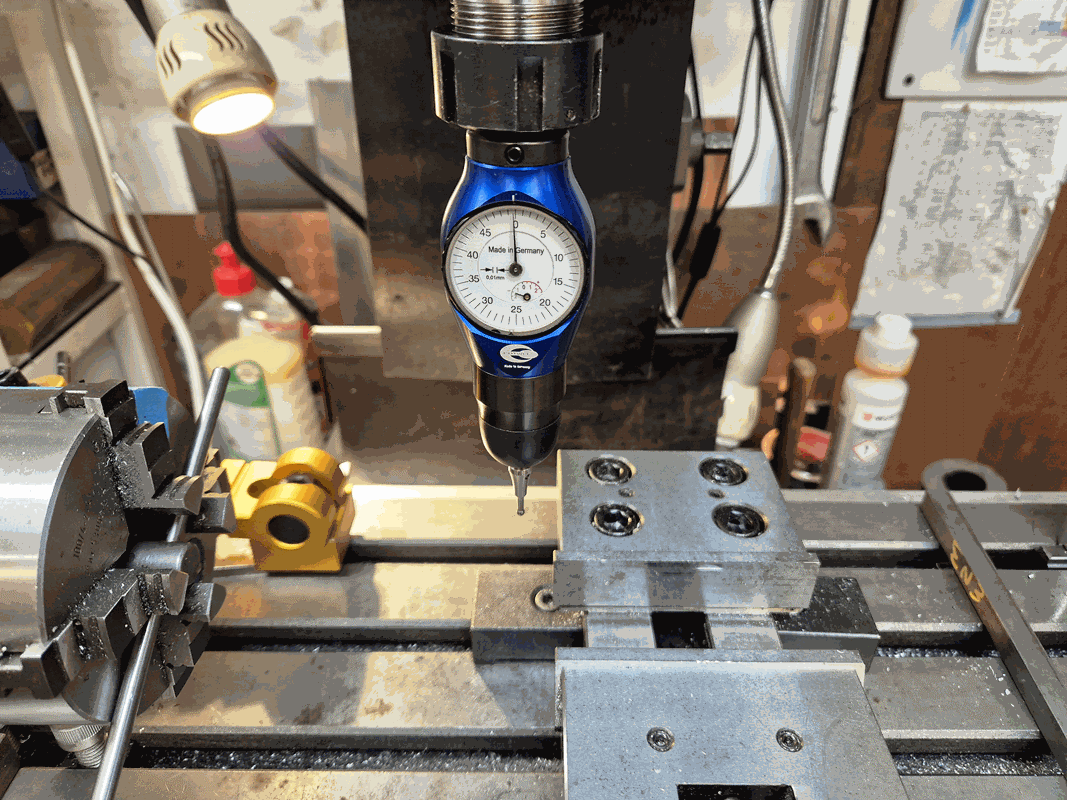

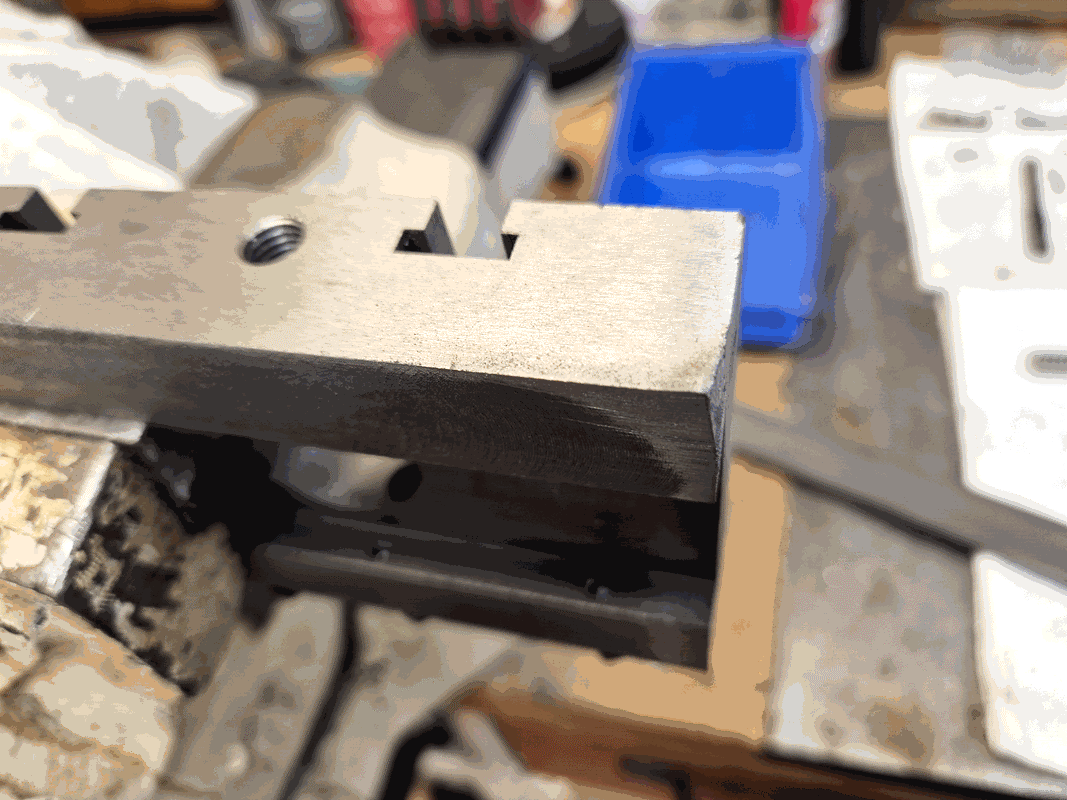

This really was a "quick and dirty", half way through I realised the Mill vice wasn't bolted down, not to worry, it was square to itself!
I was in a bit of a rush so not too many pics I'm afraid:

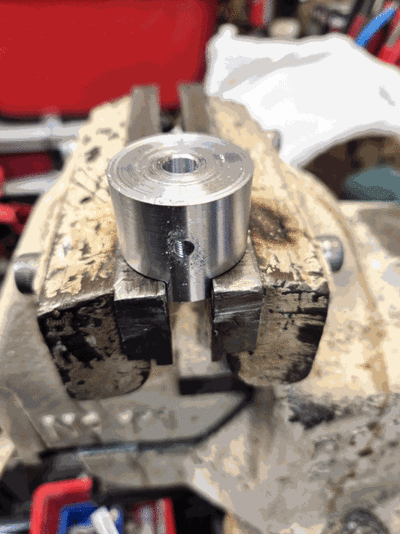

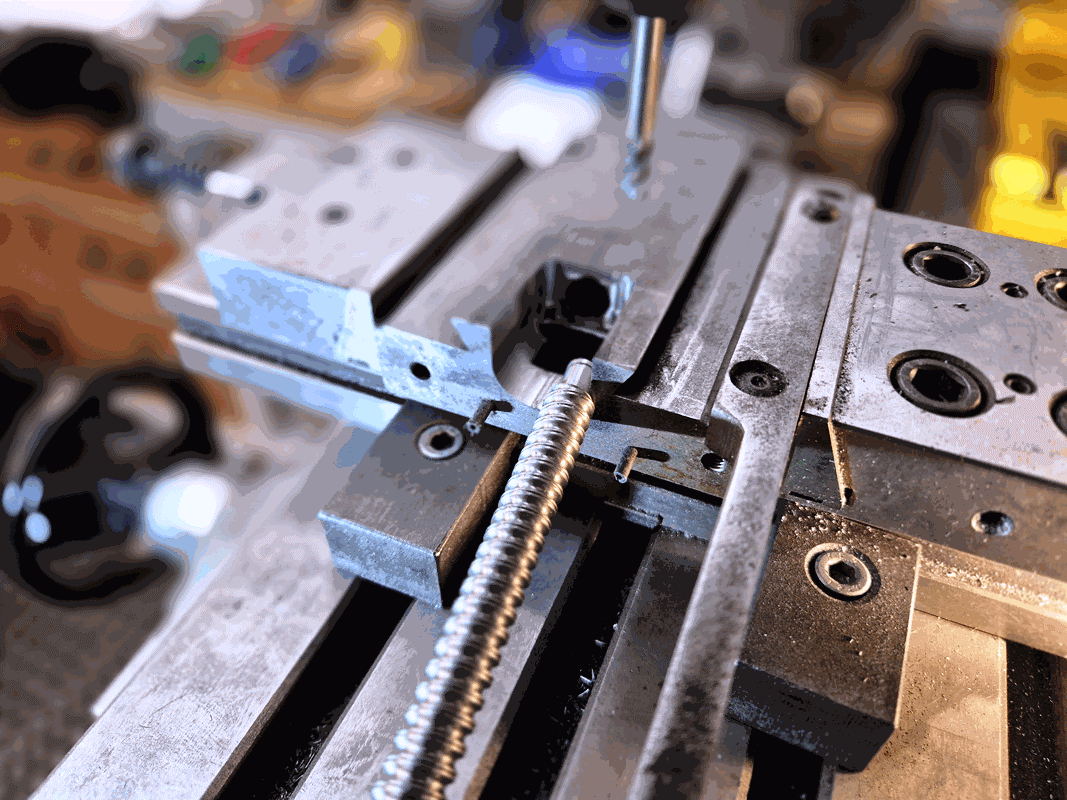

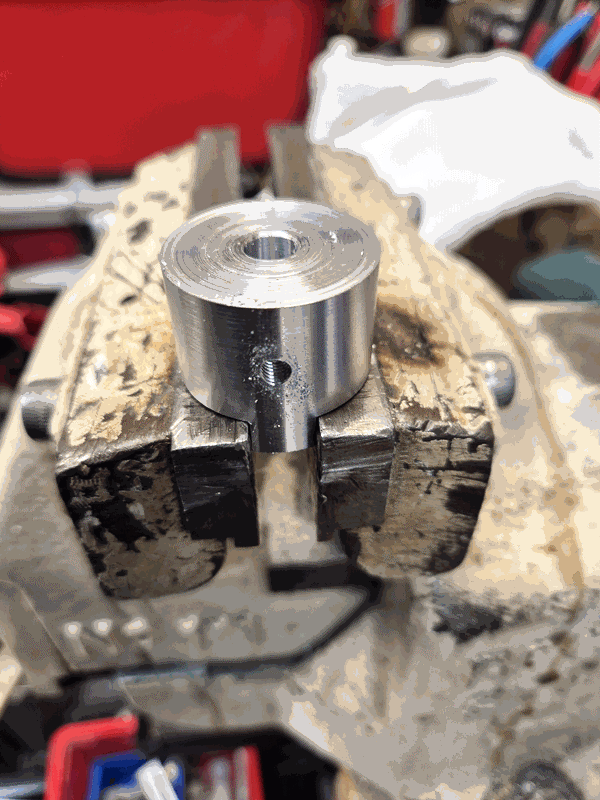

Grub screw to retain it:
Bound to be one in here:
It's in there somewhere:

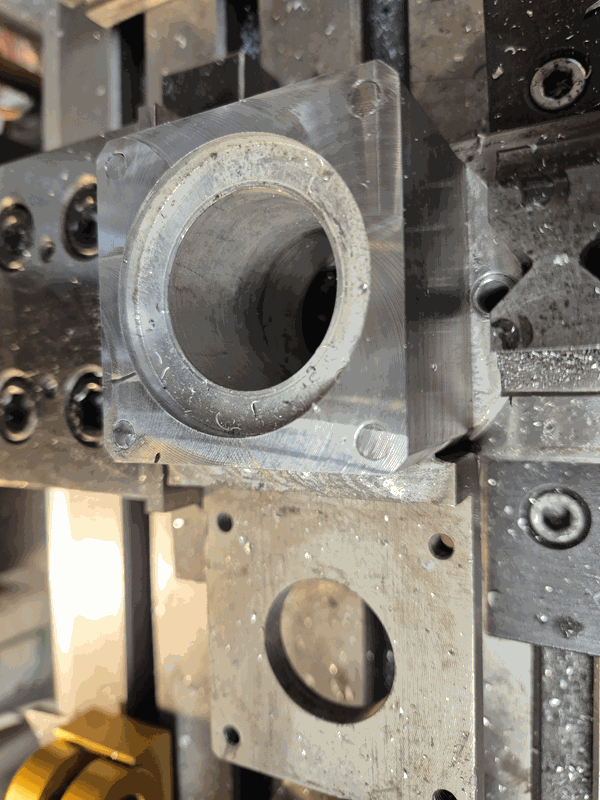

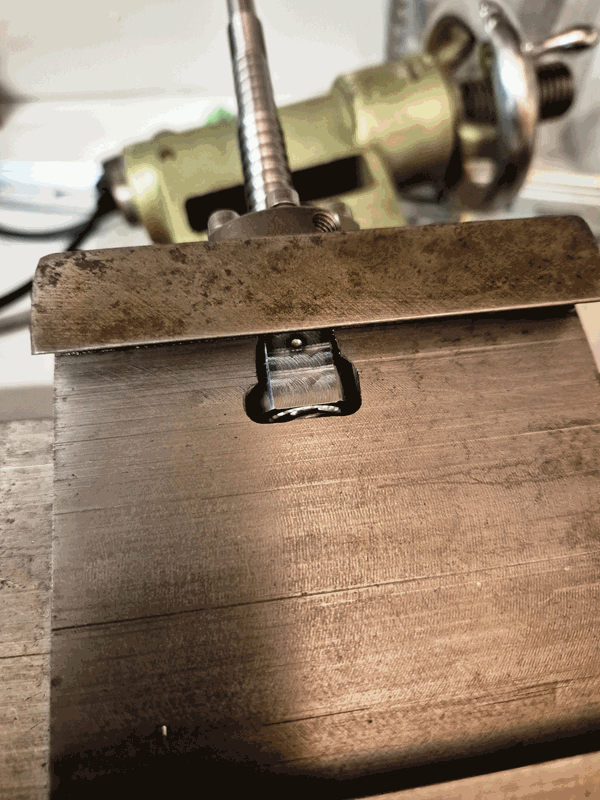

I fancy milling a slot in the housing then using the borescope to check it's mounted properly, or just trust my measurements.

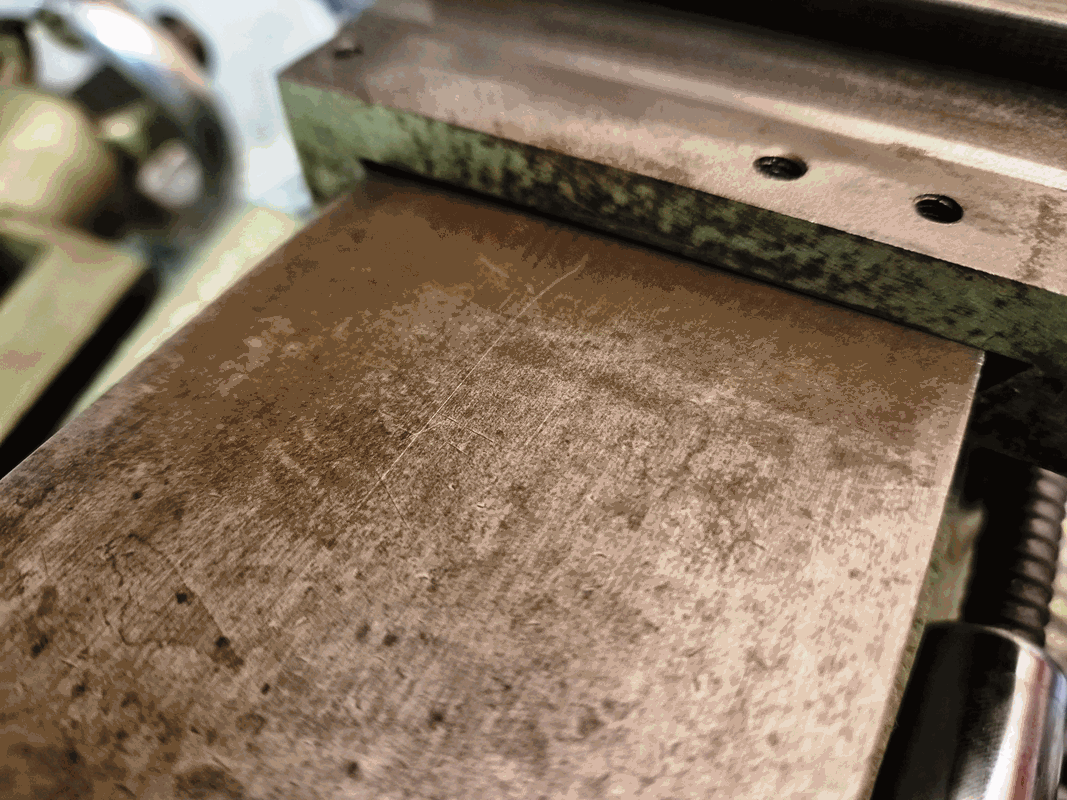

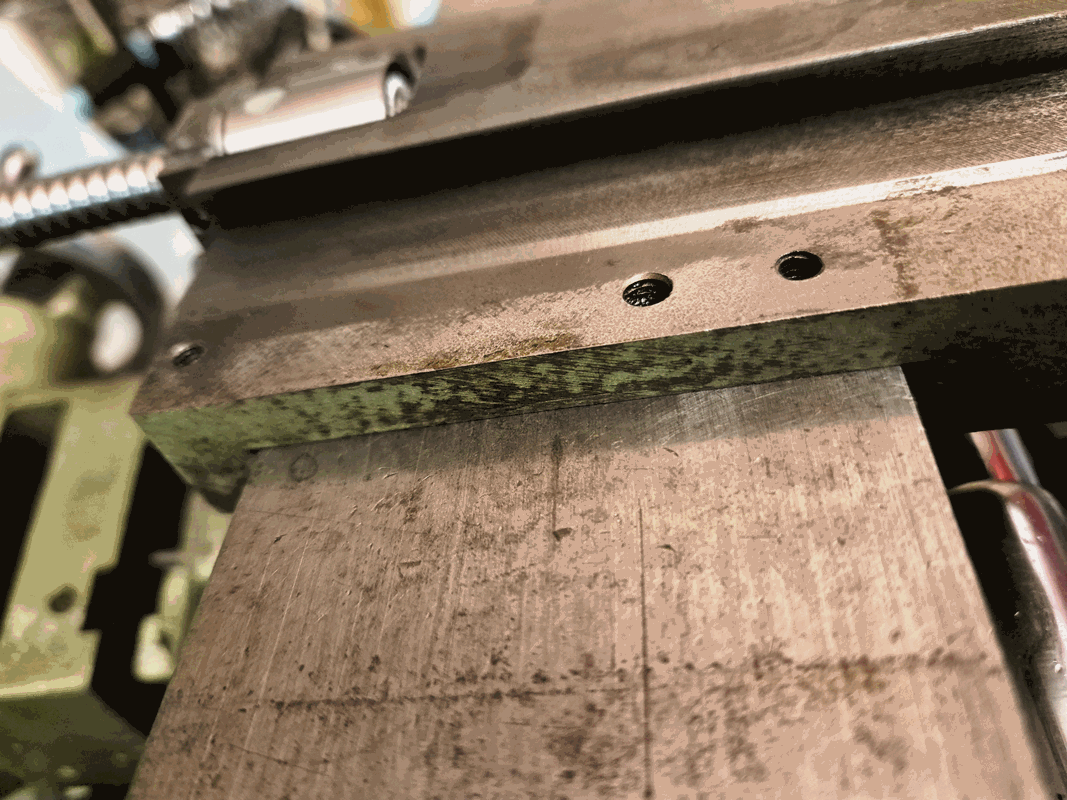

Today's job, the cross slide. I am not happy with the way it is so I am going to explore mounting the drive on the back of the slide for compactness and clearance.
I was in a bit of a rush so not too many pics I'm afraid:
Grub screw to retain it:
Bound to be one in here:
It's in there somewhere:
I fancy milling a slot in the housing then using the borescope to check it's mounted properly, or just trust my measurements.
Today's job, the cross slide. I am not happy with the way it is so I am going to explore mounting the drive on the back of the slide for compactness and clearance.
northwest
Searching for the Holy Grail.........
- Messages
- 6,002
- Location
- Manchester UK

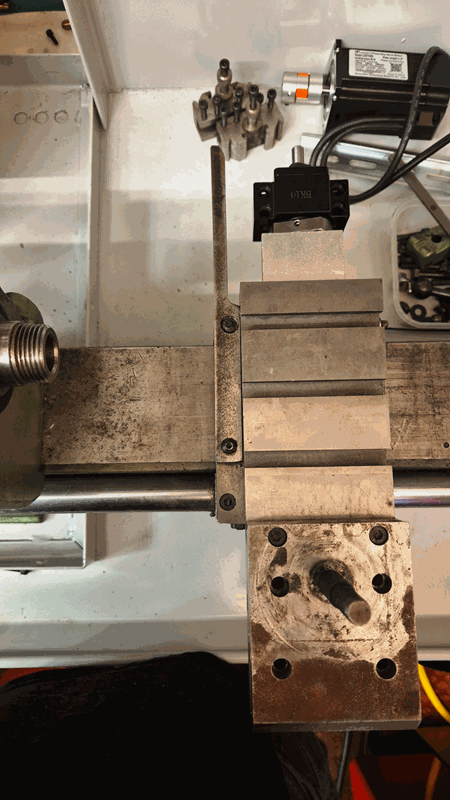

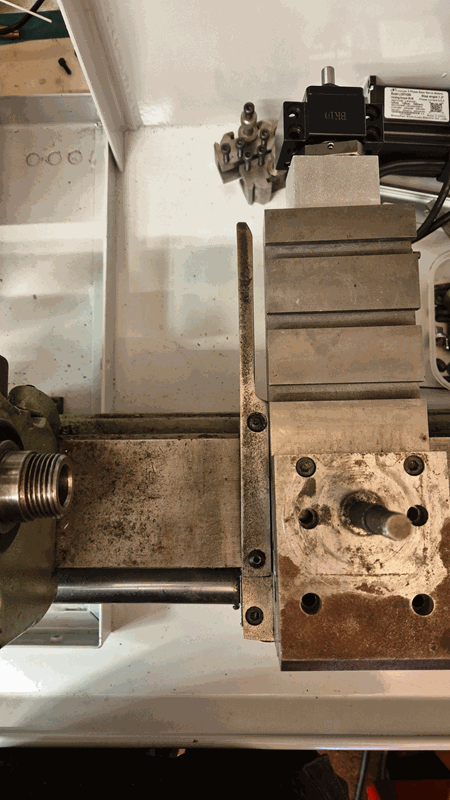

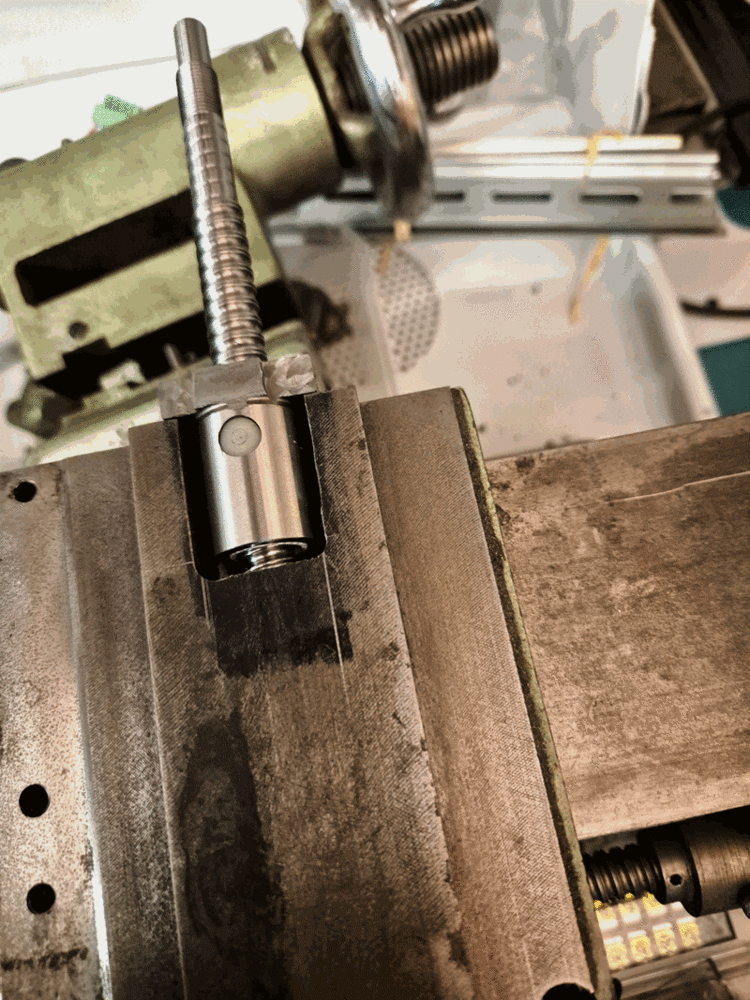

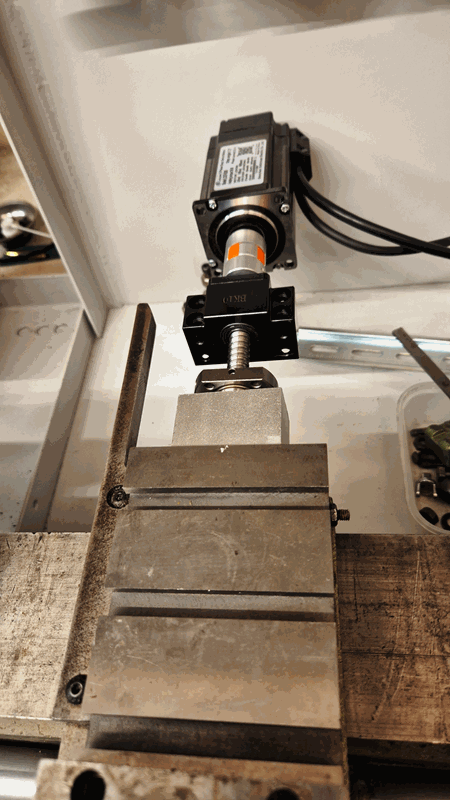

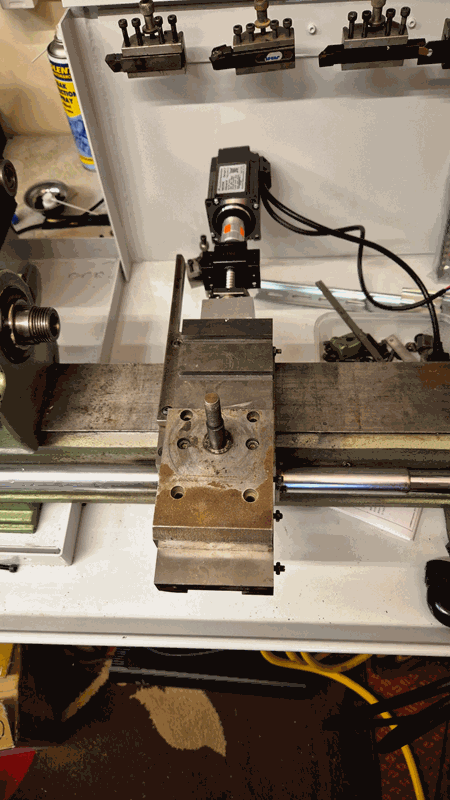

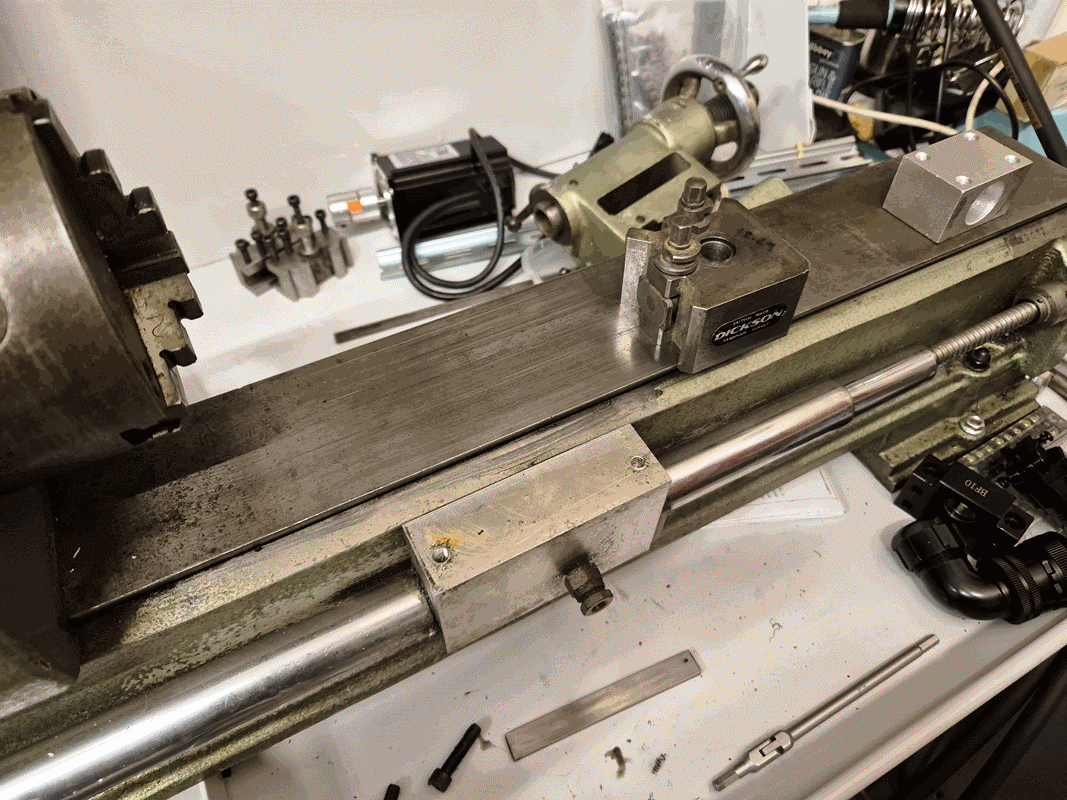

Okay, it all came to a screaming halt again and I welcome suggestions from the collective. As you can see from the photographs, I am trying to fit the Ballscrew and Drive to the cross slide, of course it is all a bit much:

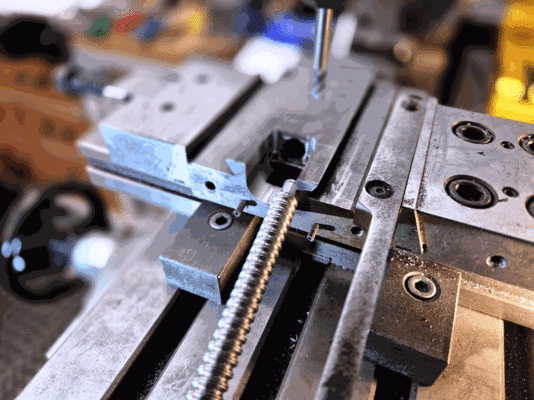

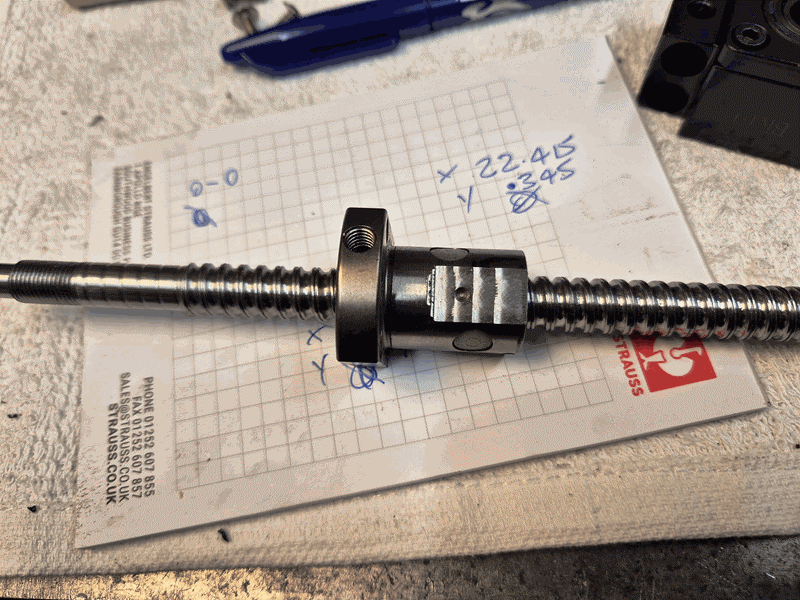

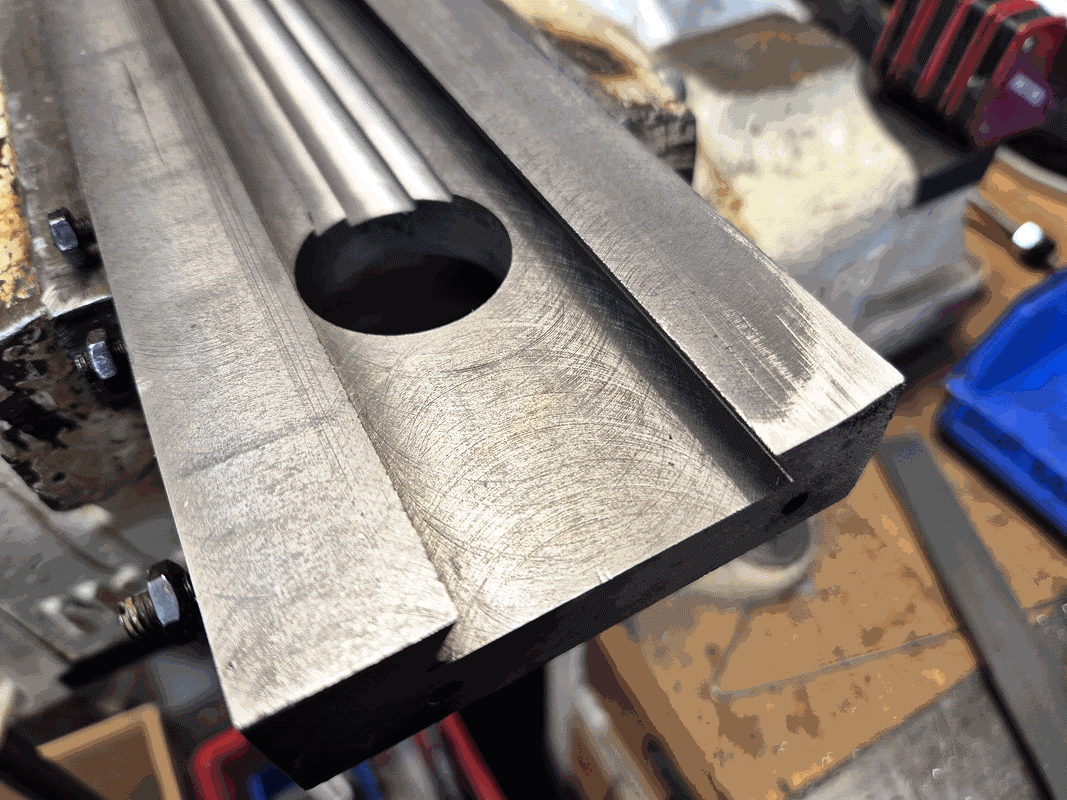

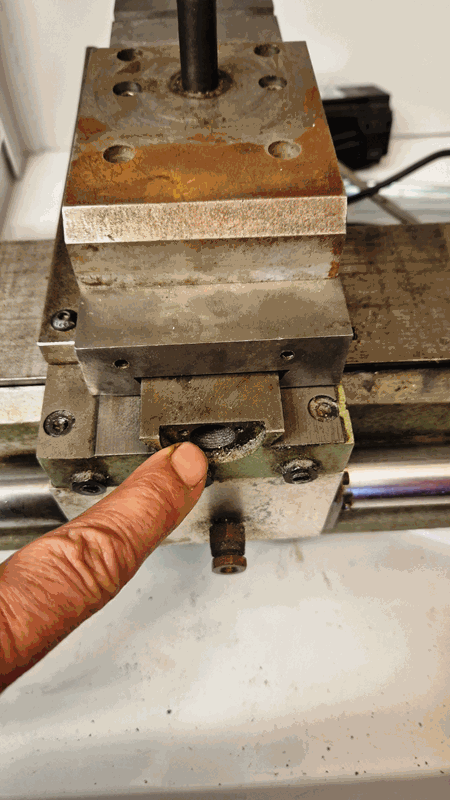

If I am not careful I will have very limited for and aft movement and I want to be able to mount a parting tool upside down on the rear of the slide, for parting off obviously. It occurs to me that I don't need all that much movement as I am restricted by the swing of the lathe. The ballscrew itself passes through this hole that held the original cross slide screw. (well it does now after I drilled it through with a 12mm carbide bit!)
Pal of mine suggested angular bearings in a new thrust housing to steal another 15mm or so as the supplied housing is quite big? Maybe even 20mm:
I am going to have to come up with some sort of contrivance in order to mount the motor and hopefully I have enough room, I really don't want it out front as this would be something for me to walk into and god knows what I would break. It also takes up room that I could otherwise use.
If I am not careful I will have very limited for and aft movement and I want to be able to mount a parting tool upside down on the rear of the slide, for parting off obviously. It occurs to me that I don't need all that much movement as I am restricted by the swing of the lathe. The ballscrew itself passes through this hole that held the original cross slide screw. (well it does now after I drilled it through with a 12mm carbide bit!)
Pal of mine suggested angular bearings in a new thrust housing to steal another 15mm or so as the supplied housing is quite big? Maybe even 20mm:
I am going to have to come up with some sort of contrivance in order to mount the motor and hopefully I have enough room, I really don't want it out front as this would be something for me to walk into and god knows what I would break. It also takes up room that I could otherwise use.
Agroshield
Member
- Messages
- 5,745
The motor does not need to be co-axial to the ballscrew.
A couple of timing belt pulleys would allow it to be repositioned better.
Potentially, it could go below the ballscrew, with the wire end of the motor facing towards you. Especially if the ball screw sticks out the back a lot, it uses up the dead space below it.
If you only use a single tool, you need half as much movement as the maximum diameter the lathe will swing - so the tool can go from the outside to the centre. If you add a rear parting tool, I think the movement might need to double (!) or the rear tool will clash with the work.
Here is my reasoning: imagine something 2" diameter. The main tool needs to move 1" to go from stock OD to lathe centreline. When it is at the OD of the stock, the closest the parting tool can be is also be the OD of the stock, the other side of the centreline. To part the stock off, the rear tool also needs 1" of movement, so the axis needs a total of 2" of movement.
You are not going to want to hear this, but a smaller Nema-series stepper motor coupled with a belt reduction on the cross slide will save space and still have enough strength.
A couple of timing belt pulleys would allow it to be repositioned better.
Potentially, it could go below the ballscrew, with the wire end of the motor facing towards you. Especially if the ball screw sticks out the back a lot, it uses up the dead space below it.
If you only use a single tool, you need half as much movement as the maximum diameter the lathe will swing - so the tool can go from the outside to the centre. If you add a rear parting tool, I think the movement might need to double (!) or the rear tool will clash with the work.
Here is my reasoning: imagine something 2" diameter. The main tool needs to move 1" to go from stock OD to lathe centreline. When it is at the OD of the stock, the closest the parting tool can be is also be the OD of the stock, the other side of the centreline. To part the stock off, the rear tool also needs 1" of movement, so the axis needs a total of 2" of movement.
You are not going to want to hear this, but a smaller Nema-series stepper motor coupled with a belt reduction on the cross slide will save space and still have enough strength.
Hood
I am obsessed.
- Messages
- 17,486
- Location
- Carnoustie, Scotland

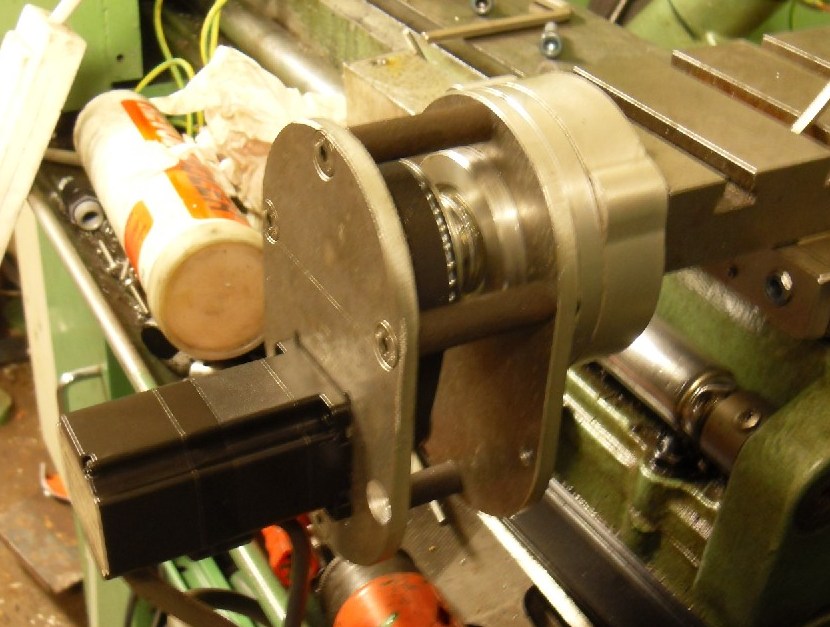

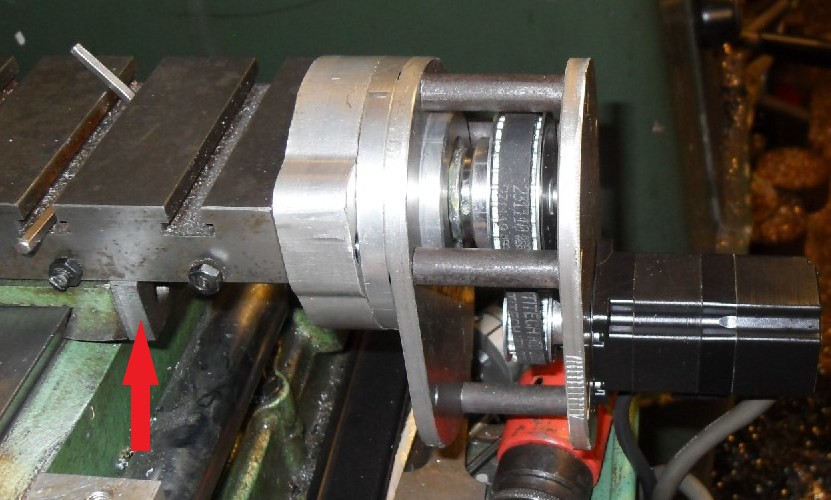

This is the way I did it.
If I recall I had the ball nut connected to the plate arrowed but then I had a very small ballscrew of 8mm if I recall.
I don't recall the exact setup of the bearings but I think it was just thrust ball bearings either side of a plate and tensioned by the pulley position, seemed to work well for the little I used it. The whole setup is now on the plasma and still working well with the exception of the ballscrew as I had to replace that as it got full of plasma muck and eventually died.
If I recall I had the ball nut connected to the plate arrowed but then I had a very small ballscrew of 8mm if I recall.
I don't recall the exact setup of the bearings but I think it was just thrust ball bearings either side of a plate and tensioned by the pulley position, seemed to work well for the little I used it. The whole setup is now on the plasma and still working well with the exception of the ballscrew as I had to replace that as it got full of plasma muck and eventually died.
northwest
Searching for the Holy Grail.........
- Messages
- 6,002
- Location
- Manchester UK
To be honest, on this length and the amount of movement it is going to have I wouldn't bother with a bearing on the end only at the motor end would I put a bearing. Yes, there are lots of 'but it will do XYZ' or the world will come to an end. I only need it to give me a couple years and then I can change it out for a new one or I won't be around to worry about it, one or the other.
Right, I need to get to it so will be back later.
Right, I need to get to it so will be back later.
