Rigging airlines in workshop

[RWD3M]

I currently have a 300l compressor, feeding one retractable airline via a perished rubber hose that needs replacing.

I’d like to rig up a better set up with a second air line running from opposite end of tank to workbench to incorparate a coiled airline. I have two separate Norgren regulator / filter setups to fit in each line.

What is the best way to pipe up the workshop? Previously have used rubber air hose cut to length with brass hose rails and jubilee clips - is this acceptable or should I be looking at something better? Pre crimped hoses perhaps?

You might find this of interest:

Cutting 1/2" BSP Threads

Hi all, I've just ordered up a pile of pipe and fittings to put an airline or two into my shed. I've gone for galvanised steel just because I find it far more aesthetically pleasing! My question is, is the cutting to length and threading of the pipe an exact science? Anyone have experience of...

www.mig-welding.co.uk



[ukracer]

"What does that Valve help do then?"

Stops the bottom of your tank rusting out and giving you an unwanted surprise !

"What are you referring to by small air though.
Pressure or Volume."

"small pump, small air" surely that doesn't need an explanation ?

Well yes itmight seem obvious to many but there is a difference between a small amount of air at least say 4 bar and a large amount of air at 2 bar surely?



[awemawson]

For goodness sake it was a generalisation - now do you need THAT explaining as well ?



[ukracer]

For goodness sake it was a generalisation - now do you need THAT explaining as well ?

I am not sure you realise but I am asking genuine questions.
What could you use instead of small air?
Low pressure air.
Or Low volume of air.
You seem to dislike questions (which I thought was actually the point of the forum) asked after you make comments that you find it funny. It's probably because you seem to understand things you say but I don't.
Not sure if others do understand?? Perhaps someone else might clarify what they understand relating to pumps, pressure and volume.



[8ob]

Not sure if others do understand?? Perhaps someone else might clarify what they understand relating to pumps, pressure and volume.

I value system volume, I realise continuos compressor capacity doesn't change but tank/system volume may get you right around a spray job or run nut guns longer without the need for a larger compressor. The compressor in the yard is only 14cfm but with the tank volume and associated pipework its got a decent enough capacity to do everything I need of it, the 14cfm on its own would be no good at all.

Bob



[julianthegypsy]

My compressor is a bit on the small side for my CNC plasma. In theory it's enough, but not for what I want to do, so I have to stand beside the screen and hit the pause button when the compressor kicks in. If I had a larger capacity tank, it could run longer and finish more jobs without pausing. Every time it's paused it also uses air as it can't just stop hot without damaging things. The alternative is a compressor with bigger pistons and motor which could provide more air than the plasma uses, so it would just kick in and out without having to pause the plasma. I'm working on that!



[James1979]

My compressor is a bit on the small side for my CNC plasma. In theory it's enough, but not for what I want to do, so I have to stand beside the screen and hit the pause button when the compressor kicks in. If I had a larger capacity tank, it could run longer and finish more jobs without pausing. Every time it's paused it also uses air as it can't just stop hot without damaging things. The alternative is a compressor with bigger pistons and motor which could provide more air than the plasma uses, so it would just kick in and out without having to pause the plasma. I'm working on that!

Extra tank?

I’ve just put one in the truck off a lorry. Will wire the T-Max up to it to let me do a plant tyre without flogging the poor little thing.



[ukracer]

I value system volume, I realise continuos compressor capacity doesn't change but tank/system volume may get you right around a spray job or run nut guns longer without the need for a larger compressor. The compressor in the yard is only 14cfm but with the tank volume and associated pipework its got a decent enough capacity to do everything I need of it, the 14cfm on its own would be no good at all.

Bob

Now that confirms my understanding.

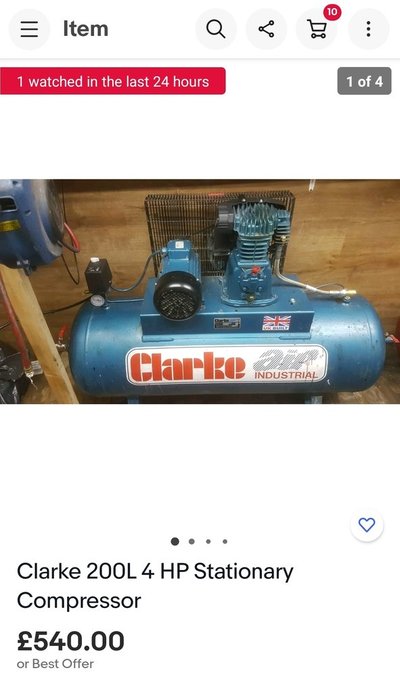

I was more interested as I have just purchased a small upright portable compressor but I still have part of my workshop plumbed from the large 150 compressor tank that the compressor threw a rod.
I also have a 200 tank that the compressor on it was good but needed new bearings.

I wondered what I would gain if I plugged the small compressor into the original pipe work and just added my new retractable airline

It's just for blowing swarf away for now. But once I blow 3 times the small compressor pump runs.

I am hoping to fill the 200 litre tank and get a lot more blows before the small compressor kicks in to refill.



That's my new compressor my small stop-gap Ferrex blew up and they refunded me instead of giving me a new one ,as they had none left.



[James1979]

Now that confirms my understanding.
I was more interested as I have just purchased a small upright portable compressor but I still have part of my workshop plumbed from the large 150 compressor tank that the compressor threw a rod.
I also have a 200 tank that the compressor on it was good but needed new bearings.

I wondered what I would gain if I plugged the small compressor into the original pipe work and just added my new retractable airline

It's just for blowing swarf away for now. But once I blow 3 times the small compressor pump runs.

I am hoping to fill the 200 litre tank and get a lot more blows before the small compressor kicks in to refill.

Sort of my plan with the air tank in the truck.



[brightspark]

Now that confirms my understanding.
I was more interested as I have just purchased a small upright portable compressor but I still have part of my workshop plumbed from the large 150 compressor tank that the compressor threw a rod.
I also have a 200 tank that the compressor on it was good but needed new bearings.

I wondered what I would gain if I plugged the small compressor into the original pipe work and just added my new retractable airline

It's just for blowing swarf away for now. But once I blow 3 times the small compressor pump runs.

I am hoping to fill the 200 litre tank and get a lot more blows before the small compressor kicks in to refill.

it will take longer to fill but will give u a reserve of air to run tools a bit longer at high pressure just not constant



[AVI_8]

Now that confirms my understanding.
I was more interested as I have just purchased a small upright portable compressor but I still have part of my workshop plumbed from the large 150 compressor tank that the compressor threw a rod.
I also have a 200 tank that the compressor on it was good but needed new bearings.

I wondered what I would gain if I plugged the small compressor into the original pipe work and just added my new retractable airline

It's just for blowing swarf away for now. But once I blow 3 times the small compressor pump runs.

I am hoping to fill the 200 litre tank and get a lot more blows before the small compressor kicks in to refill.

View attachment 325912

That's my new compressor my small stop-gap Ferrex blew up and they refunded me instead of giving me a new one ,as they had none left.

The compressor would kick in less often, but would have to run for a long time to fill a 200 litre tank.
This would possibly exceed the duty cycle of the compressor.



[brightspark]

only if it was used constantly a couple of fills will be ok and left to cool down



[ukracer]

The compressor would kick in less often, but would have to run for a long time to fill a 200 litre tank.
This would possibly exceed the duty cycle of the compressor.

Yeah I am concerned about that. But I was hoping in my case I can set a cut off switch for a lower pressure than it would need if it was just filling the small tank to a higher pressure?



[ukracer]

only if it was used constantly a couple of fills will be ok and left to cool down

As I say my current interest is to clean swarf with an air gun. Every 2 mins or so..

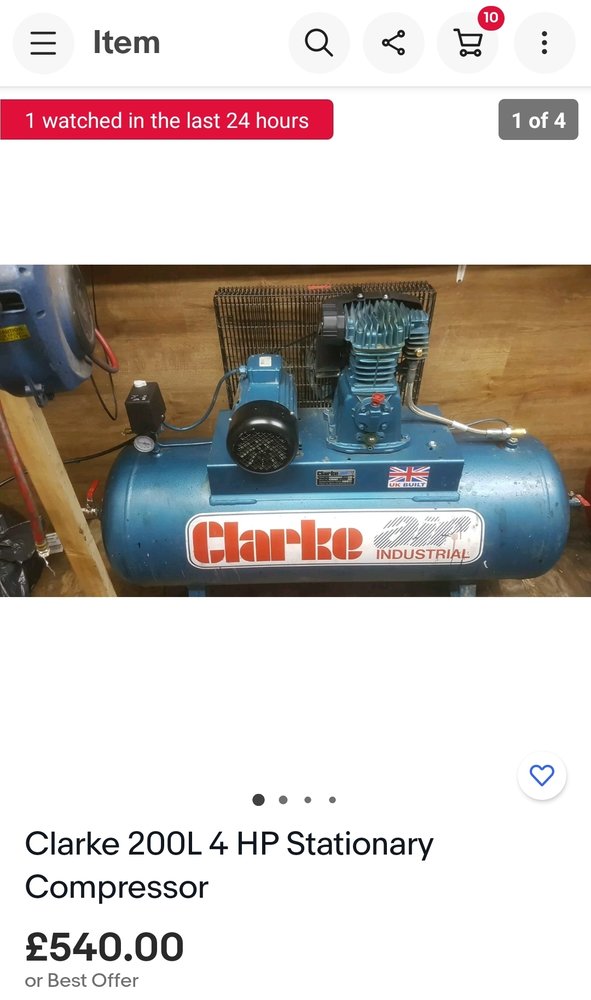

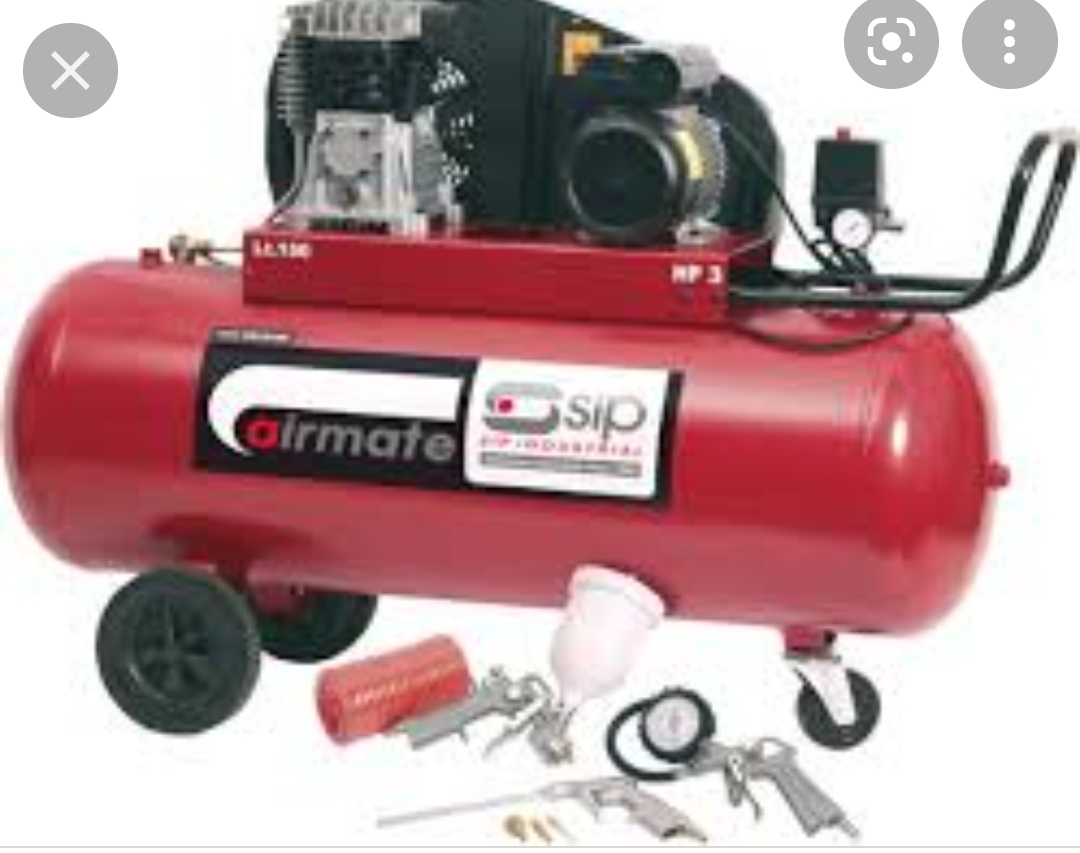

I have these two.





(Both much older) I am repairing.
I would have purchased a new compressor unit. But I did that and it lasted 6 months. It was blowing oil out the filler and it was hidden in a sound proof boxed in section.



[AVI_8]

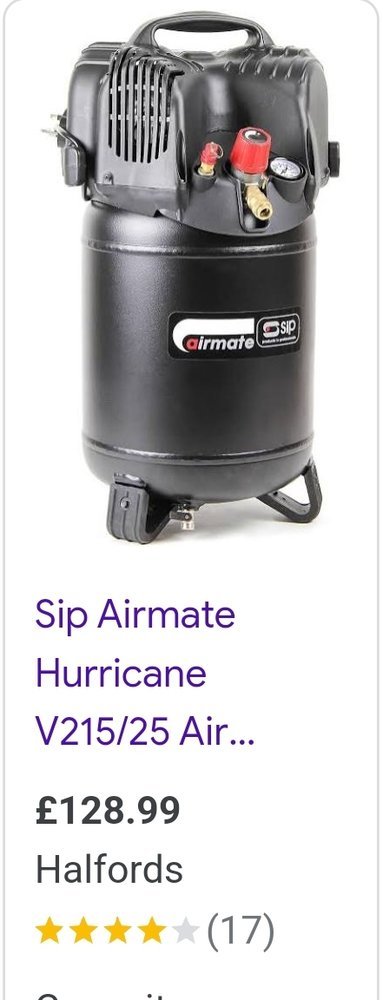

Your duty cycle for that little Sip compressor is 2.5 min on followed by 7.5 minutes off, with a 3CFM motor
good luck filling that 200 litre tank from it.



[ukracer]

Your duty cycle for that little Sip compressor is 2.5 min on followed by 7.5 minutes off, with a 3CFM motor
good luck filling that 200 litre tank from it.

Ok mate. That's a very useful reply and great information . I will suffer the repeat fills and turn down the cut off pressure.
But I won't bother plugging it into the system. Thanks.



[brightspark]

Your duty cycle for that little Sip compressor is 2.5 min on followed by 7.5 minutes off, with a 3CFM motor
good luck filling that 200 litre tank from it.

yep never noticed it was that small it would probably kill it direct drive as well that dont help



[ukracer]

yep never noticed it was that small it would probably kill it direct drive as well that dont help

They should have timer on to prevent this....



[Onoff]

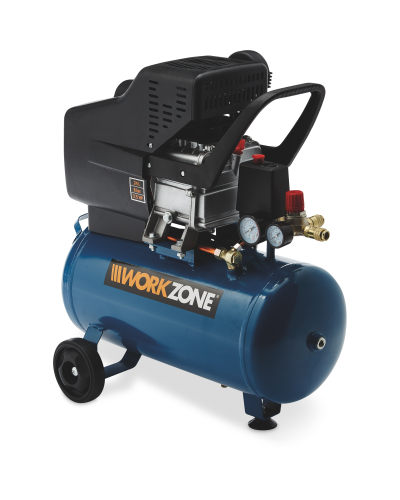

I am the poor relation here!

• 2.5 HP motor
• Air displacement: 262 l/min, 9.3 CFM
• Compressor speed: 2850 1/min
• Rated voltage: 230V~/50HZ
• 8 Bar max. working pressure
• Outlet pressure regulator
• Theoretical intake capacity: 270 l/min



[awemawson]

I don't know what machine you want to clear swarf from, and I don't want to try and teach you to suck eggs, but clearing swarf on a lathe or milling machine (for instance) using compressed air can cause serious issues and is frowned upon. Swarf can get stuck under slide ways and way wipers and cause horrid wear rapidly.

I admit that I do do it on occasions, but am extremely careful where I direct the air, and always brush off first with a hand brush to clear the majority of the debris.
