Early Colchester Bantams and Students were outshopped in that shade of green. I wanted mine to be blue so I went for a similar tone, called ‘Cornflower Blue’
eLuSiVeMiTe
Member
- Messages
- 16,441
- Location
- ......

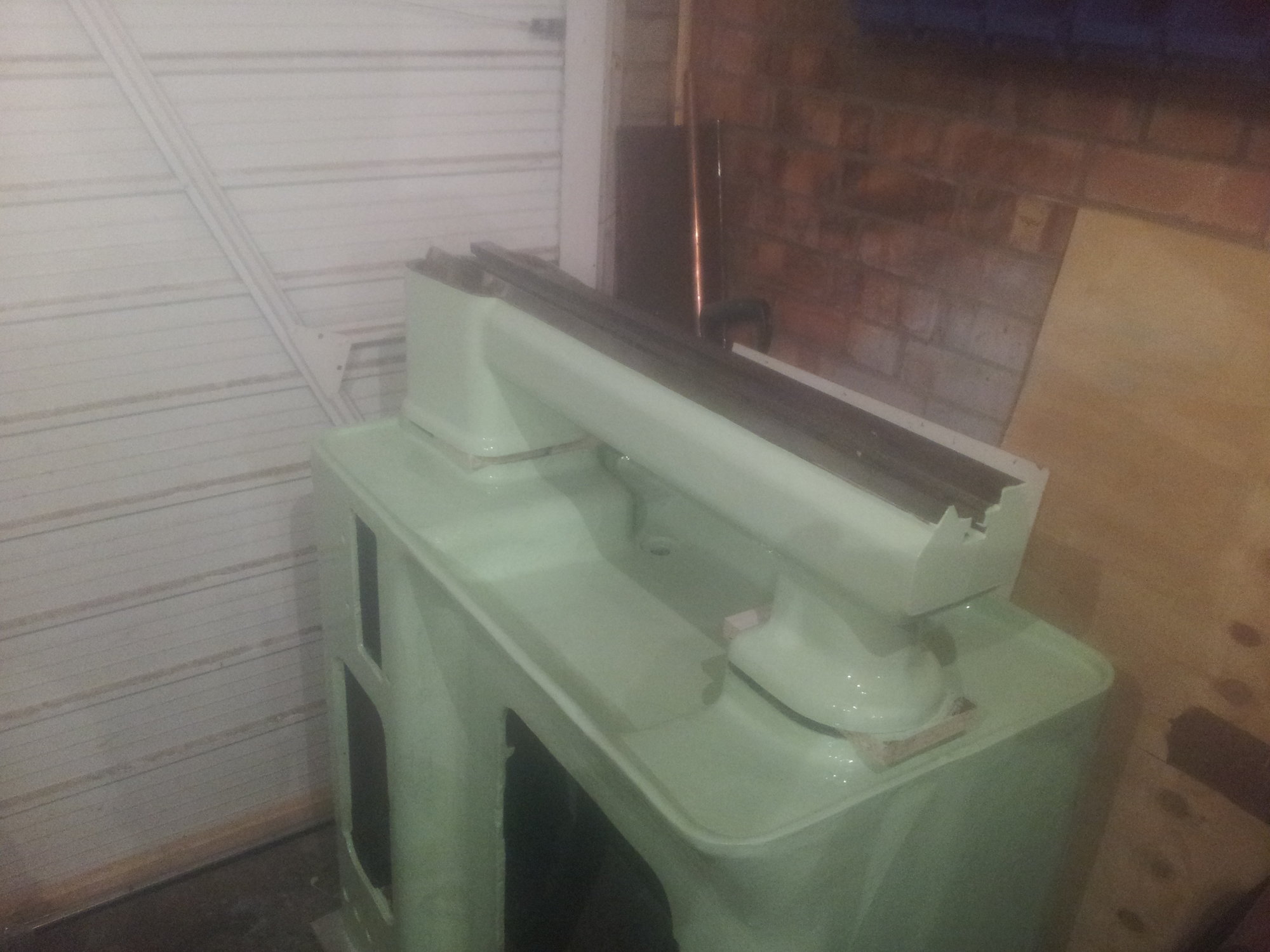

Finally a day off.

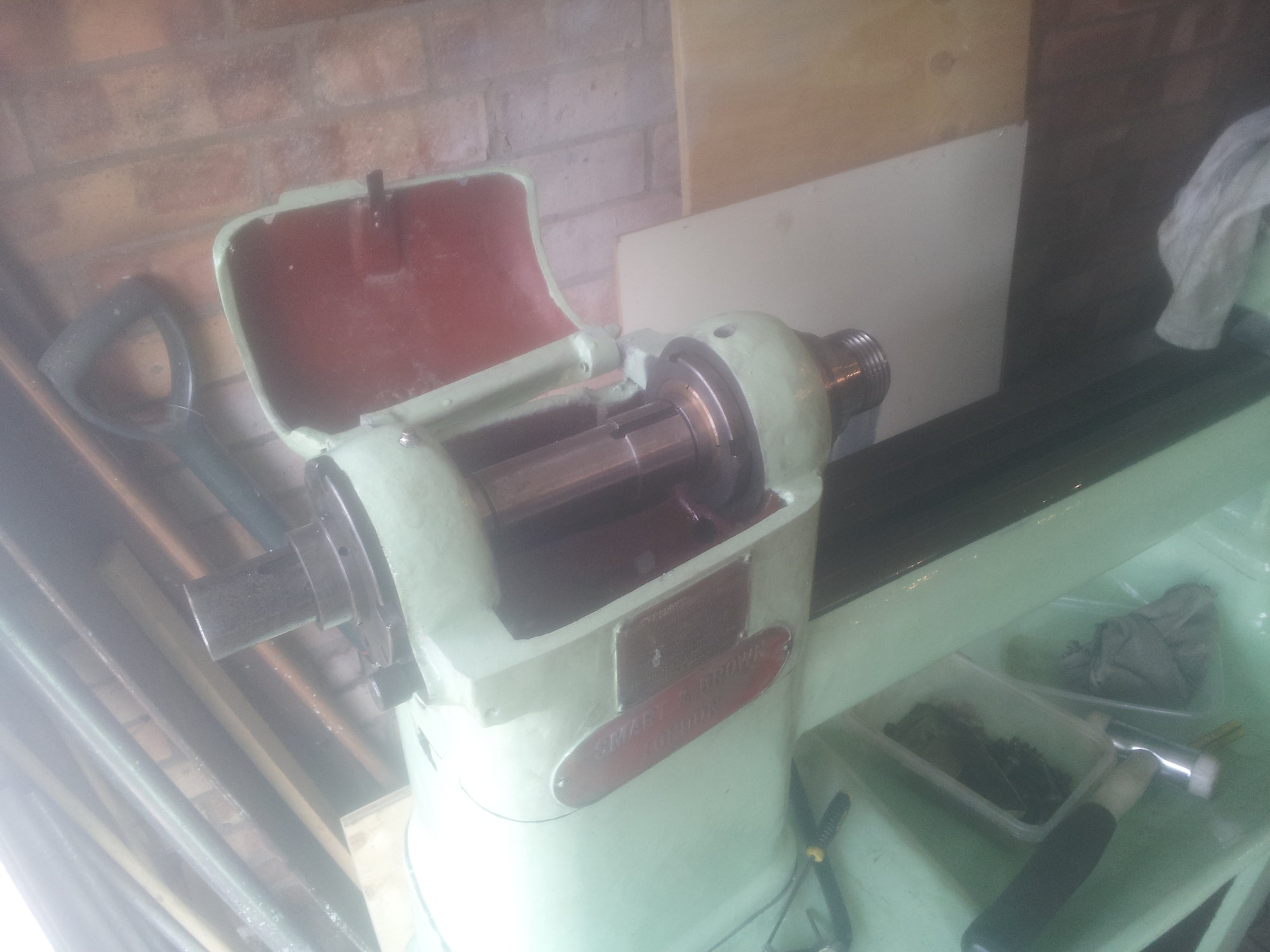

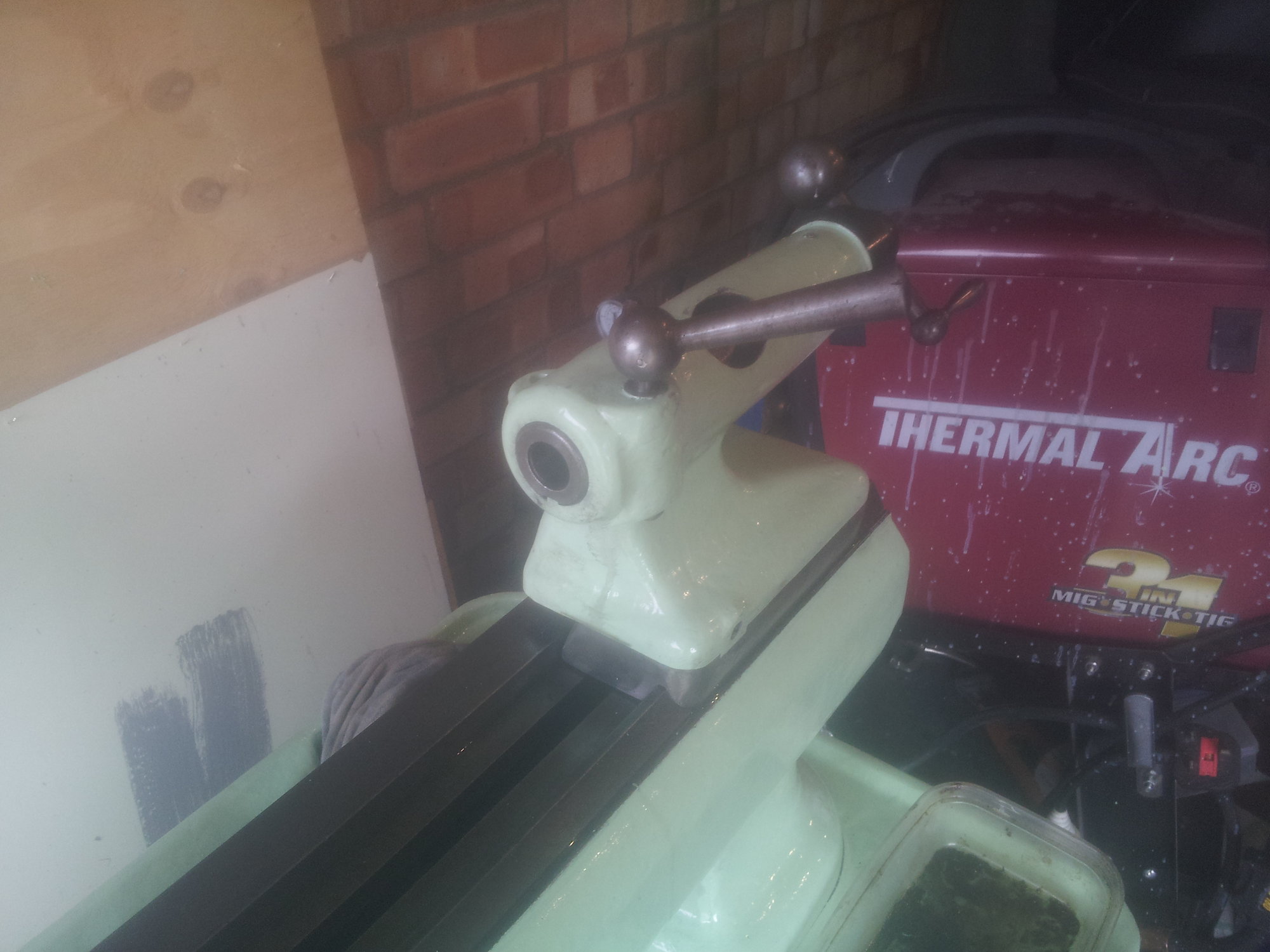

Overpaint cleaned off and start building it up.
Fittings and parts cleaned up as I go.
The pulley and its internal bearings are on the bench ready for stripping and rebuilding.
Still need to decide which apron im using then thats the top complete. Ish.
Overpaint cleaned off and start building it up.
Fittings and parts cleaned up as I go.
The pulley and its internal bearings are on the bench ready for stripping and rebuilding.
Still need to decide which apron im using then thats the top complete. Ish.
eLuSiVeMiTe
Member
- Messages
- 16,441
- Location
- ......

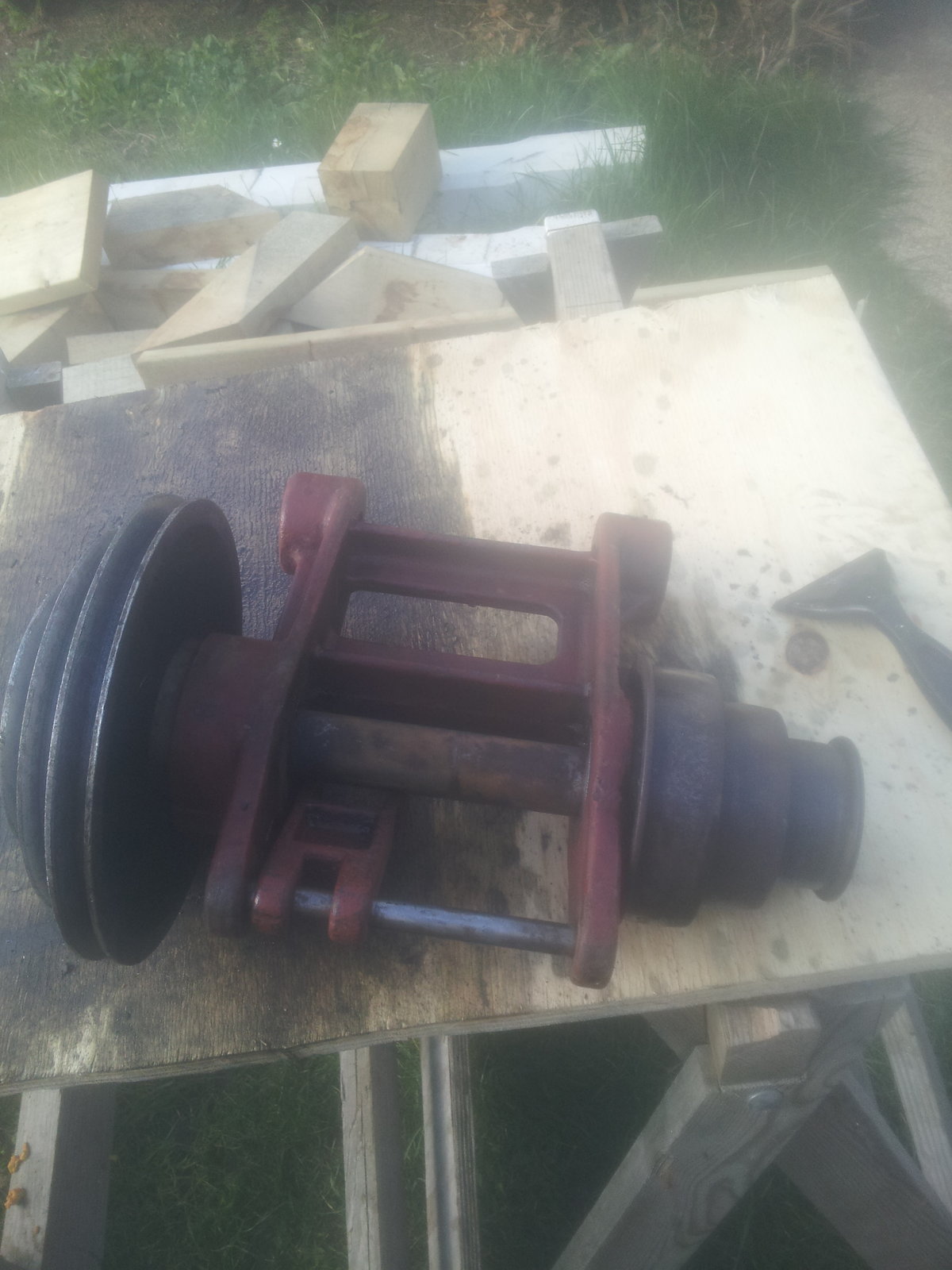

Next up. Counter pulley.

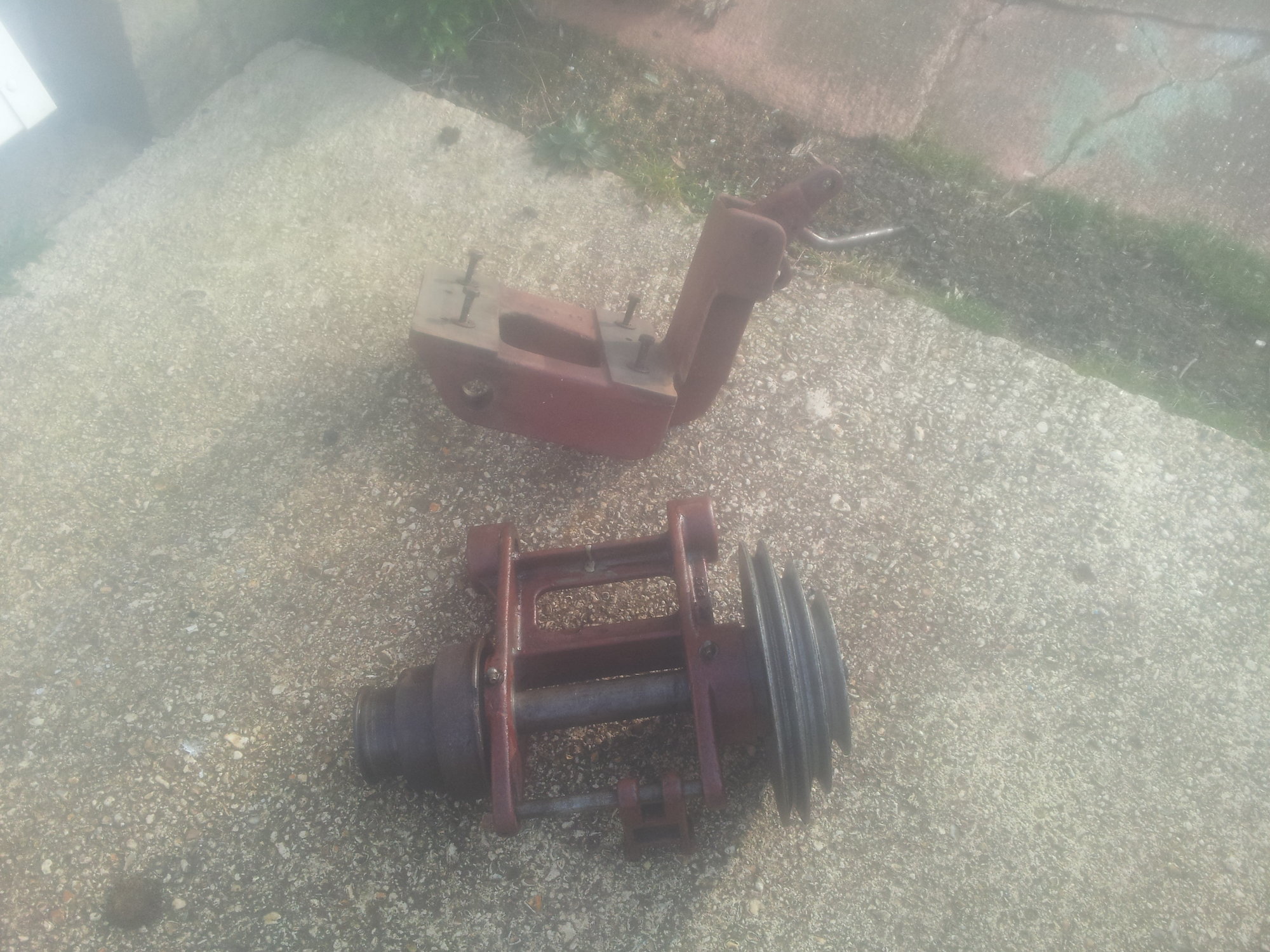

Cleaned the mount up then popped the pulleys on the bench.

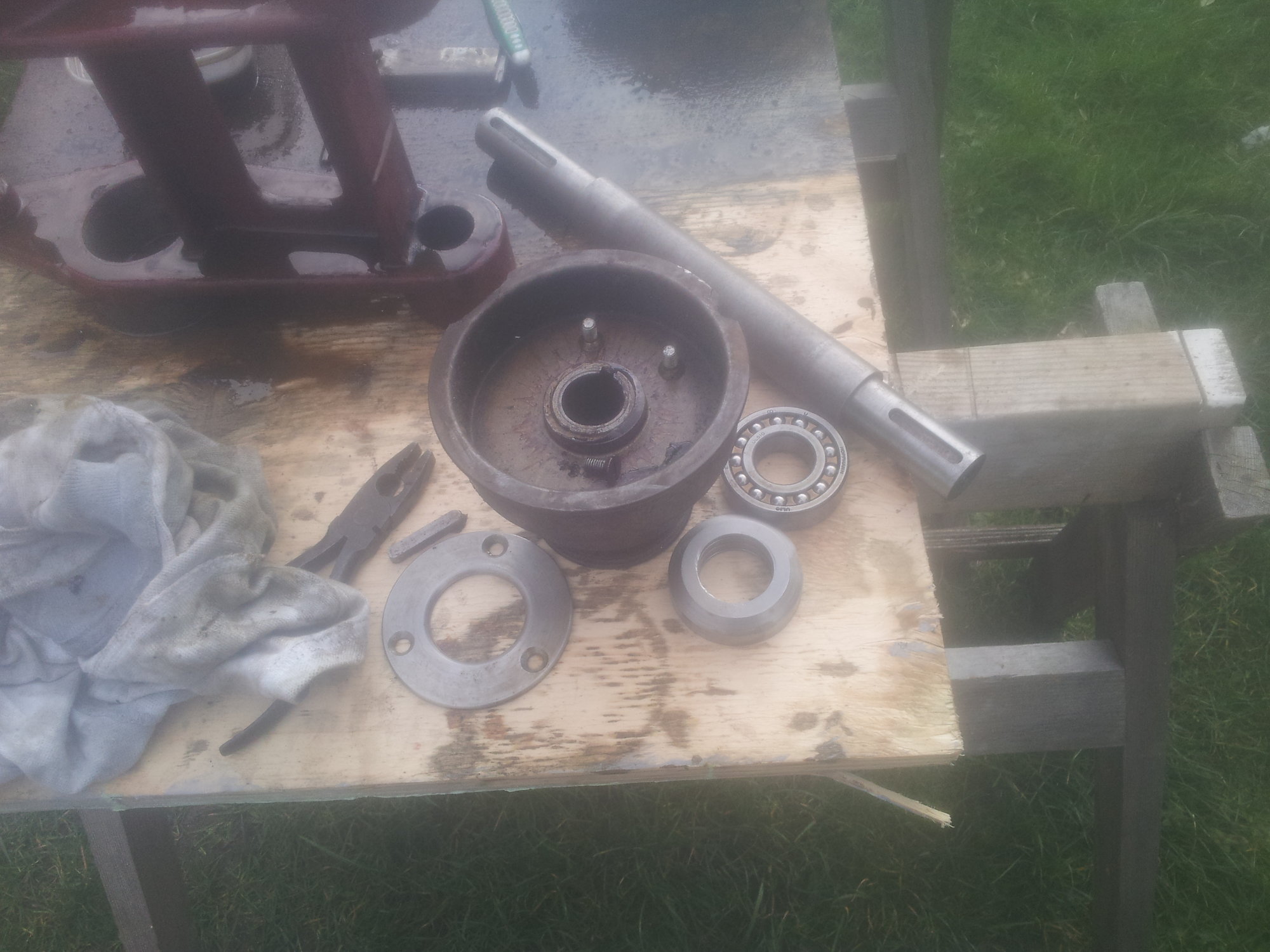

Given I didnt know the age of the grease apart it comes.
Very nicely made. Beefy bearings and the shaft holes are grooved in a spiral to feed the inernal plain bearings grease as it heats up.
All back together and ready for fitting.
Cleaned the mount up then popped the pulleys on the bench.
Given I didnt know the age of the grease apart it comes.
Very nicely made. Beefy bearings and the shaft holes are grooved in a spiral to feed the inernal plain bearings grease as it heats up.
All back together and ready for fitting.
eLuSiVeMiTe
Member
- Messages
- 16,441
- Location
- ......
eLuSiVeMiTe
Member
- Messages
- 16,441
- Location
- ......
But she would moan if she got swarf and oil on her ****...Actually I meant in the last 7 years
eLuSiVeMiTe
Member
- Messages
- 16,441
- Location
- ......
Opinions please.

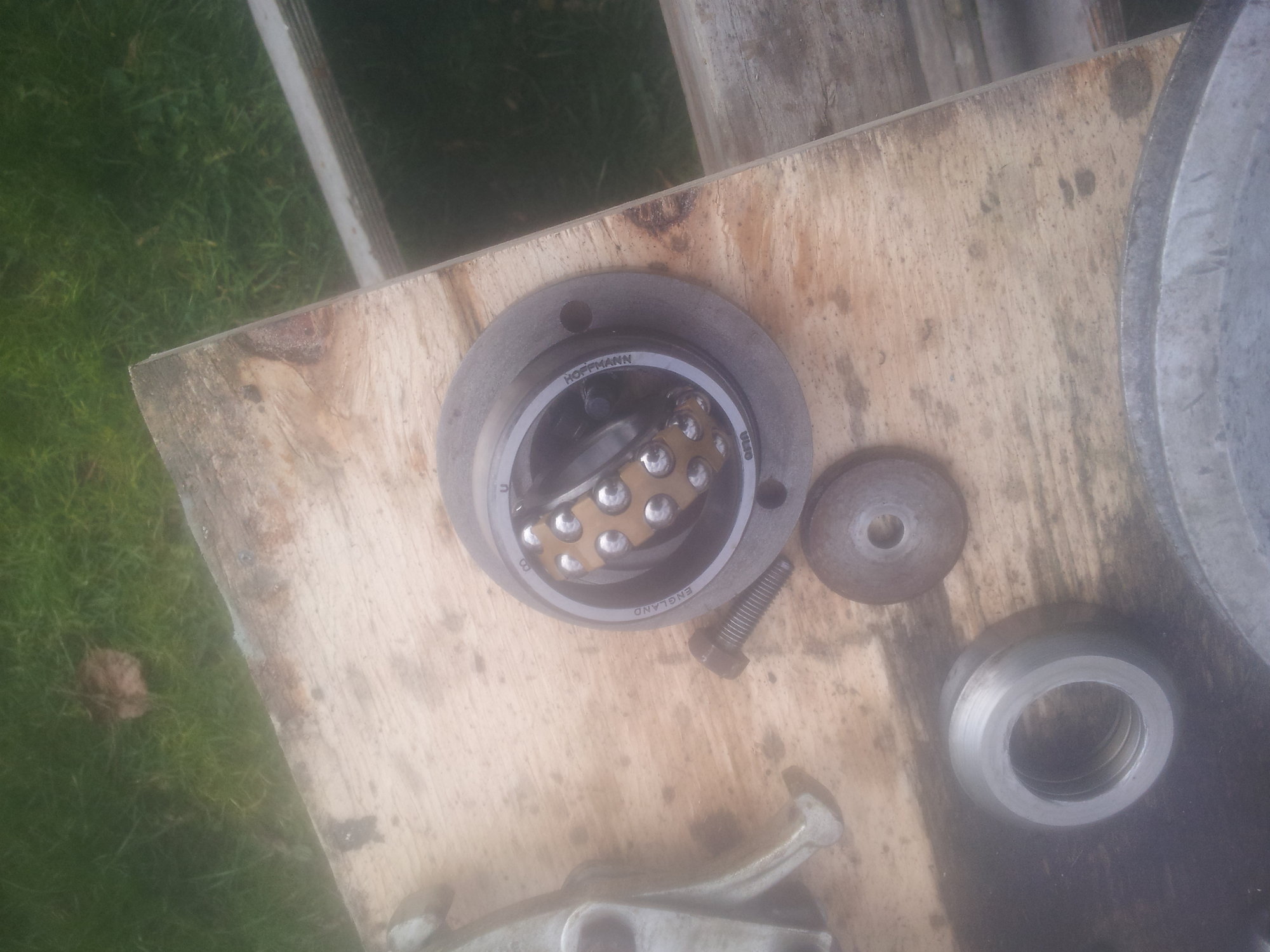

Stepped pulley that drives the spindle runs on ball journals internally. Would like to strip and service but its a puzzler.
Stumped me previously but wasn't until I tried again this evening I remembered.
The outer pulley drives the spindle via keys and key ways. The pulley internals are separated by bearings and fixed to the headstock rear.

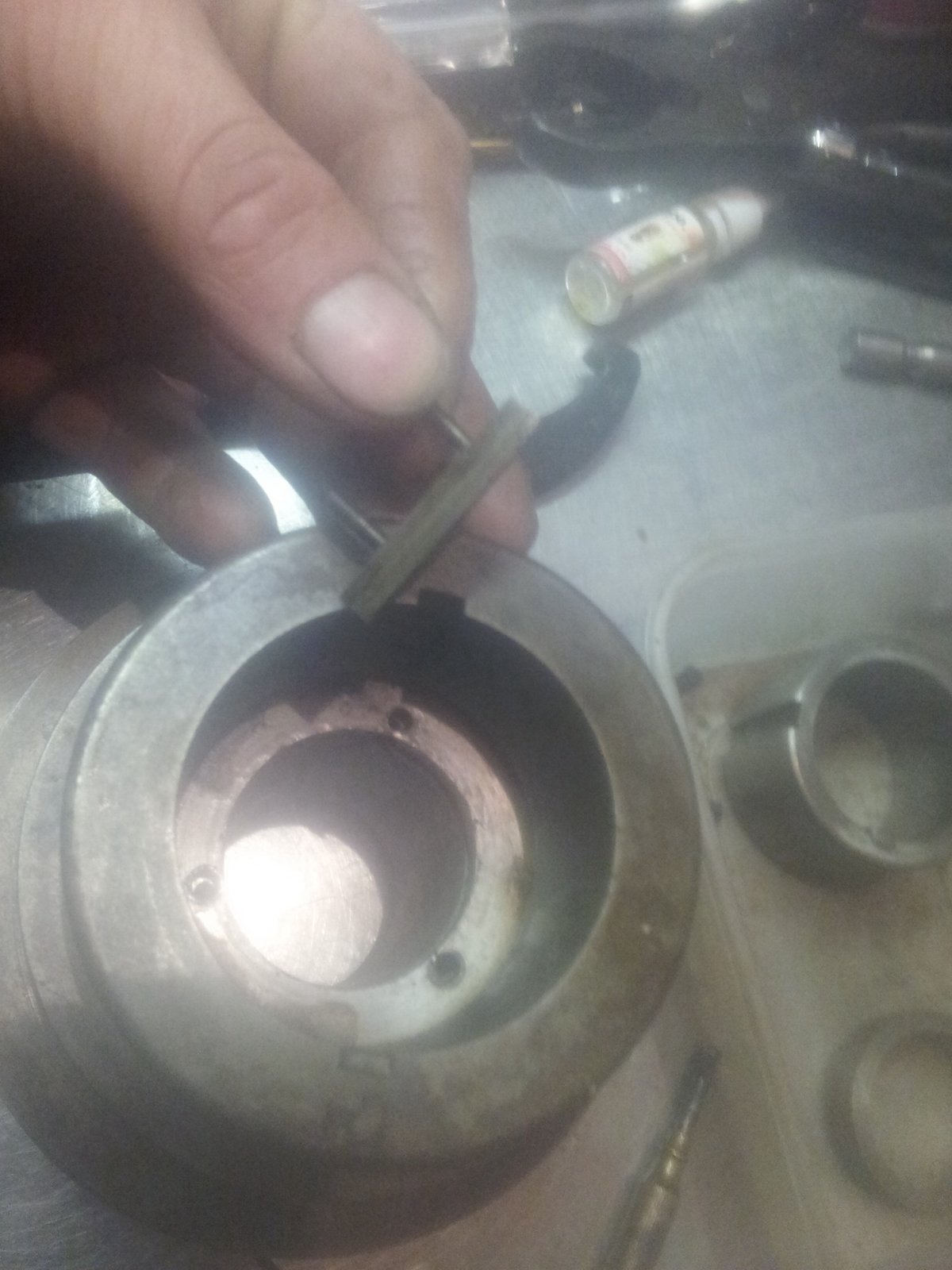

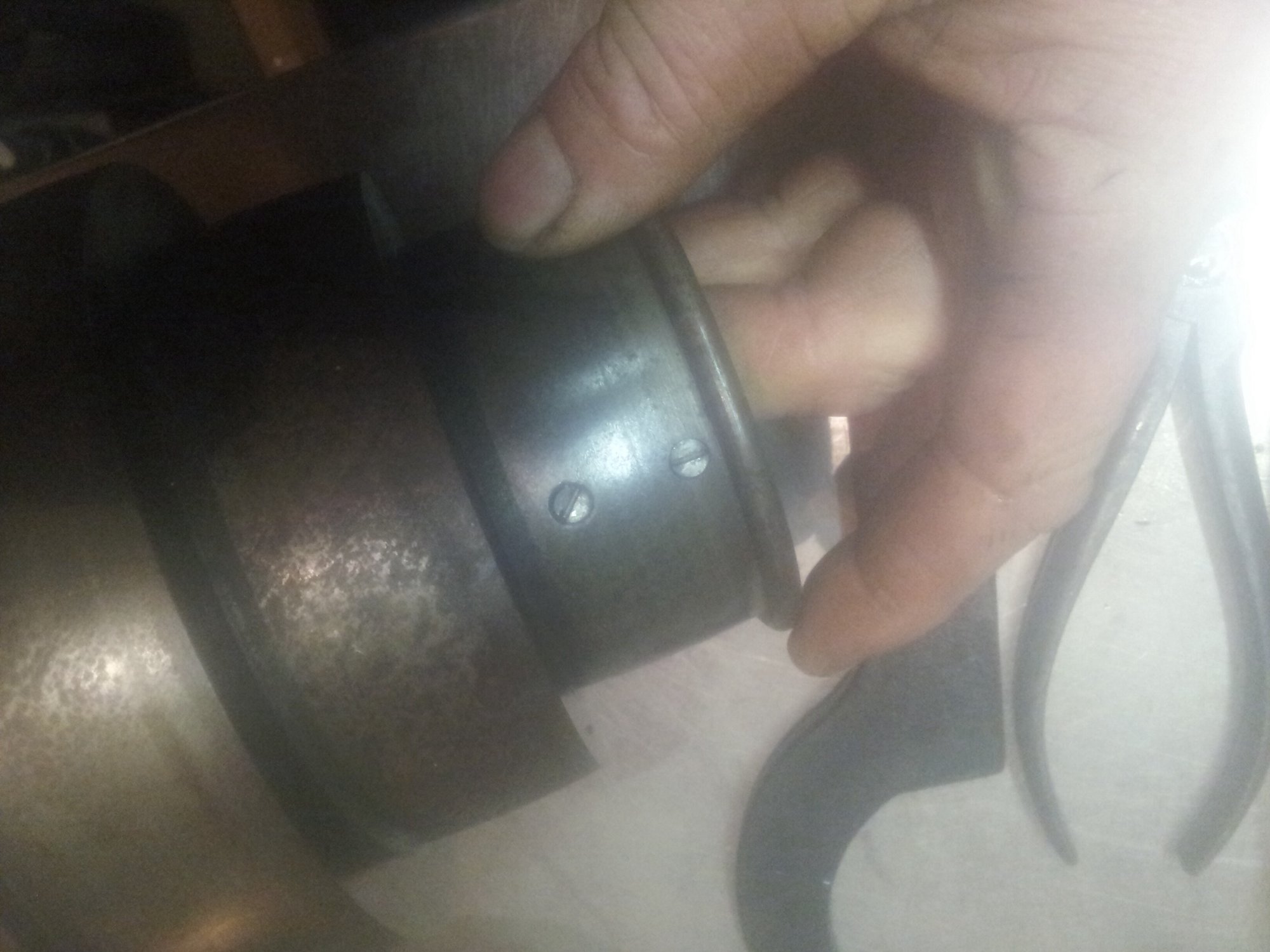

3 cap heads visible down the small end locate and secure a ring. This cannot be removed via this end as an internal step is in the way.
2 keys are secured to this from exterior with machine screws.
Only other machine screw is for an oil fill.

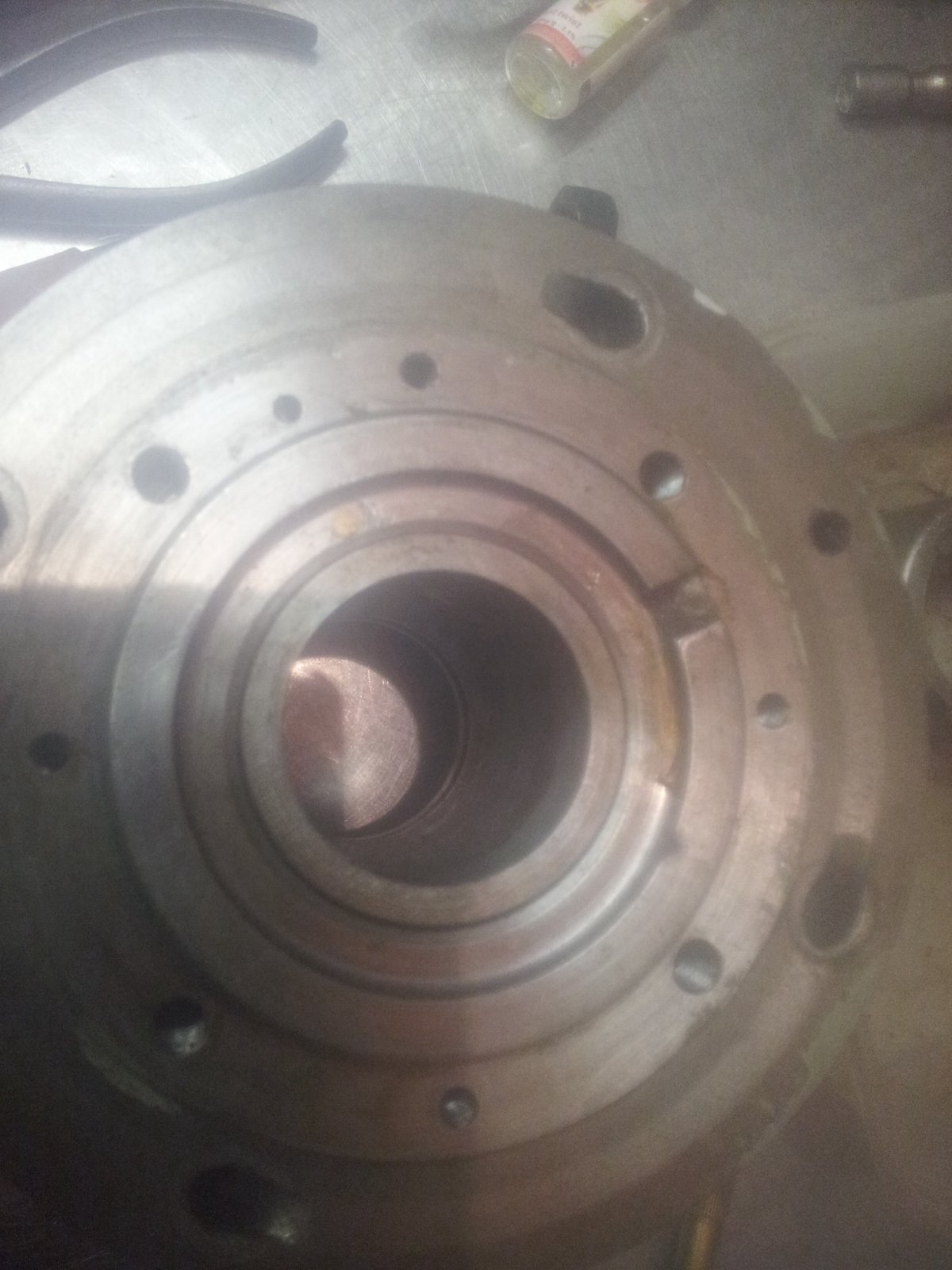

On the large end the outer holes are for the spindle lock.
Medium holes secure the pulley inner to the rear headstock

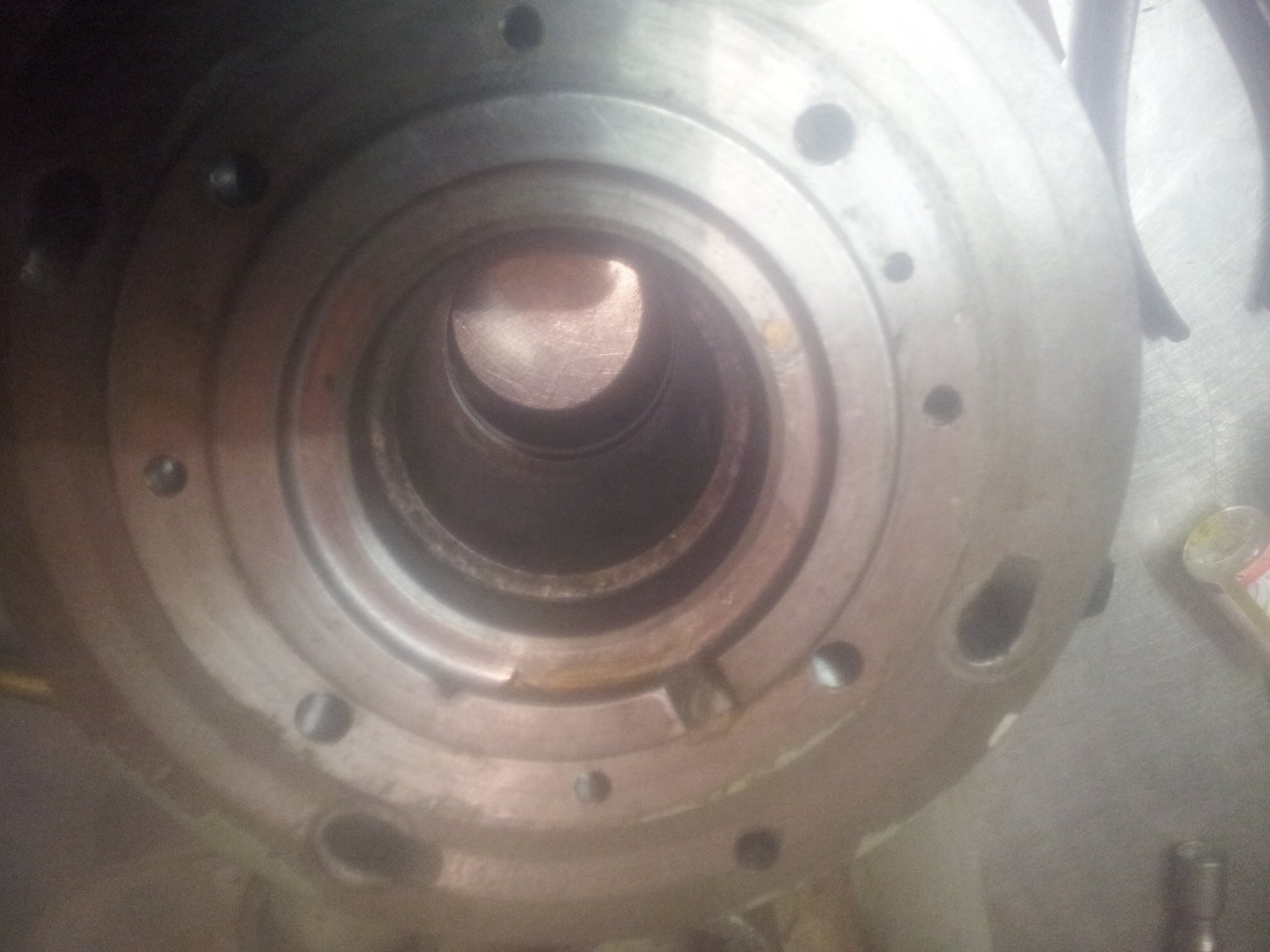

4 small holes preload the bearings from the rear headstock outer.
1 further small blind hole that appears to serve no purpose.
Looking through the medium holes a few cap heads are visible but drilled on a wider diameter and cannot be accessed externally.
Got me stumped.
Images attached.

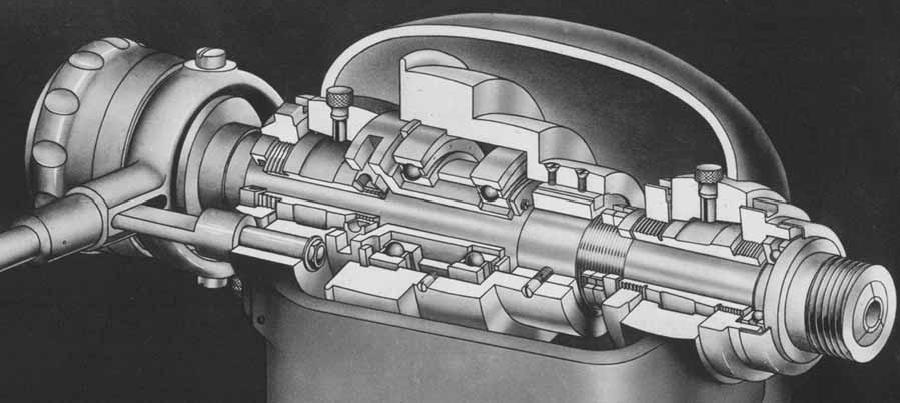

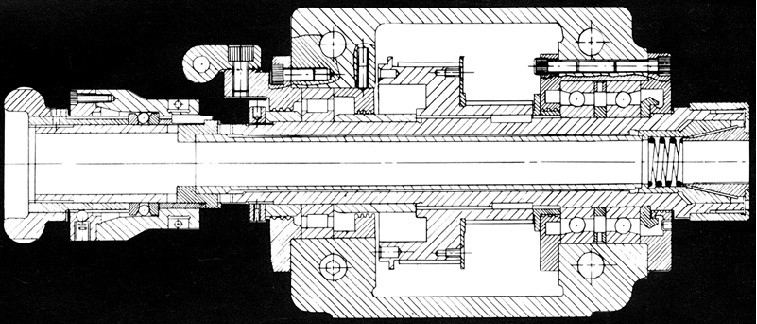

Drawings are not quite the same as mine. My rear has bearing races rather than the bronze bushings it has at the front.
Stepped pulley that drives the spindle runs on ball journals internally. Would like to strip and service but its a puzzler.
Stumped me previously but wasn't until I tried again this evening I remembered.
The outer pulley drives the spindle via keys and key ways. The pulley internals are separated by bearings and fixed to the headstock rear.
3 cap heads visible down the small end locate and secure a ring. This cannot be removed via this end as an internal step is in the way.
2 keys are secured to this from exterior with machine screws.
Only other machine screw is for an oil fill.
On the large end the outer holes are for the spindle lock.
Medium holes secure the pulley inner to the rear headstock
4 small holes preload the bearings from the rear headstock outer.
1 further small blind hole that appears to serve no purpose.
Looking through the medium holes a few cap heads are visible but drilled on a wider diameter and cannot be accessed externally.
Got me stumped.
Images attached.
Drawings are not quite the same as mine. My rear has bearing races rather than the bronze bushings it has at the front.
eLuSiVeMiTe
Member
- Messages
- 16,441
- Location
- ......

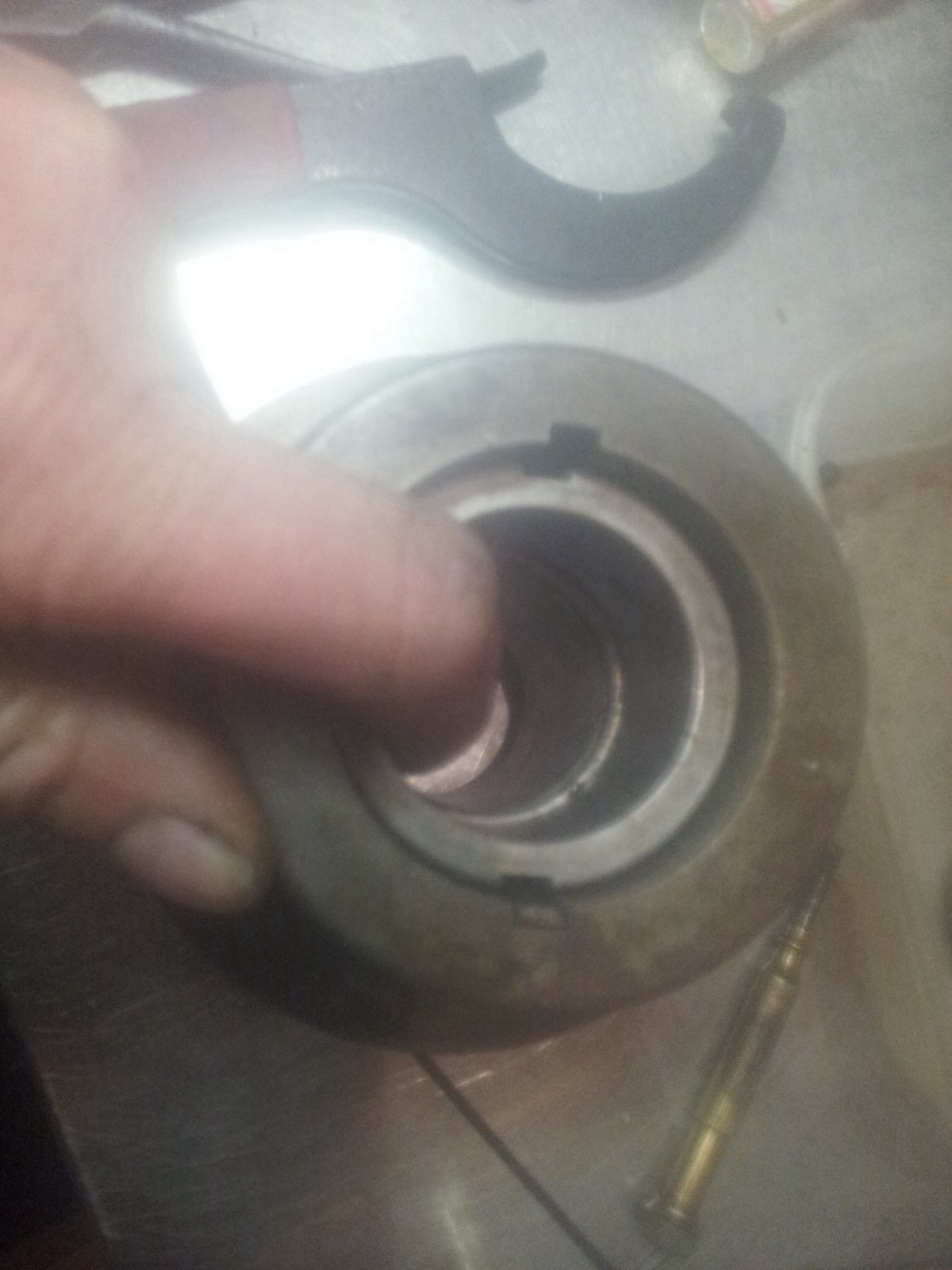

I was looking at the notch on the large end. It doesn't correlate to anything on the headstock and can see no purpose to it.
Initially thought it may have been to undo something with a c spanner but the inner section appears to be one piece and there's no through holes to lock movement to allow undoing anyhow.
Initially thought it may have been to undo something with a c spanner but the inner section appears to be one piece and there's no through holes to lock movement to allow undoing anyhow.
eLuSiVeMiTe
Member
- Messages
- 16,441
- Location
- ......
Runs smoothly. Debating leaving it alone and cleaning what's accessible. Don't want to try and force it.
eLuSiVeMiTe
Member
- Messages
- 16,441
- Location
- ......
Finished by 11 today and noone home.

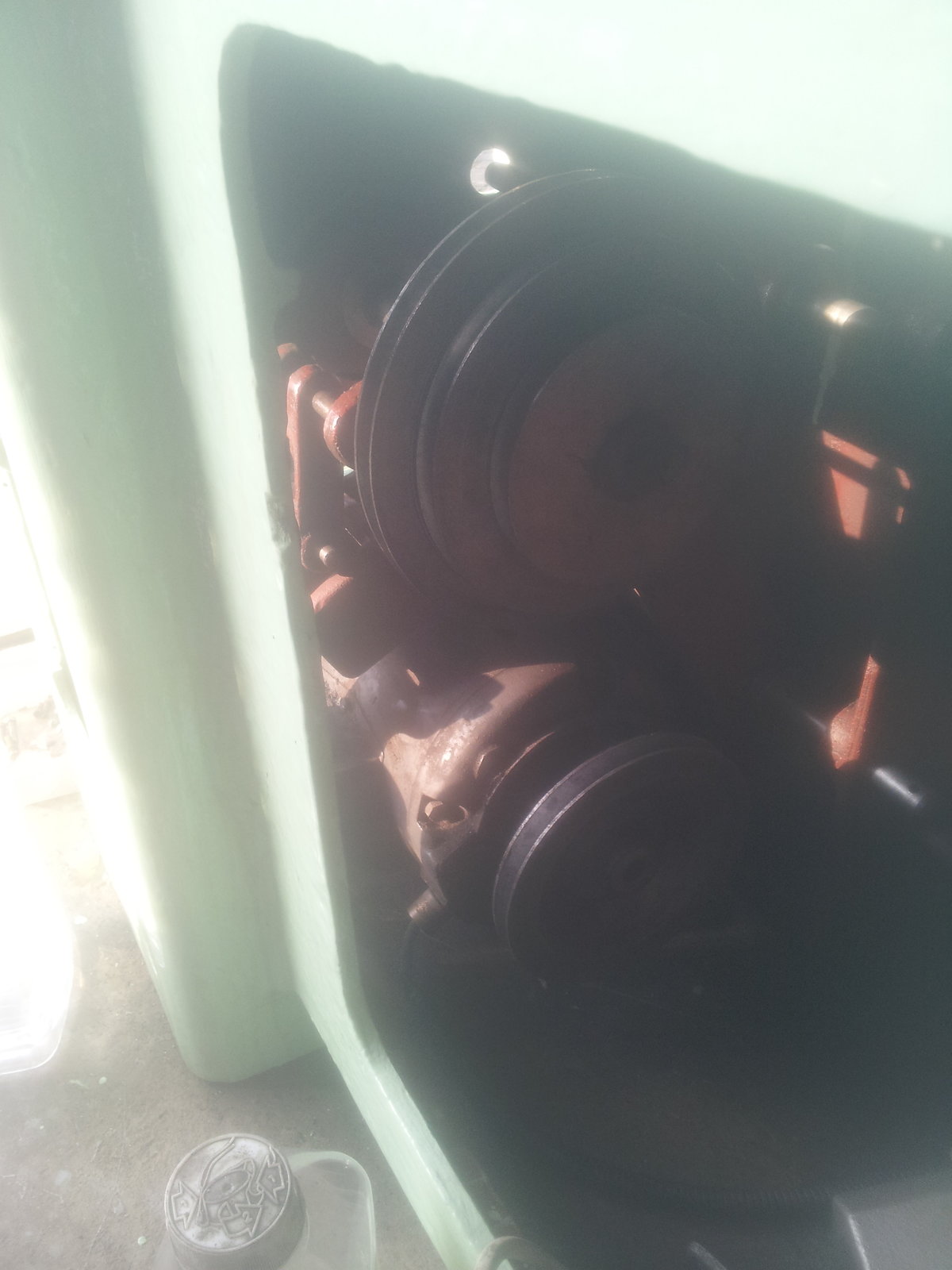

Motor and pulleys assembled and fited.
Pita but got there in the end.

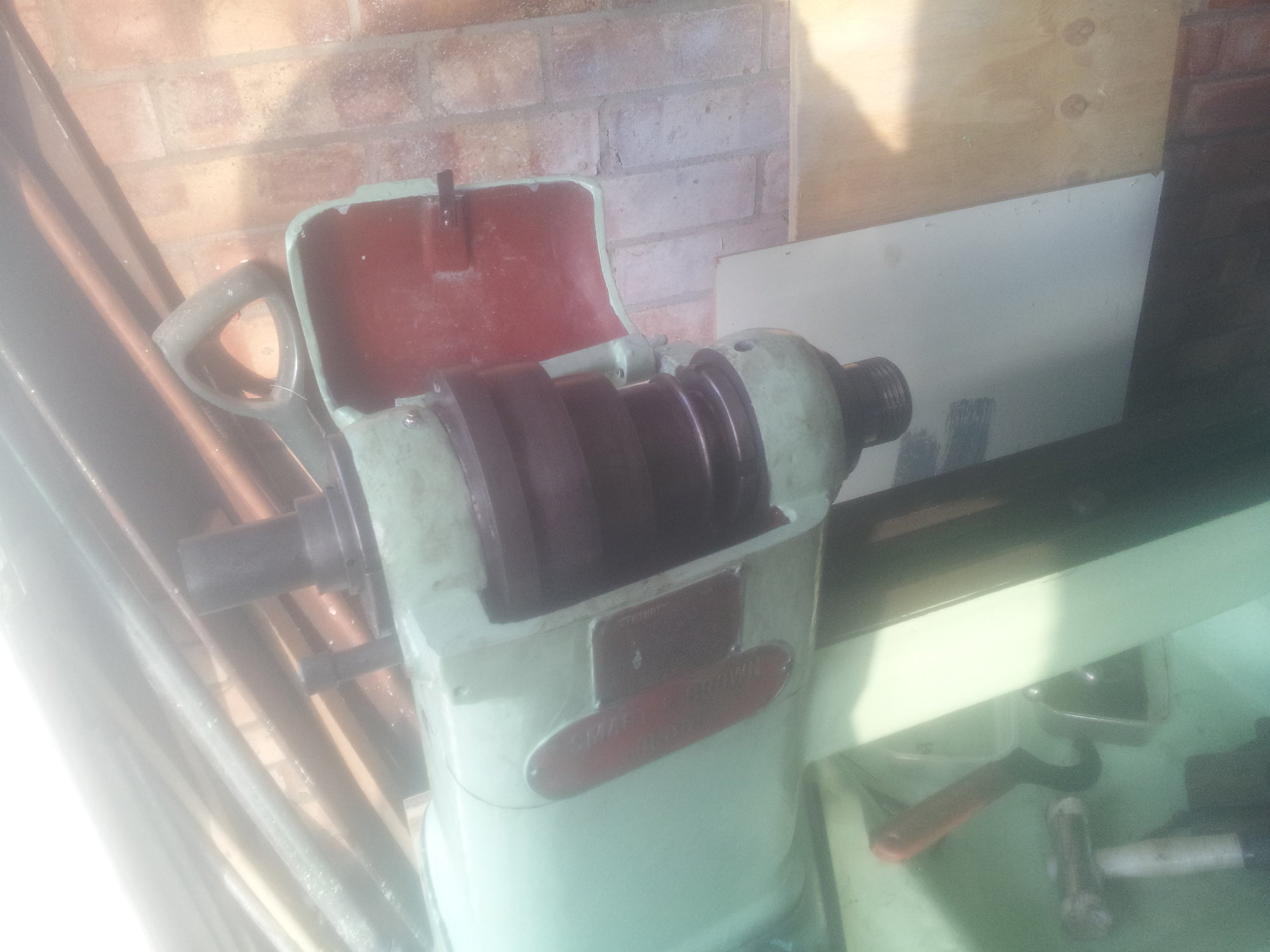

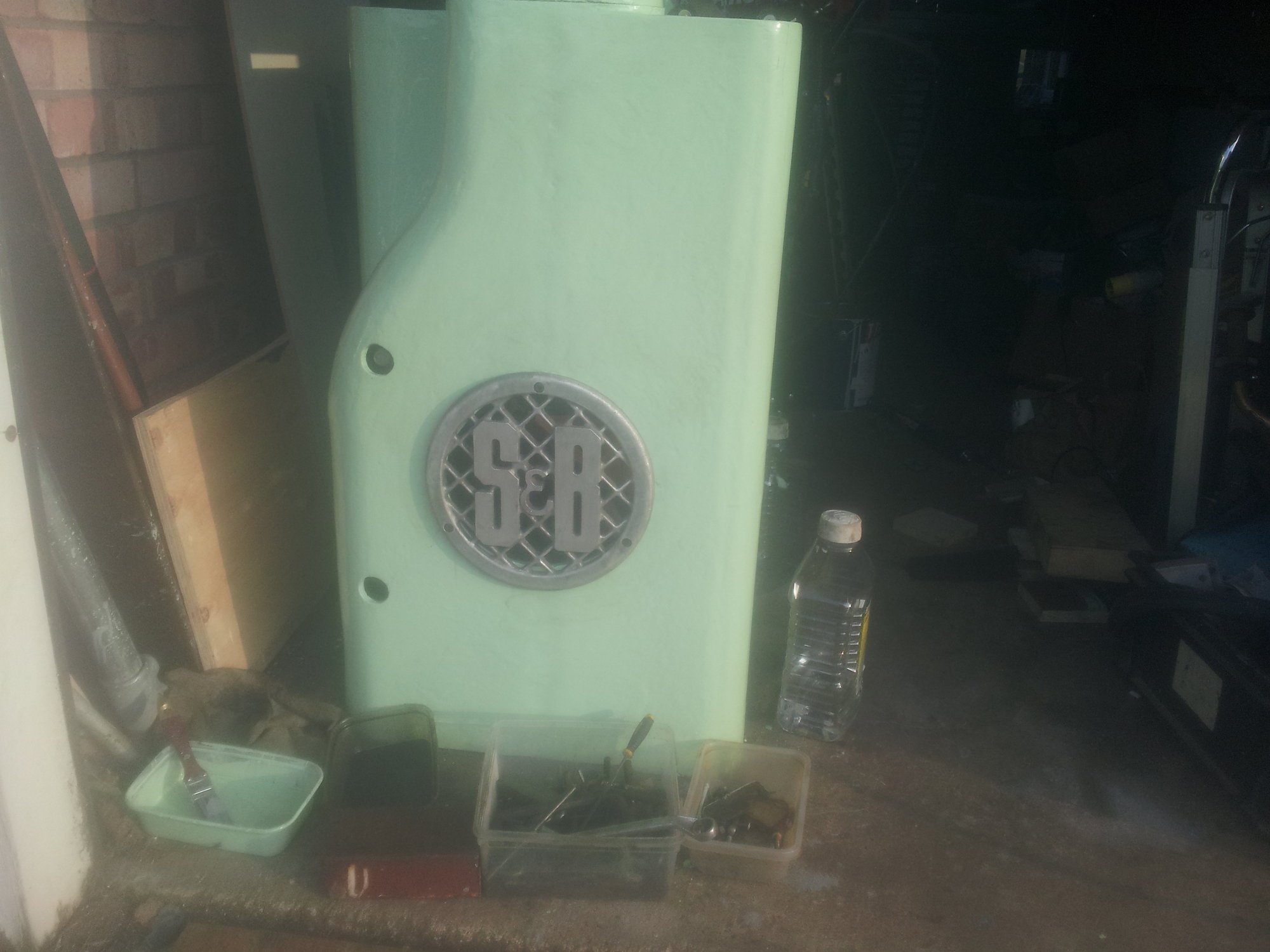

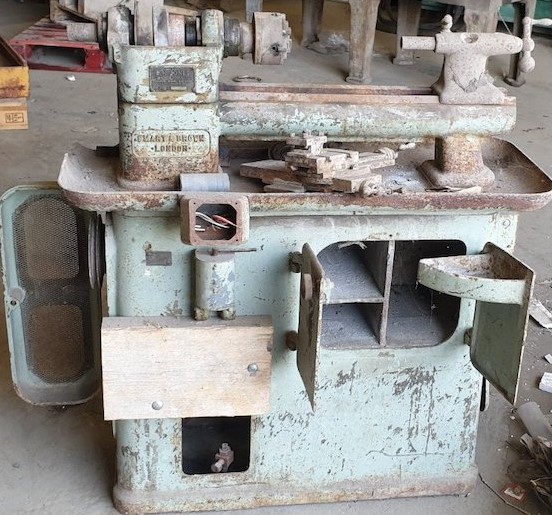

Stepped pulley cleaned and fitted and the doors and slides primed for paint later.
Swapped the compound screw over but while the screws in good shape the bearing surface is worn. Will have to make a new mating surface for it.
View attachment 173594
Motor and pulleys assembled and fited.
Pita but got there in the end.
Stepped pulley cleaned and fitted and the doors and slides primed for paint later.
Swapped the compound screw over but while the screws in good shape the bearing surface is worn. Will have to make a new mating surface for it.
eLuSiVeMiTe
Member
- Messages
- 16,441
- Location
- ......

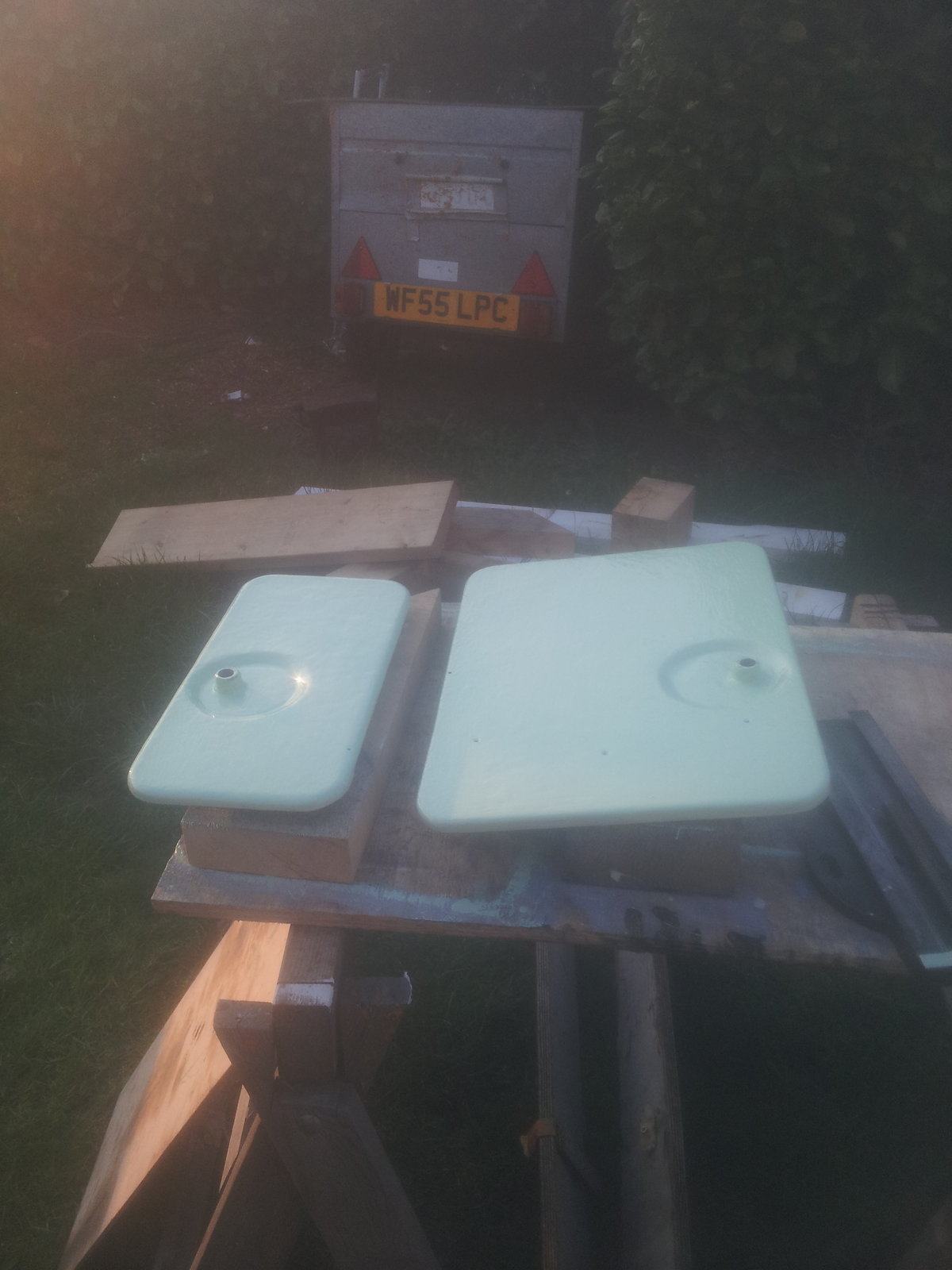

First top coat ready to flatten and finish over the weekend.
eLuSiVeMiTe
Member
- Messages
- 16,441
- Location
- ......

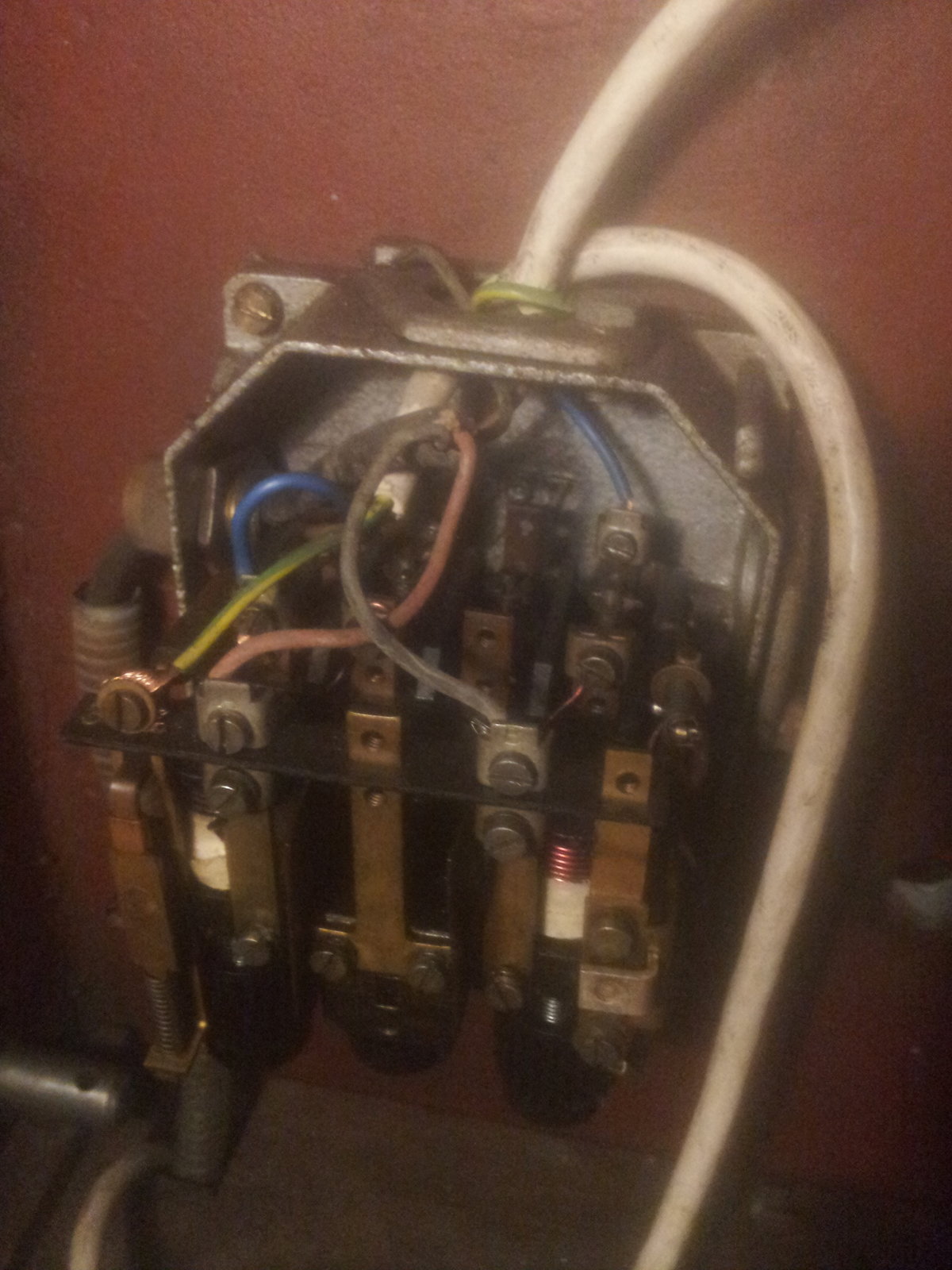

Stole an hour earlier so started reconnecting the wiring.
Was working nicely when I aquired it.

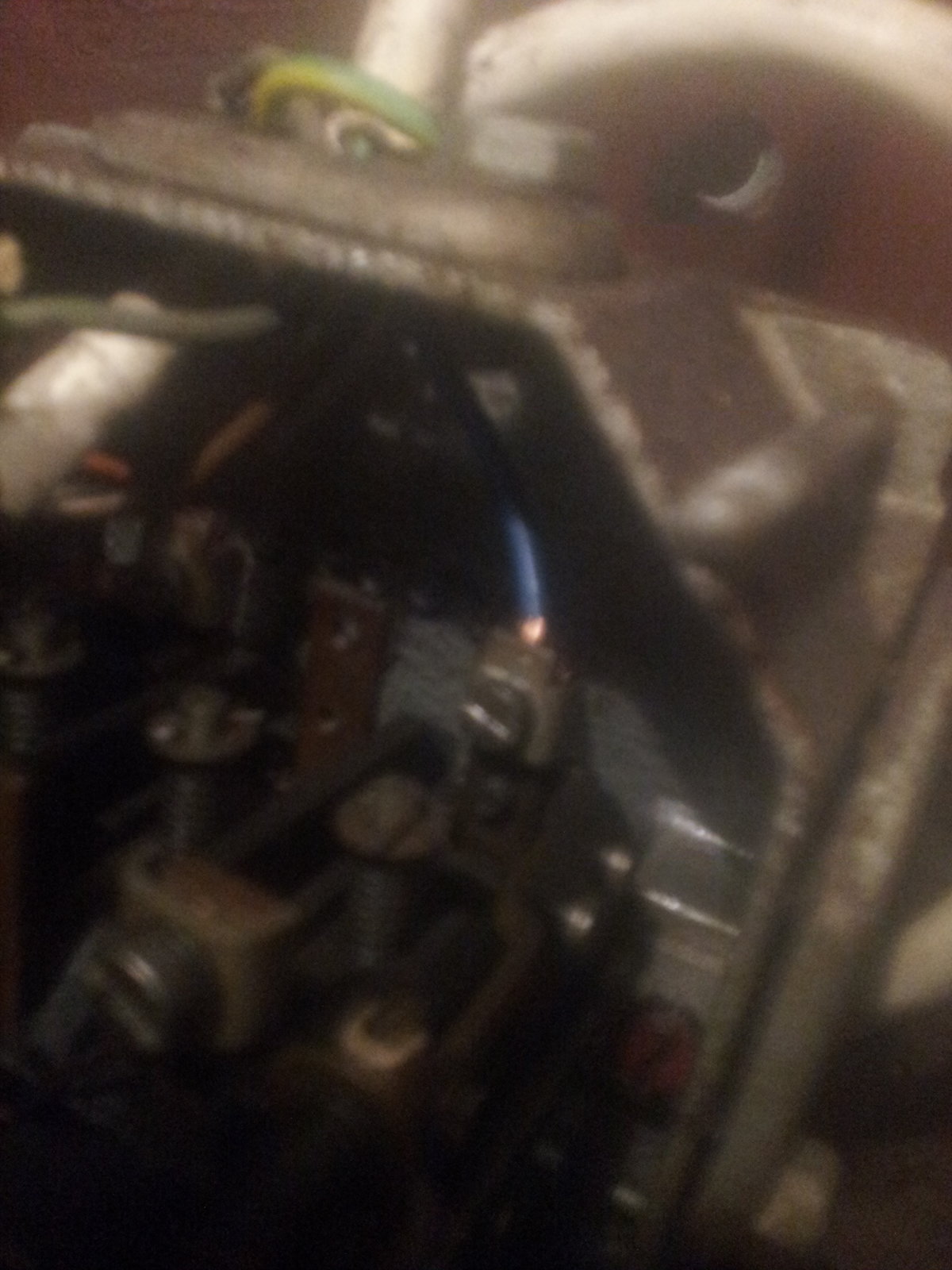

Nice flash from the contactors and a few revs of the motor is all im getting now.

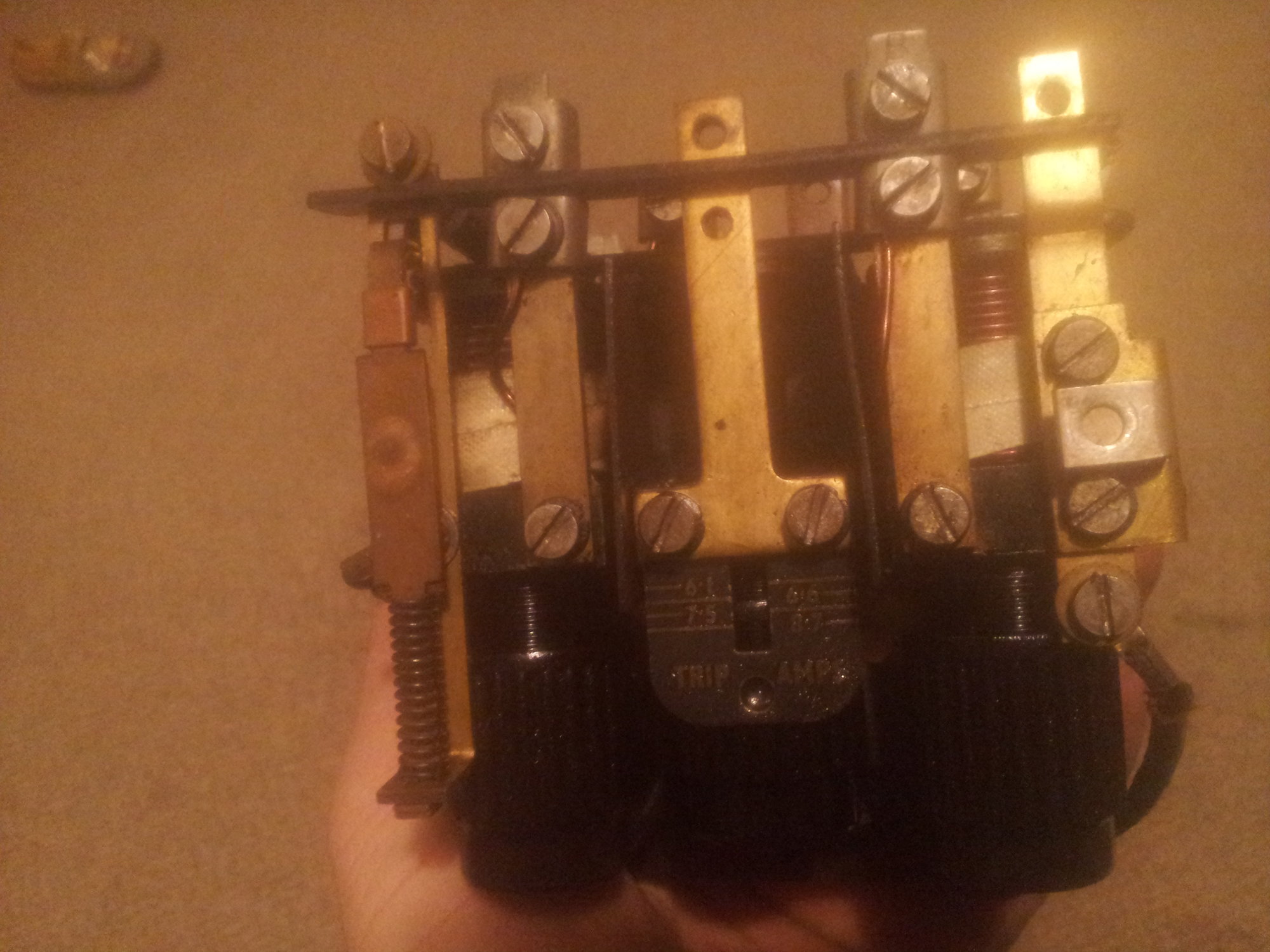

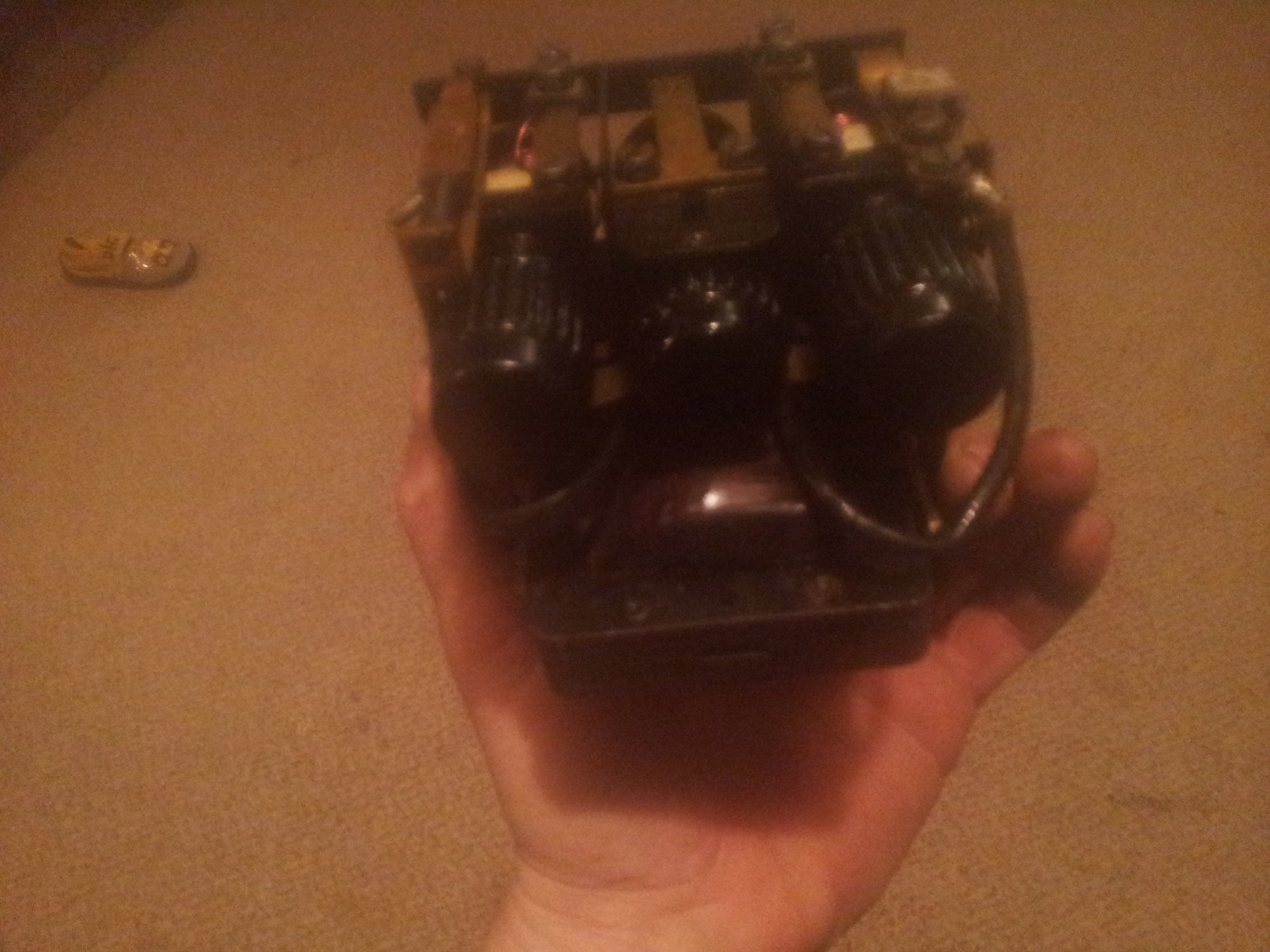

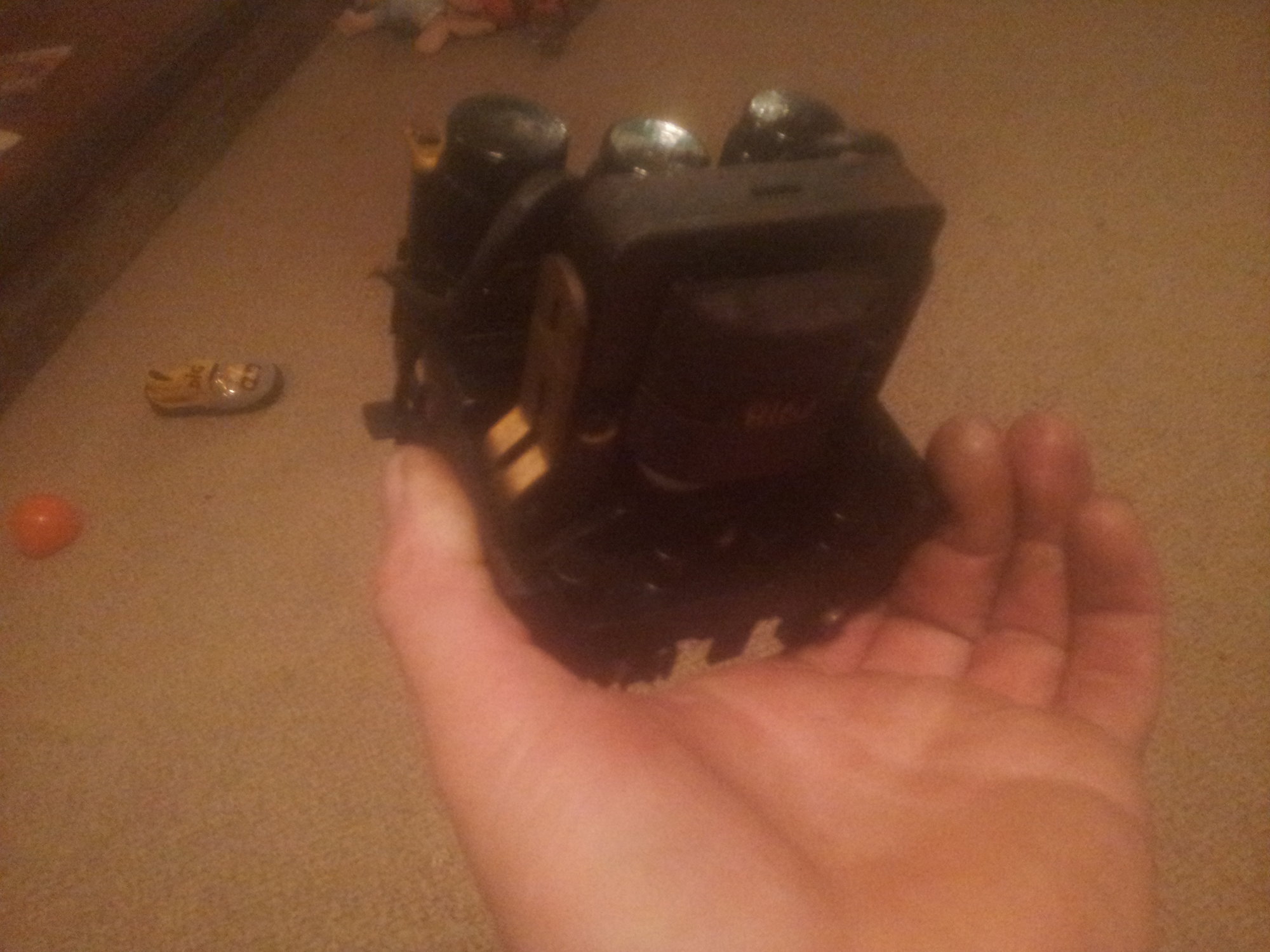

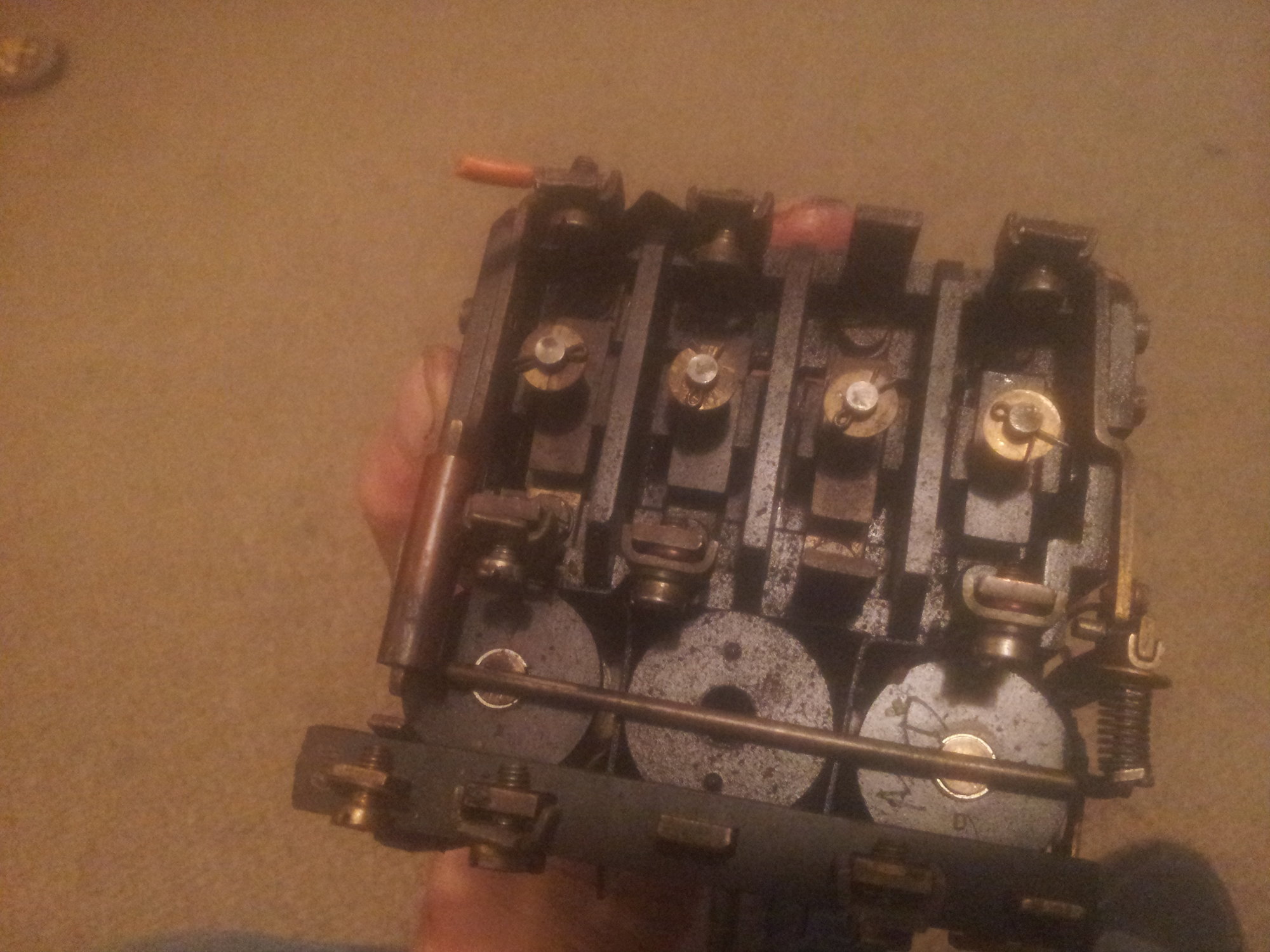

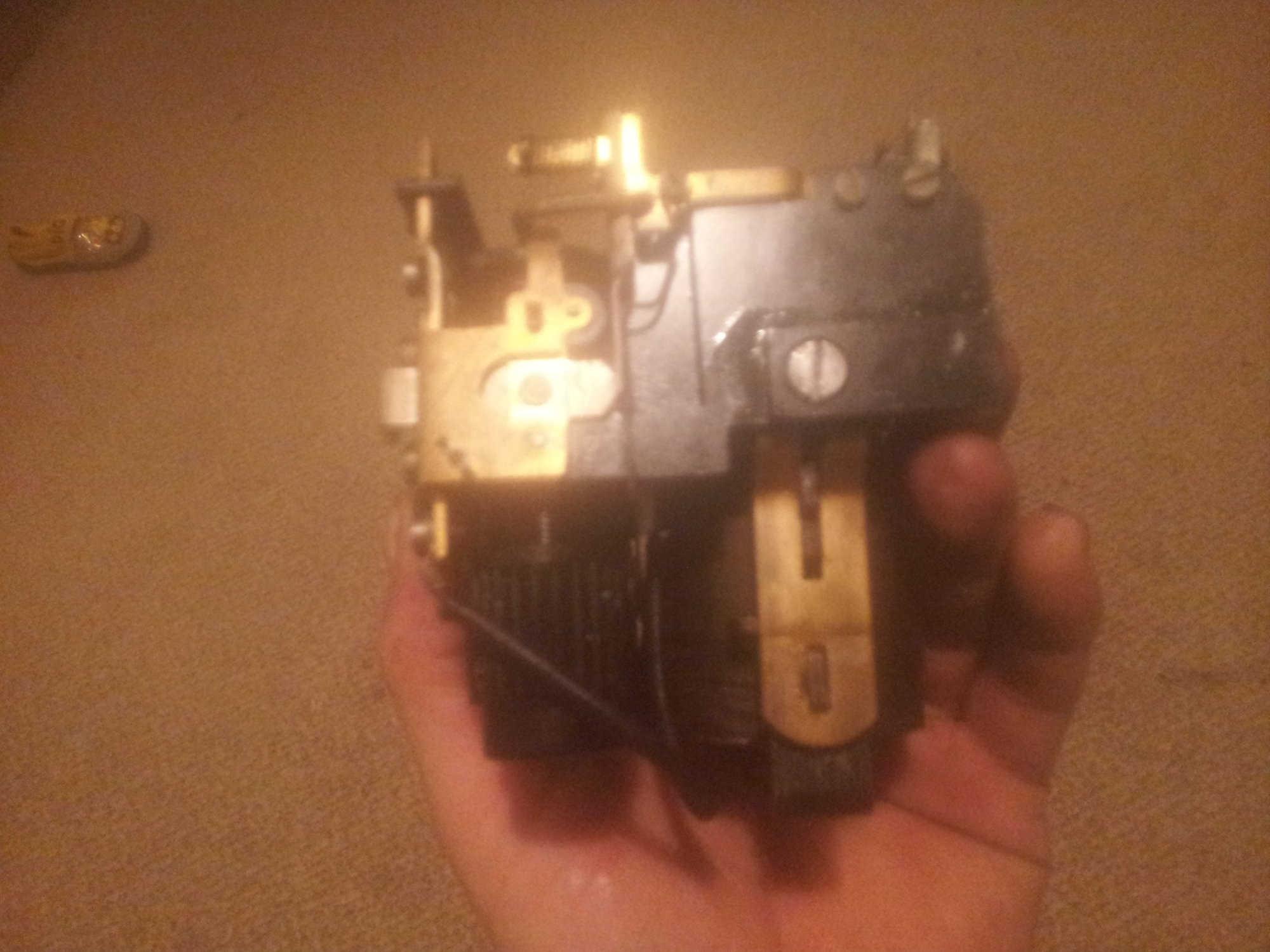

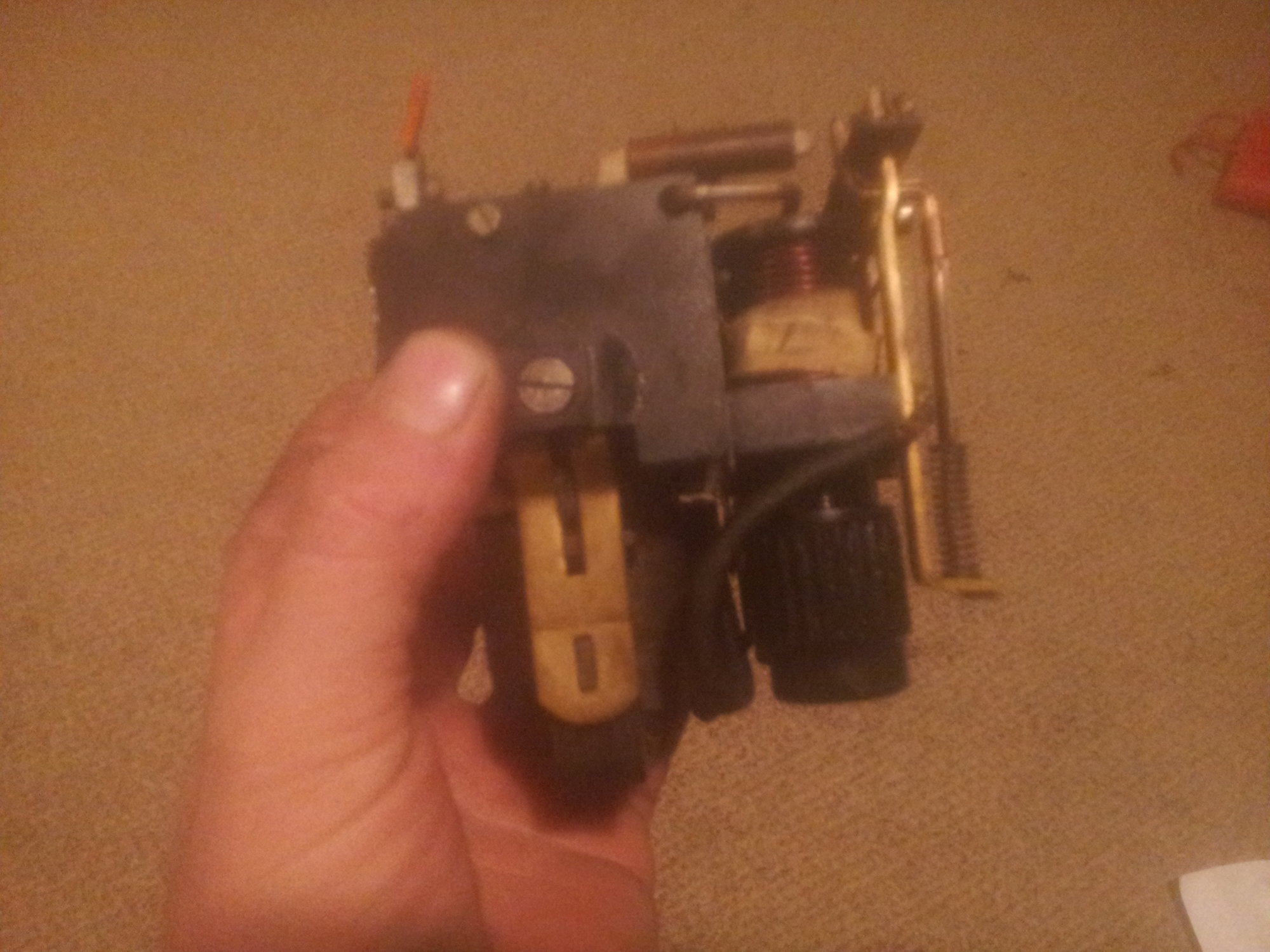

Pulled the starter out for a look see.
Uploaded so I cant lose em.
Got an old dol off my Model m so il test with that first to rule out the motor.
Would like to keep this so il be stripping and rebuilding if possible.
Understand 90% OF WHATS happening in it. Will start a separate thread.
Was working nicely when I aquired it.
Nice flash from the contactors and a few revs of the motor is all im getting now.
Pulled the starter out for a look see.
Uploaded so I cant lose em.
Got an old dol off my Model m so il test with that first to rule out the motor.
Would like to keep this so il be stripping and rebuilding if possible.
Understand 90% OF WHATS happening in it. Will start a separate thread.
eLuSiVeMiTe
Member
- Messages
- 16,441
- Location
- ......
I got there in the end.
See
https://www.mig-welding.co.uk/forum...g-the-workings-of-an-old-motor-starter.90937/
Split all the oil when I removed it. Wouldn't have occurred to me they were oil filled
Best get on with the rebuild.
See
https://www.mig-welding.co.uk/forum...g-the-workings-of-an-old-motor-starter.90937/
Split all the oil when I removed it. Wouldn't have occurred to me they were oil filled
Best get on with the rebuild.
eLuSiVeMiTe
Member
- Messages
- 16,441
- Location
- ......
Hi mate.
Depends on the model. See here
http://www.lathes.co.uk/smart-and-brown-model-L/
Got any pics of yours.
