Smart and Brown Model L series 25

[eLuSiVeMiTe]

Thanks for the reply. I haven't had a decent look at it yet myself but this might give you a clue!!
kwj.

Yup. Bronze bearings both sides.
Got a bit of work ahead of you here.

Look forward to seeing how it progresses.

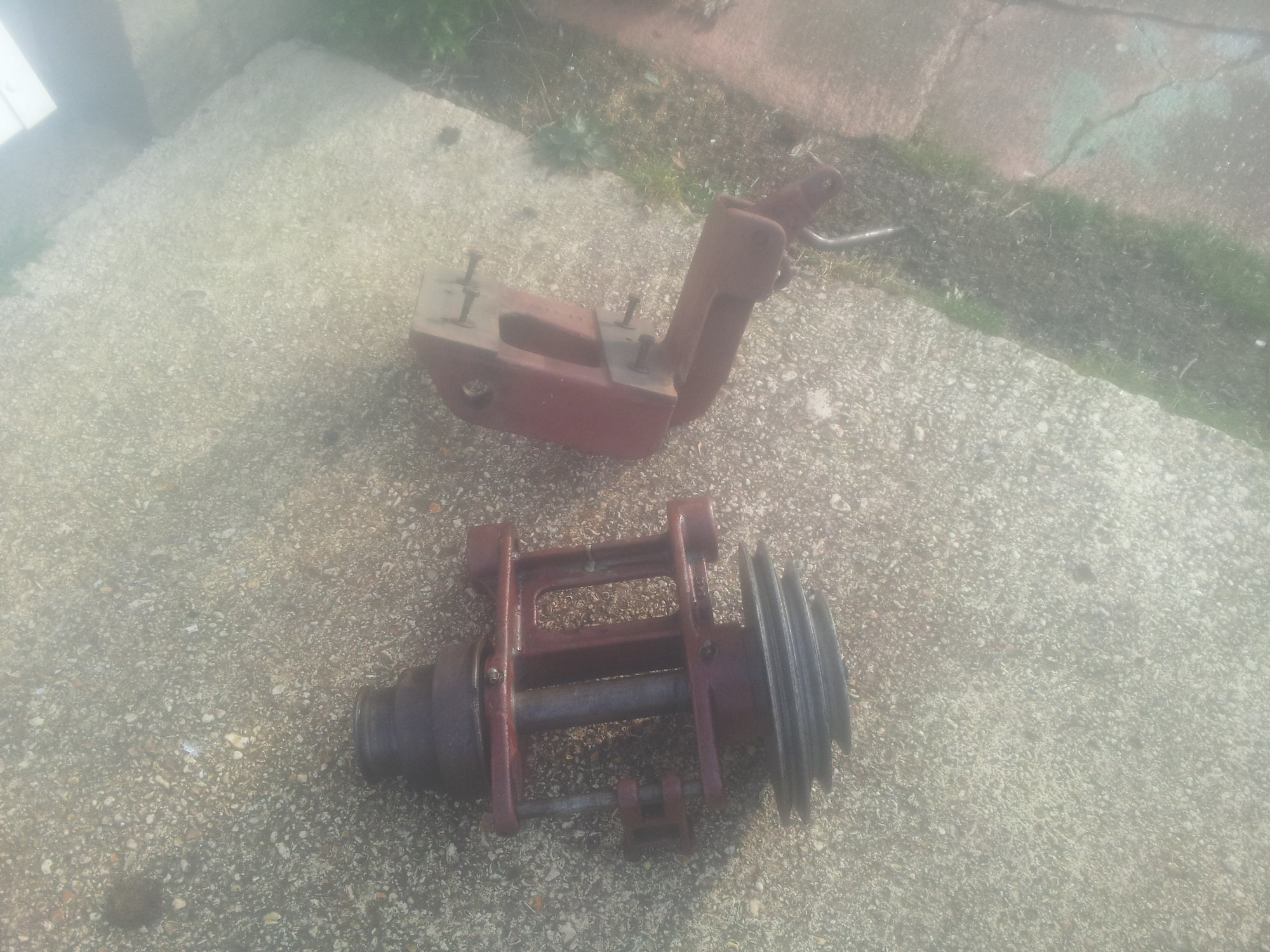

Il flit back and find the motor images. Have you got the counter pulley underneath still?



[eLuSiVeMiTe]

Don't have any pics off the plate. Il check speeds tomorrow but think 930

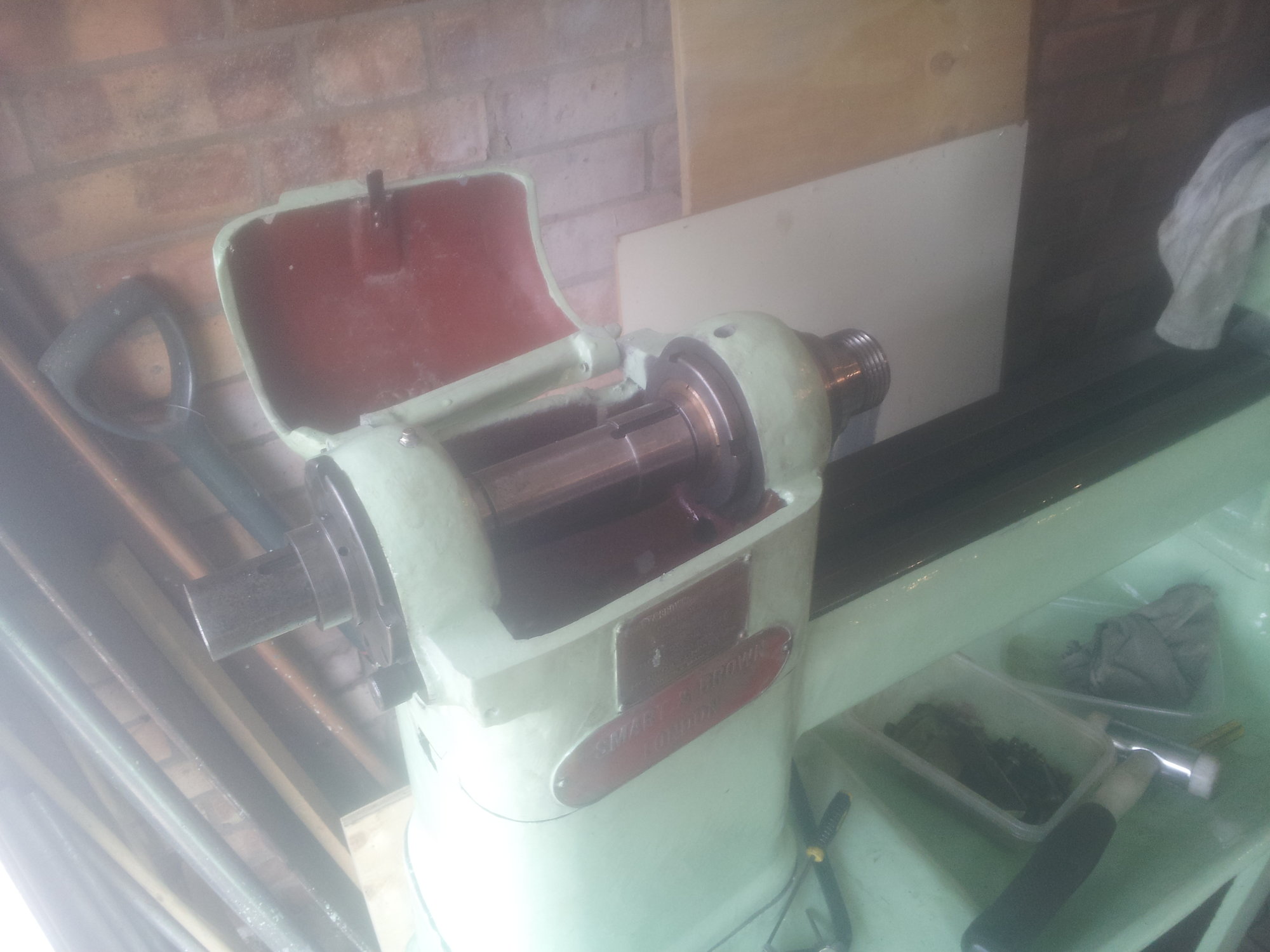

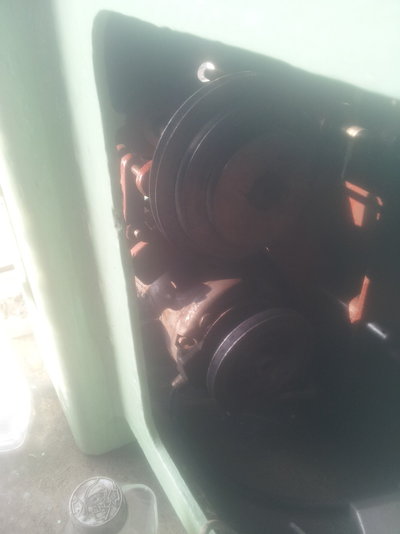

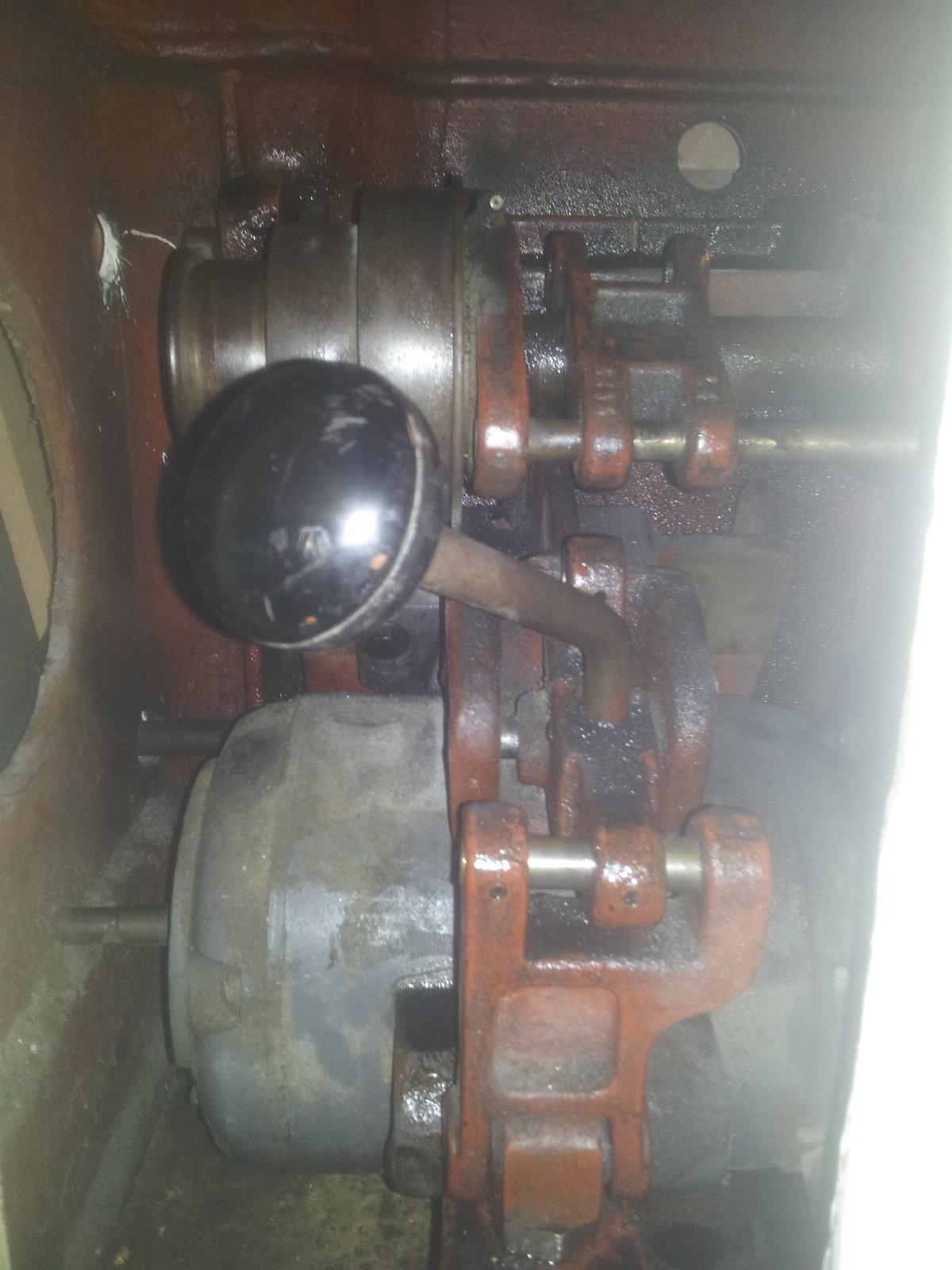

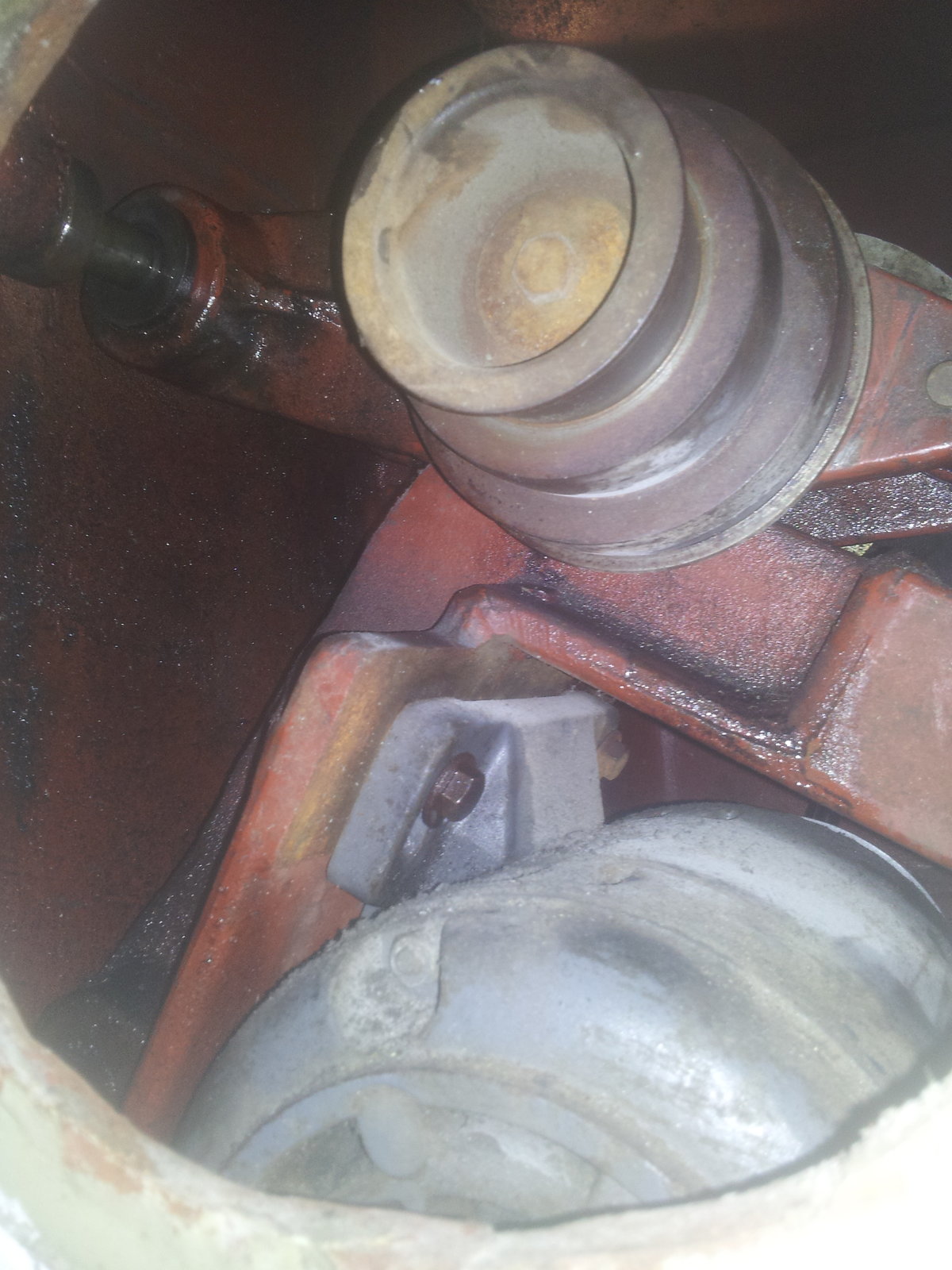

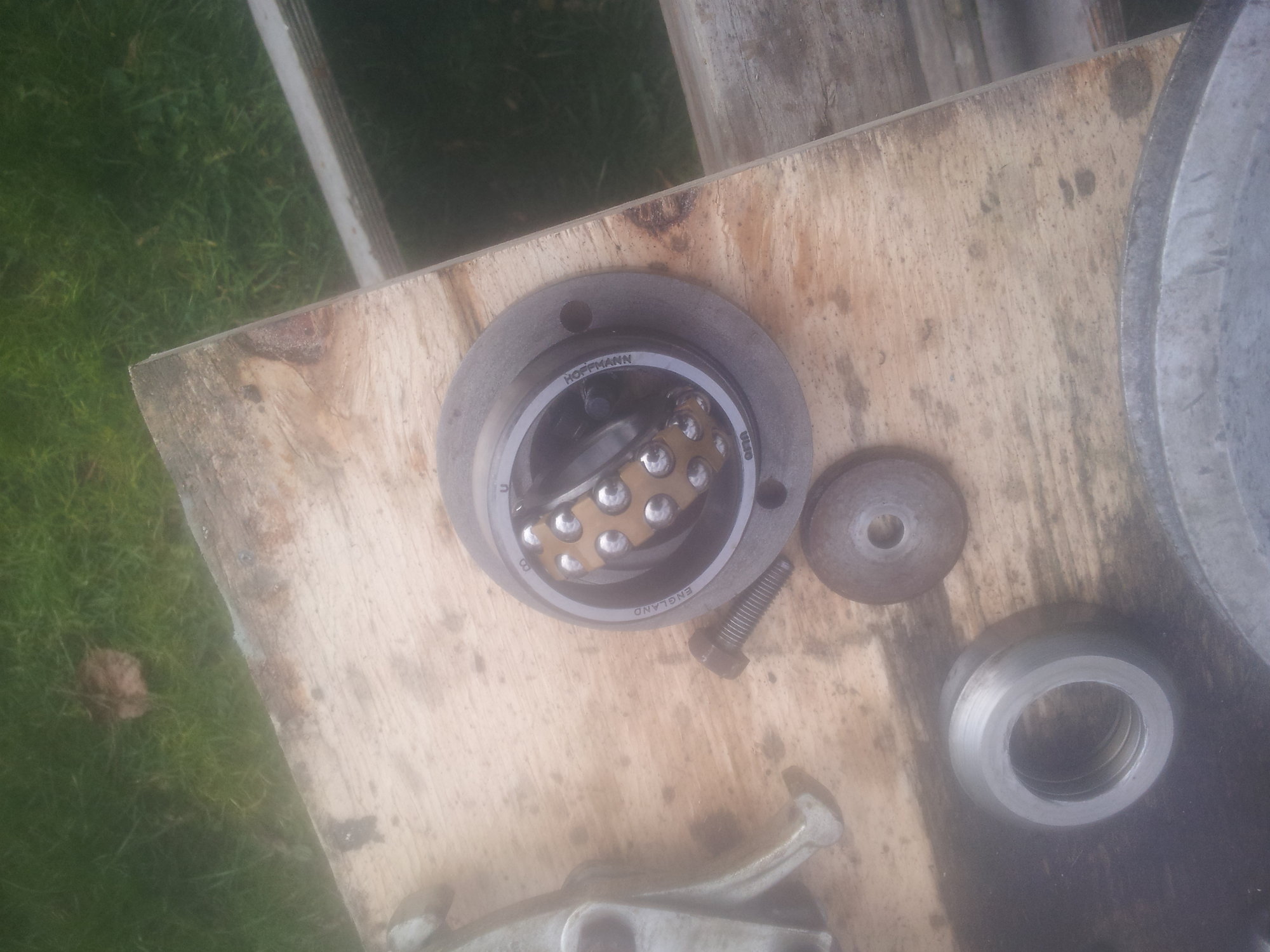

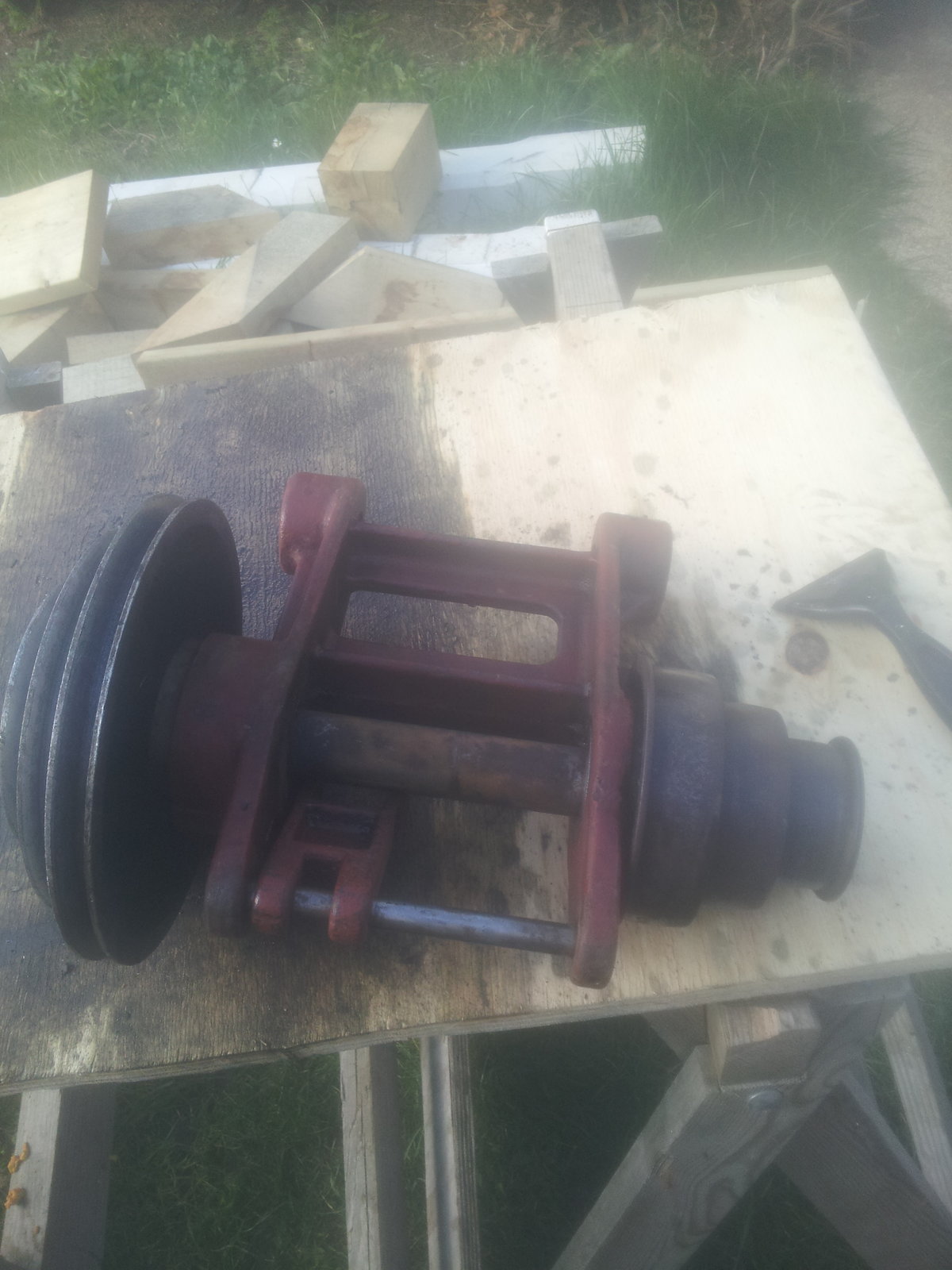

Pics of mountings



[KWJ]

I don't know yet what's missing other than the motor. It's under a cover outside at the moment but I hope to get it housed and have a proper look at it in the next few days. Thanks for your interest.
kwj.



[KWJ]

Fair play - Thanks.



[KWJ]

Those pics are appreciated and are of interest to me. It looks like I have all of the bits except the motor. My machine is L4 which I take to be mid to late 50's according to Tony Griffiths site. I need to know the motor spec so I can keep an eye open for a replacement though I am wondering should I instead fit a new motor with speed control. The lathe had not been used in decades but was stored dry. Unfortunately, it is coated with very fine limestone dust which has formed a concretion in and around all the moving bits of the tailstock and the cross slide. They are soaking in diesel at the moment. Overall It shows promise and some potential!!
kwj.



[eLuSiVeMiTe]

Those pics are appreciated and are of interest to me. It looks like I have all of the bits except the motor. My machine is L4 which I take to be mid to late 50's according to Tony Griffiths site. I need to know the motor spec so I can keep an eye open for a replacement though I am wondering should I instead fit a new motor with speed control. The lathe had not been used in decades but was stored dry. Unfortunately, it is coated with very fine limestone dust which has formed a concretion in and around all the moving bits of the tailstock and the cross slide. They are soaking in diesel at the moment. Overall It shows promise and some potential!!
kwj.

Sorry forgot all about checking. Il pop out there tomorrow and check. (/Me Sets reminder)
Have to rebuild a PC tonight and hope my exploding psu didn't take everything else out with it.



[KWJ]

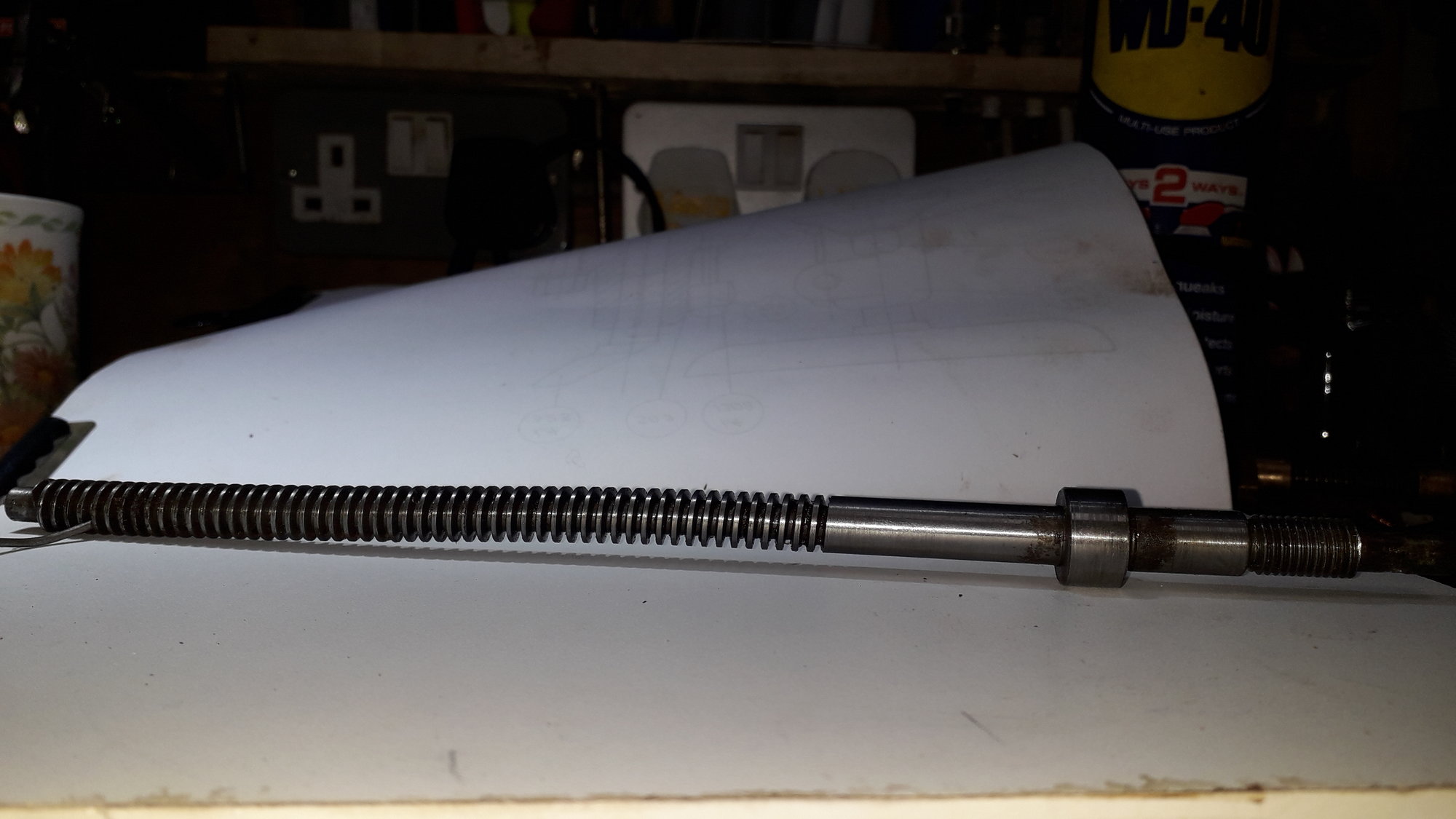

Saw the pics of your wonky screw. Look what I found today -- Very strange!



[eLuSiVeMiTe]

Saw the pics of your wonky screw. Look what I found today -- Very strange!View attachment 209285

Eek. Recon mine had been dropped when the apron was off. Was lucky to find another one. Mine was worse and did manage to straighten it up a bit. You might be lucky.

Had a look on my motor the other day. Can't find the plate. Due to the way the motor is mounted it's hidden. Was a mare to refit. Camera won't pick it up either.



[KWJ]

Thanks for looking -- Anyone else out there with a Smart & Brown Model L? I'm looking for the motor spec. for a lathe that I'm renovating. The motor is missing but I found the starter/contactor which is for a 3 phase Thomson Houston. The Model M was fitted with a Thomson Houston 3/4 hp 960 rpm so I'm assuming the same motor was probably specified for the Model L.



[eLuSiVeMiTe]

Thanks for looking -- Anyone else out there with a Smart & Brown Model L? I'm looking for the motor spec. for a lathe that I'm renovating. The motor is missing but I found the starter/contactor which is for a 3 phase Thomson Houston. The Model M was fitted with a Thomson Houston 3/4 hp 960 rpm so I'm assuming the same motor was probably specified for the Model L.

Give bracehand a call. Based in shefford. Current owner of what's left of smart and brown. Nice chap. Bought spares off him.



[KWJ]

I emailed him last week but heard nothing. I'll phone him tomorrow. Thanks for your interest.



[KWJ]

HELP! Hi eLuSiVeMiTe. I've been stripping the S&M model L but not sure how to take apart the headstock. The shaft was seized but I have a little movement now. The big ring nut on the left came off easy but the one on the right will only move a fraction in either direction. Any ideas? Am I missing something?
K.



[eLuSiVeMiTe]

Can't honestly remember.
The pulley is floating on mine and runs on its own internal bearings yours might be different.

Wait one il pop out to the garage



[eLuSiVeMiTe]

Screws were just securing keys iirc. Once the cnuts were off/undone (internals) it slid out easily.

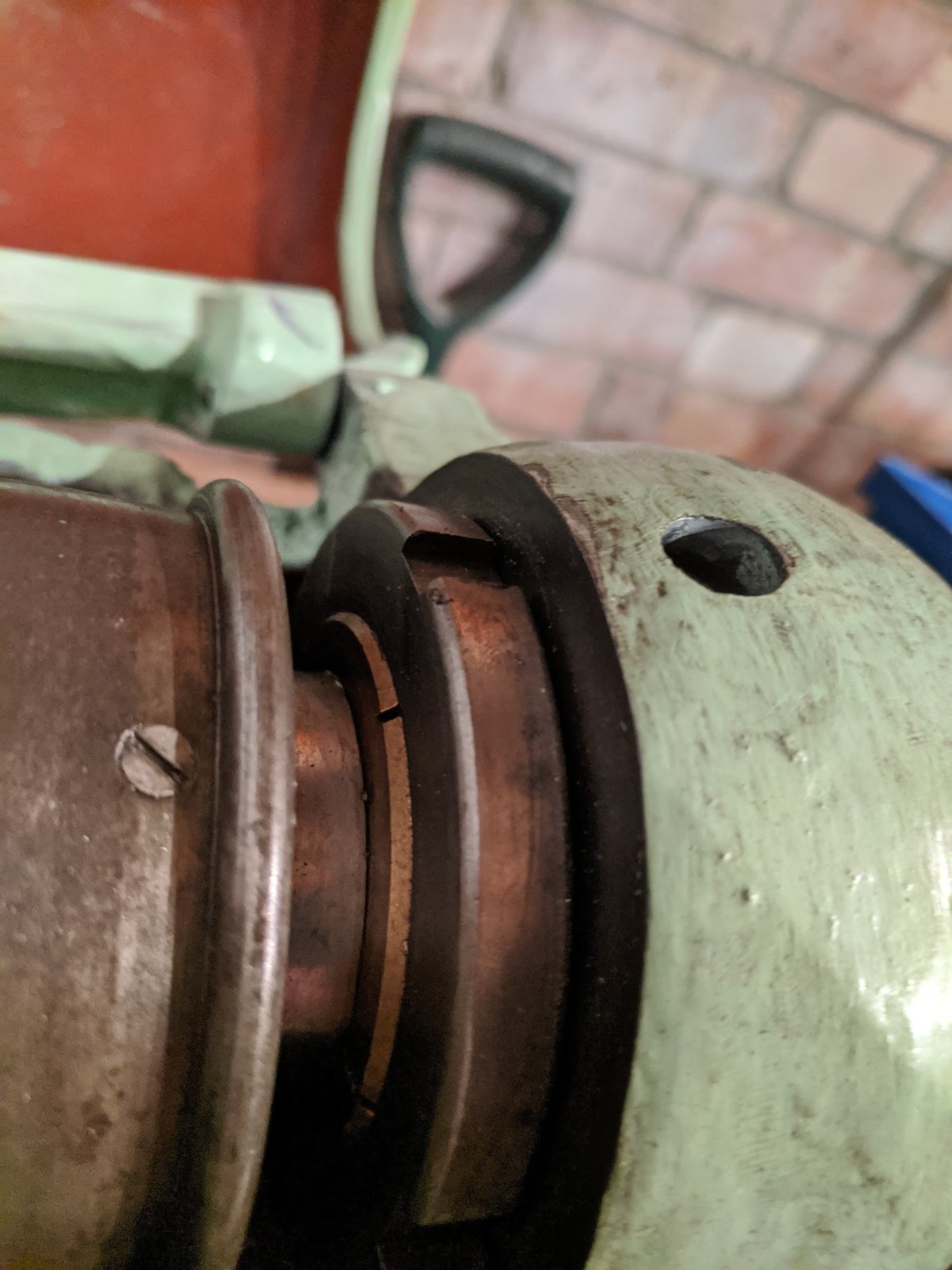

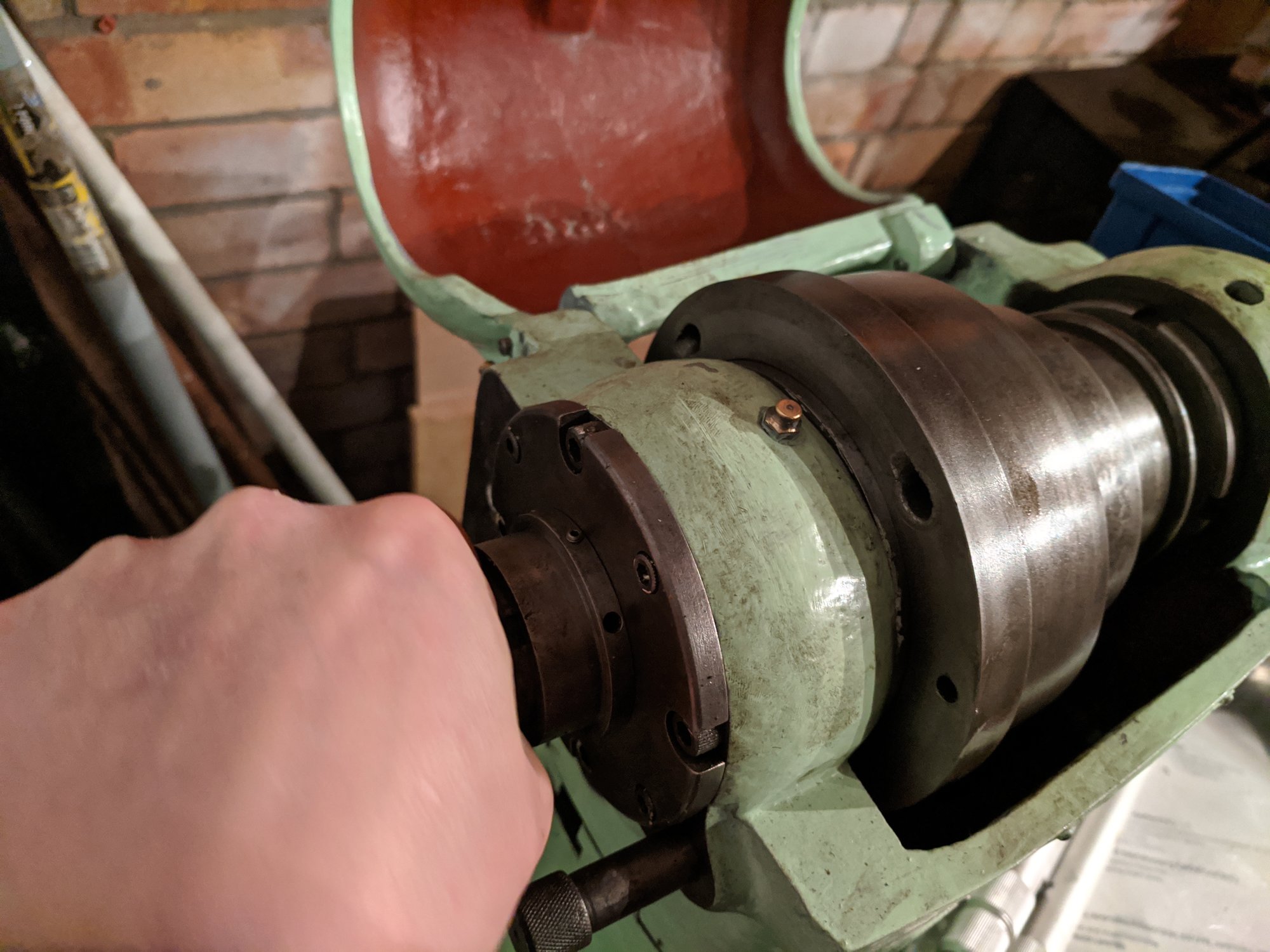

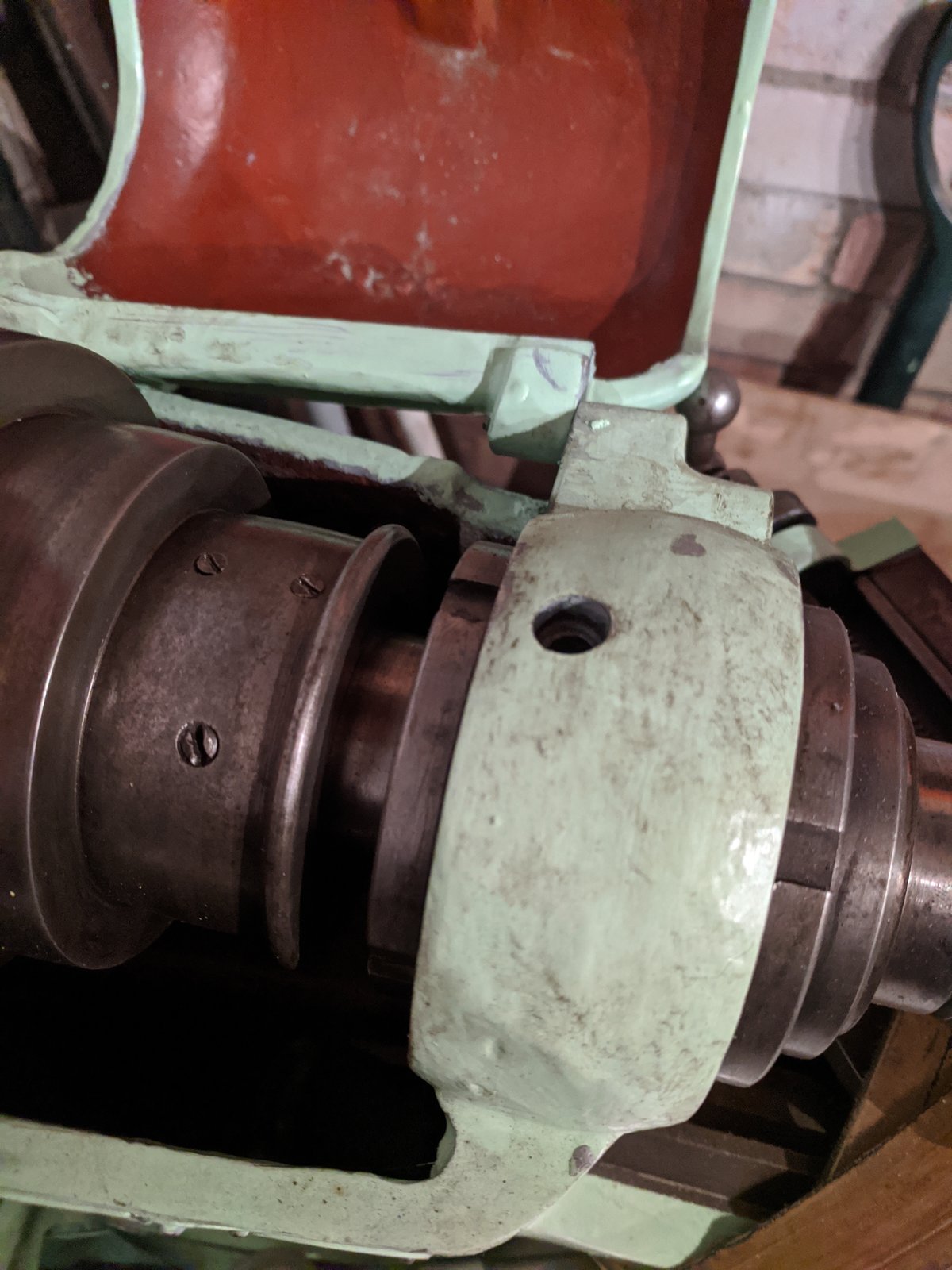

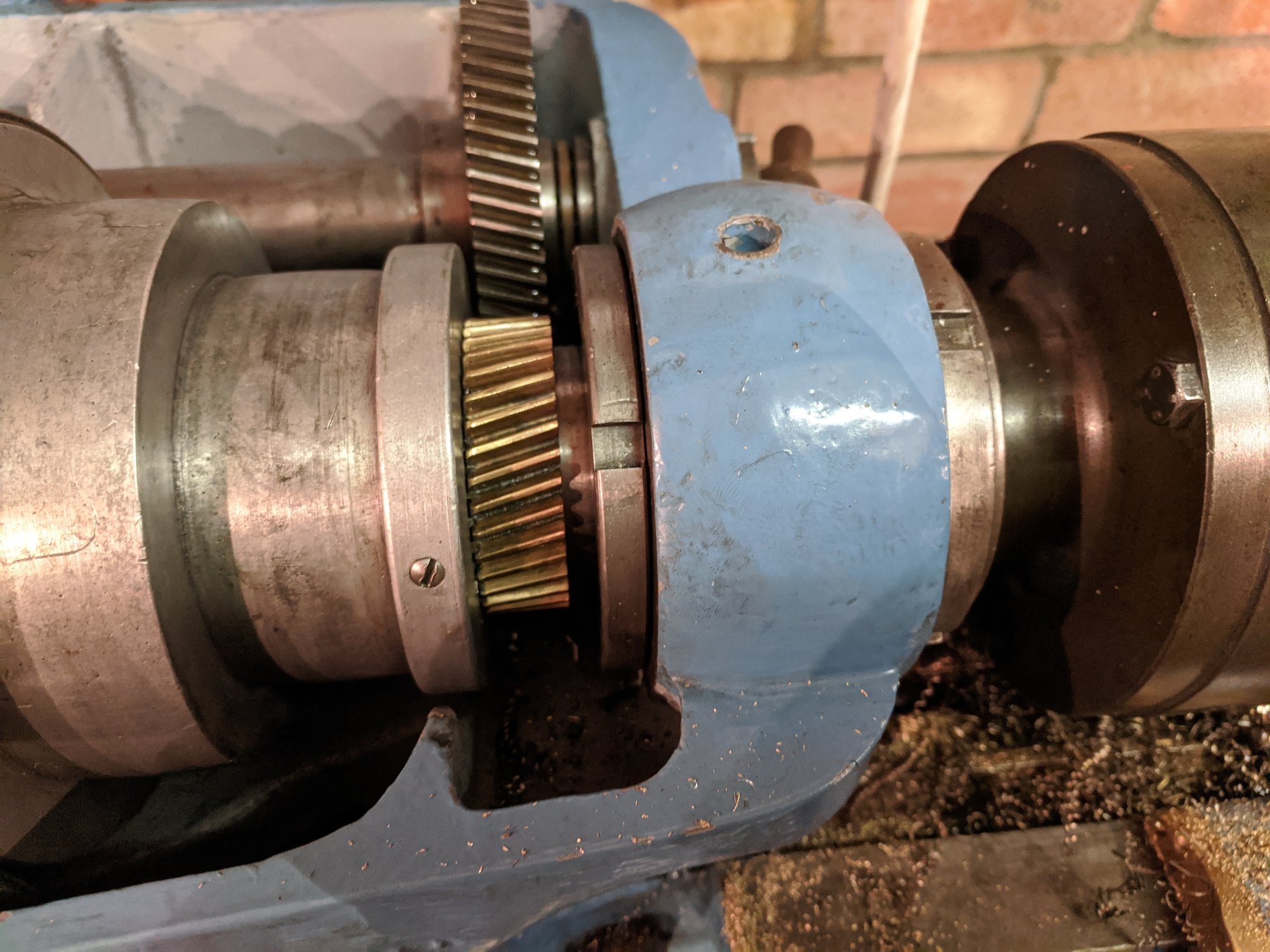

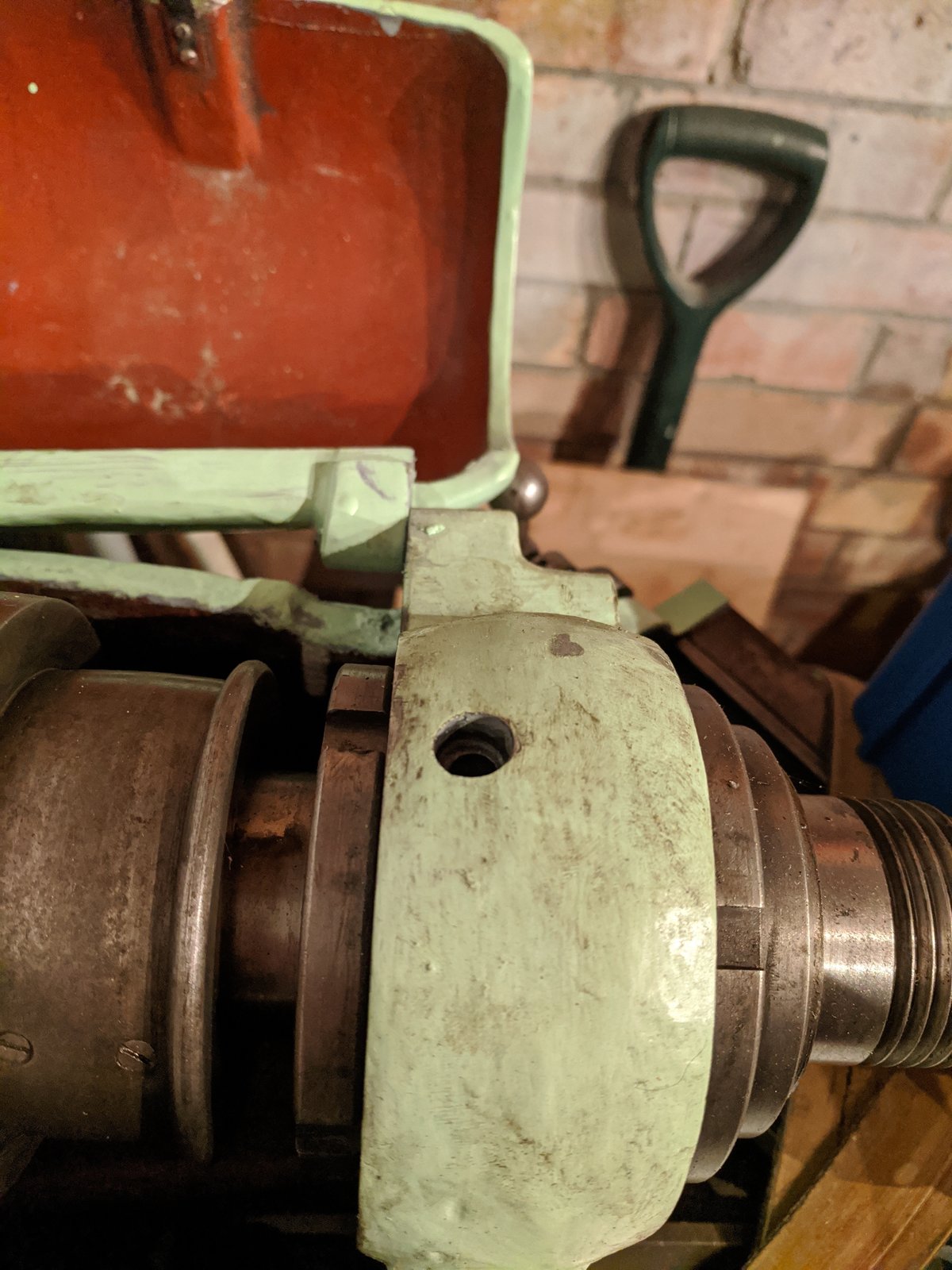

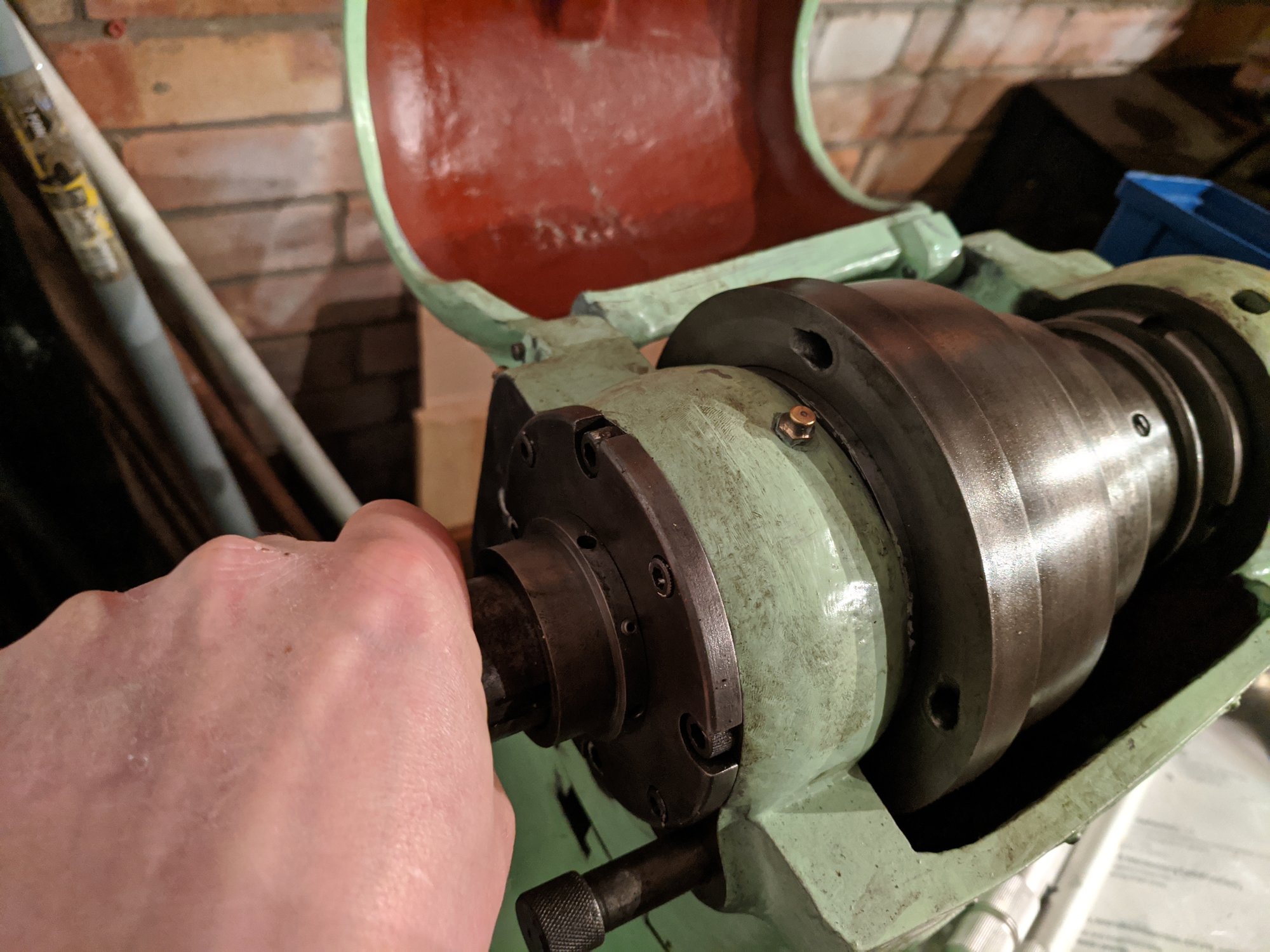

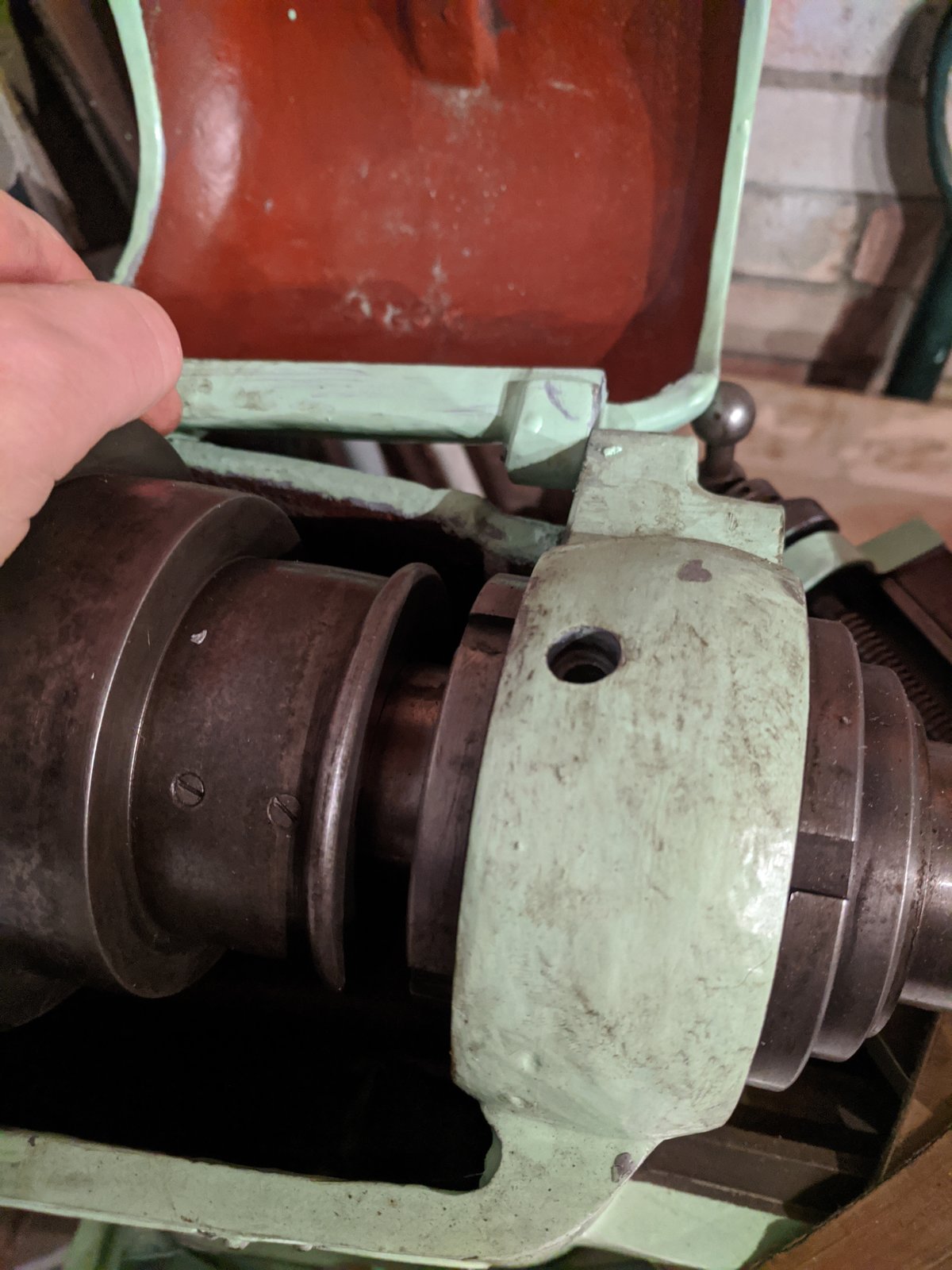

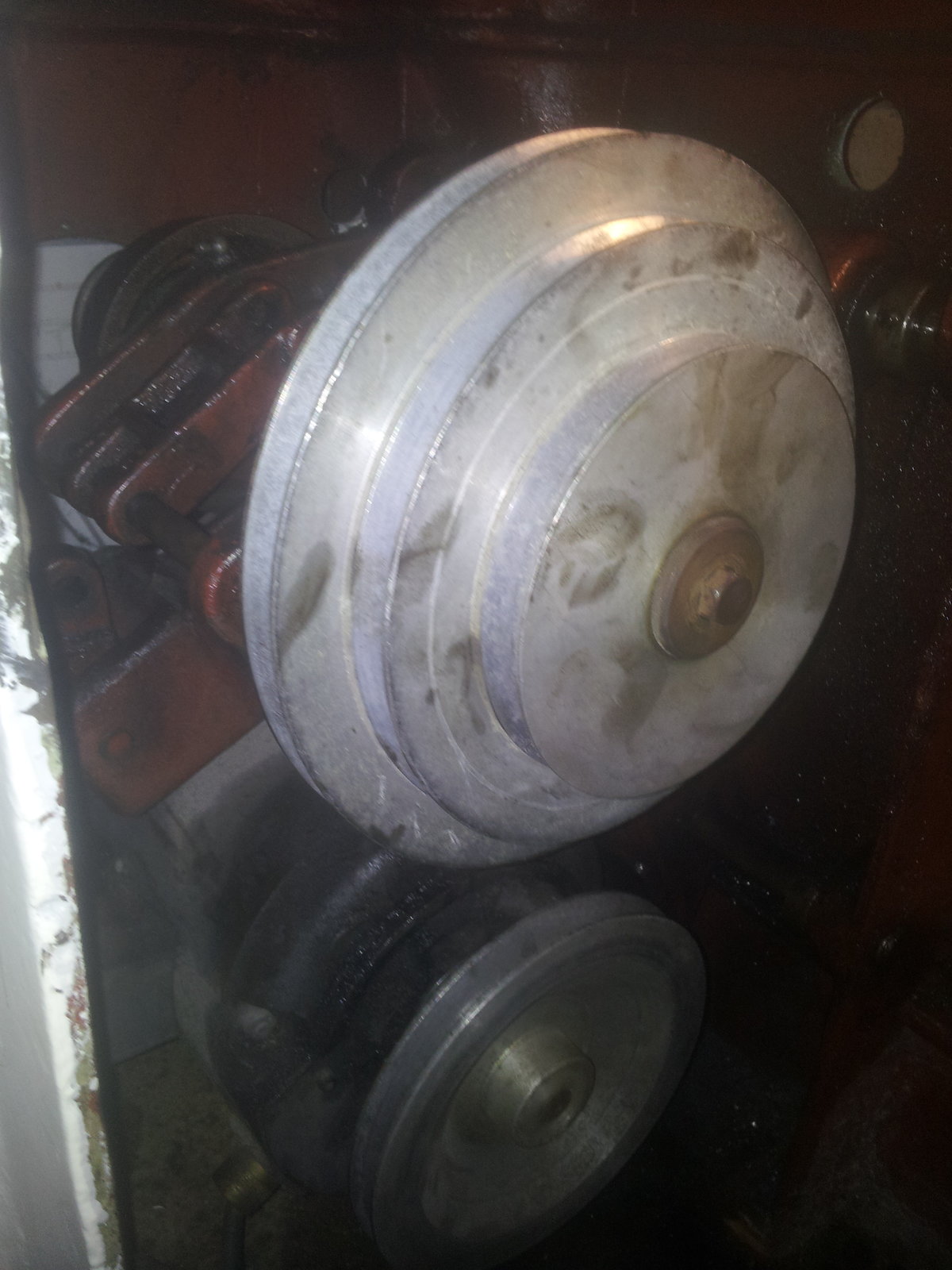

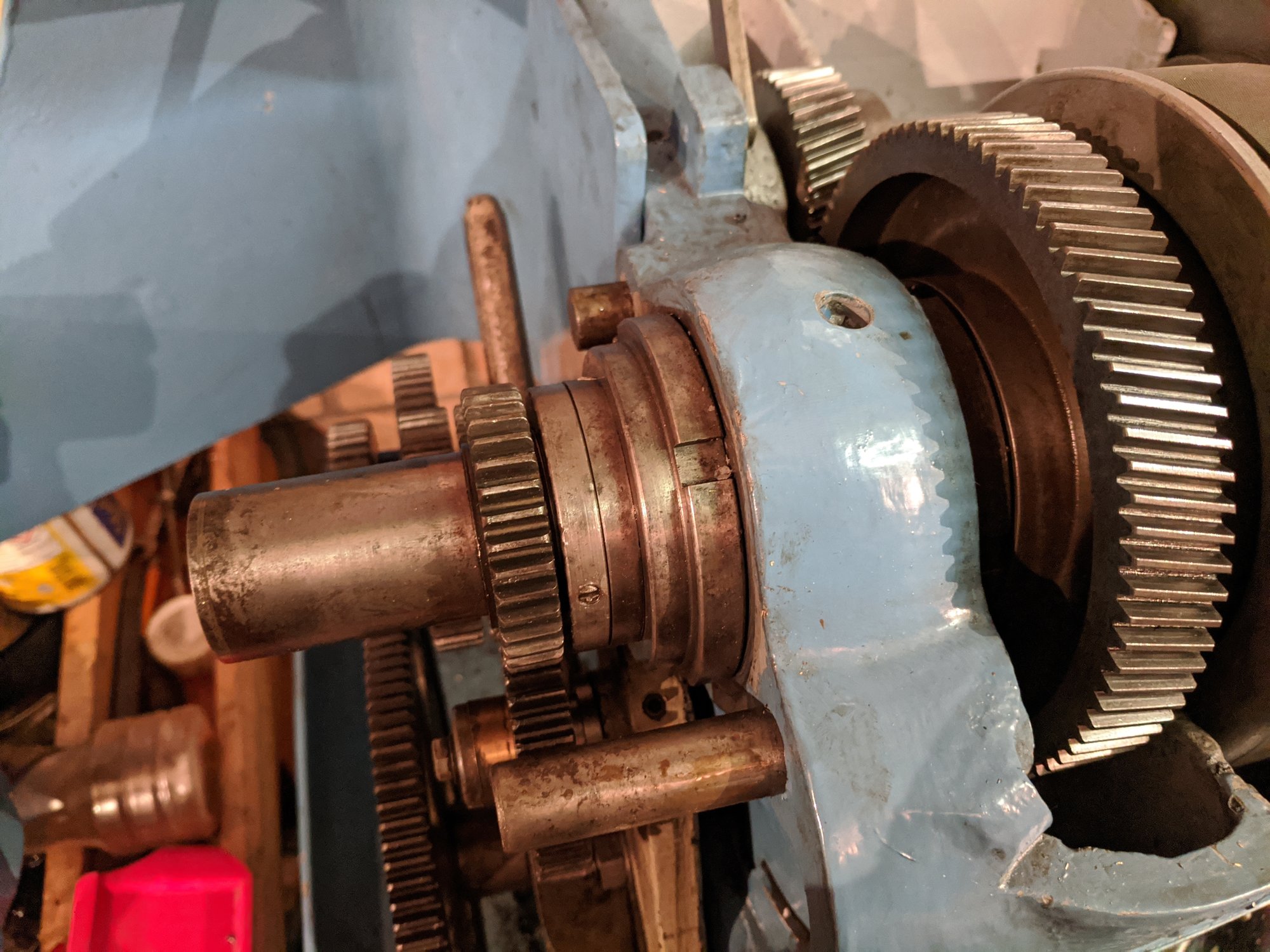

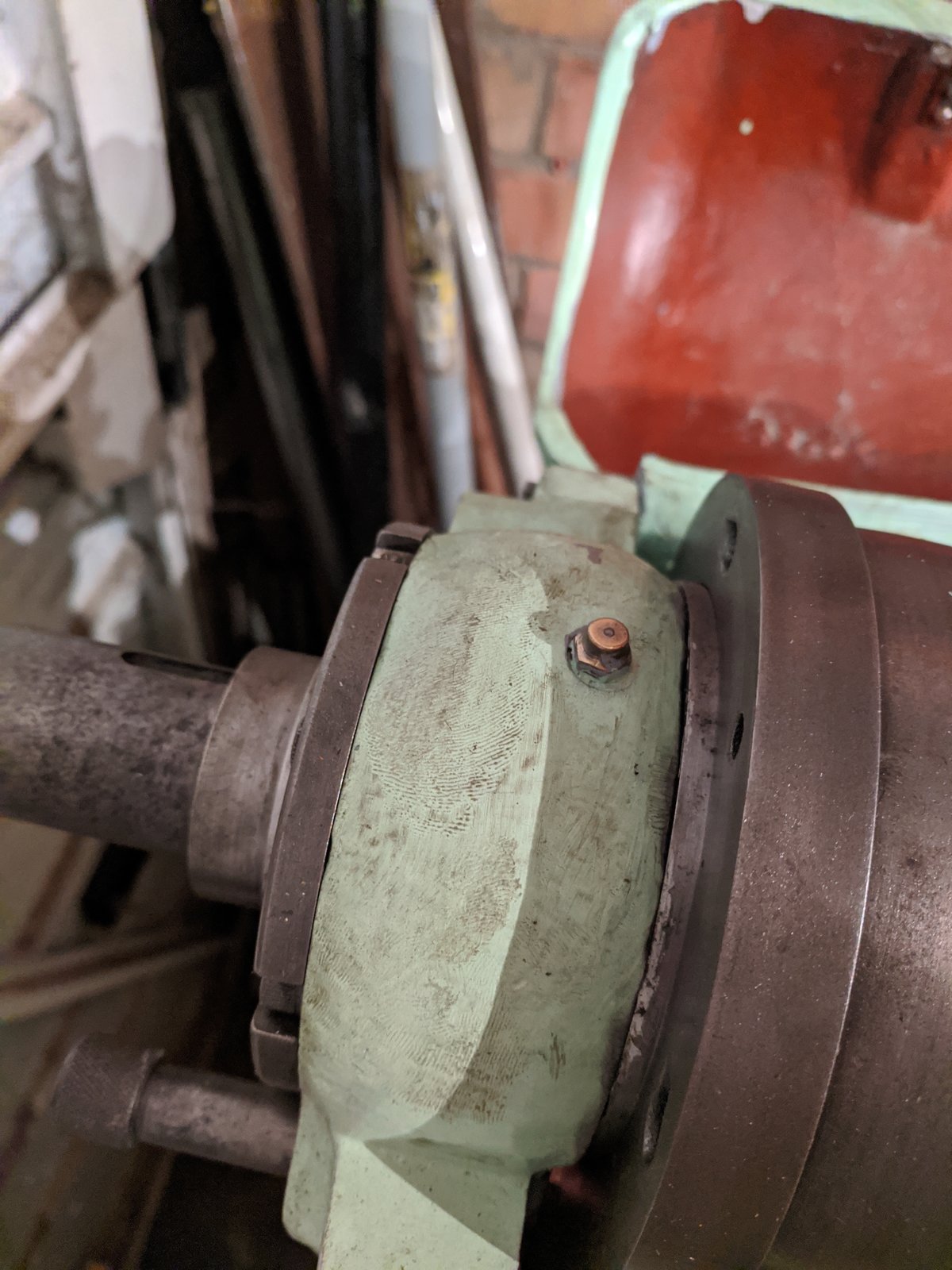

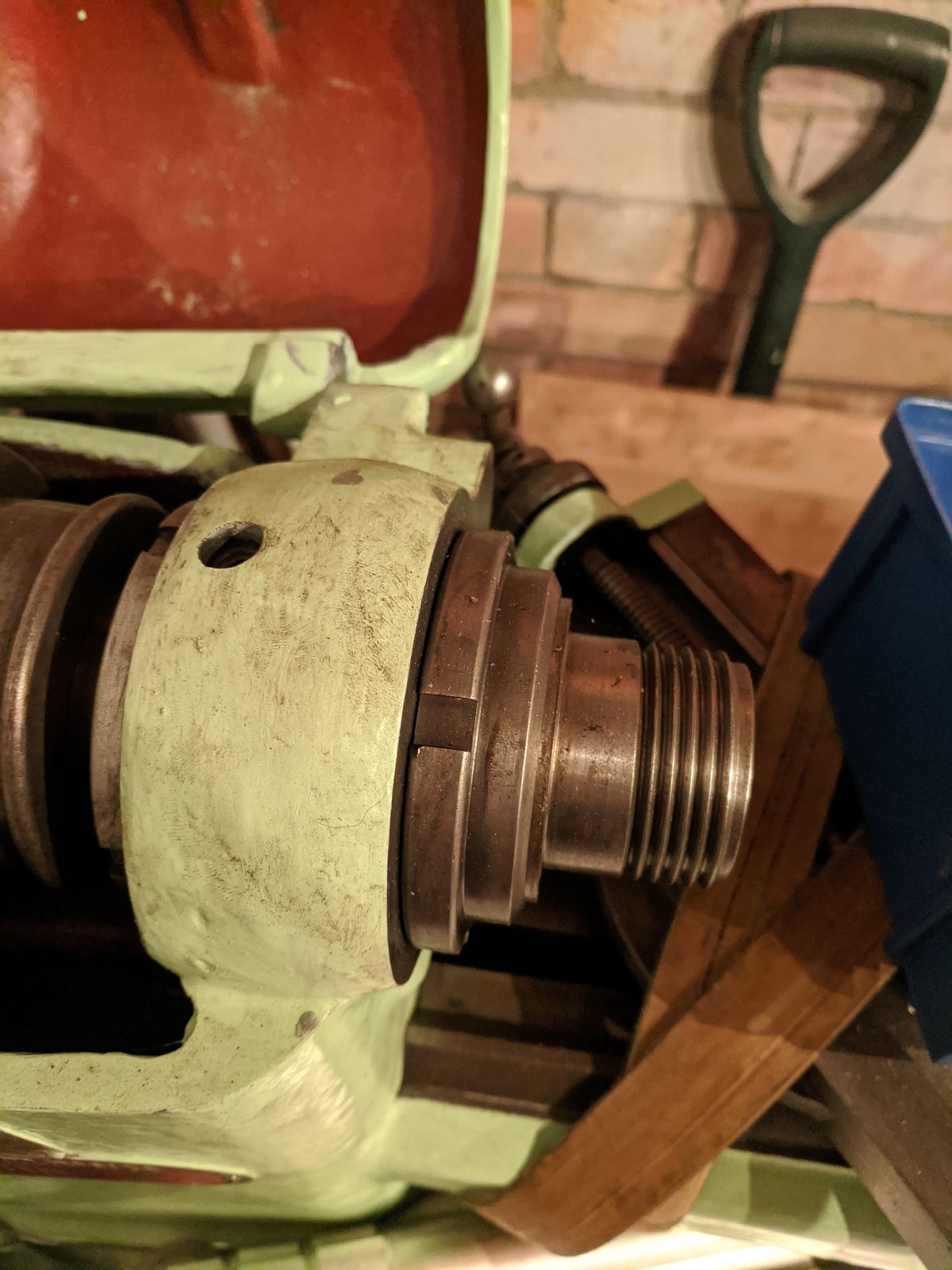

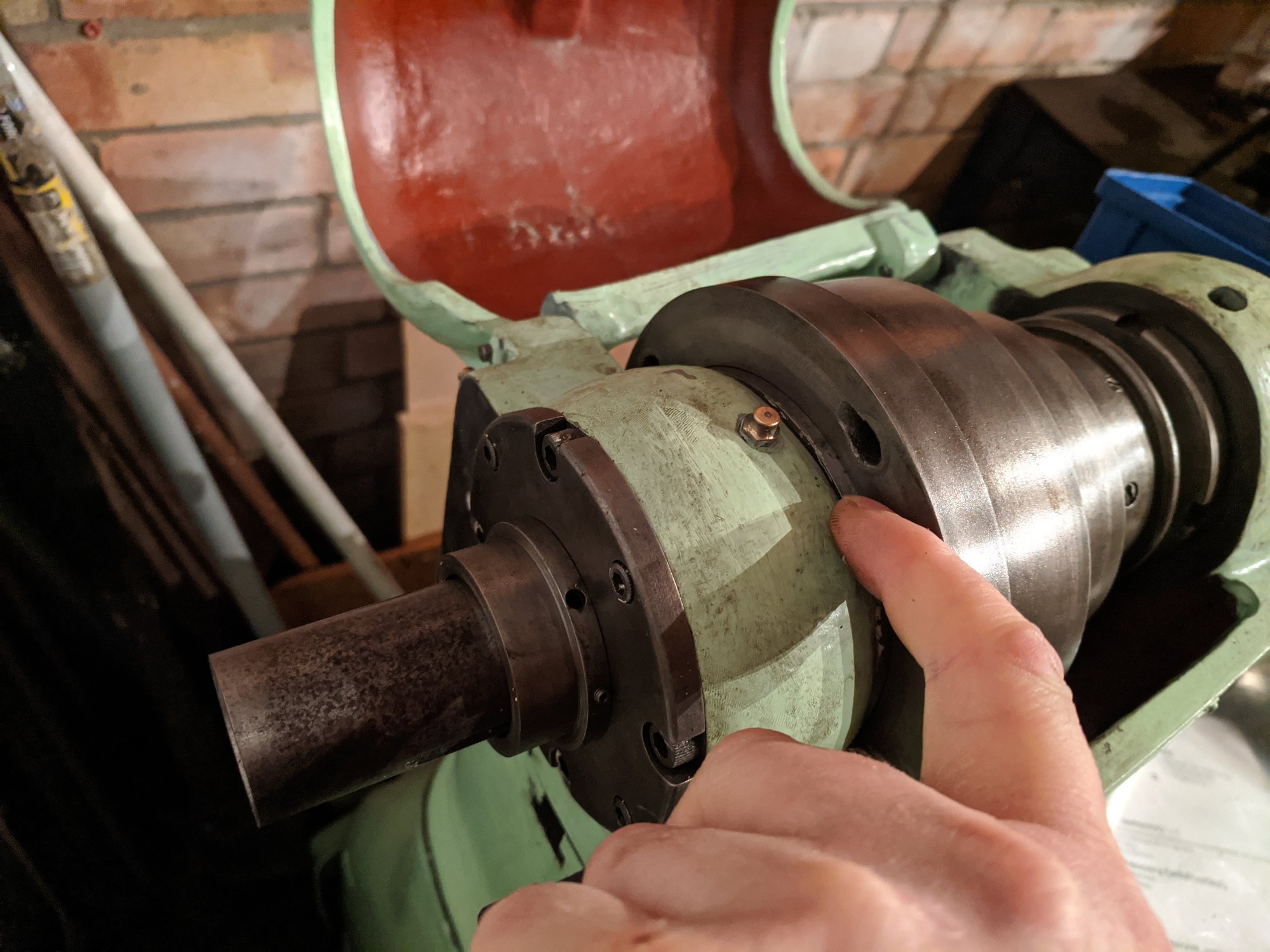

First 3 picture. That plate is secured to the lhs of headstock and runs on its own bearings detached from the spindle
Spindle is driven by the keys.



[KWJ]

Thanks for the info and photos. I'll get back at it tomorrow DV and see what turns out. Looking at 1,2 & 3 yours looks slightly different but ill compare tomorrow.
Ta ta. K.



[eLuSiVeMiTe]

Thanks for the info and photos. I'll get back at it tomorrow DV and see what turns out. Looking at 1,2 & 3 yours looks slightly different but ill compare tomorrow.
Ta ta. K.

Aye. Bearings rear and inside the pulley and bushings at the front. Yours Looks more like my M Withoutt backgear. Check for fixings securing the pulley just in case.



[KWJ]

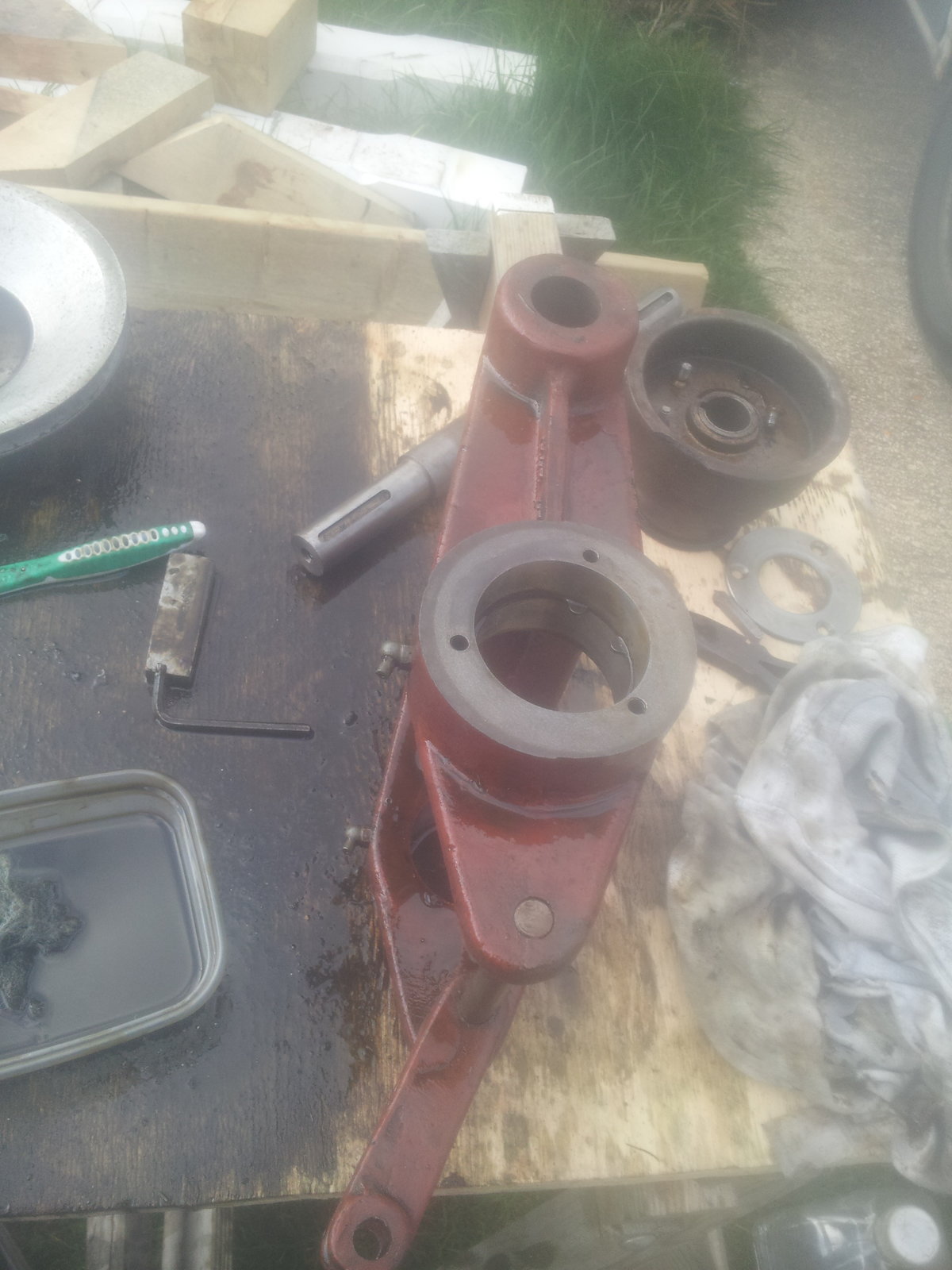

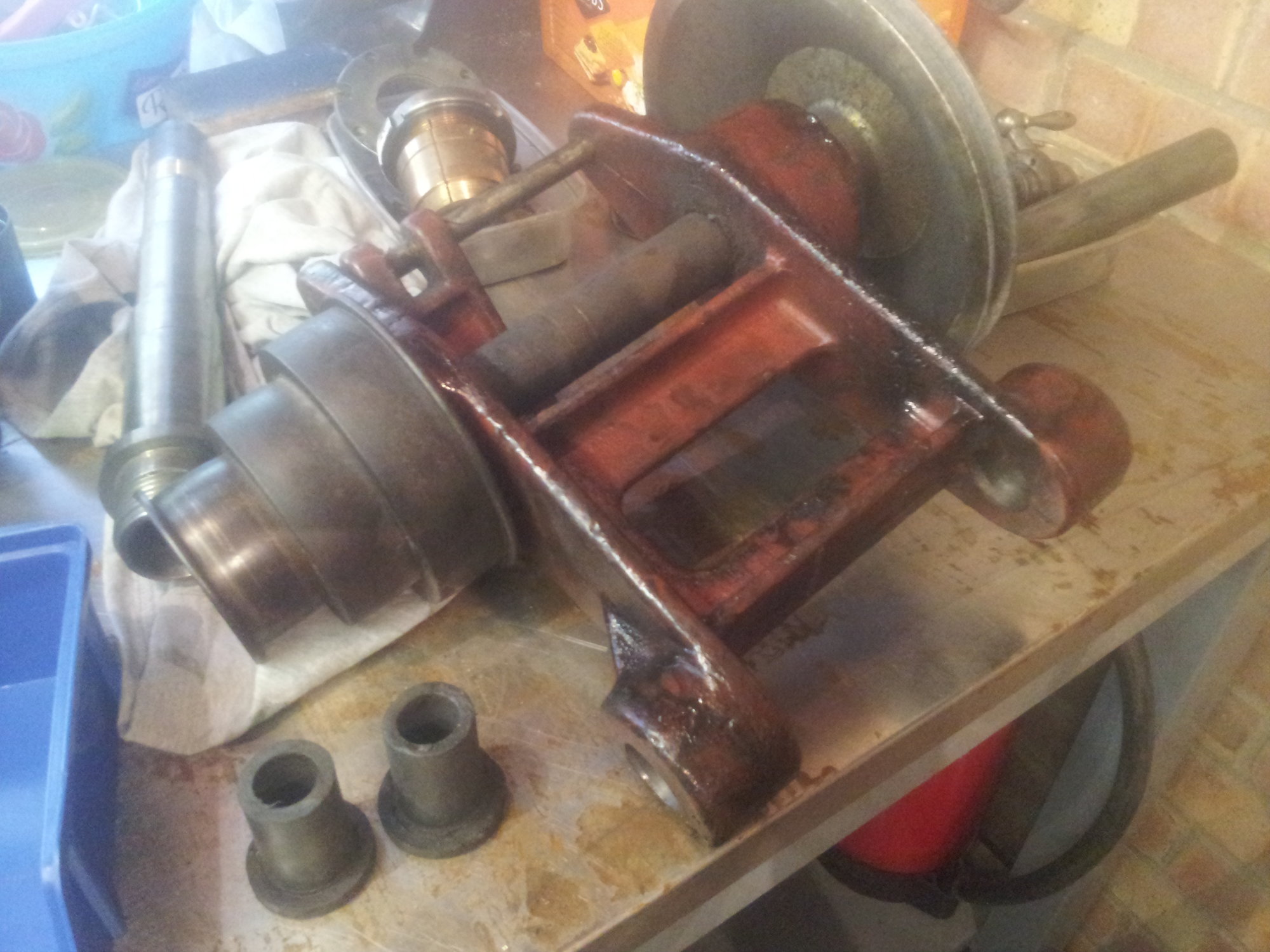

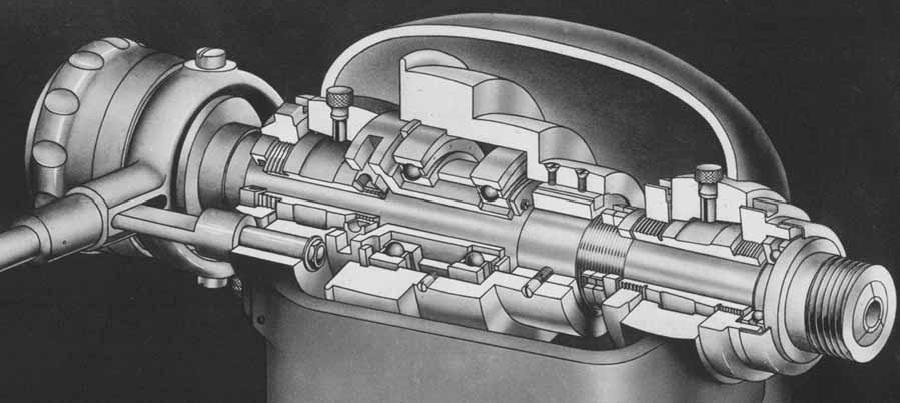

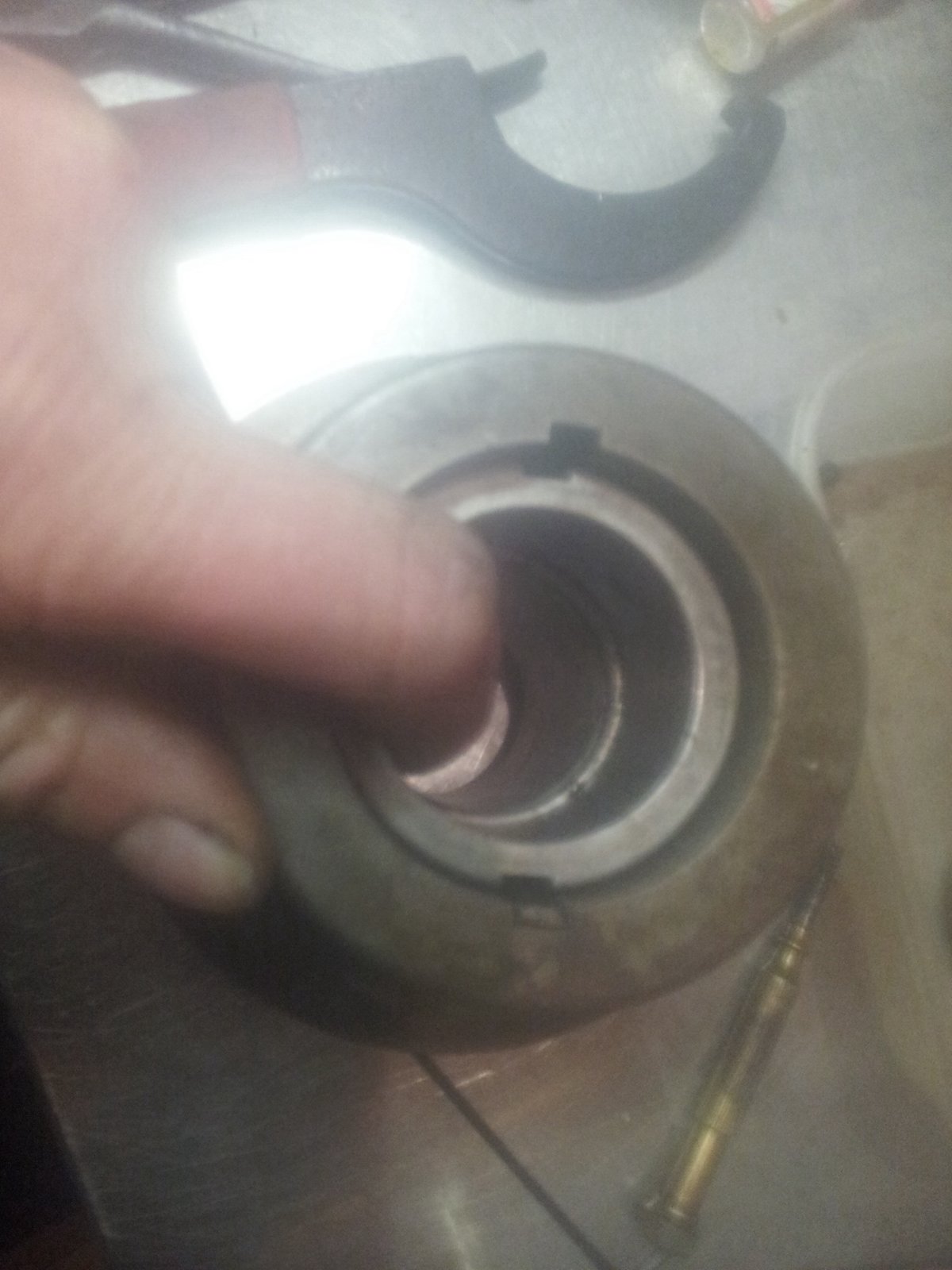

Took a while but the headstock is now in pieces. Unfortunately, the two big pulley bearings are quite rough and must have been poorly lubricated during it's working life. everything else seems solid. I have a local engineering supplies company trying to locate bearings but if they fail I'll try Bracehand. Thanks again for the photos. K.



[eLuSiVeMiTe]

Took a while but the headstock is now in pieces. Unfortunately, the two big pulley bearings are quite rough and must have been poorly lubricated during it's working life. everything else seems solid. I have a local engineering supplies company trying to locate bearings but if they fail I'll try Bracehand. Thanks again for the photos. K.

Did you manage to get the pulley apart?
I never worked out how to get it open and as it ran smooth I left it be.



[KWJ]

I kept working at the big ring nut on the right and once that unscrewed, the shaft with the bearings came out. I'm a bit p----d off with the condition of the bearings and even more so with the price I've just been quoted to replace. I think I'm a bit unlucky with this one and might have to consider refitting the old bearings and hoping for the best! You were lucky that yours ran smooth. I sort of knew when the shaft came out and I saw sticky residue instead of oil on the bearings that they might be cooked. When I freed them with WD40 they felt dog rough. Not my day!!



[KWJ]

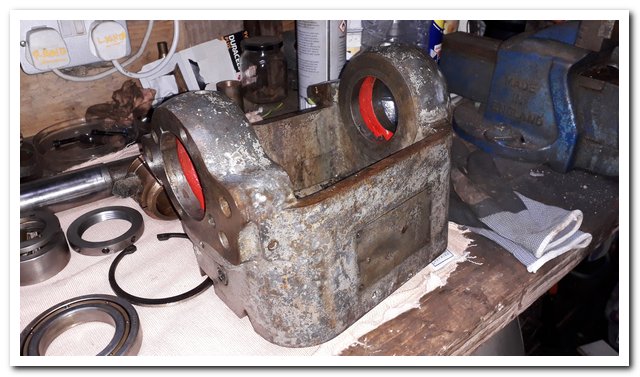

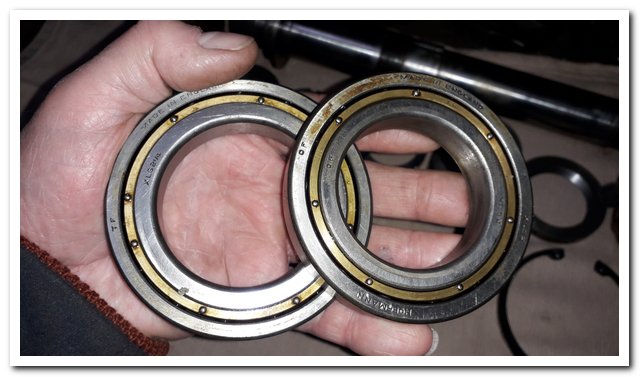

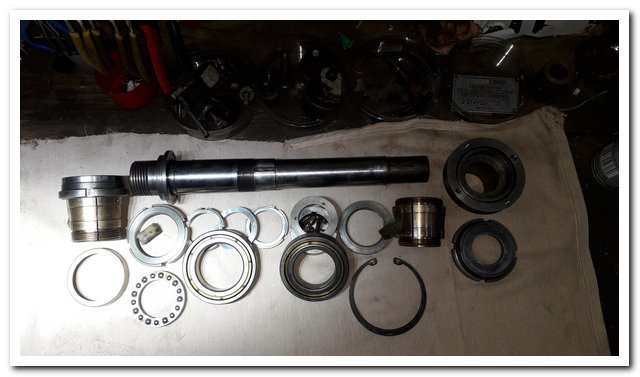

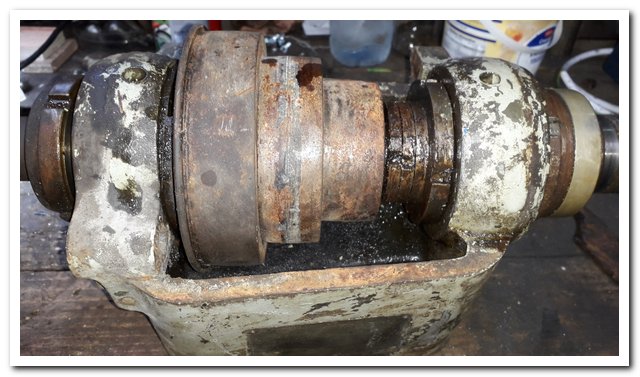

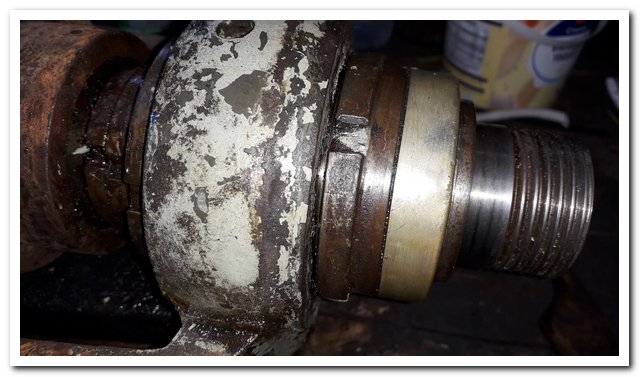

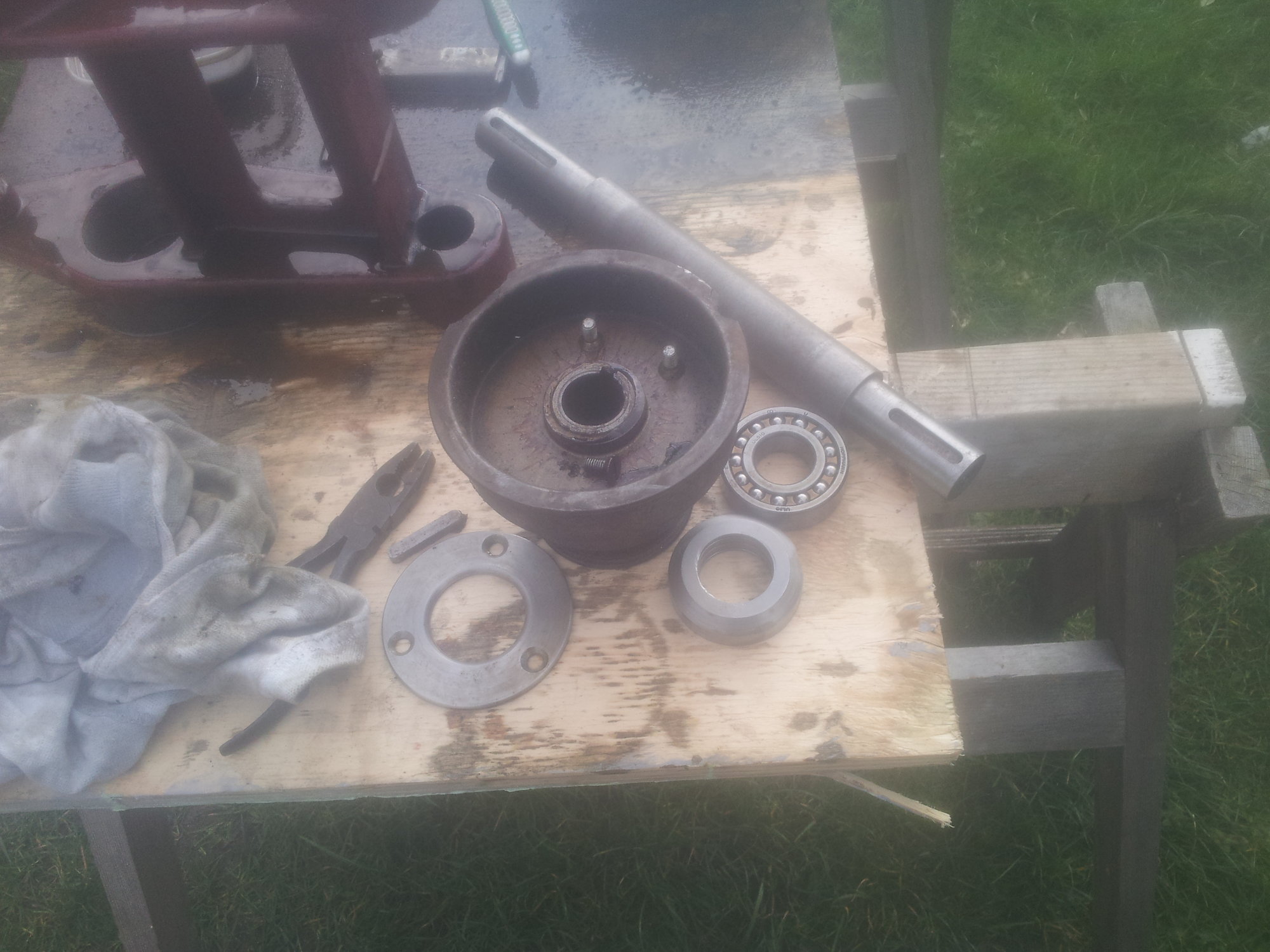

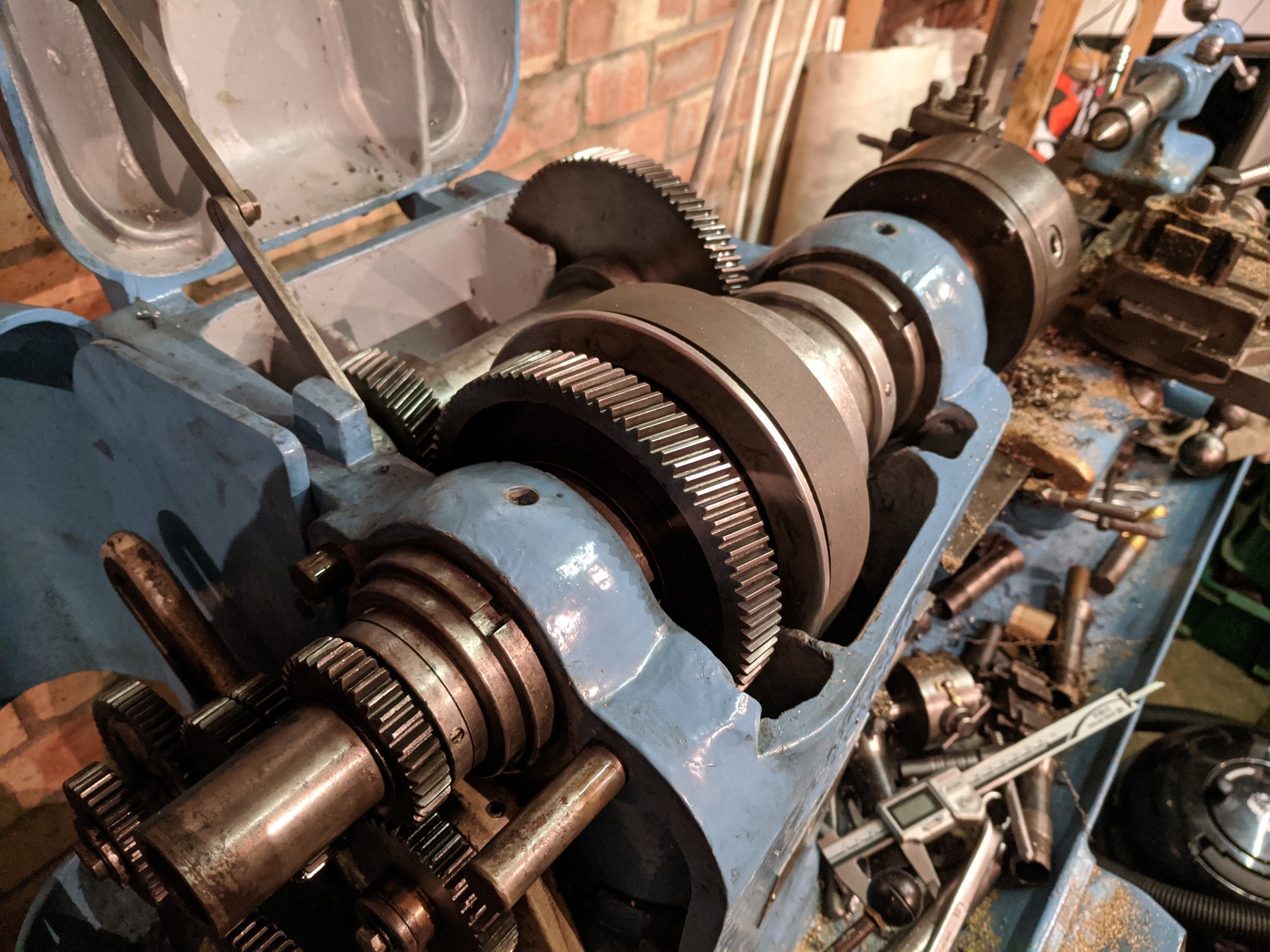

Just for anyone following this here's the headstock stripped with the 2 offending bearings in my hand. I can fully see now why Tony Griffiths remarked on bulletproof capability provided there is adequate lubrication of the bearings. These bearings do not run in oil but are wick/wiper fed via manual oiling points in the housing and in the pulley. Poor lubrication = expensive lesson. QED.
