I came into my local men's shed the other day to see two of the guys drilling into the end of a 3" cylinder of wood about 9" in length with a fairly big Forstner bit. One was operating the pillar drill, the other holding on tightly to keep the cylinder level (kids, don't try this at home!). OK, so it worked, but the risks were pretty high to say the least. I decided to knock up a vice that could hold a piece of round, square or rectangular timber so that the ends could be drilled. Now we don't have any milling or turning equipment or other more sophisticated machinery for that matter, so everything I make tends to be done mainly by hand. The vice is a mix of offcuts and reclaimed steel including Dexion racking angle for the slide guides. It may look crude but it does do the job.

View attachment 314448

That's nice & handy if the guys have the presence of mind & intelligence to use it .

If you can't knock something up like that get the help of someone to hold it parallel to the ground in a vice and drill from one end using the Mk 1 eyeball to keep it on the lateral axis and your mate doing the other sighting line to keep telling you up a tad down a tad to follow the line of the wood .

For short pieces I often use a right angle of wood glued & screwed up out of 44 mm planed wood .. Turn it on the edge side , set it on a 15 mm square of ply to stop cutting right through and push the round or square wood into the crook of the right angle then drill down with the press .



[Fraserb]

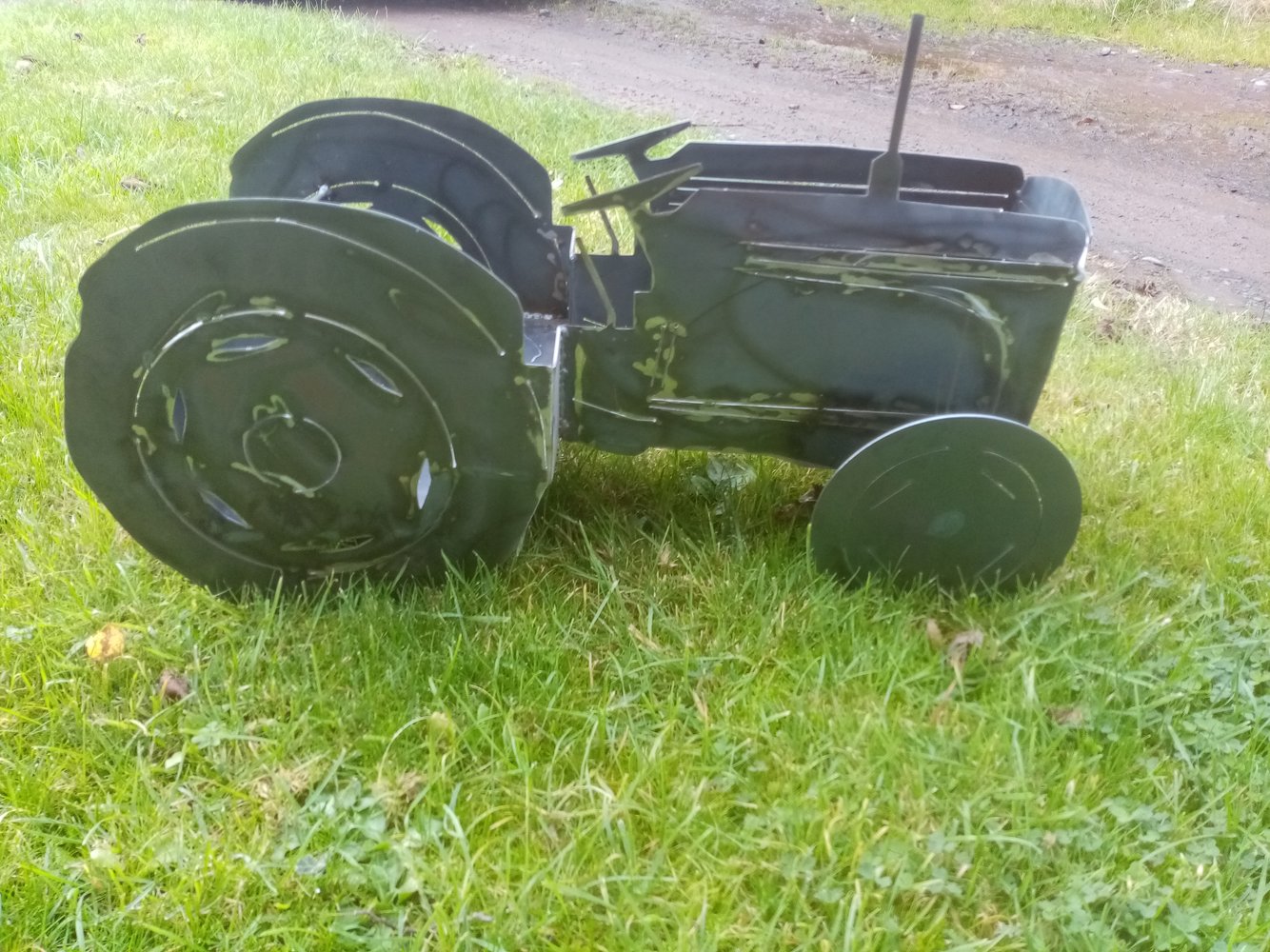

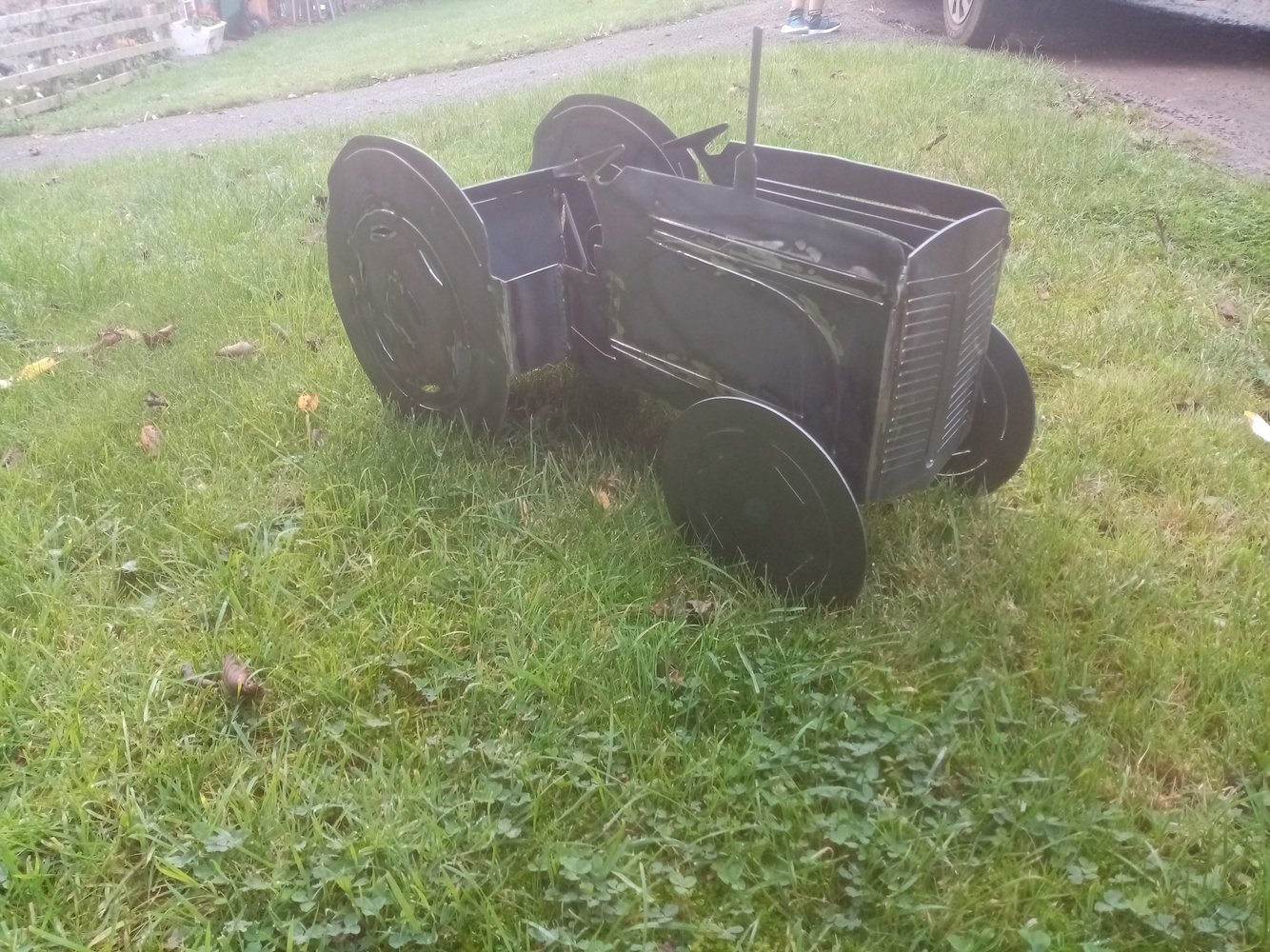

Outdoor planter.



[lchris21]

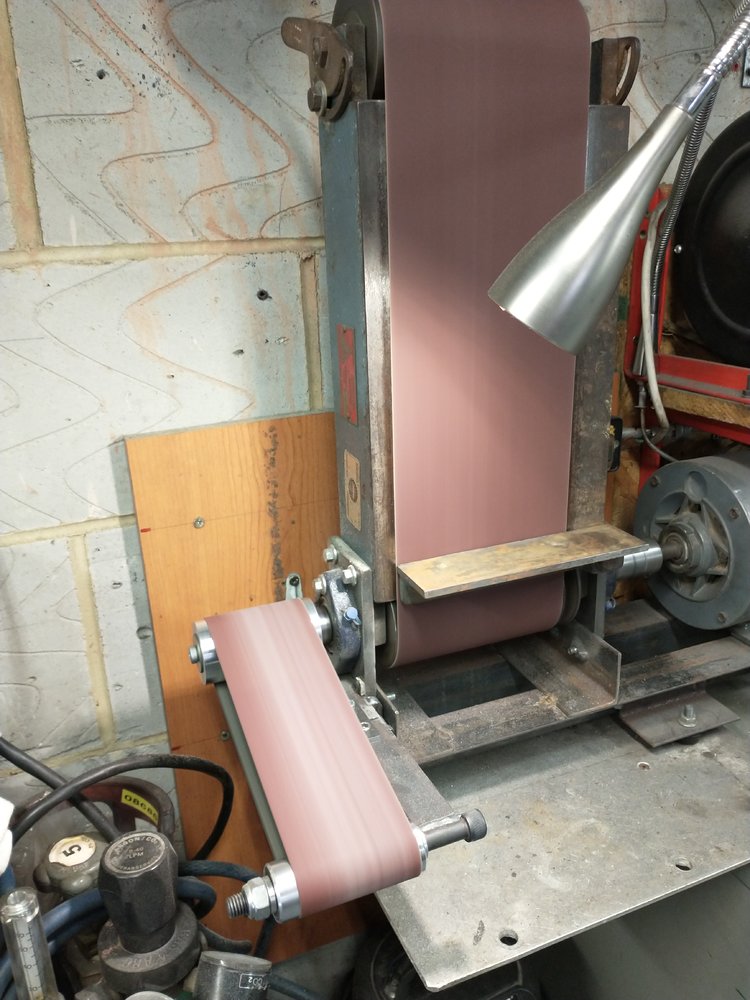

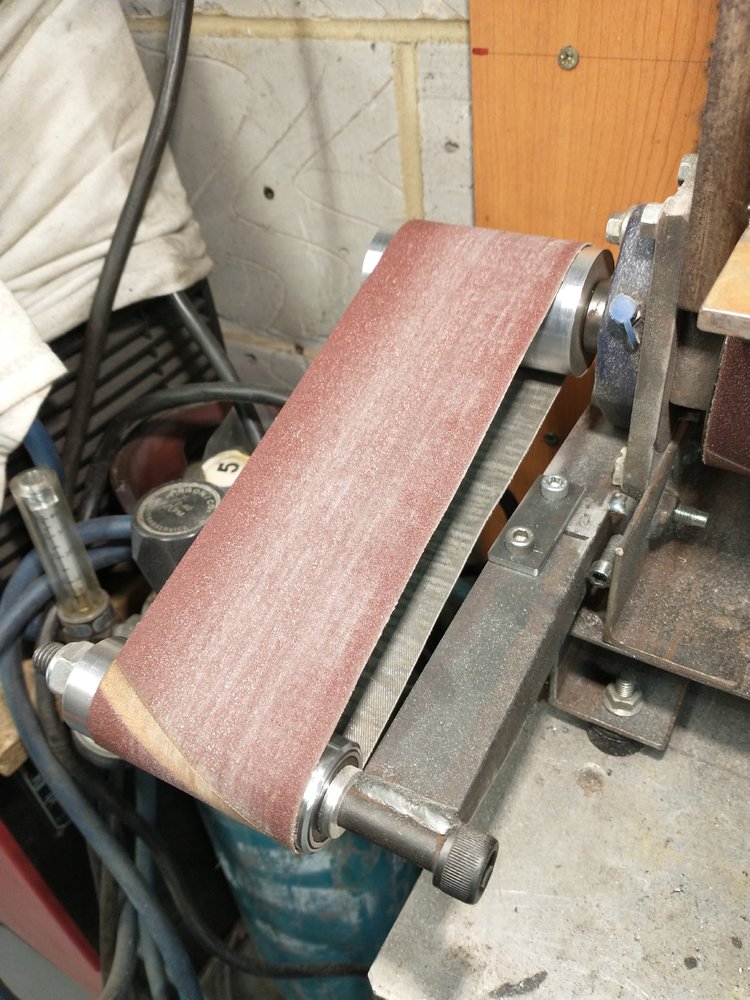

A little add on for my vertical linisher. Uses the belts widely available from Lidl Aldi etc. Great for curved surfaces where a hard backing is not required. Took a bit of fettling on the tracking, but works great



[MattF]

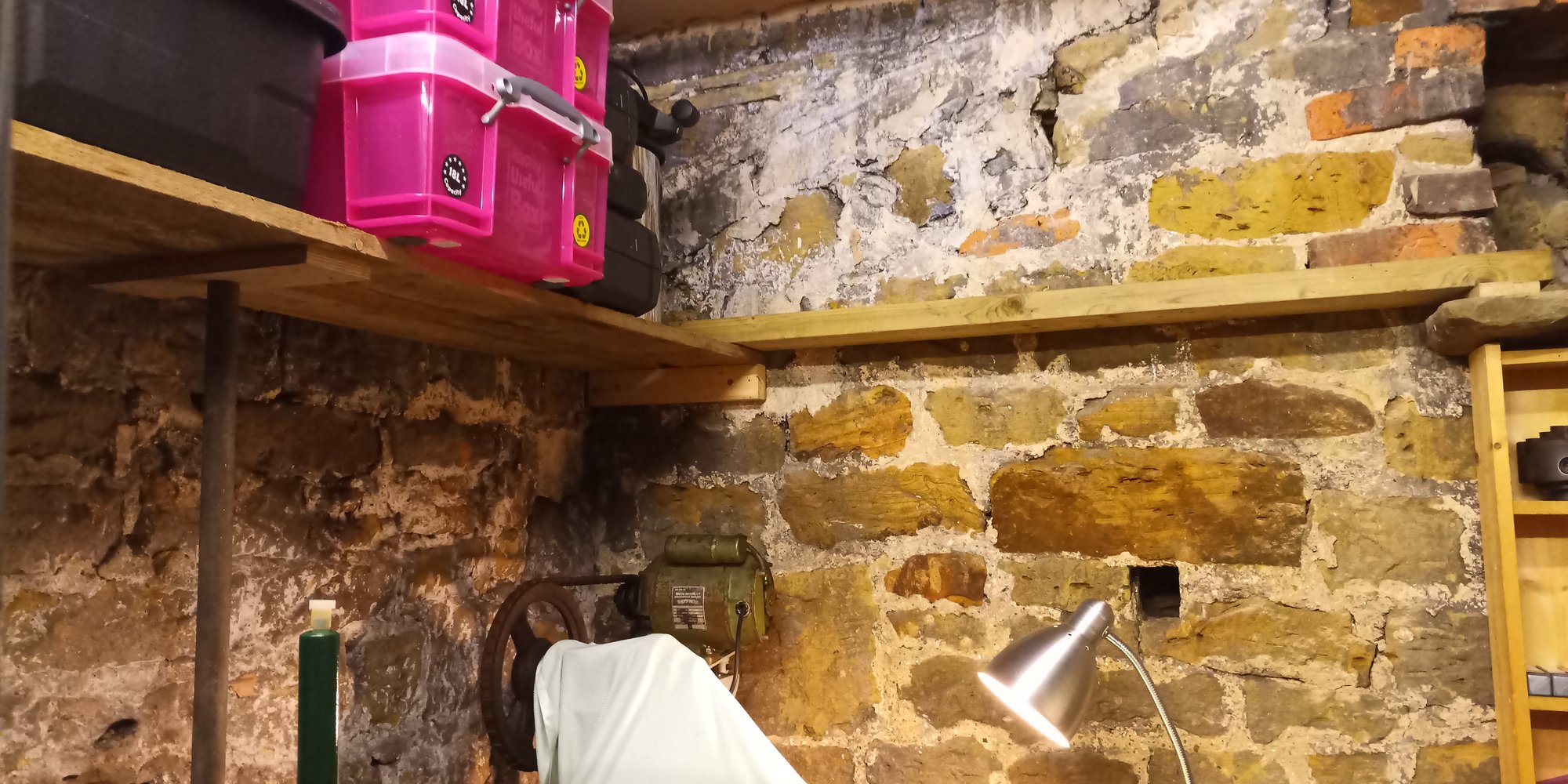

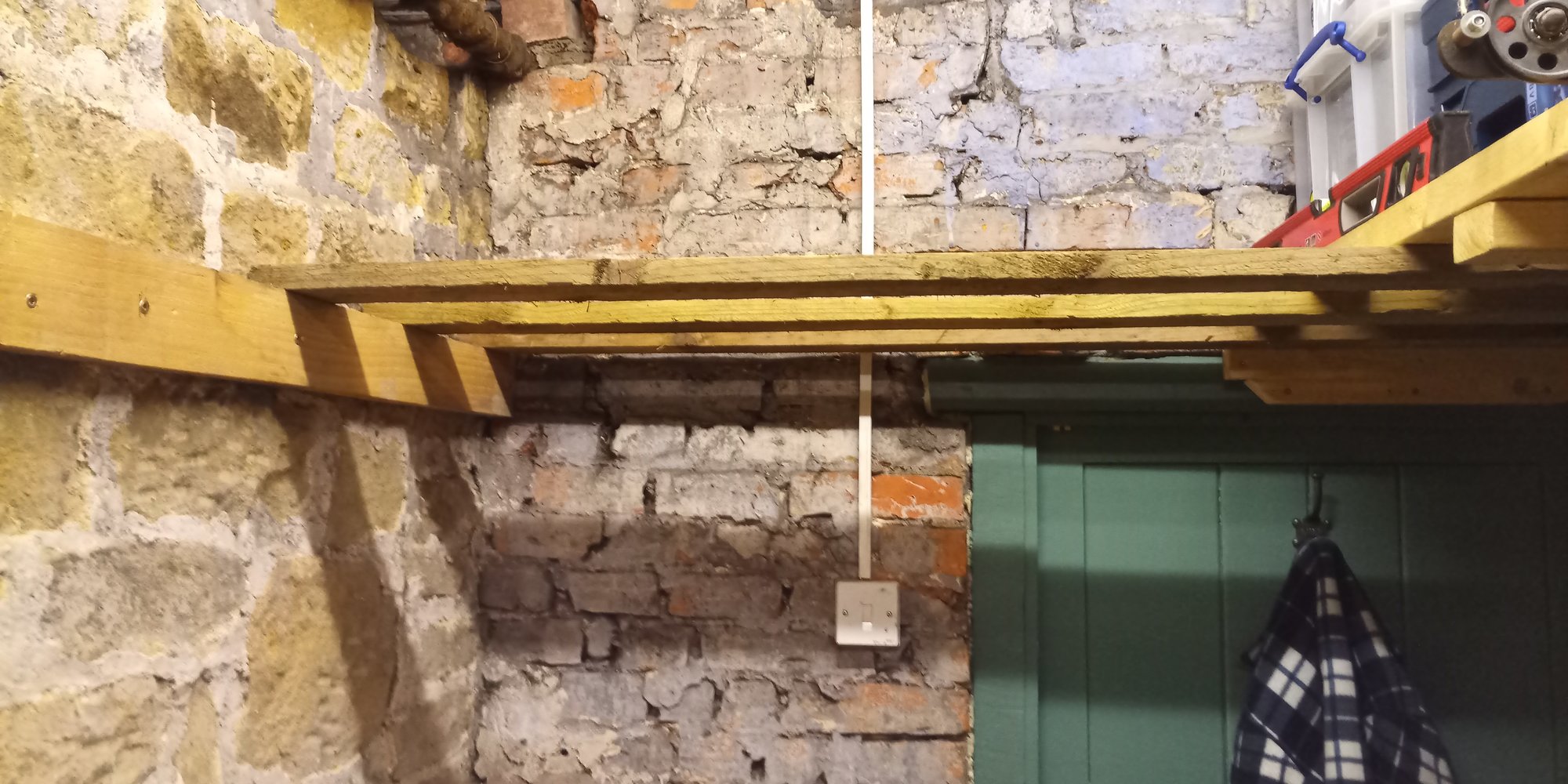

Added a bit more shelf/storage space in the workshop. Normally avoid roughsawn like the plague, but with current wood prices & such, just used some stuff which was knocking about in the garage.



[JMS1972]

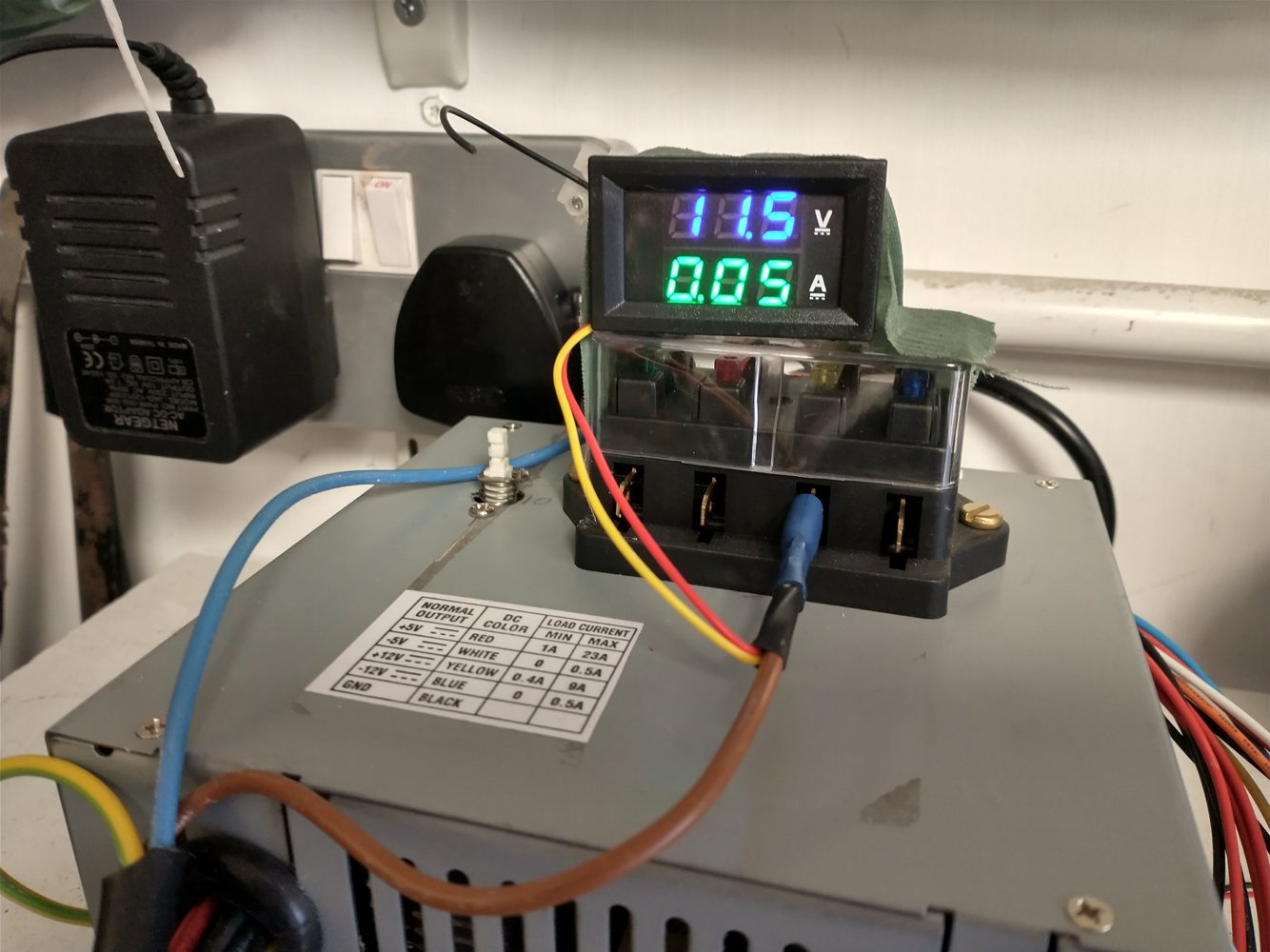

Cobbled together a power supply for the Diesel Heater from an old ATX PSU .

Worked okay but 9amps @ 12volts not enough I'll try the higher power one at some point.

Puts plenty of heat out.



[Kram]

Cobbled together a power supply for the Diesel Heater from an old ATX PSU .

View attachment 314803

Worked okay but 9amps @ 12volts not enough I'll try the higher power one at some point.

Puts plenty of heat out.

View attachment 314805

What is that aluminium exhaust ducting like for durability? Seen it on amazon and Im looking for something for my lathe extraction vent. I imagine stainless flex would be better but cant see any available.

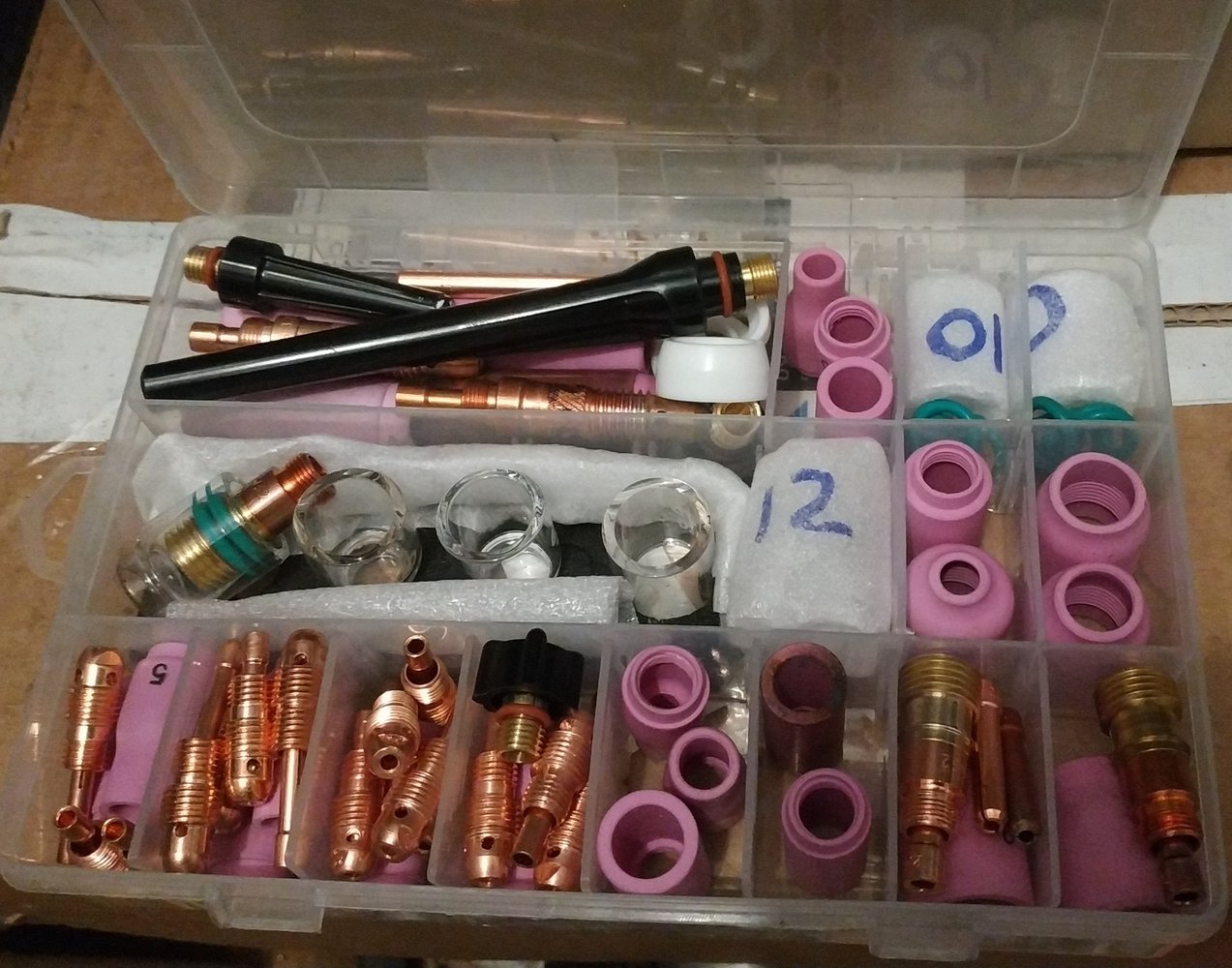

Sorted out my tig bits into one small box. Im unable to seperate the #6 glass cup from the collet body!

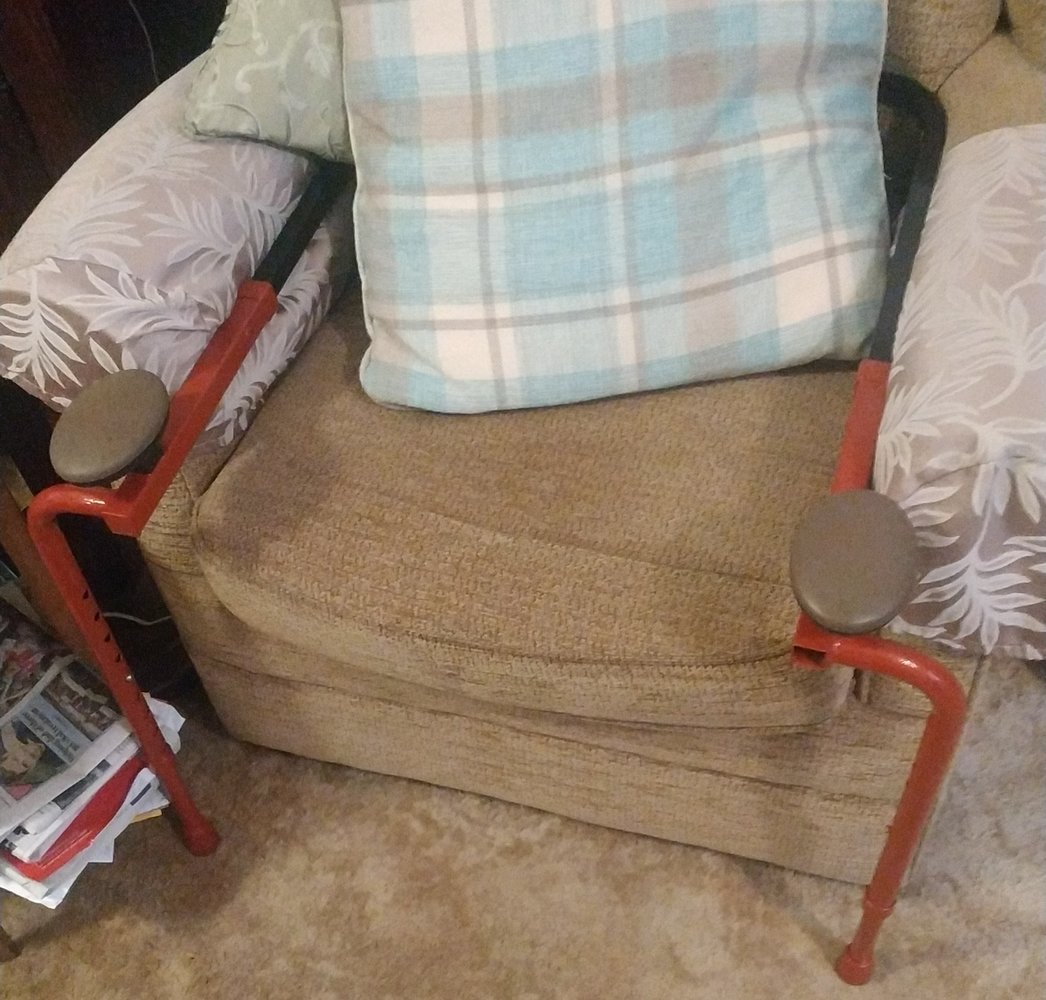

Nans chair stander got painted. Her chair is red so used the hammerite.



[JMS1972]

What is that aluminium exhaust ducting like for durability? Seen it on amazon and Im looking for something for my lathe extraction vent. I imagine stainless flex would be better but cant see any available.

Sorted out my tig bits into one small box. Im unable to seperate the #6 glass cup from the collet body!
View attachment 314806

Nans chair stander got painted. Her chair is red so used the hammerite.
View attachment 314807

No idea on the ducting I've just popped it on today to see if does anything. Bet your nan is chuffed with her chair stander.



[mtt.tr]

Cobbled together a power supply for the Diesel Heater from an old ATX PSU .

View attachment 314803

Worked okay but 9amps @ 12volts not enough I'll try the higher power one at some point.

Puts plenty of heat out.

View attachment 314805

Where does the exhaust go?



[JMS1972]

Where does the exhaust go?

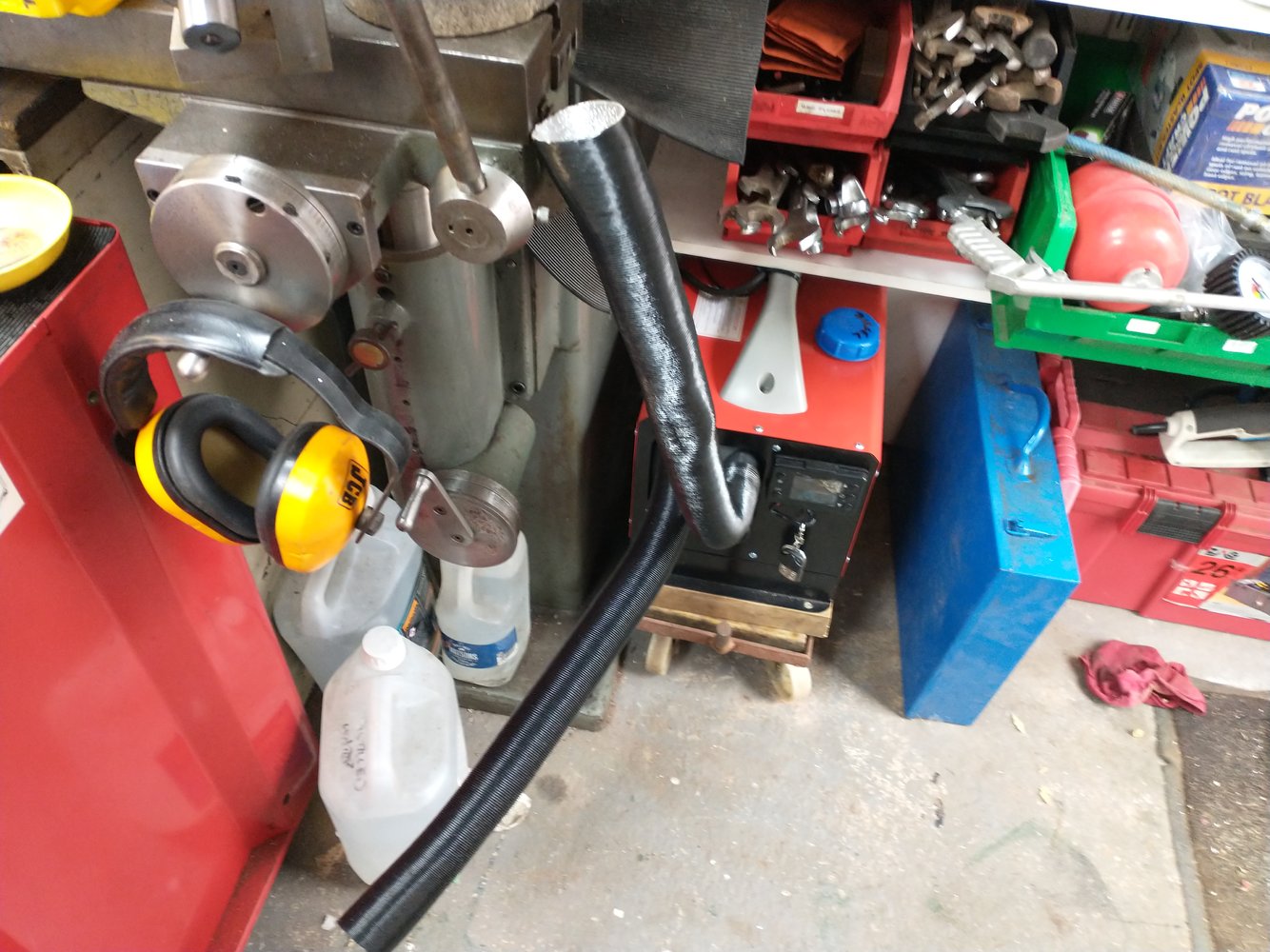

4" hole in the wall, the inlet and exhaust come out the bottom of the heater and then outside.

Bit of rock wool closes up any gaps



[blackolive (Ste)]

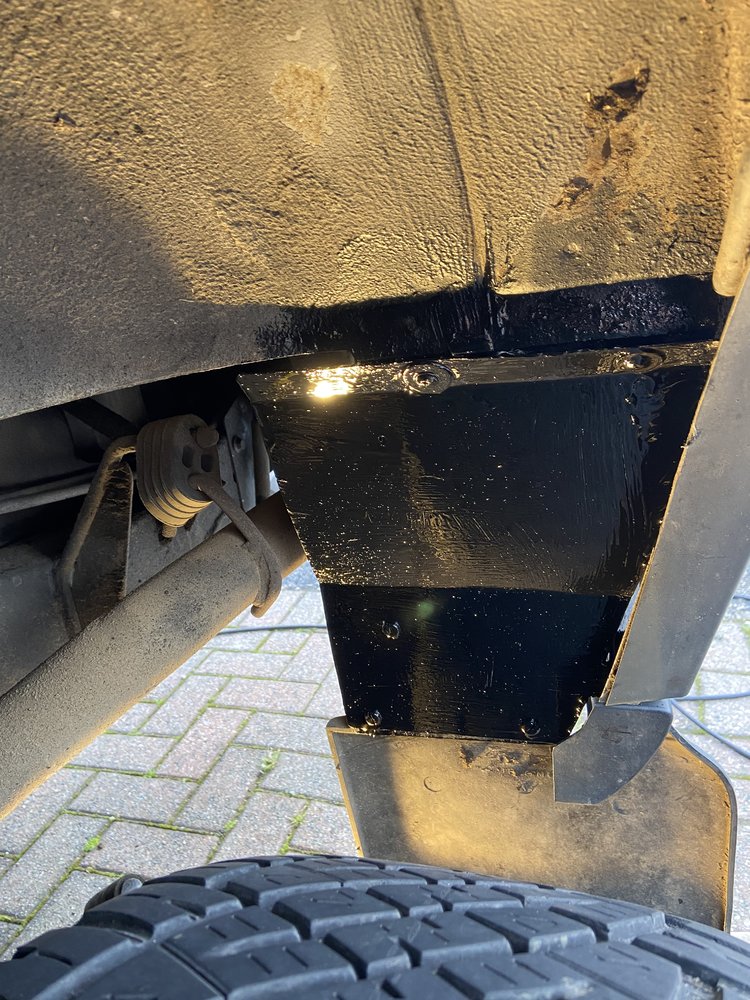

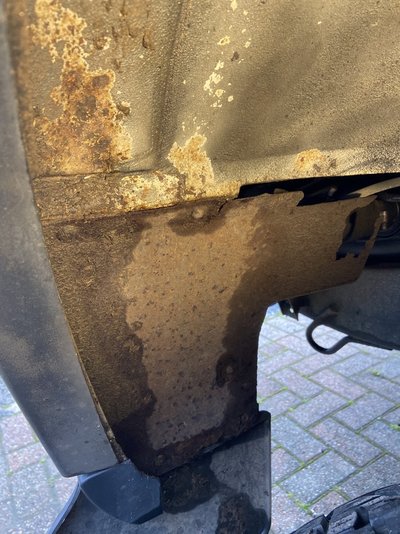

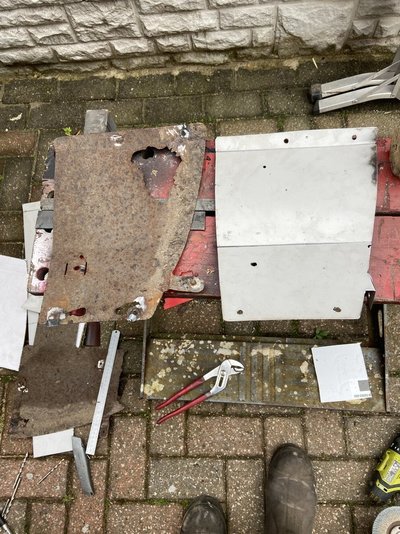

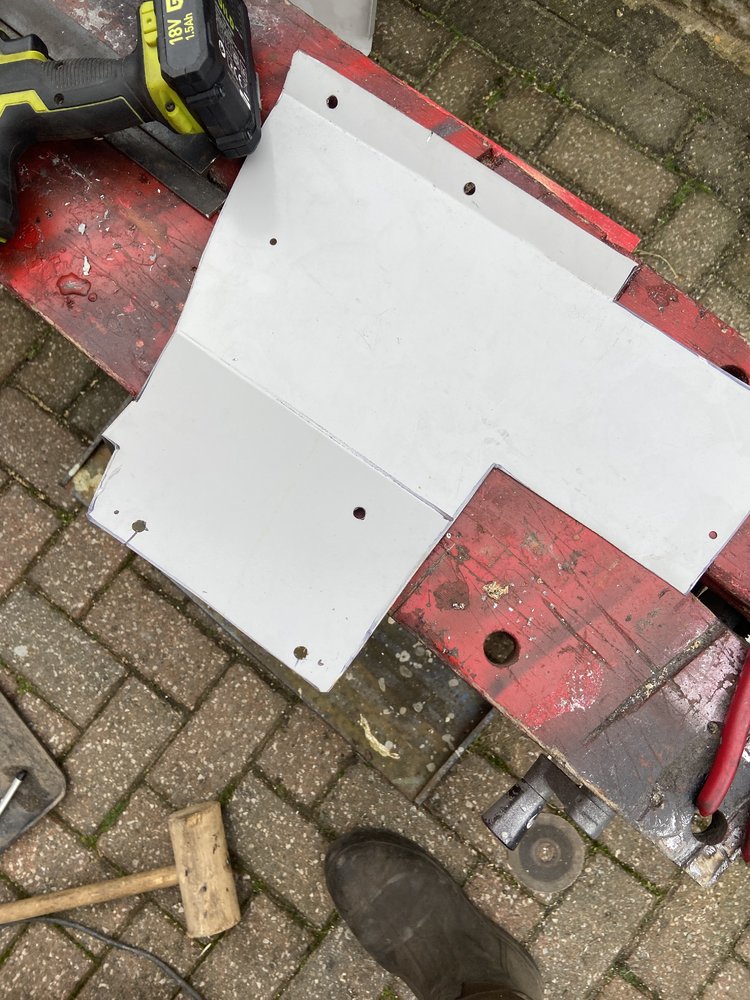

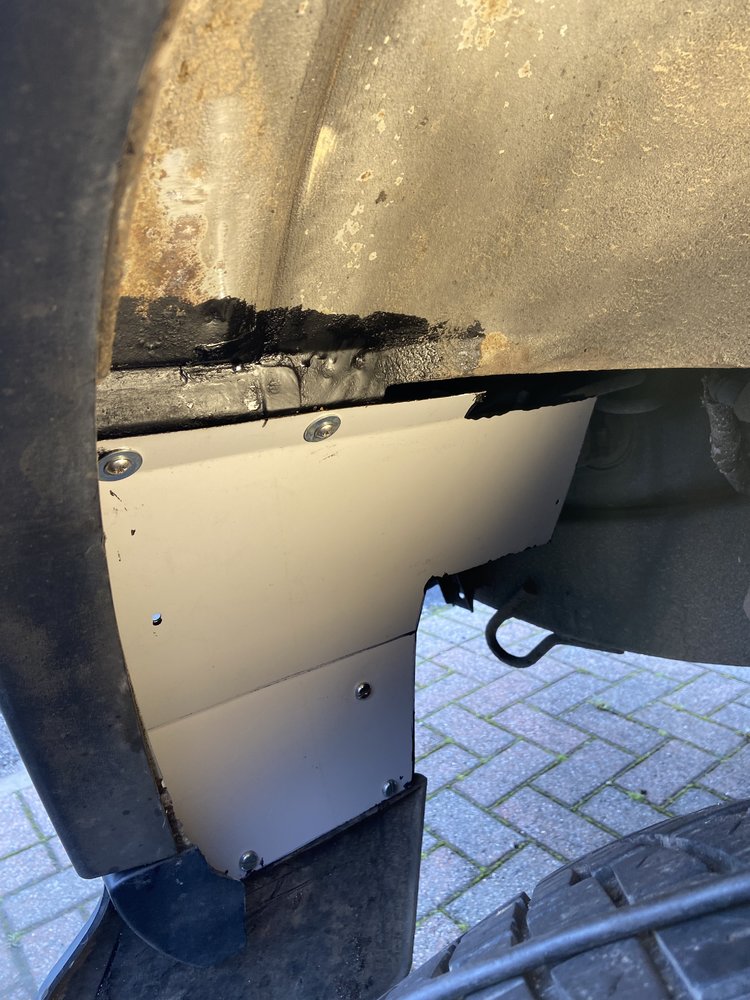

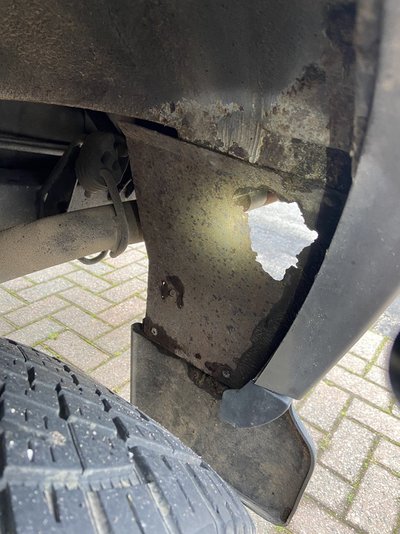

Fabbed and fitted new rear splashguards to the disco



[ukracer]

Cobbled together a power supply for the Diesel Heater from an old ATX PSU .

View attachment 314803

Worked okay but 9amps @ 12volts not enough I'll try the higher power one at some point.

Puts plenty of heat out.

View attachment 314805

Could you put together a tutorial of the bits you used if you get some time please...



[Dev]

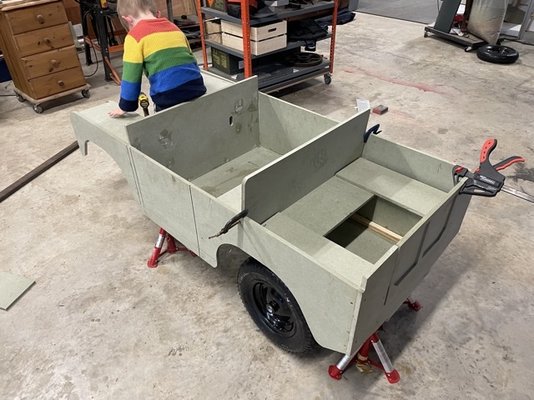

Not all done in one day but reached a milestone in putting the sides on so now it looks like something.



Coming soon to the ‘stuff you have painted today’ thread hopefully.



[JMS1972]

Could you put together a tutorial of the bits you used if you get some time please...

That was a bit if a hacked mess.

The simple method (which I'll use for my third attempt!) Is buy one of these.

Pardon our interruption...

And one of these.

Mini Digital Voltmeter Ammeter - 100V 10A - Voltage Current Meter w/ LED Display | eBay

Display: 0.28" Red + Blue Dual LED Display. Working current: <20mA. Size :48x29x20 mm. Current: Range x 0.08%+Two decimal point. Red line (thick): IN+, current input. Refresh rate: 3hz. You get 1 of -.

www.ebay.co.uk

(Make sure you get one with a built in current shunt.)

And wire up as per the diagram in the second advert.



[Olderisbetter]

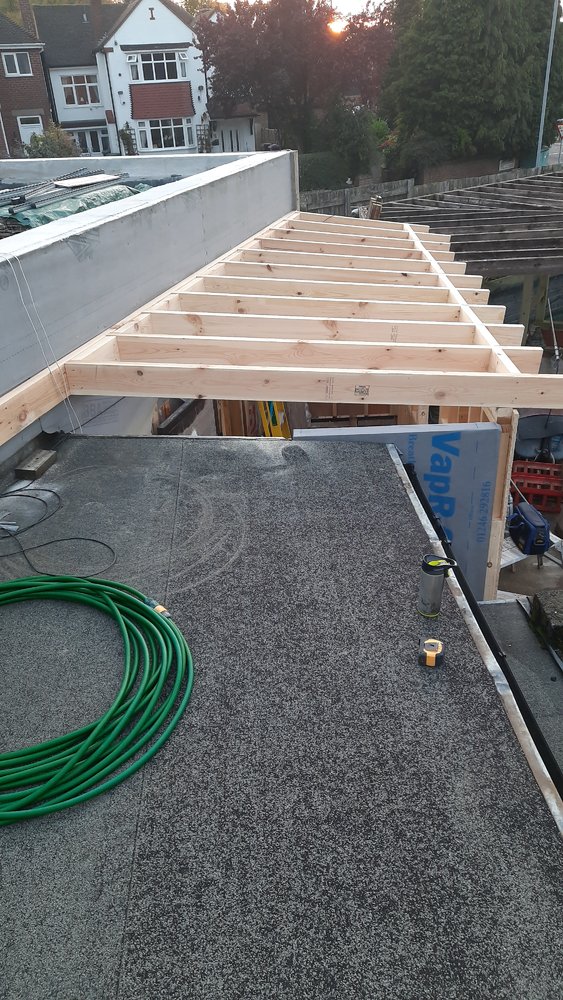

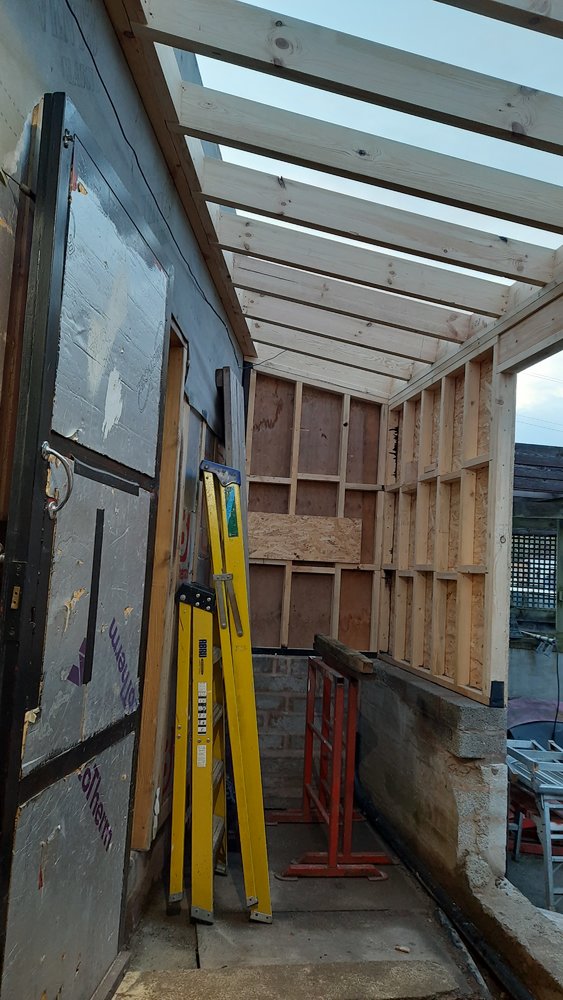

I got the roof beams on the "corridor" fitted



[DAPPH]

What is that aluminium exhaust ducting like for durability? Seen it on amazon and Im looking for something for my lathe extraction vent. I imagine stainless flex would be better but cant see any available.

Sorted out my tig bits into one small box. Im unable to seperate the #6 glass cup from the collet body!
View attachment 314806

Nans chair stander got painted. Her chair is red so used the hammerite.
View attachment 314807

Washing up liquid and a fine needle ...eye first using long nose pliers down between the ring soap and glass every so often ?

Could you use the concertina alu extractor duct like wot Wickes sell a 500 mm 3 inch dia compressed length opens IIRC to just over a metre Product code: 167648
This is not quite what I'm talking about ..I got my ducting 8 yrs ago



[KemppiFrog]

So, I Swiss client showed me a pic of a wooden door designed by a Vietnamese artist and could I use it for inspiration for a grill. Something to do with Lotus flowers. Well, they are mythical, so scratched my head and made this:

The verticals are round bar and the horizontals square. The 'Lotus' flowers are thin sheet. I made up a male mould from layered bits of plate, then faired it into a sort of egg shape. Then made a female shape, so in the press it produced a a sort of elongated cup. Trimmed off, three of them made the buds/petals, round a half dome formed over a ball hitch.
They really liked it, so asked for a bedroom suite in the same style:

Even the lights and a couple of chairs out of shot and the mirror.
Then got busy on the gates and garden railings (no pics)



[DennisCA]

Made, well no, repaired (with help from the internet). My new to me oscilloscope had only one working channel, it is supposed to have two. It turned out to be a simple break in the solder joint behind the channel connector. Obvious once I had it apart.

But due to me not knowing all the tricks to taking the thing apart I dismantled it excessively. I learned by taking it apart that far, I could simply have removed a lid and left it mostly intact. The board with the connectors was inside a steel case that was soldered together, turns out I could have just desoldered the lid and gotten access to the board directly without removing it from the scope body. Instead I removed the whole case and also the attached control panel board.

Oscilloscope, the silver part on the bottom contains the board I wanted to inspect:

Control board with case. The board I want to access is inside the case, they are connected with a 3 pin band cable and I couldn't figure out how to get them out separately.

Well I opened up the case and found the bad solder joint:

I put everything back together and nothing worked as it should! I was really biting my nails and worrying about what had happened, my initial thought was I'd fried something, perhaps via ESD even though I was careful to ground myself and also use an ESD mat.

Fortunately someone tipped me that it could be that band cable I had been wrestling around, they where sensitive and can break inside without it being visible. A quick check wth a multimeter showed one of the three had indeed broken. I wondered if just one broken cable between the control panel and this board could cause that much trouble...

I put in a replacement cable and soldered it to the other board to test it (by now I also figured out I could access the board without removing it). And sure enough everything started working properly again!

I put the lid back on and left the cable I had moved. I am not sure if it will be an issue with the cable going there or not. The whole board is enclosed like this, even certain components are closed from each other in order to protect it from electromagnetic interference. But this shouldn't be transmitting the actual signal anywhere, it just connects the front panel to the signal board.

And now I got two working channels, here I am testing a 3khz sine wave I am feeding from my PCs headphone socket.

I also tried playing oscilloscope music via my PC (check youtube) and sure enough it worked, pretty cool that audio signals can make visuals.



[Anguz]

Did you need a scope to fix it ?



[DennisCA]

Just my 20 year old cheapo DMM



[DAPPH]

Nice machine , when you sort things like that with no diagrams it can be a good feeling .

With luck you should be able to still locate test & service schedule sheets or even a complete hand book that gives voltage test points in each building block of the circuit boards somewhere on the internet .
