The xmas cut-50 - think I know what's wrong...

[skotl]

what value are the caps 102uF ?

They're a "standard". A 102 is 1000pf (1nf) - See here for more info; http://www.csgnetwork.com/capcodeinfo.html

Must admit that I had never heard of these codes before today, either. Given that pretty much all of these coded options on ebay are from Chinese sellers, I suspect it's mainly used in Chinese manufacturing (happy to be corrected, though!)



[the snooper]

99p for 5 here
http://www.ebay.co.uk/itm/High-volt...mponents_Supplies_ET&var=&hash=item4ac265e5da



[skotl]

99p for 5 here
http://www.ebay.co.uk/itm/High-volt...mponents_Supplies_ET&var=&hash=item4ac265e5da

Aye... but not at 15KV...



[the snooper]

Aye... but not at 15KV...

arhhh for some reason I forgot they were 15kv



[skotl]

arhhh for some reason I forgot they were 15kv

Imagine the sparks



[the snooper]

here
http://www.ebay.co.uk/itm/5pcs-15KV...al_Components_Supplies_ET&hash=item256307fce7



[the snooper]

Imagine the sparks

again



[ukracer]

Imagine the sparks

THey might have run short and stuck a 20 pence one in. lol



[skotl]

here
http://www.ebay.co.uk/itm/5pcs-15KV...al_Components_Supplies_ET&hash=item256307fce7

Yeah - from Hong Kong, with delivery any time up to 5th March (by which time the replacement unit is *hopefully* going to be here). Appreciate your efforts on my behalf, tho, Snooper



[the snooper]

Yeah - from Hong Kong, with delivery any time up to 5th March (by which time the replacement unit is *hopefully* going to be here). Appreciate your efforts on my behalf, tho, Snooper

they don't usually take that long though



[ukracer]

NOt a lot cheaper and longer shpping...http://www.ebay.co.uk/itm/15KV-1000...al_Components_Supplies_ET&hash=item4ab51e50ff



[ukracer]

http://www.ebay.co.uk/itm/1000pF-0-...al_Components_Supplies_ET&hash=item19e02e22ee



[the snooper]

http://www.ebay.co.uk/itm/1000pF-0-...al_Components_Supplies_ET&hash=item19e02e22ee

Edinburgh aswell he will be taking a walk to collect them



[the snooper]

I can get 'em from RS for a tenner, 2 day delivery

you can get them tomorrow



[skotl]

you can get them tomorrow

Sorry - hadn't seen the later post before I replied to the Hong Kong one!

http://www.ebay.co.uk/itm/1000pF-0-...al_Components_Supplies_ET&hash=item19e02e22ee

Awesome! And the last one in stock, too - ordered! Thanks guys - I knew you'd all come through

Need to find out where that ebay shop is for the next purchase



[gaz1]

the principle should be the same



[skotl]

Posting a link to the conclusion (spoiler: it worked, and still is five years on!)

https://www.mig-welding.co.uk/forum/threads/it-lives.52417/



[Zinkin]

Hello I have the exact same cut 50 and that exact same green resistor flamed up on mine, which one did you replace it with ? Mine got so hot there are no words on it and only 1 black ring the other ring is there but faded and cannot tell what it was. Same board and same resistor as yours....



[skotl]

Hello I have the exact same cut 50 and that exact same green resistor flamed up on mine, which one did you replace it with ? Mine got so hot there are no words on it and only 1 black ring the other ring is there but faded and cannot tell what it was. Same board and same resistor as yours....

Welcome to the forum

Not sure exactly what you mean about a "green resistor"...?

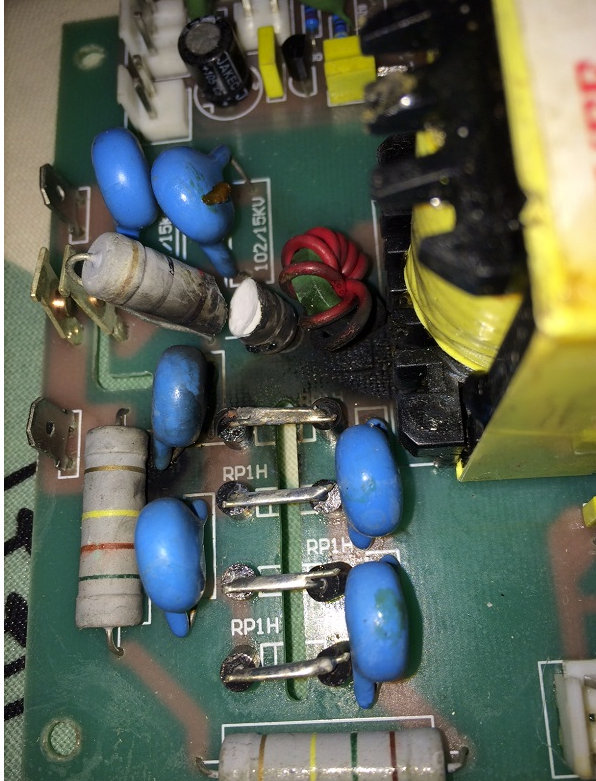

In this picture (source)...

...the big resistor that has cracked is a 1K ohm, 5W resistor. The green and red beastie to its right is a coil but that was undamaged, then below were some capacitors that I also replaced as well as four schottky diodes, once of which had gone short circuit (and almost certainly took out the resistor).

Which component do you think is blown on your board?



[Relic]

A tooth brush with some isopropyl alcohol should clean off the worst of carbon on components.
Use a hobby knife or a screw driver tip to dig burnt circuit board out.
Refill with araldite epoxy glue.
Try spark gap at 15-20 thou.
Good luck.
