Thats some boring head !
- Thread starter Kram
- Start date
Thats some boring head !
Pete.
Member
- Messages
- 14,381
- Location
- Kent, UK
They are made from Delrin Acetal, blanks I bought off DAPPH on here as a matter of fact.
They are lathe headstock gears. The plastic runs on steel without rumbling. The small er gear is also wider and is a sliding gear to select high/low (AKA back-gear).
tinman123
Putting the Extra into ordinary.
- Messages
- 1,068
- Location
- Northern Iron.
ive nearly had to use delrin a few times but didnt in the end so never have, whats it like to machine on the mill, id imagine it cuts nice and crisp.
what mill and lathe do you have.
tinman123
Putting the Extra into ordinary.
- Messages
- 1,068
- Location
- Northern Iron.
i didnt even look at what was in the mill tbh, i just seen the stop and thought that pic ill do.
but yes, its quite a nice bit of engineering there.
its a narex vhu 36, i bought it off the bay a while back, was after one for a while, on its own with the r8 arbor it cost me 200 quid.
its dear because it id be a known quality brand with the full kit in the region of 3.5k new.
im building my kit up as i go along..
it takes 16mm tooling.
altho, arc euro do one which is identical to the narex in a kit for round the 350 mark iirc, ias a thinkin of cashin this one in maybe and investing in arc's kit that id hit my tolerances just fine,and it comes in a BOX as the man once said.
ronan
Member
- Messages
- 11,399
Is it a facing head as well as boring ?
tinman123
Putting the Extra into ordinary.
- Messages
- 1,068
- Location
- Northern Iron.
it is yeah.
it can either be used manually or automatically by holding the knurled ring, it can be set at different settings itself by indexing the ring, each time it counts for a higher gearing so it moves quicker depending on what your doing.
you can set the stop to trip when it hits it but there is some math to get the nuts.
its one of those tools that ill sit in the cabinet for a hell of a lot longer than it ill see day light but its handy when you do want it.
it ill do the likes of a cir clip groove in a part, face it, internal or external boring or boring out to size so covers a fair few bases.
thats a 10mm boring bar in that pic that i made a reducing bush for from 16mm to 10mm so it leaves me i can bore anything from 10mm up to 300 odd or whatever the max of that tool is.
i have bored cir clip grooves before with an ordinary boring head but its a pita.
this thing has 2 different movement adjustments, one for fine at .001 and another for quicker indexing with each revolution = 2mm.
its a fine bit of engineering ill give it that.
as someone here said before, when it comes to tooling, once you buy a mill your doomed.
it can either be used manually or automatically by holding the knurled ring, it can be set at different settings itself by indexing the ring, each time it counts for a higher gearing so it moves quicker depending on what your doing.
you can set the stop to trip when it hits it but there is some math to get the nuts.
its one of those tools that ill sit in the cabinet for a hell of a lot longer than it ill see day light but its handy when you do want it.
it ill do the likes of a cir clip groove in a part, face it, internal or external boring or boring out to size so covers a fair few bases.
thats a 10mm boring bar in that pic that i made a reducing bush for from 16mm to 10mm so it leaves me i can bore anything from 10mm up to 300 odd or whatever the max of that tool is.
i have bored cir clip grooves before with an ordinary boring head but its a pita.
this thing has 2 different movement adjustments, one for fine at .001 and another for quicker indexing with each revolution = 2mm.
its a fine bit of engineering ill give it that.
as someone here said before, when it comes to tooling, once you buy a mill your doomed.
Pete.
Member
- Messages
- 14,381
- Location
- Kent, UK
It machines lovely using razor sharp hss tools with a high top rake and steep chip breaker. If you can hold it well enough to take a heavy cut you can curl the chips so that they come off in tight curls which makes them easy to clean, otherwise you get stringers and lots of them. I make good use of my numatic vac when machining plastic.
I have a Herbert 0V mill, a Denford 280 synchro lathe and a Monarch 10ee lathe too.
roofman
Purveyor of fine English buckets and mops
- Messages
- 12,166
- Location
- North West with water on 3 sides

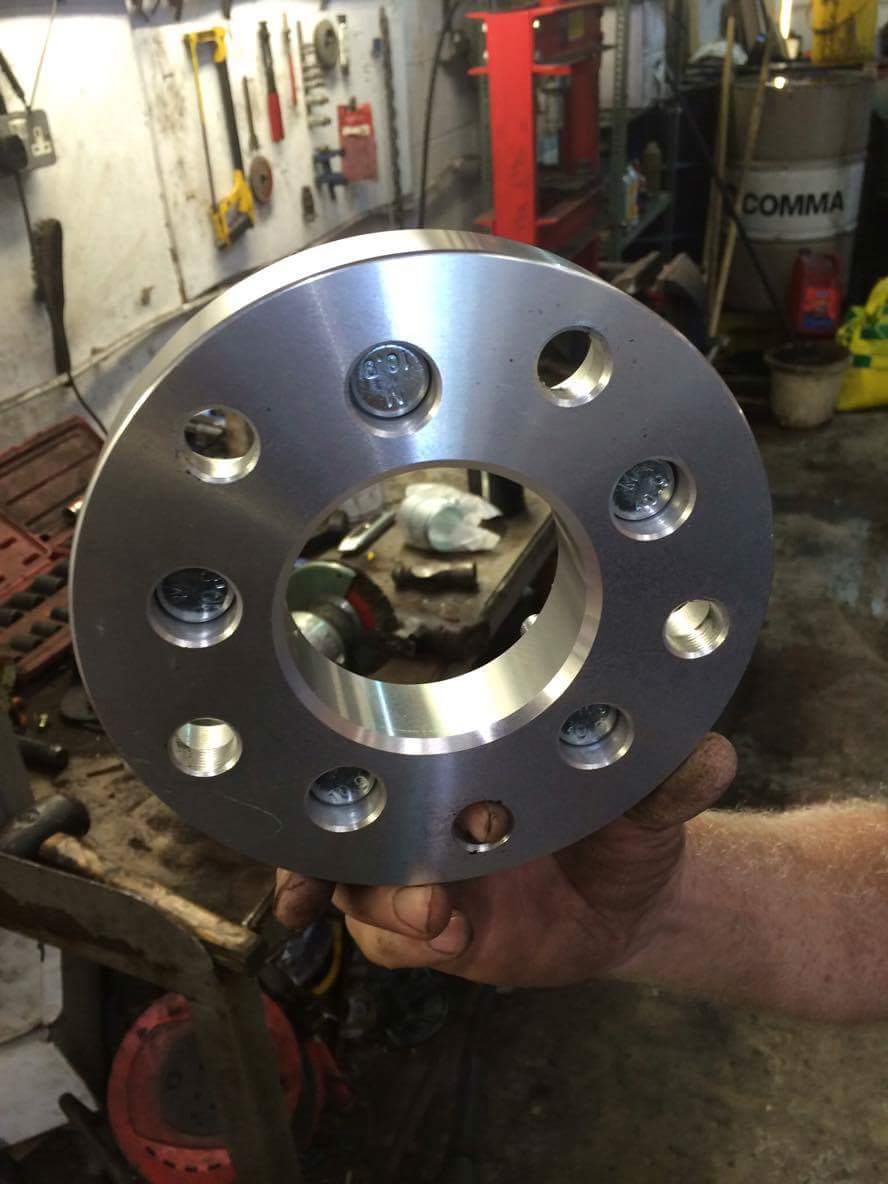

How did you hold them bad boys..inside or outside? 3 jaw or 4?I was skimming 5mm off a couple of wheel spacers t'other day:
View attachment 89965

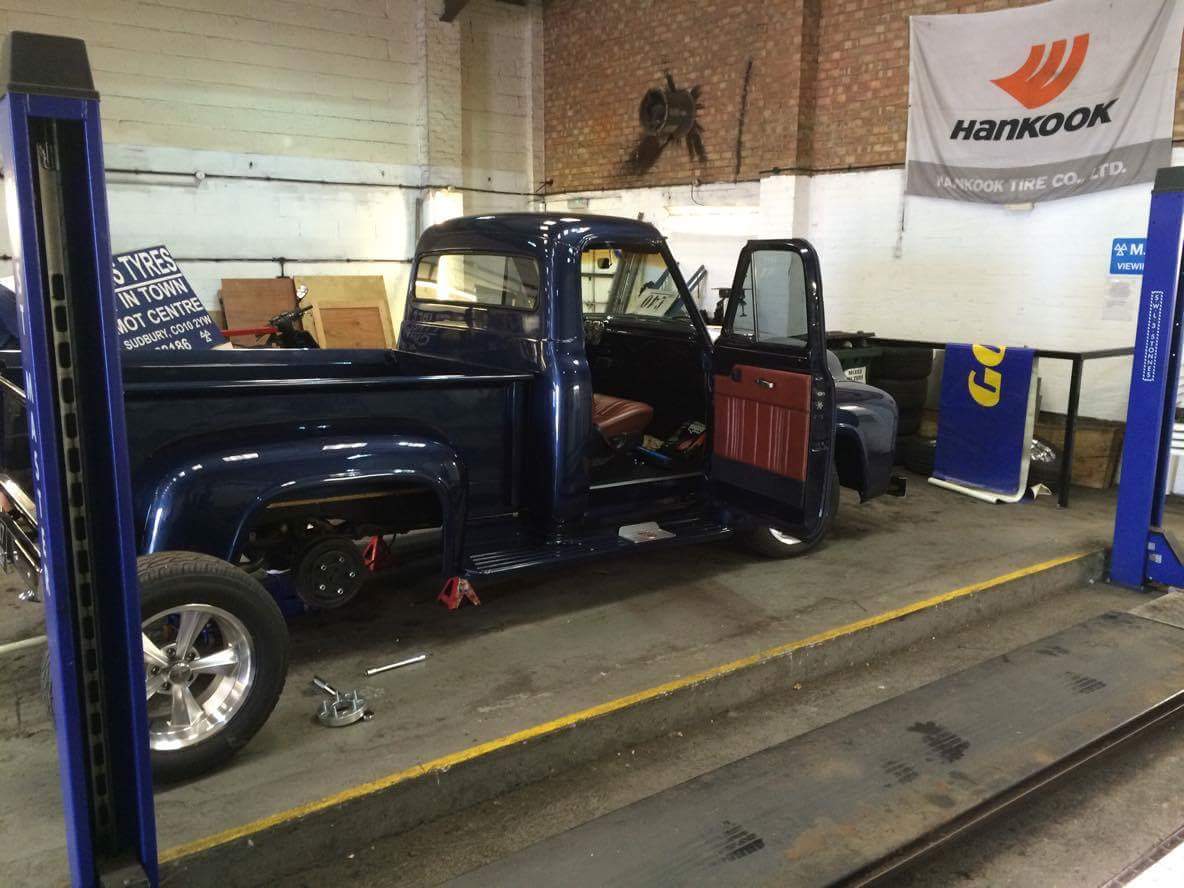

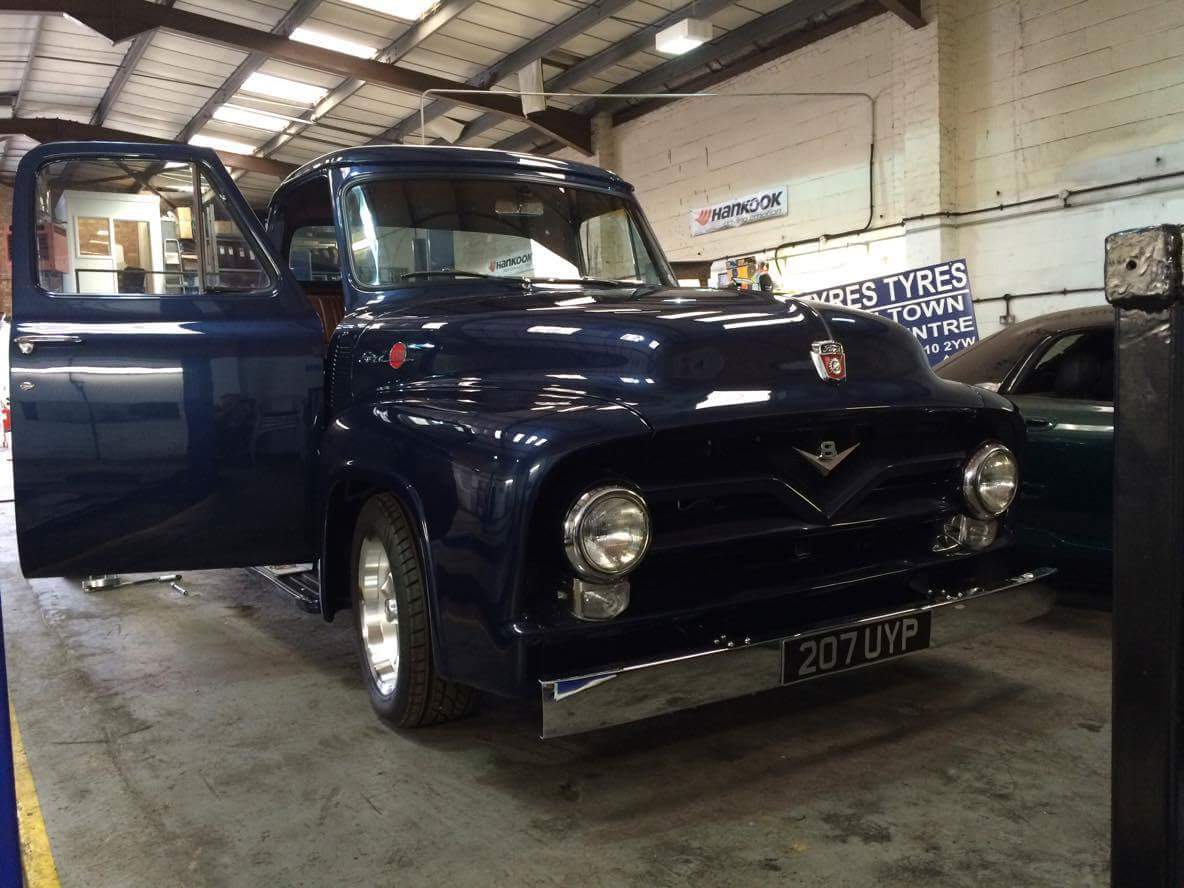

I didn't take an after picture, but just look at what they came off of:View attachment 89966 View attachment 89967
Maker
Most folk just call me; Orange Joe
- Messages
- 10,487
- Location
- Don't ask questions
Outside in a 4 jaw with the studs pressed out. Outside as I had to redo that leading edge on the hole and 4 jaw as none of my three jaws are big enough (And they're also all horribly worn
). Luckily the studs came out or it would have meant skimming and drilling my faceplate, then a harder job getting them centered.
brewdexta
The biggest tool in the box
- Messages
- 5,604
- Location
- UK
Was it the 4 jaw self centreing or the indie?
Maker
Most folk just call me; Orange Joe
- Messages
- 10,487
- Location
- Don't ask questions
Indie, the self centering wasn't big enough to get it on the outside. Well, it might have been if the jaws were hanging out of the chuck body a fair way, but it doesn't look very safe and I didn't fancy swapping to the outside jaws
. I needed centering practice anyway.
Maker
Most folk just call me; Orange Joe
- Messages
- 10,487
- Location
- Don't ask questions
I thought as much, that's why I didn't
.
tinman123
Putting the Extra into ordinary.
- Messages
- 1,068
- Location
- Northern Iron.
you up about 1000 rippums or faster.
ill try n keep that in mind for when i do use it, its a good hard but flexible plastic.
the monarch are a solid lump of a machine, what kind of a swing has it?.
never seen a denford, viceroy i take it, lathe, looks a handy solid one.
i know little about the herberts but they were a strong machine too, dose something tell me that some of them if not all had a kind of a special taper.
i could be imagining that tho.
ronan
Member
- Messages
- 11,399
Brown and sharpe taper ?
tinman123
Putting the Extra into ordinary.
- Messages
- 1,068
- Location
- Northern Iron.
it could be ronan, i vaugley remember something about some lad somewhere on the net looking for one to fit his machine and wasnt having any luck but i only randomly came across that while looking for something on r8.
what is the brown and sharp taper when its at home?.
what is the brown and sharp taper when its at home?.
ronan
Member
- Messages
- 11,399
I am not sure tinman, the only ones i have used are r8, morse taper, and the international tapers eg 30int. Others listed in the link below are Jacobs, jarno and brown and sharpe.
http://littlemachineshop.com/reference/tapers.php
Pete.
Member
- Messages
- 14,381
- Location
- Kent, UK
The Herbert is the smallest vertical they do just 6" in y and 12" in x. Yes it had a bespoke taper but it's not converted to R8 so tooling is no issue. Original collets can only be found at the end of rainbows and even then they came with just 6 imperial sizes AFAIK.
The Denford Viceroy will swing 11.5" and the Monarch about 1/2" more but a far better lathe. Hardly surprising since it's 3x the weight and a new one today would cost £100k
The Denford Viceroy will swing 11.5" and the Monarch about 1/2" more but a far better lathe. Hardly surprising since it's 3x the weight and a new one today would cost £100k
